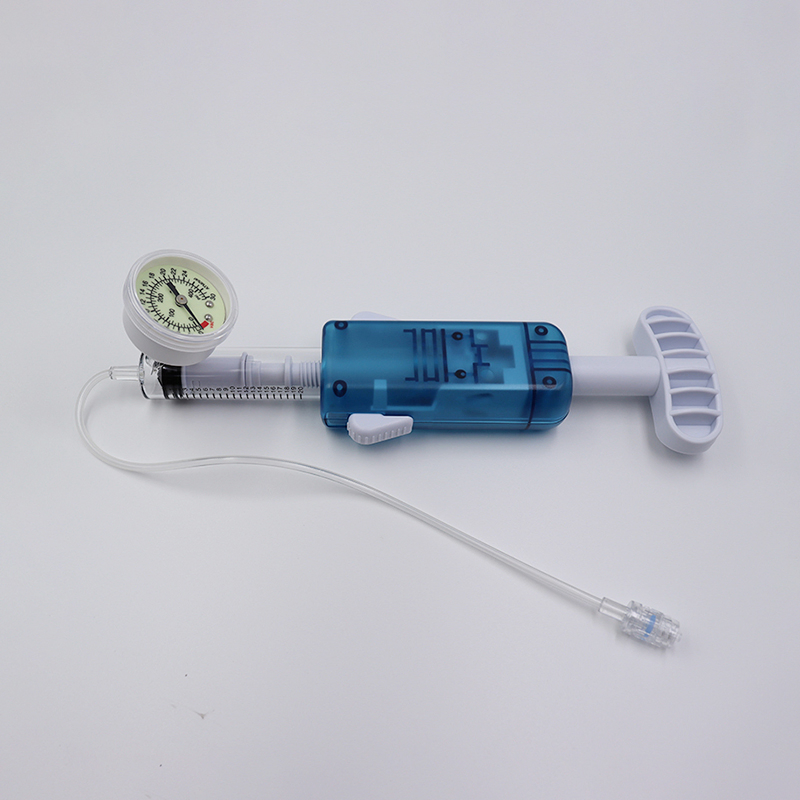

Angioplasty Ptca Kit Balloon Inflation Device with Stopcock

📋

Basic Overview

Model NO.

TSBID01

Material

Plastic

Feature

Reusable

Certification

CE, FDA, ISO13485

Group

Adult

Sterilization

Product Name

Inflation Device

Application

Cardiology Intervention

Volume

20ml

Pressure

30bar

Origin

China

Package

PE

🔍

Product Description

Medical Disposable AI30/40atm Balloon Inflation Devices

Main Product Type: AI30, AI40

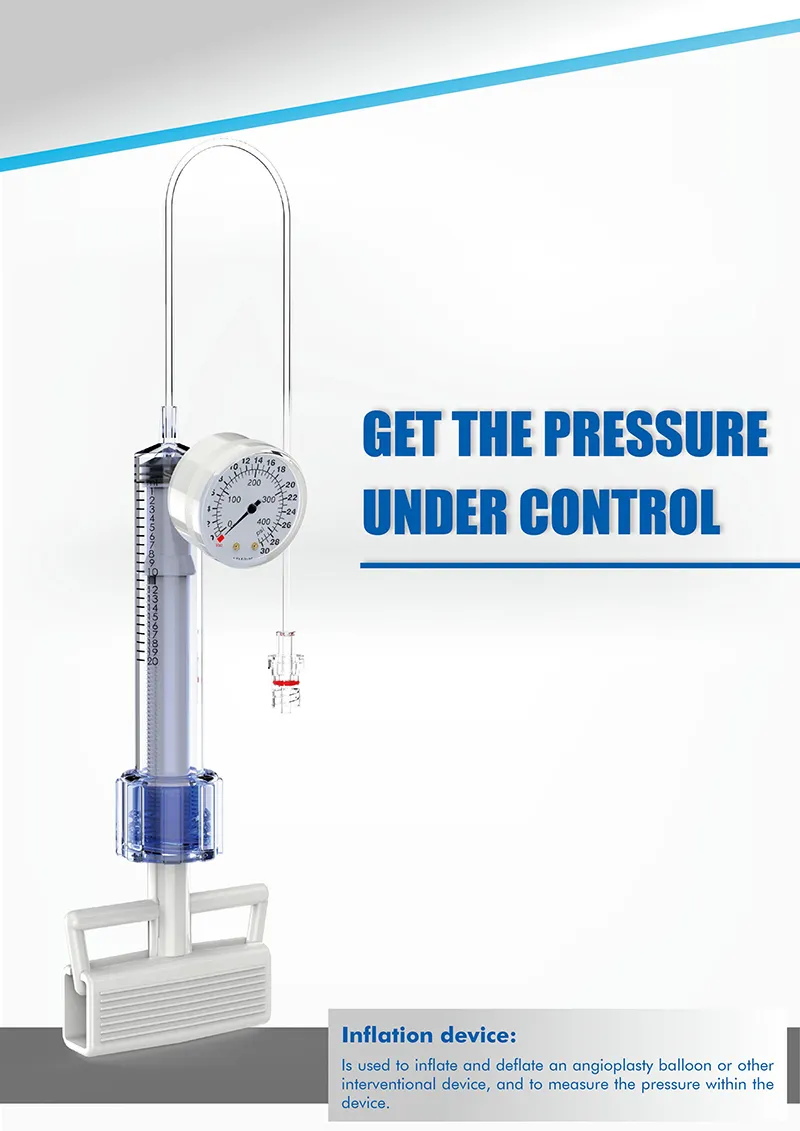

Application Scope: The inflation device connects to the balloon catheter during intervention operations. It provides continual liquor pressure to expand the balloon catheter and assists in its removal from the vasculature by releasing pressure to zero. Primarily used for expanding vessels or stents in cardiology interventions.

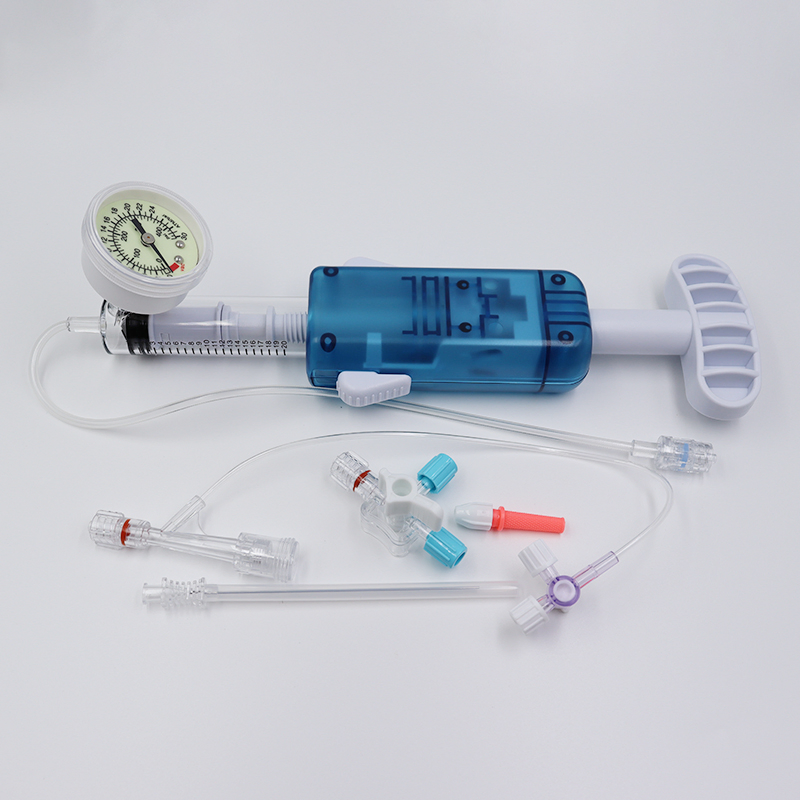

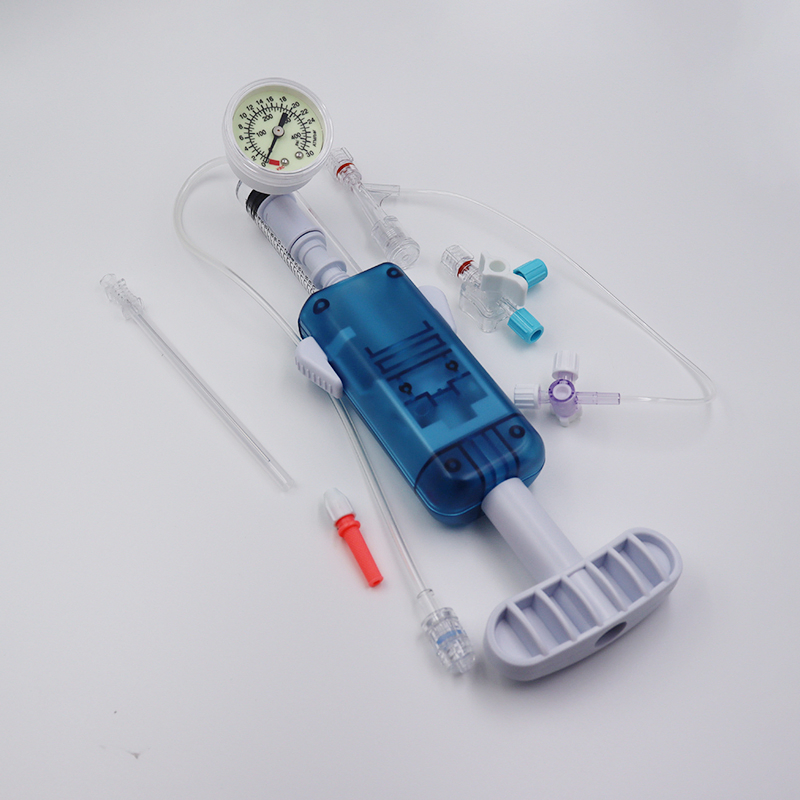

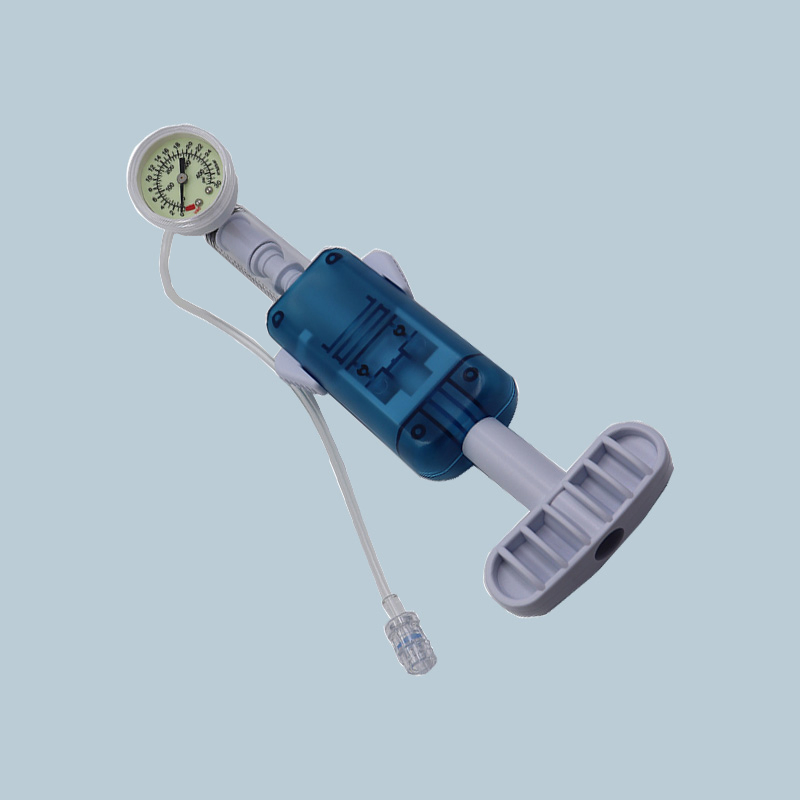

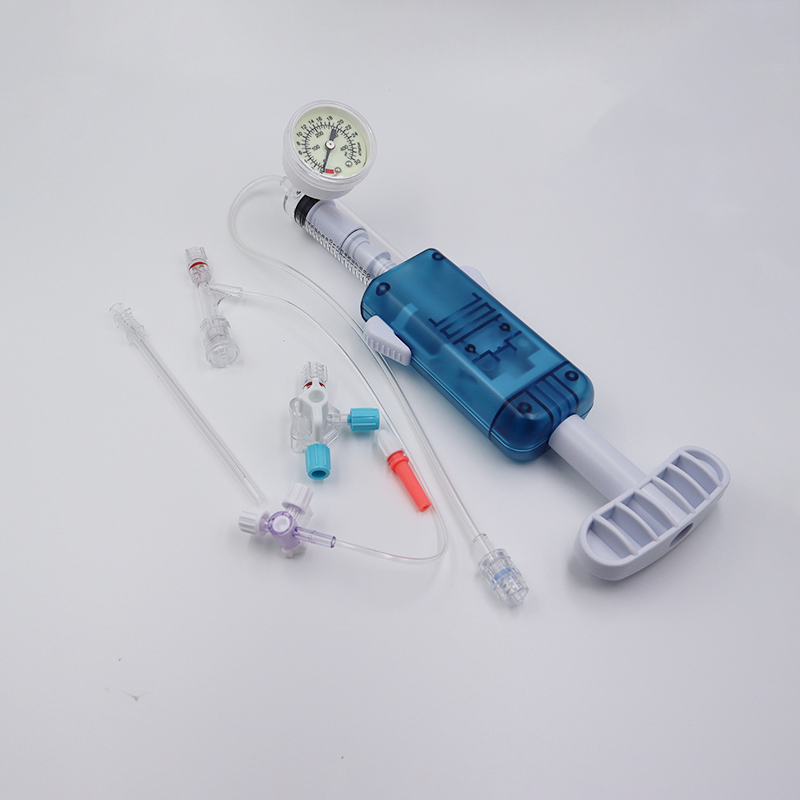

Composition: Composed of a pressure gauge, sleeve, plunger, handle, extension tube, and stopcock.

🖼️

Detailed Photos

⚙️

Product Parameters & Features

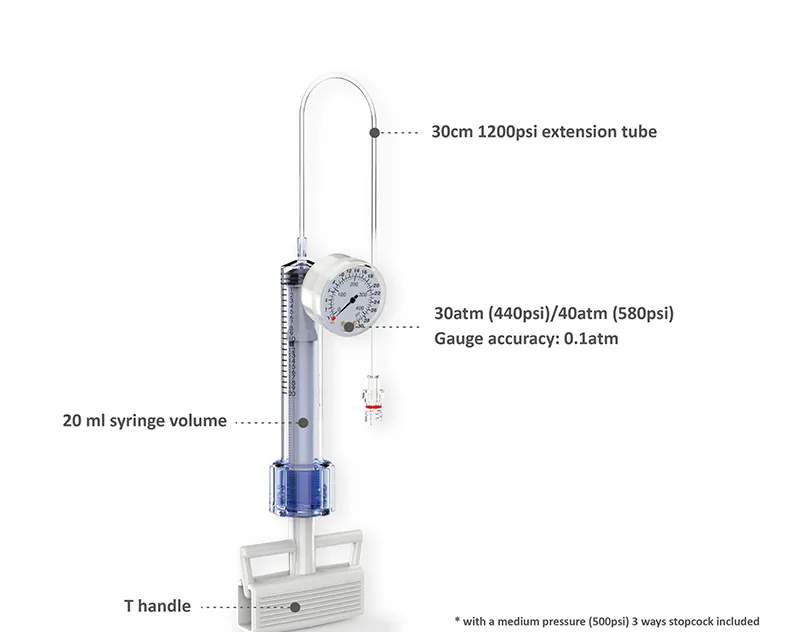

Pressure Capacity: 30atm (440psi) / 40atm (580psi) with 0.1atm accuracy.
Volume: 20ml syringe volume.
Extension Tube: 30cm length, rated for 1200psi.
Luminescent Gauge: Easy and accurate readings in dimmed lighting conditions.
Clear Barrel: Polycarbonate barrel for better visualization of air bubbles.
Stopcock: Medium pressure (500psi) 3-way stopcock with vented cap.
Safety Design: 5ml safety space to minimize air bubbles.

💡

Instruction For Use

1

Inflation: Pull the trigger on the T handle to return the plunger to resting position (0 ATM). Rotate handle clockwise to increase pressure to the desired level.

2

Deflation: Pull the trigger and pull the T handle back to generate negative pressure. Release the trigger to lock in the negative pressure position.

Note: Pressure must be reduced to 25 ATM or lower before using the quick release mechanism. If the gauge does not display pressure, discontinue use immediately.

📂
