Product Description

Basic Specifications

Model NO.

my-IPR III

Material

Stainless Steel

Water Way

Inner Channel

Usage Times

Non-Disposable

Application

Adult, Child

Max Speed

5000min/Rpmpiece

Noise

Less Than 68 dB

Autoclavable

134°C

Capacity

3000PCS/Month

Technical Parameters

Professional types of Orthodontic Instruments for precise dental applications.

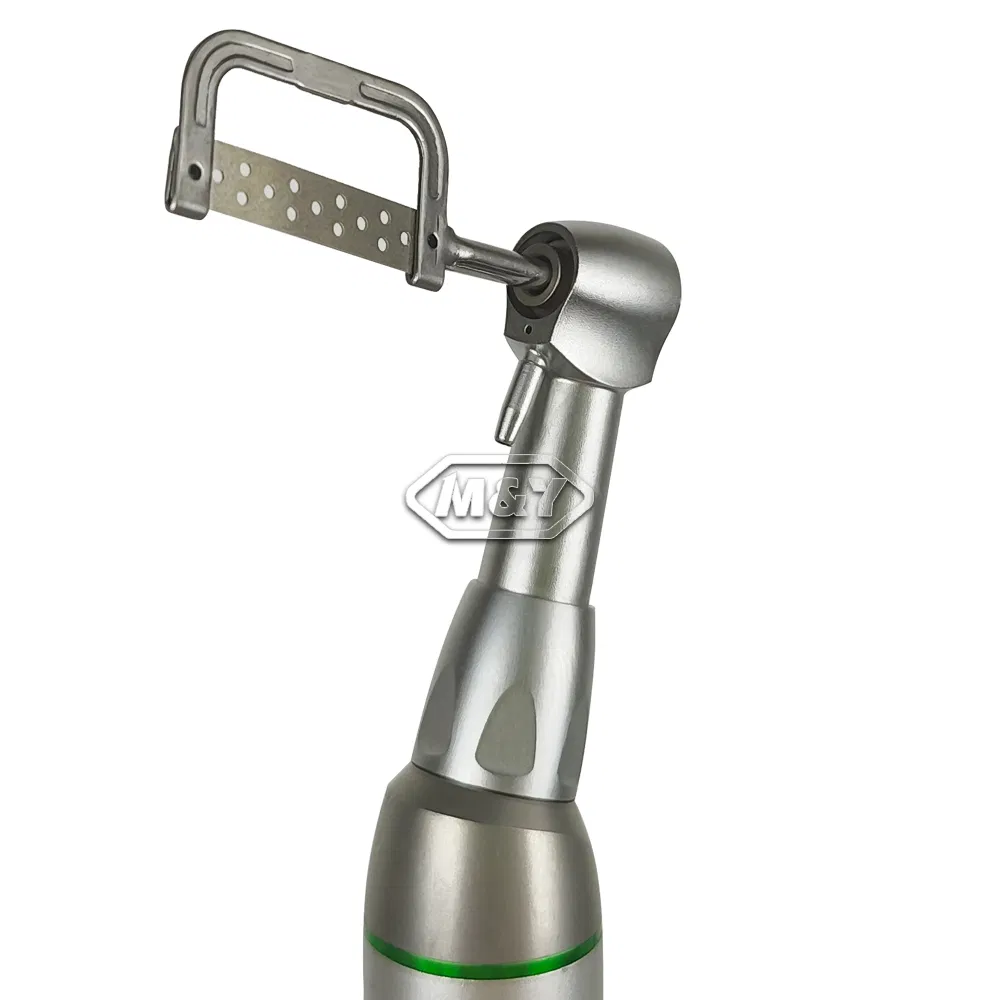

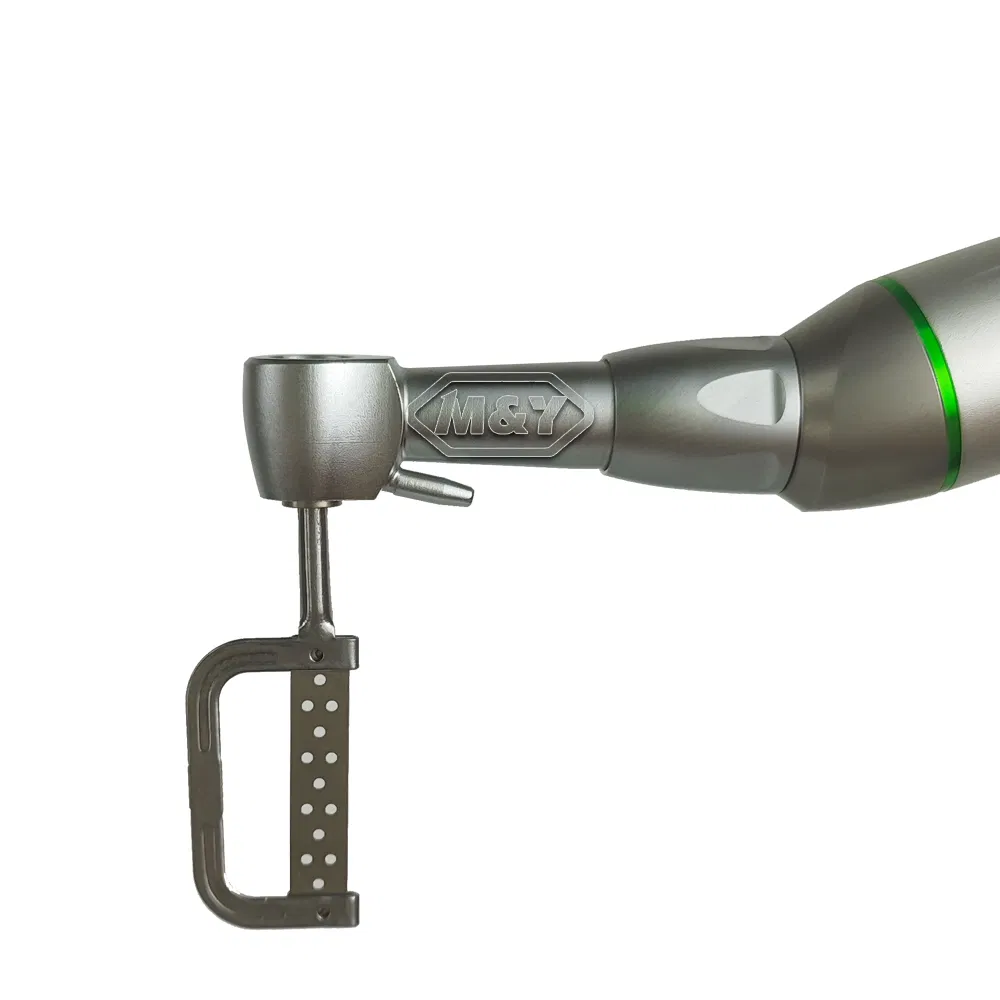

Product Name	Dental IPR System	Materials	Metal
Max Speed	5000min/rpm	Noise	≤68 dB
Color	Silver	Warranty	1 Year

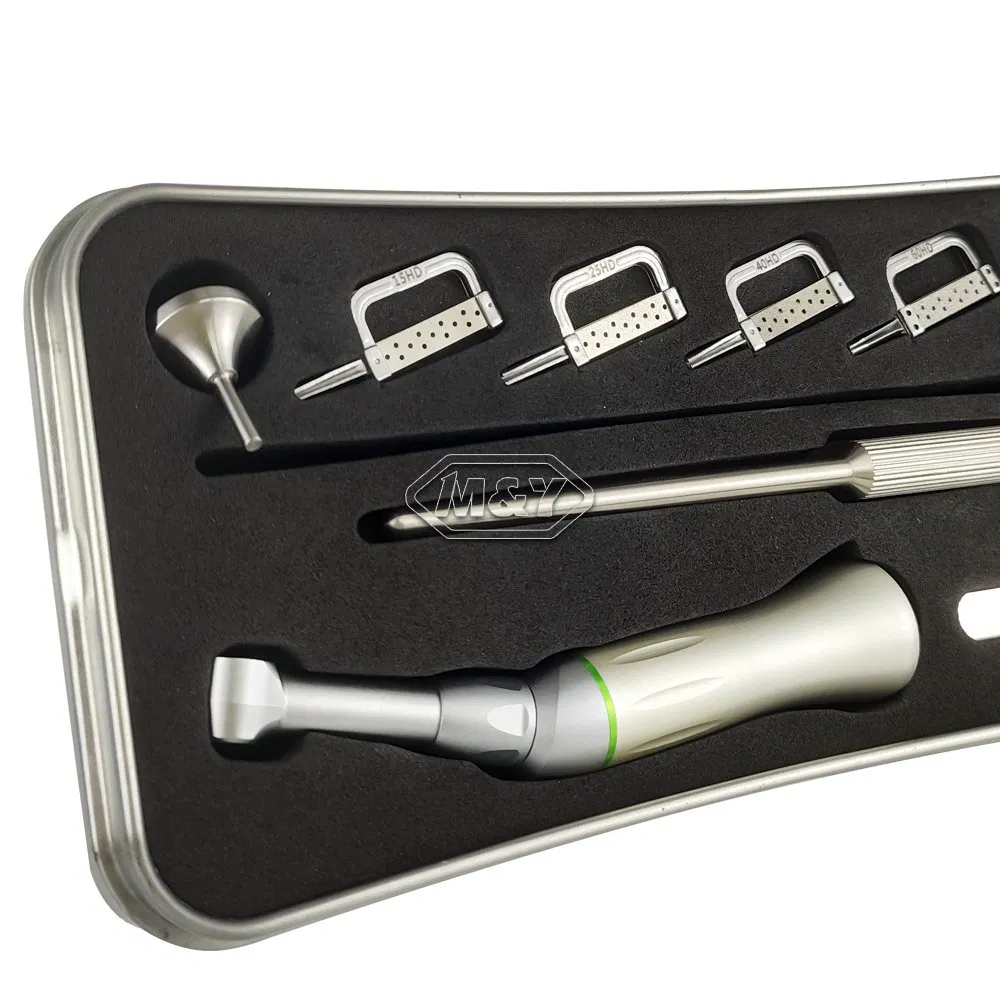

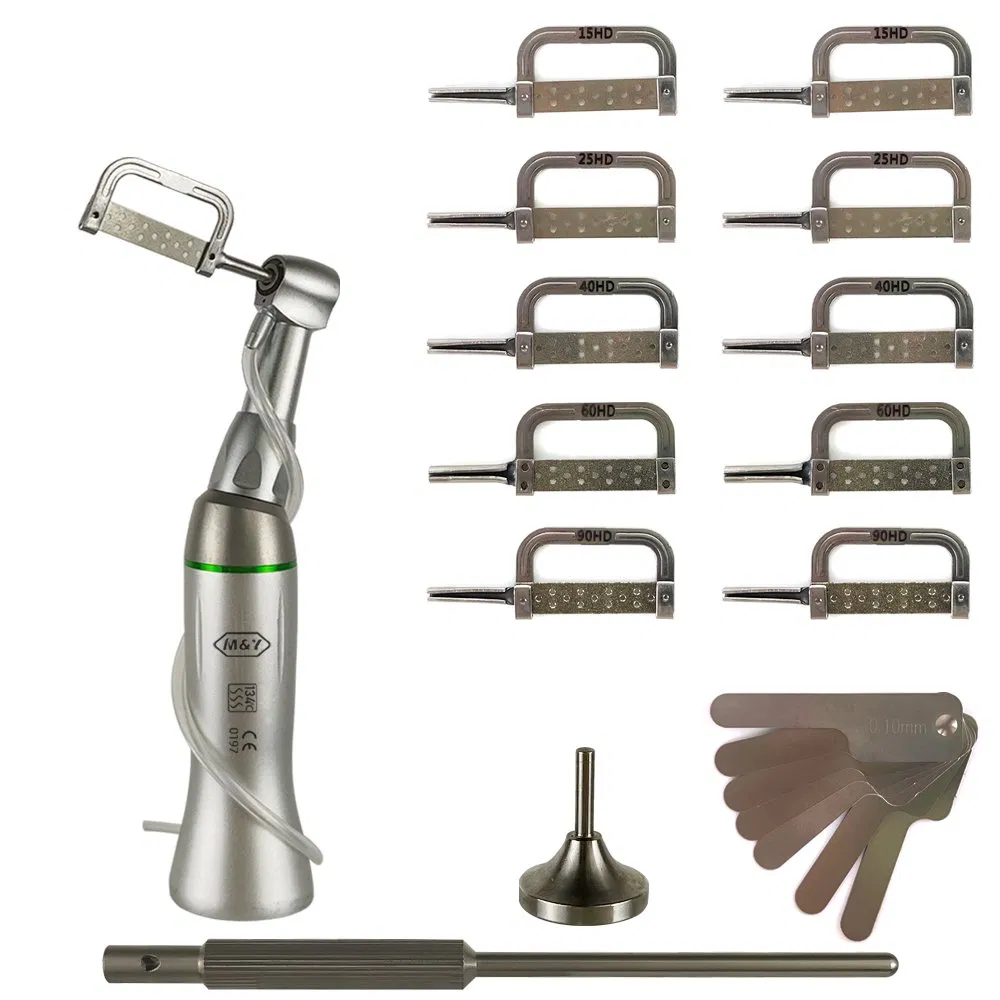

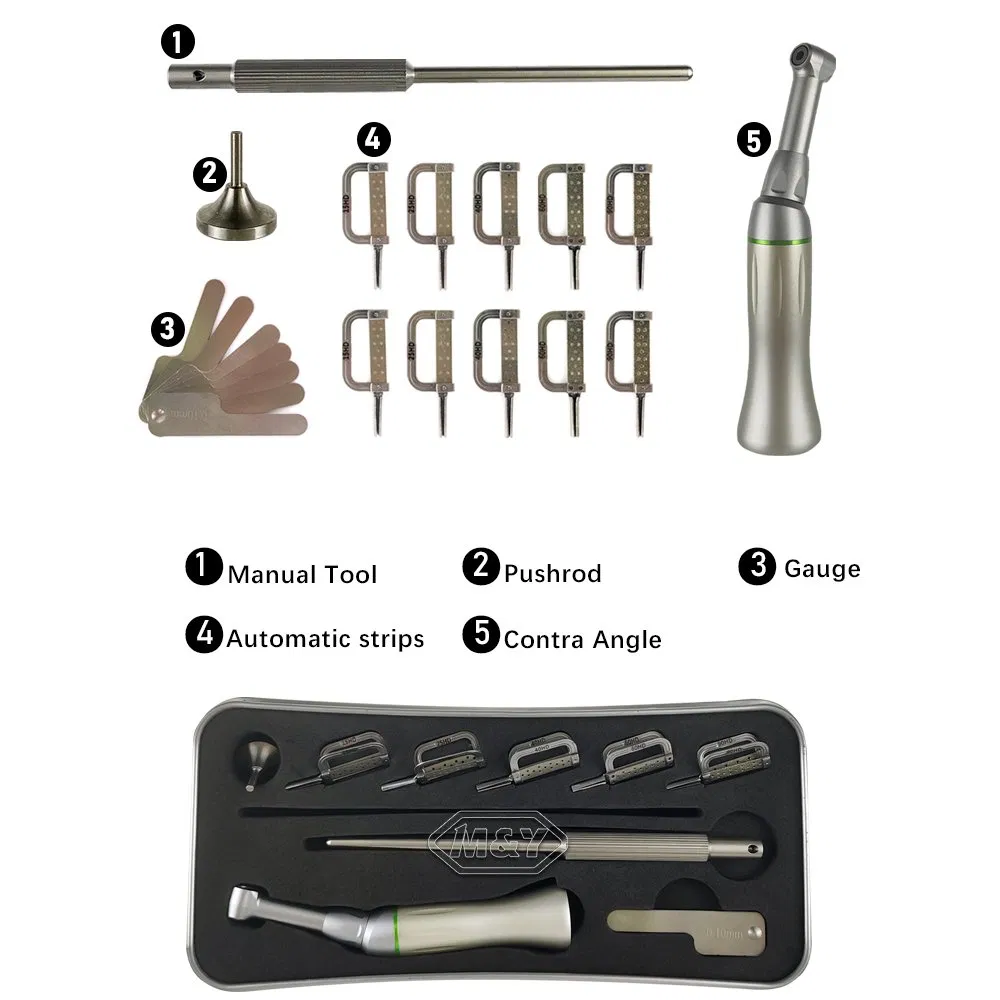

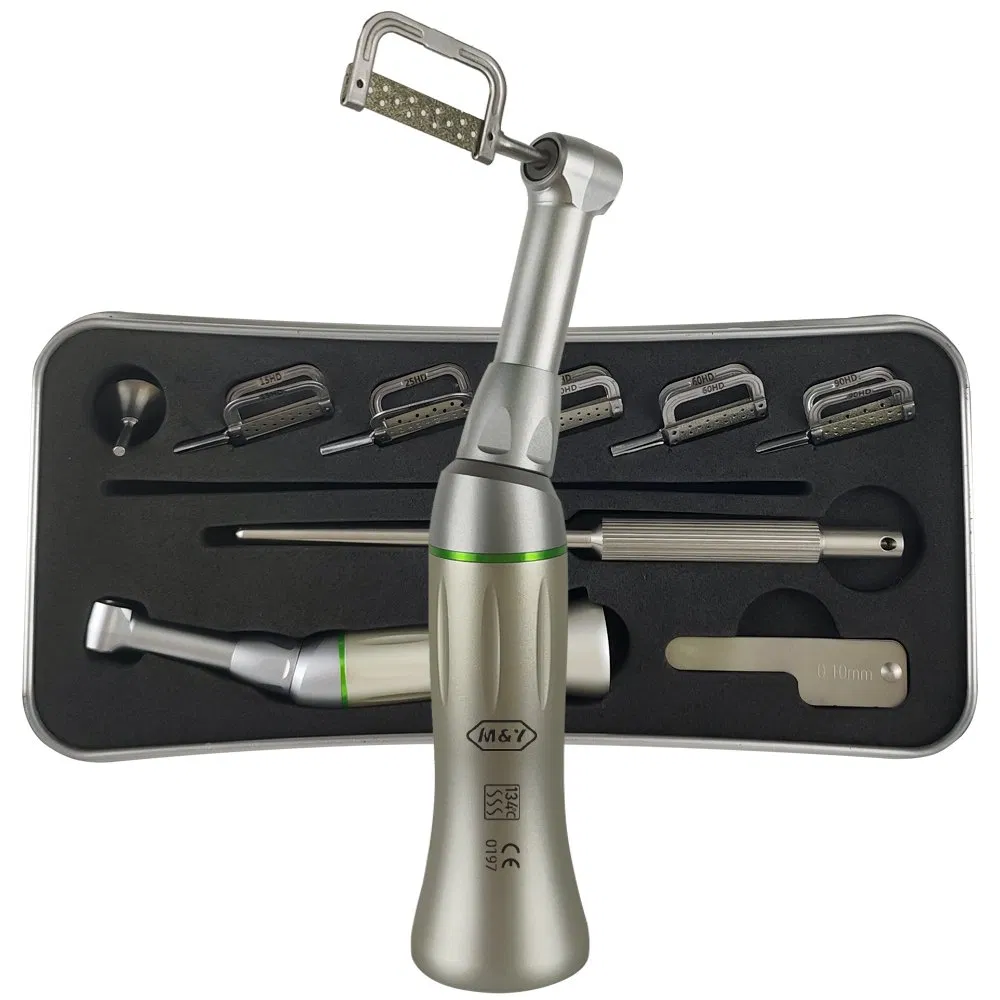

Net Weight	300g	Package	1pcs contra angle, 10pcs strips, 1 sets ruler, 1pcs handle, 1pcs key

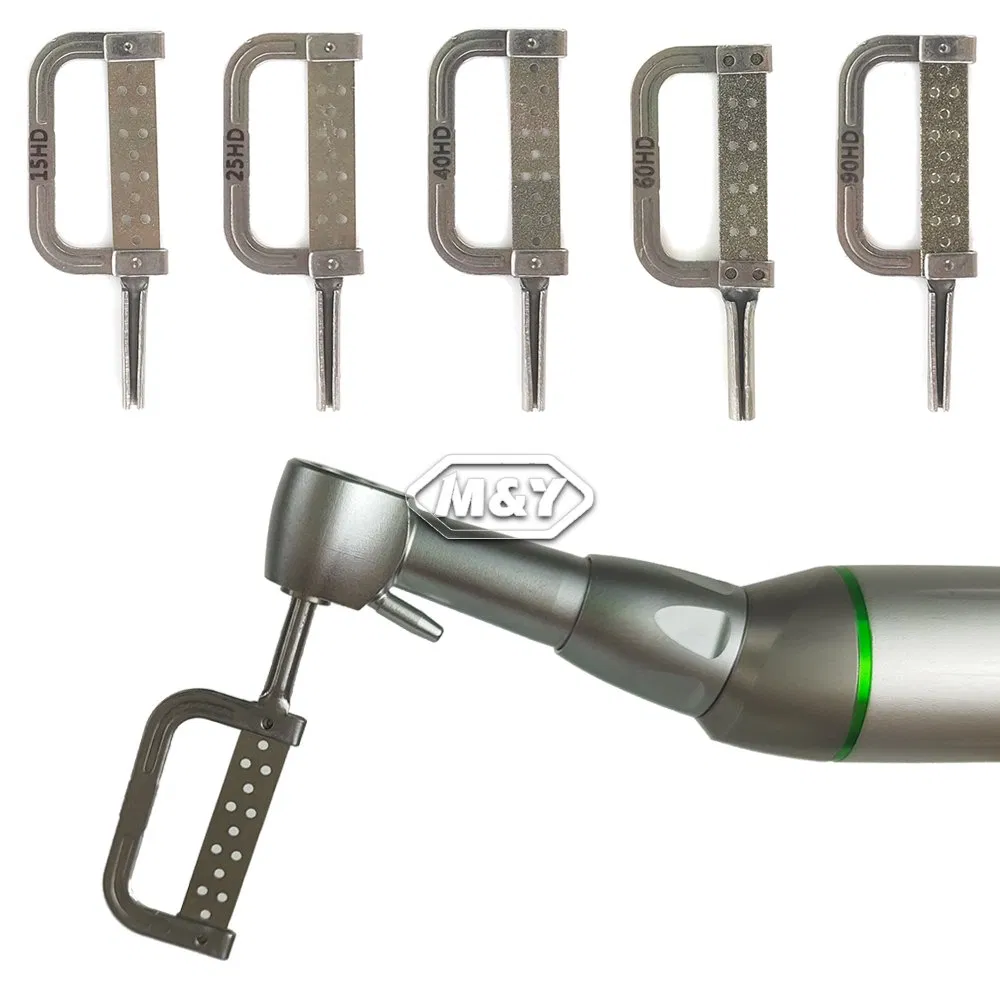

Gap Ruler	90HD, 60HD, 40HD, 25HD, 15HD

Product Features

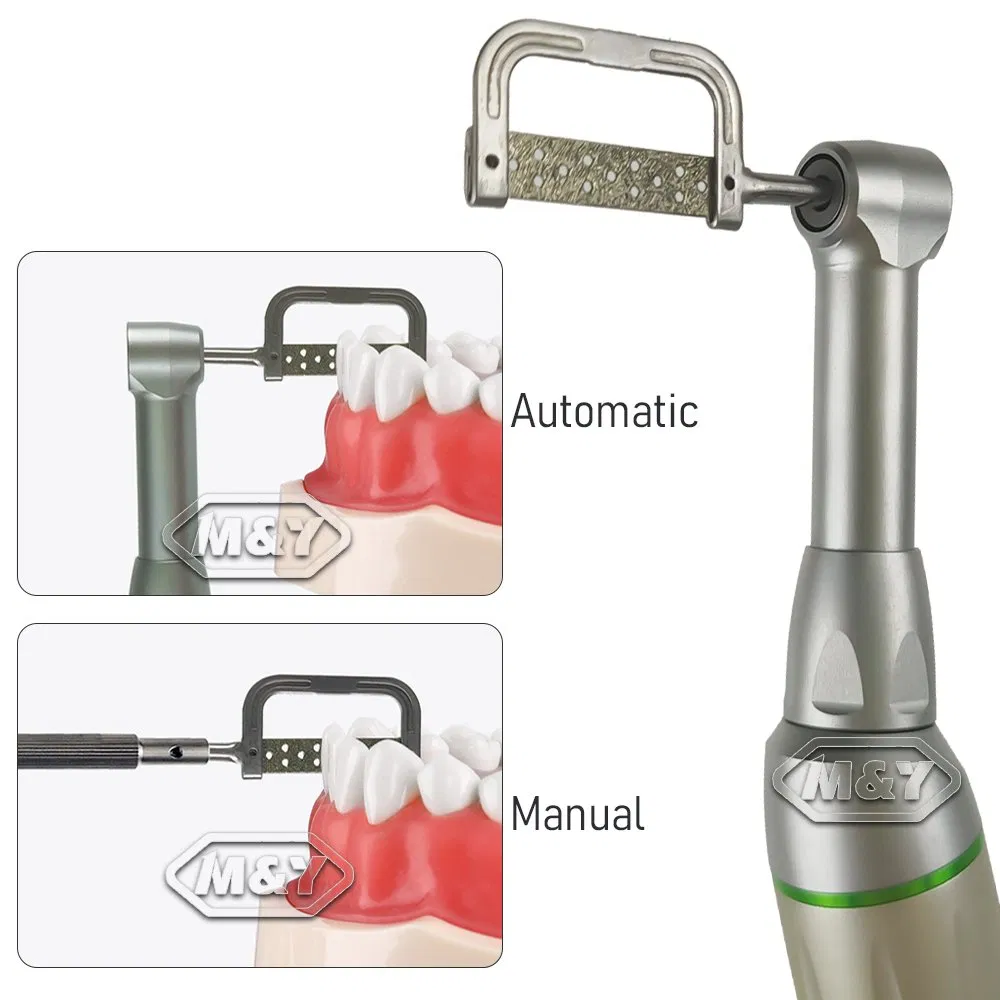

A safe, precise and reliable method to achieve accurate interproximal stripping. More controllable and safer for the dentist and patient than diamond discs. Provides the flexibility that diamond and carbide burs cannot. Faster and more comfortable for the patient than manual hand stripping.

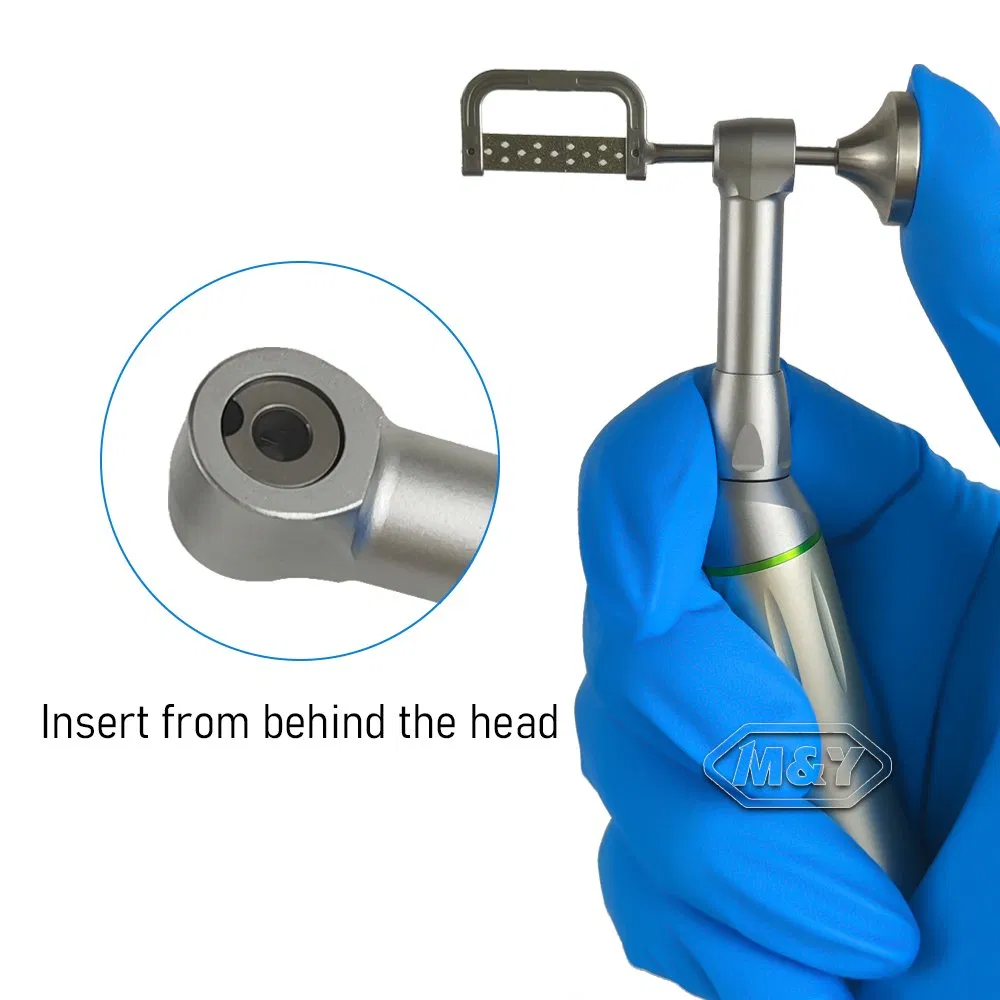

✓ 4:1 Direct Drive, Vertical Reciprocating
✓ Driven by electric motor/Air motor
✓ 134°C Autoclavable for hygiene

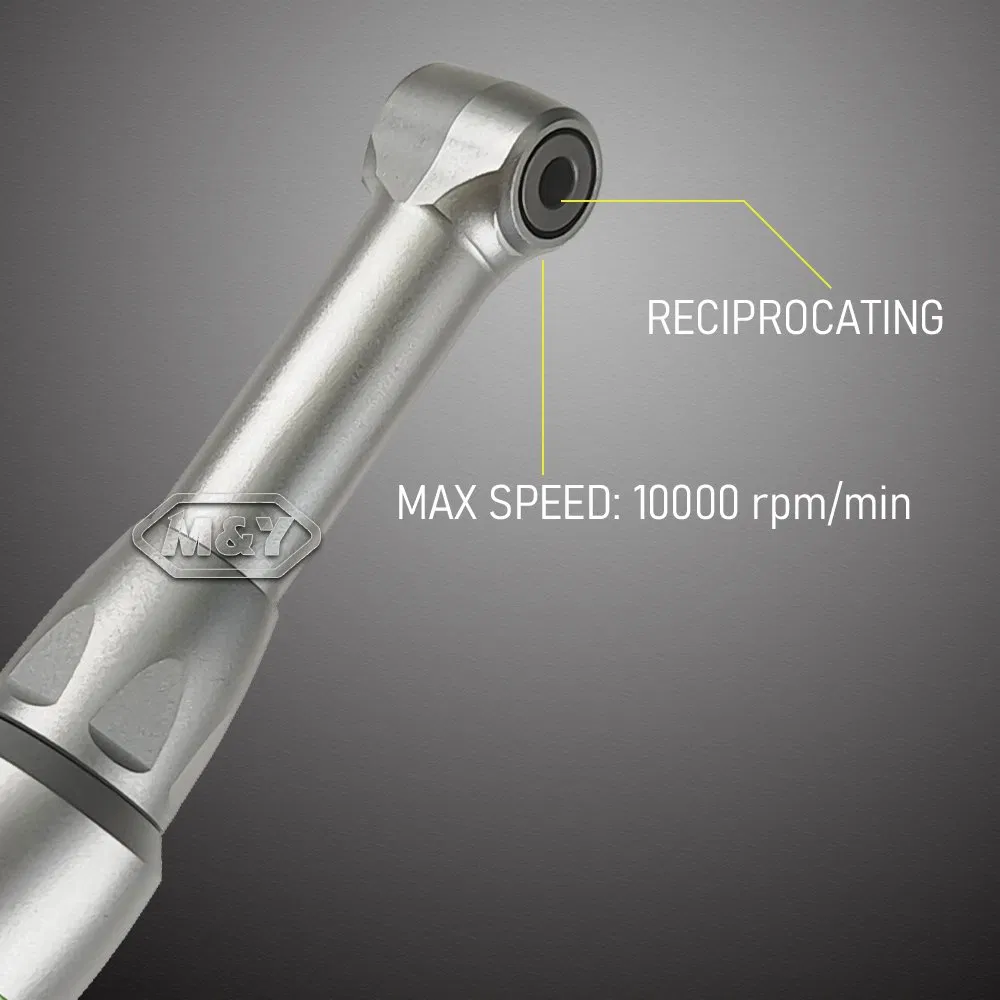

✓ Max Rotation Speed (Handpiece): 10,000min-1
✓ Reciprocating IPR System

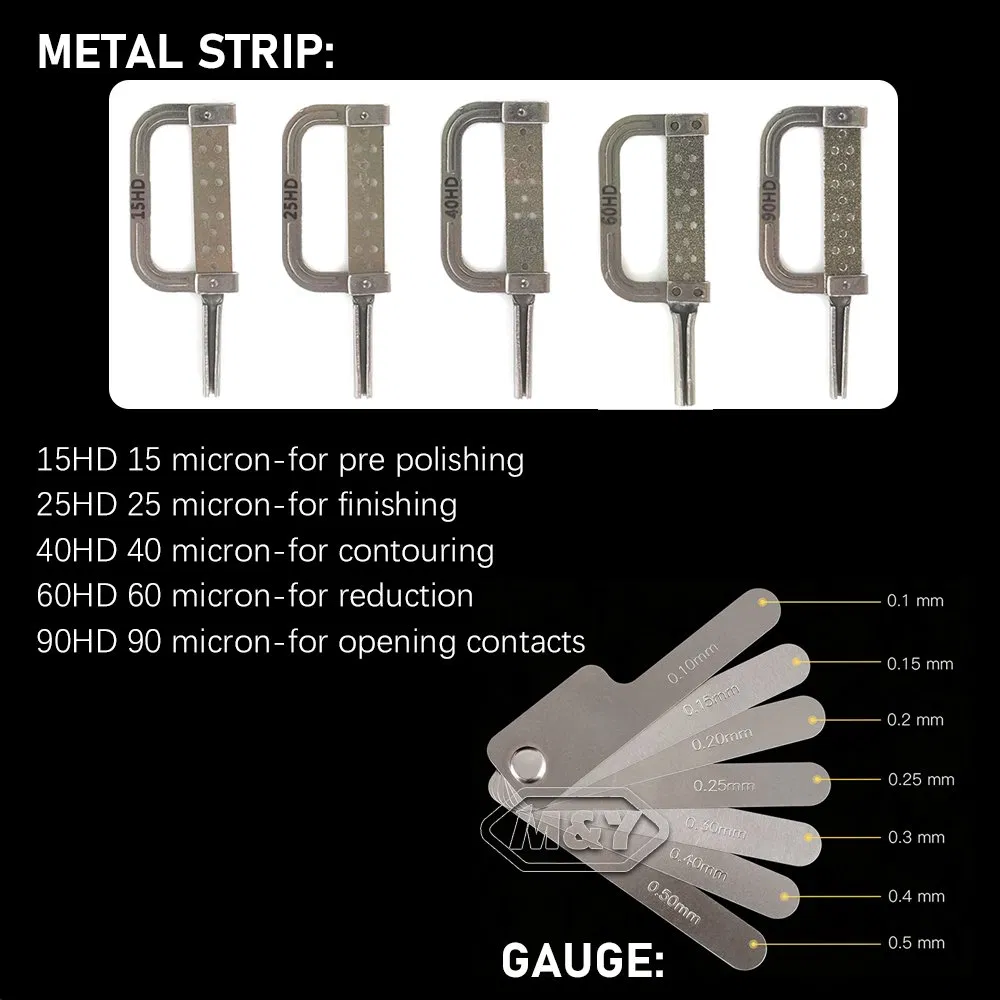

Application Guide

90 micron

Saw for opening contacts

60 micron

Reduction

40 micron

Contouring

25 micron

Finishing

15 micron

Pre-polishing

Frequently Asked Questions

What is the main application of the IPR system?

The system is used for accurate interproximal stripping, providing a safer and more controllable method for tooth reduction and contouring compared to traditional diamond discs.

Is the handpiece autoclavable?

Yes, the handpiece is fully autoclavable at temperatures up to 134°C to ensure clinical safety and hygiene.

What is the gear ratio and movement type?

It features a 4:1 direct drive with a vertical reciprocating movement for precise control.

What are the different micron strips used for?

90 micron is for opening contacts, 60 micron for reduction, 40 micron for contouring, 25 micron for finishing, and 15 micron for pre-polishing.

What is the maximum rotation speed?

The maximum rotation speed for the handpiece is 10,000 min-1, while the recommended operating speed is 5,000 rpm.
