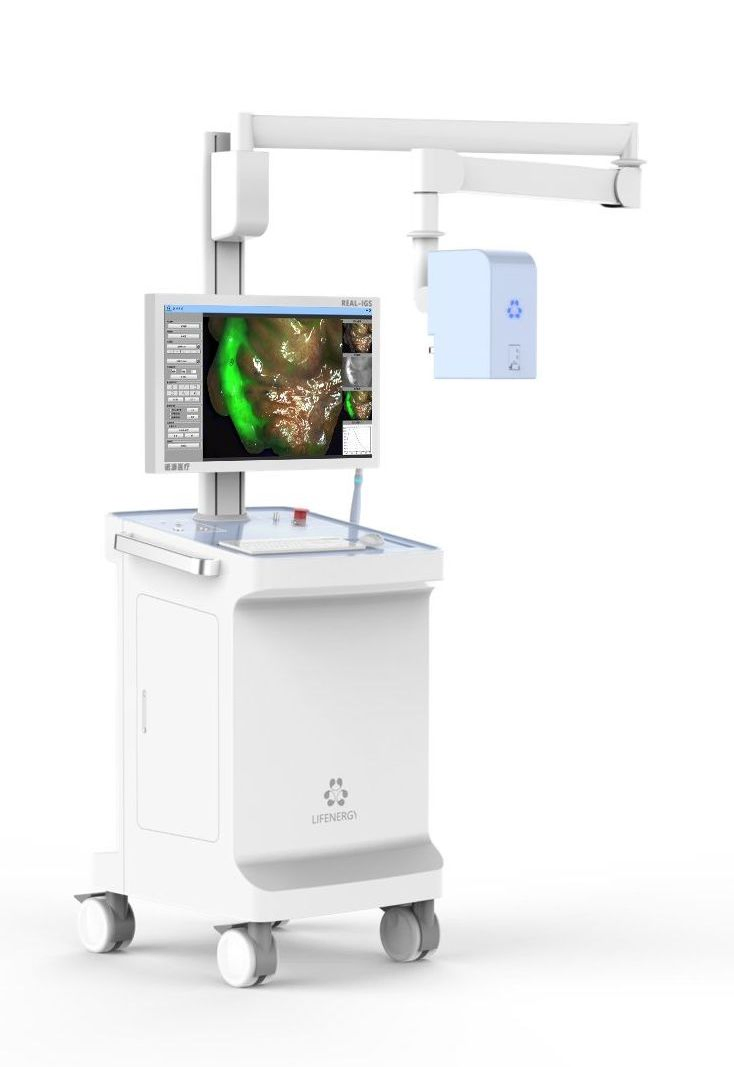

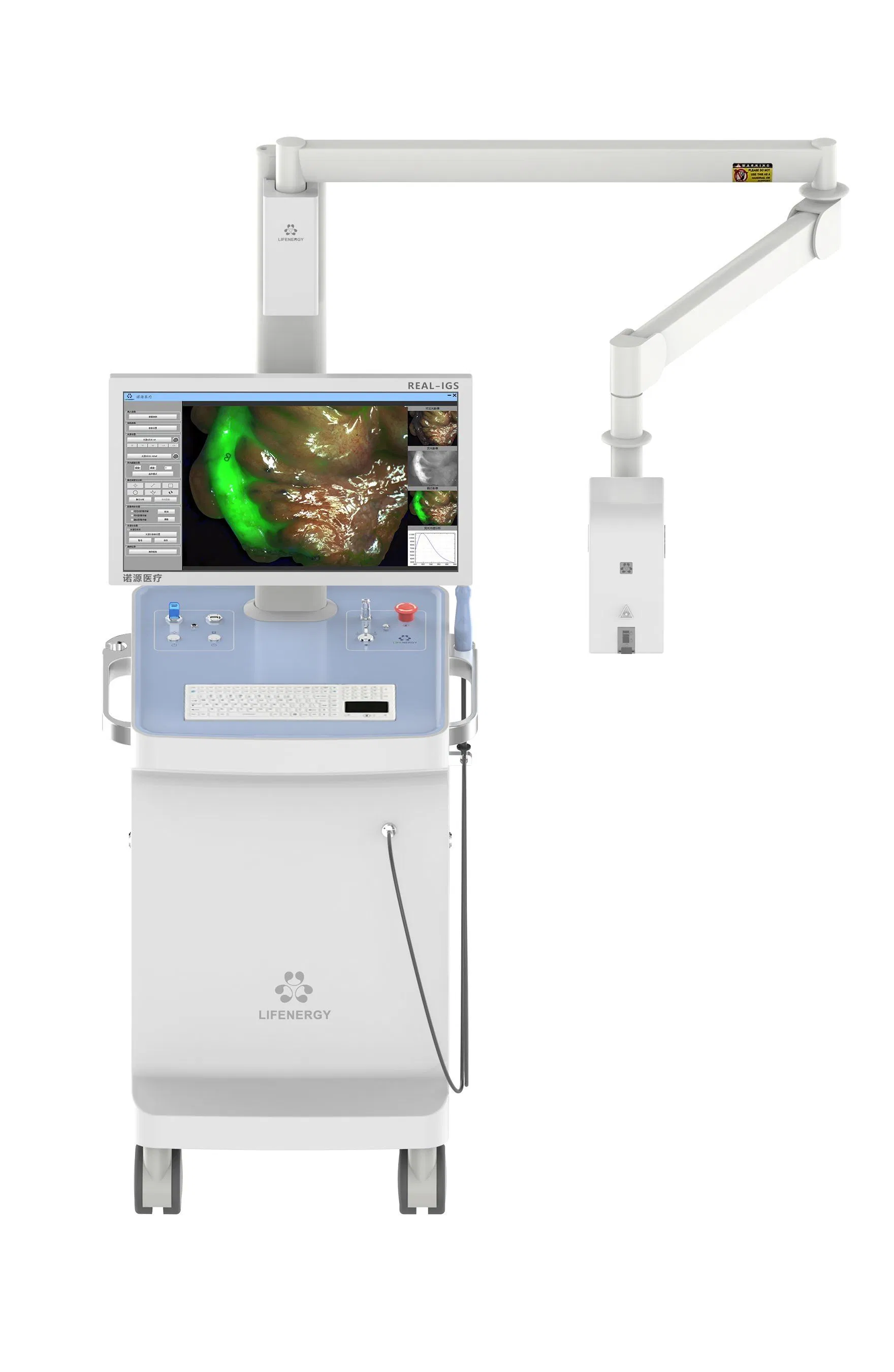

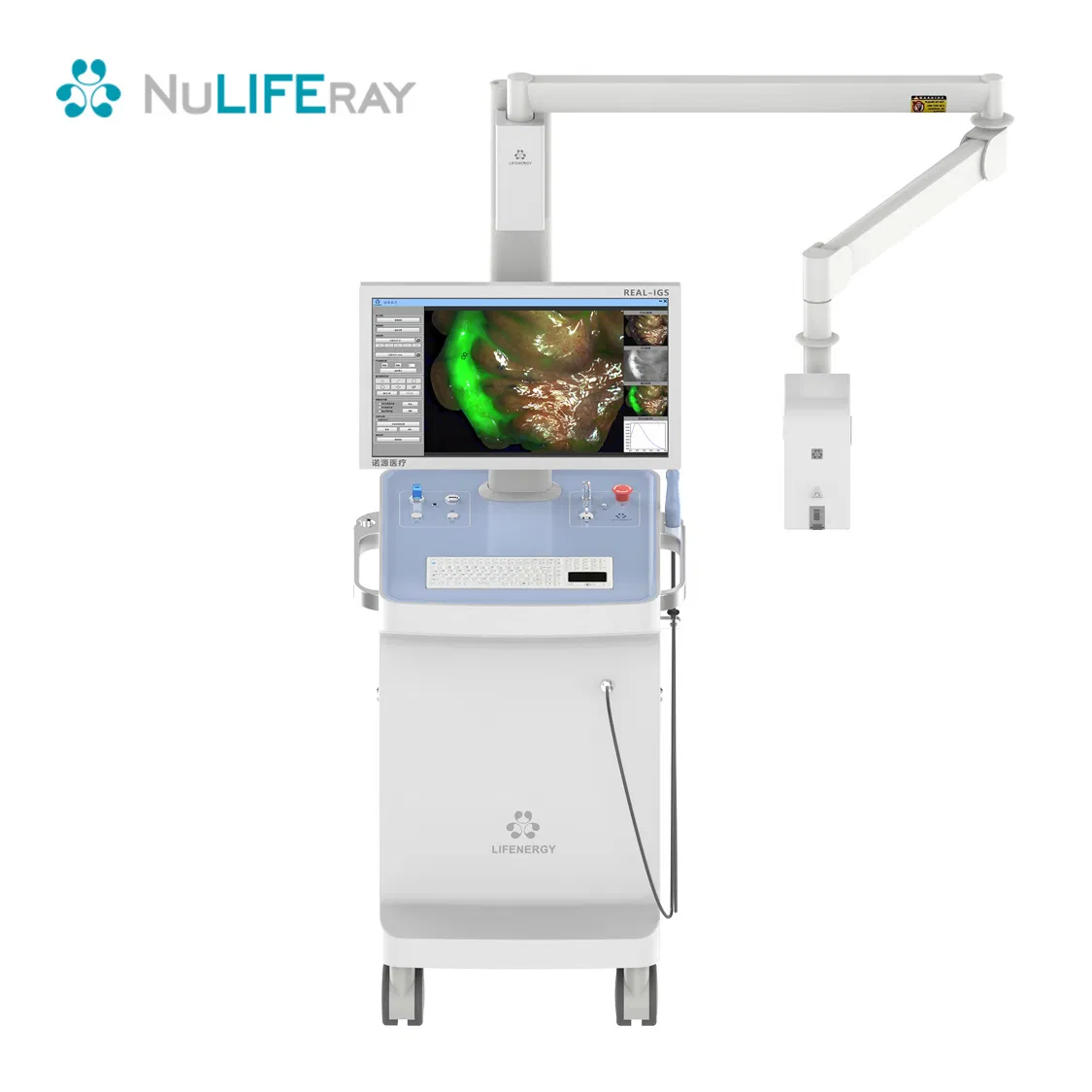

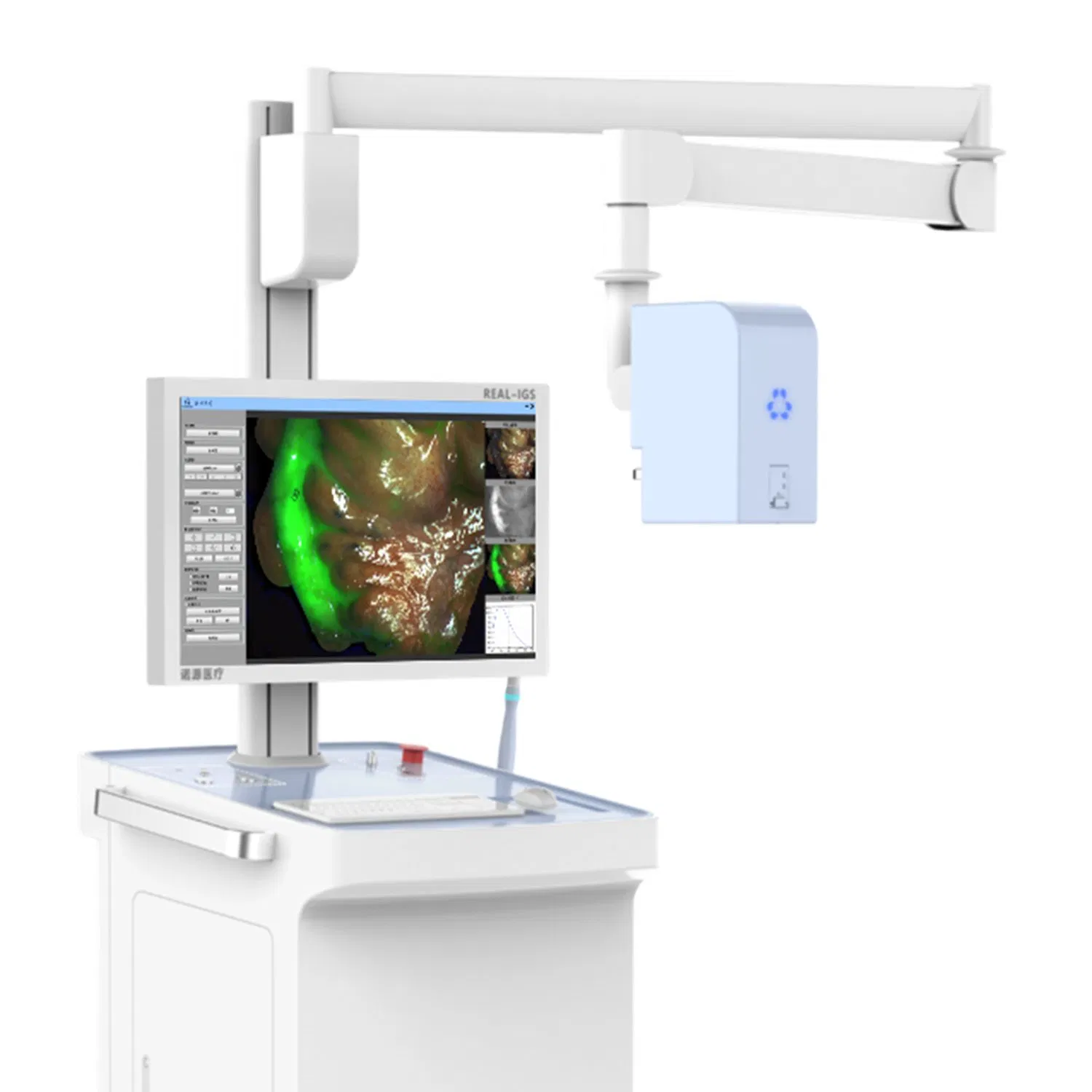

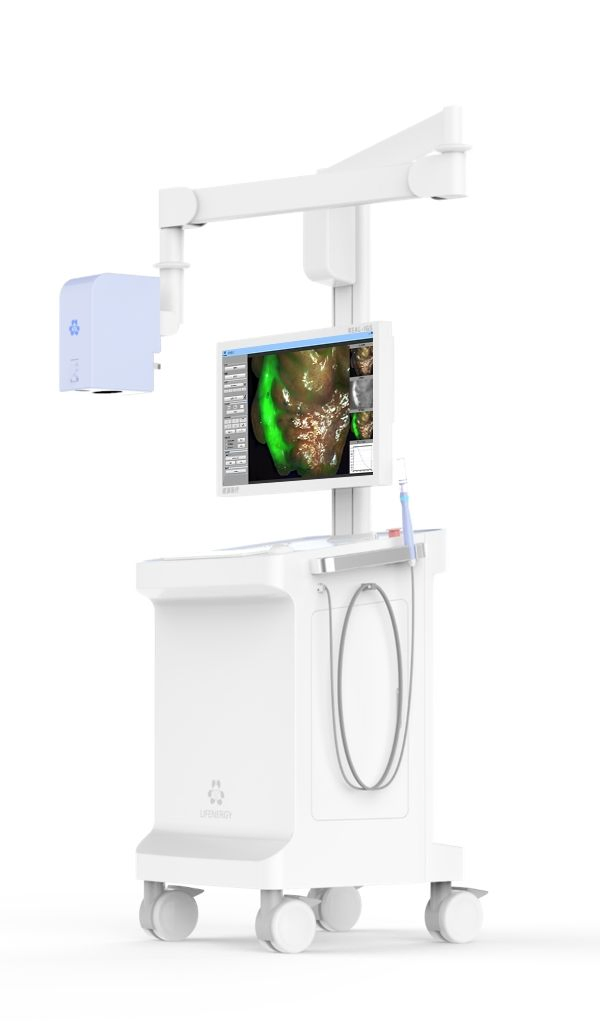

Diagnostic Equipment for Tumor Surgery

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Surgical Fluorescence Imaging System

Product Description

Basic Information

Model NO. FLI-10A/FLI-10B
Certification CE, FDA, ISO13485
Group All People
Monitor Size 27 Inches / 32 Inches
Display Resolution 1920*1080P
Origin China
HS Code 9018903010

Product Description

FLI-10B Surgical Fluorescence Imaging System is a surgical guidance system that uses a drug-device combination approach. It employs indocyanine green (ICG) as a fluorescence probe, relying on "ultra-high sensitivity" and combining the optical properties of ICG in submillimeter-size tumors to provide surgeons with high-definition visible light, fluorescence imaging, and quantitative data for diagnostic information during tumor surgery.

It is suitable for real-time observation of tissues (such as tumor tissue, margin tissue), blood supply (free skin flap), lymph nodes (sentinel lymph nodes, regional lymph nodes), and anatomical structures (liver segments, gallbladder, lung segments) to make more accurate medical judgments and optimize surgical plans.

⭐ Key Applications
  • Oral and Maxillofacial Surgery
  • Plastic and Reconstructive Surgery
  • Thyroid and Breast Surgery
  • Pediatric and General Surgery

Product Parameters

Project Content
Number of Camera Chips2CMOS
Convenient Handheld ProbeHandheld Spectral Quantitative Analysis Probe
Special Fluorescence DevelopmentAI Assisted Boundary Sharpening
Image Mode7 Types: White Light/Fluorescence/Fusion/Multimode/ColorGrading/Quantification/Spectroscopy
Laser Wavelength785nm
Workstation AvailableYes
Workstation FunctionFluorescence Intensity & Spectral Quantitative Analysis
Fluorescence Detection Limit10-12M/L
Lens Zoom Factor4 Times
Camera Working DistanceRecommended 10-25cm
Focus ModeElectric Focus
White Balance MethodManual White Balance
Laser Grade3R

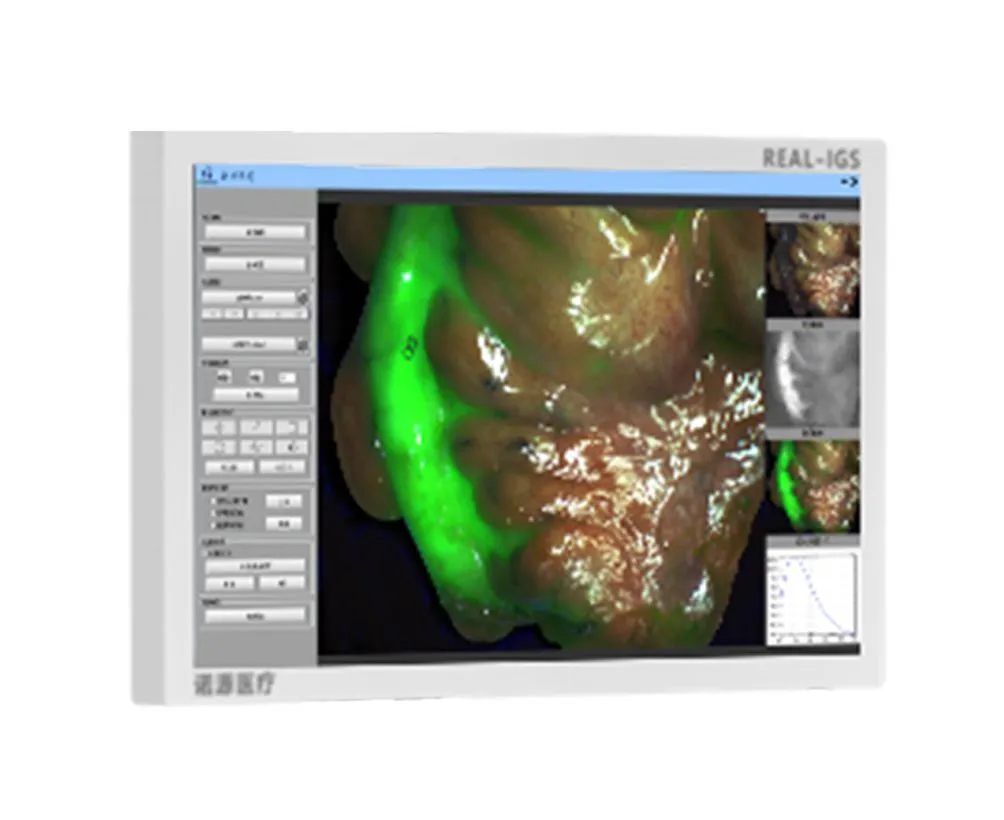

Software screenshot on the monitor
Software screenshot on the monitor

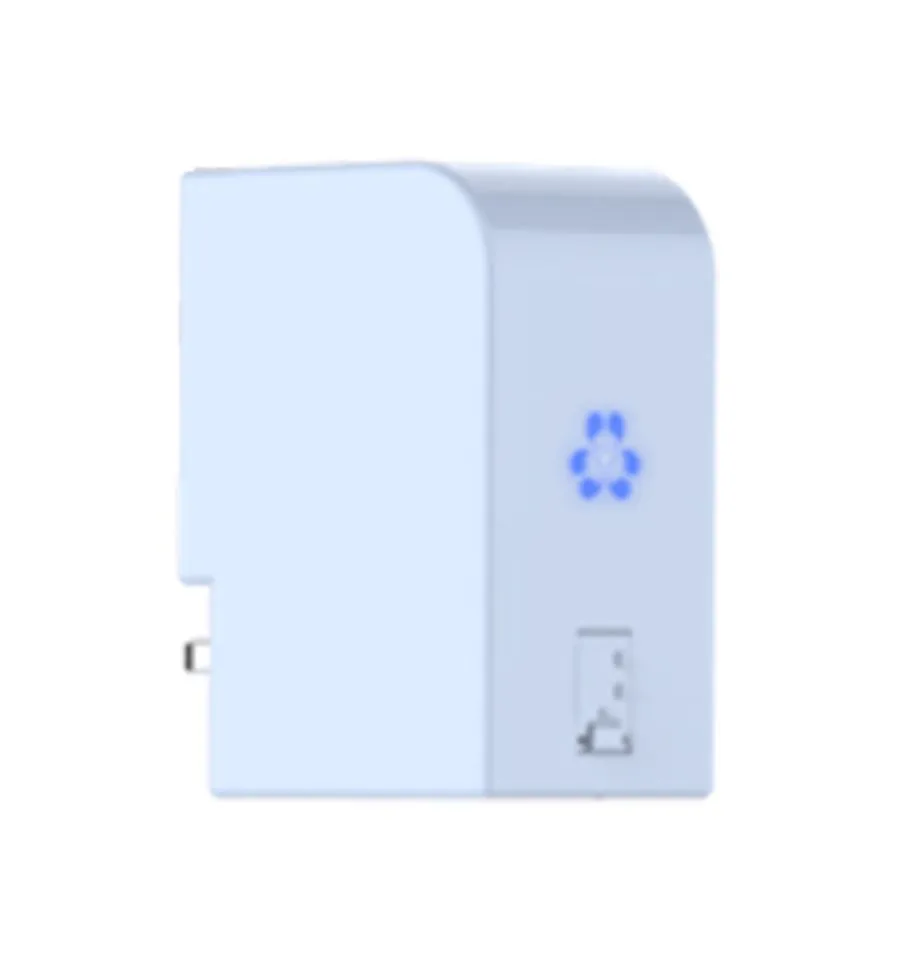

Surface light source
Surface light source

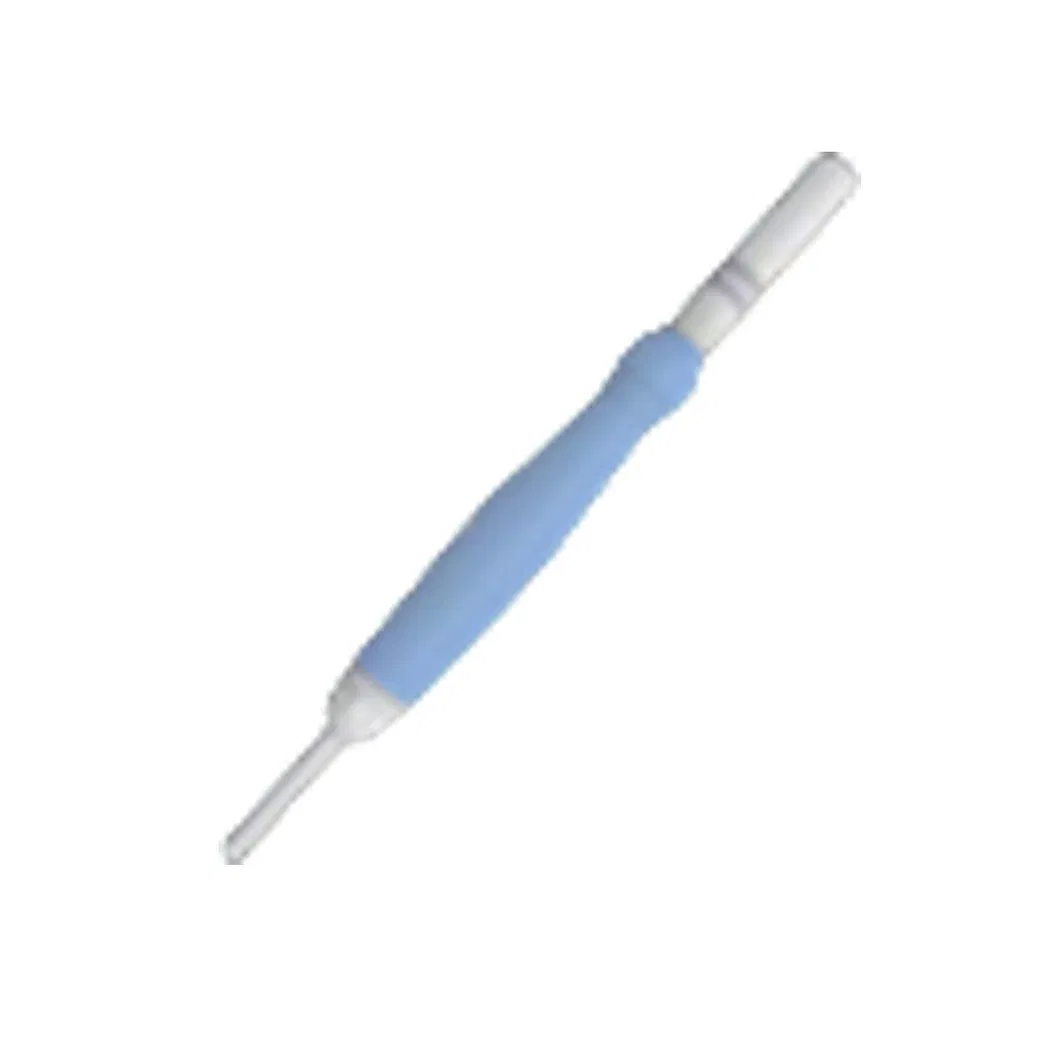

Handheld laser probe
Handheld laser probe

Technical Advantages

  • Ultra-low fluorescence detection limit: Real-time diagnosis of millimeter-sized tumors, decreasing the limit to sub-millimeter.
  • Dual Quantitative Analysis: ROI Value and Independent Spectral Digitization for objective numerical judgment.
  • Pseudo-color grading analysis: Objectively presents the concentration gradient of the tracer in the target tissue.
  • Optimized for Open Surgery: Large field of view surface light source and unique handheld laser probe.

Precision Oral and Maxillofacial Surgery

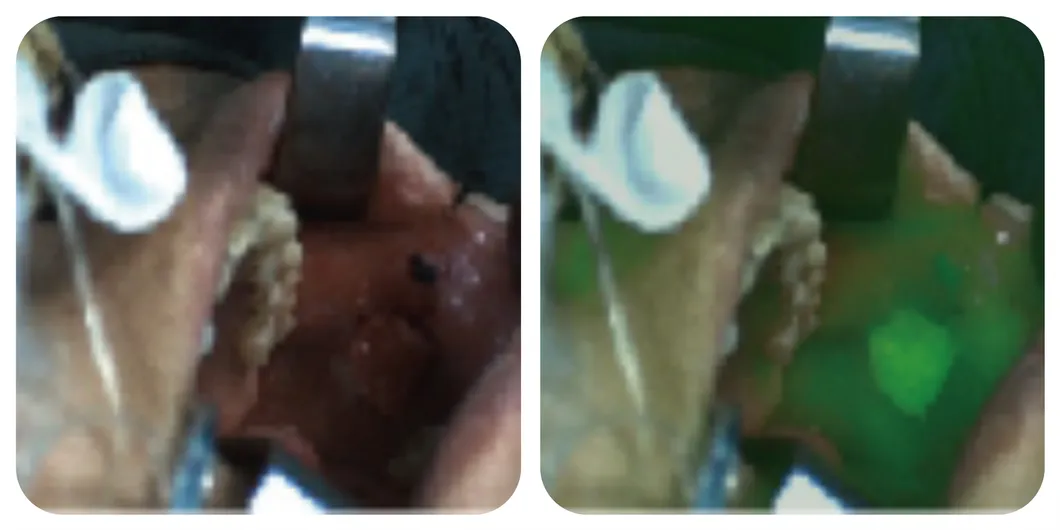

Tumor localization
Tumor localization

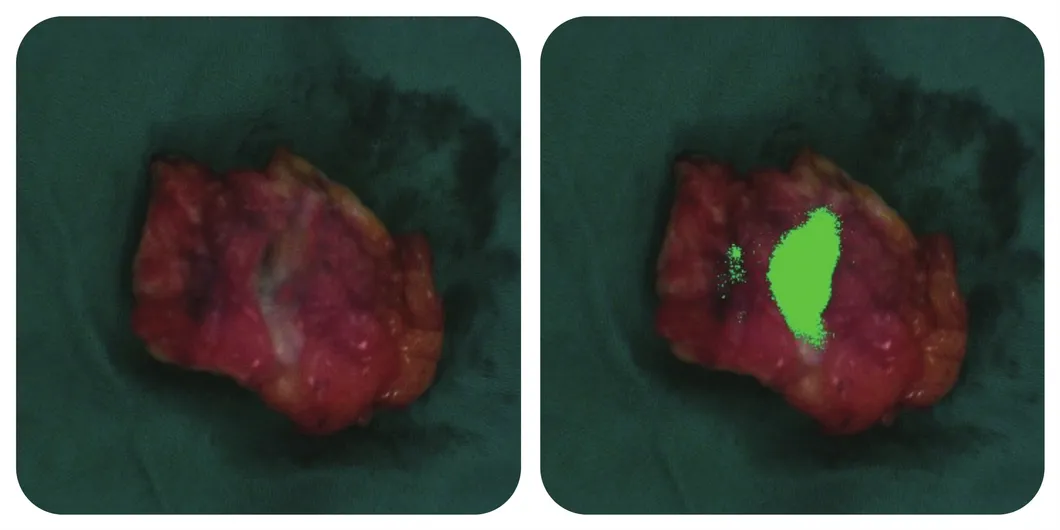

Margin assessment
Margin assessment

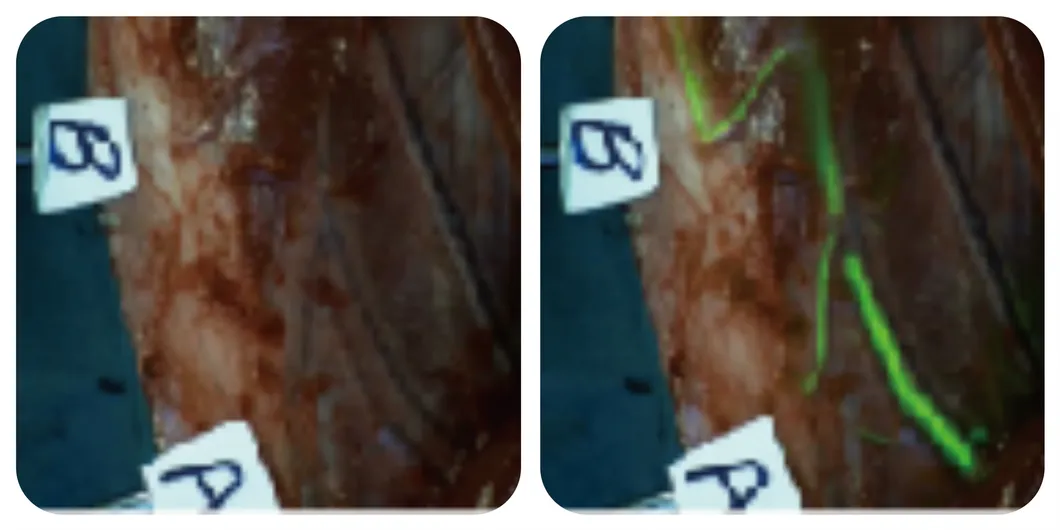

Blood supply assessment
Blood supply assessment

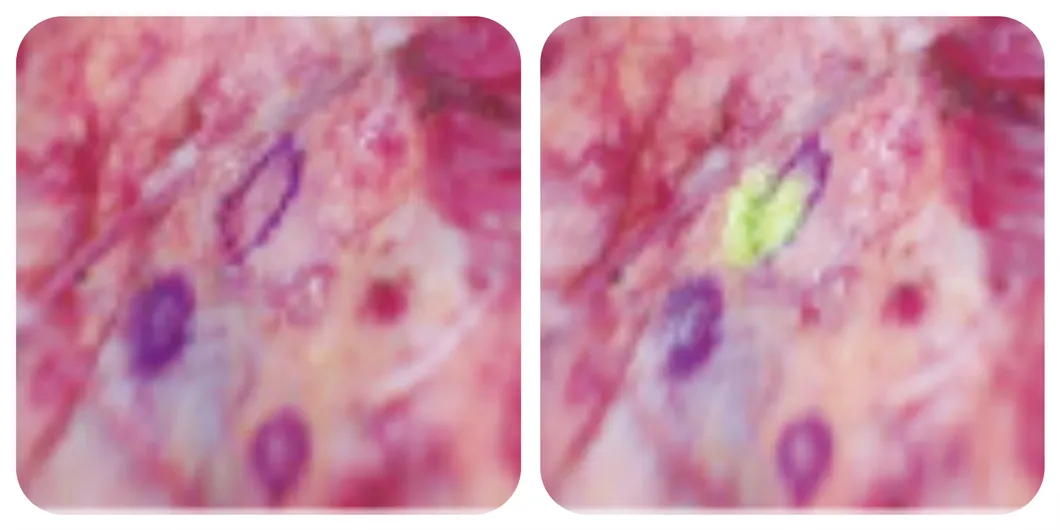

Research hotspot
Research hotspot

Precision Thyroid and Breast Surgery

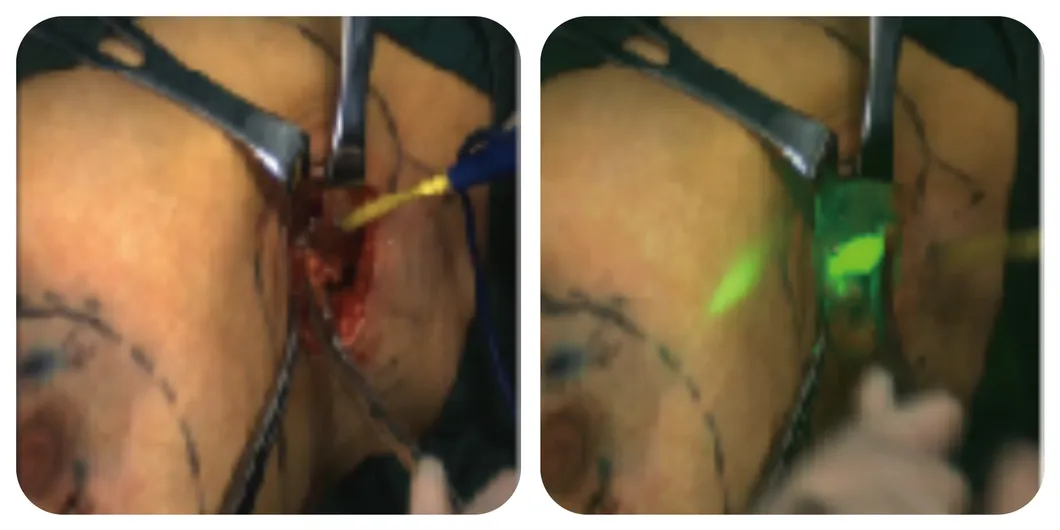

Lymphatic mapping
Lymphatic mapping
Tumor identification
Tumor identification
Gland identification
Gland identification
Margin assessment
Margin assessment

Precision Dermatology and Plastic Surgery

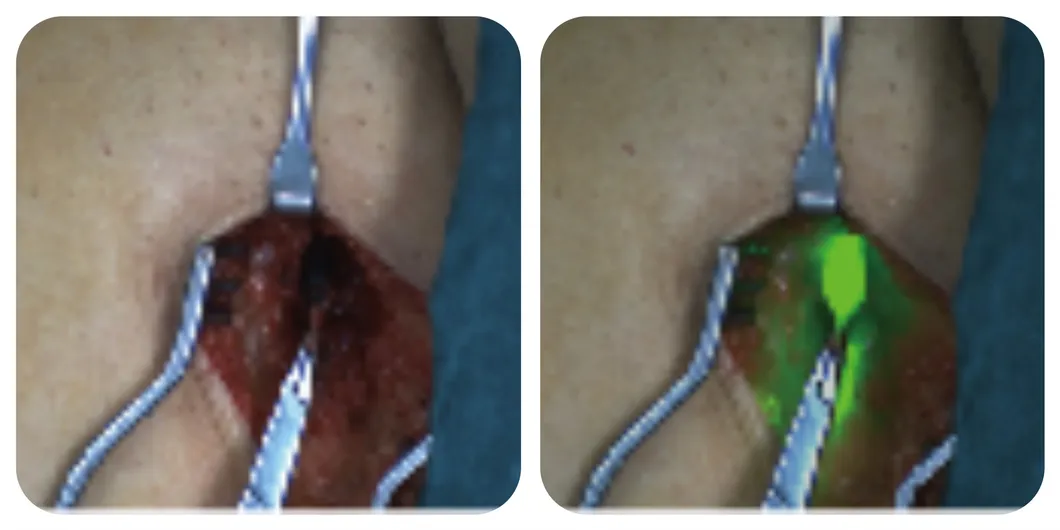

Lower limb lymphatic mapping
Lower limb lymphatic mapping
Upper limb lymphatic mapping
Upper limb lymphatic mapping

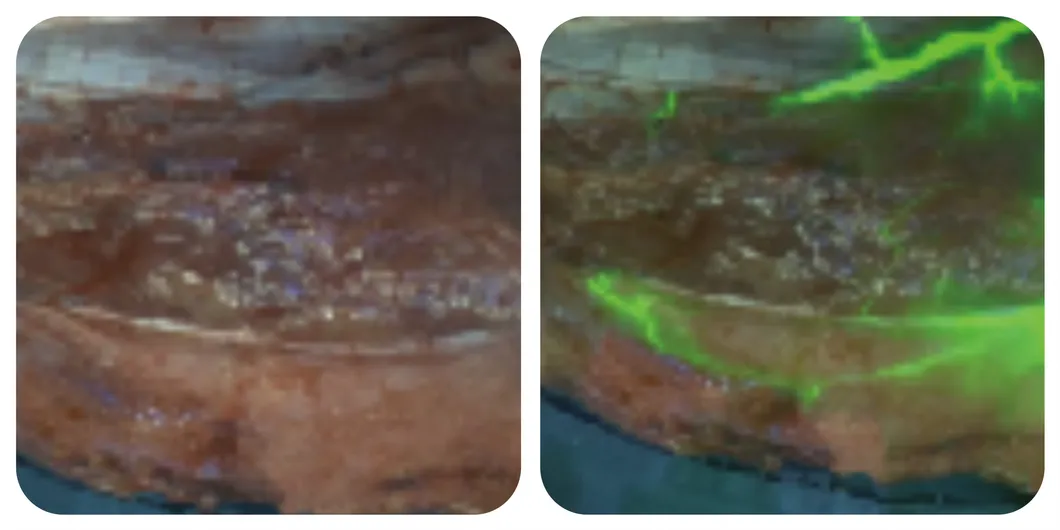

Blood supply evaluation
Blood supply evaluation

Precision General Surgery

Liver segment staining
Liver segment staining
Lymphatic tracing
Lymphatic tracing
Tumor identification
Tumor identification
Margin determination
Margin determination

Frequently Asked Questions

Q1: What is the main clinical purpose of the FLI-10B system? It is used for real-time surgical guidance, tumor localization, margin assessment, and blood supply evaluation using fluorescence imaging technology.
Q2: Which fluorescence probe is compatible with this system? The system is designed to work with Indocyanine Green (ICG) as a fluorescence contrast agent.
Q3: How sensitive is the fluorescence detection? The system offers ultra-high sensitivity, reaching nmol/L for the surface light source and pmol/L for the handheld laser probe.
Q4: Does the system support different image modes? Yes, it features 7 image modes including White Light, Fluorescence, Fusion, Multimode, Color Grading, Quantification, and Spectroscopy.
Q5: Can it be used for open surgeries? Yes, it is specifically suitable for open surgical procedures, providing a large field of view and unique handheld probing capabilities.
Q6: What certifications does the FLI-10 series hold? The system is certified under CE, FDA, and ISO13485 standards.
