Product Description

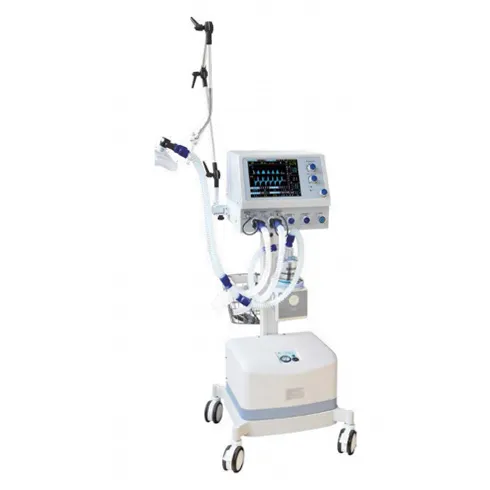

CE approved ICU Ventilator medical Lab equipment supply for hospitals respiratory support breathing apparatus machine
Common Features
- Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
- Can be used for emergency clinical resuscitation and respiratory therapy
- Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating sensor

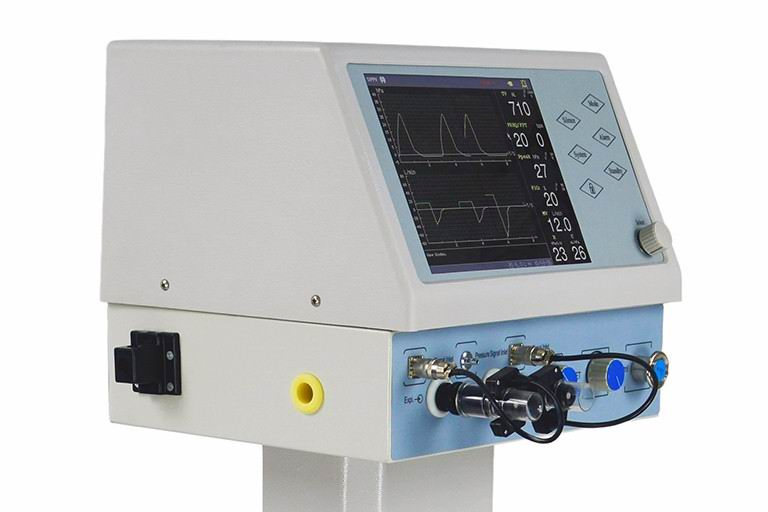

- Display: Built-in 10.4 inch high visibility color TFT display (Pressure-Time and Frequency-Time waveforms)
- Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths
- Equipped with infrared turbine flow sensor for stable and reliable gas flow measurement
- Power Failure Support: Automatically converts to standby mode during AC power outages
- 9 Level adjustable humidifier
- Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, and more

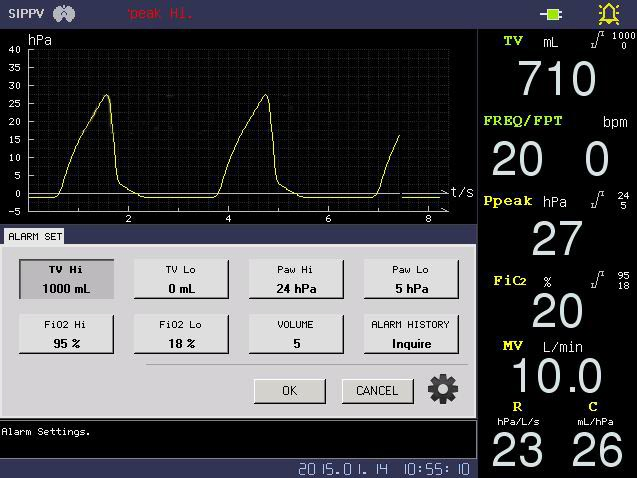

- Alarms: Audible/visual alarms for volume, oxygen concentration, asphyxia, airway pressure, and power failure
Advanced Model Exclusive Features
Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements.
Air Compressor Specs: 220V AC±10%, 50±1Hz, 700VA; Output Pressure: 0.4MPa±20%; Continuous flow ≥ 20L/min.
Specifications
| Parameter |
700B (Standard Model) |
700B (Advanced Model) |
| Display | 10.4 inch high visibility color TFT display |
| Ventilation Mode | A/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT MANUAL |
| Minute Volume | ≥ 18L |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable: 50-1500ml, Display: 0-2000ml |
| Respiratory Rate | 1-99bpm |
| I:E Ratio | 4:1-1:4 |
| PEEP | 0-10cmH2O |
| SIMV Rate | 1-20bpm |
| Oxygen Concentration | 45-100% | 21-100% |
| Pressure Limit | 1.0kPa~6.0kPa |
Frequently Asked Questions
What are the primary ventilation modes available on the PA-700B?
The PA-700B supports multiple modes including A/C, IPPV, SIPPV, IMV, SIMV, Standby, and Manual ventilation to suit various clinical needs.
Does the ventilator have a built-in battery for power emergencies?
Yes, it features a back-up power supply that provides at least 4 hours of operation during AC power outages.
What is the range of Tidal Volume for this ICU ventilator?
The adjustable tidal volume range is 50-1500ml, making it suitable for a wide range of patient requirements.
What kind of display is used for monitoring?

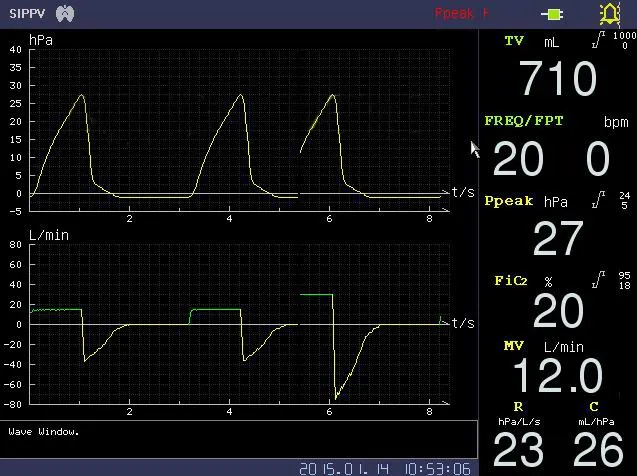

The device is equipped with a 10.4-inch high-visibility color TFT display that shows real-time Pressure-Time and Frequency-Time waveforms.
Is the oxygen concentration adjustable?
Yes, the oxygen concentration is adjustable from 45-100% in the standard model and 21-100% in the advanced model.
What safety alarms are integrated into the system?
It includes audible and visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, and intubation disconnection.
