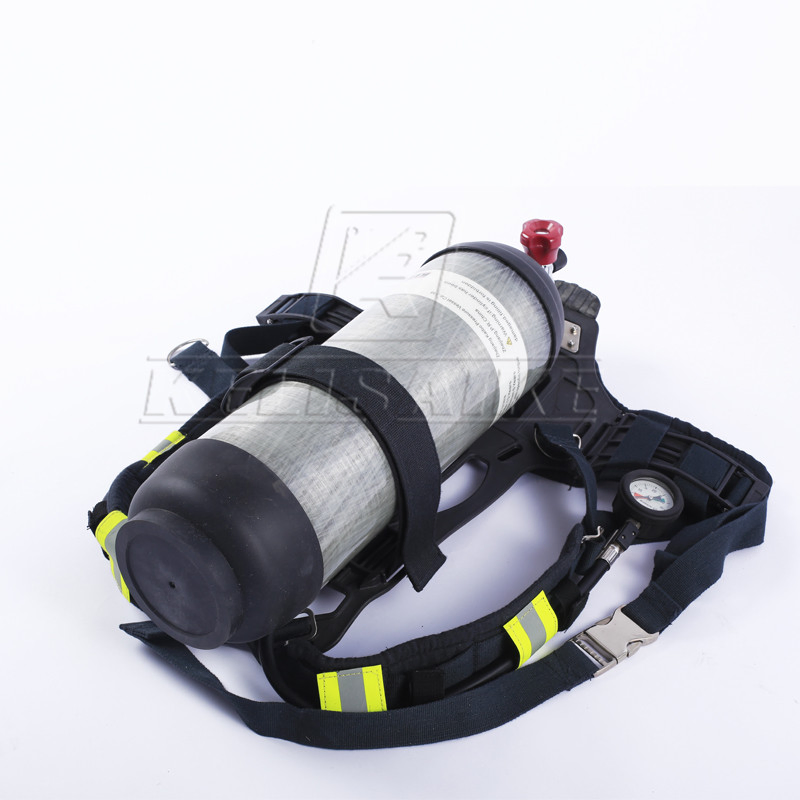

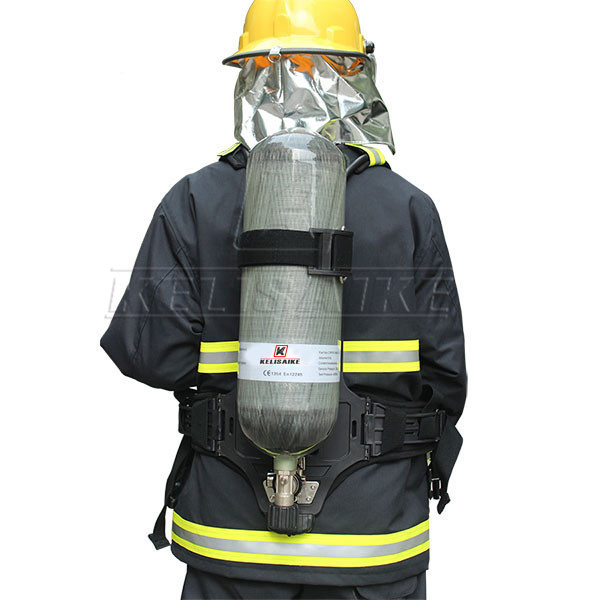

Scba Firefighting Equipment with Respiratory Mask Air Cylinder

1 / 5

Scba Firefighting Equipment with Respiratory Mask Air Cylinder

Customization:	Available
Volume of Cylinder:	2L, 3L, 4.7L, 6.8L, 9L
Cylinder Material:	Carbon Fiber Composites

Send Inquiry

Product Description

Basic Info

Model NO.	KL99
Working Pressure	30MPa
Gas	Compressed Air
Service Time	6.8L for 60 Mins
Weight	9 Kgs (Not Including Air)
Warranty	1 Year
Certificate	CE: EN137
Transport Package	Orange Plastic Carton
Specification	75x47.5x31cm
Trademark	KELISAIKE
HS Code	9020000000
Production Capacity	1000 sets Per Month

Product Description

This positive pressure air breathing apparatuses are self-contained open breathing apparatuses. This series of products, which are ideal personal breathing protectors for the fireman and emergency rescuer, are widely used in such sectors as fire fighting, chemical industry, shipping, petroleum, smelting, electricity, warehouse, lab, mine, for the firemen and emergency rescuers to perform effectually rescue and relief work under the conditions of heavy smoke, poison gas, steam and hypoxia, etc.

>>> Technical Specification

Standard Parameters
Volume of the gas cylinder	6.8L/9L
Cylinder material	Carbon fiber composites
Service time	≥60mins at 30L/min
Working pressure	30MPa
Hydrostatic pressure	45MPa
Overall weight	9kg (air not included)
Gas Type	Compressed air
Standard	CE: EN137

Type Comparison	KL99-6.8L/30	KL99-9L/30
Working pressure (MPa)	30	30
Volume (L)	6.8	9
Max flow (L/min)	300	300
Inhalation resistance (Pa)	<588	<588
Exhalation resistance (Pa)	<687	<687
Alarm pressure (MPa)	4-6	4-6
Service time (min)	60	90
Alarm voice	≥90dB	≥90dB

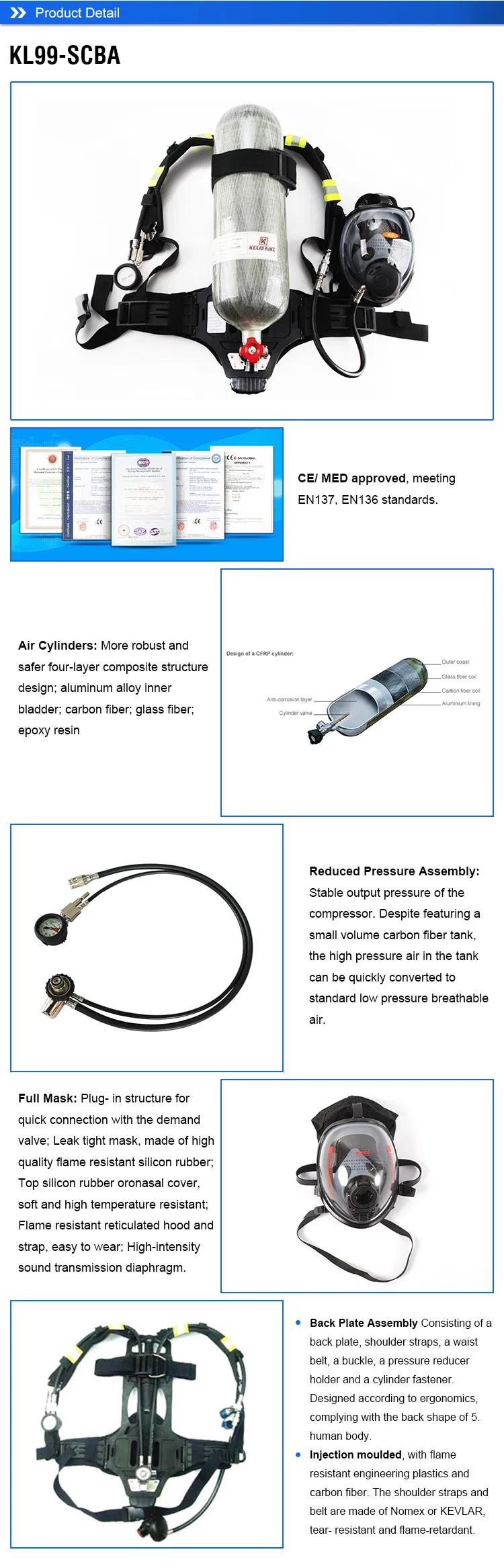

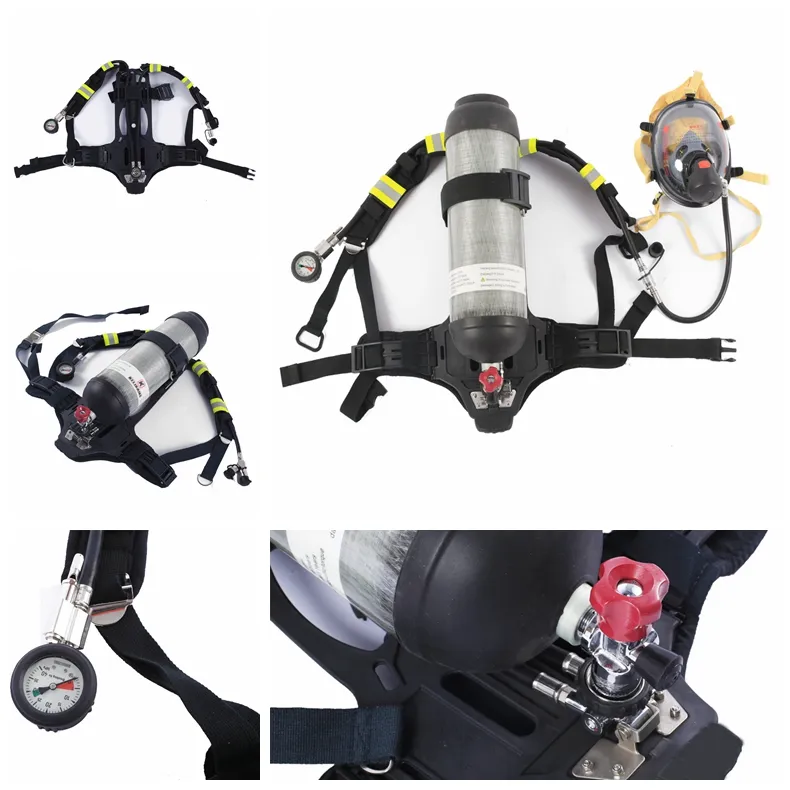

Firefighting Equipment Components

KL99-A01 Full Mask

Adaptable to fit all face shapes. Made of flame-retarded silicone, safe, comfortable, and anti-fog designed. High impact scratch-resistant visor provides a wide field of vision.

KL99-A02 Backboard

Ergonomic design (0.685kg). Supports over 90-degree tortuosity. Chemical, high temperature, and impact resistant material.

KL99-A03 Warning Whistle & Gauge

Integrated unit located on the chest. Continuous 90dB alarm. Waterproof, shockproof gauge readable in darkness.

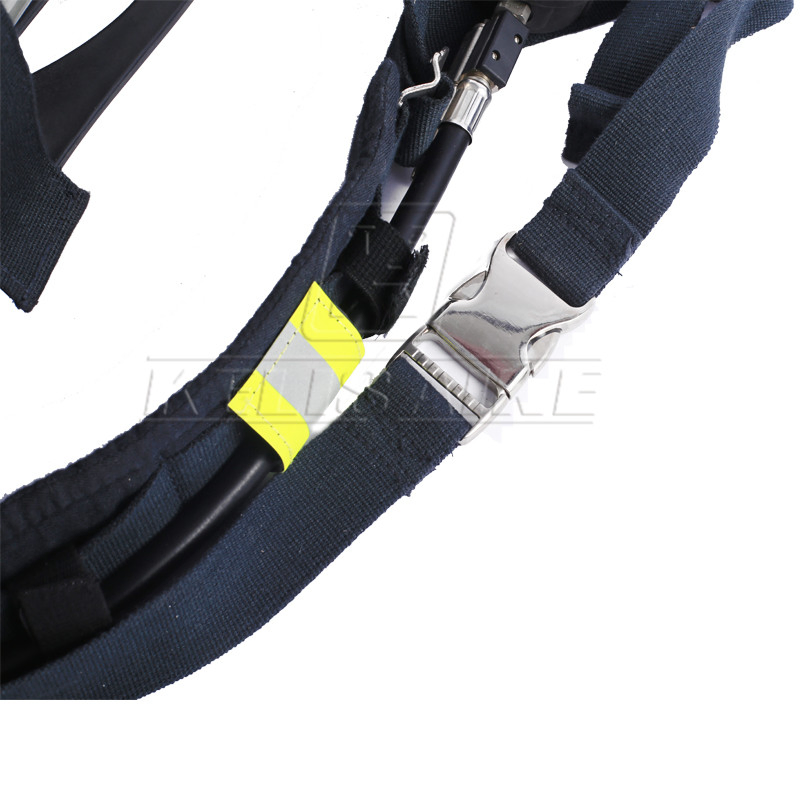

KL99-A04 Backpack

Flexible with detachable tournure to reduce pressure. Straps made of Nomex or KEVLAR (tear-resistant and flame-retardant).

KL99-A05 Air Supply Valve

Handheld valve with 360-degree prompt insertion. Gas supply exceeds 500L/min.

KL99-A06 Decompressor

Advanced core technology with 15-year design life. Maximum gas supply above 1000L/min.

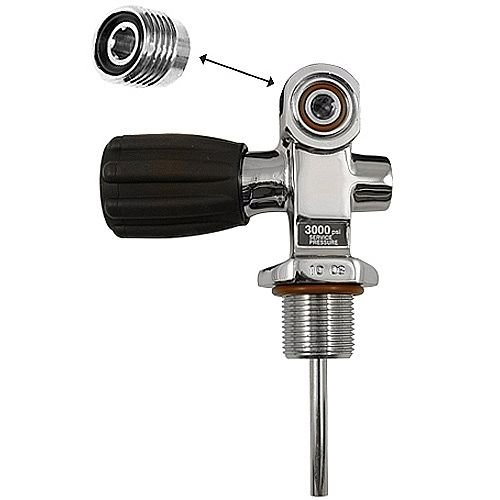

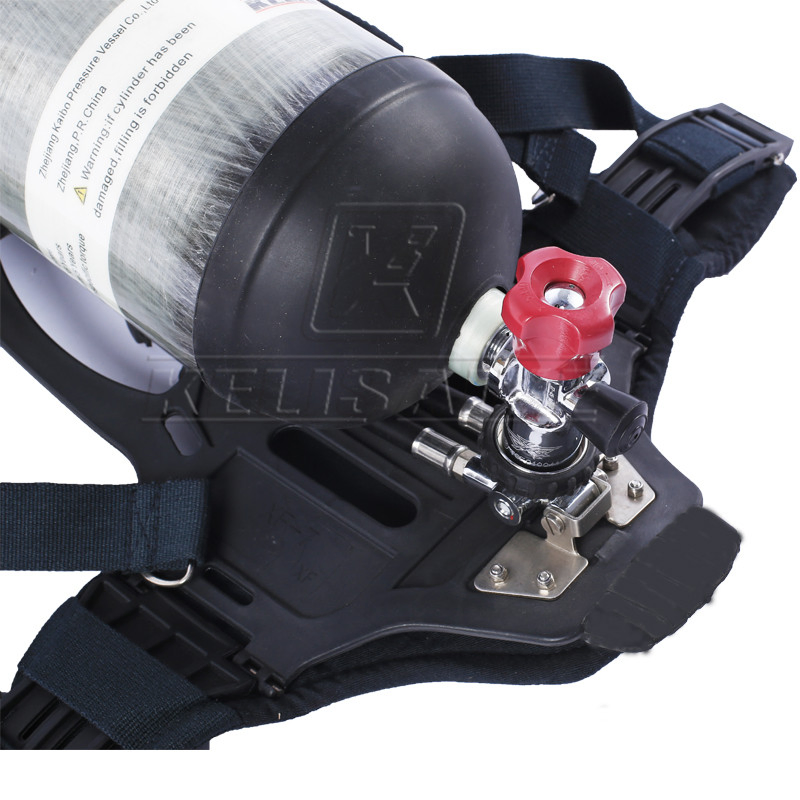

Gas Cylinder & Valve

Carbon fiber cylinder: high strength, light weight, and corrosion-resistant. Y-shape self-locking valve prevents accidental opening.

Frequently Asked Questions

Q1: What is the service life of the SCBA carbon fiber cylinder? A: The carbon fiber cylinder is designed for durability and high strength; the decompressor core specifically features a design life of up to 15 years.

Q2: How long does the air supply last during an emergency? A: For the 6.8L model, the service time is approximately 60 minutes. The 9L model extends the duration to 90 minutes, depending on the user's breathing rate.

Q3: Is the KL99 SCBA certified for international safety standards? A: Yes, it is fully certified under CE: EN137, ensuring it meets rigorous European safety requirements for breathing apparatus.

Q4: Can the pressure gauge be read in low-light conditions? A: Yes, the pressure gauge is designed to be waterproof, shockproof, and clearly readable even in complete darkness.

Q5: What materials are used for the shoulder straps and belt? A: The straps are made from high-quality Nomex or KEVLAR, which are both tear-resistant and flame-retardant for maximum protection.

Q6: What is the alarm volume when the air pressure is low? A: The integrated warning whistle provides a continuous alarm of ≥90dB, ensuring it can be heard even in loud, industrial, or fire-ground environments.
