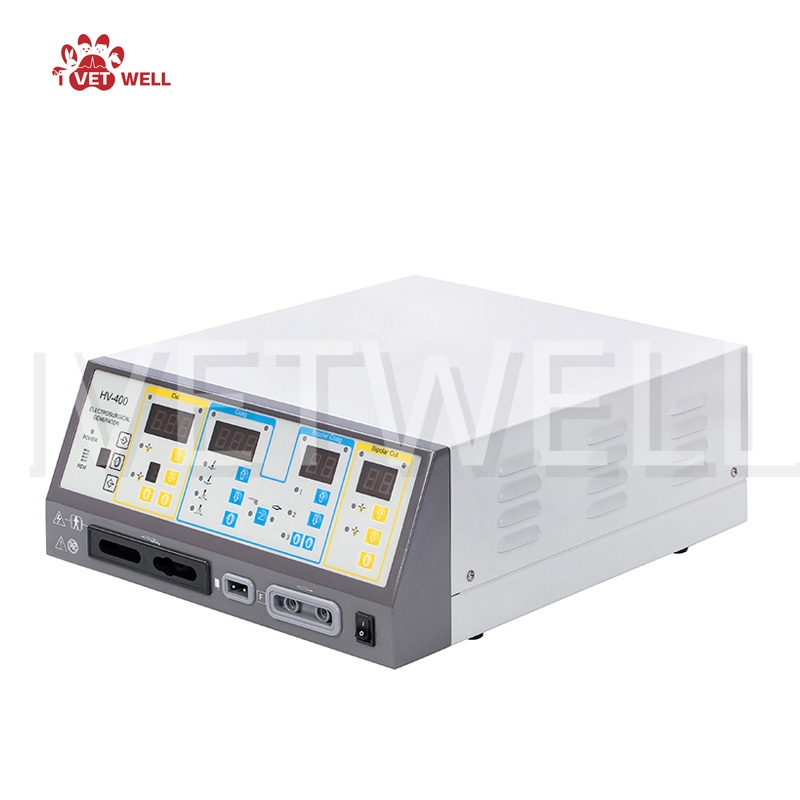

Compact Veterinary Electrosurgical Device for Efficient Animal Operations

1 / 5

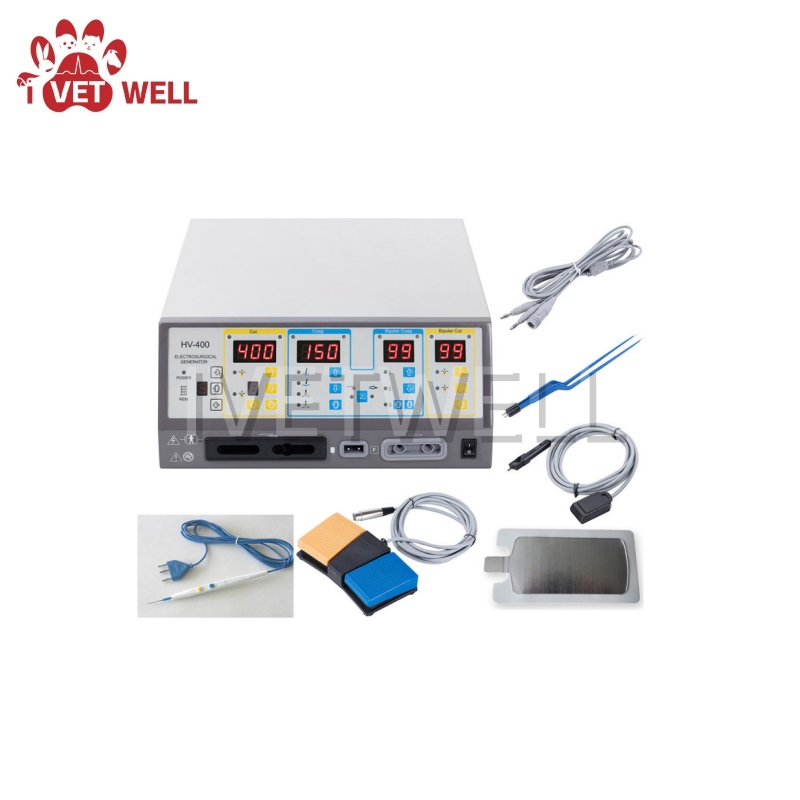

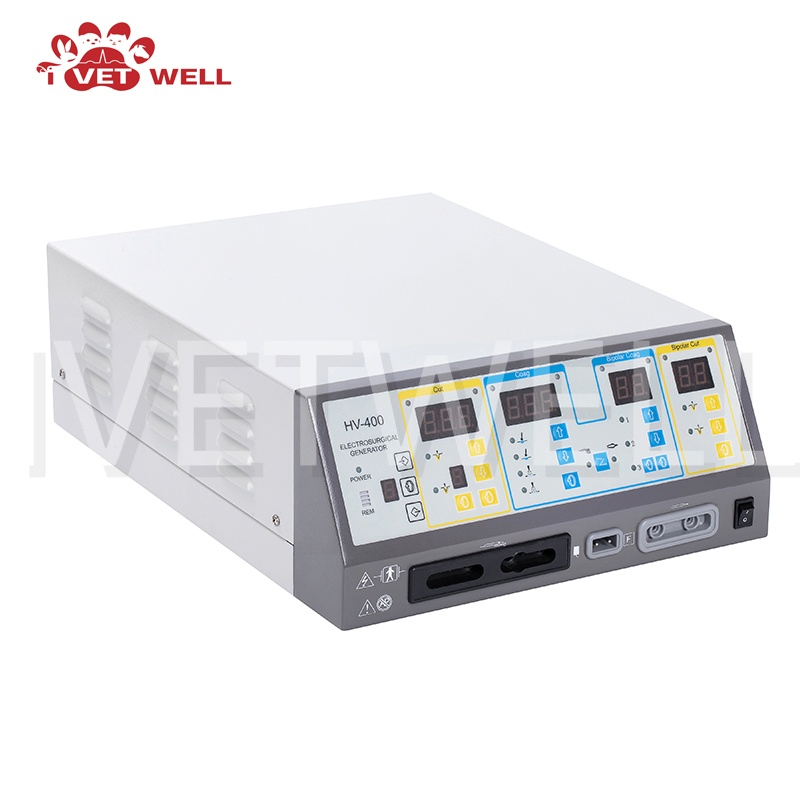

Compact Veterinary Electrosurgical Device for Efficient Animal Operations

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO. IVT-HV-400

Group Veterinary

Package Wooden Case

Specification 41cm x 32cm x 14cm

Origin China

Product Description

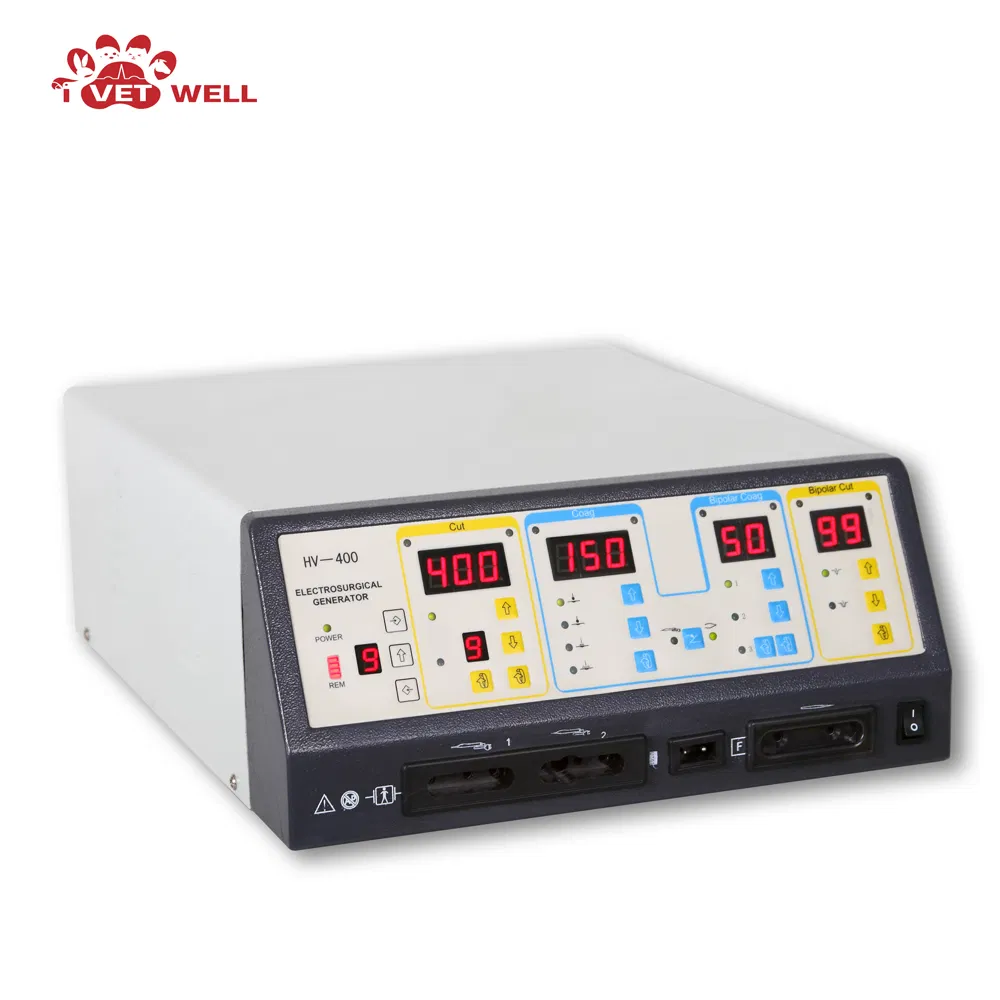

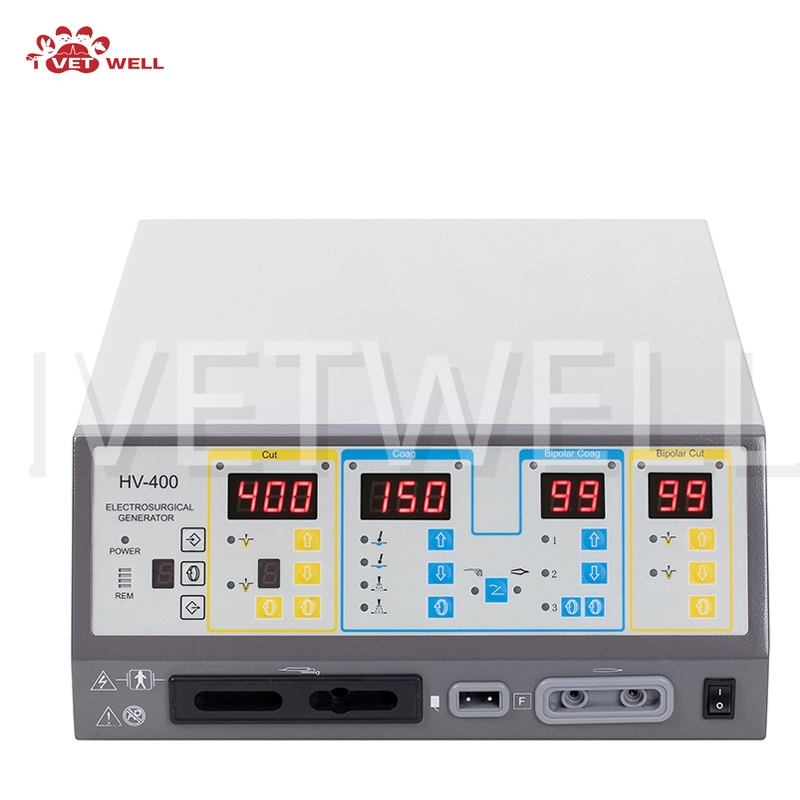

Intelligent Device System: The intuitive design and user-friendly set-up of the Electrosurgical Generator for modern operating rooms features both Monopolar and bipolar functions to satisfy all surgery demands with safety, flexibility, and convenience.

REM (Return Electrode Monitoring): The REM system continually monitors patient impedance levels and deactivates the generator if a fault in contact is detected, minimizing the danger of burns.

Memory Records: 0~9 memory locations for user-defined settings.
Time Control: Output range from 0.1 to 2.0 seconds for delicate neurosurgeries.

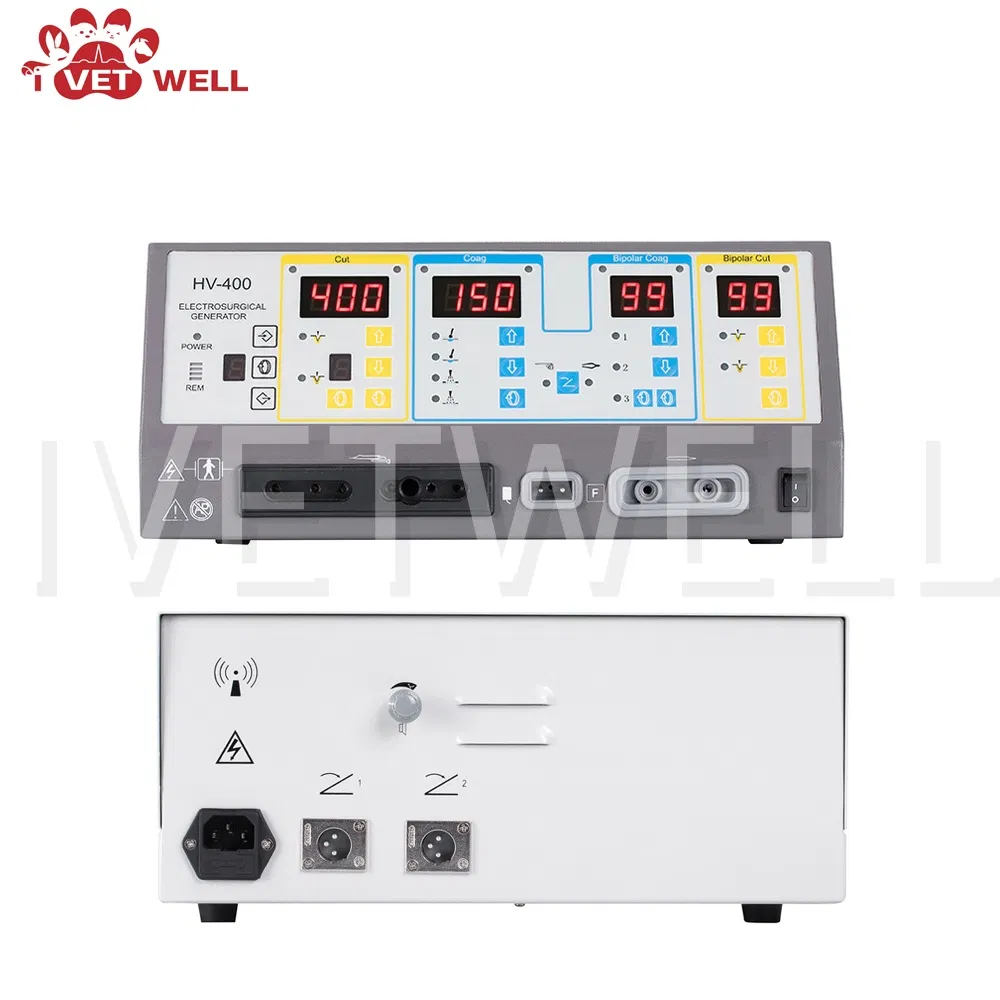

Dual Pencils: Two users can operate simultaneously without interference.
Multilanguage: Support for English, Spanish, Portuguese, Turkish, and more.

Technical Specification

Electrical Parameters		High Frequency Leakage	Low Frequency Leakage
Main Frequency	512 KHz	Monopolar: < 150mA	Normal Polarity: < 10μA Ground Open: < 50μA Reverse Polarity: < 50μA
Power Supply	110V-220V; 50-60Hz	Monopolar: < 150mA
Dimension	413214cm	Bipolar: < 60mA
Weight	8.00KG	Bipolar: < 60mA

Working Mode	Max P-P Voltage	Rated Load	Max Output	Crest Factor
Pure Cut	1900	500Ω	400W	1.6
Blend Cut (1-9)	2300-2800	500Ω	150W-300W	2.5-2.9
Coag (Contact)	3000	300Ω	150W	3.1
Coag (Spray)	6000	500Ω	120W	6.1
Bipolar Cut	480	100Ω	99W	1.4
Bipolar Coag	590	100Ω	99W	1.7

Corporate Advantages

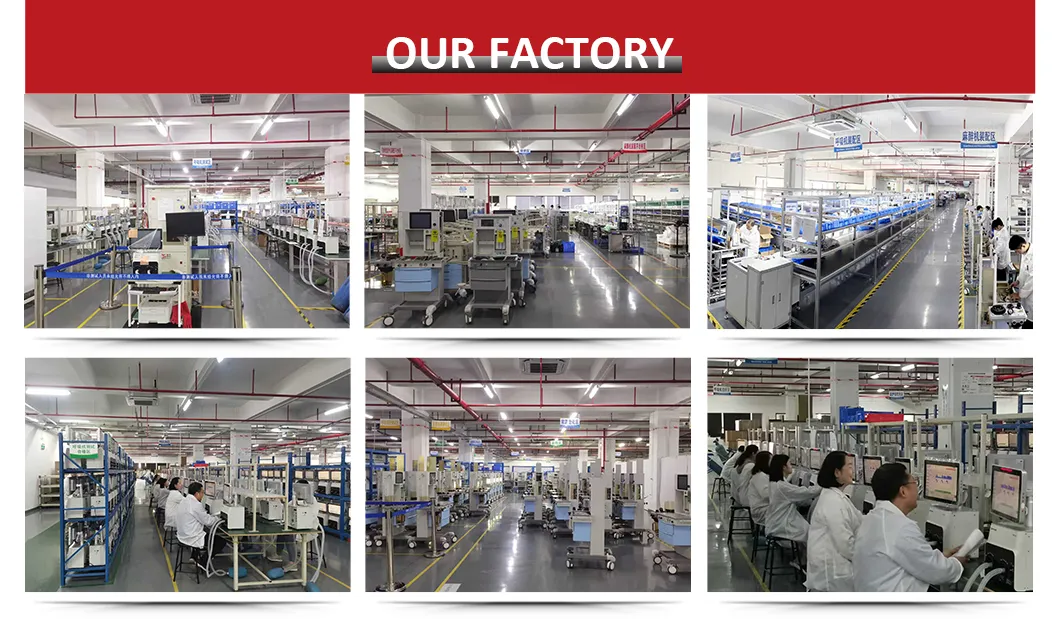

Quality Control: 3 rounds of strict inspection including raw material checks, production sampling, and pre-shipment full inspection with detailed reporting.

Logistics Service: Partnership with top freight forwarders for door-to-door service and comprehensive document handling.

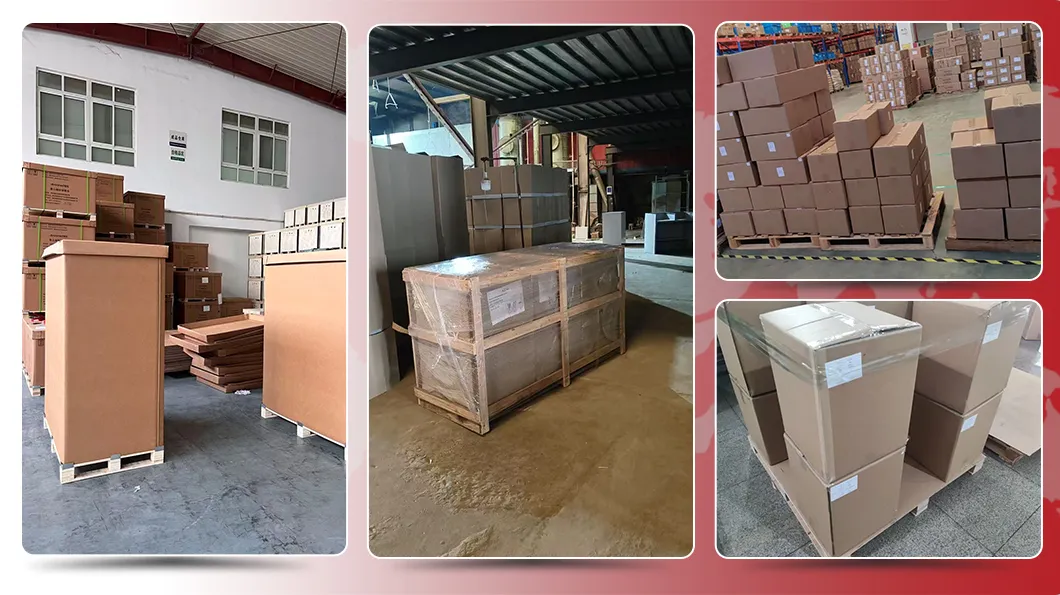

Certifications & Shipping

Frequently Asked Questions

When can I get the quotation?

We usually provide a quotation within 2 hours after receiving your inquiry. If you urgently need the price, please specify it in your communication for priority processing.

What is the production cycle of the product?

The production cycle depends on order quantity and product type. Typically, production is completed within 7-15 working days after confirmation.

What are the delivery terms available?

We accept various methods including EXW, FOB, CFR, and CIF. You can choose the most convenient and cost-effective option for your needs.

What certifications can you provide?

We provide CE certification, ISO 9001 quality system certification, third-party calibration certificates (CNAS), and factory inspection reports.

Do you support cross-border technical support?

Yes, our technical support team is available 24/7. We provide quick problem-solving solutions and can dispatch engineers for on-site support when necessary.

What are the payment terms?

For amounts less than or equal to $2,000, 100% prepayment is required. For larger amounts, we typically require a 30% deposit and 70% balance. We also accept L/C and OA agreements.
