Sy-I045c Electrosurgical Unit High Frequency Hospital Surgery Cautery Device

1 / 5

Sy-I045c Electrosurgical Unit High Frequency Hospital Surgery Cautery Device

Customization:	Available
Application:	Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology
Feature:	Reusable

Send Inquiry

Product Description

Basic Information

Model NO.

SY-I045C

Certification

Warranty

1 Year

Materials

Metal, Plastic

Working Frequency

357-575kHz

Weight

4.2kg

Product Name

Electrosurgical Unit

Transport Package

Carton Box

Origin

China

Production Capacity

200 Set/Month

⚡

Product Description

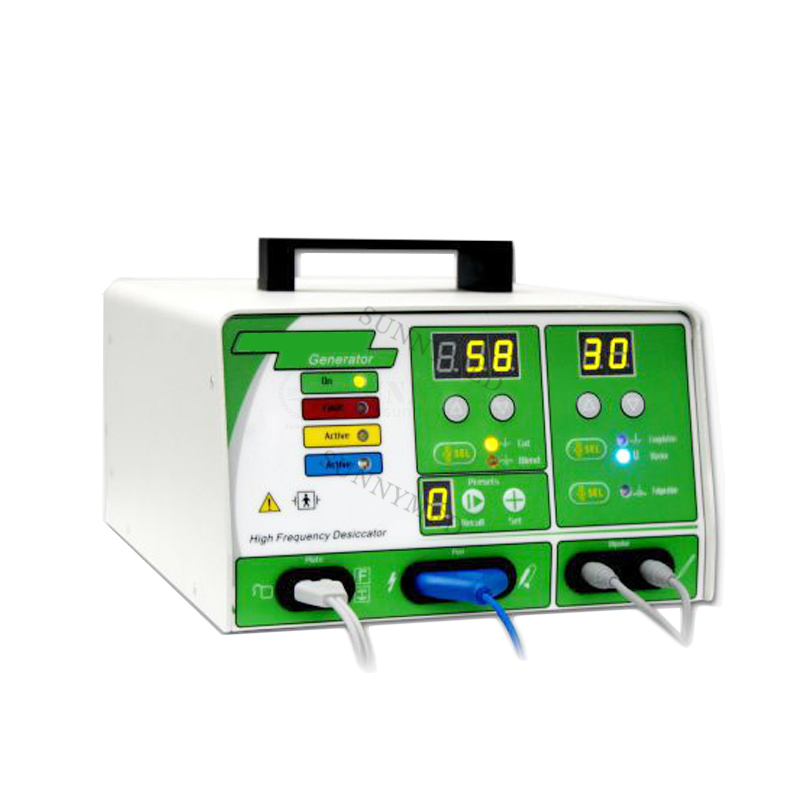

SY-I045C Electrosurgical Unit High Frequency Hospital Surgery Cautery Device

Portable in size, available in both monopolar and bipolar modes, convenient handle power control and memory function, suitable for micro surgery, gynecology and arthroscopy.

Display Setting:

Fulguration: 0-10 range (0.1watt increments), 10-35 range (1.0 watt increments)
Cut, Blend, Coagulation and Bipolar: 1.0 watt increments

Power Supply & Environment:

Power: 220V±10%, 50±1%Hz
Ambient temperature range: -40°C~55°C
Relative moisture range: ≤95%
Atmosphere pressure: 500hPa~1060hPa

★

Key Features

Two levels of coagulation: Pinpoint coagulation for precise control and Fulguration for surface area bleeding control.
Presets: Incorporates up to ten user-defined presets for easy recall of frequent settings.
Isolated RF output: Specific modes for Cut, Blend, and Coag to minimize alternate site burns.
Self diagnostics: Continually monitors unit performance with warning tones for safety.
Ground Referenced RF output: Optimized for Fulguration modes.

⚙

Technical Specifications

Parameter	Range / Value
Environmental temperature range	5°C~ 40°C
Relative moisture range	≤80%
Atmosphere pressure range	86.0 ~ 106.0 Kpa
Pure cut	1w ~ 60w (Load 500Ω)
Blend	1w ~ 60w (Load 800Ω)
Coagulation	1w ~ 60w (Load 1000Ω)
Fulguration	0.1w ~ 35w (Load 1000Ω)
Bipolar	1w ~ 30w (Load 200Ω)
Voltage	220V±10V, 50Hz ±1Hz
Working frequency	357 KHz ~ 575 KHz
Leakage currents to ground	Less than 0.5mA
Leakage currents to patient	Less than 0.01mA

📷

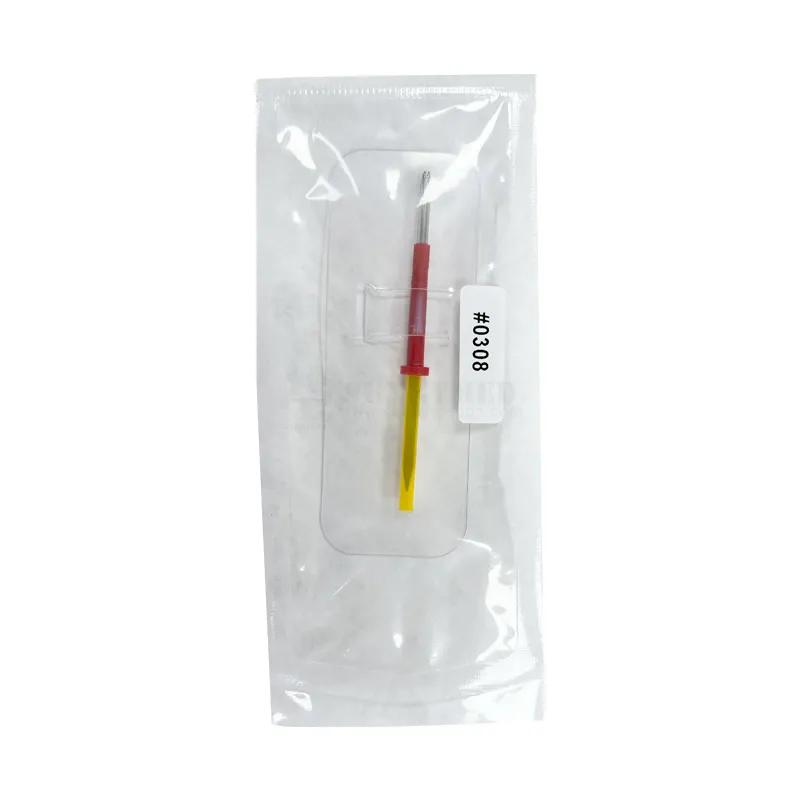

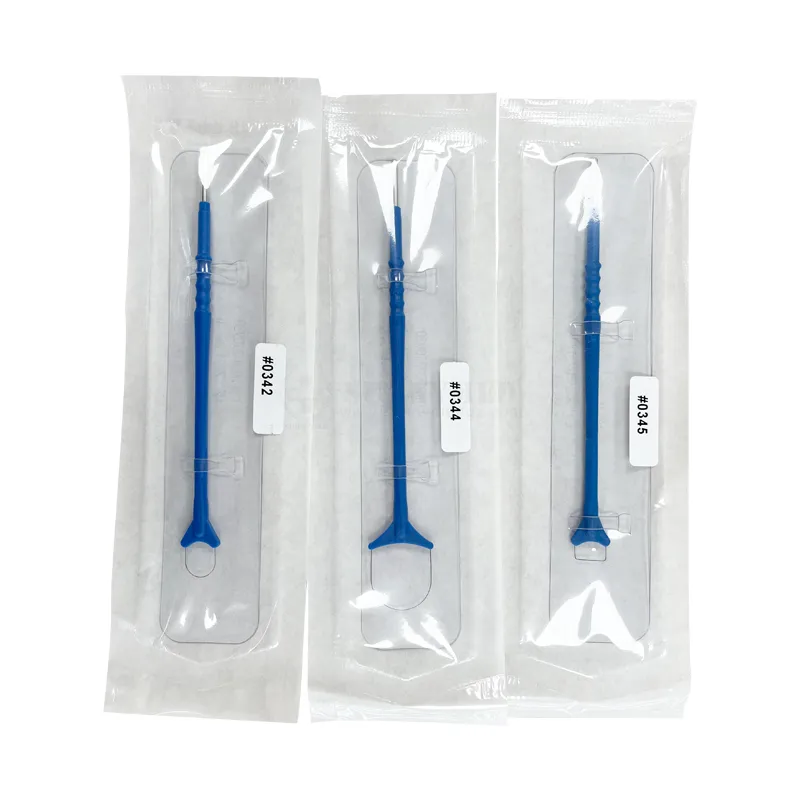

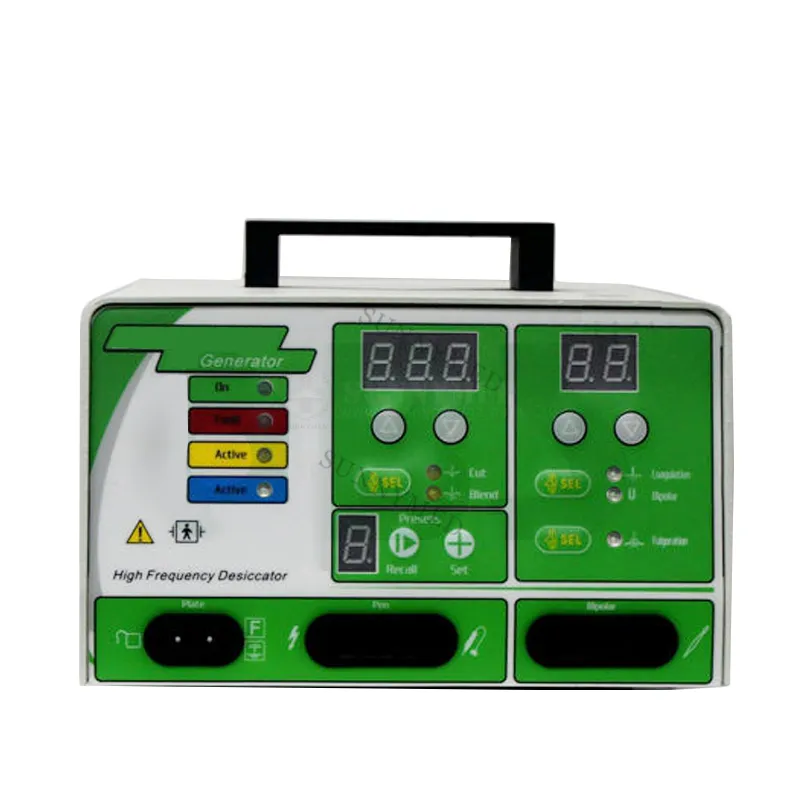

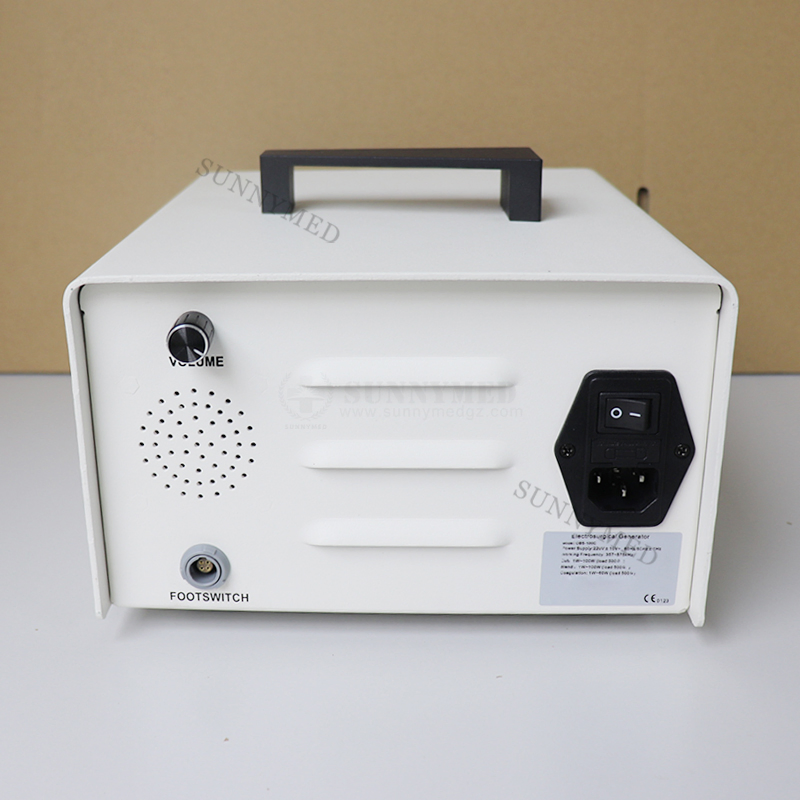

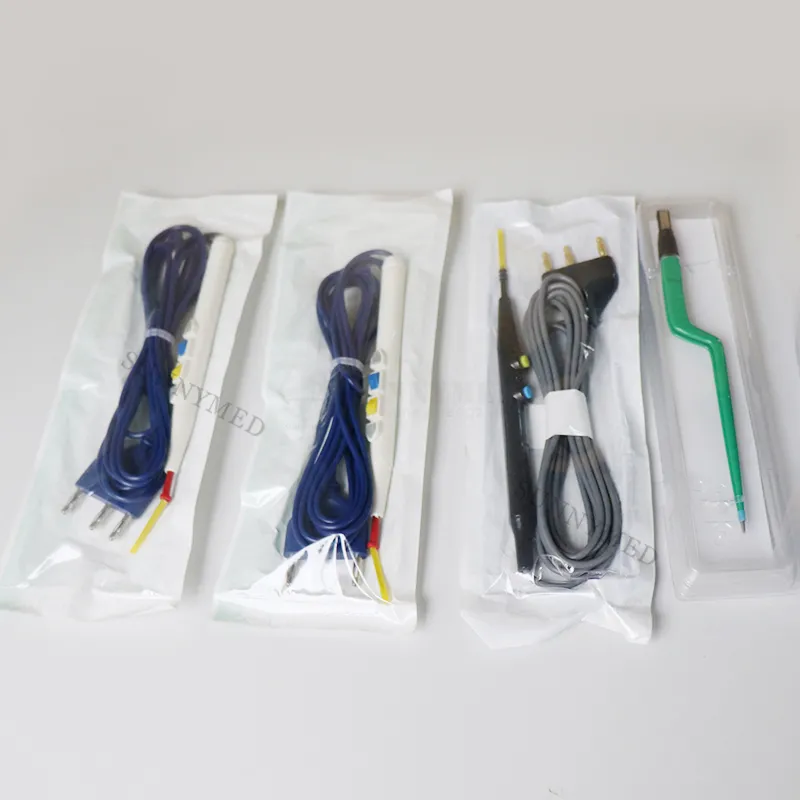

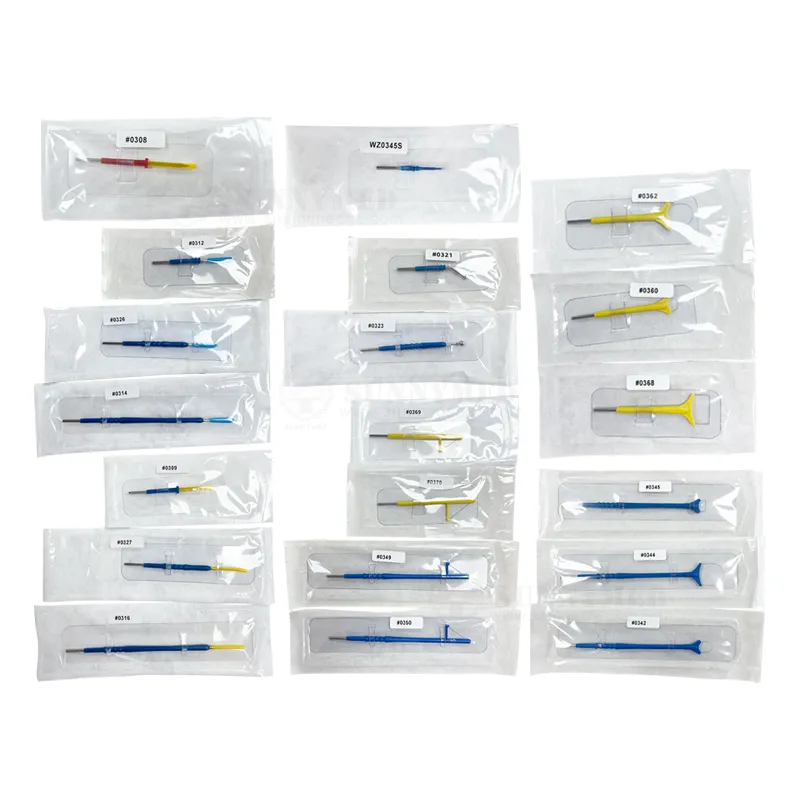

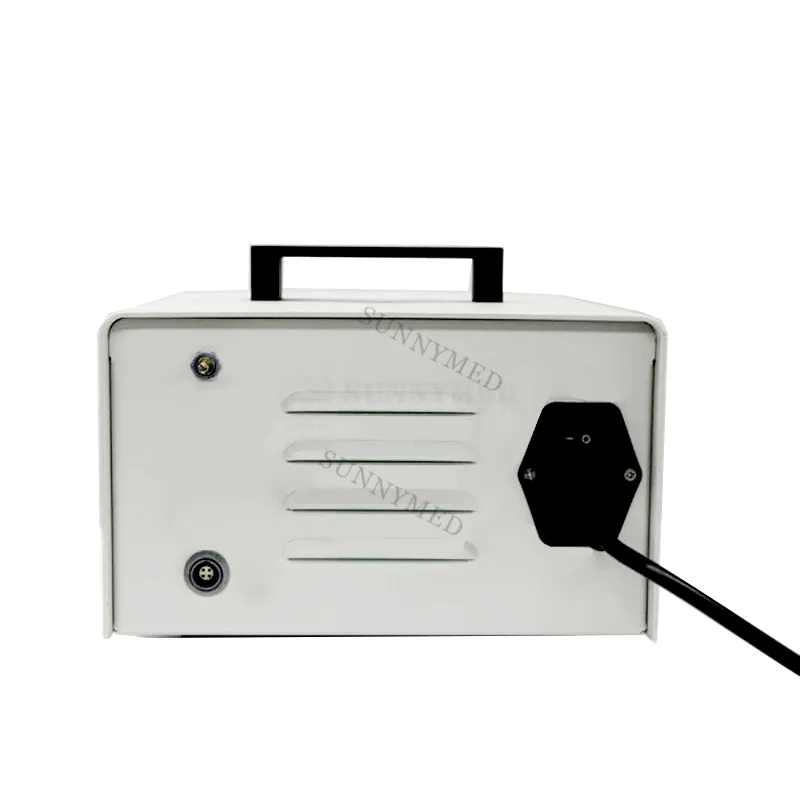

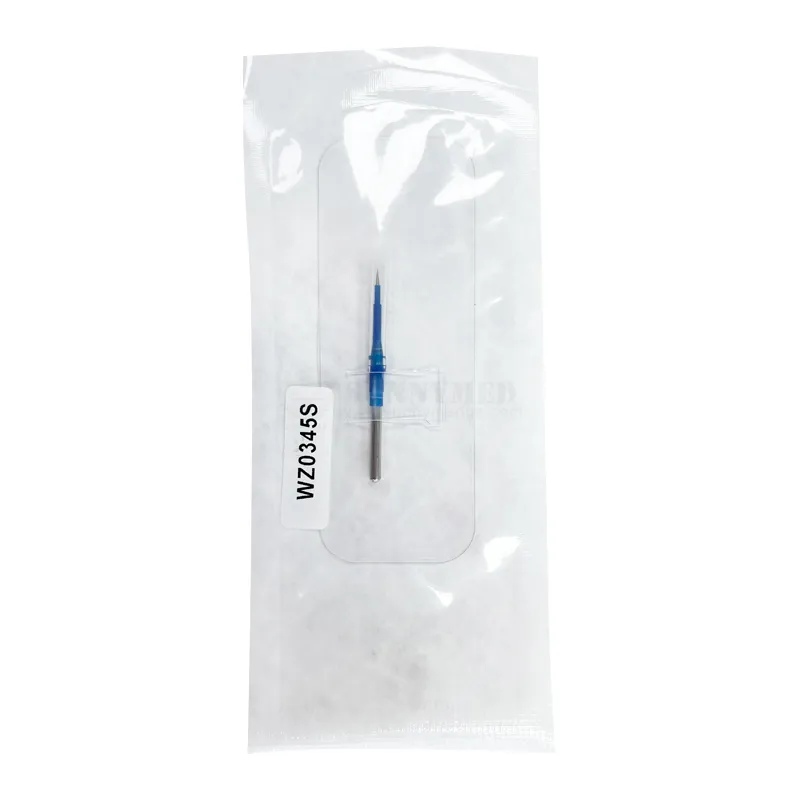

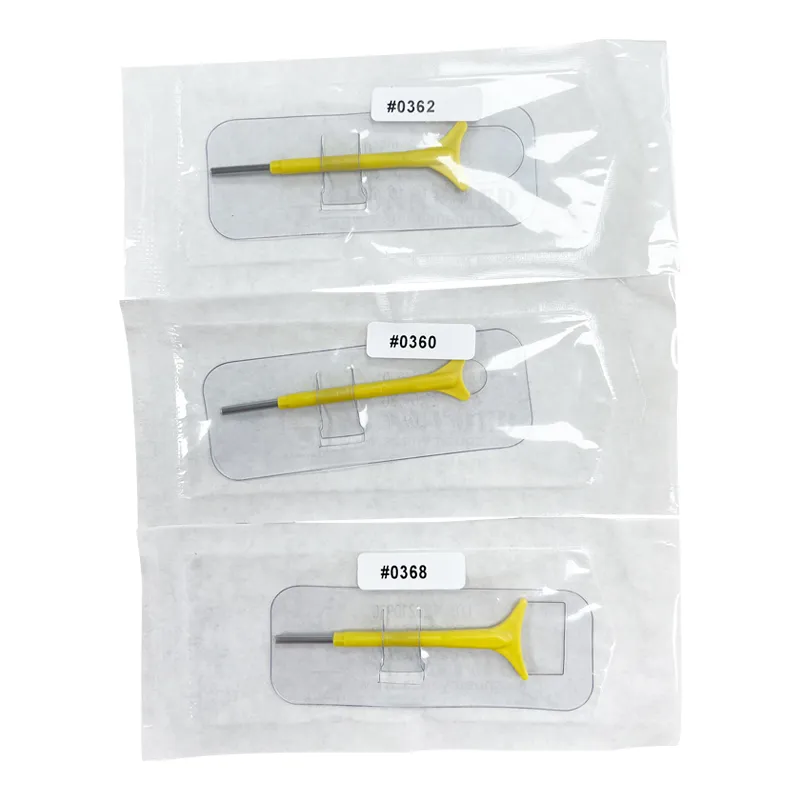

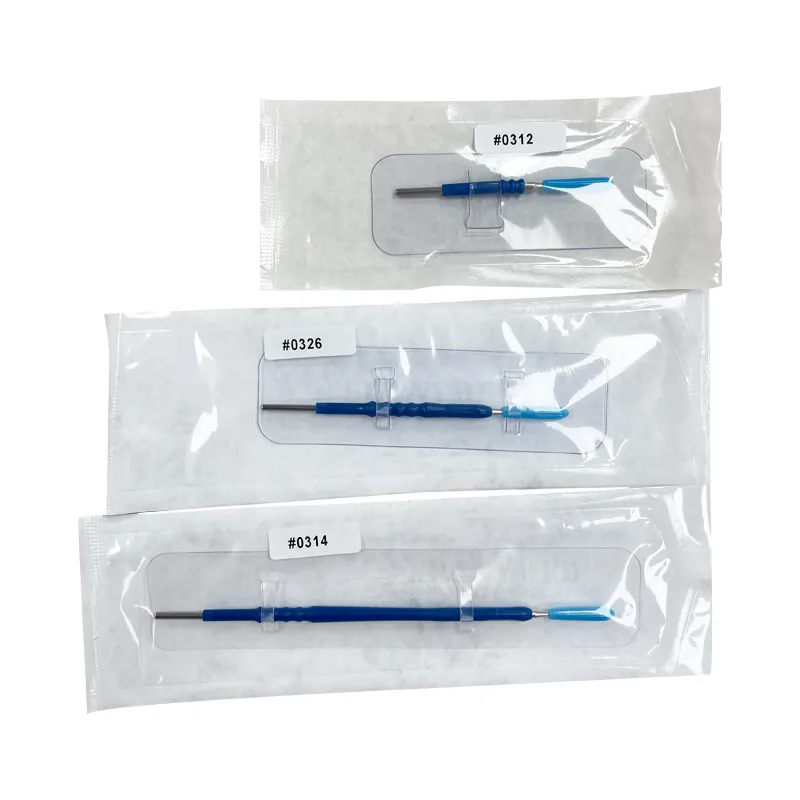

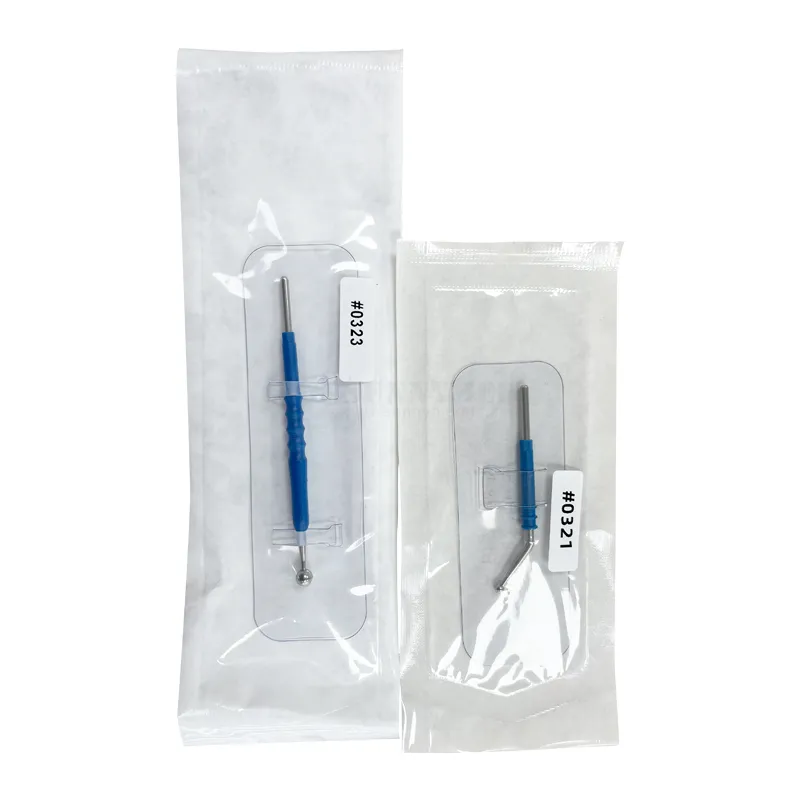

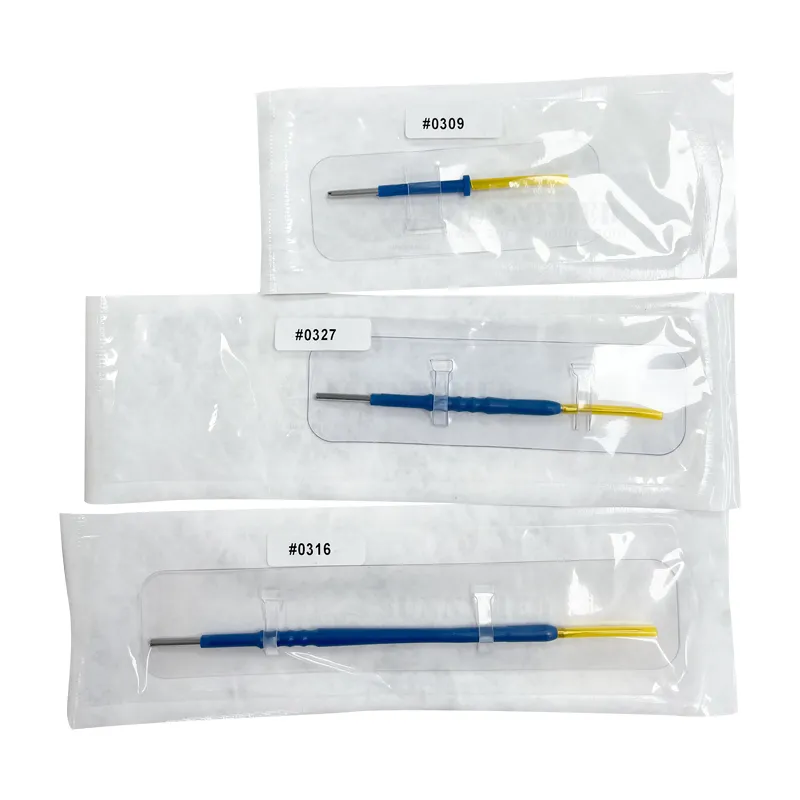

Detailed Photos

🏢

Facility Overview

Frequently Asked Questions

Q1: What surgical procedures is the SY-I045C suitable for?

A: The unit is highly versatile and suitable for micro surgery, gynecology, and arthroscopy, providing both monopolar and bipolar modes.

Q2: How precise is the power control on this device?

A: For Fulguration, it offers 0.1 watt increments in the 0-10 range. For Cut, Blend, Coagulation, and Bipolar modes, it offers 1.0 watt increments.

Q3: Does the unit have memory for preferred settings?

A: Yes, it features ten user-defined presets for easy and quick recall of your frequently used power settings.

Q4: What safety monitoring does the SY-I045C provide?

A: It includes continuous self-diagnostics to monitor performance. If any issues are detected, warning tones are immediately sounded to alert the operator.

Q5: What is the difference between Pinpoint and Fulguration coagulation?

A: Pinpoint coagulation offers precise control for localized areas, while Fulguration provides greater control for bleeding in highly vascular surface areas.

Q6: Is the device portable for different hospital settings?

A: Yes, with a weight of only 4.2kg and a compact design, it is portable and easy to move between different surgical suites.
