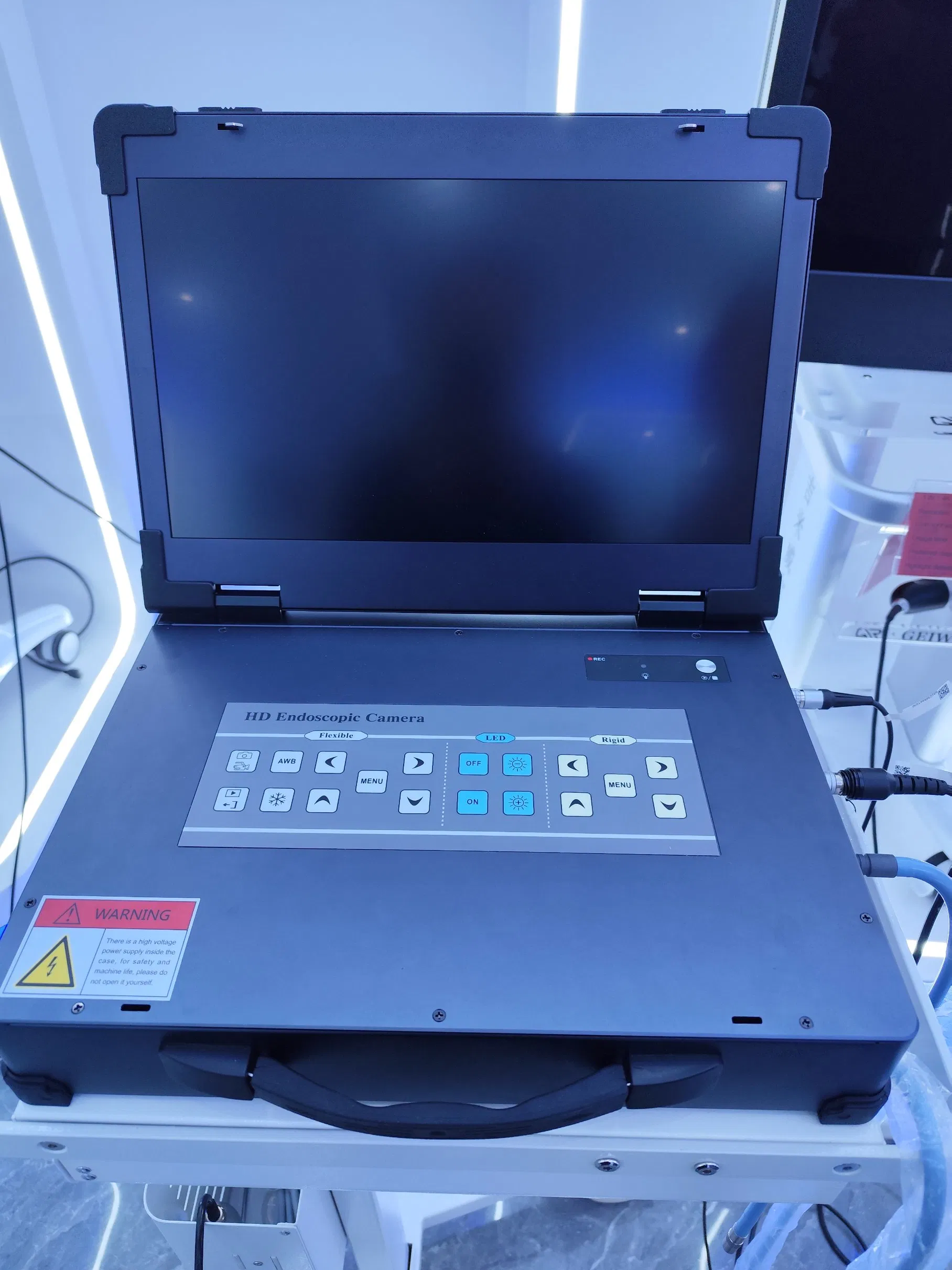

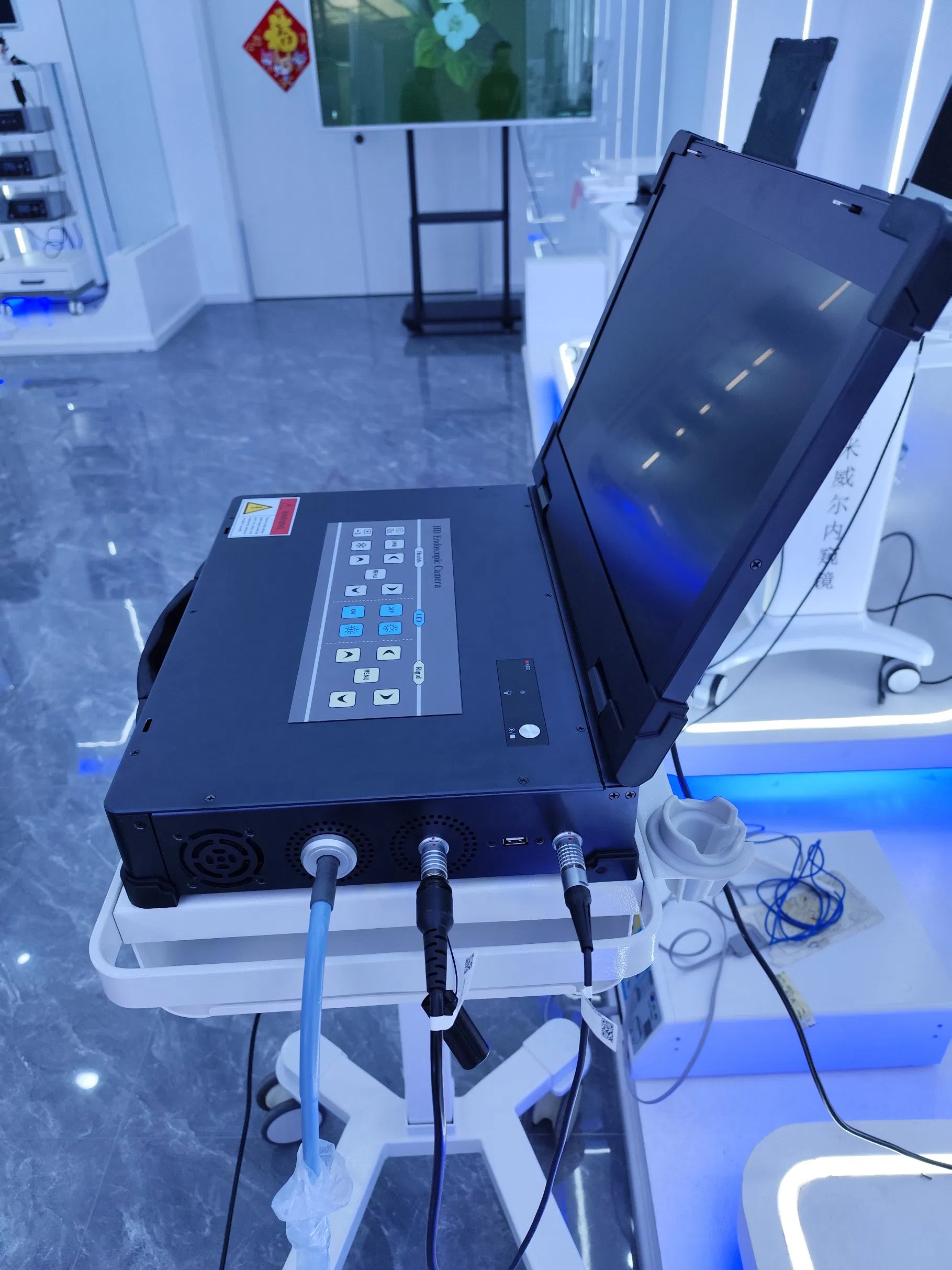

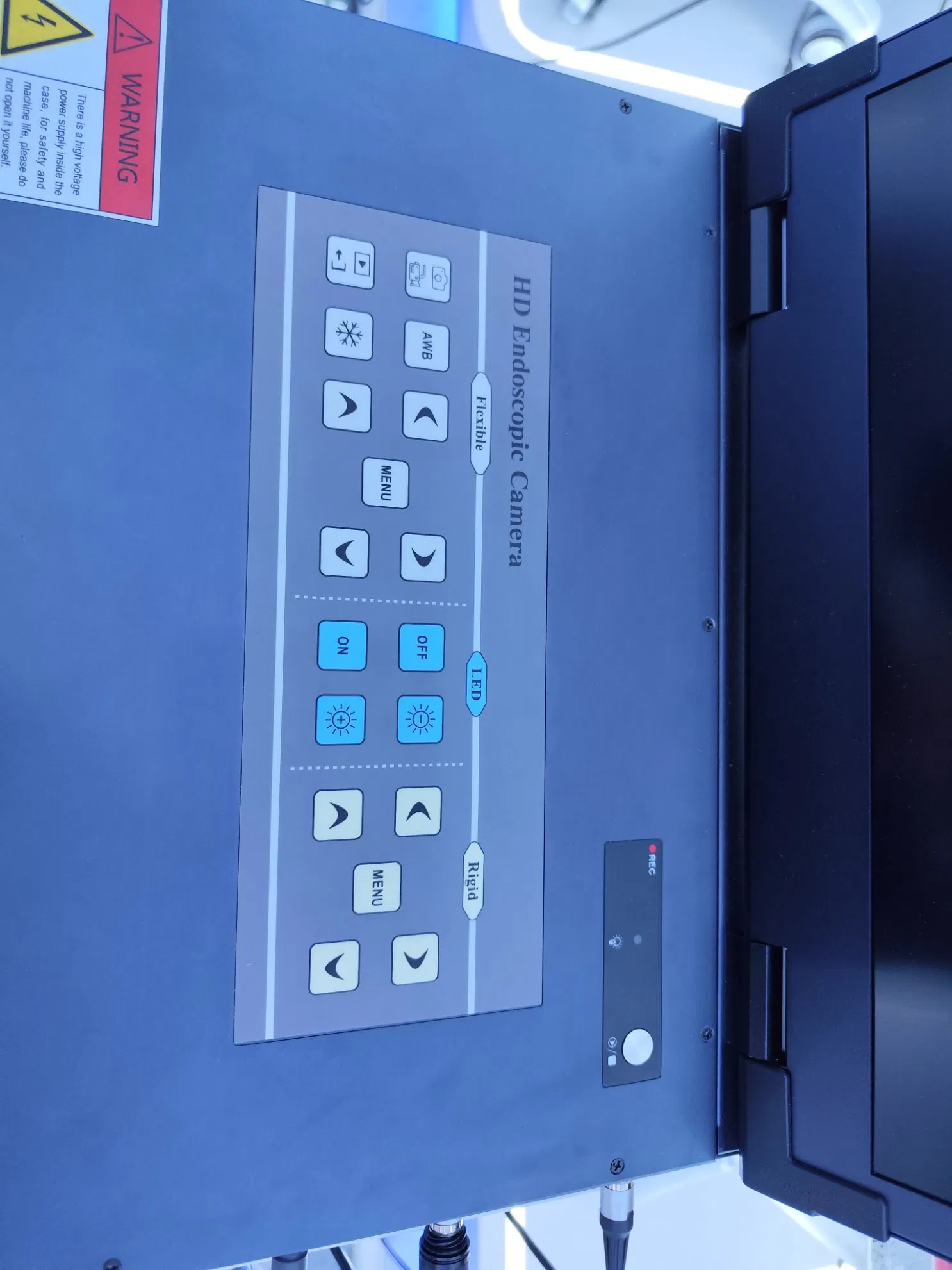

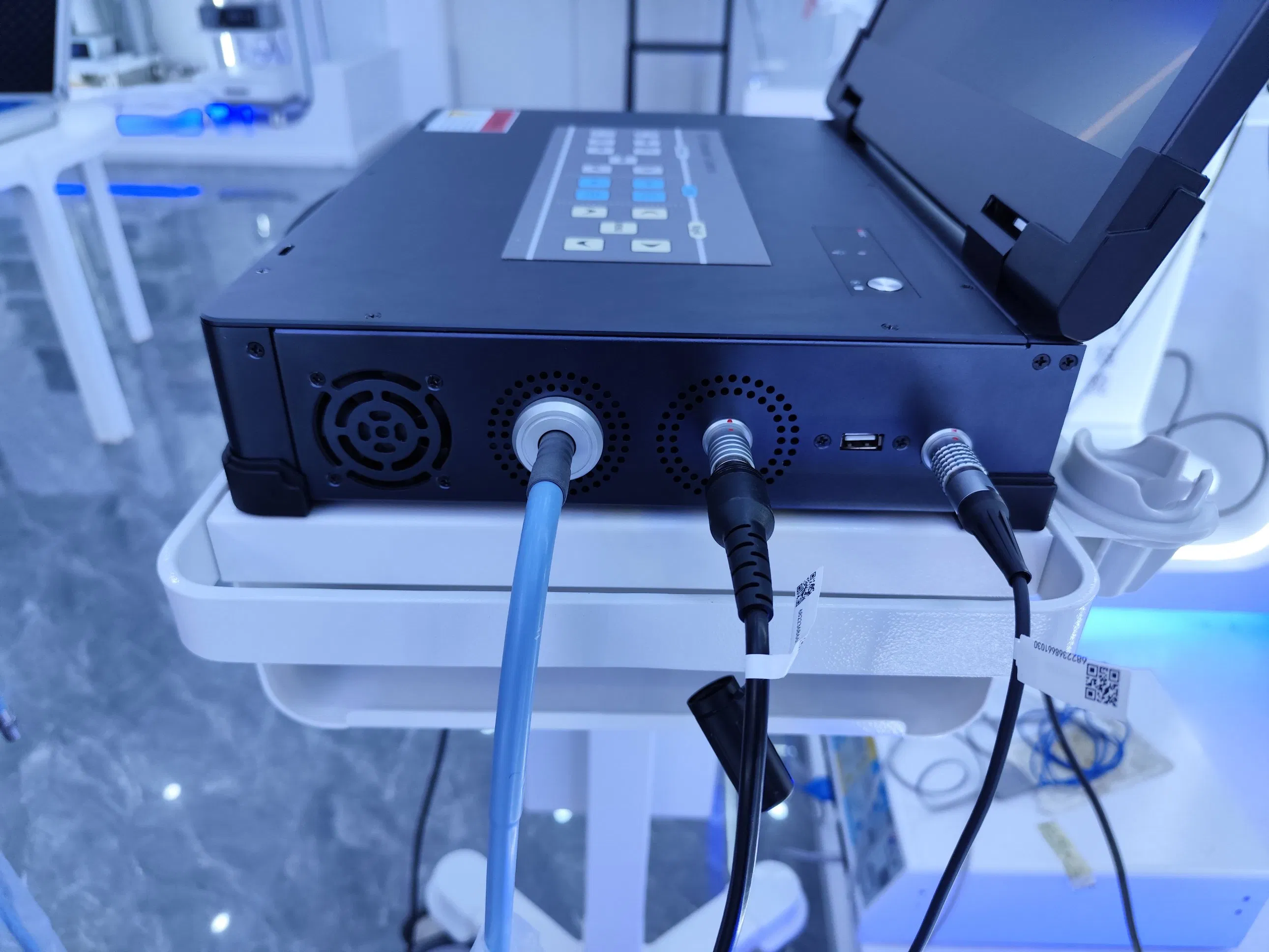

Endoscopy Equipment Medical HD Flexible and Rigid System for Diagnosis

Still deciding? Get samples of $ !
Request Sample

Product Description

📊 Basic Information
Model NO.
HD-3310
Certification
CE, ISO13485, RoHS
Main Function
One-Click Switch Between Rigid and Flexible Endoscope
Camera
1/1.8" CMOS
Resolution
1200 Lines (1920*1200)
Origin
China
🔍 Product Description
Advantages: White balance, HD frozen image, photo, video storage, True color, fine image, longer depth of field.
Parameter Specification
Monitor17.3" HD Monitor
Image size1920*1200
AWBManual AWB

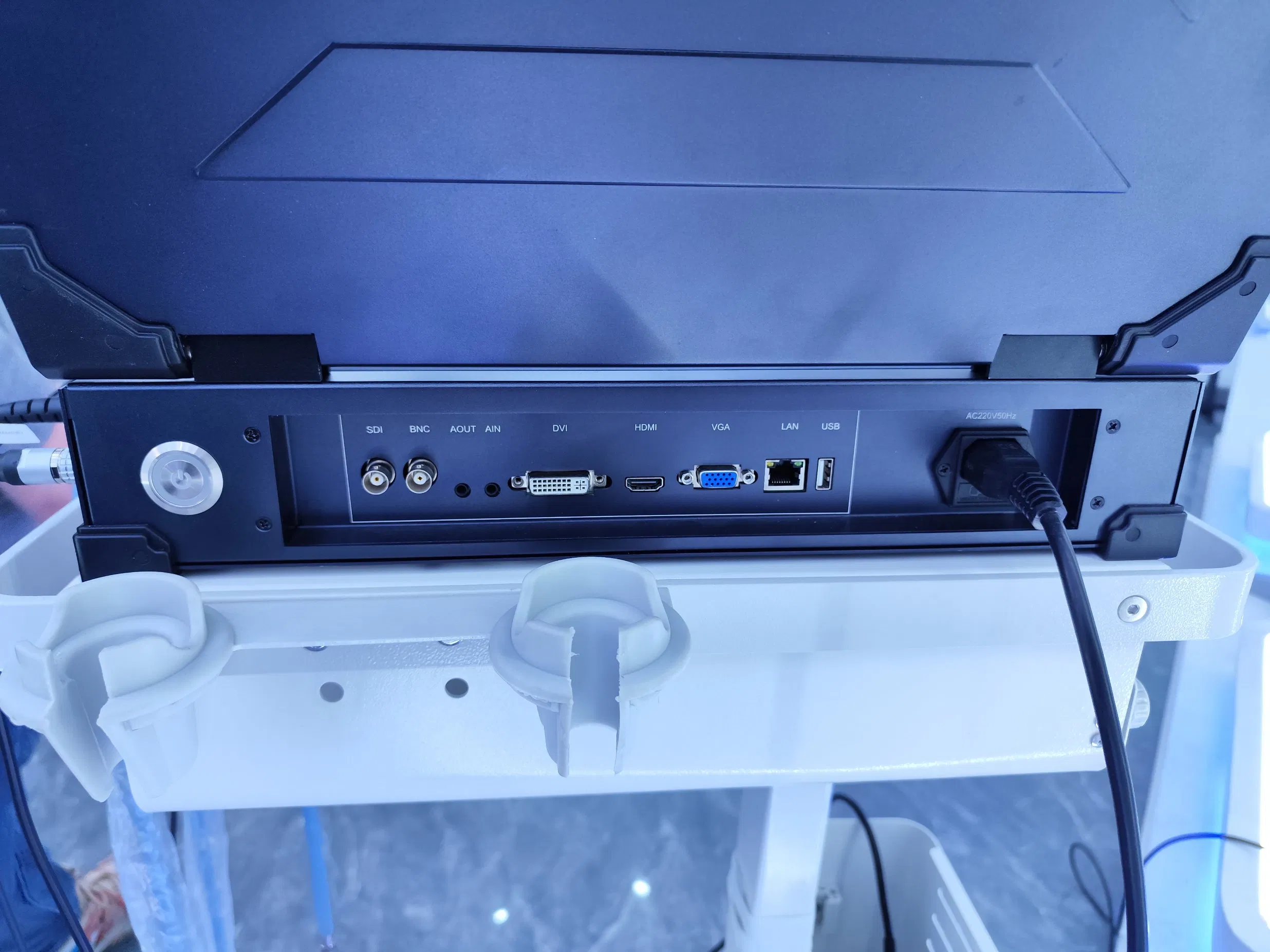

Video OutputHDMI, SDI, DVI, BNC
Video InputHDMI, VGA
Cold Light Source60W LED Light Source
StorageStorage video and playback function (USB interface)
Color Temperature3000K-7000K
Luminous flux600lm

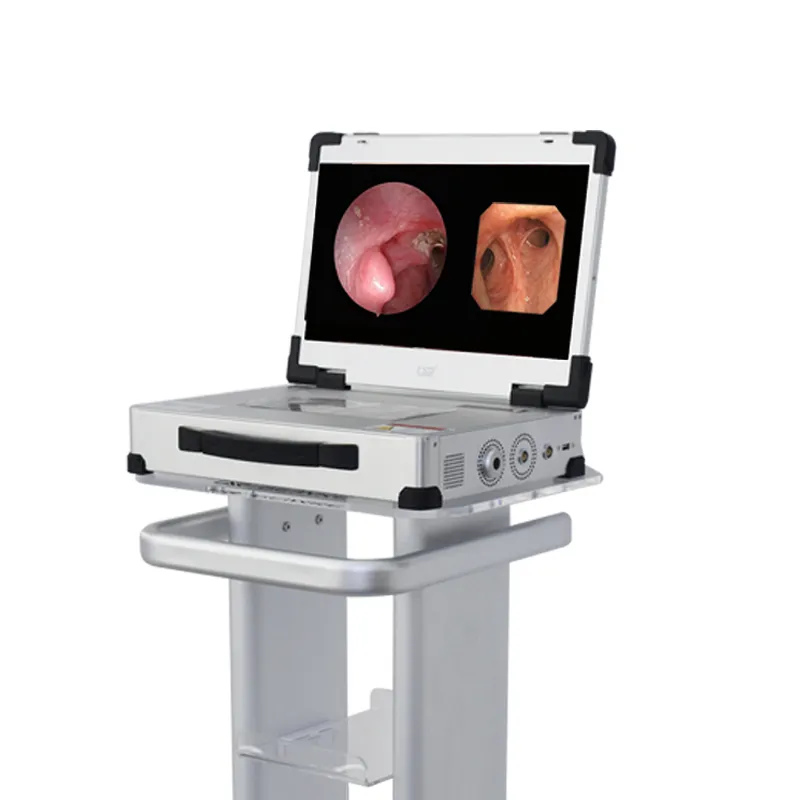

Endoscopy System Detail 1

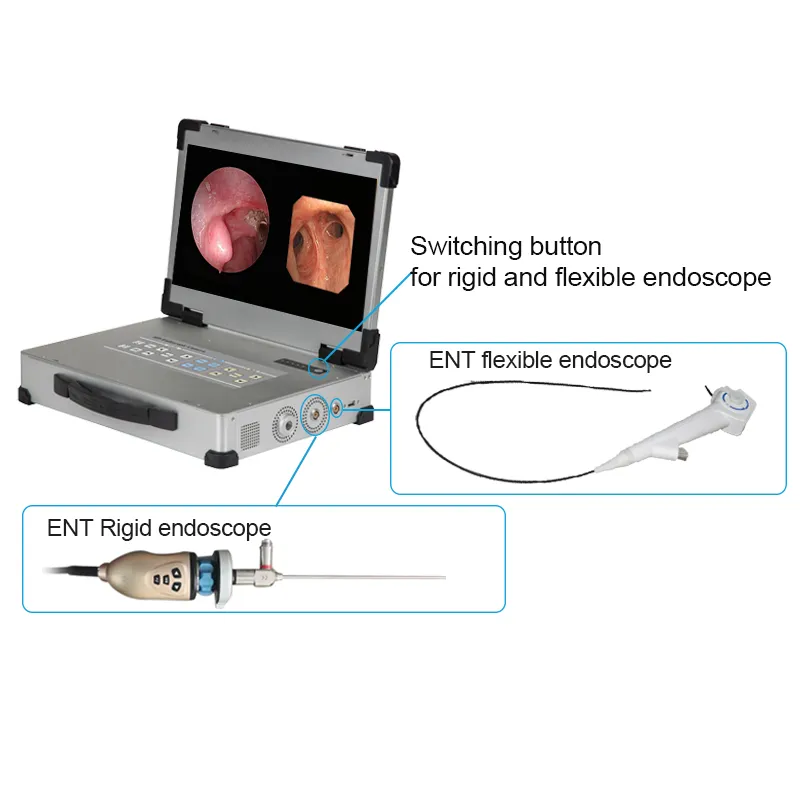

Endoscopy System Detail 2

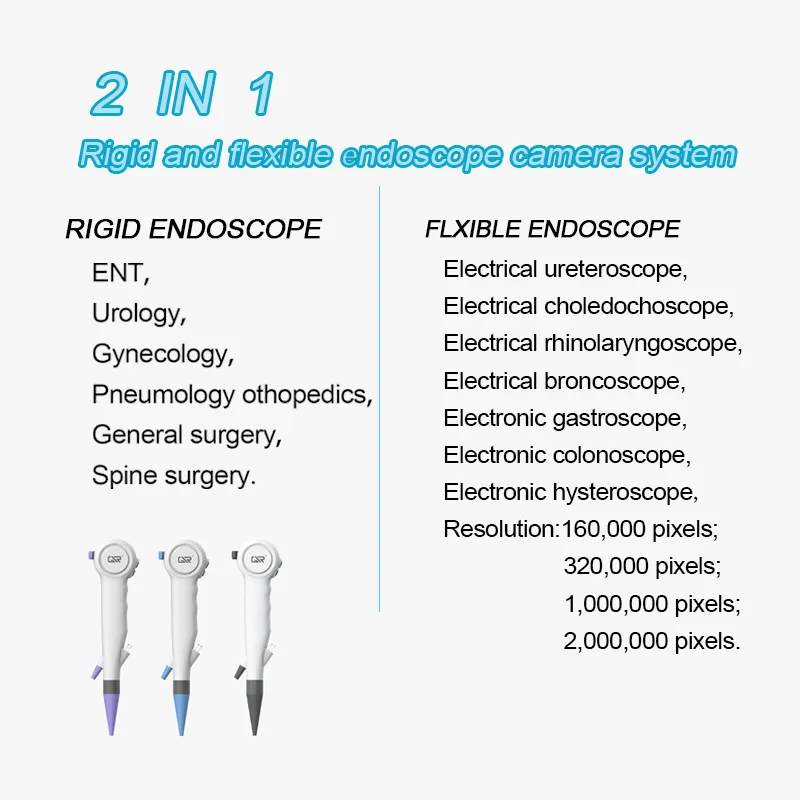

Main Endoscope System
🏢 Profile Highlights

A comprehensive joint-stock company engaged in the production, management, development, and sales of medical devices. With the enterprise spirit of "honesty, development, innovation and development", the company strives to govern high-performance, high-tech, and high-quality products, focusing on modern clinical applications and the needs of patients.

Main Products: Endoscope Image Processing System, High-Definition Endoscope Series Camera, LED cold light source, medical monitor, pneumoperitoneum machine, flushing pump, power system, and various surgical scopes including laparoscopy, hysteroscopy, and more.

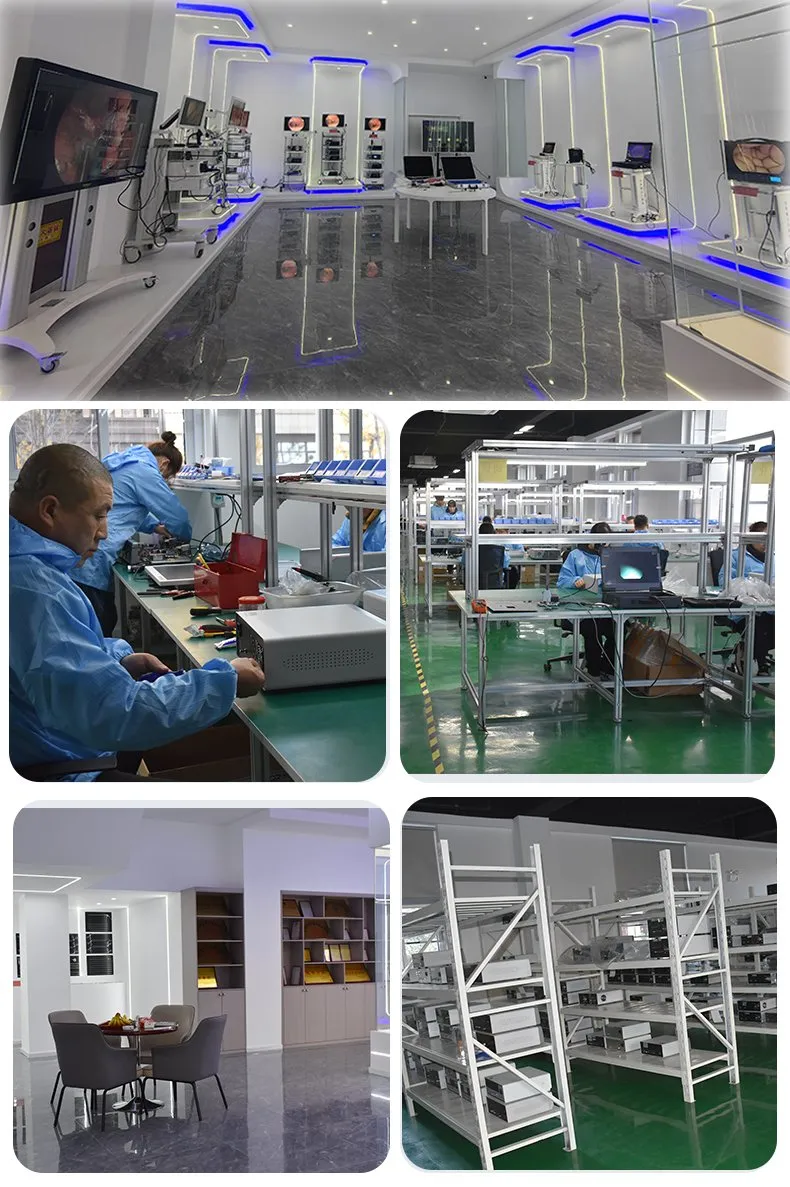

Production Facility
📦 Packaging & Shipping
Packaging Process 1 Packaging Process 2 Packaging Process 3
Packaging Details Wooden or carton package
Shipping Port Shanghai
Shipping Logistics 1 Shipping Logistics 2 Shipping Logistics 3
📜 Certifications

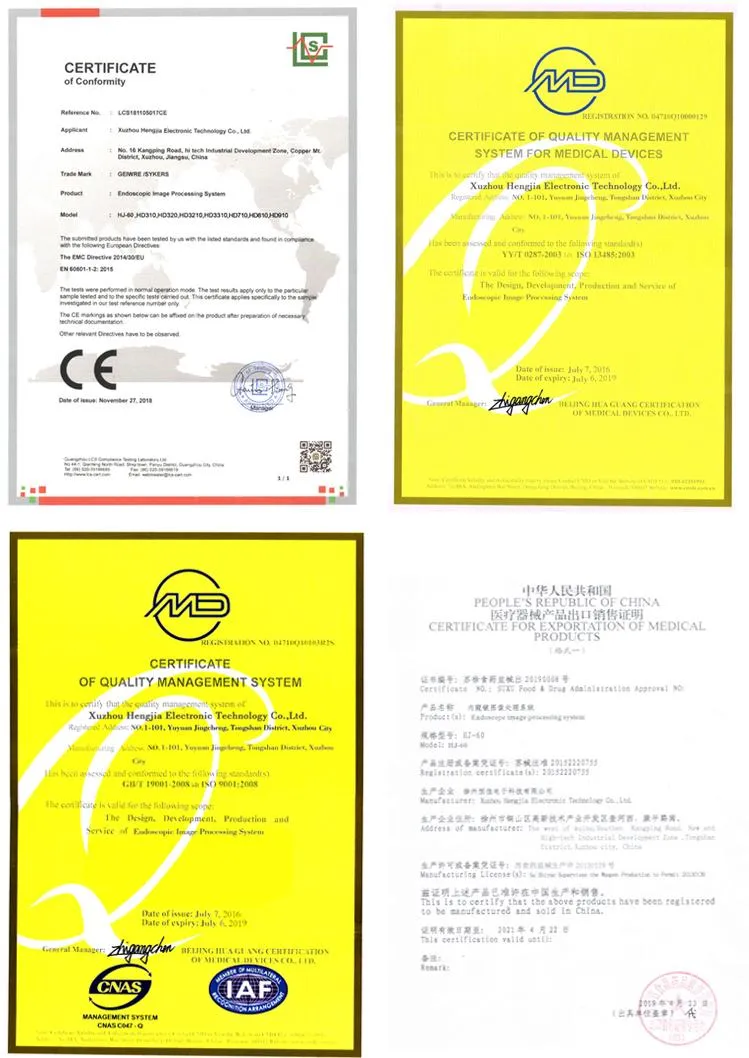

Medical Device Certifications
Frequently Asked Questions
What is the camera sensor size and resolution of the HD-3310?
The HD-3310 features a high-performance 1/1.8" CMOS sensor with a resolution of 1200 lines (1920*1200), ensuring clear and fine images.
Does this system support both rigid and flexible endoscopes?
Yes, the system is designed for a one-click switch between rigid endoscopes (like ENT, Urology, Gynecology) and flexible endoscopes (like Electrical Ureteroscopes).
What video output formats are available for medical recording?
The system supports multiple video outputs including HDMI, SDI, DVI, and BNC, providing full compatibility with various medical monitors and recording systems.
Is there an integrated light source in the HD-3310?
Yes, it comes with a built-in 60W LED cold light source with a luminous flux of 600lm and adjustable color temperature from 3000K to 7000K.
What certifications does the equipment hold?
The product is fully certified with CE, ISO13485, and RoHS, meeting international standards for medical electronic equipment.
Can I record and store surgical procedures directly?
Yes, the system includes USB storage functionality, allowing for photo and video storage as well as direct playback on the monitor.
