| Item | Detail |
|---|---|

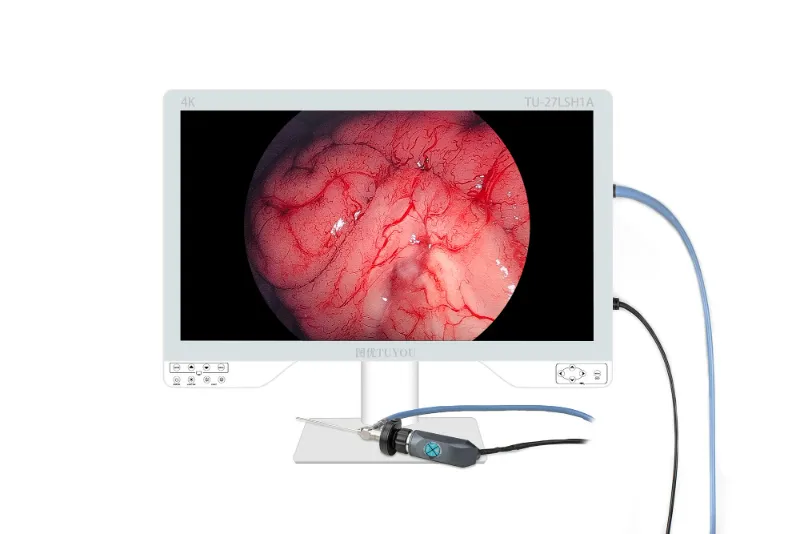

| Product Item No. | TU-27LSH1A (4K Camera) |
| Input Interface | SDI 4K 60FPS |
| Output Interface | HDMI/SDI/CVBS/VGA/DVI |

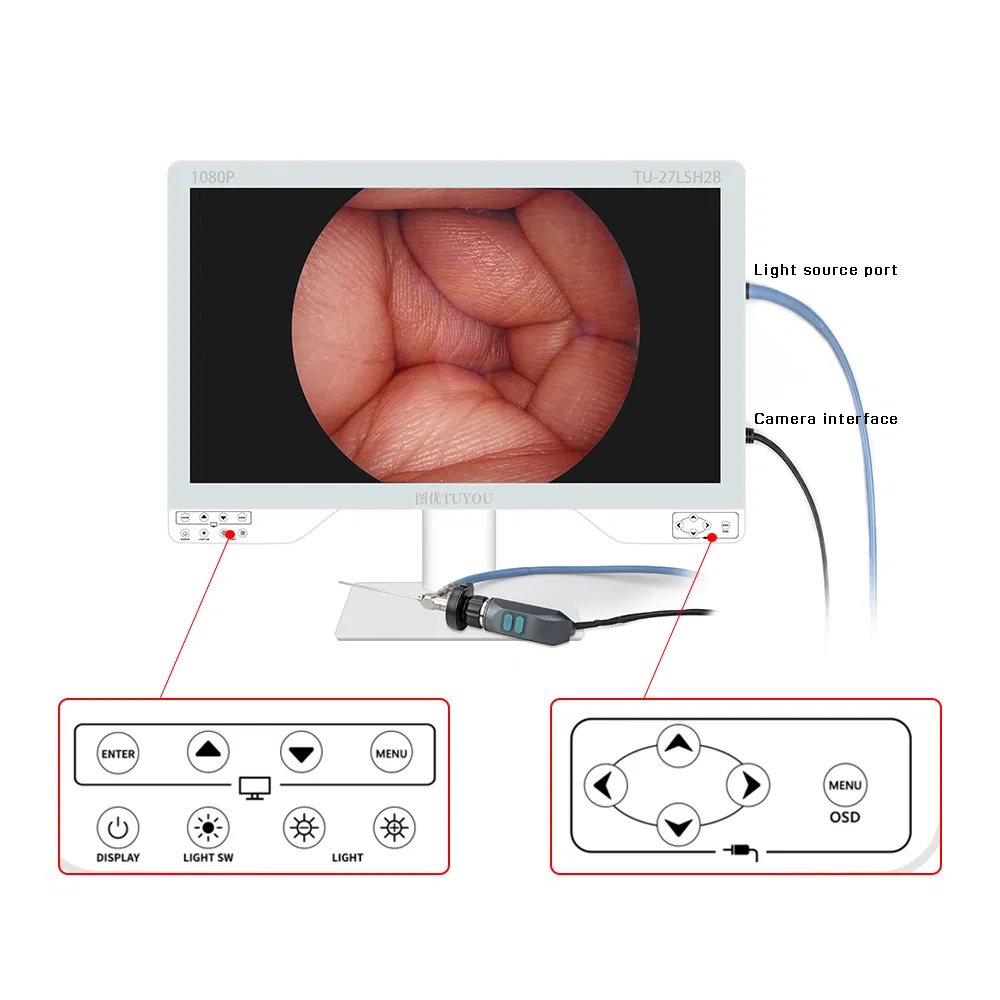

| Keypad Control | Control the mainboard menu and shortcut keys through RX/TX |
| Power | AC110V~240V |

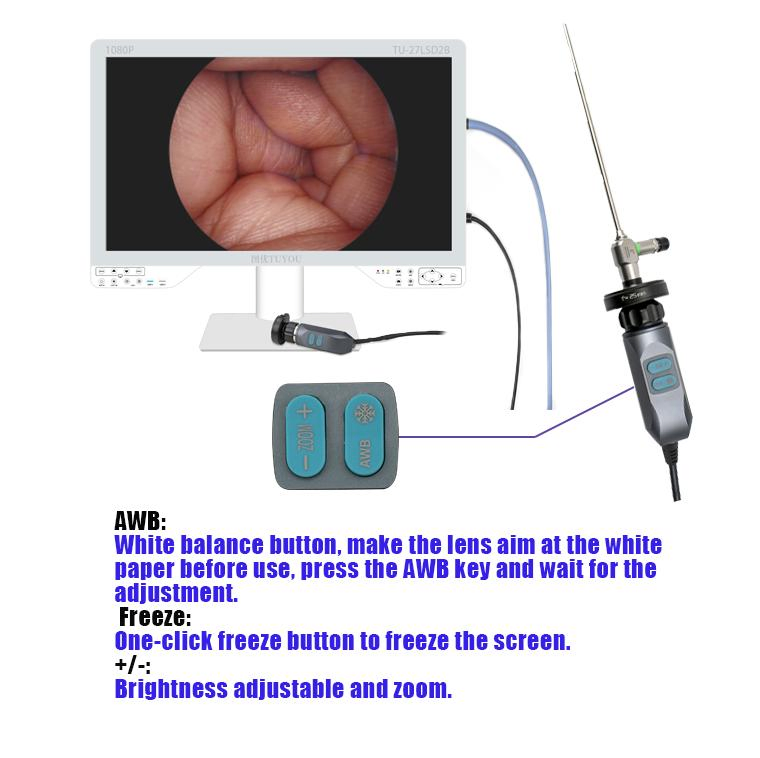

| Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom |
| Maximum Resolution | 4096*2160@60H |
| Net Weight | 12.4KG |
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | 4K pixels (3840*2160P) |
| Scan System | Progressive scan |
| Mode selection | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom |
| D-Zoom | 0-8x |
| Language | Chinese, English, Japanese, Korean and other languages |
| Light Type | LED |
| Effective Optical Power | 100W |
| Illuminance | 400W LUX |
| Color Temperature | 5700K +/-500K |

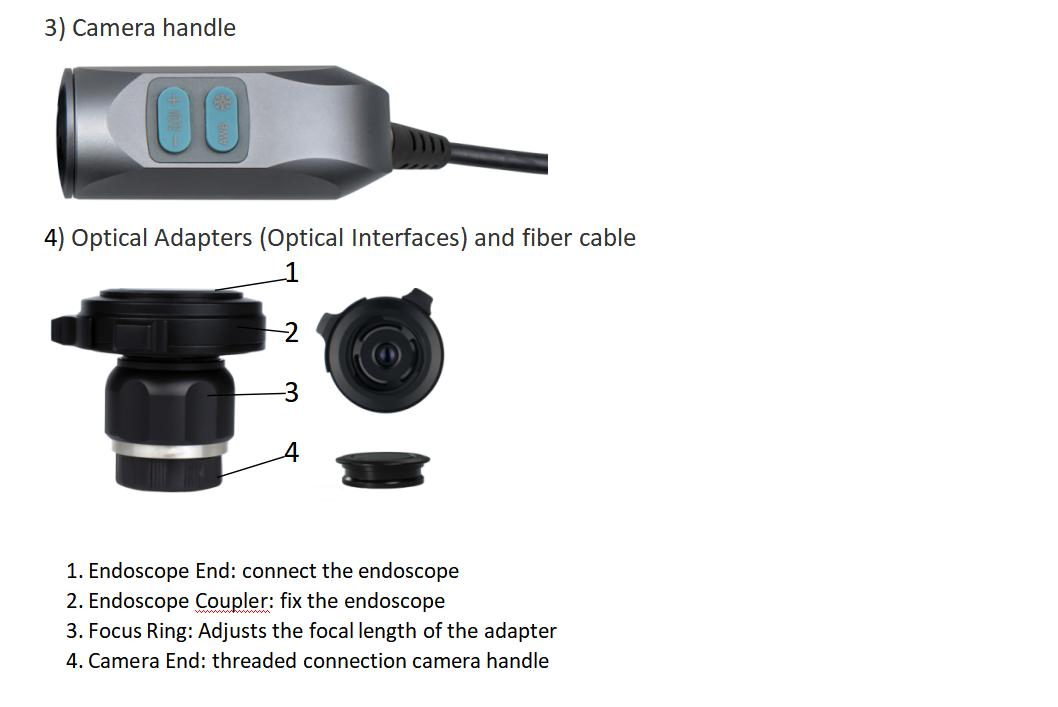

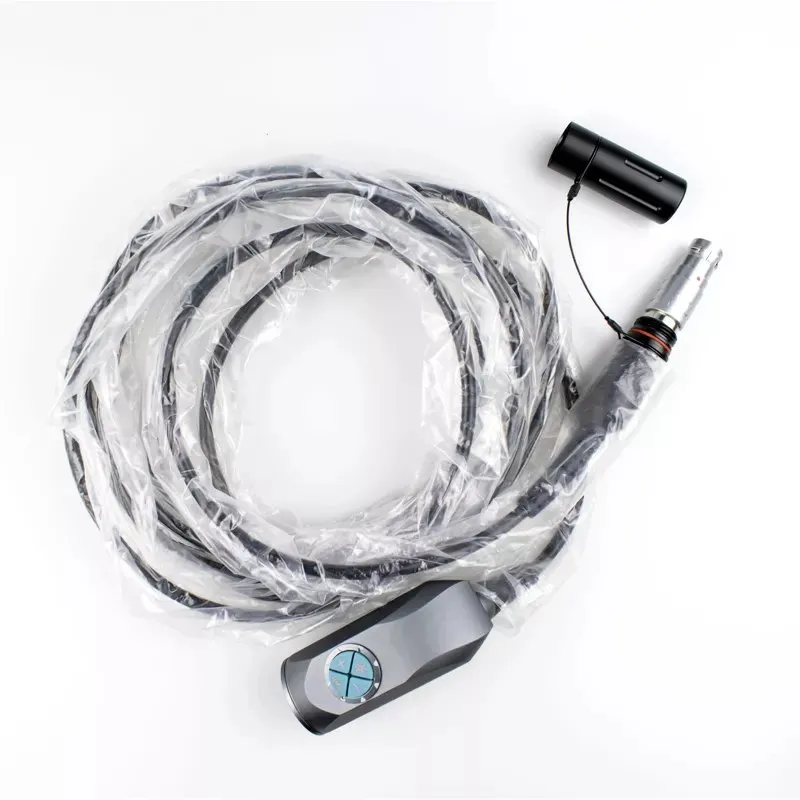

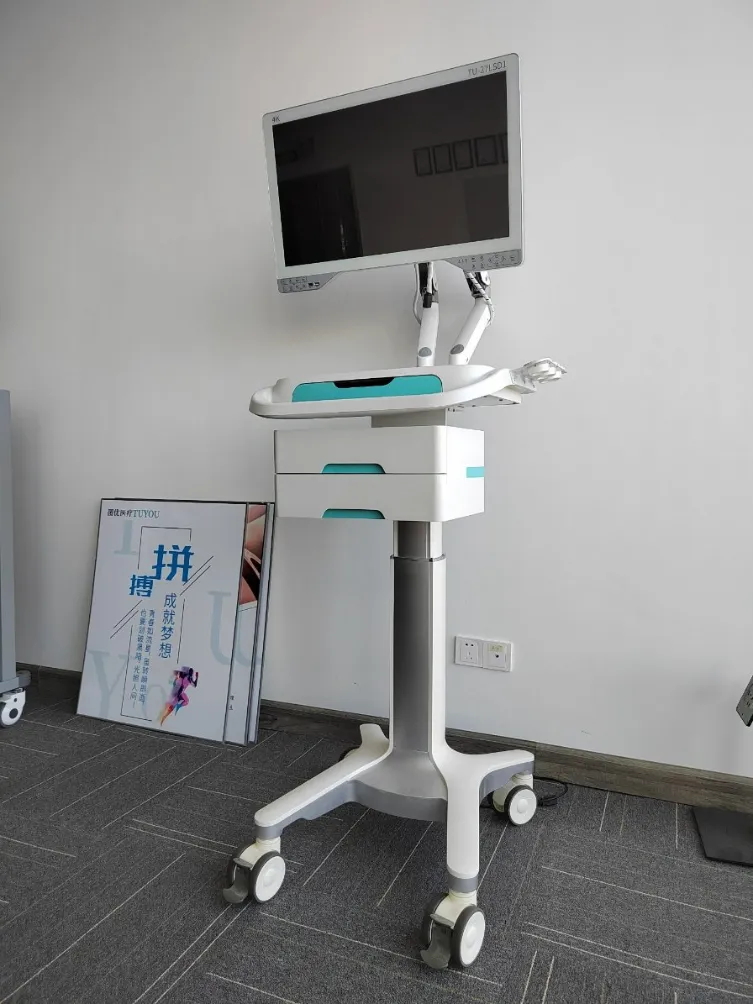

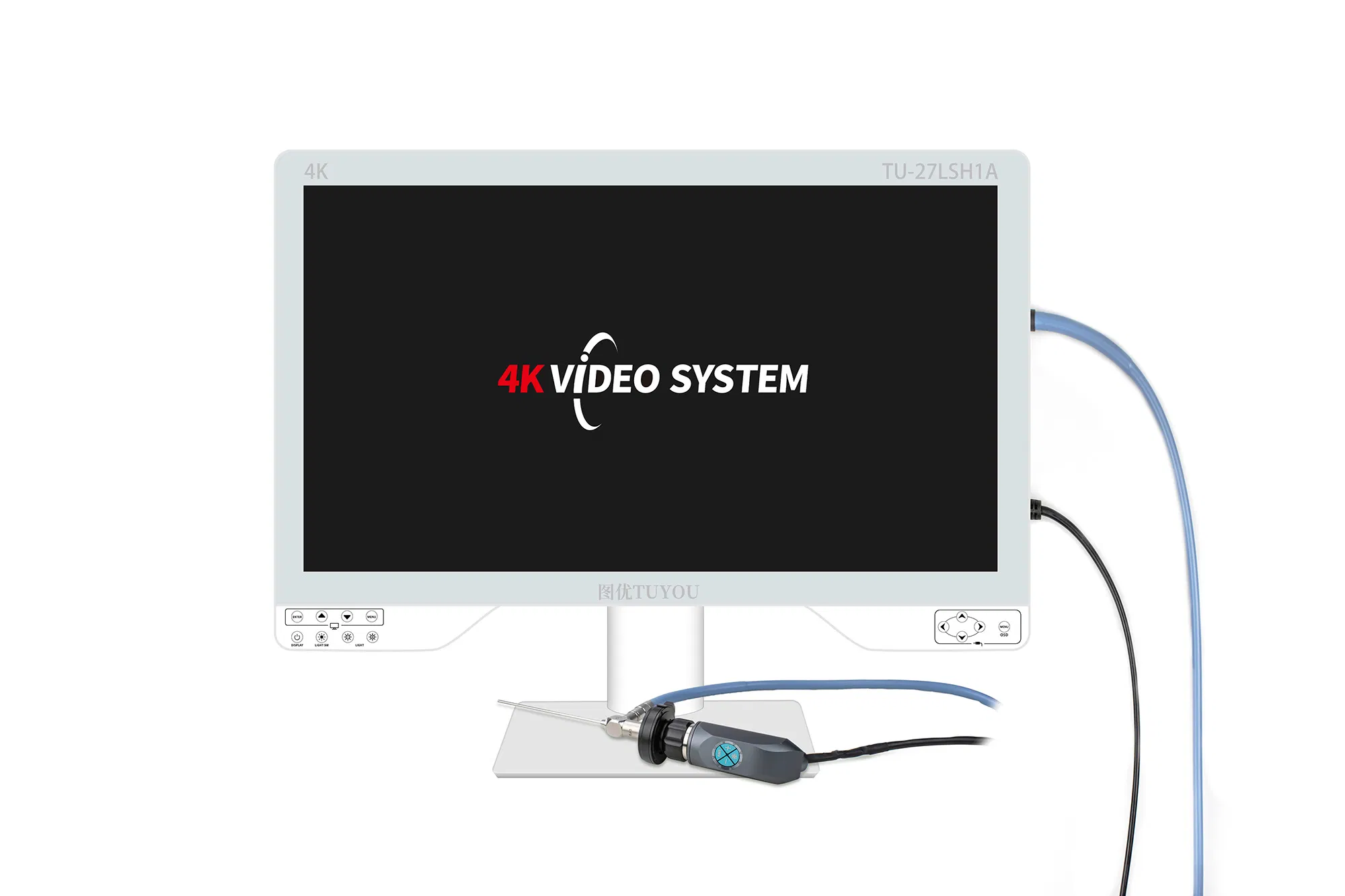

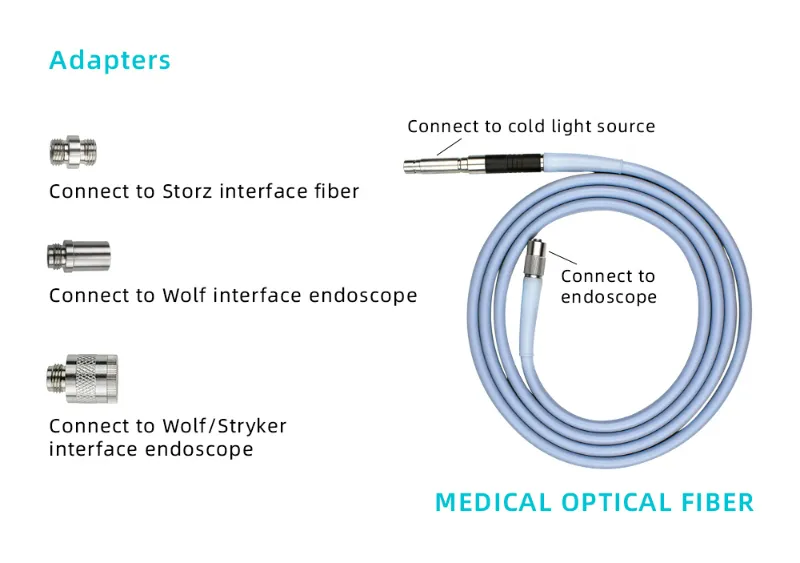

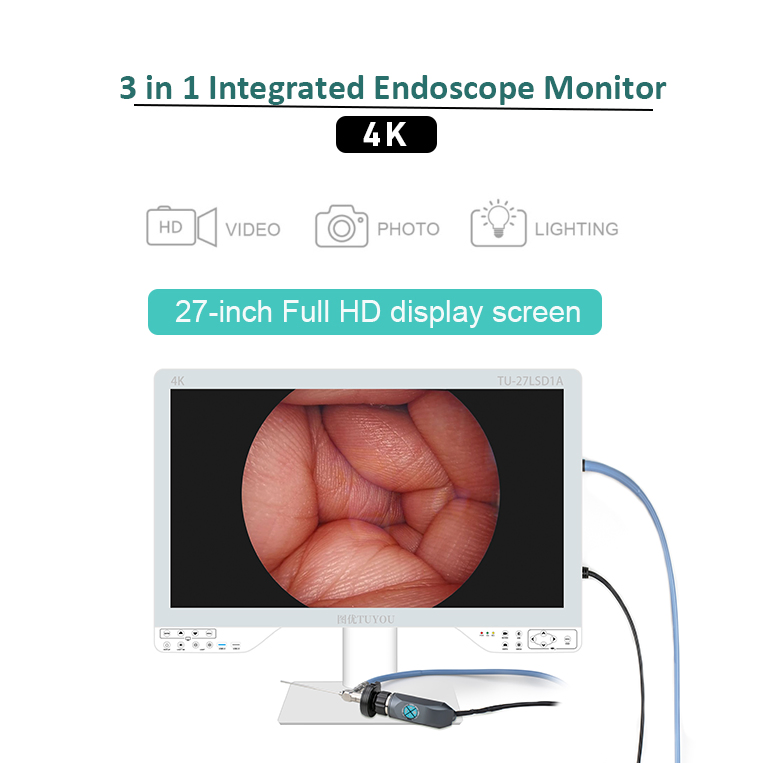

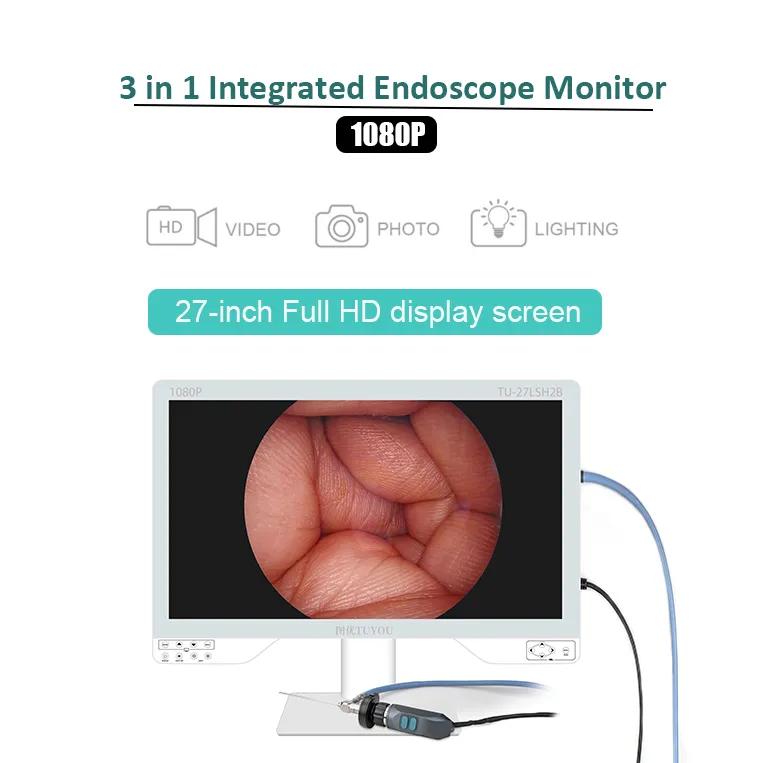

The endoscope integrated imaging system consists of a 27-inch Display, Display Holder, Display Driver Board, Display LED Backlight, Camera Control System Motherboard, Light Source Control System, Handle Camera, Fiber Cable and Optical Adapter.
Our production integrates R&D, manufacturing, and service of medical endoscope camera systems. With over 20 years of experience, we provide HD, 2K, and 4K fluorescence endoscope imaging solutions. Our facilities are medical-grade with international quality certifications including CE, FCC, and ROSH.
