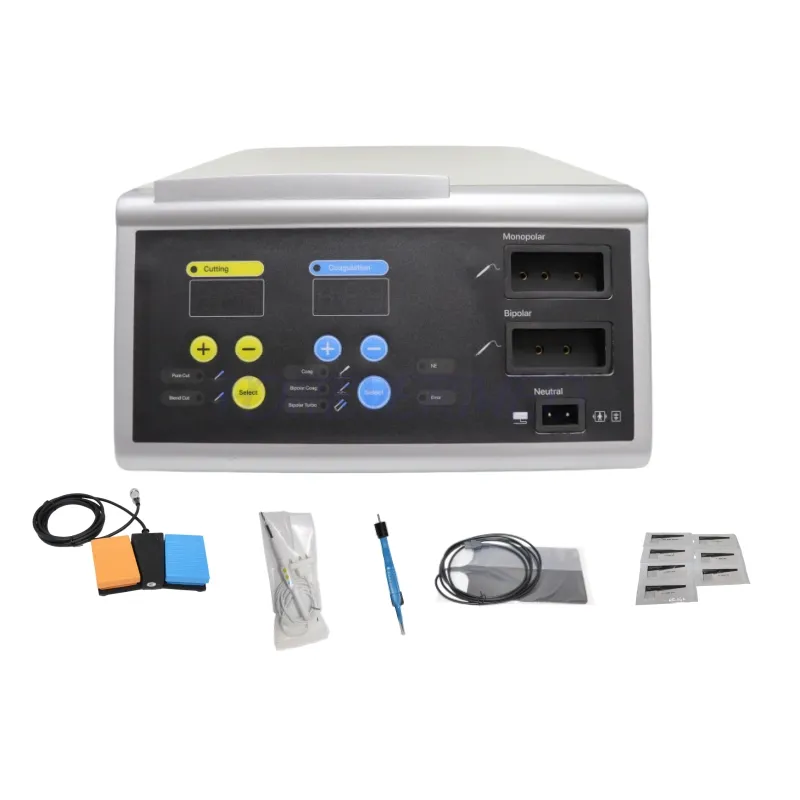

Medical Radio Frequency (RF) generator is equipped with advanced features, including customizable waveform and output modes, that allow physicians to perform procedures with precision, control, and safety. It can be operated in various medical applications such as general surgery, gynecological surgery, urologic surgery, plastic surgery, and dermatological surgery, among others. With its versatility, accuracy, and safety, it can help to improve patient outcomes and reduce the risk of complications during procedures.
| Mode | Max Output Power (W) | Load impedance (Ω) | Modulation Frequency (kHz) | Output Frequency (MHz) | Max Output Voltage (V) | Crest Factor | |
|---|---|---|---|---|---|---|---|
| Monopolar | Auto Cut | 120 | 500 | - | 4.0 | 700 | 1.7 |
| Blend Cut | 90 | 500 | 40 | 4.0 | 800 | 2.1 | |
| Coag | 60 | 500 | 40 | 4.0 | 850 | 26 | |
| Bipolar | Bipolar Coag | 70 | 200 | 40 | 1.7 | 500 | 26 |
| Bipolar Turbo | 70 | 200 | 40 | 1.7 | 500 | 26 | |
