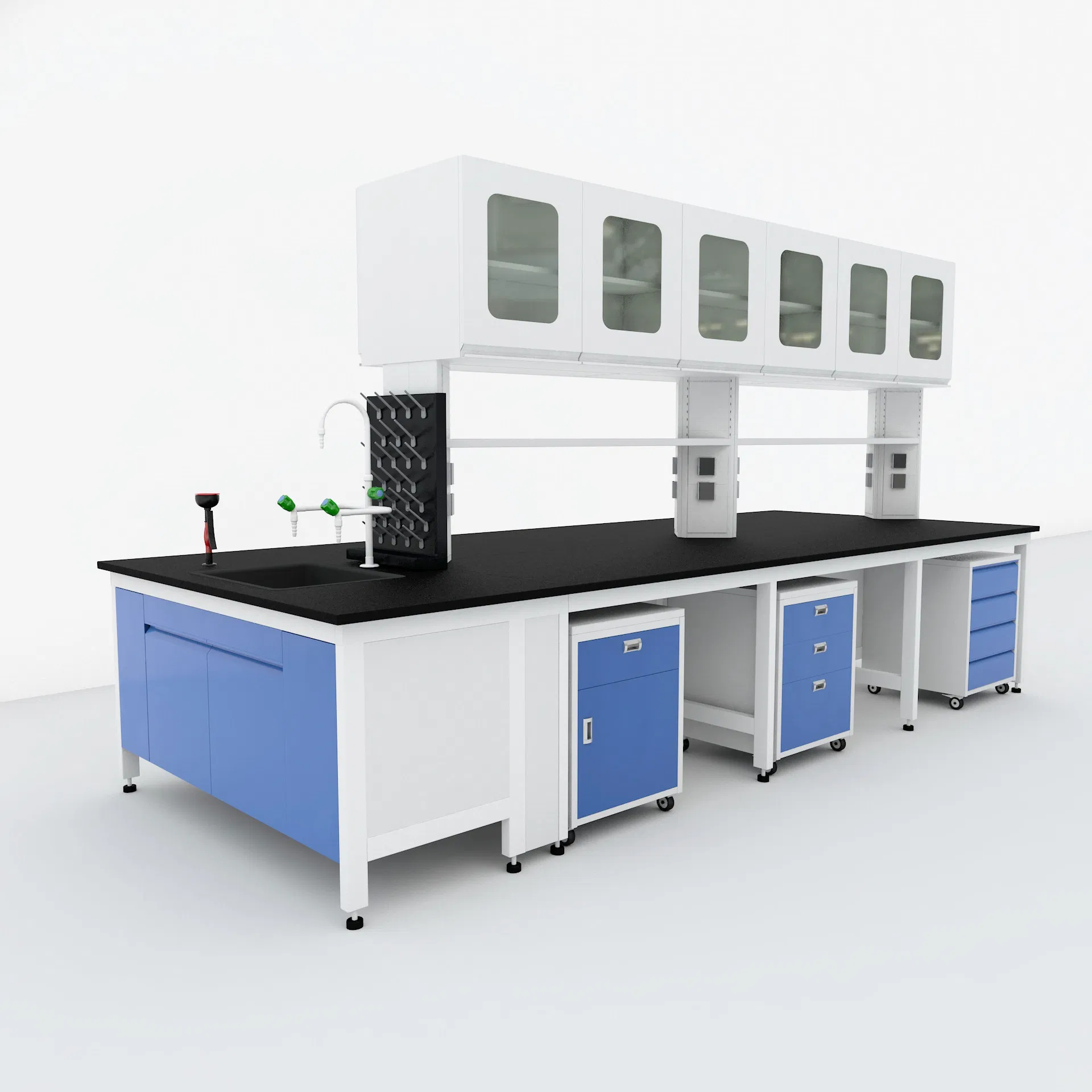

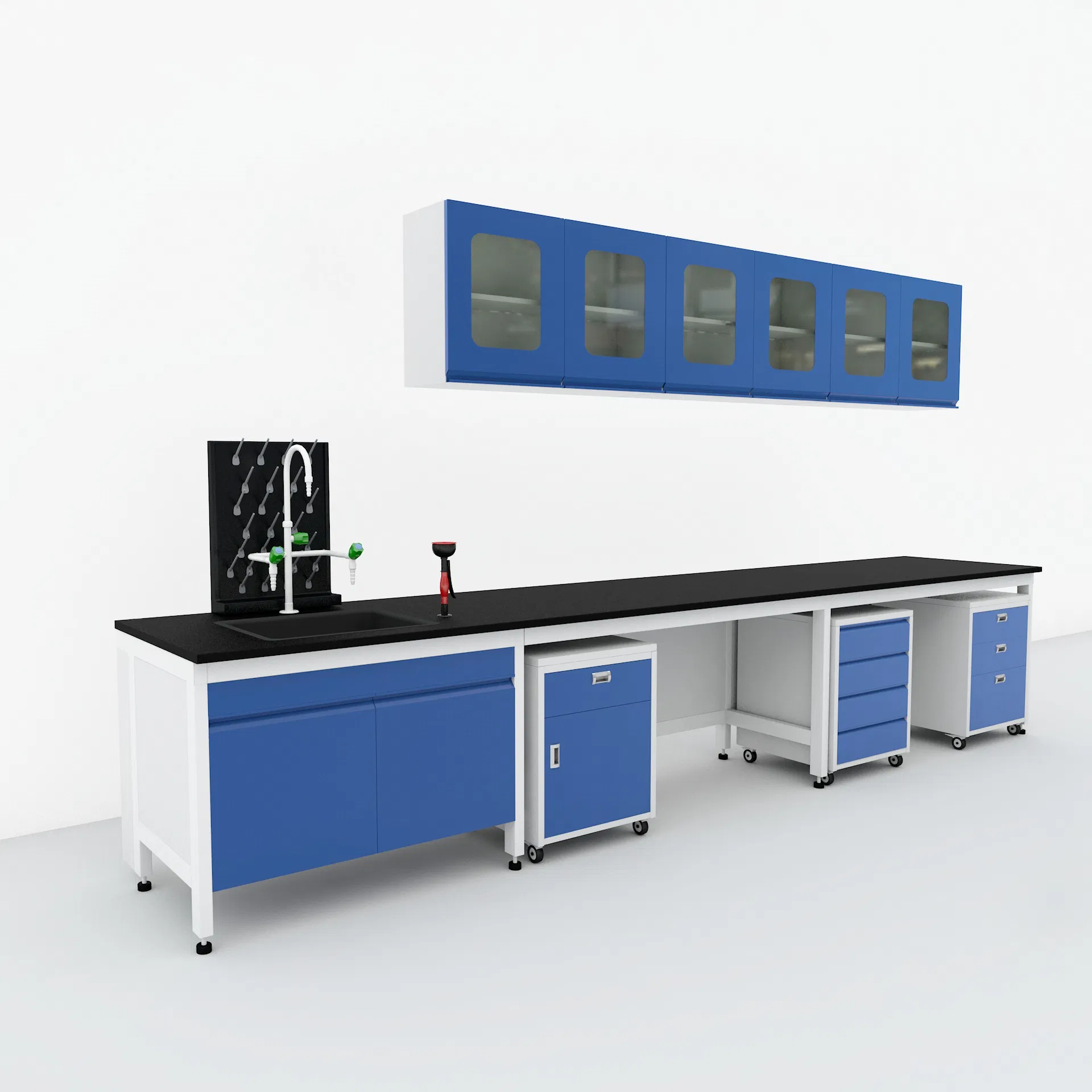

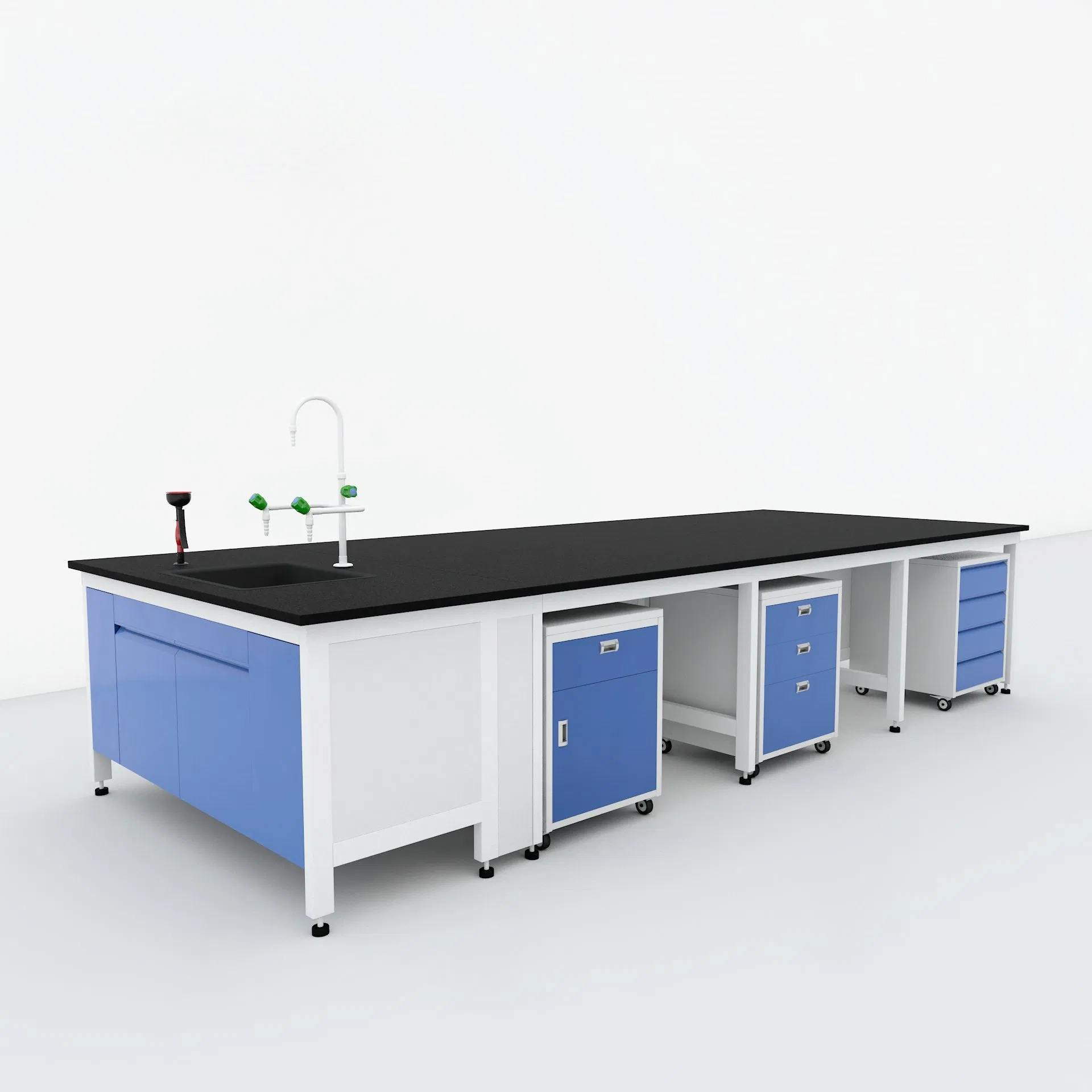

Hospital Laboratory Furniture Steel Mobile Cabinet Chemistry Science Lab Table with Sink

1 / 5

Hospital Laboratory Furniture Steel Mobile Cabinet Chemistry Science Lab Table with Sink

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specification

Usage

Hospital, School, Company, Research Institute, Laboratory

Name

Lab Furniture/Lab Bench/Lab Table

Structure

Floor Mounted/C-Frame/H-Frame/Mobile Modular

Materials

Steel/Stainless Steel/PP/Wood/HPL/MDF

Worktop

Phenolic Resin/Epoxy Resin/Ceramic/HPL/Trespa

Load-Bearing

500kg/Square Meter

Surface

Electrostatic Powder Coated with Epoxy Resin

Standard Accessories

Water Tap/PP Sink/Electrical Outlets

Feature

Durable/Cost-Effective/Easy to Install

Certificate

CE Certification/ISO Certification

Production Capacity

100,000 / Meter

Origin

China

Material & Construction

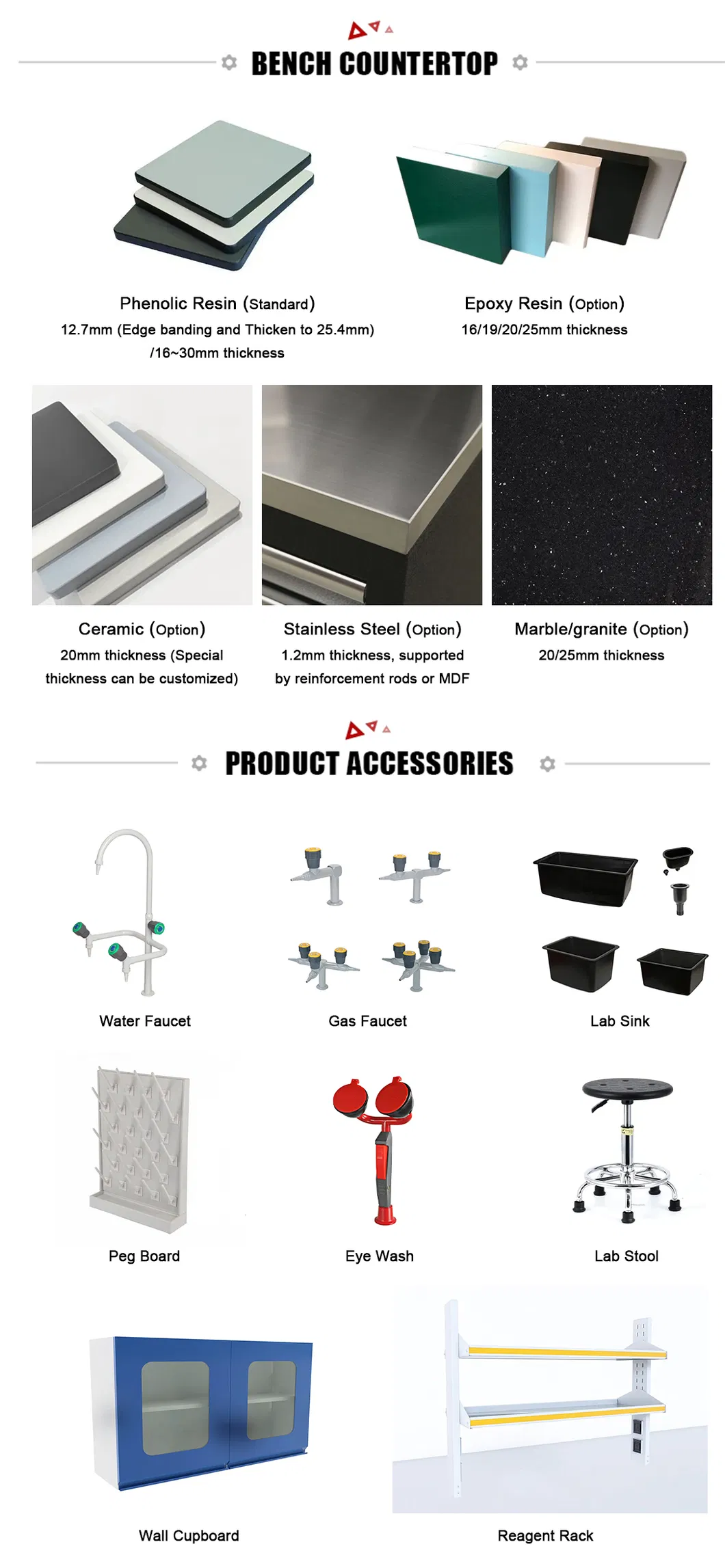

1. Premium Countertops

We offer various materials to suit different laboratory environments:

Phenolic Resin: 12.7mm to 25.4mm thickness available.
Epoxy Resin: 16/19/20/25mm thickness.
Ceramic: 15/20/25mm thickness for high temperature and chemical resistance.
Trespa: 13/16/19/20/25mm thickness.
Granite/Marble: 20mm thickness for stability.

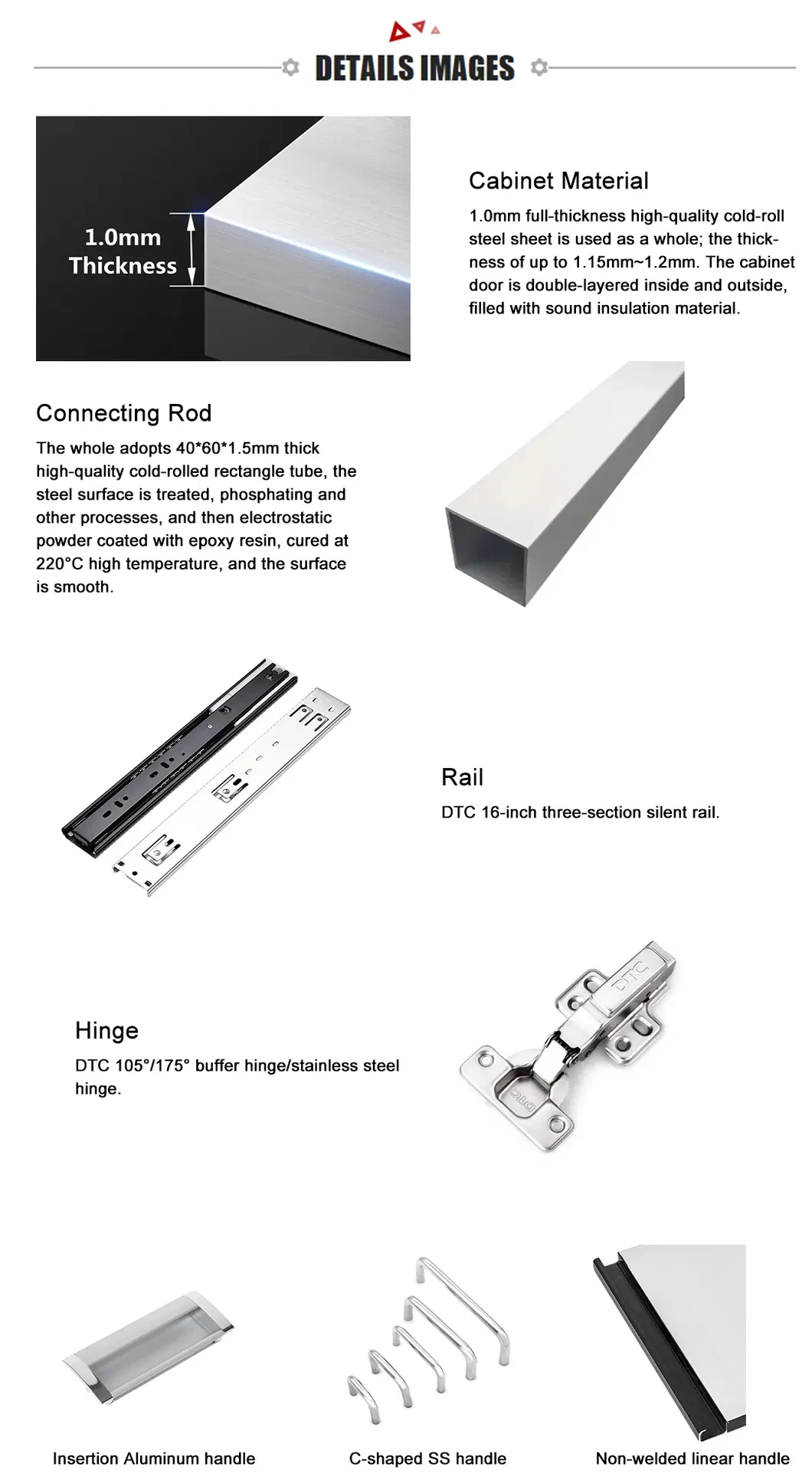

2. Robust Cabinet & Accessories

Frame: 40*60*1.5mm high-quality cold-rolled rectangle tube, electrostatic powder coated with epoxy resin, cured at 220°C.

Components: DTC 16-inch silent rails, DTC 105°/175° buffer hinges, and adjustable footing (range ≥35mm).

Mobility: High-quality PU mute universal wheels with brakes, single wheel capacity up to 120kg.

3. Cabinet Unit Options

Wooden Cabinet Unit

15mm body with 18mm MDF/melamine board. 2mm PVC edge banding for a clean, burr-free finish.

Steel Cabinet Unit

1.0mm cold-roll steel sheet, epoxy coated (1.15mm~1.2mm total thickness). Double-layered doors with sound insulation.

Product Type	Dimensions (LengthDepthHeight)
H-Frame Wall Bench	L750850mm / Customize
H-Frame Island Bench	L1500850mm / Customize
H-Frame Corner Bench	10001000850mm / Customize

LB-F-06

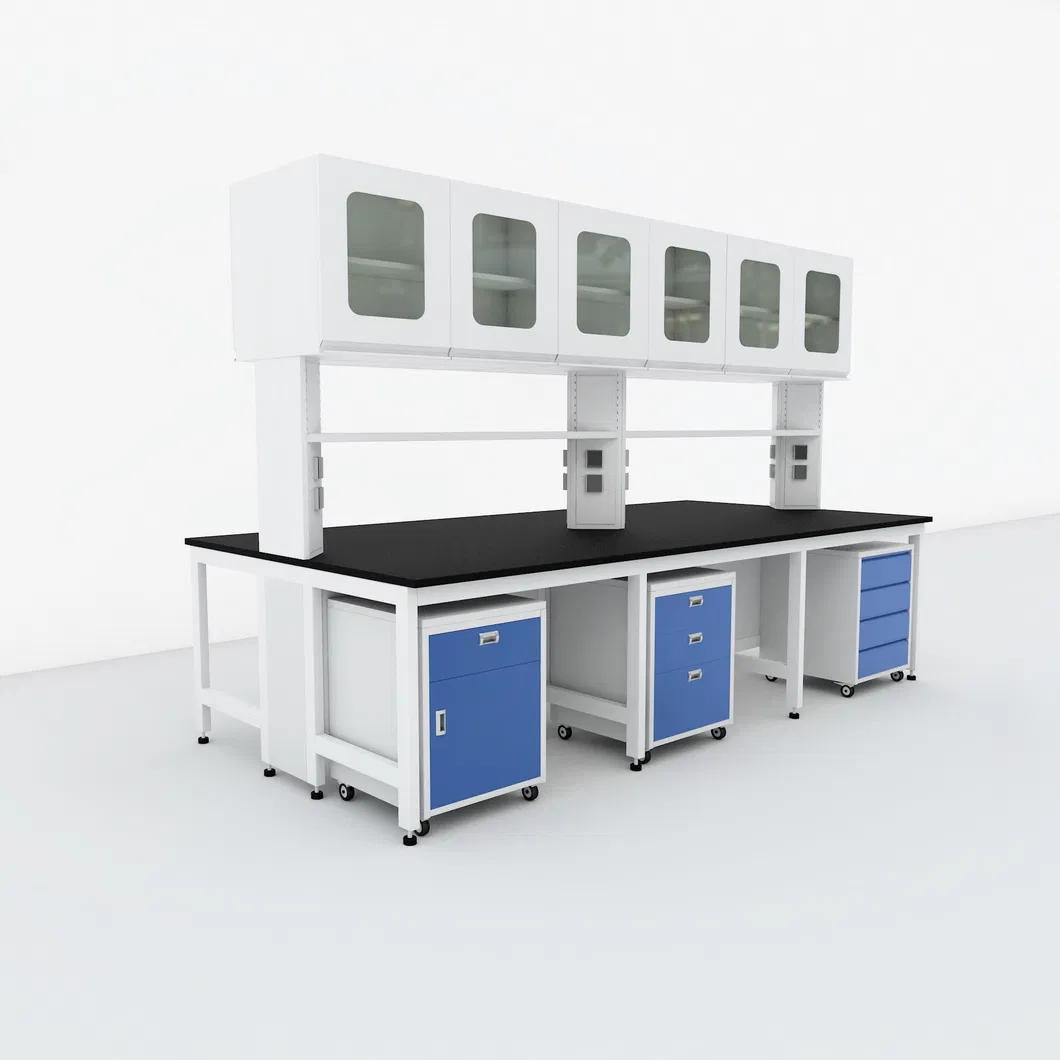

LB-F-05

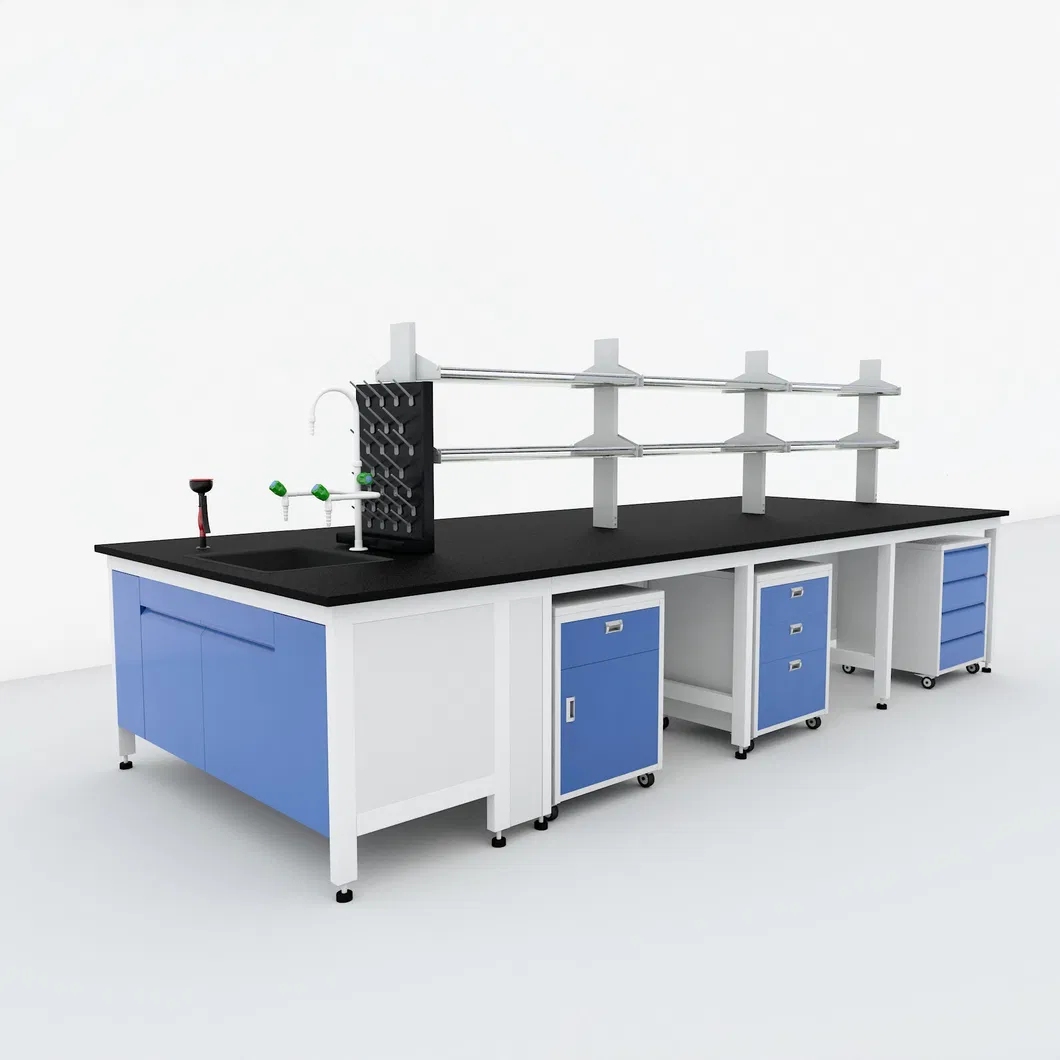

LB-F-04

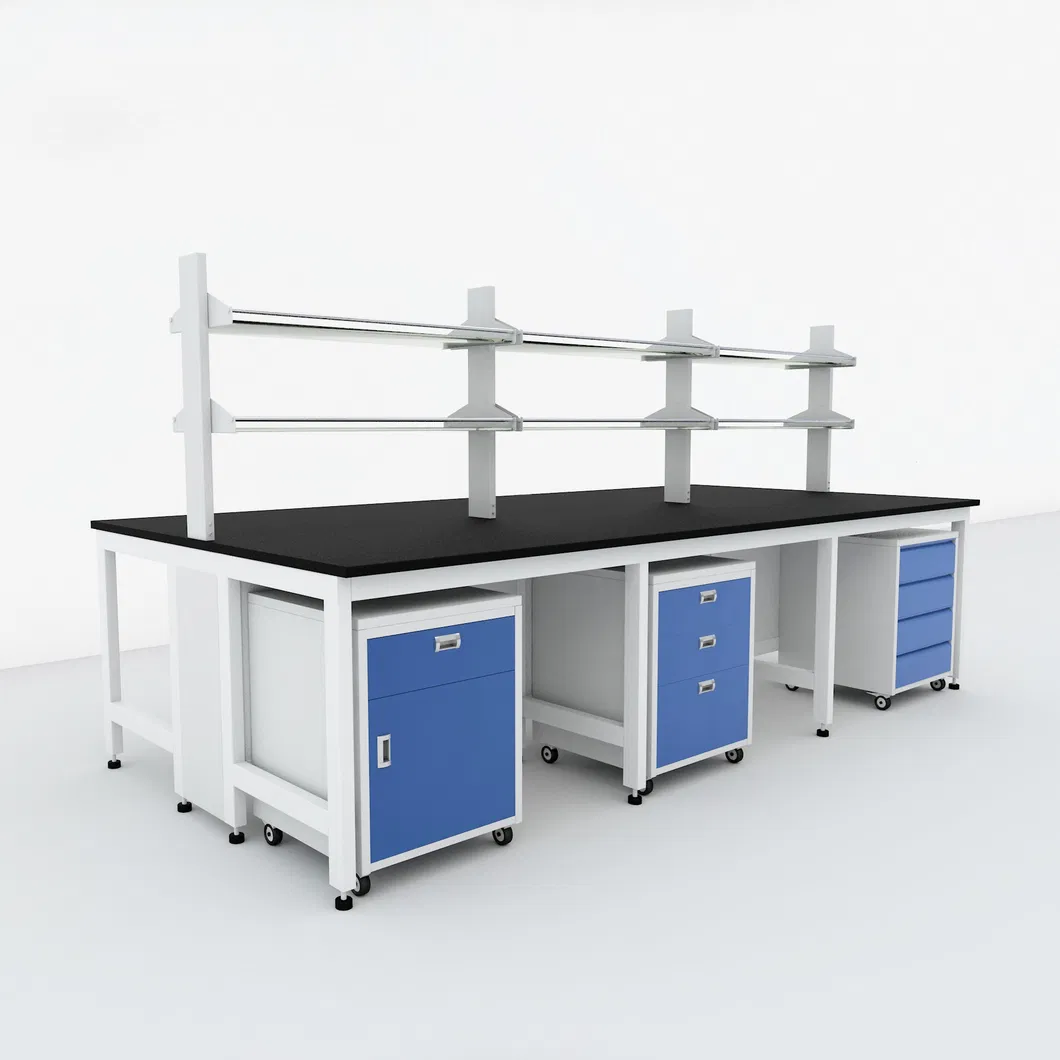

LB-HF-03

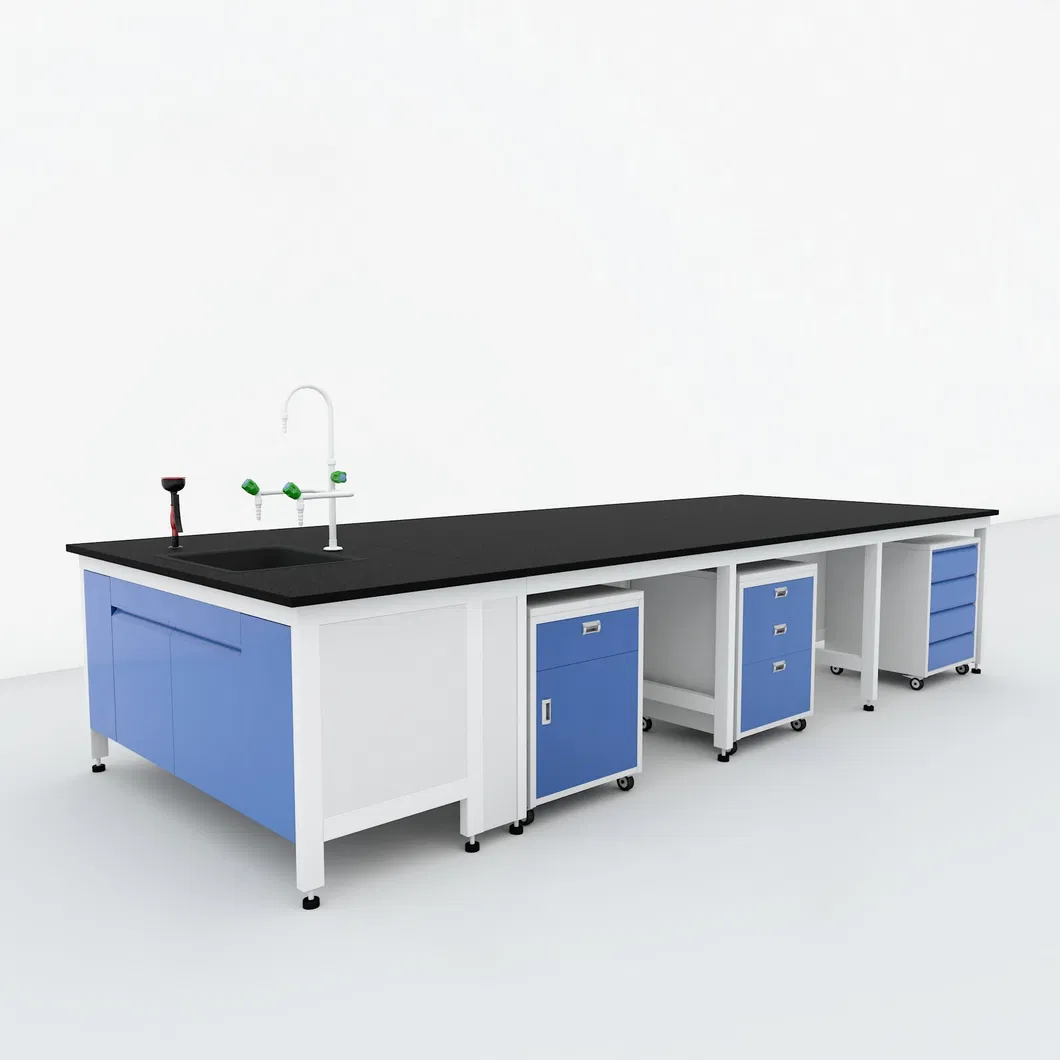

LB-HF-02

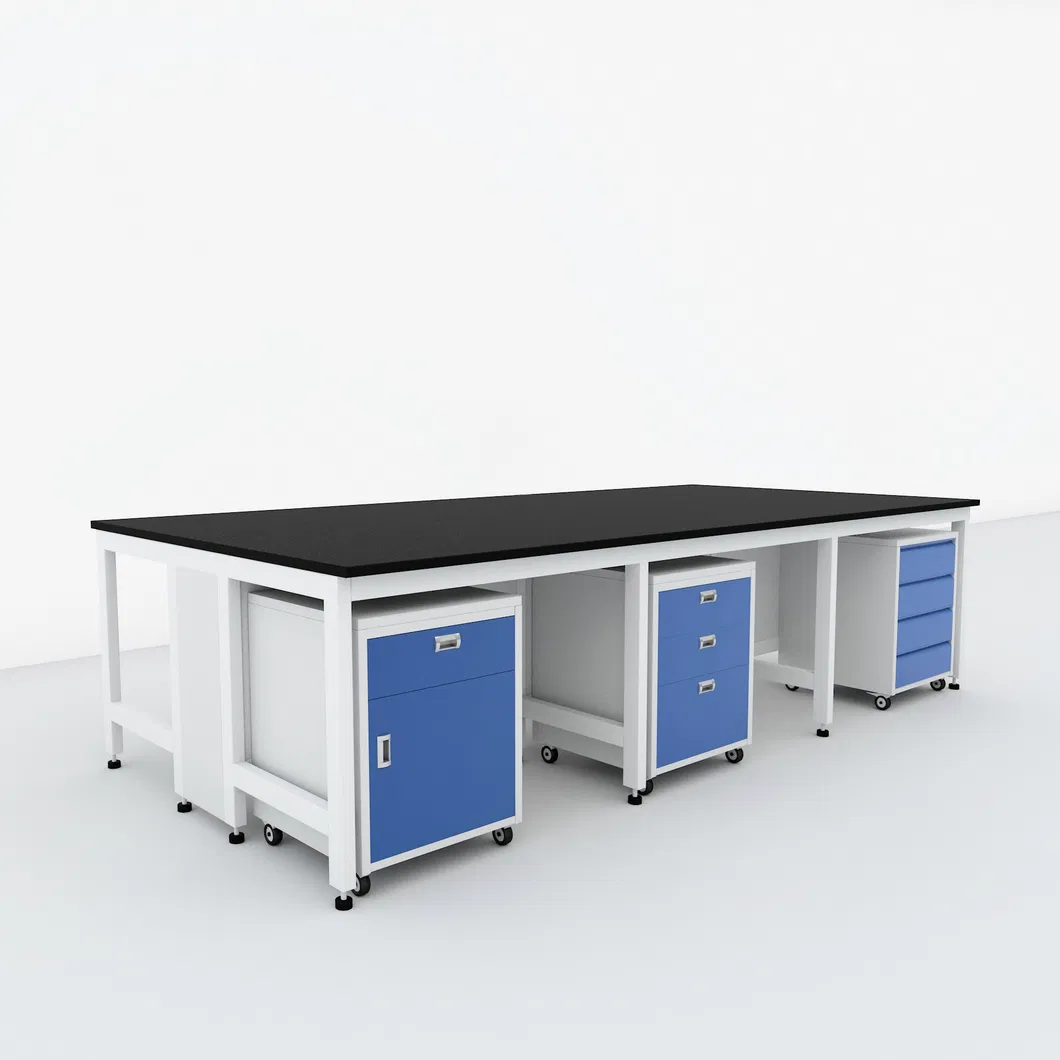

LB-HF-01

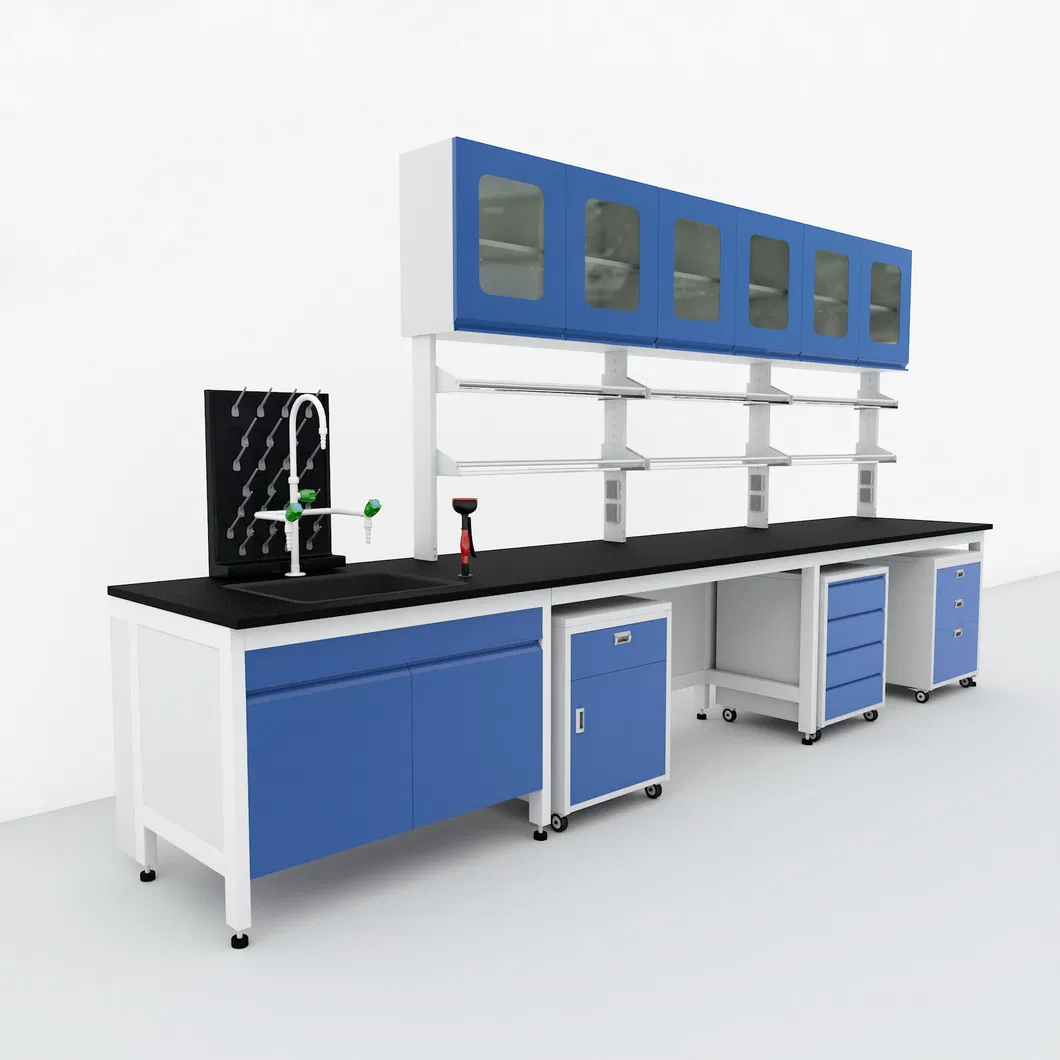

LB-HF-12

LB-HF-11

LB-HF-10

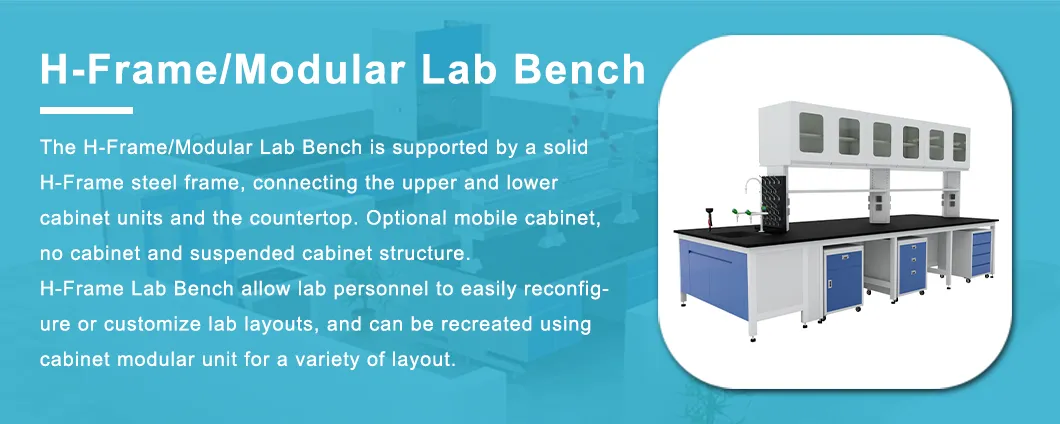

The H-Frame structure is the trend of modern laboratory design.
High load-bearing capacity: Supports up to 350KG/m² or 500KG per module.
Greater knee and leg room for ergonomic operation.
Flexible configuration: Modules can be easily rearranged or customized compared to traditional floor-mounted benches.
Space-saving and adaptable for shrinking or growing laboratory layouts.

Frequently Asked Questions

What materials are available for the lab countertops?

We provide a wide range of options including Phenolic Resin, Epoxy Resin, Ceramic, Trespa, and Granite/Marble, with thicknesses ranging from 12.7mm to 25mm.

How much weight can the laboratory bench support?

Our lab furniture is designed for high-intensity use, with a load-bearing capacity of 500kg per square meter for standard units and up to 350kg/m² for the H-Frame structure.

Are the lab cabinets mobile?

Yes, we offer mobile modular cabinets equipped with high-quality PU mute universal wheels and brakes for easy relocation and flexible lab layouts.

What is the difference between Wooden and Steel cabinet units?

Wooden units use high-quality MDF/Melamine boards with PVC edge banding, while Steel units are made of 1.0mm cold-rolled steel with an epoxy resin powder coating for superior durability and chemical resistance.

What accessories are included with the lab workstations?

Standard configurations typically include water taps, PP sinks, and electrical outlets. Other customized accessories can be integrated based on specific research needs.

Can the bench dimensions be customized?

Absolutely. While we have standard sizes (e.g., L*750*850mm for wall benches), all dimensions can be customized to fit your specific laboratory floor plan.
