Customization: Available
Type: Emergency Ventilator
Used for: Adult, Child, Infant
Send Inquiry

Product Description

CE Approved ICU Ventilator PA-700B - Medical Equipment for Hospital Respiratory Support

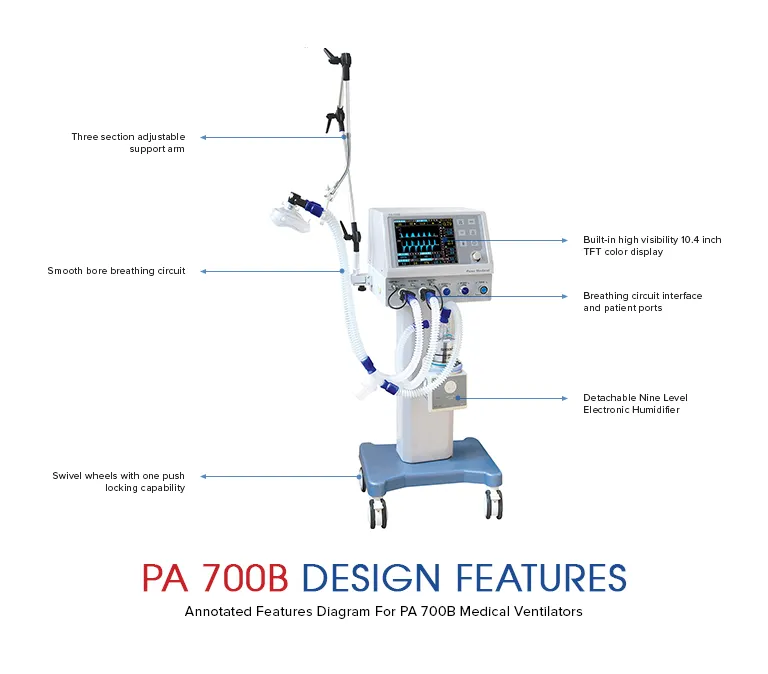

ICU Ventilator PA-700B

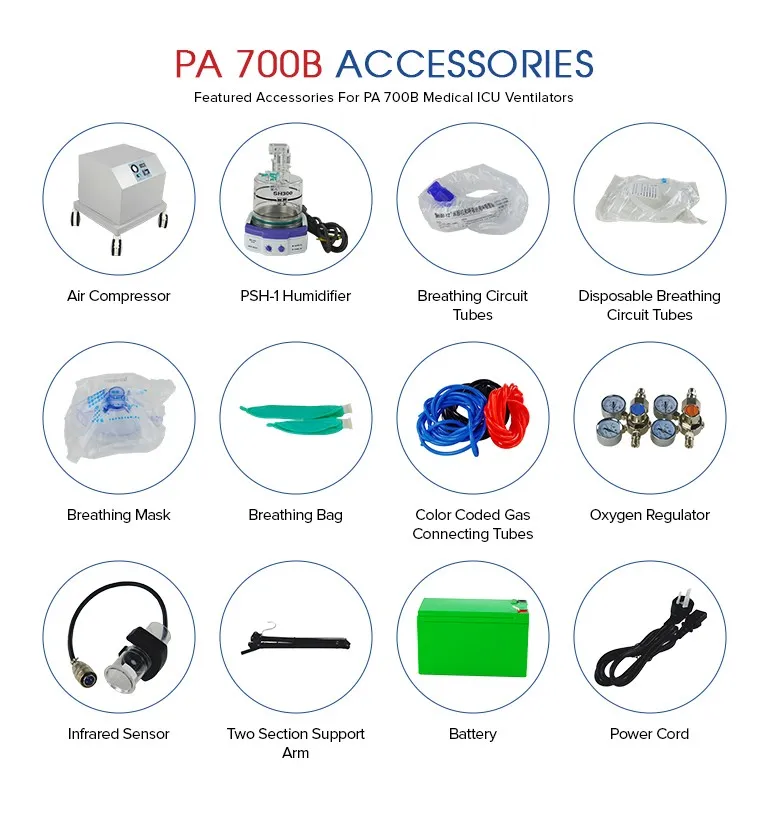

PA-700B Detail View
🔹 Basic Information
Model NO.
PA-700B
Ventilation Mode
A/C, IPPV, SIPPV, IMV, SIMV, Standby, Manual
Tidal Volume
50-1500ml
Respiratory Rate
1-99bpm
(I:E) Ratio
4:1-1:4
Gas Source
Oxygen and Air
✅ Common Features
  • ✔ Operating Modes: Pneumatically driven & electronically controlled; supports closed, semi-closed, and semi-open configurations.

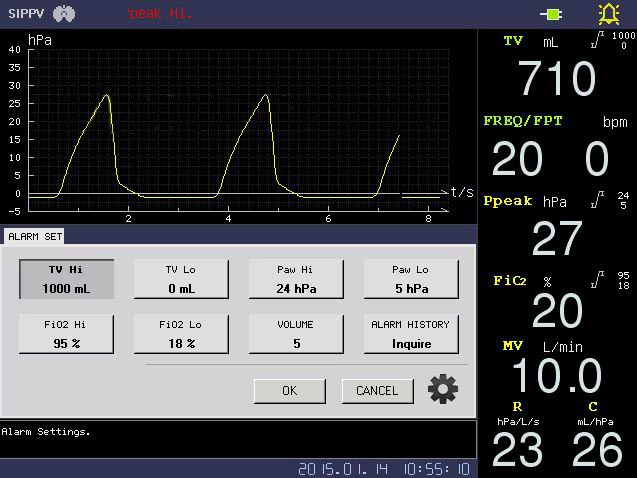

  • ✔ Display: Built-in 10.4 inch high-visibility color TFT screen, displaying Pressure-Time and Frequency-Time waveforms in real time.
  • ✔ Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths (ventilation ≥ 1.5 tidal volume).
  • ✔ Advanced Sensors: Equipped with an infrared turbine flow sensor for precise and stable gas flow measurement.
  • ✔ Humidifier: Features a 9-level adjustable humidifier for patient comfort.
  • ✔ Comprehensive Alarms: Audible and visual alarms for volume, pressure, oxygen concentration, asphyxia, and power failure.
🚀 Advanced Model Exclusive

Equipped with a professional medical-grade air compressor tailored for extended clinical use with low noise requirements. Features instantaneous output gas flow ≥ 60L/min.

📊 Technical Specifications
Display 10.4 inch high visibility color TFT display
Ventilation Mode A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, SPONT, MANUAL
Minute Volume ≥ 18L
Back-up Power At least 4 hours
Tidal Volume Adjustable: 50-1500ml (Display: 0-2000ml)
PEEP 0-10 cmH₂O
Oxygen Concentration Adjustable range: 45-100%
Gas Supply Requirement 280~600 kPa medical grade oxygen and compressed air
Pressure Limit 1.0kPa ~ 6.0kPa
PA-700B Interface

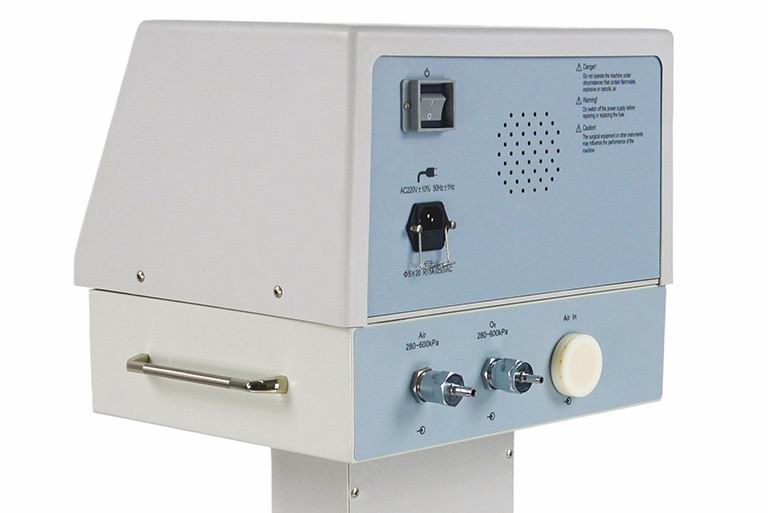

PA-700B Back View
Frequently Asked Questions (FAQ)
Q1: What is the tidal volume range for the PA-700B ventilator?
A1: The PA-700B offers an adjustable tidal volume range from 50ml to 1500ml, making it suitable for a wide range of patient needs.
Q2: Does the system include an integrated air compressor?
A2: Yes, the advanced model is equipped with a professional medical-grade air compressor designed for long clinical run-times and low-noise operation.
Q3: How long can the ventilator operate during a power failure?
A3: The unit includes a back-up power supply that provides at least 4 hours of continuous operation in the event of an AC power outage.
Q4: What kind of display and monitoring does the PA-700B provide?
A4: It features a 10.4-inch high-visibility color TFT display that shows real-time Pressure-Time and Frequency-Time waveforms, along with monitored parameters like respiration rate and airway pressure.
Q5: What ventilation modes are available on this machine?
A5: It supports multiple modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, SPONT, and MANUAL, providing versatility for emergency resuscitation and long-term therapy.
Q6: Are there safety alarms for oxygen concentration?
A6: Yes, the ventilator includes both audible and visual alarms for oxygen concentration, with adjustable upper limits (22-100%) and lower limits (21-80%).
