Customization: Available
Type: Emergency Ventilator
Used for: Adult and Children
Send Inquiry

Product Description

Technical Overview
Model NO.
PA-700B
Ventilation Mode
A/C, IPPV, SIPPV, IMV, SIMV, Standby, Manual
Tidal Volume
50-1500ml
Respiratory Rate
1-99bpm
(I:E) Ratio
4:1-1:4
PEEP
0-10CMH2o
Origin
China
HS Code
9019200000
ICU Ventilators Medical Equipment Supply for Hospitals Respiratory Support Breathing Apparatus Machine

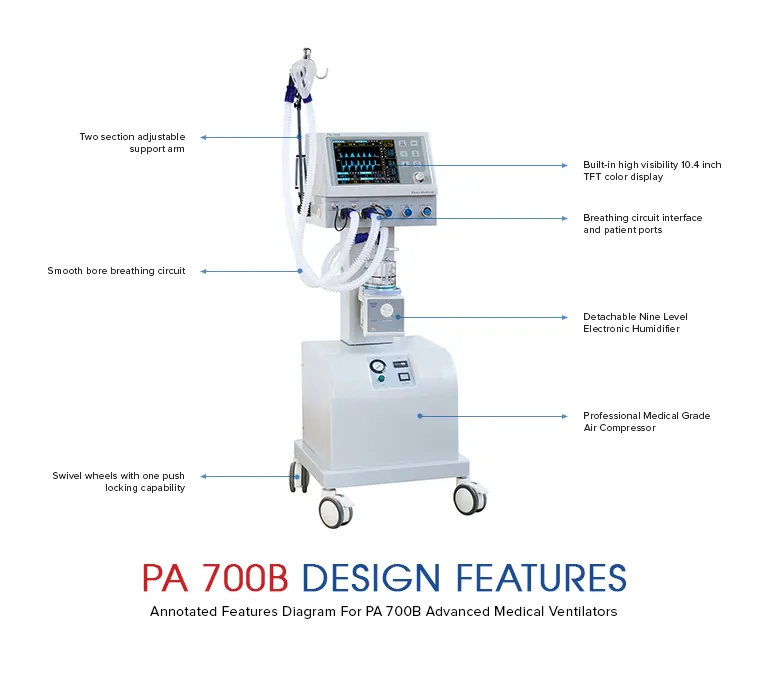

ICU Ventilator Main Unit
Key System Features

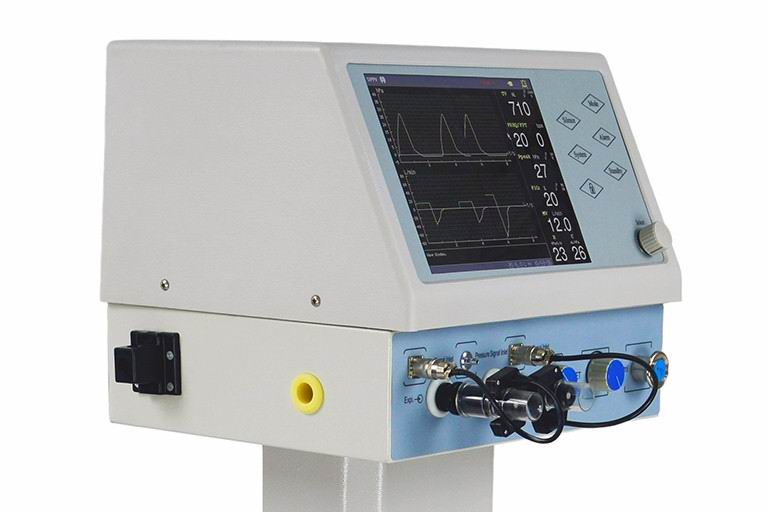

Display & Monitoring

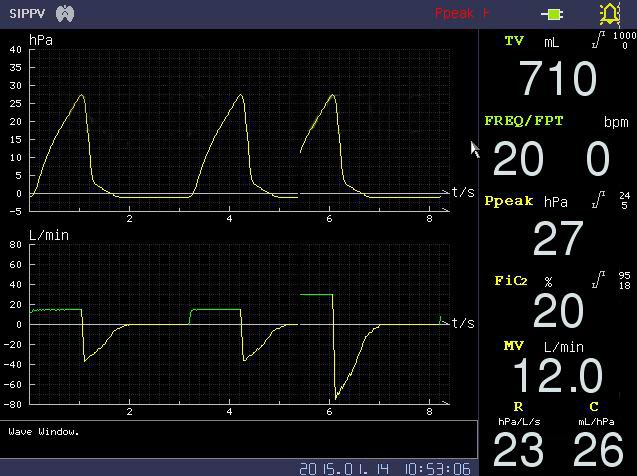

Built-in 10.4 inch high visibility color TFT display, able-simultaneously display Pressure-Time and Frequency-Time waveforms in real time.

Smart Safety

Equipped with automated self-checking function during startup and an automatic self-calibrating sensor. Includes comprehensive audible and visual alarms.

Pneumatic Efficiency

Pneumatically driven and electronically controlled system, suitable for emergency clinical resuscitation and long-term respiratory therapy.

Detailed Specifications
Feature Standard Model (700B) Advanced Model (700B)
Ventilation ModeA/C, IPPV, SIPPV, IMV, SIMV, Standby, SPONT MANUAL
Minute Volume≥ 18L
Tidal Volume50-1500ml (Display range: 0-2000ml)
Respiratory Rate1-99bpm
I:E Ratio4:1-1:4
PEEP0-10cmH2O
Oxygen Concentration45-100%21-100%
Back-up PowerAt least 4 hours
Air CompressorOptionalProfessional Medical Grade Included
ICU Ventilator Detail View 1
ICU Ventilator Detail View 2
Frequently Asked Questions
What are the primary ventilation modes available on the PA-700B?
The PA-700B supports multiple modes including A/C, IPPV, SIPPV, IMV, SIMV, Standby, and Manual modes to accommodate various clinical requirements.
What is the tidal volume range for pediatric and adult use?
The adjustable tidal volume range is from 50ml to 1500ml, making it versatile for a wide range of patient needs.
How long does the battery last during a power outage?
The system features an automatic power failure support function with a built-in backup supply that lasts for at least 4 hours.
What is the difference between the Standard and Advanced models?
The Advanced model includes a professional medical-grade air compressor designed for low noise and long clinical operation, and offers a wider oxygen concentration range (21-100%).
Does the system include built-in monitoring for patient safety?
Yes, it features a 10.4-inch TFT color display that monitors tidal volume, respiration rate, airway pressure, I:E ratio, and provides various audible/visual alarms for asphyxia or disconnection.

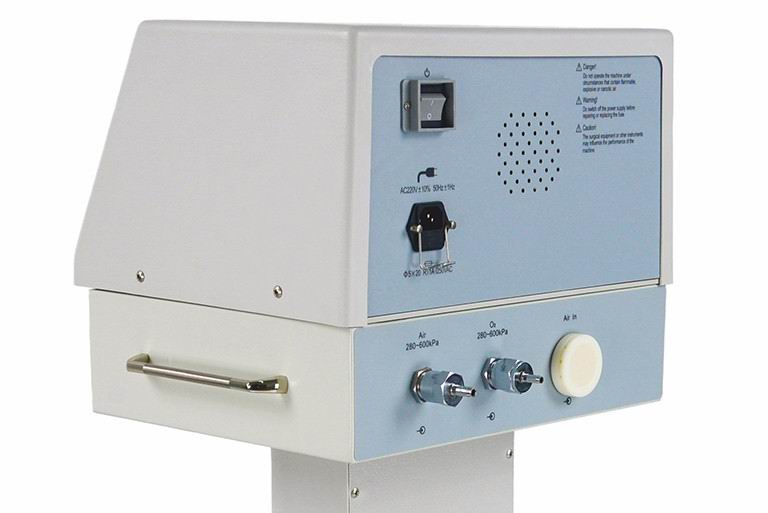

What are the gas supply requirements for this ventilator?
It requires a medical-grade oxygen and compressed air supply with a pressure range between 280 and 600 kPa.
