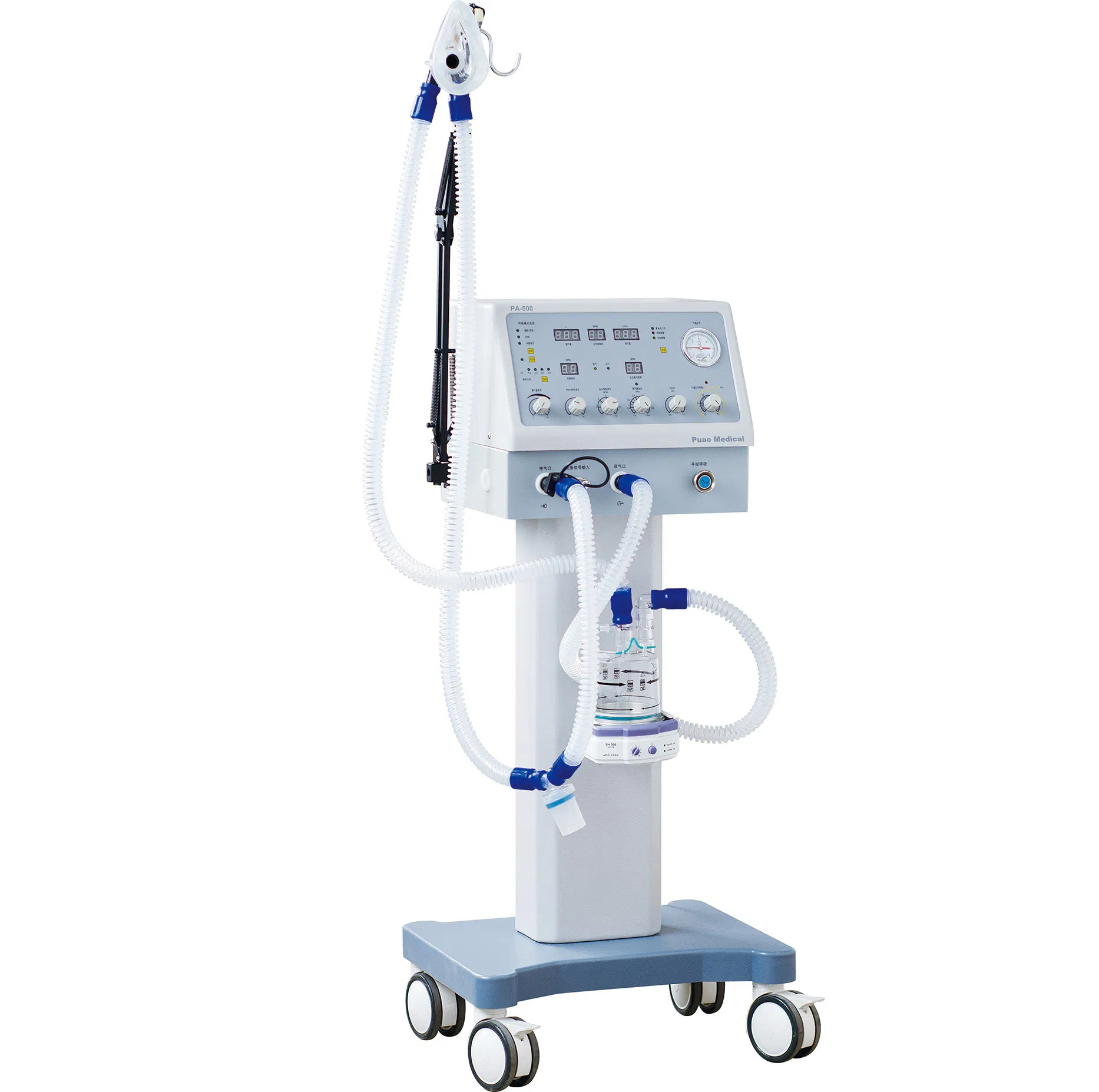

Medical Equipment Supply Respiratory Support Breathing Apparatus - ICU Ventilators
Basic Information
Ventilation Mode
A/C, IPPV, SIPPV, IMV, SIMV, Standby, Manual

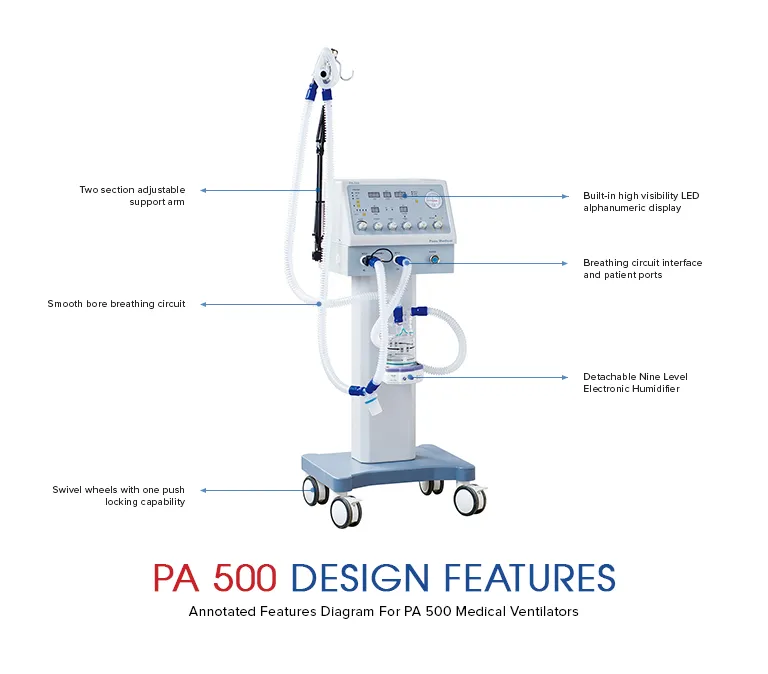

Common Features
⚙️
Pneumatically driven electrically controlled ventilator, suitable for emergency clinical resuscitation and respiratory therapy.
🖥️

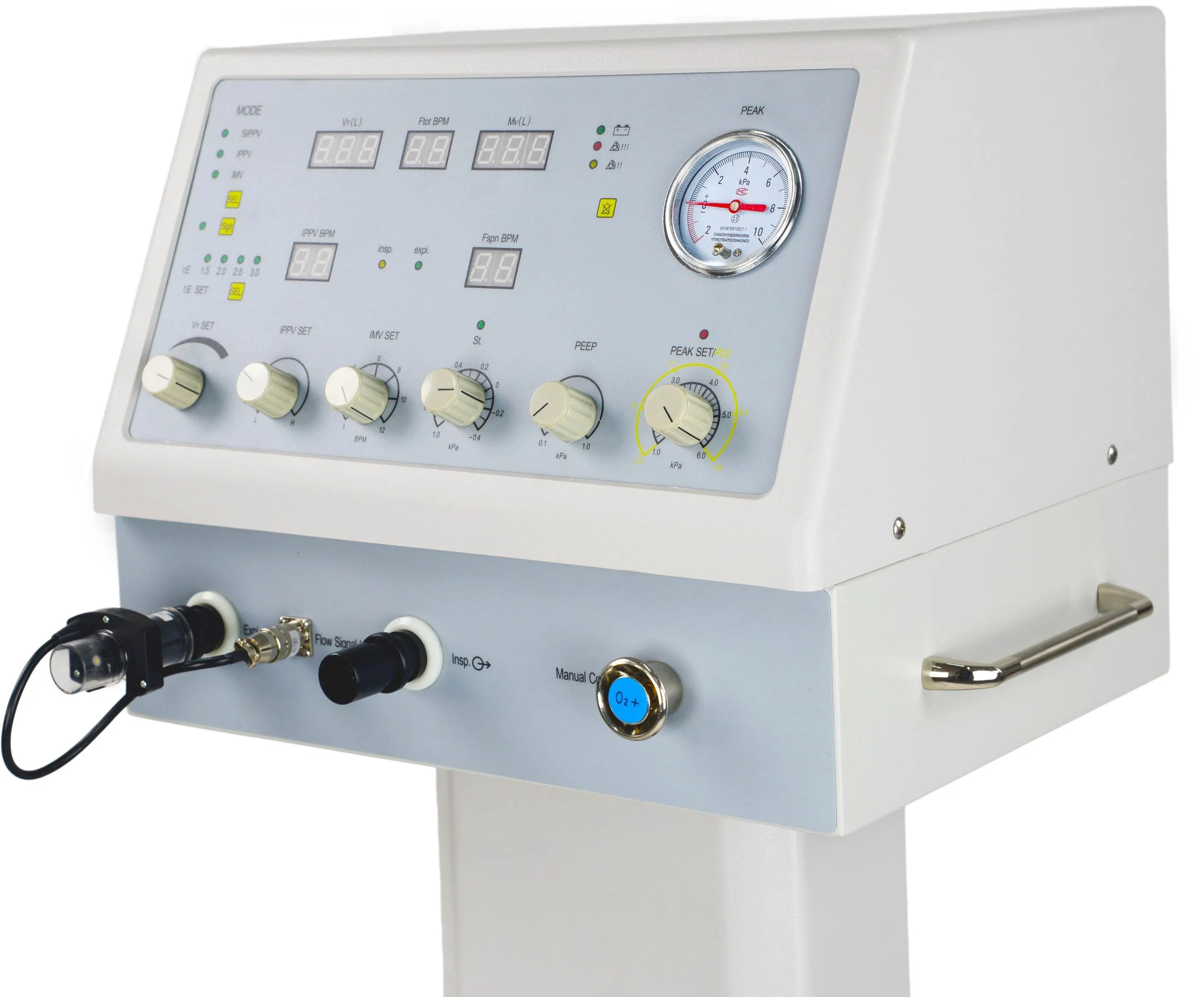

Display: High visibility, wide angle LED alphanumeric data display with tactile analog parameter controls.
🛰️
Equipped with high precision infrared turbine pressure and flow sensors.
🔋
Power failure support: Automatically converts to standby mode during AC power outages.
🛡️
Nonhazardous environmentally friendly frame with automated self-checking and self-calibrating functions.
🔔
Comprehensive Alarms: Audible and visual alerts for tidal volume, airway pressure, and power/oxygen failure.
Product Specifications
| Model | 500 |
| Display | LED |
| Ventilation Mode | A/C, IPPV, SIPPV, IMV, SIMV, MANUAL |
| Minute Volume | ≥ 18L |
| Back-up Power Supply | At least 4 hours |
| Tidal Volume | Adjustable: 50-1500ml, Display: 0-2000ml |
| Output Oxygen Concentration | < 50% |
| Respiratory Rate | 6-60bpm |
| Pressure Limit | 1-6kPa |
| I:E Ratio | 1:1.5-1:3.0 |
| PEEP | 1-10cmH2O |
| SIMV Rate | 1-12bpm |
| Inspiratory Pressure Trigger | -4-10cmH2O |
| Max Operating Pressure | ≤ 6.0 kPa |
| SIGH | 1 breath in every 80-120 breaths |
| Airway Pressure Alarm | Upper: 0.9~5.4kPa, Lower: 0.5kPa |

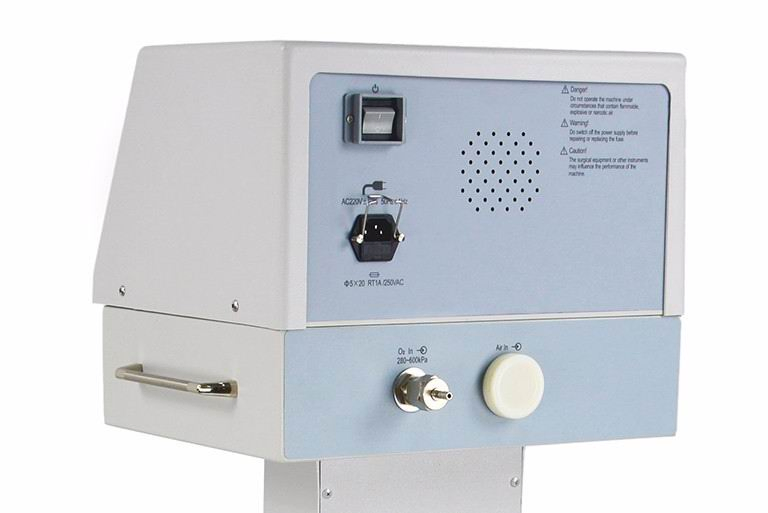

| Gas Supply Requirement | 280~600 kPa medical grade oxygen |
Frequently Asked Questions
What ventilation modes does the PA-500 support?
The PA-500 supports multiple modes including A/C, IPPV, SIPPV, IMV, SIMV, and Manual mode to accommodate various clinical needs.
How long can the backup battery last during a power outage?
The device is equipped with a backup power supply that ensures the ventilator can operate for at least 4 hours during AC power failure.
What is the tidal volume range for this ICU ventilator?
The adjustable tidal volume range is 50-1500ml, providing flexibility for different patient sizes and conditions.
Does the machine include a humidifier?
Yes, it features a 9-level adjustable humidifier to ensure the delivery of comfortably warmed and moistened air to the patient.
What type of gas supply is required?
The system requires medical grade oxygen with a pressure range between 280 and 600 kPa.
Are there safety alarms integrated into the system?
Yes, the PA-500 includes both audible and visual alarms for airway pressure limits, tidal volume fluctuations, power failure, and oxygen supply issues.
