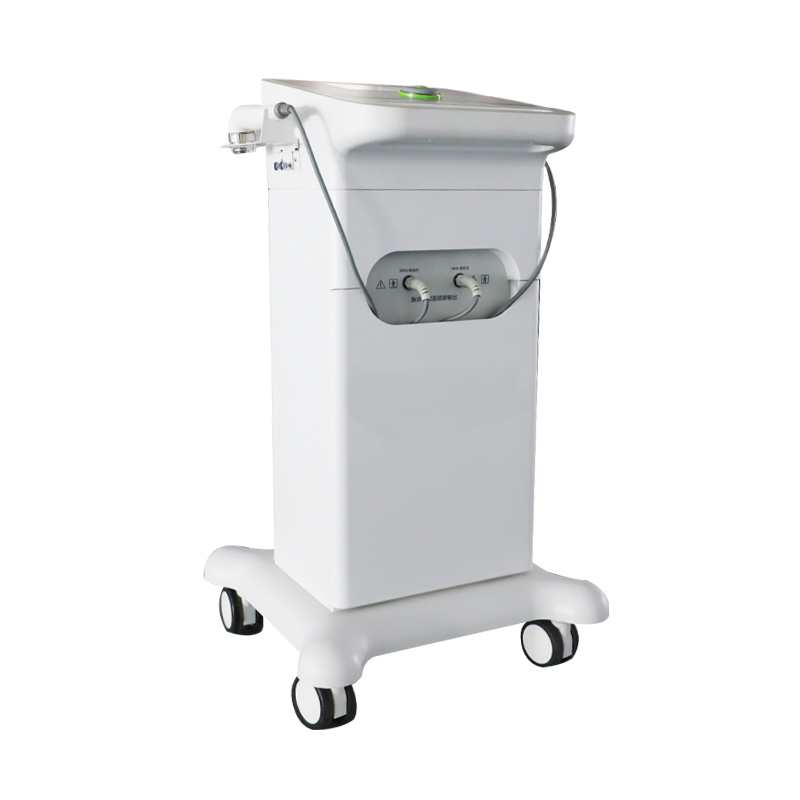

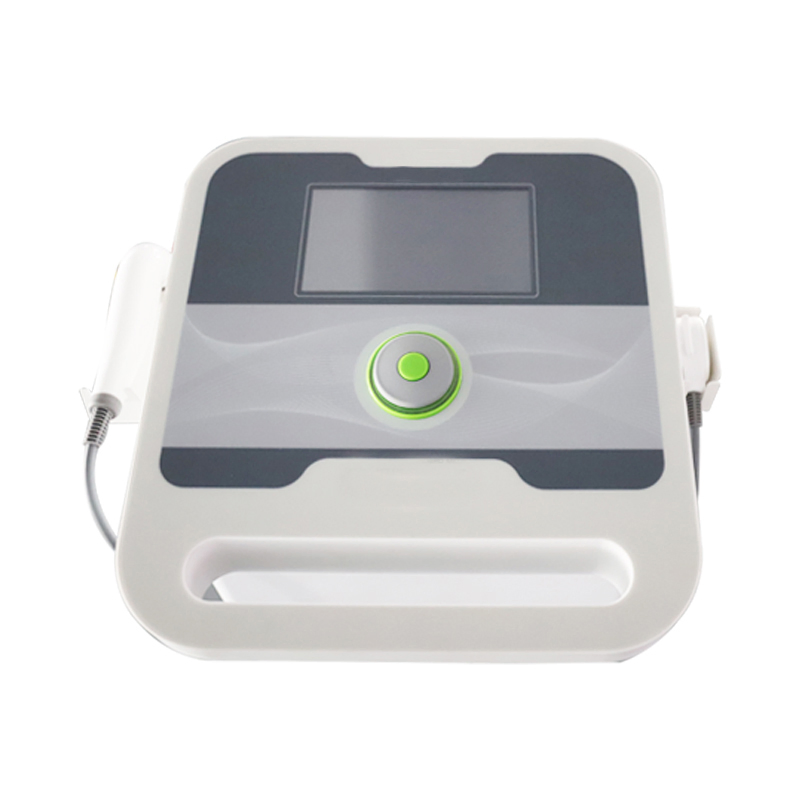

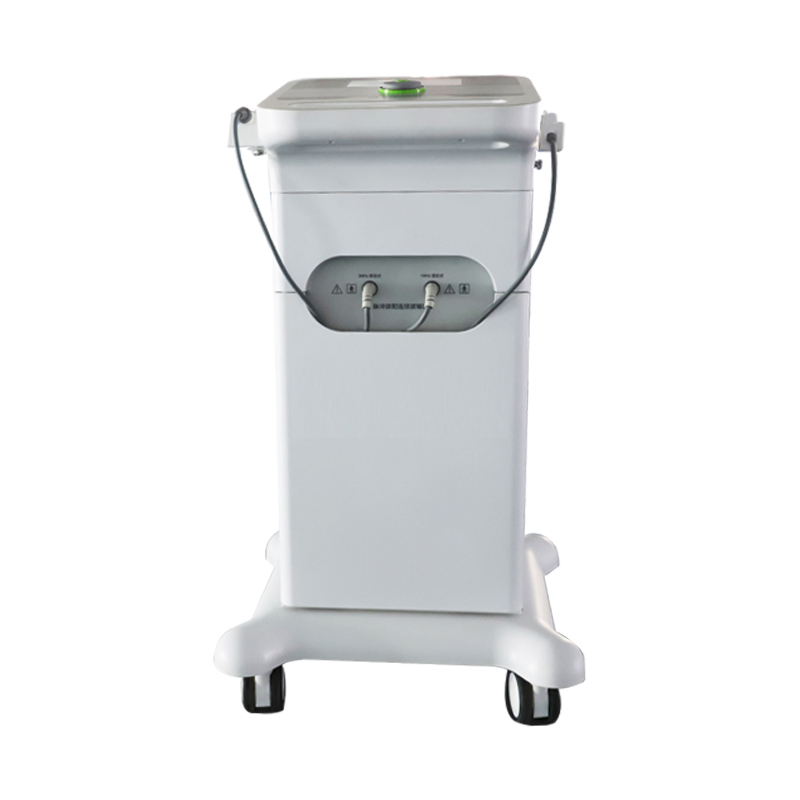

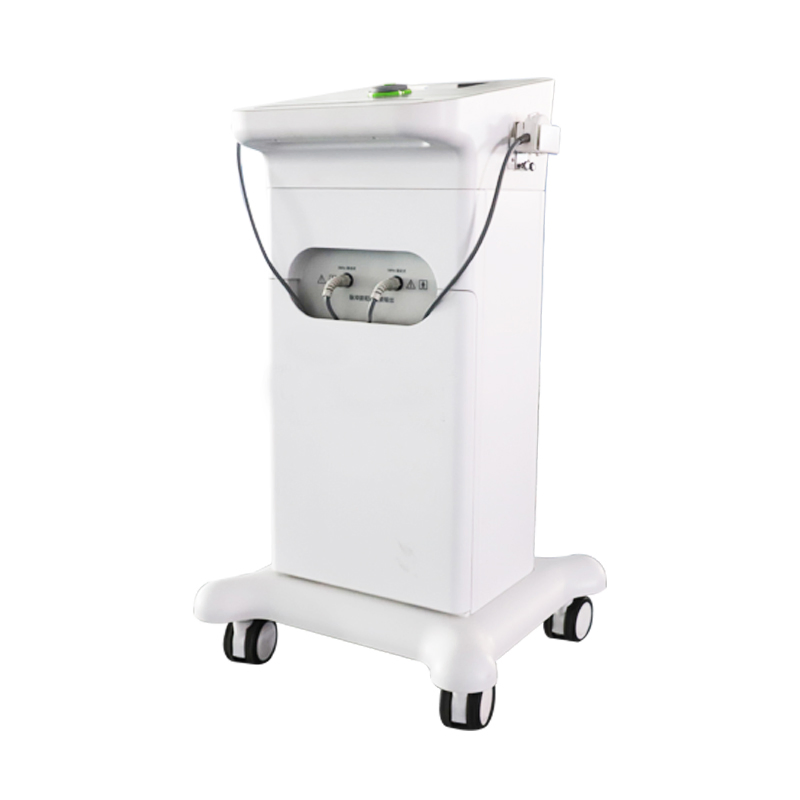

Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
1 / 5
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device
Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device

Medical Trolley Type One-Key Shuttle Operation Ultrasonic Therapeutic Device

Customization: Available
Type: Ultrasonic Physio Therapy Device
Certification: CE, ISO13485
Send Inquiry

Product Description

Essential Specifications
Model NO.
HB810D
Net Weight
15kg
Dimensions
484.2mm * 461.2mm * 863.7mm
Power Supply
AC 220V ± 10%, 50 Hz ± 2%
Transport Package
Carton
Specification
CE, ISO
Capacity
800 Piece/Month
Product Overview

HB810D Ultrasonic Physio Therapy Device

The HB810D is a medical trolley-type therapeutic device featuring professional one-key shuttle operation and dual-frequency ultrasonic technology for advanced physical therapy applications.

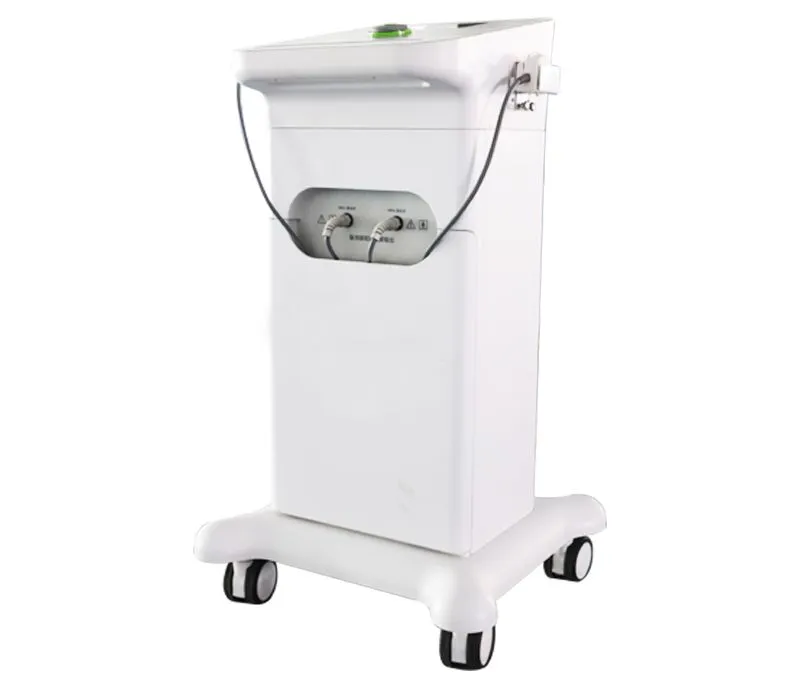

HB810D Ultrasonic Physio Therapy Device

Technical Parameters

  • Cabinet type all-in-one machine with 7-inch color LCD display.
  • Dual Treatment Frequencies: 1MHz and 3MHz supported.
  • Input Power: 80VA; Rated Output Power: 5W ± 20%.
  • Effective Sound Intensity: ≤ 3.0W/cm² (Collimated beam type).
  • Duty Cycle: 0%~100% adjustable with 10% stepping.
  • Treatment Timer: 0 to 30 minutes.
  • Output Modes: 9-speed pulse mode and 1-speed continuous mode.

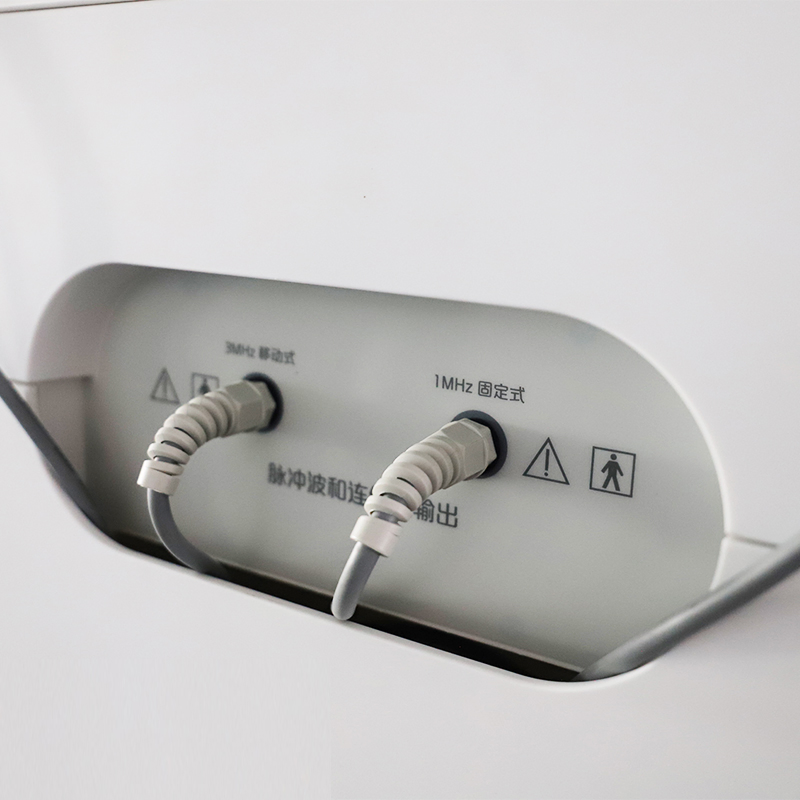

  • Independent Probes: Equipped with 1MHz and 3MHz probes that can be used simultaneously.
  • Effective Radiation Area: 2.0cm² ± 20%.
  • Certified Technology: Supported by 4 patents and dedicated software copyright.

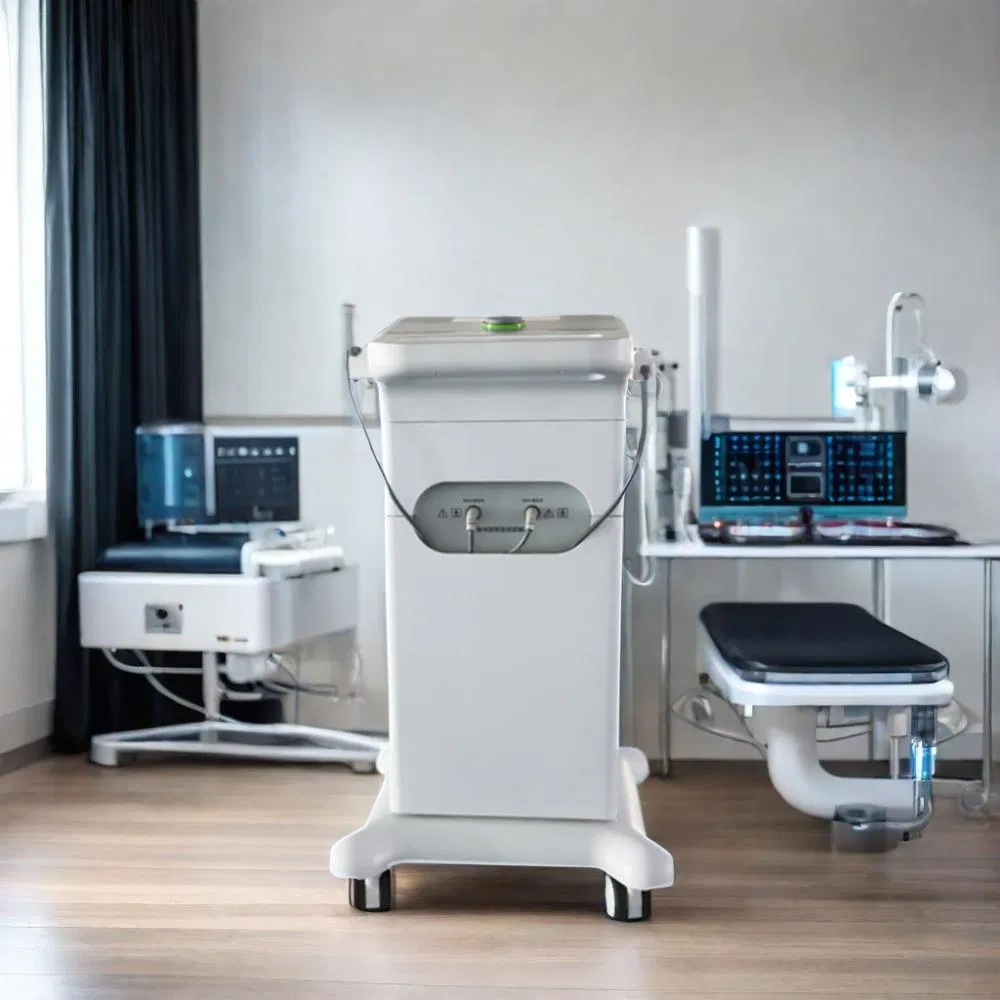

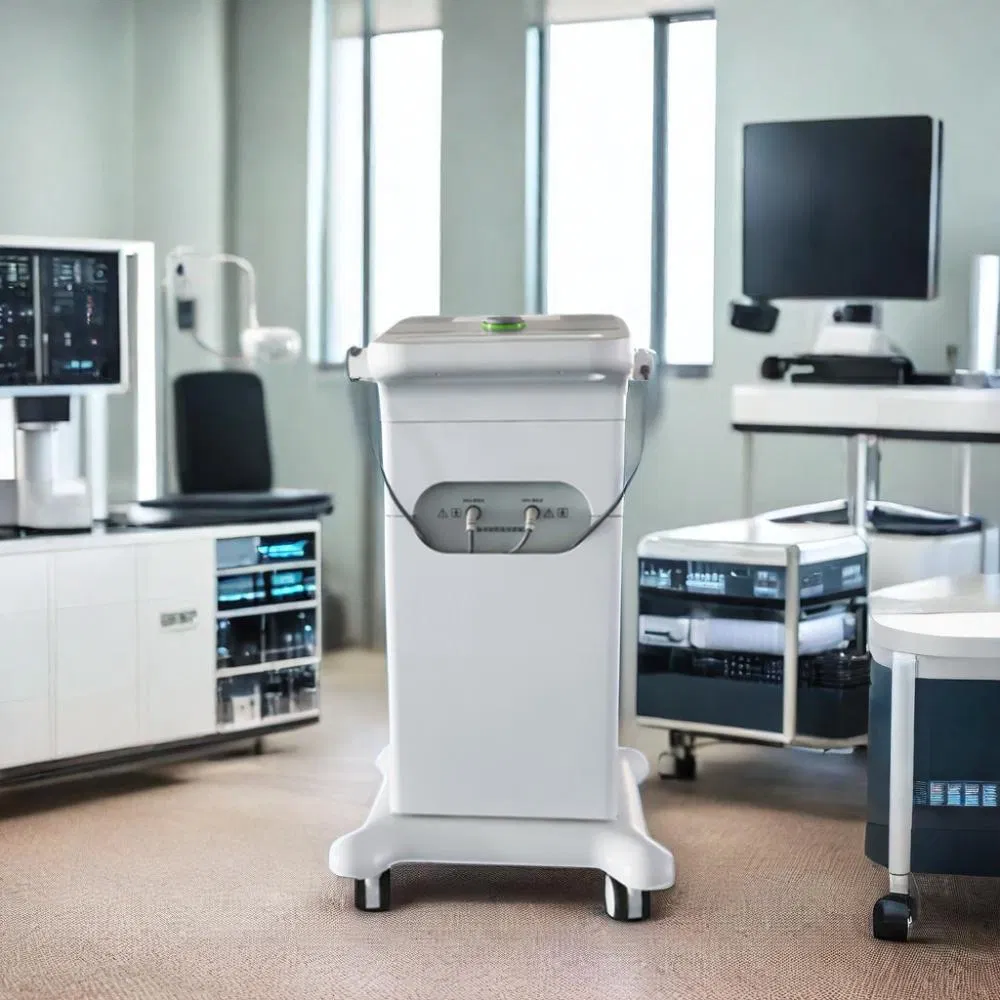

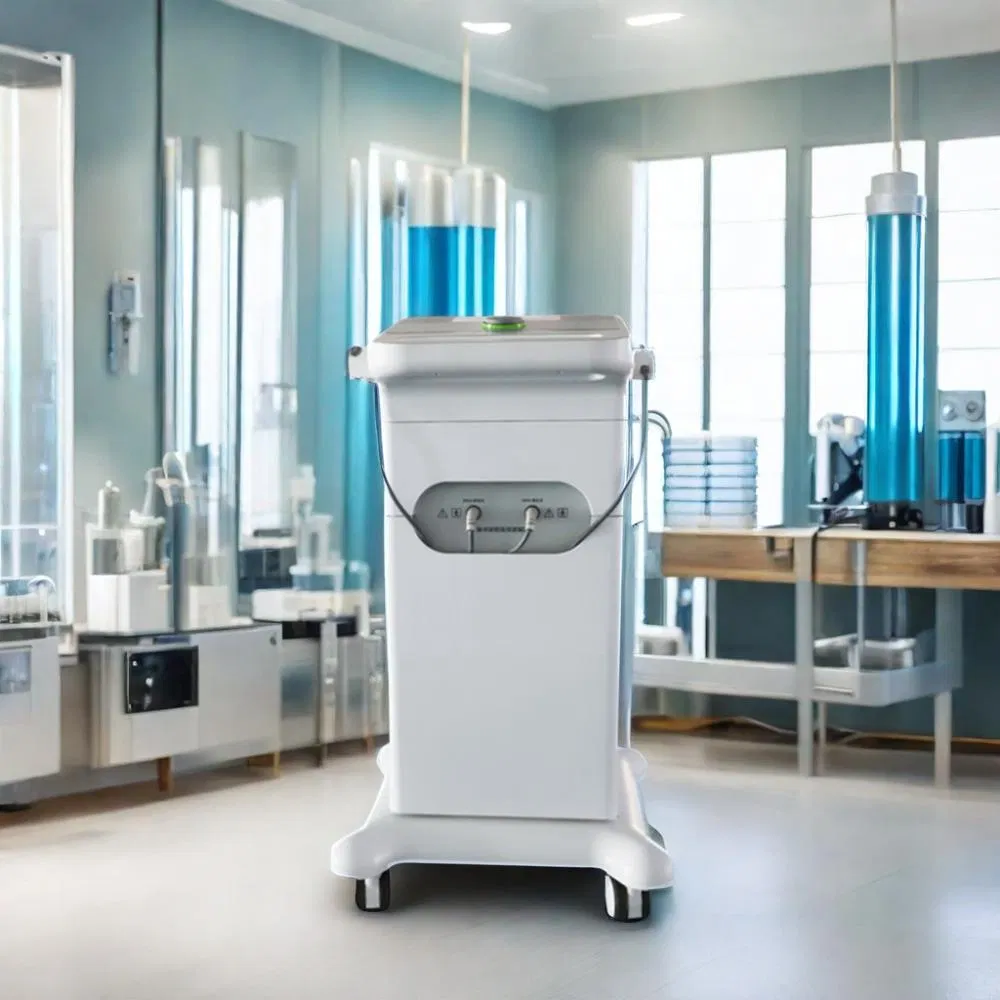

Ultrasonic Device View 1 Ultrasonic Device View 2 Ultrasonic Device View 3
Certifications & Quality
Certification 1 Certification 2 Certification 3 Certification 4
Frequently Asked Questions
How competitive is the pricing for this medical device?
Our prices are highly competitive within the same quality bracket. With over 20 years of experience in the field, we adhere to providing top-quality products at sustainable prices, gaining recognition across Africa, the Middle East, Europe, and Asia.
Why do some similar-looking models have different prices?
While many products may look similar externally, the internal components and quality control differ significantly. Higher-priced units typically utilize patented technology and superior materials compared to cheaper alternatives with lower quality standards.
What is the standard delivery timeframe?
Most products are produced per specific order with a standard delivery period of approximately 15 days post-confirmation. For sample orders, please inquire about ready-to-ship inventory.
What kind of quality assurance is provided?
We offer a one-year warranty starting from the shipment date. For minor issues, we provide free replacement spare parts. For any serious manufacturing problems, we facilitate full replacements at no extra charge.
Which payment methods are accepted?
We accept multiple payment terms including T/T, Credit Card, L/C, Western Union, PayPal, and MoneyGram for your convenience.
Can the two treatment probes be used simultaneously?
Yes, the 1MHz and 3MHz treatment probes are independently controlled and can be utilized at the same time without any mutual interference.
