Medical Ventilator for Sale Medical Equipment Supply for Hospitals Respiratory Support Breathing Apparatus Machine

Customization:	Available
Type:	Surgical
Used for:	Adult, Child, Infant

Send Inquiry

Product Description

Medical Ventilator for Sale Medical Equipment Supply For Hospitals Respiratory Support Breathing Apparatus Machine

Basic Info.

Model NO.

PA-700B

Ventilation Mode

A/C, Ippv, Sippv, Imv, Simv, Standby, Manual

Tidal Volume

50-1500ml

Respiratory Rate

1-99bpm

(I:E) Ratio

4:1-1:4

Source

Oxygen and Air

Transport Package

Cartons for Export

Specification

0.50 CBM; 77kg GS

Trademark

Origin

China

HS Code

9019200000

Production Capacity

500

Product Description

Common Features

✔ Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

✔ Versatile Application: Pneumatically driven electrically controlled ventilator, ideal for emergency clinical resuscitation and respiratory therapy.

✔ Safety Design: Nonhazardous environmentally friendly frame, elegant design, featuring automated self-checking and self-calibrating sensors.

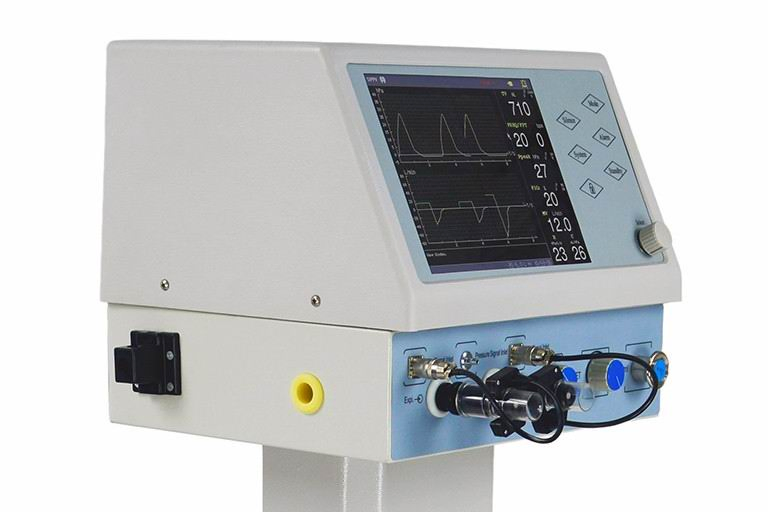

✔ Advanced Display: Built-in 10.4 inch high visibility color TFT display, showing real-time Pressure-Time and Frequency-Time waveforms.

✔ Sigh Function: Ability to insert 1-8 sigh breaths in every 100 breaths, with ventilation at least 1.5 times the tidal volume.

✔ Precision Measurement: Equipped with an infrared turbine flow sensor for stable and reliable gas flow measurement.

✔ Power Reliability: Automatically converts to standby mode during AC power outages; includes a 9-level adjustable humidifier.

✔ Comprehensive Alarms: Audible and visual alarms for volume, oxygen concentration, asphyxia, airway pressure, and power failure with history query.

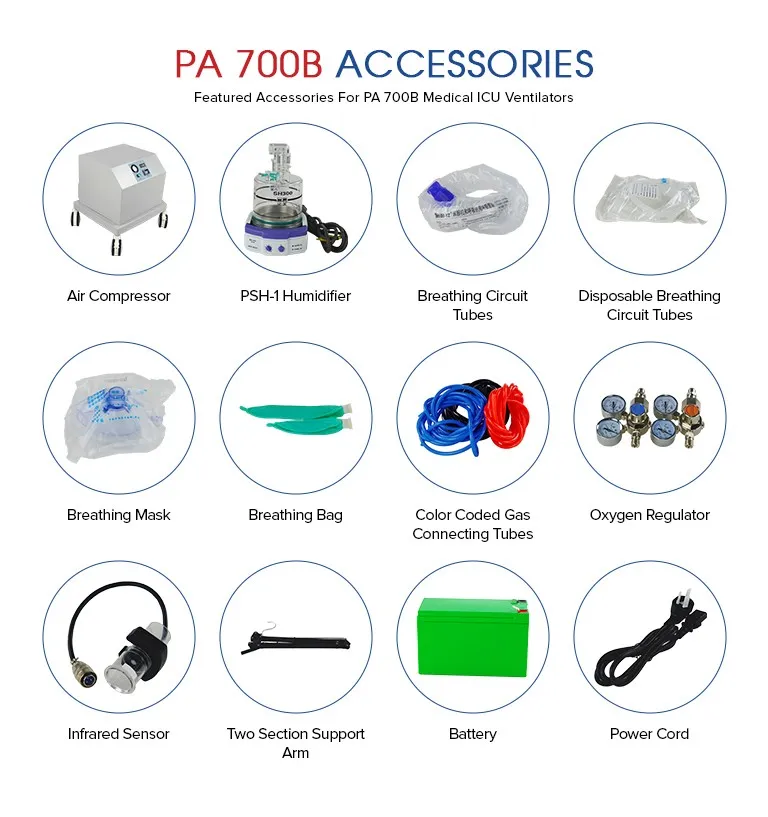

Air Compressor Specifications

⚙ Tailored professional medical grade air compressor for long-term clinical use with low noise requirements. 220V AC±10%, Output Gas Pressure: 0.4MPa±20%, Flow Rate ≥ 20L/min.

Specifications

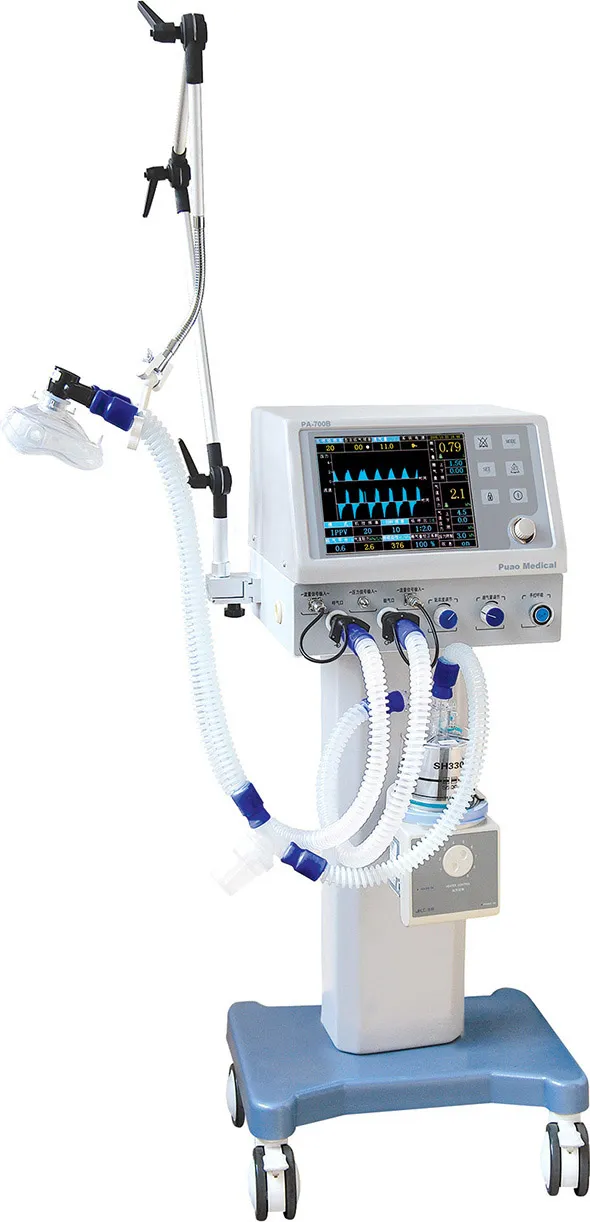

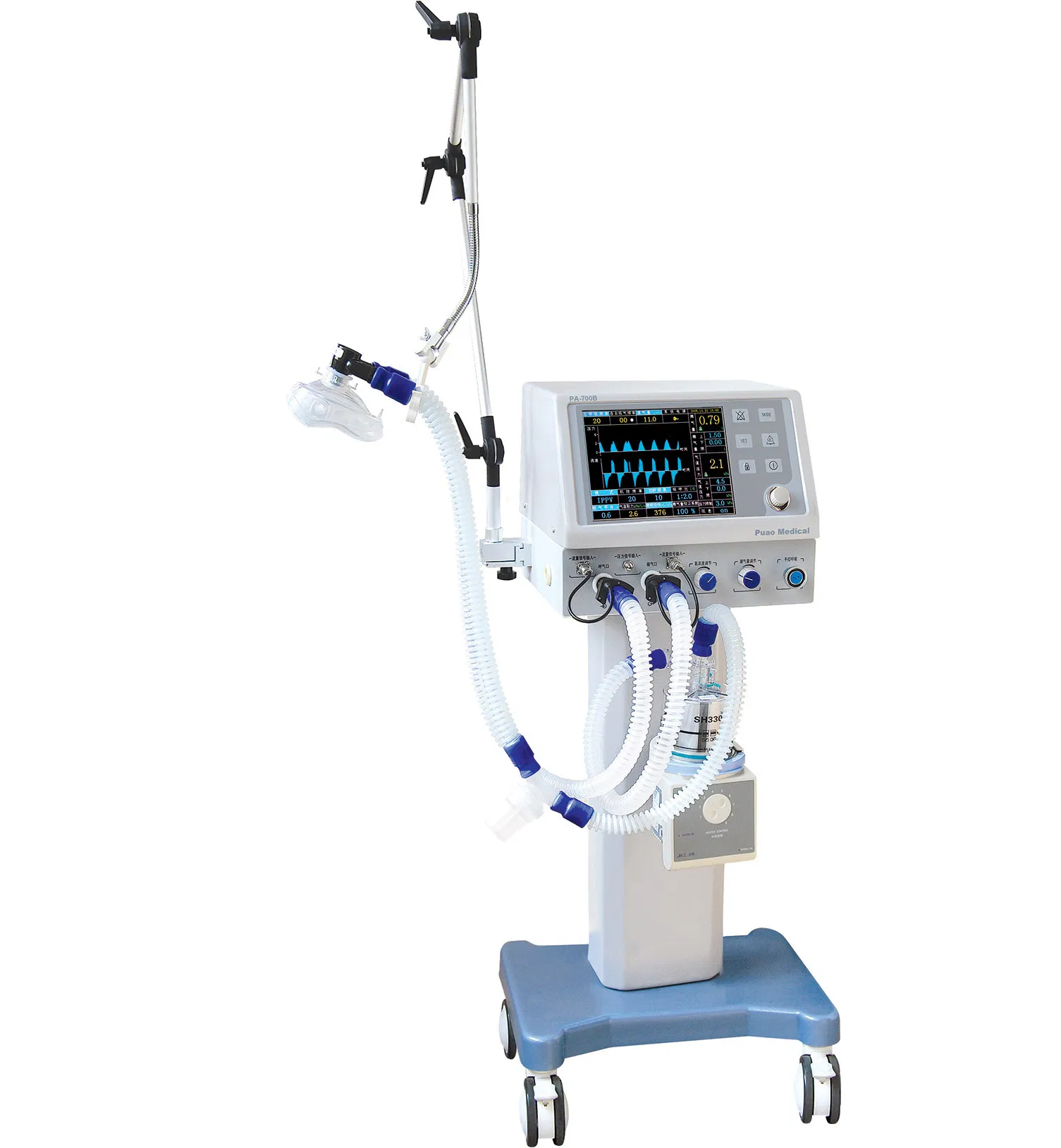

Model	PA-700B (Standard Model)
Display	10.4 inch high visibility color TFT display
Ventilation Mode	A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, SPONT MANUAL
Minute Volume	Greater than or equal to 18L
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml, Display range: 0-2000ml
Respiratory Rate	1-99bpm
(I:E) ratio	4:1-1:4
PEEP	0-10cm H₂O
SIMV Rate	1-20bpm
Pressure Trigger	-10-10cm H₂O
Oxygen Concentration	Adjustable 45-100%

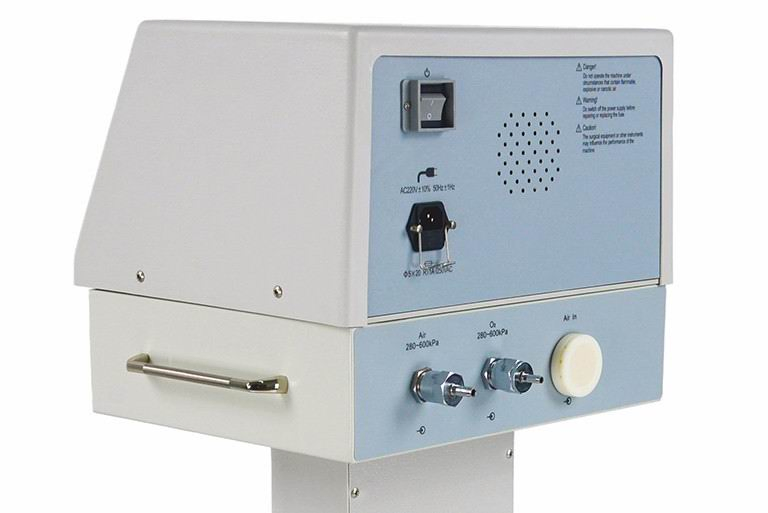

Gas Requirement	280~600 kPa medical grade oxygen and compressed air
Pressure Limit	1.0kPa~6.0kPa

Frequently Asked Questions

What are the primary applications for the PA-700B ventilator?

The PA-700B is designed for emergency clinical resuscitation and long-term respiratory therapy in hospital environments.

What ventilation modes does this machine support?

It supports multiple modes including A/C, SIPPV, IPPV, SIMV, PSIMV, PEEP, SPONT, and Manual mode to suit various patient needs.

How long can the backup battery last during a power failure?

The built-in backup power supply provides at least 4 hours of continuous operation in the event of an AC power outage.

Does the unit include an integrated air compressor?

Yes, the advanced model is equipped with a professional medical-grade air compressor designed for low noise and long-term clinical durability.

Can I monitor real-time waveforms on the display?

Yes, the 10.4-inch color TFT display allows for the simultaneous real-time display of Pressure-Time and Frequency-Time waveforms.

What is the range for tidal volume adjustment?

The tidal volume is highly adjustable, ranging from 50ml to 1500ml, making it suitable for a wide range of patients.
