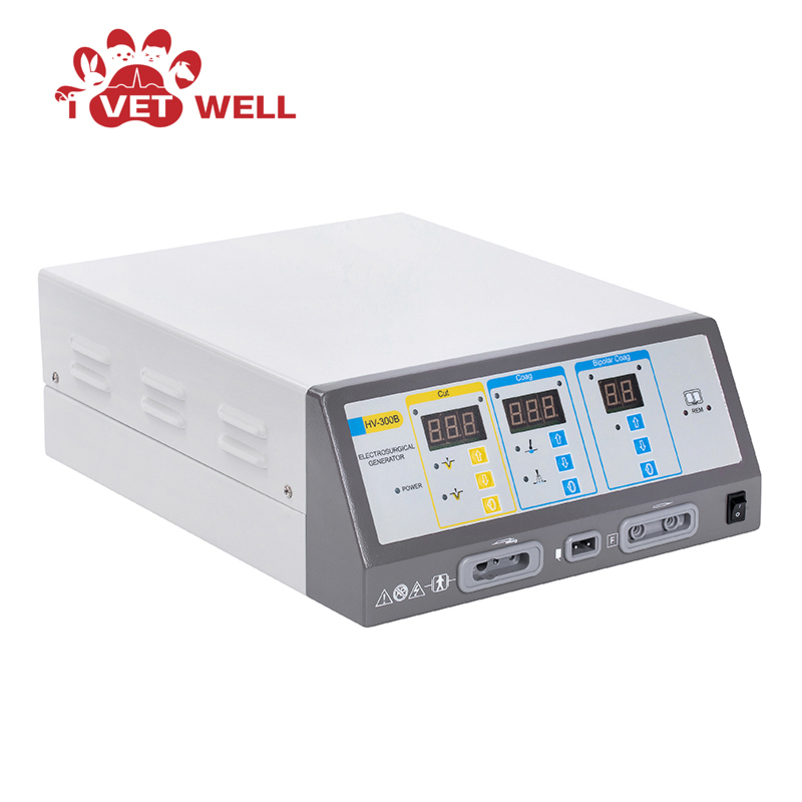

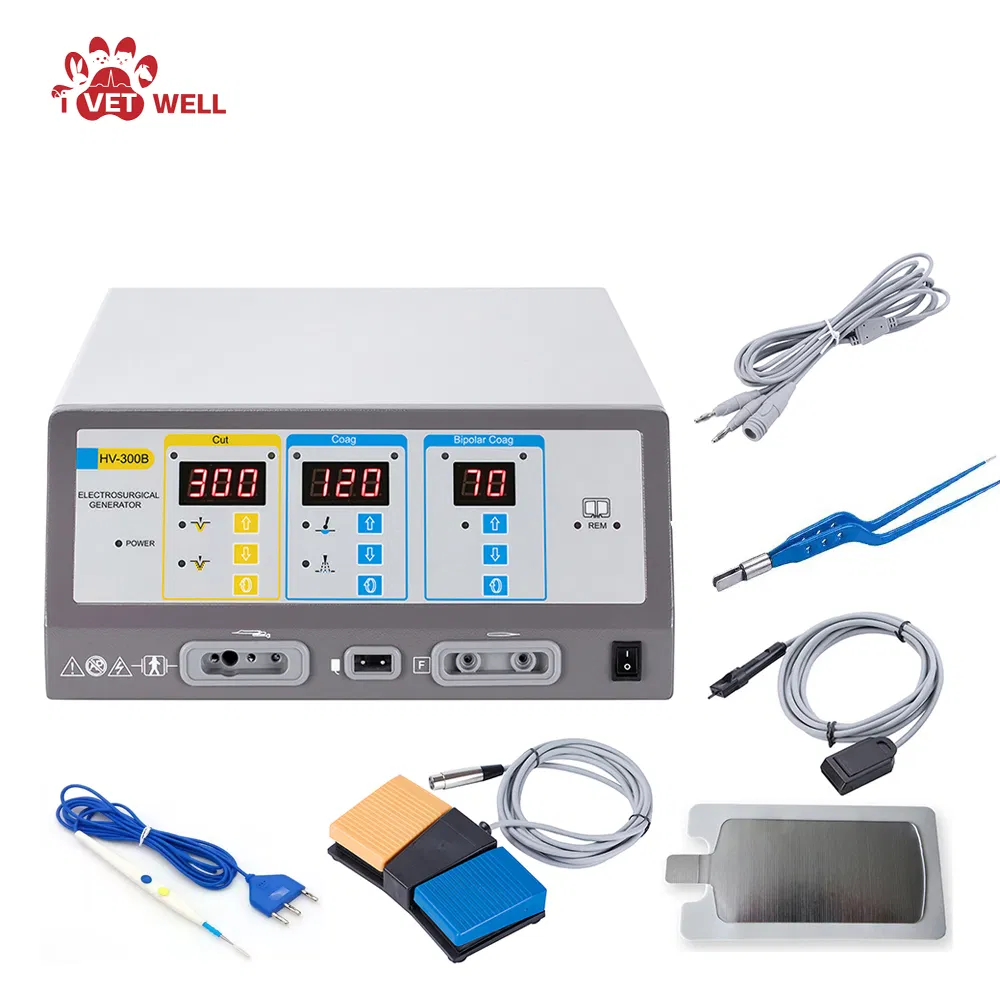

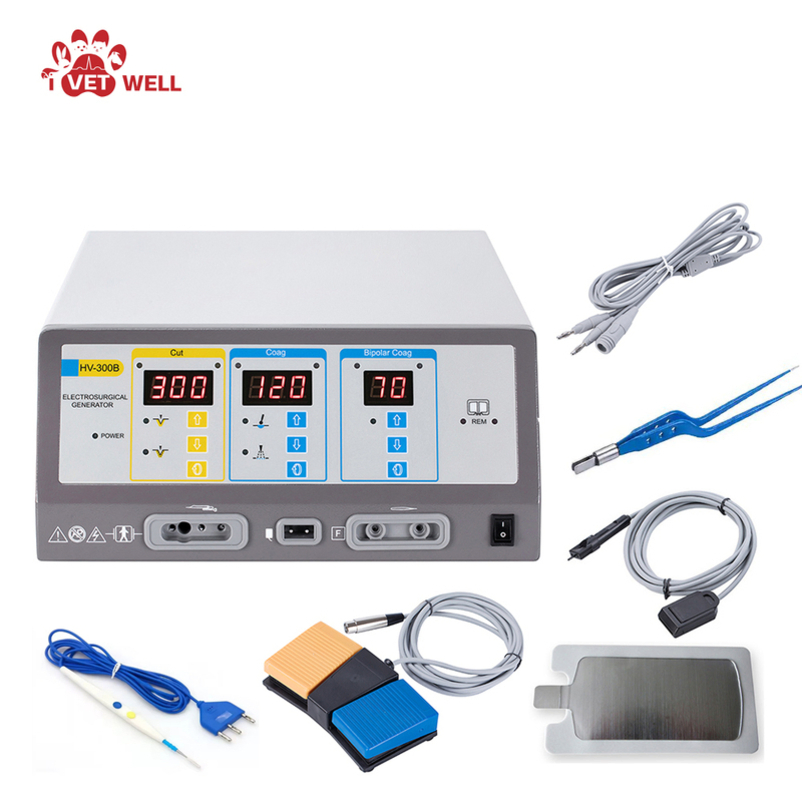

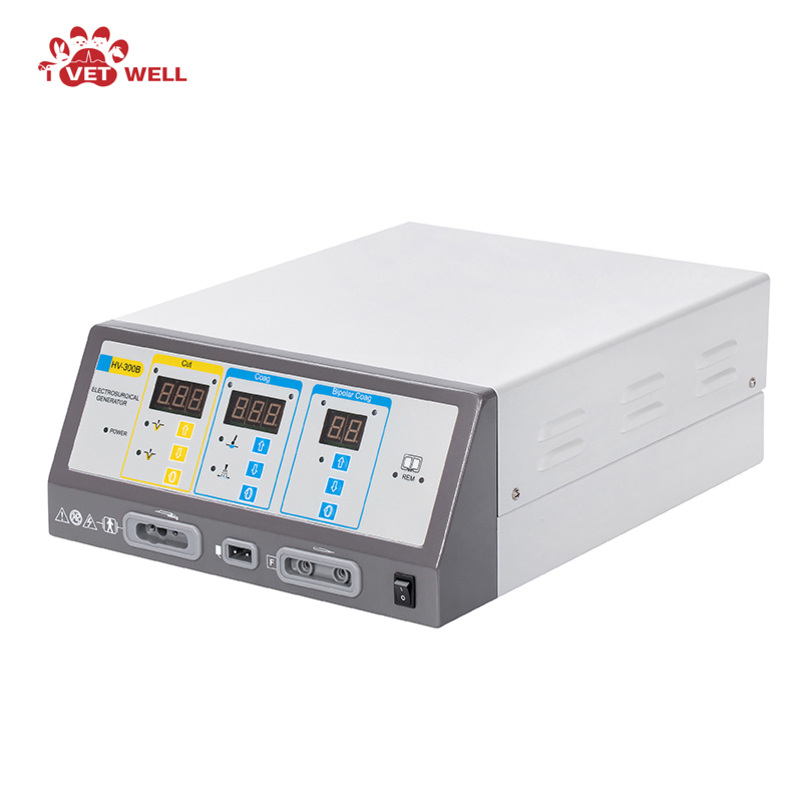

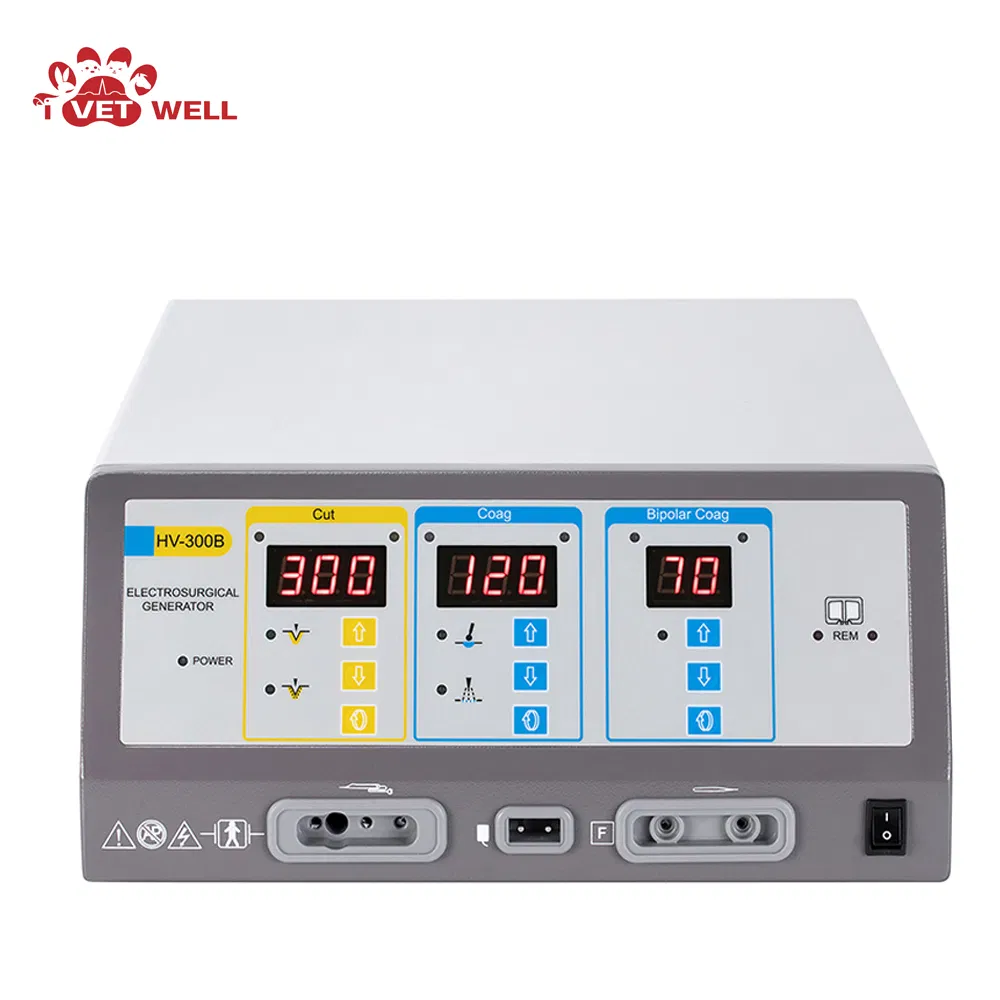

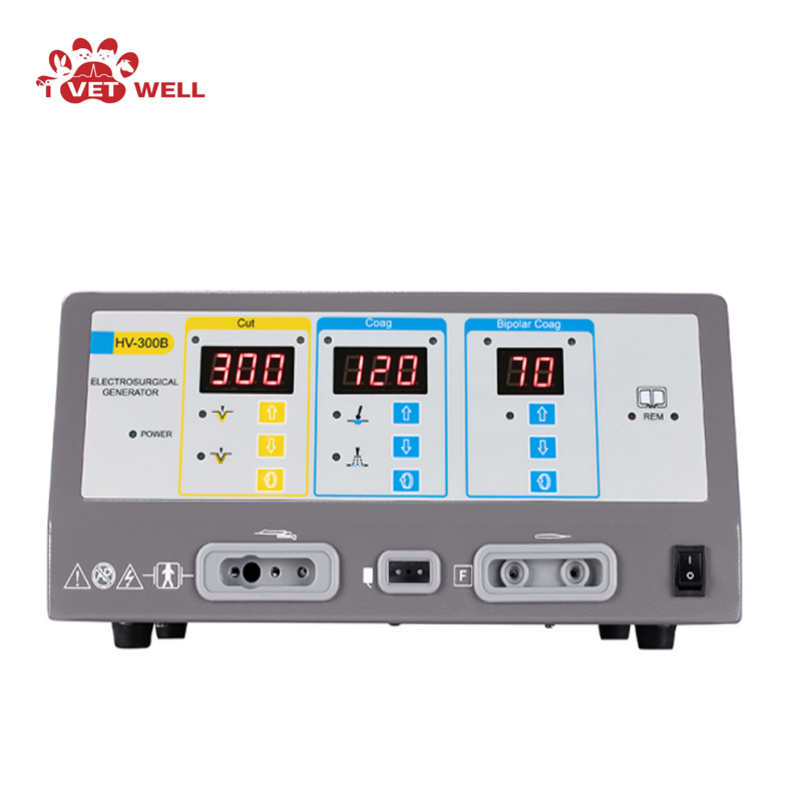

The intuitive design and user-friendly set-up of the Electrosurgical Generator (diathermy) for use in the modern operating room. It features both Monopolar and bipolar functions to satisfy all surgery demands with safety, flexibility, reliability, and convenience.
Return electrode contact quality monitoring system (REM). The REM system continually monitors patient impedance levels and deactivates the generator if a fault in the patient/return electrode contact is detected, minimizing clinical risks.
| Parameters | Details | High Frequency Leakage | Low Frequency Leakage |
|---|---|---|---|
| Main Frequency | 512 KHz | Monopolar: < 150mA Bipolar: < 60mA |
Normal Polarity: < 10μA Ground Open: < 50μA Reverse Polarity: < 50μA |
| Power Supply | 110V/60Hz; 220V/50Hz | ||
| Dimension | 34*16*47cm | ||
| Weight | 8.00KG |
| Working Mode | Sub-mode | Max P-P Voltage | Rated Load | Max Output Power | Crest Factor |
|---|---|---|---|---|---|
| Monopolar Cut | Pure | 1900 | 500Ω | 300W | 1.6 |
| Blend | 2300 | 500Ω | 250W | 2.5 | |
| Monopolar Coag | Fulgurate | 2800 | 500Ω | 120W | 2.9 |
| Spray | 7000 | 500Ω | 100W | 6.2 | |
| Bipolar Coag | Standard | 550 | 100Ω | 70W | 1.6 |
Save 20%+ of your time on vendor coordination and reduce 10-15% of total costs through our integrated services.

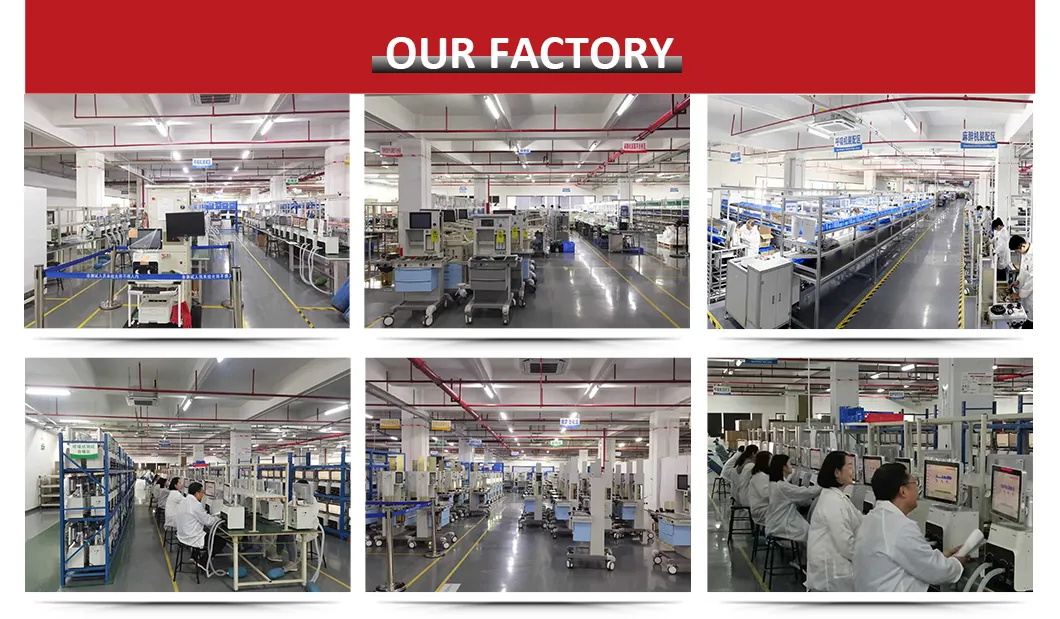

Strict 3-round inspection process: Raw material check, production sampling, and full pre-shipment inspection with detailed reports.
