Customization: Available
Type: Emergency Ventilator
Used for: Adult
Send Inquiry

Product Description

Respiratory Medical Equipment Manufacturer Artificial Lung Ventilation for ICU

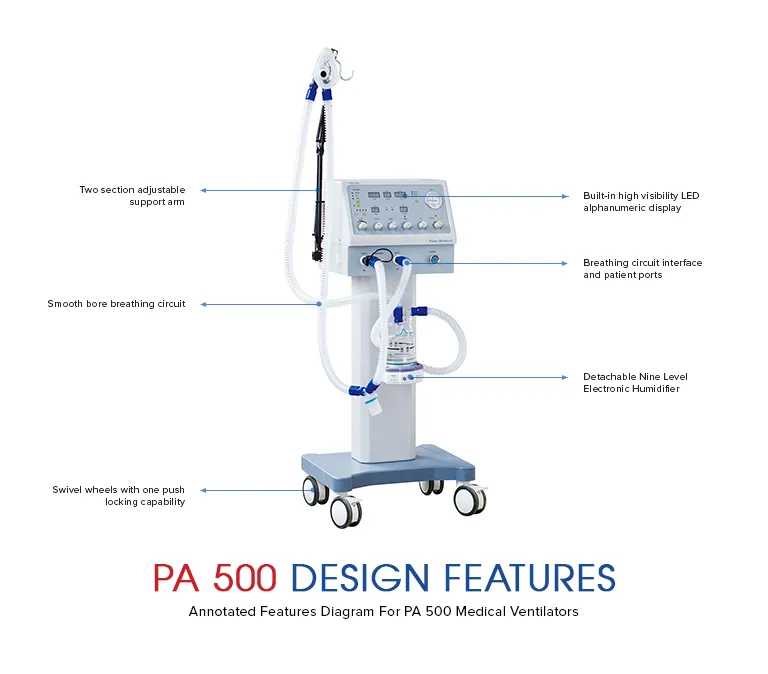

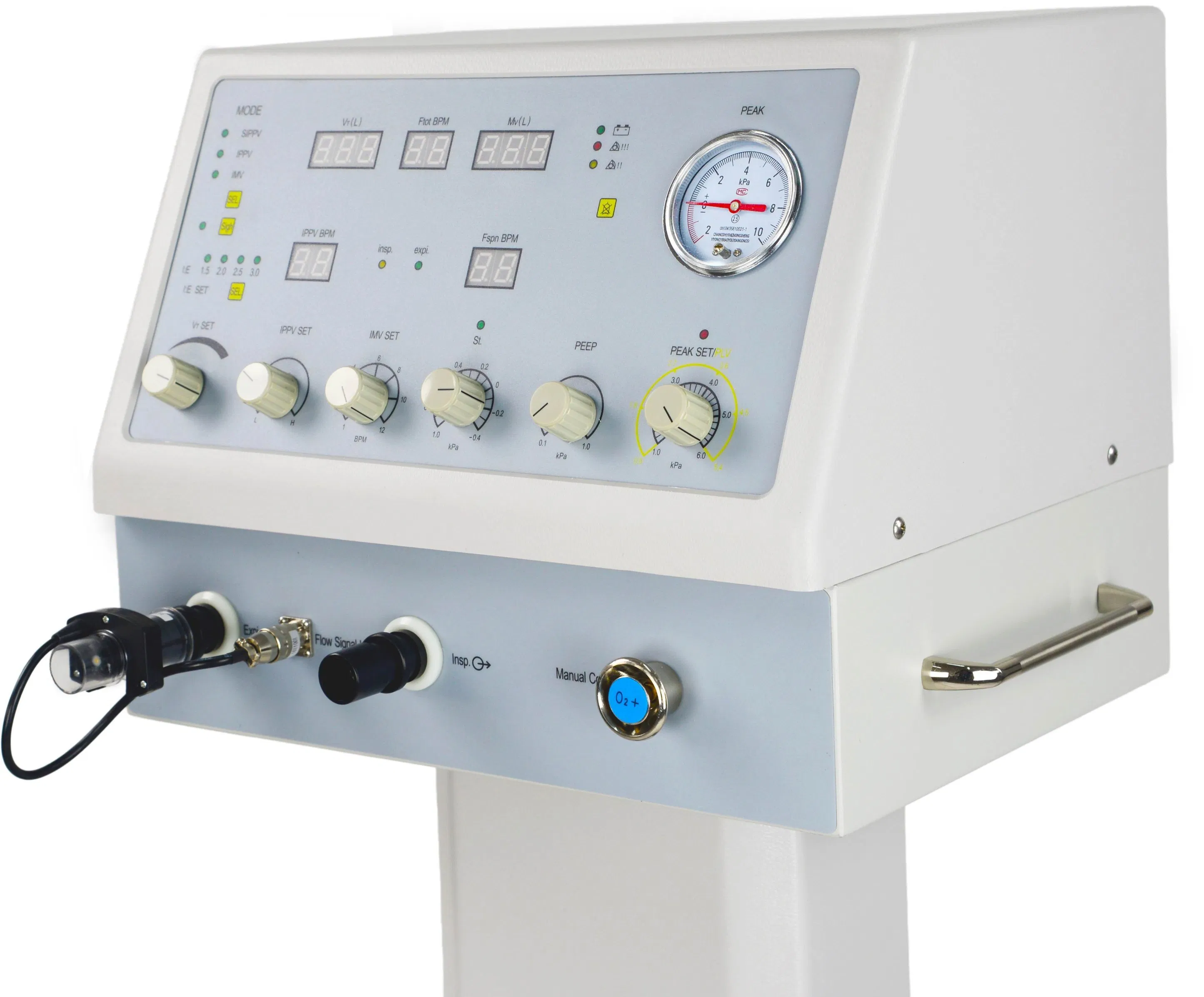

PA-500 Ventilator

Technical Specifications

Model NO.PA-500
Ventilation ModeA/C, IPPV, SIPPV, IMV, SIMV, Standby, Manual
Tidal Volume50-1200ml
Respiratory Rate6-60bpm
(I:E) Ratio1:1.5-1:3.0
SourceOxygen and Air
Trigger Sensitivity4--10CMH2O
SIMV Rate1-12bpm
O2 Concentration45-100%
Sigh1 Per 100 Breaths
TrademarkPA
HS Code9019200000

Common Features

◈
Pneumatically driven electrically controlled ventilator, suitable for emergency clinical resuscitation and respiratory therapy.
◈
Display: High visibility, wide angle LED alphanumeric data display with tactile analog parameter controls.
◈
Equipped with high precision infrared turbine pressure and flow sensors.
◈
Power failure support: Automatically converts to standby mode during AC power outages.
◈
Frame: Nonhazardous environmentally friendly frame, elegant design with automated self-checking and self-calibrating sensor.
◈
Alarm System: Audible and visual alarms for tidal volume, airway pressure, power failure, and oxygen failure.
◈
Humidifier: 9 Level adjustable setting for patient comfort.

Detailed Gallery

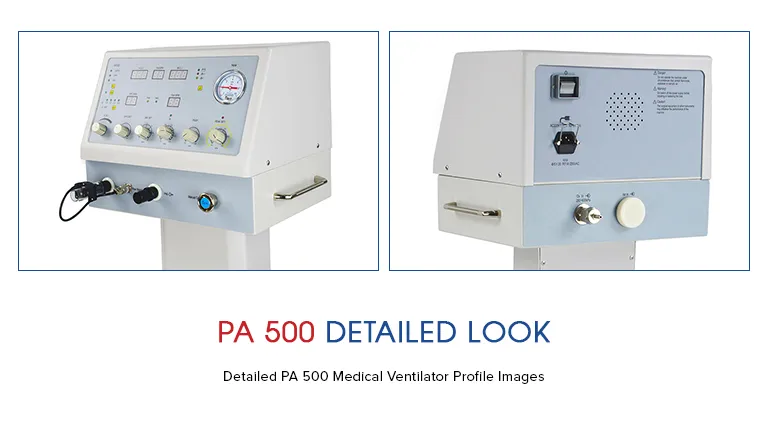

Feature Overview

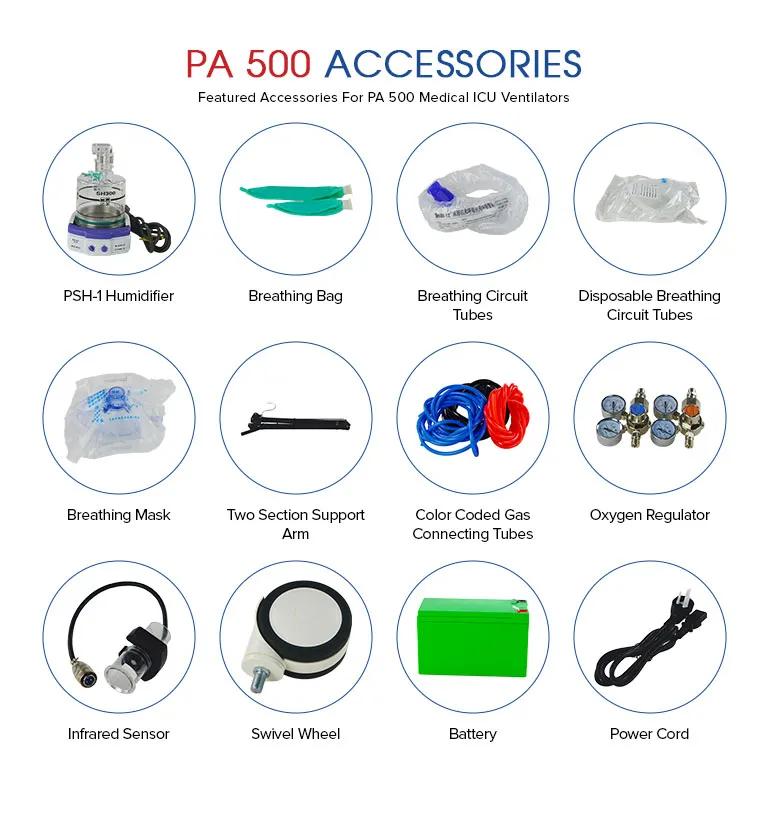

Design Detail

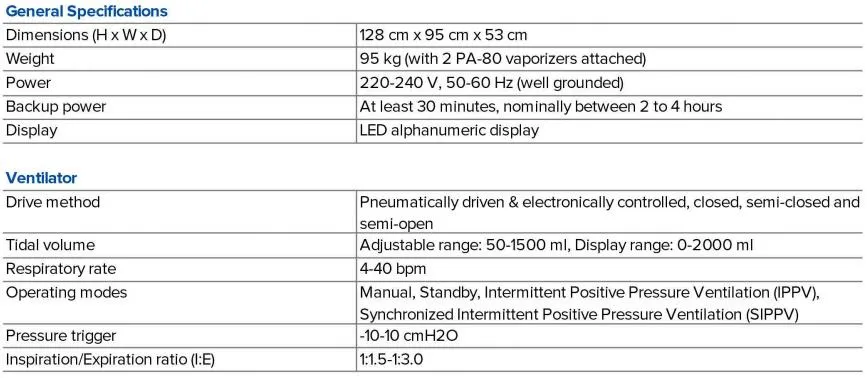

Specification Part 1 Specification Part 2
Product View 1 Product View 2

Frequently Asked Questions

What ventilation modes does the PA-500 support?
The PA-500 supports multiple modes including A/C, IPPV, SIPPV, IMV, SIMV, Standby, and Manual mode to cater to various clinical needs.
Is the ventilator suitable for infant or adult use?
With a tidal volume range of 50ml to 1200ml, it is versatile enough to support a wide range of patient requirements in an ICU setting.
How does the device handle power outages?
The unit features a power failure support function that automatically converts the system to standby mode during AC power outages to ensure safety.
Does it have built-in monitoring for patient safety?
Yes, it is equipped with high-precision infrared turbine pressure and flow sensors, along with audible and visual alarms for airway pressure and oxygen failure.
Can the humidity of the air be adjusted?
Yes, the PA-500 includes a 9-level adjustable humidifier to ensure the delivered air is at the optimal comfort level for the patient.
What is the oxygen concentration range?
The device allows for precise control of O2 concentration, ranging from 45% to 100%.
