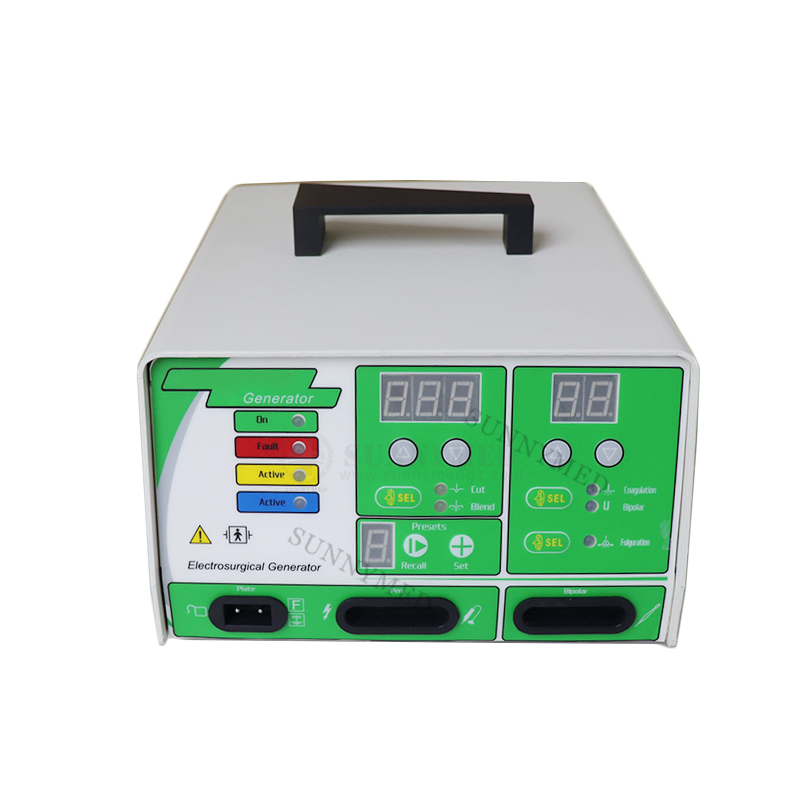

Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
1 / 5
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device
Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device

Sy-I045c Cheap Bipolar Vet Human Portable 100W Electrode Cautery Device

Customization: Available
Application: Orthopedic, Abdominal, Ent, Neurosurgery, Microsurgery, Anorectal, Urology
Feature: Reusable
Send Inquiry

Product Description

📊

Basic Information

Model NO.:SY-I045C
Certification:CE
Warranty:1 Year
Materials:Metal, Plastic
Working Frequency:357-575kHz
Weight:4.2kg
Product Name:Electrosurgical Unit
Transport Package:Carton Box
Origin:China
Production Capacity:200 Set/Month
📝

Product Description

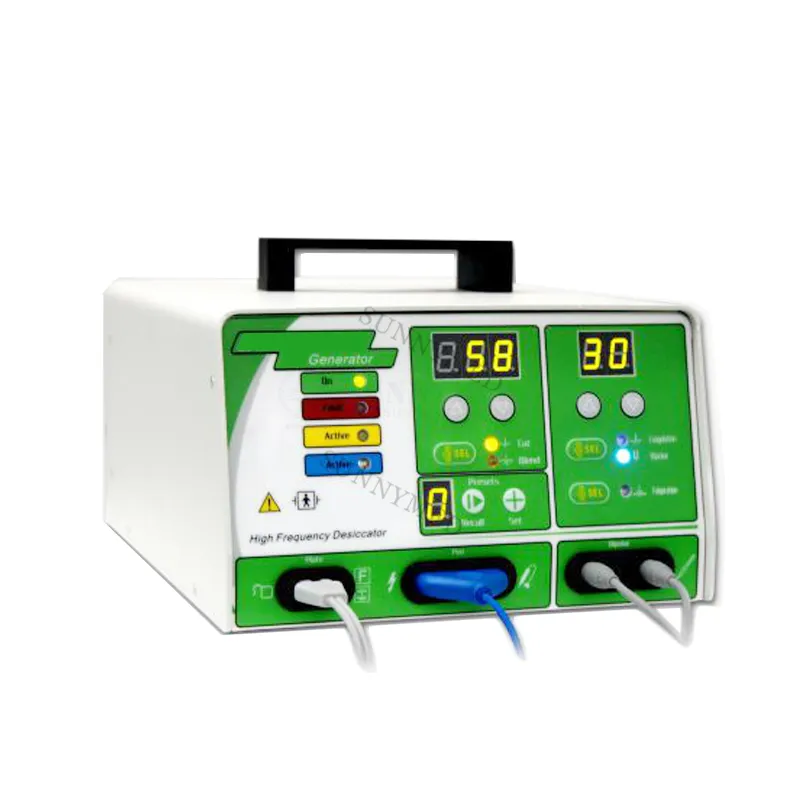

Portable 100W Electrode Cautery Device (Monopolar & Bipolar) Electrosurgical Unit Main

Portable in size, available in both monopolar and bipolar modes, convenient handle power control and memory function, suitable for micro surgery, gynecology and arthroscopy.

⚙️

Key Features

  • Two levels of coagulation: Pinpoint coagulation for precise control and Fulguration for highly vascular surface areas.
  • User Presets: Incorporates up to ten user-defined presets for easy recall of frequent settings.
  • Safety RF Output: Isolated RF output for Cut, Blend, and Coag modes to minimize alternate site burns.
  • Self-Diagnostics: Continually monitors the unit to ensure proper performance with warning tones for failures.
  • Power Control: Fulguration range 0-10W (0.1W increments) and 10-35W (1.0W increments).
📉

Technical Specifications

Environmental temperature range5°C ~ 40°C
Relative moisture range≤80%
Atmosphere pressure range86.0 ~ 106.0 Kpa
Pure cut1w ~ 60w (Load 500Ω)
Blend1w ~ 60w (Load 800Ω)
Coagulation1w ~ 60w (Load 1000Ω)
Fulguration0.1w ~ 35w (Load 1000Ω)
Bipolar1w ~ 30w (Load 200Ω)
Voltage220V±10V, 50Hz ±1Hz
Working frequency357 KHz ~ 575 KHz
Leakage currents to groundLess than 0.5mA
Leakage currents to patientLess than 0.01mA
📷

Detailed Photos

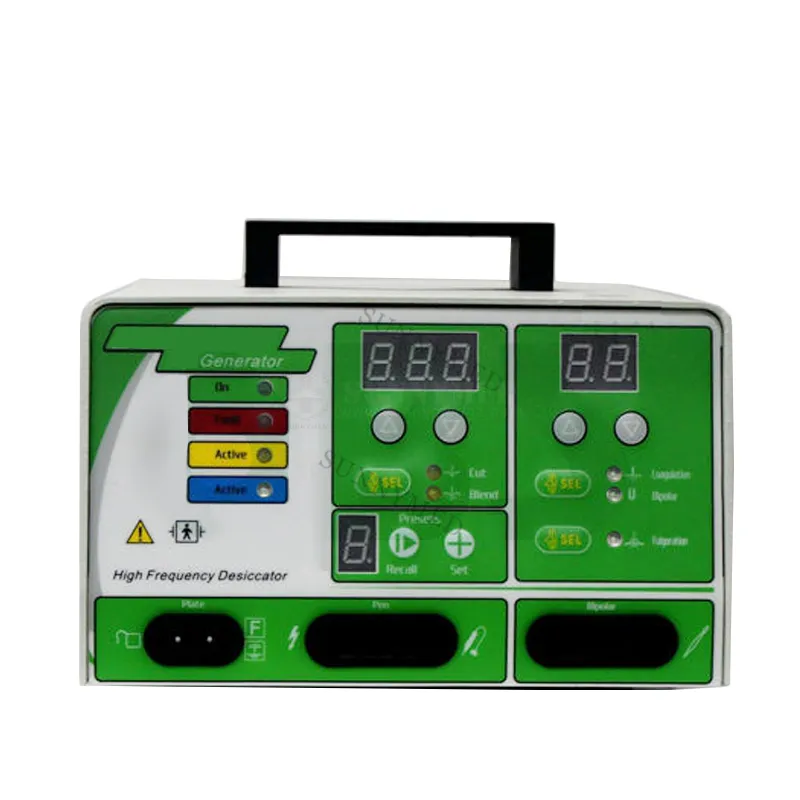

Photo 1

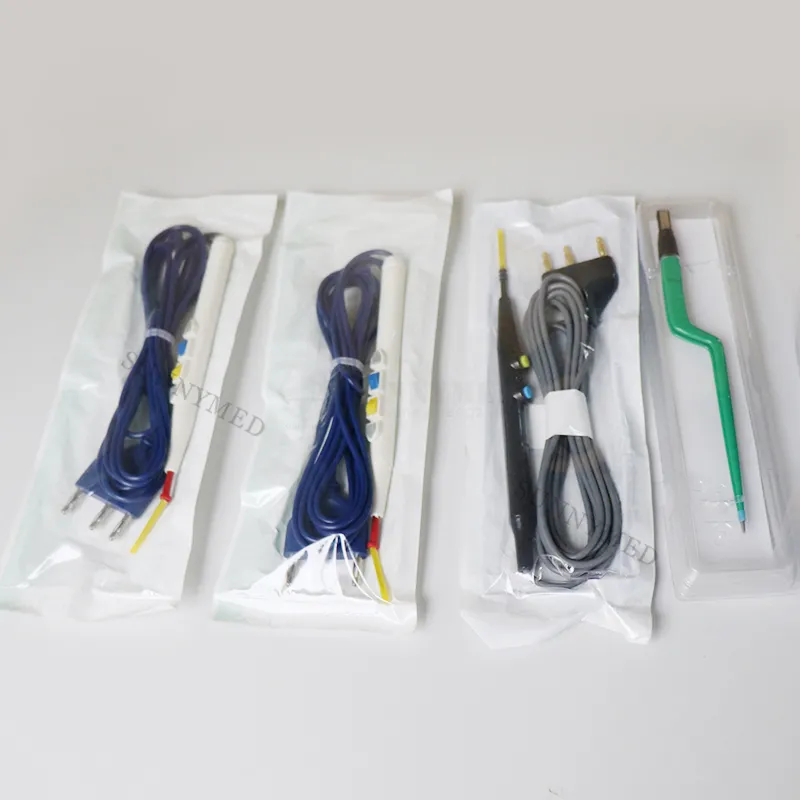

Photo 2

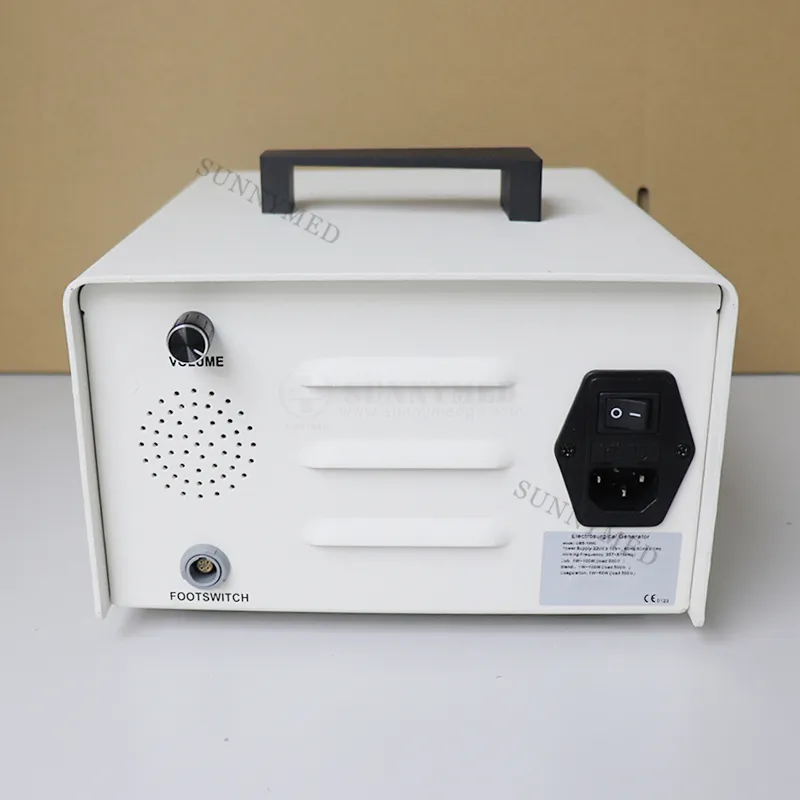

Photo 3

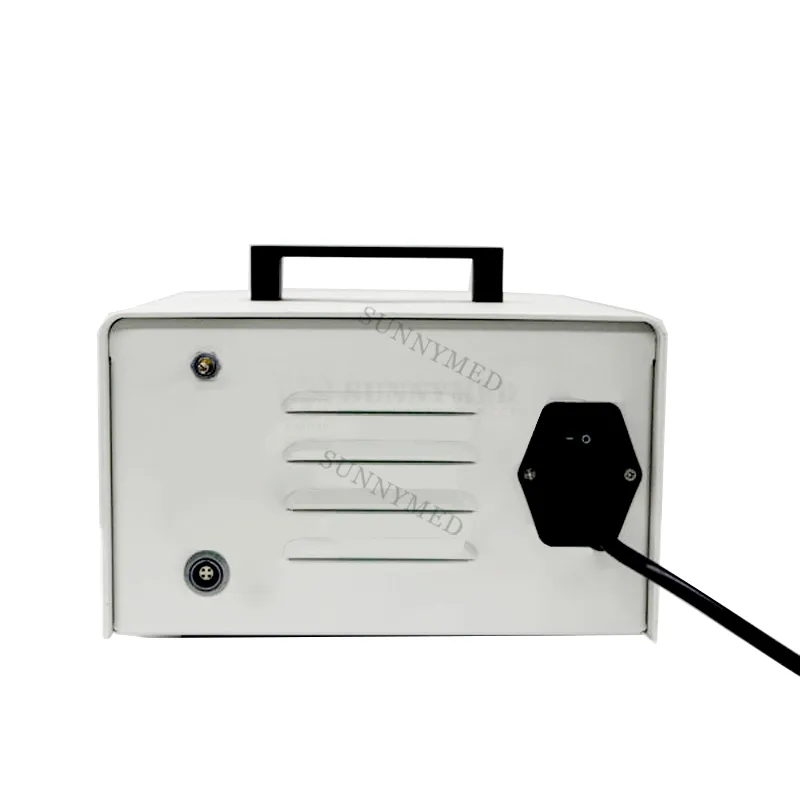

Photo 4

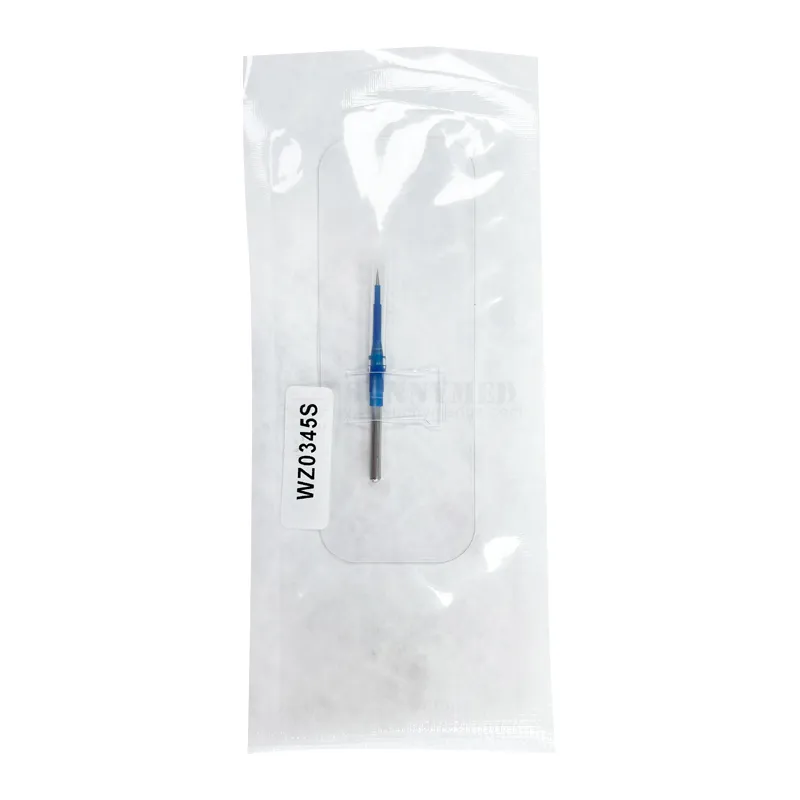

Photo 5

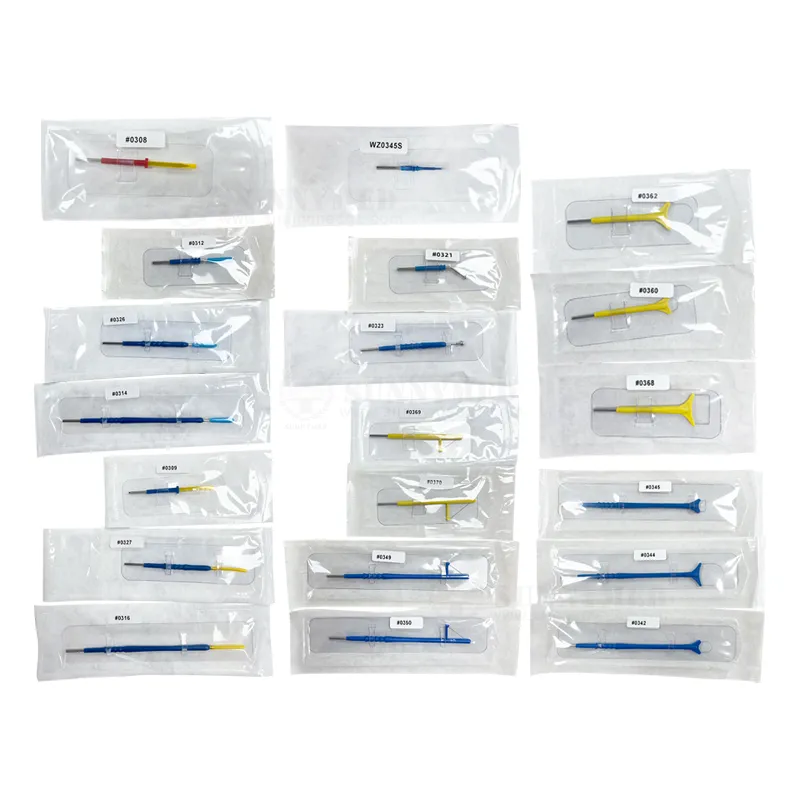

Photo 6

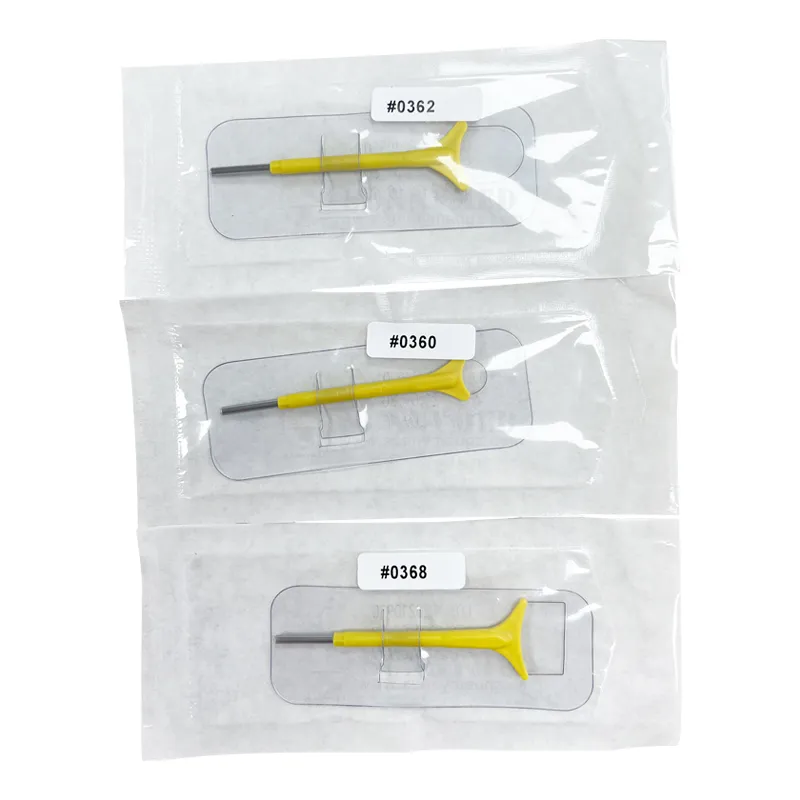

Photo 7
Photo 8

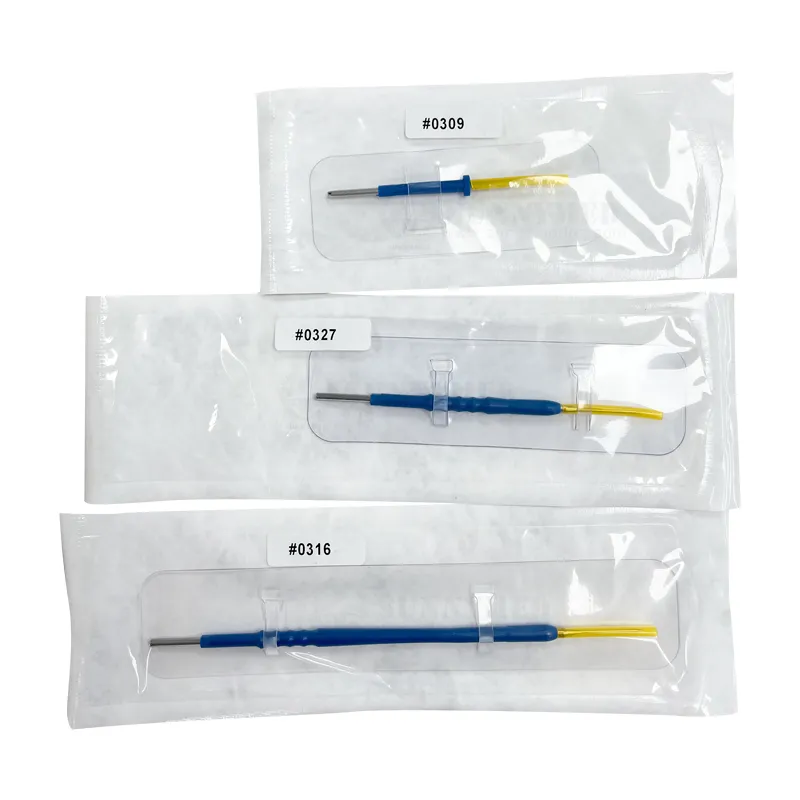

Photo 9

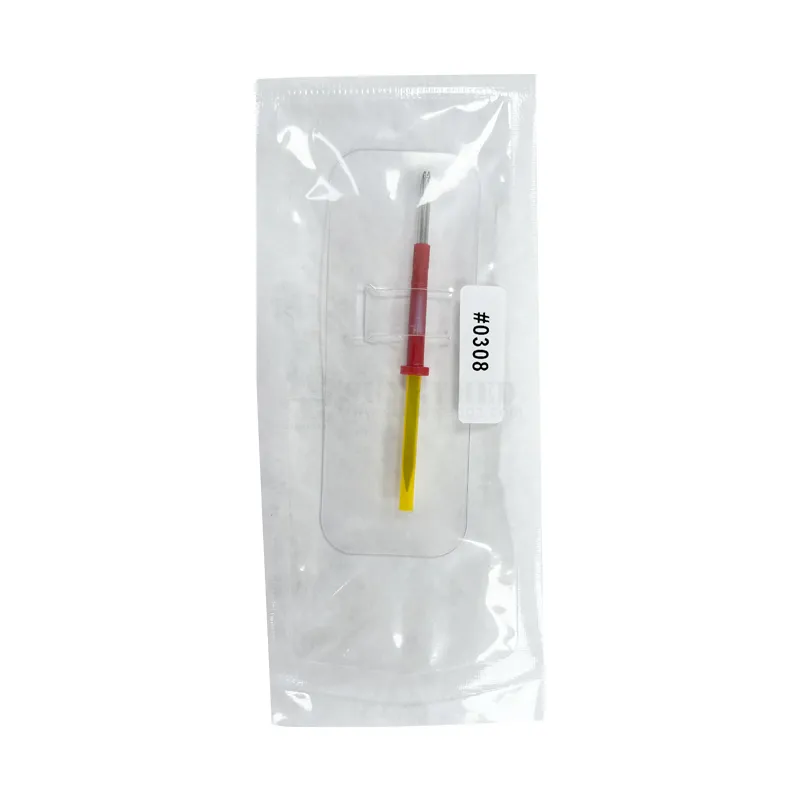

Photo 10

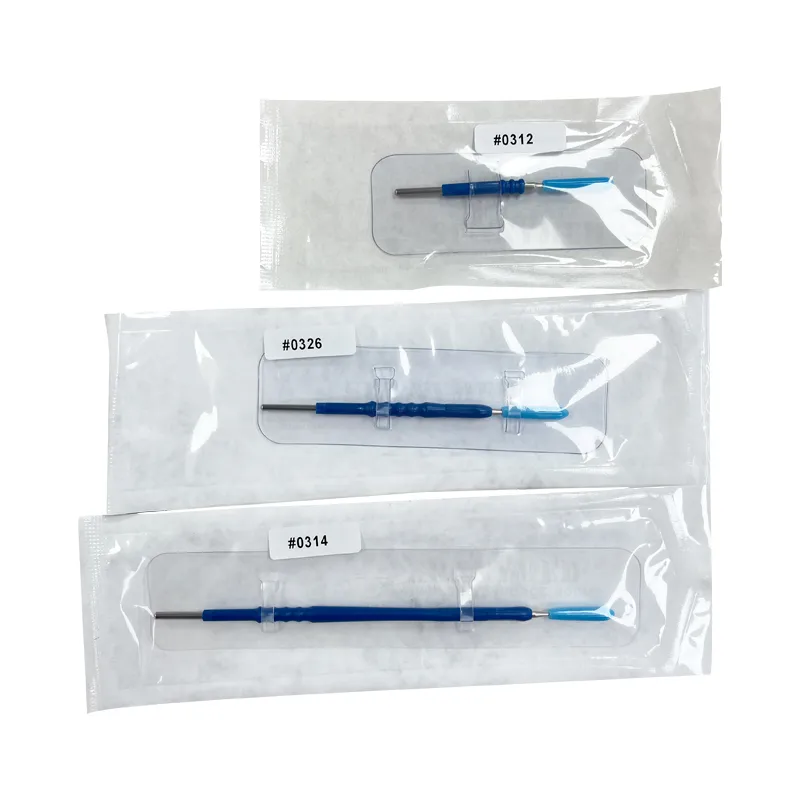

Photo 11

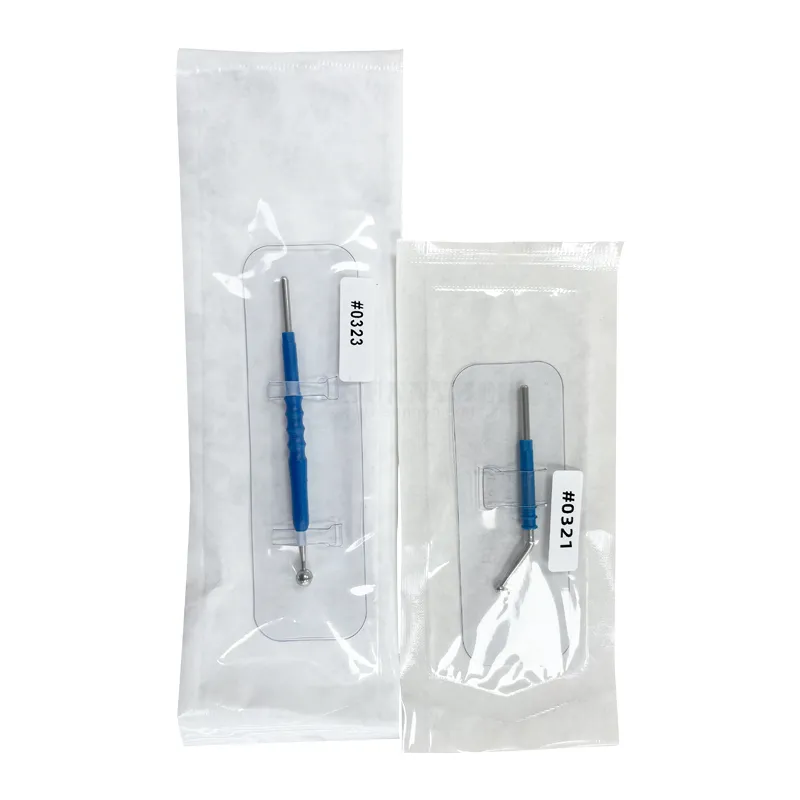

Photo 12
🏢

Professional Environment

Professional Background 1 Professional Background 2 Certificates
Product Environment 1
Product Environment 2
💡

Frequently Asked Questions

What operating modes does this electrosurgical unit support?
The device supports both monopolar and bipolar modes, including specific functions like Pure Cut, Blend, Coagulation, and Fulguration.
Is the power output adjustable for precise surgeries?
Yes, the Fulguration mode offers 0.1-watt increments for low power (0-10W) and 1.0-watt increments for higher settings, ensuring high precision for microsurgery.
What are the safety features included?
It features isolated RF output to prevent alternate site burns and a self-diagnostic system that monitors performance and alerts with warning tones.
Can I save my frequently used surgical settings?
Yes, the unit allows you to store up to ten user-defined presets for quick and easy recall of your preferred settings.
What applications is this portable device suitable for?
Due to its portable size and multiple modes, it is ideal for gynecology, micro-surgery, arthroscopy, and general electrode cautery procedures.
What are the environmental requirements for operation?
The optimal working temperature is between 5°C and 40°C, with a relative humidity of ≤80% and atmospheric pressure of 86.0 to 106.0 Kpa.
