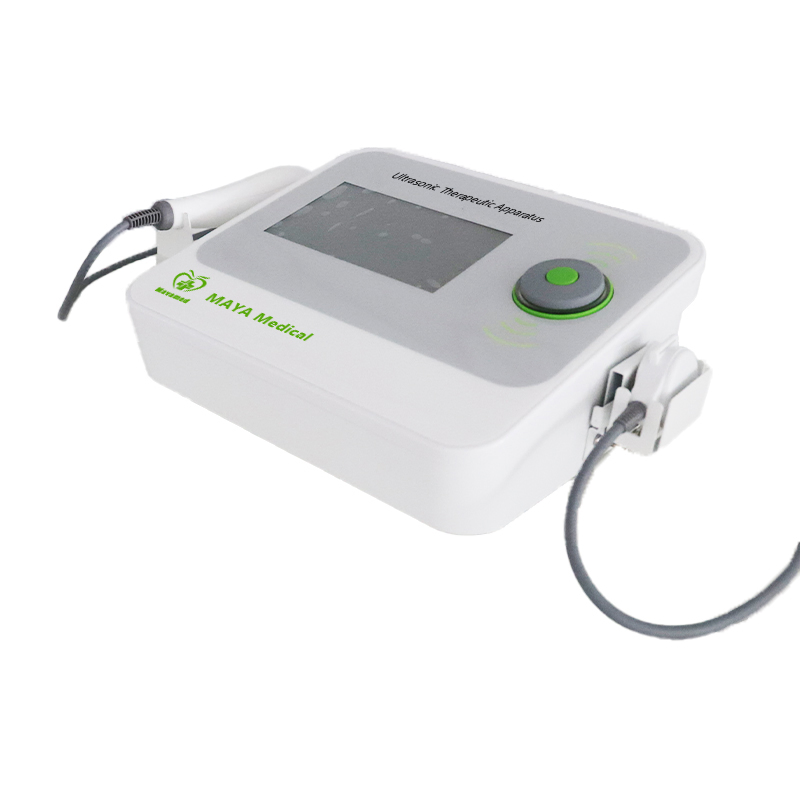

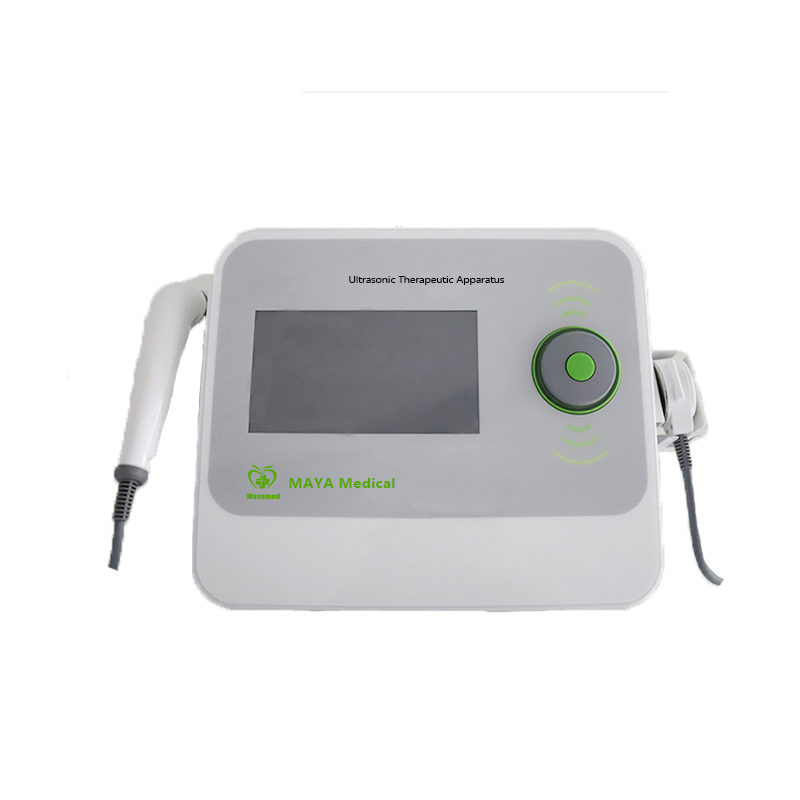

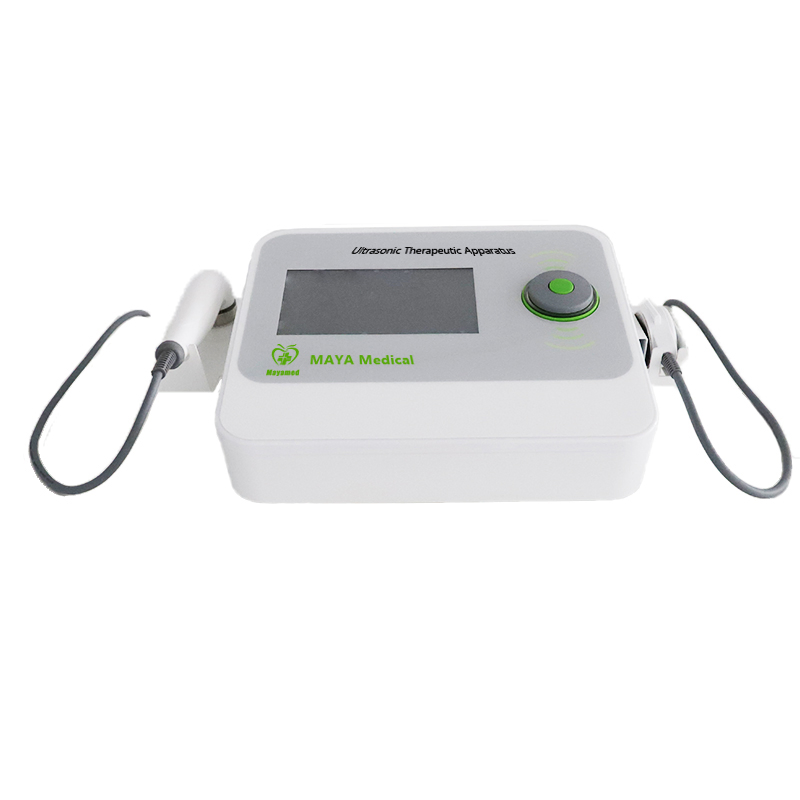

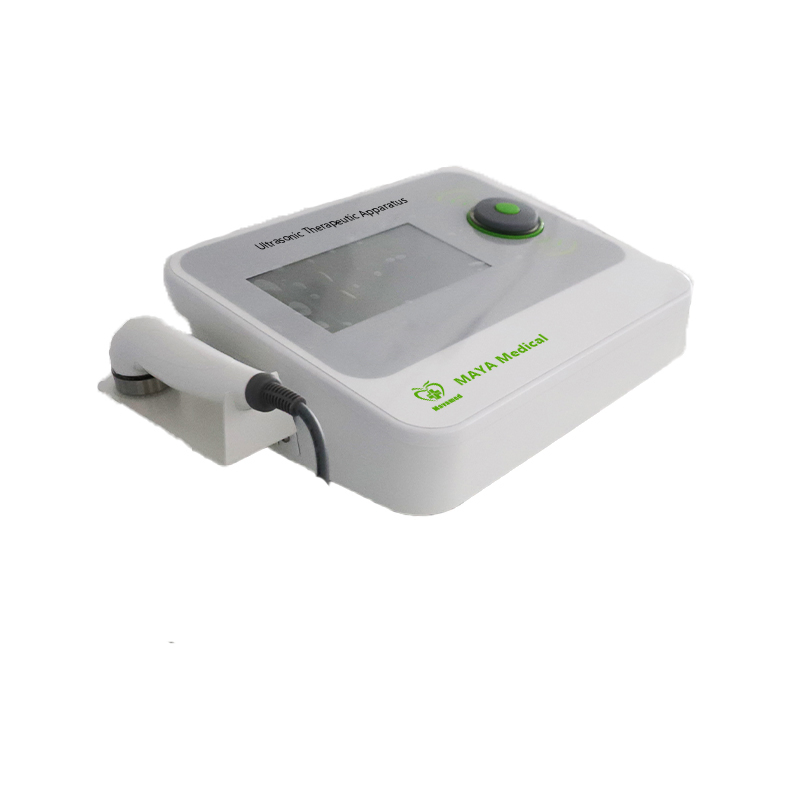

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

1 / 5

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Ultrasonic Therapeutic Apparatus Device My-S130h-2

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

◈ Basic Info.

Model NO.

MY-S130H-2

Specification

380*335*320 mm

⚙ Product Parameters

✓ Portable type with 7-inch color LCD display and one-key shuttle operation.

✓ Supports dual treatment frequencies: 1MHz and 3MHz.

✓ Input Power: 80VA; Rated Output Power: 5W ± 20%.

✓ Effective sound intensity of rated output: ≤ 3.0W/cm².

✓ Beam Type: Collimated; Beam nonuniformity coefficient: ≤ 8.0.

✓ Duty Cycle: 0~100% adjustable, stepping by 10%.

✓ Output Mode: 9-speed pulse mode and 1-speed continuous mode.

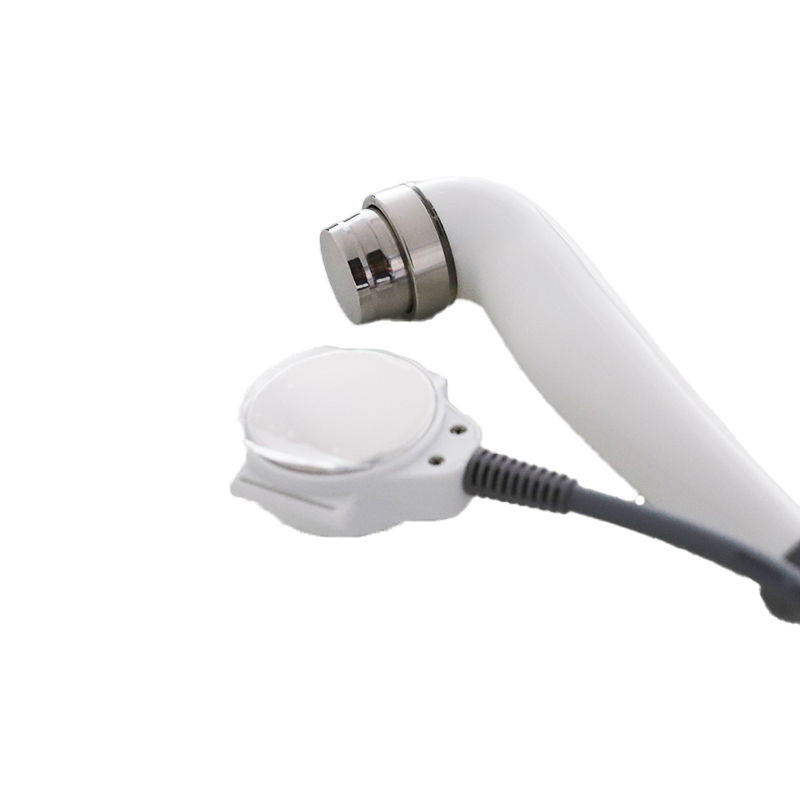

✓ Equipped with 1MHz and 3MHz treatment probes, independently controlled and usable simultaneously.

✓ Effective radiation area of treatment head: 2.0cm² ± 20%.

✓ Net weight: 3.8kg; Dimensions: 308mm * 254.8mm * 114.3mm.

Outer Packing Size (LWH)	Length (MM)	Width (MM)	Height (MM)	Cubic Meter	N.W. (kg)	G.W. (kg)	Method
380335320	380	335	320	0.040736	4.3	4.8	Paper

📷 Detailed Photos

Ultrasonic Therapeutic Device View 1

Ultrasonic Therapeutic Device View 2

Ultrasonic Therapeutic Device Detail 1

Ultrasonic Therapeutic Device Detail 2

Ultrasonic Therapeutic Device Detail 3

Ultrasonic Therapeutic Device Detail 4

Ultrasonic Therapeutic Device Detail 5

Ultrasonic Therapeutic Device Detail 6

Ultrasonic Therapeutic Device Detail 7

Frequently Asked Questions

What frequencies does the MY-S130H-2 support?

The apparatus operates in two treatment frequencies: 1MHz and 3MHz, which are independently controlled.

Can the two treatment probes be used at the same time?

Yes, the device is equipped with 1MHz and 3MHz probes that can be used simultaneously without interfering with each other.

Is the duty cycle adjustable on this device?

Yes, the duty cycle is fully adjustable from 0% to 100% with a stepping interval of 10%.

What are the available output modes?

The device features a 9-speed pulse mode and a 1-speed continuous mode for versatile treatment options.

What are the physical dimensions and weight of the device?

The net weight of the device is 3.8kg, and its dimensions are 308mm * 254.8mm * 114.3mm.

What kind of display and operation system does it use?

It features a 7-inch color LCD display and uses a one-key shuttle operation for easy navigation.
