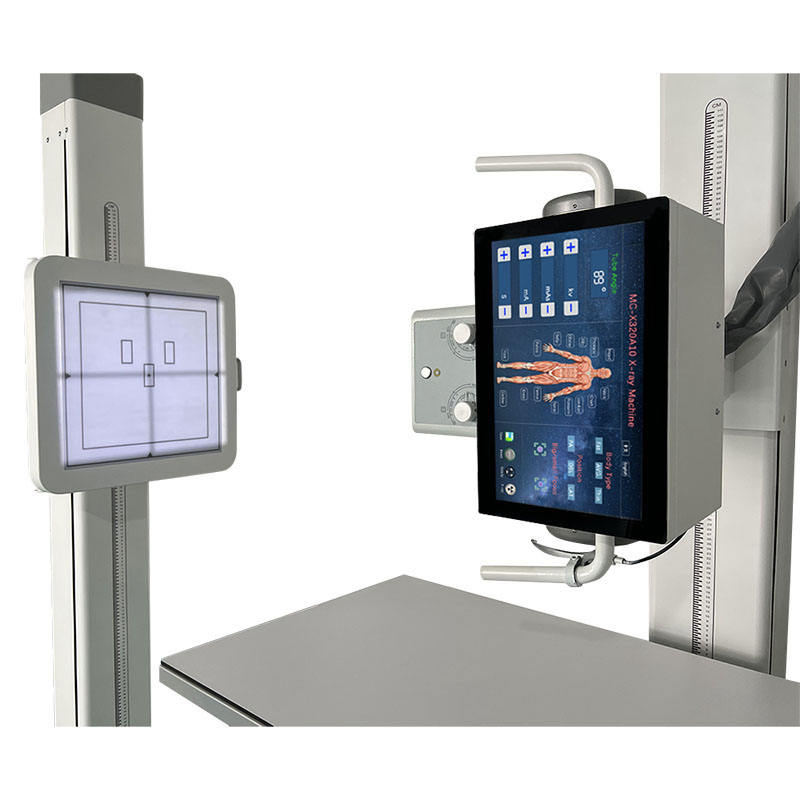

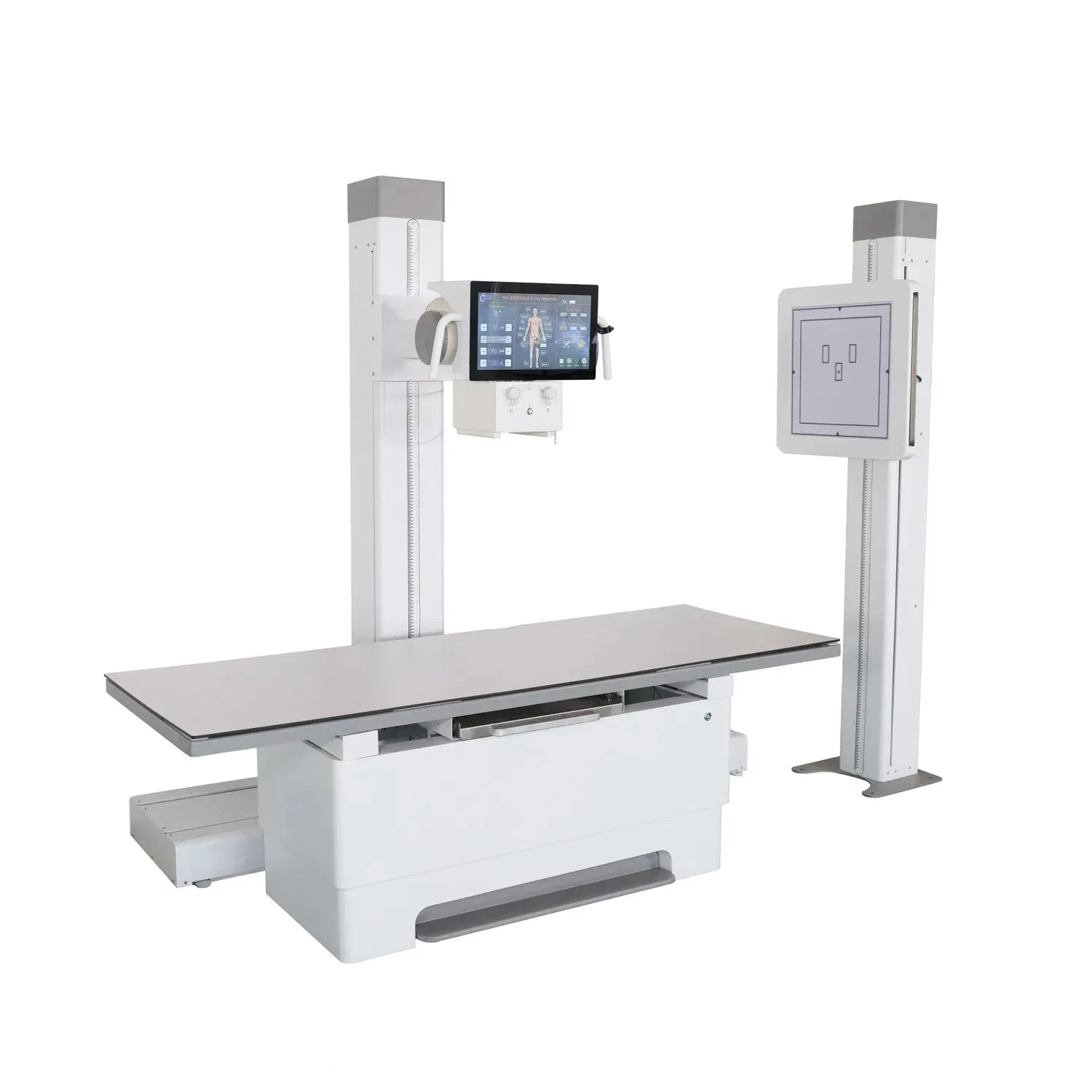

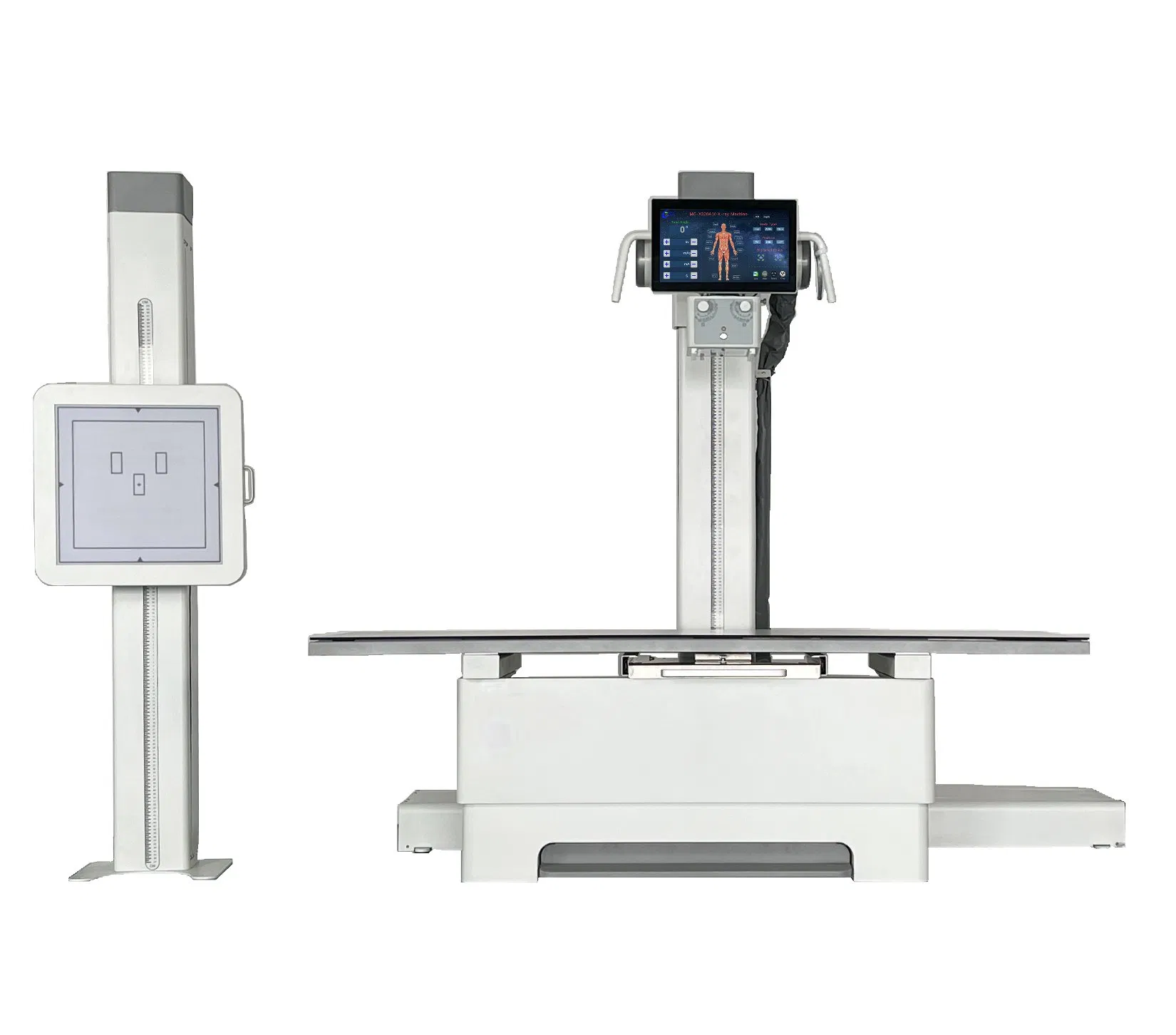

630mA 50kw Medical X-ray Equipment: Digital Imaging for Hospitals

1 / 5

630mA 50kw Medical X-ray Equipment: Digital Imaging for Hospitals

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Info

Certification

CE, ISO13485

Group

Human

Power Supply

380V (340V-420V) or 220V (195V-250V)

Fluoroscopy Tube Voltage

50-95kv (Continuous)

Fluoroscopy Tube Current

0.5-5mA (Continuous)

Radiography Tube Voltage

50-100kv (Continuous)

Small Focus Current

50mA

Big Focus Current

50, 100, 150, 200mA

Exposure Time

0.04-6.3s (23 Grades)

HS Code

9022140090

Production Capacity

2000 Sets/Month

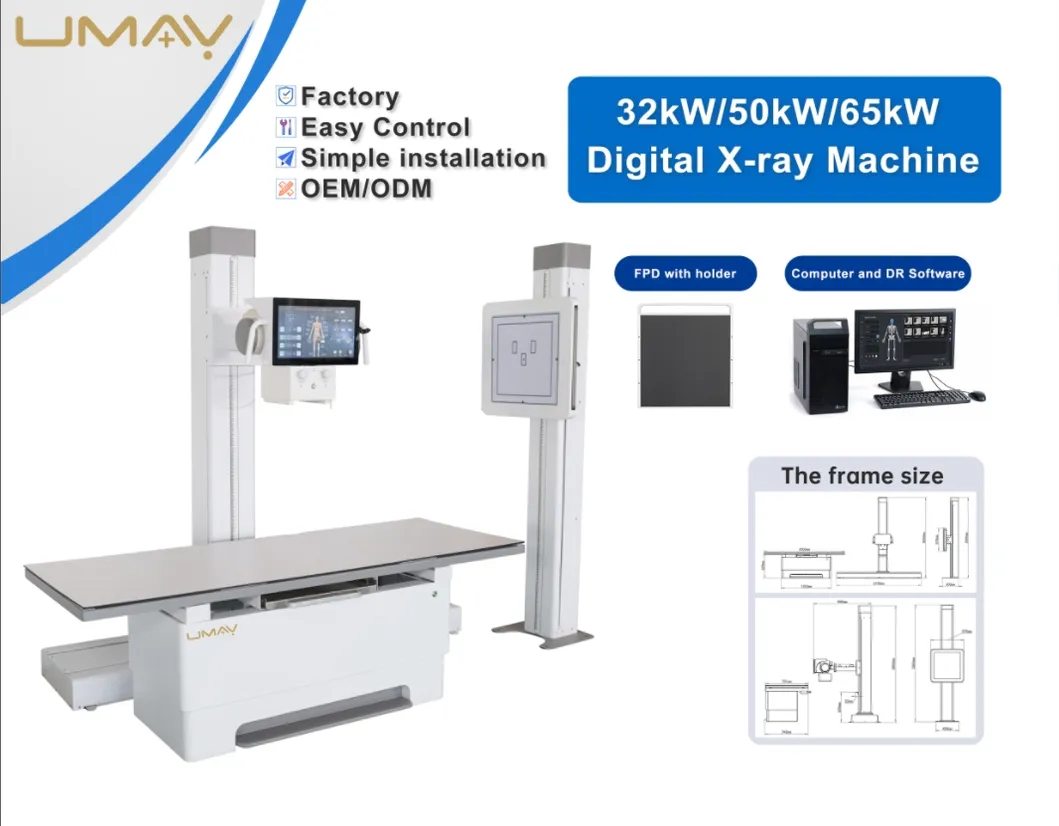

Product Description

UM-DR320A10 Model

Power: 32KW/400mA
KV Range: 40-125kV (1kV step)
Focus Size: 0.6*0.6mm/1.2*1.2mm dual focus
Flat Panel Detector: 17*17 inch (14*17 option), 140μm, 16bits
Workstation: CPU I5, 8G RAM, 1T SSD, Professional Software

UM-DR500A10 Model

Power: 50KW/630mA
KV Range: 40-150kV (1kV step)
Anode Rotating Speed: 8400rpm
Flat Panel Detector: 17*17 inch high resolution
Workstation: High-performance computing unit with 2 Gigabit network cards

UM-DR650B10 Model

Power: 65KW/800mA
Power Supply: 380V specialized
mAs Range: 0.4-1000
Generator Frequency: 30kHz/200kHz (option)

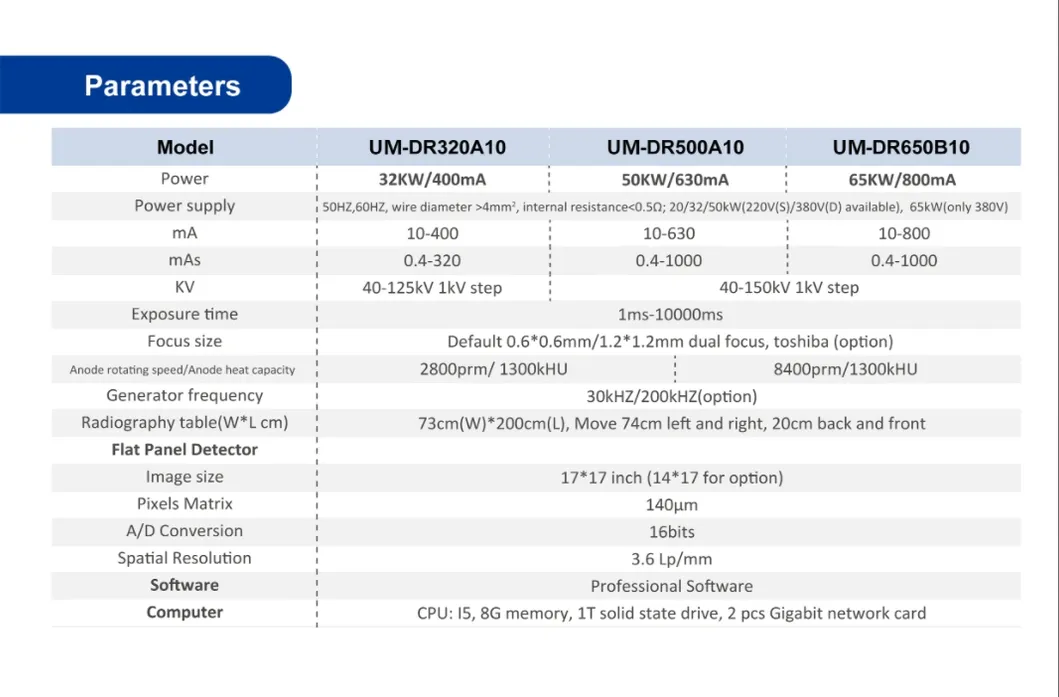

Technical Specifications Table

Parameter	UM-DR320A10	UM-DR500A10	UM-DR650B10
Power	32KW/400mA	50KW/630mA	65KW/800mA
mA Range	10-400	10-630	10-800
mAs Range	0.4-320	0.4-1000	0.4-1000
KV Range	40-125kV	40-150kV	40-150kV
Exposure Time	1ms-10000ms	1ms-10000ms	1ms-10000ms
Flat Panel Detector	17*17 inch	17*17 inch	17*17 inch
Spatial Resolution	3.6 Lp/mm	3.6 Lp/mm	3.6 Lp/mm

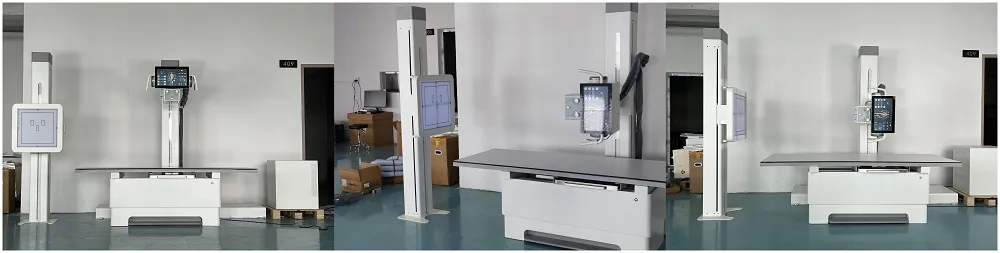

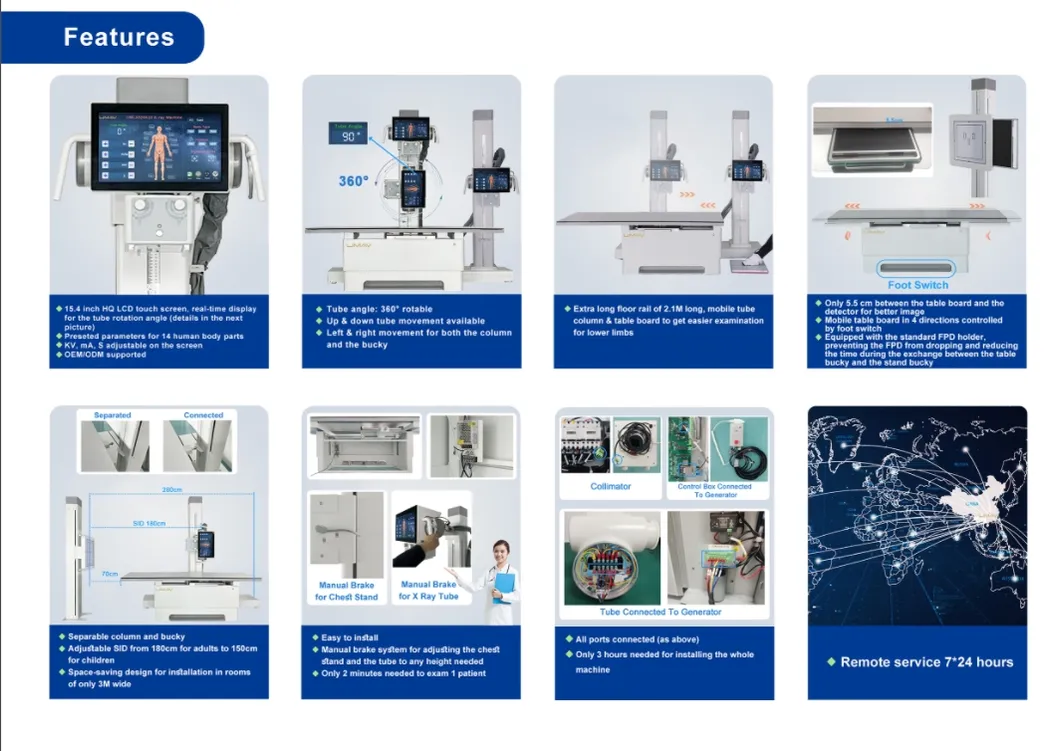

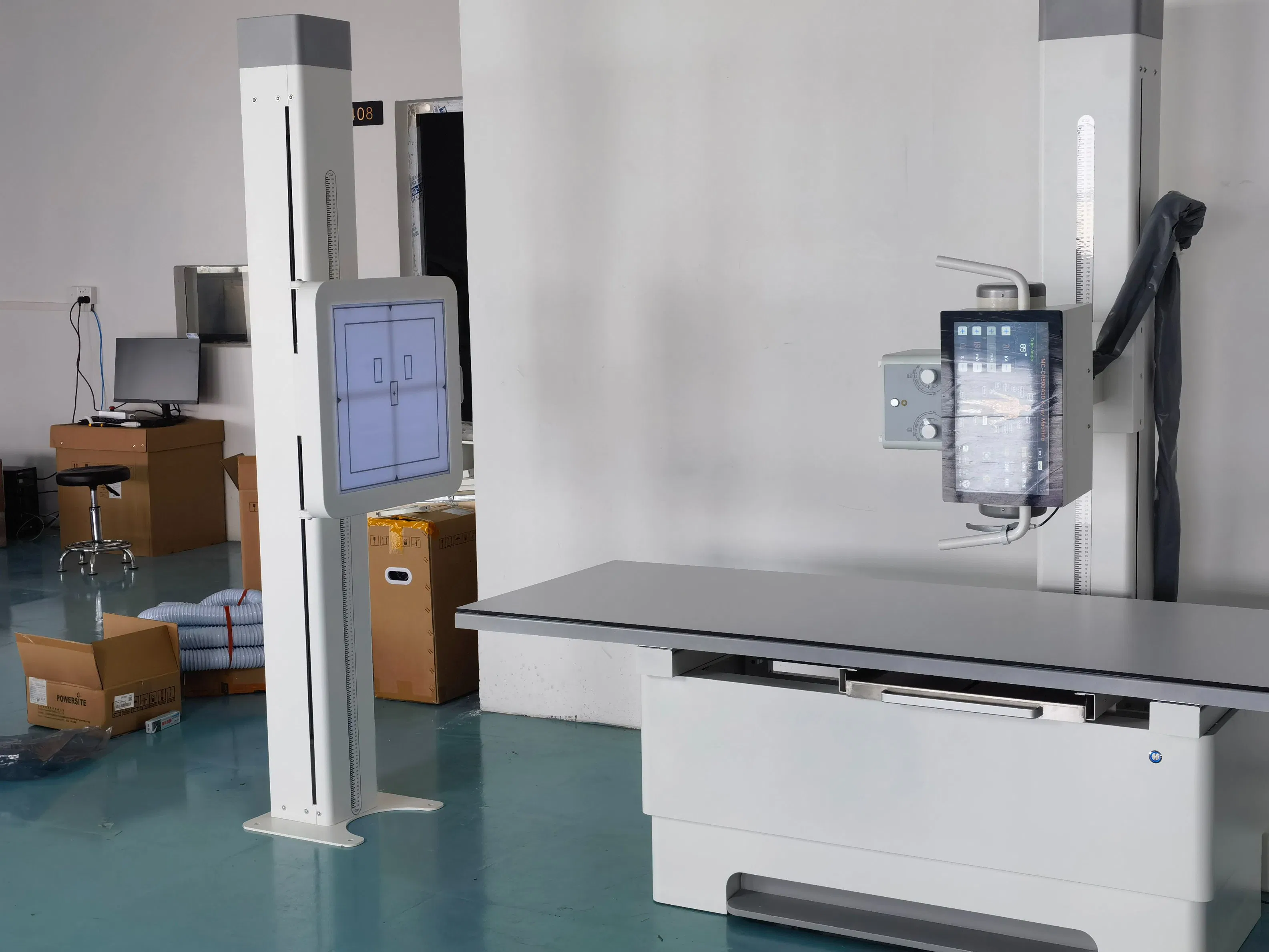

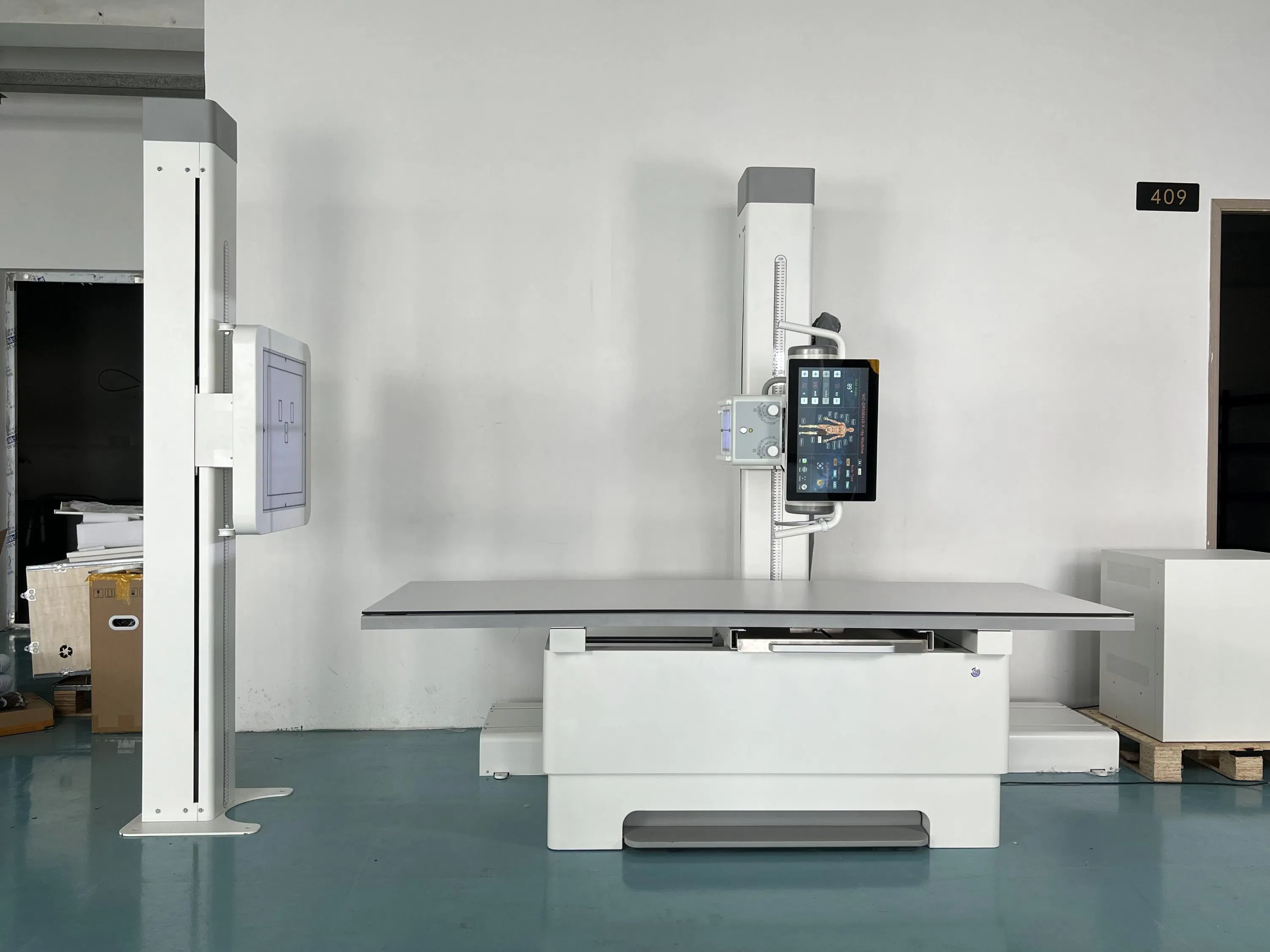

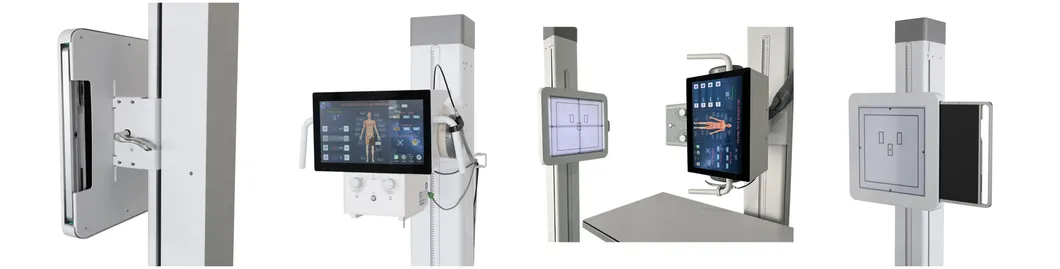

Detailed Photos

Packaging & Shipping

Installation & Company Service

Frequently Asked Questions

How is the quality of the medical X-ray equipment guaranteed?

We conduct rigorous pre-production sample testing and a final inspection before shipment to ensure all technical specifications meet international medical standards.

What are the main power requirements for these DR systems?

Our models support both 380V (340V-420V) and 220V (195V-250V) configurations to accommodate different hospital infrastructure requirements.

Can the Flat Panel Detector size be customized?

The standard size is a high-resolution 17*17 inch detector, but we also offer 14*17 inch options based on specific clinical needs.

What kind of after-sales technical support do you provide?

We provide comprehensive after-sales service, including remote technical support, installation instructions, and software maintenance through our experienced R&D team.

Are OEM or ODM services available?

Yes, we offer professional OEM and ODM services, allowing for customizable logos, hardware specifications, and tailored medical solutions for global clients.

What languages does the workstation software support?

The professional imaging software is primarily provided in English, ensuring a professional and seamless experience for international medical staff.
