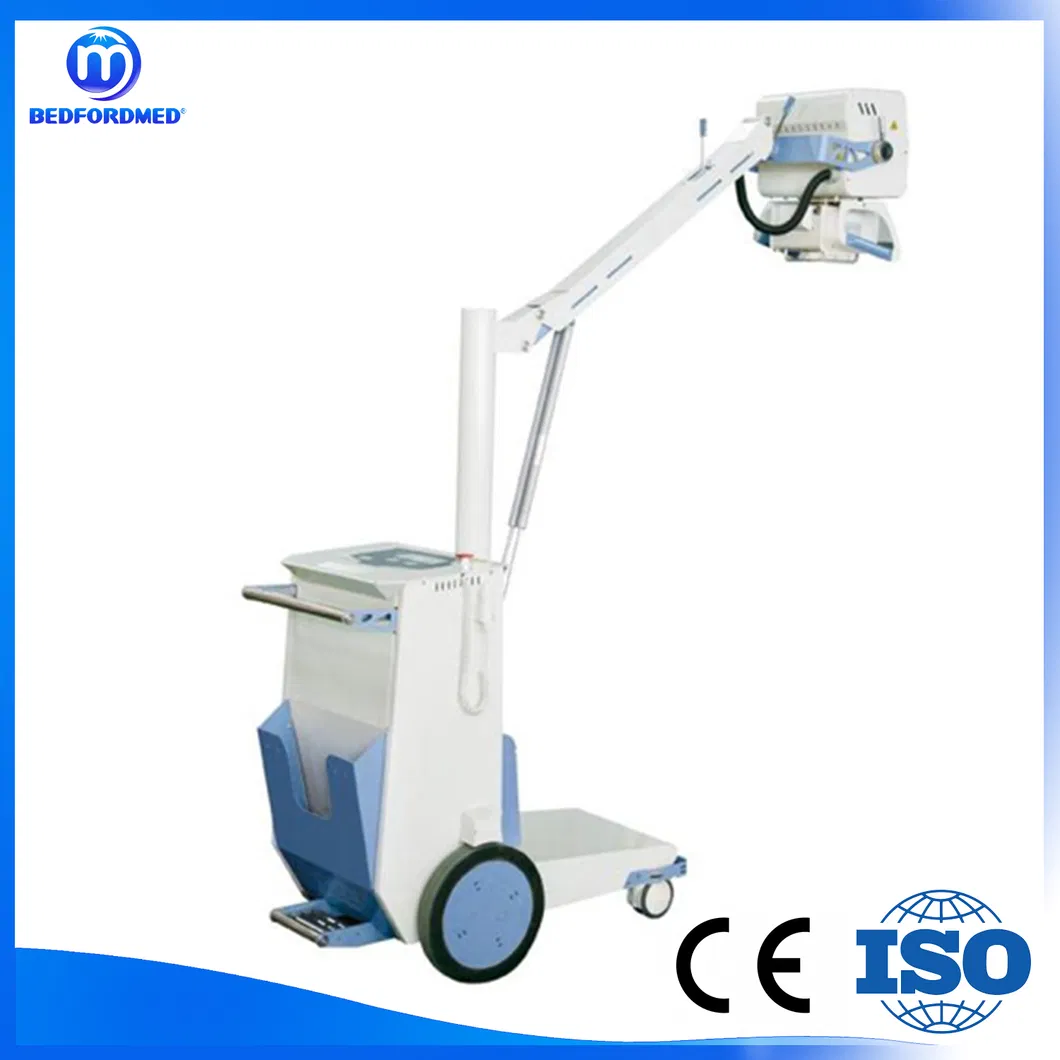

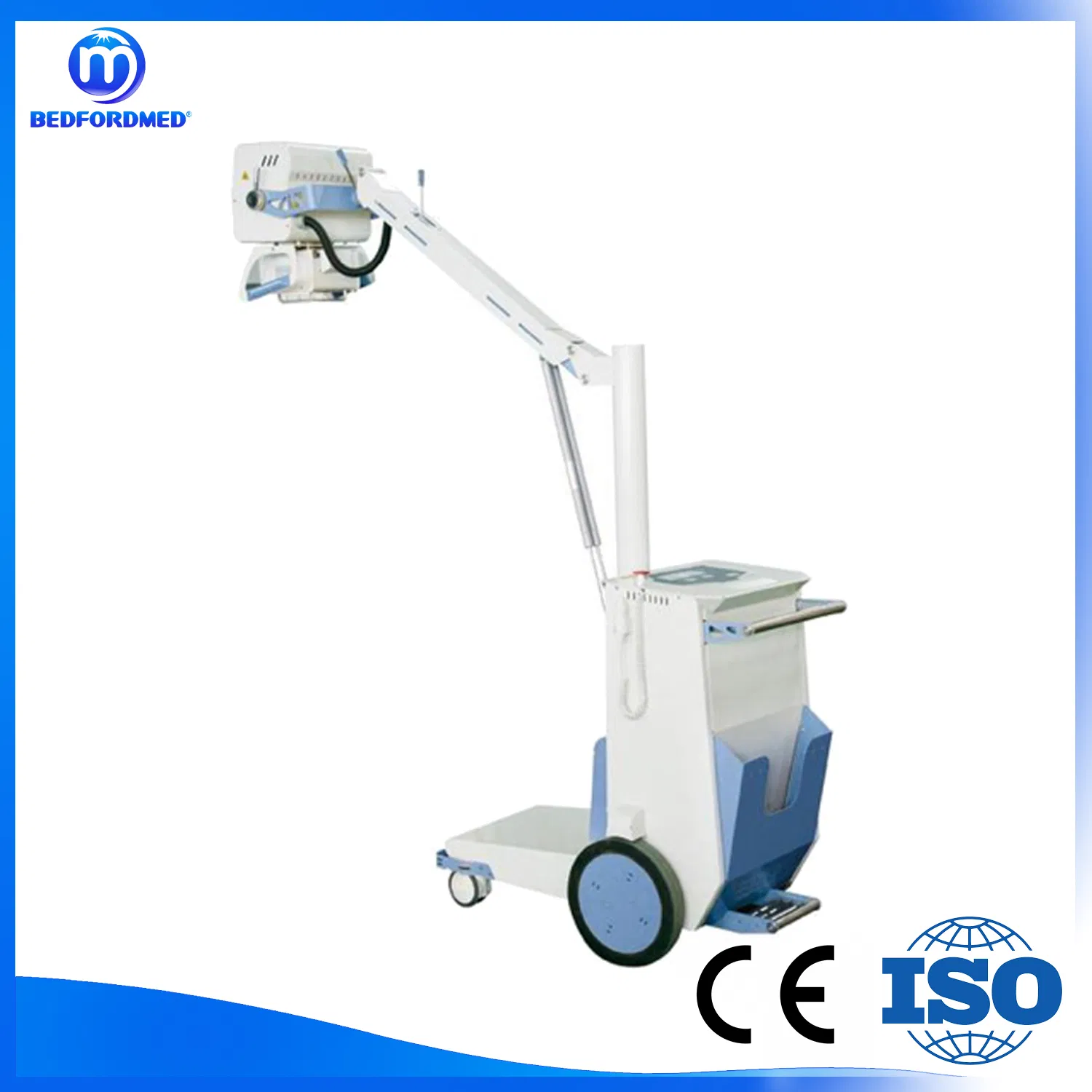

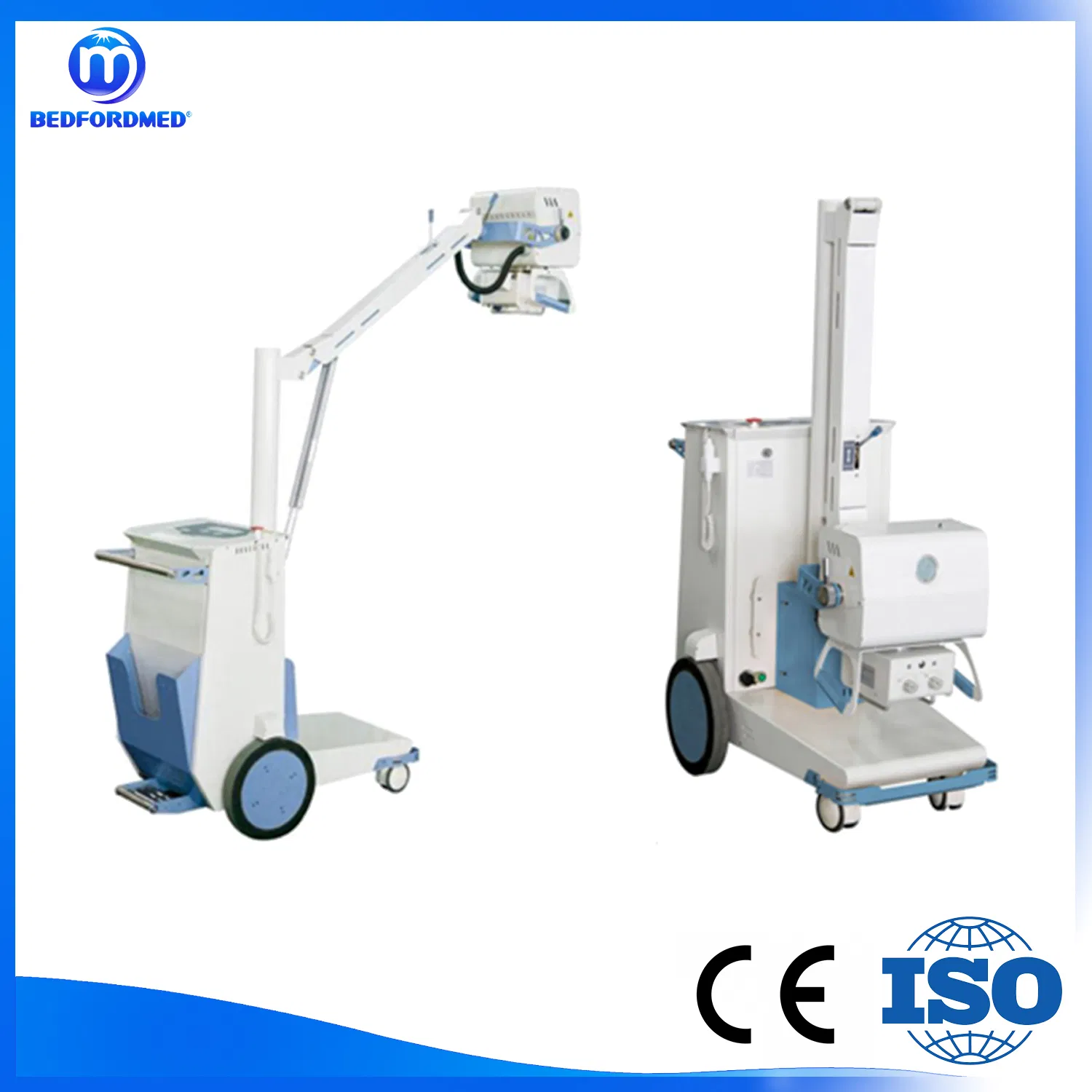

Hospital Medical Imaging Machine Modular X-ray Photography Diagnosis Equipment Me3210

1 / 5

Hospital Medical Imaging Machine Modular X-ray Photography Diagnosis Equipment Me3210

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Specifications

Model

Radiography System ME3210

Certification

CE, ISO13485

Power Output

3.5kw

Inverter Frequency

40 kHz

Tube Voltage

40-110kv

Tube Currency

70mA

Exposure Time

0.04-3.2s (1-250mAs)

Dimension

1220*820*1660mm

Weight

N.W. 180kgs / G.W. 280kgs

Origin

China

Product Description

Medical Imaging Modular X-ray

Hospital Medical Imaging Machine Modular X-ray Photography Diagnosis Equipment ME3210

This is a modular X-ray photography medical diagnosis equipment, optimized for high mobility and precise imaging across various clinical settings.

Clinical Application:

Designed for versatile use in: Wards, Emergency Departments, Operating Rooms, and ICU. This mobile diagnosis equipment is perfect for photography of body locutions such as head, arms, thoracic cavity, and waist abdomen.

Technical Parameters

X-ray Generator

Power: 3.5kw
Tube voltage: 40-110kV (1kV steps)
Frequency: High frequency 40kHz
Exposure time: 0.04-3.2s
Wireless remote controller included

X-ray Tube

Dual focus: 0.6mm / 1.5mm
Anode angle: ≤12°
Heat capacity: ≥200KHu
Beam splitter range: ±90°

Mobile Stand

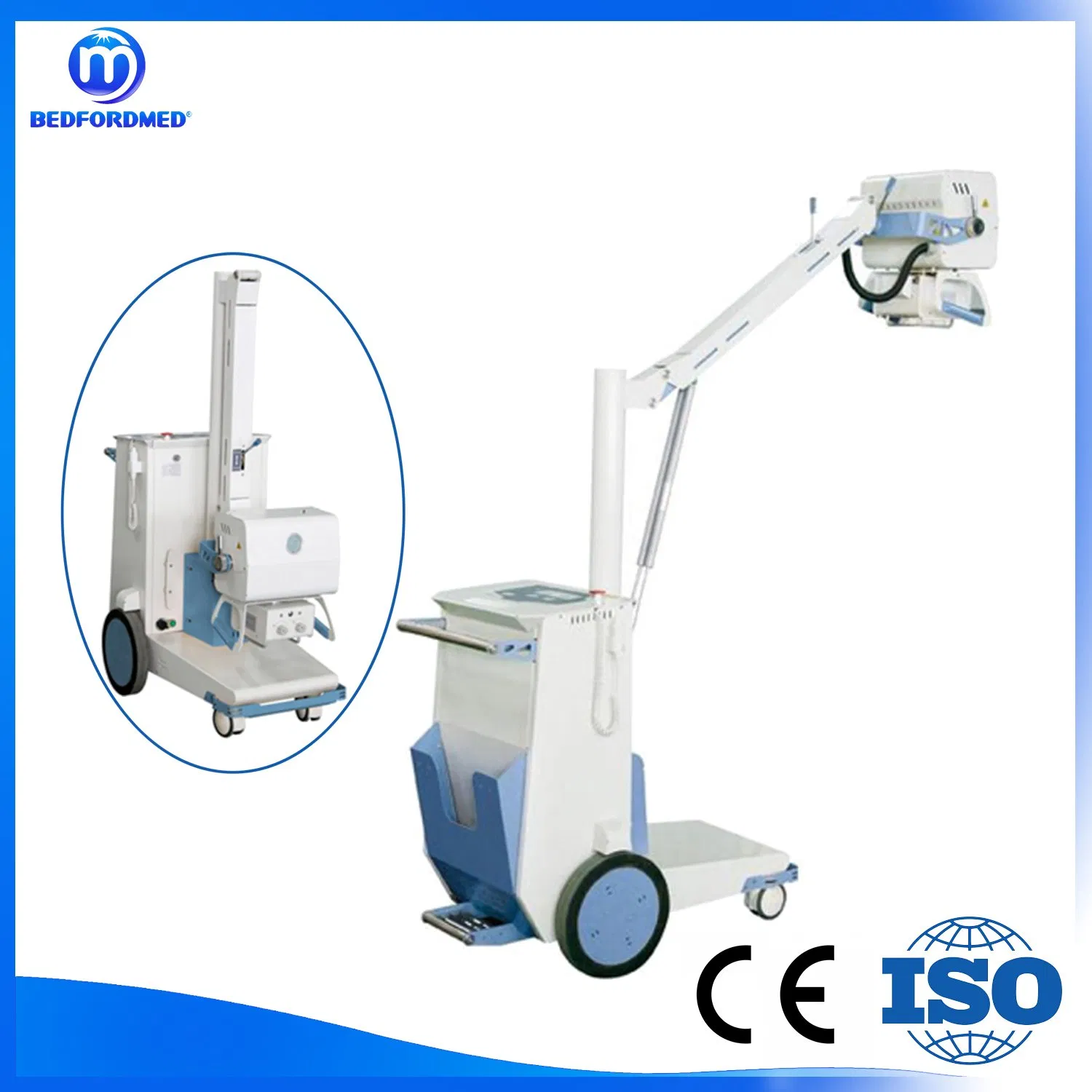

Collapsible unit for easy transport
Vertical motion range: ≥1200mm
Wishbone rotation: ±90°
Equipped with mechanical brakes

Key Features

Compact Design: Lovely appearance, easy to move and operate in tight ward spaces.
Rotatable Pillar: Pillar rotates ±90° for flexible positioning during exams.
Superior Image Quality: Latest high-frequency generator ensures clear images with low skin dose.
Precision Control: Real-time microprocessor control with kV and mAs numeral closed-loop technology.
User-Friendly Interface: Blue screen LCD display with a simple two-button parameter adjustment system.
Enhanced Safety: Integrated protection for over-voltage and over-current, plus knockdown generator design to reduce irradiation.

Product Visuals

Frequently Asked Questions

Q1: What are the primary applications for the ME3210? A: The ME3210 is a modular mobile X-ray system ideal for wards, emergency rooms, operating rooms, and ICU settings for imaging the head, limbs, chest, and abdomen.

Q2: What is the maximum power output and tube voltage? A: The system features a 3.5kW power output with a tube voltage range of 40-110kV, adjustable in 1kV increments.

Q3: Is the equipment easy to maneuver in tight hospital spaces? A: Yes, it features a collapsible mobile stand, mechanical brakes, and a pillar that rotates ±90°, making it highly flexible for ward use.

Q4: How does the system ensure patient safety during exposure? A: It utilizes high-frequency inverter technology to minimize skin dose and features real-time microprocessor control for accurate, repeatable dosing.

Q5: What certifications does the ME3210 hold? A: The system is fully certified with CE and ISO13485 standards for medical equipment.

Q6: Does it include a remote exposure control? A: Yes, the standard configuration includes a wireless exposure remote controller for operator convenience and safety.
