China Imaging Diagnostic Xray Medical Equipment

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Information

Model NO.

MCI0039

Certification

CE, ISO13485

Product Name

Digital Portable X-ray Machine

Aggregate Capacity

5kw

32-100 Ma

40-110 Kv

Imaging Area

14*17 Inch

Pixel Size

140um

A/D Conversion

16bits

Production Capacity

1000 Pieces/Month

Product Description

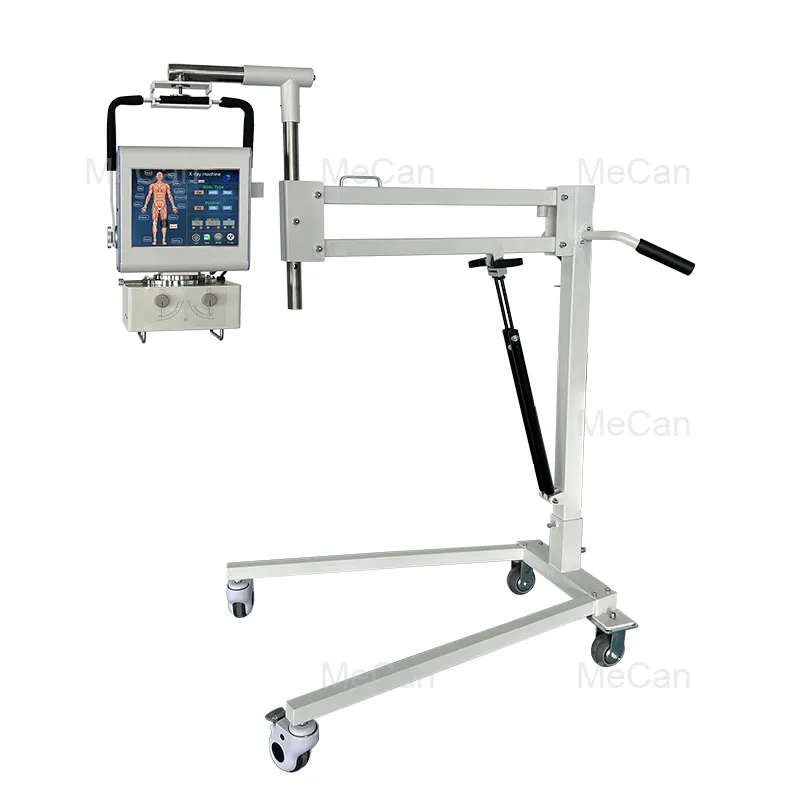

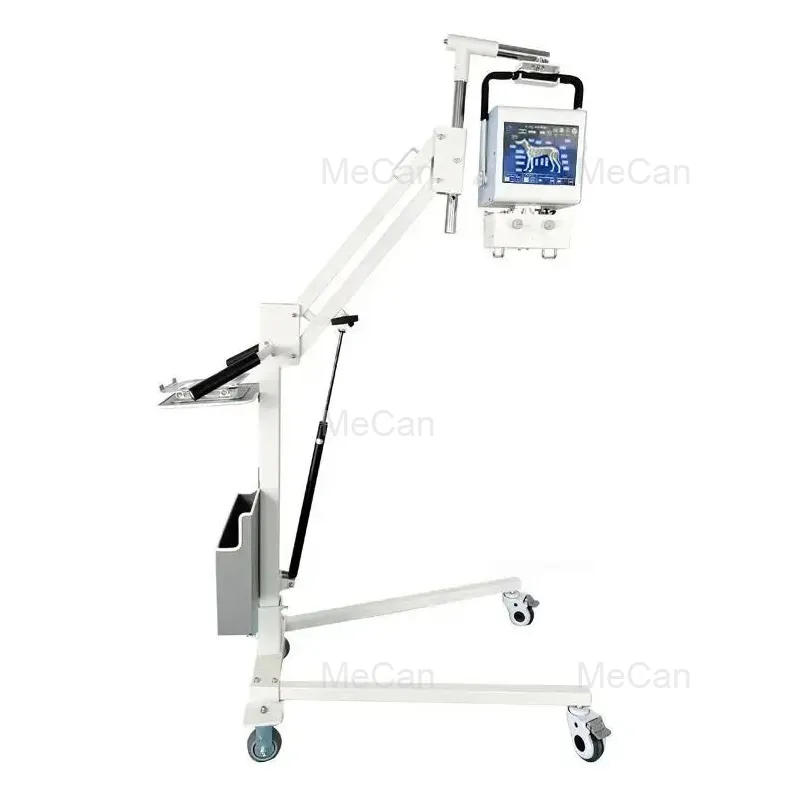

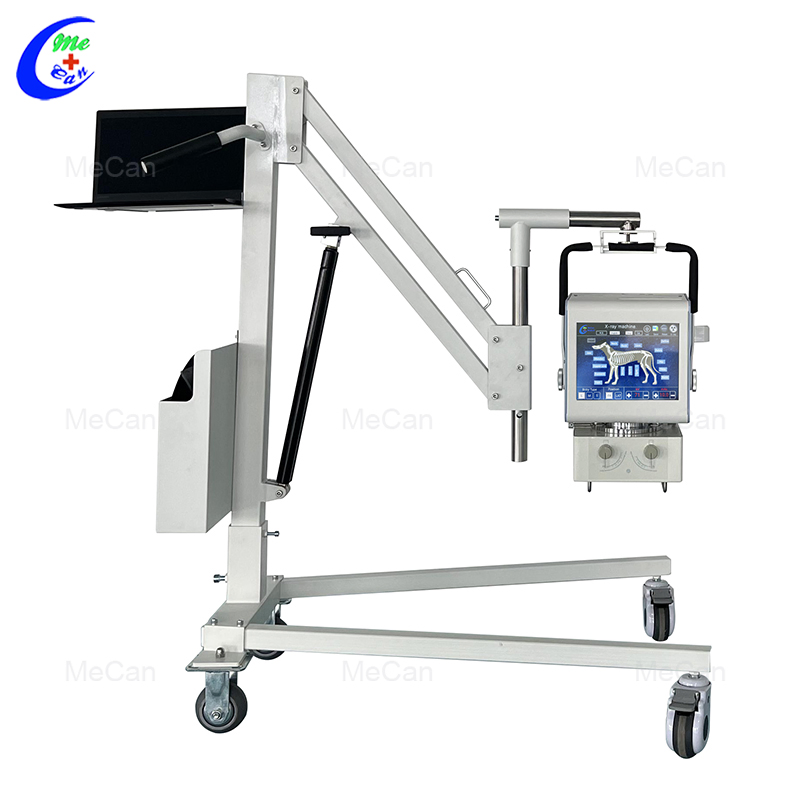

5KW High Frequency Mobile Portable X-ray Machine (Model: MCI0039)

Key Features:

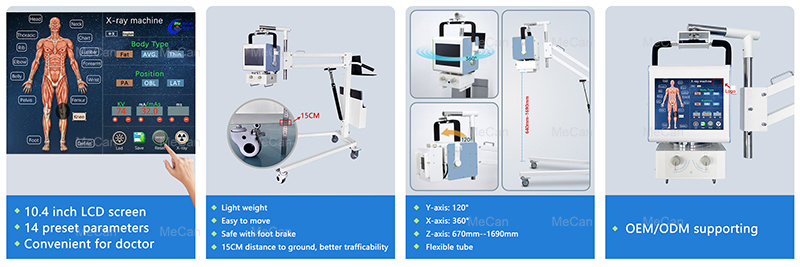

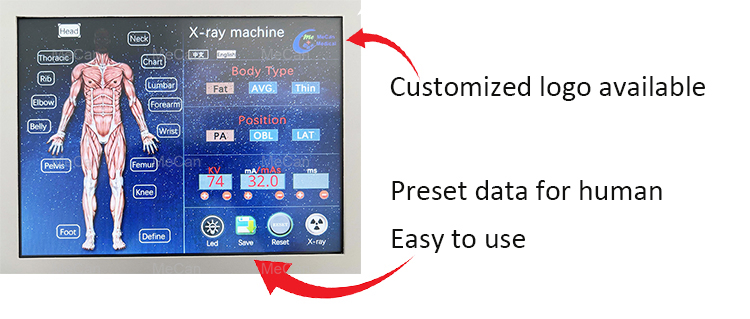

The main structure consists of an X-ray machine mainframe including an electrical control system, operation panel, X-ray source component, high voltage generator, and collimator. It features an LCD touch key panel with sound prompts and a handle that can swing at 90 degrees for flexible operation.

Product Parameters

Aggregate Capacity	5KW
Service Voltage	220V
Power Requirement	Single phase 3 wire system 220 V/50HZ (line diameter >4 mm2; internal resistance <0.5Ω)
mA / mAs	32-100 mA / 0.32--315mAs
KV Range	40-110 KV (step 1 KV)
Exposure Time	0.01~6.3s
Focal Spot Size	0.60.6 mm / 1.81.8mm dual focus
Generator Frequency	30Khz
Detector Size	1417 inch / 1717 inch
Pixel Size / Resolution	140um / 3.6lp/mm
Computer Config	R3-4300U processor, 8G memory, 256G SSD

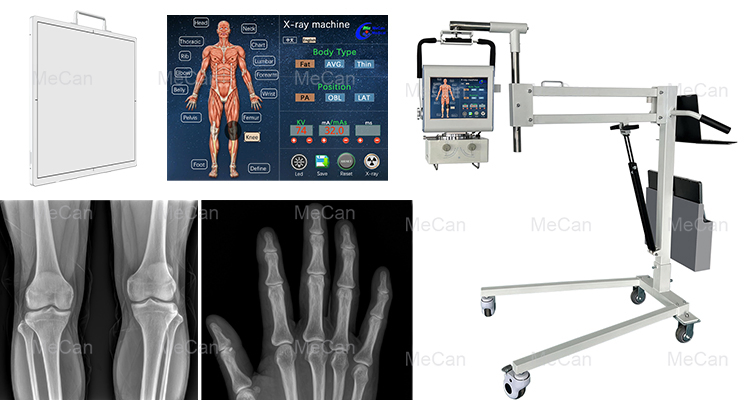

Detailed Photos & Application

Frequently Asked Questions

1. What is your warranty for the products?

We provide one year of warranty for free for all our standard equipment.

2. What is your after-sales service?

We provide technical support through operating manuals and videos. Our engineers respond promptly via email or phone. If hardware problems occur within the warranty period, spare parts are sent for free.

3. What is the typical delivery time?

Express (DHL/UPS/TNT) takes 7-10 days; Air freight takes 3-10 days; Sea freight takes 10-45 days depending on the destination port.

4. What are your payment terms?

Our payment terms include Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, PayPal, and Trade Assurance.

5. Can this machine be used for outdoor emergency diagnosis?

Yes, the 5KW portable design and compact mainframe make it ideal for mobile clinics, outdoor emergency response, and field medical work.

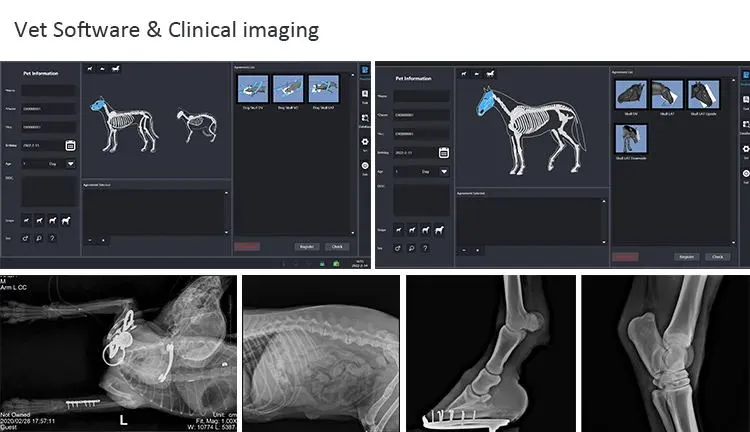

6. Is the imaging software included with the system?

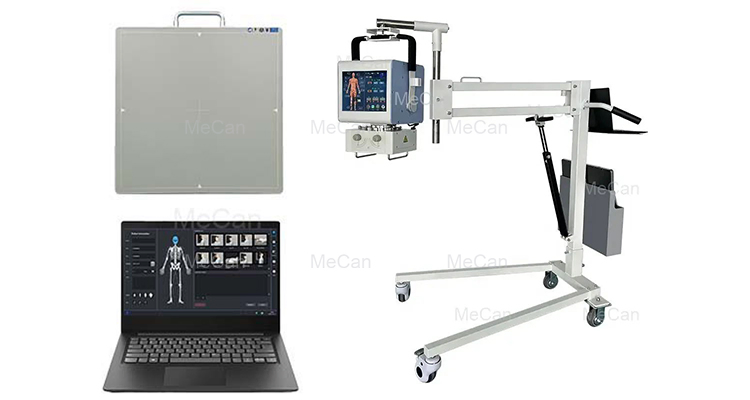

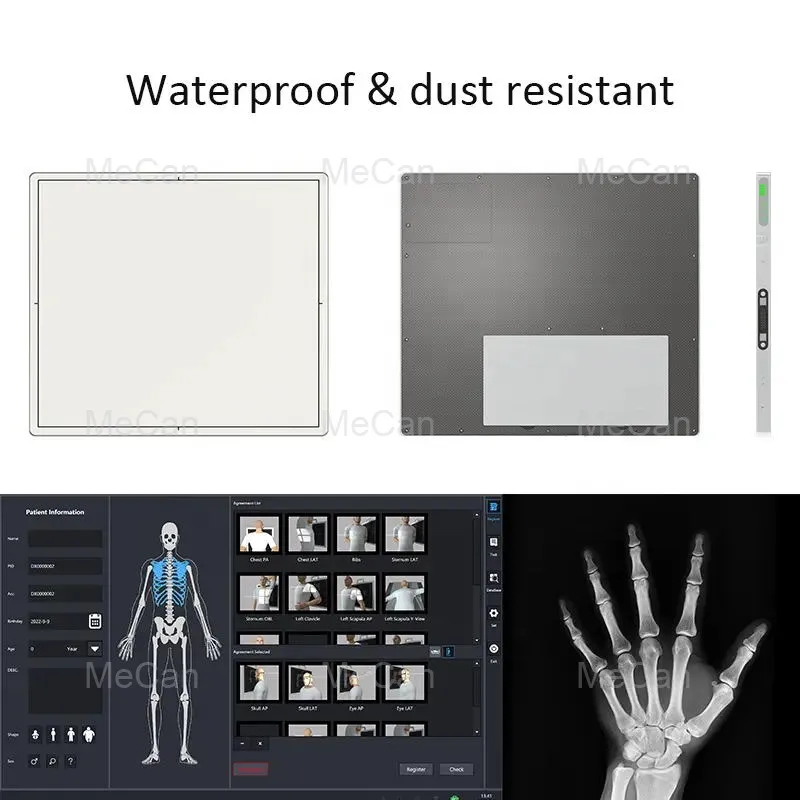

Yes, the package includes specialized medical imaging software compatible with the 14*17 inch digital flat panel detector for immediate diagnostic viewing.
