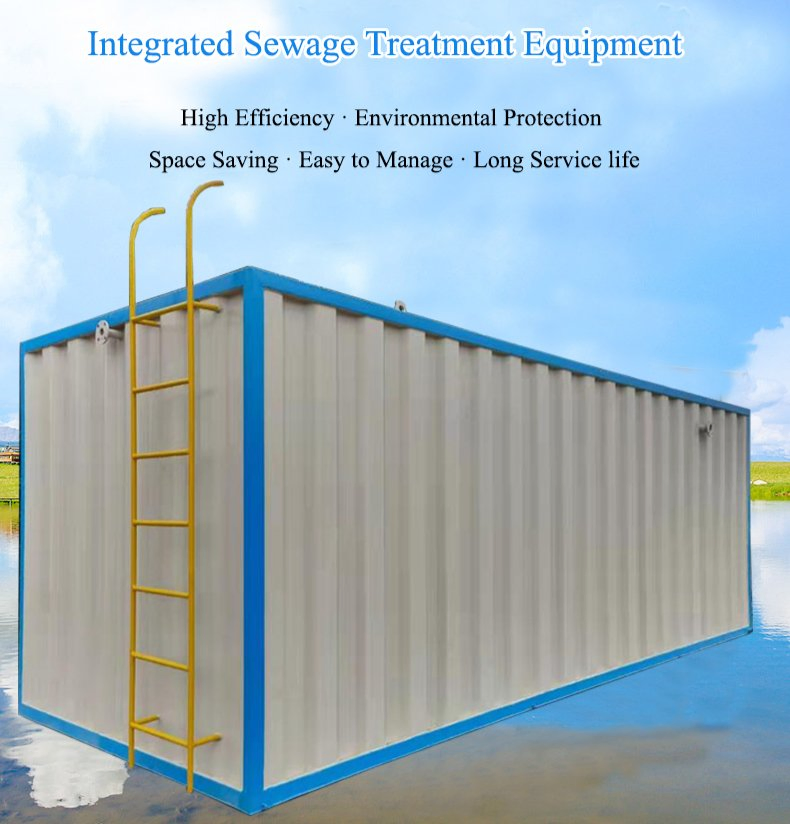

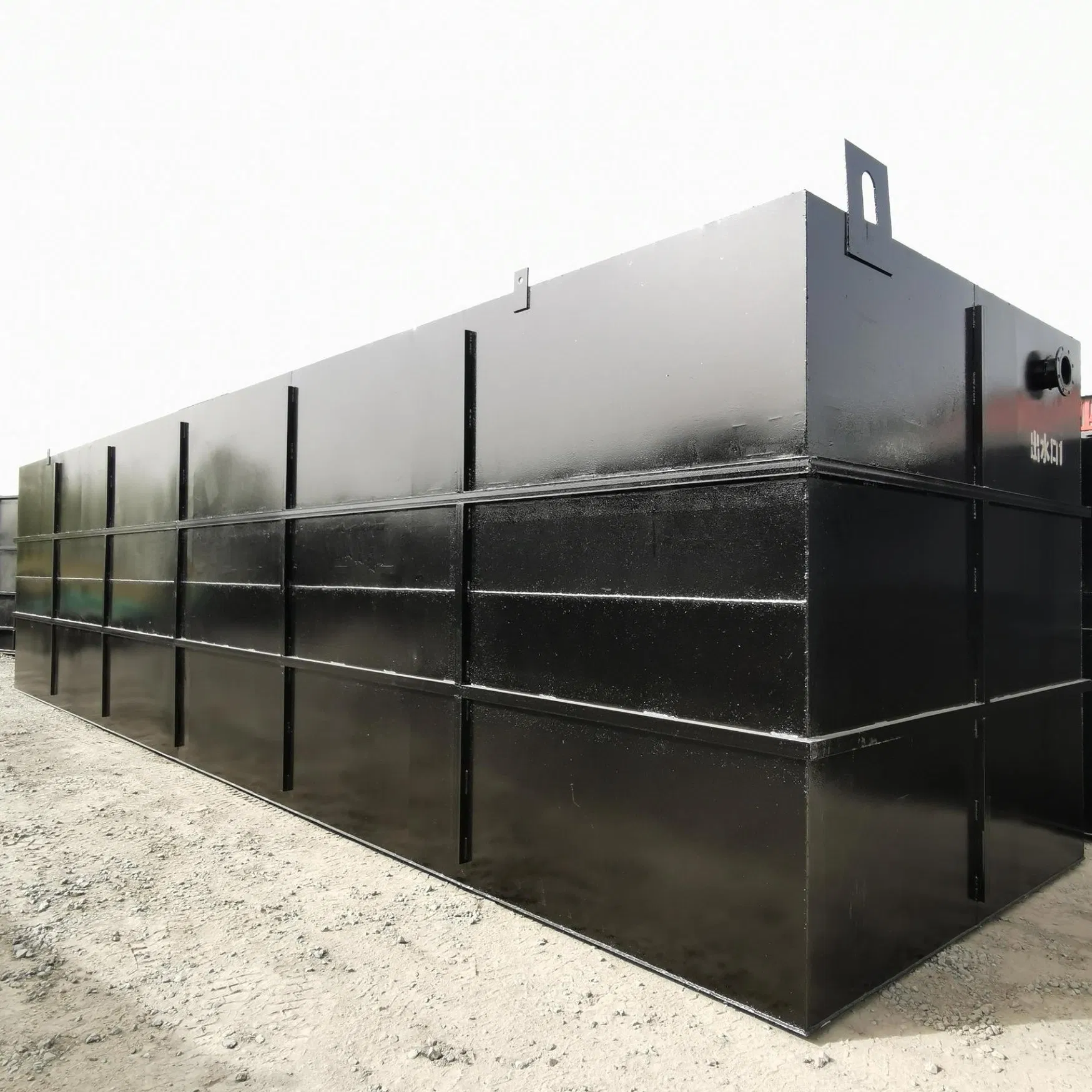

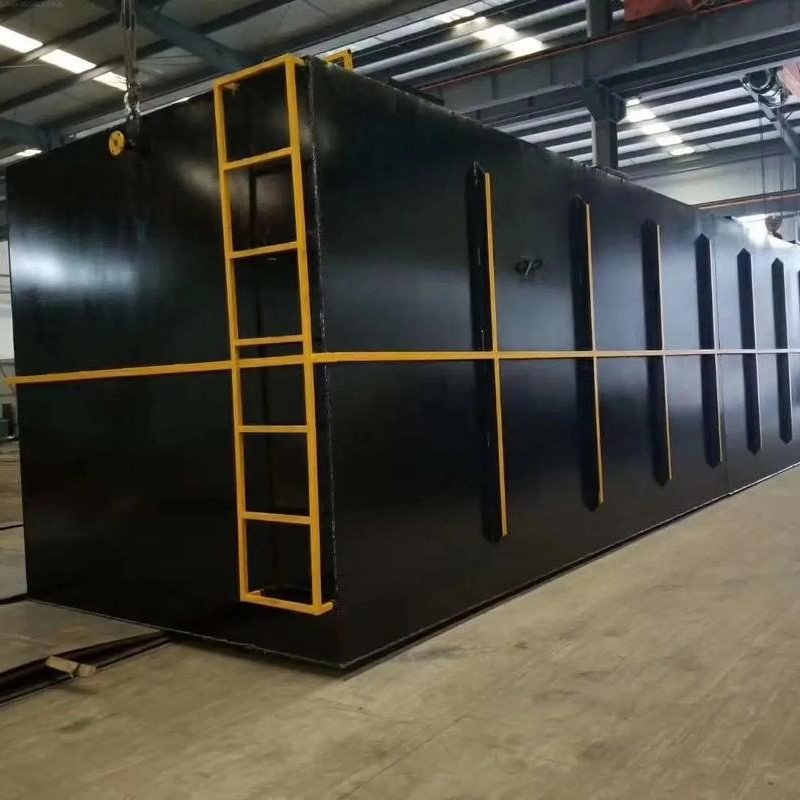

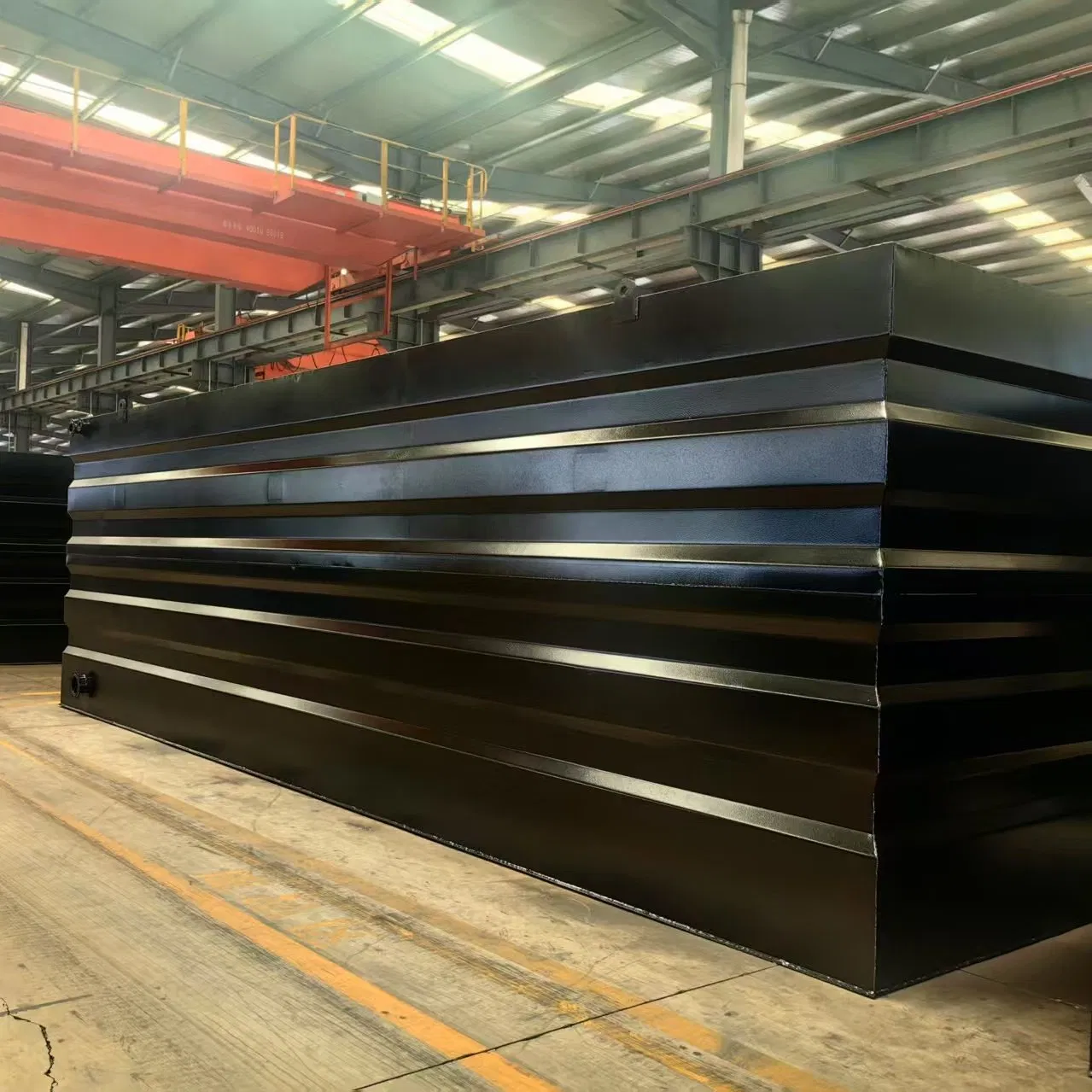

The integrated sewage treatment unit combines multiple treatment functions—such as primary sedimentation, biological reaction, MBBR processing, secondary clarification, MBR membrane filtration, and final disinfection—into a single compact system. This all-in-one structure simplifies traditional wastewater plant design, reduces civil construction requirements, and streamlines installation and operation.
Treatment Water Quality: life/hospital/breeding/slaughter/industry/highway/car wash/plastic particle cleaning/cosmetics/food factory/aquatic products/breeding chemical industry
Treatment Process: AO, AAO, AO+MBR, MBBR and other processes

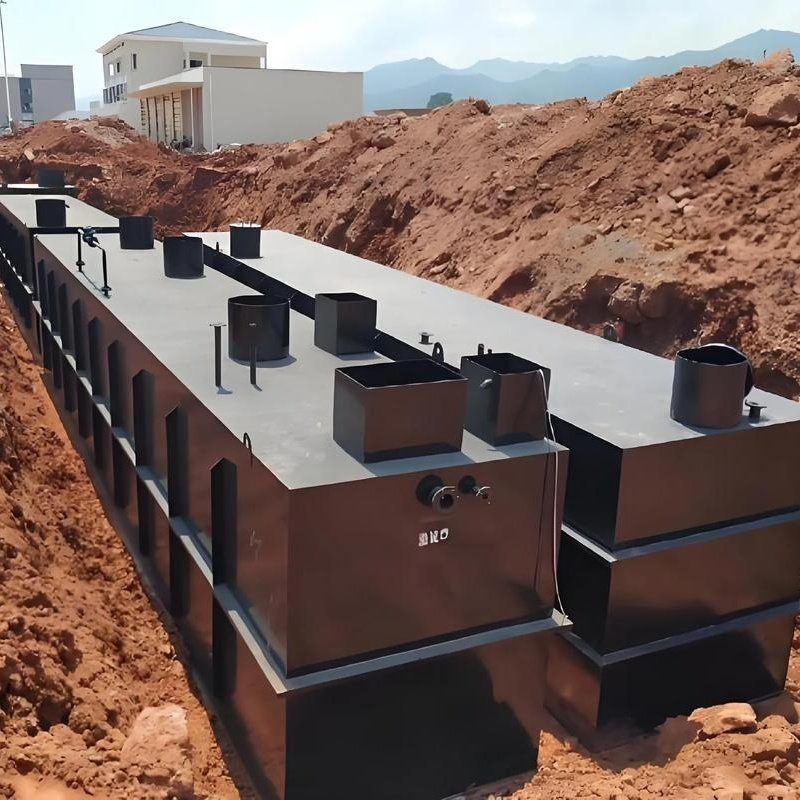

Disposal Method: Can be placed ground/underground
Treatment Volume: 10-5000m3/h, designed according to project conditions

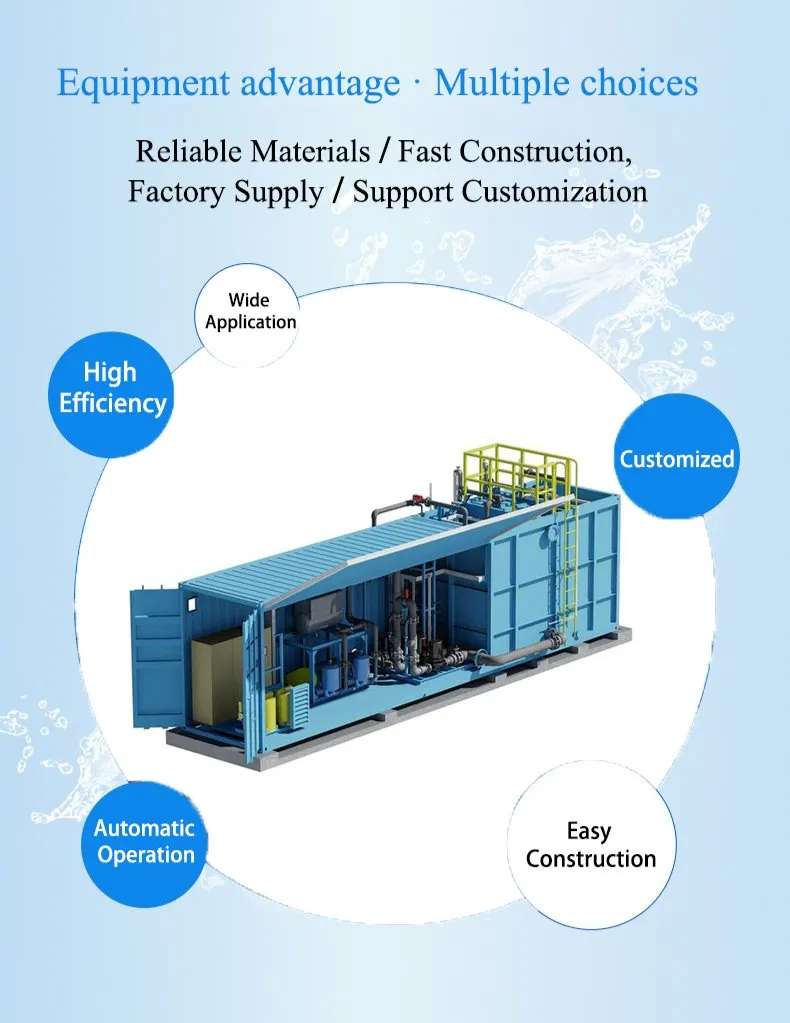

The integrated sewage treatment equipment occupies a small area, is easy to install, has high treatment efficiency, stable operation and low maintenance cost. The PLC automatic control doesn't require special maintenance, and the installation and debugging are simple, plug and play.

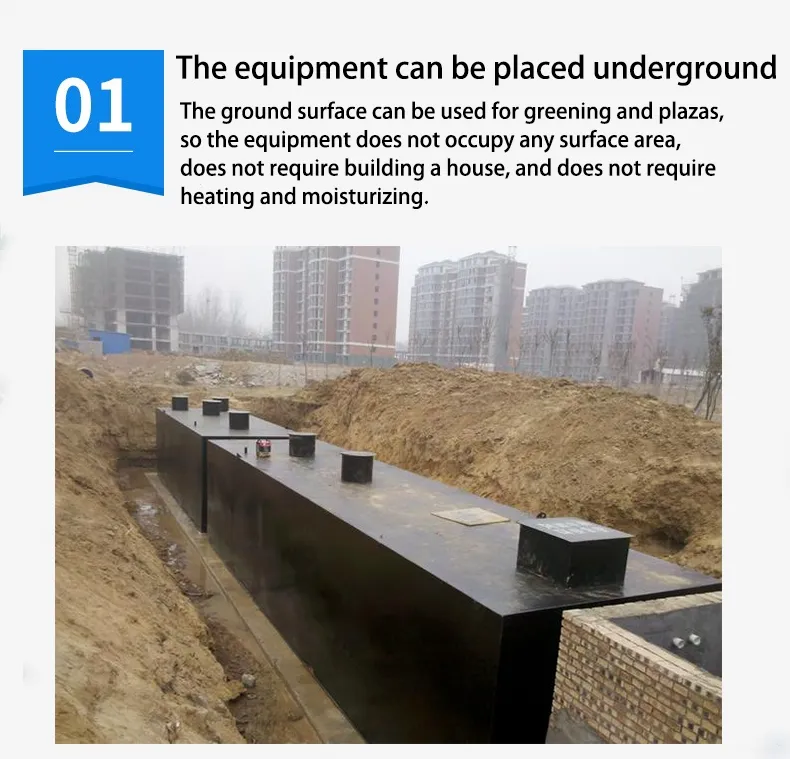

The ground surface can be used for greening and plazas, so the equipment does not occupy surface area, does not require building a house, and does not require heating.

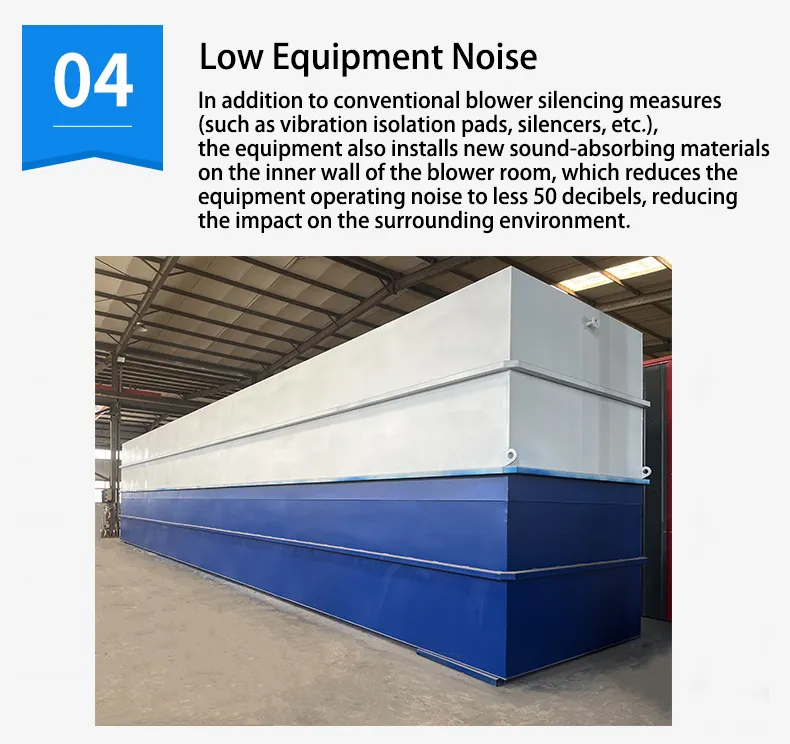

Equipped with noise reduction measures to keep operating noise below 50 decibels, minimizing environmental impact.
| Item | NS-1 | NS-2 | NS-3 | NS-4 | NS-5 | NS-6 | NS-7 | NS-8 | |
| Capacity(m3/h) | 1 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | |
| Primary settling tank | 1.8 | 5.5 | 9 | 14 | 18 | 27 | 36 | 50 | |
| Contact oxidation tank(m3) | 5 | 14.5 | 24 | 36 | 44 | 63 | 83 | 130 | |
| Surface load (m3/m2h) | 1.2 | 1.3 | 1.3 | 1.3 | 1.2 | 1.2 | 1.5 | 1.5 | |
| Disinfection tank (m3) | 0.6 | 1.8 | 2.8 | 4 | 5.5 | 8 | 10 | 15 | |
| Air Blower | Power (kw) | 0.4 | 0.75 | 1.5 | 2.2 | 2.2 | 3.7 | 5.5 | - |
| Total Weight(t) | 5.5 | 6.5 | 8 | 11 | 17 | 20 | 21 | 29 | |
| Occupy area(m2) | 6 | 14 | 20 | 30 | 50 | 65 | 75 | 115 | |

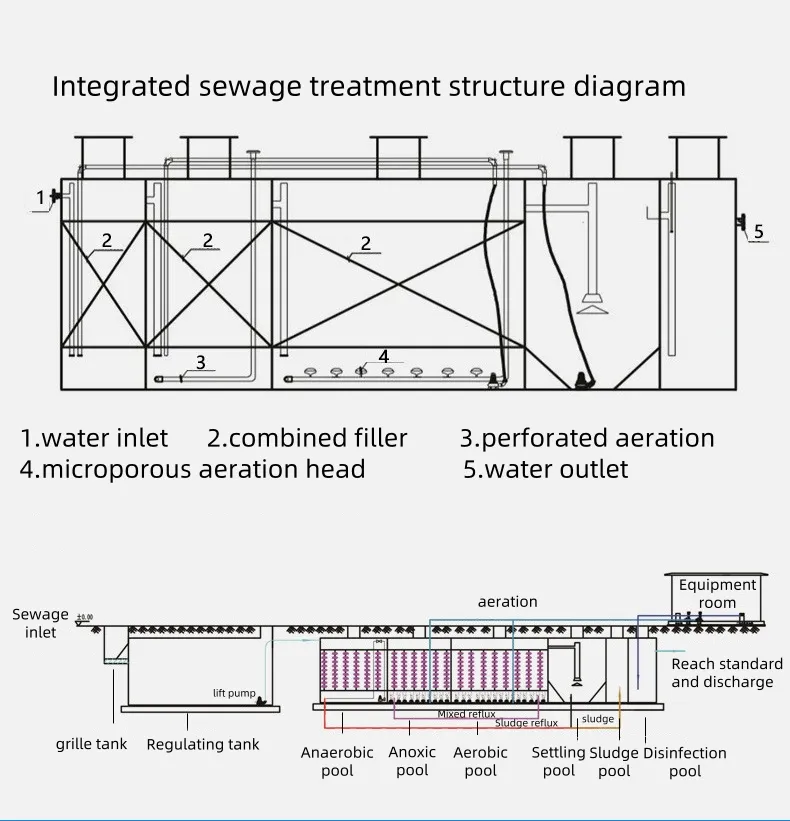

The wastewater treatment system is designed according to typical biological processes: Screen filtration → Regulating tank → Anaerobic tank → Anoxic tank → Aerobic tank → Sedimentation → Disinfection.
Our equipment is suitable for various sectors including hotels, hospitals, chemical industrial parks, residential communities, ports, and transportation hubs. It effectively removes pollutants for livestock breeding, food processing, and municipal wastewater.
With a large-scale production plant and advanced processing machines, our expertise covers wastewater treatment, water purification, and efficient incineration systems. Our team includes experienced engineers and technicians dedicated to providing sustainable environmental solutions worldwide.
