Hospital Instrument Medical Equipment Emergency Anesthesia Devices Ventilator System Nlf-200c

1 / 5

Hospital Instrument Medical Equipment Emergency Anesthesia Devices Ventilator System Nlf-200c

Customization:	Available
Type:	Ventilator
Group:	Adult

Send Inquiry

Product Description

Basic Specification

Model NO.

Ventilator System Nlf-200c

LCD Display

With LCD Display

Gas Source

O2, Air

Pressure

280kpa-600kpa

Voltage

100-240V

Frequency

50Hz±1Hz

Packing Size

670*700*1410mm

G.W. / N.W.

90kg / 57.2kg

Capacity

1000 PCS

Origin

China

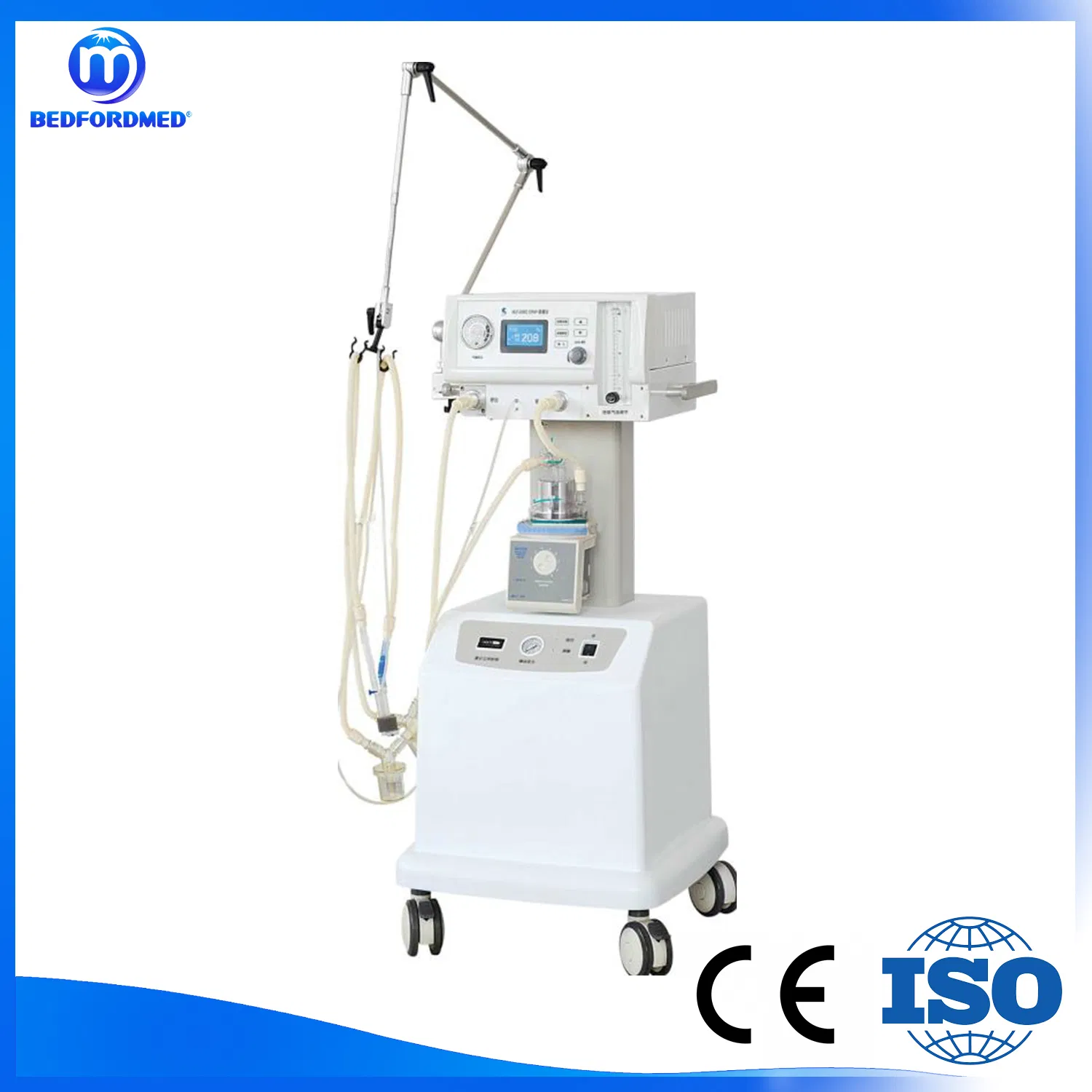

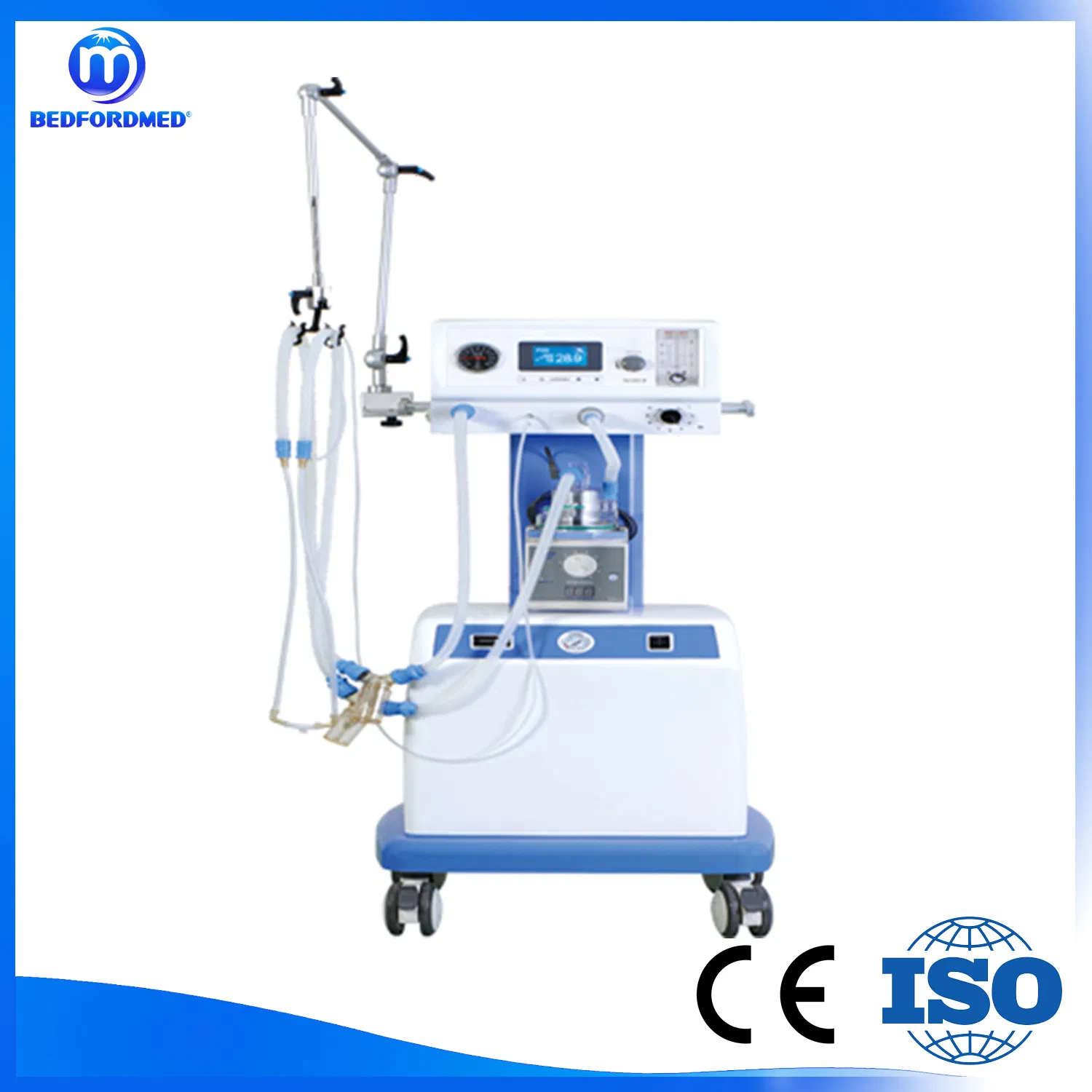

Medical Equipment Ventilator NLF-200C CPAP System

Application Scope

CPAP system is designed for newborn babies with stronger spontaneous breath and slight respiratory failure. It is extensively applied in pediatric clinics for NCPAP oxygen uptake therapy.

Key Performance and Features

Maintains spontaneous breath and reduces breathing work for children.
Provides constant flow and limited pressure in CPAP mode for neonates.
Delivers Air/O2 mixture with adjustable concentrations to improve safety in oxygen therapy.
Built-in oxygen/air blender ensures stable concentration adjustment.
High-quality oxygen sensor for real-time monitoring and limit alarms.
Advanced pressure monitoring system for precise CPAP adjustment.

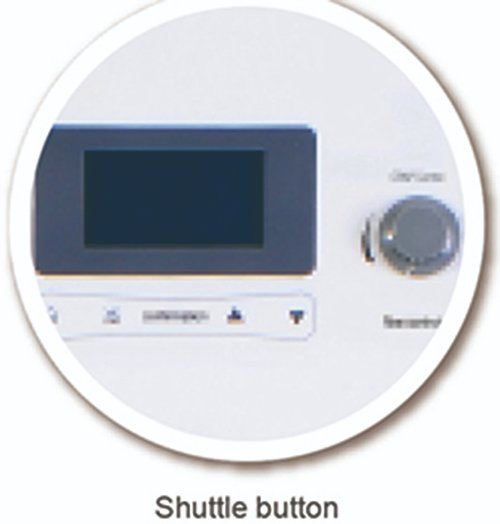

Equipped with a 3'' clear display.

Technical Parameters

Ventilation Mode

CPAP

O2 Concentration

21% - 100%

CPAP Adjustment

0cmH2O - 15cmH2O

Continuous Flow

2L/min - 20L/min

Monitoring Range

0 - 60 cmH2O (Pressure)

Alarm & Protection Systems

AC Power Cut-off Low Air Input Pressure Unbalanced Pressure High/Low O2 Concentration Pressure Limit Protection

Frequently Asked Questions

Q1: What is the primary use of the NLF-200C CPAP system?

A: It is primarily used for newborn babies with spontaneous breath and respiratory failure to provide NCPAP oxygen therapy in pediatric clinics.

Q2: How does the system ensure stable oxygen concentration?

A: The system is equipped with a built-in oxygen/air blender and a high-quality oxygen sensor for real-time monitoring and stable adjustments.

Q3: What are the requirements for the air source?

A: The system requires Medical O2 and AIR with an input pressure ranging from 280 kPa to 600 kPa.

Q4: Does the NLF-200C include safety alarms?

A: Yes, it features multiple alarms including AC power cut-off, low input pressure, unbalanced pressure, and high/low oxygen concentration alerts.

Q5: What is the adjustable range for oxygen concentration and flow?

A: The inhaled oxygen concentration can be adjusted from 21% to 100%, and the continuous flow can be set between 2L/min and 20L/min.

Q6: What is the power specification for this device?

A: It supports a wide voltage range of 100-240V, 50/60Hz, making it compatible with various regional power standards.
