| Model NO. | TR-MWT-30 | Condition | New |
|---|---|---|---|
| Certification | ISO, CE | Automation | Automatic |
| Screw | Twin-Screw | Treatment | Microwave and Steam |
| Total Power | 22.5 Kw | Hopper Volume | 100 L |
| Shredder Power | 15 Kw | Shredder Speed | >1000 Rpm |
| Microwave Generators | 1.5 Kw X 2 | Throughput (Kg/H) | 20 |
| Volume Reduction | Vol: 80%, Wt: 20% | HS Code | 8419200000 |
| Power Supply | 3-Phase 380V | Dimensions (mm) | 2000*1500*1800 |

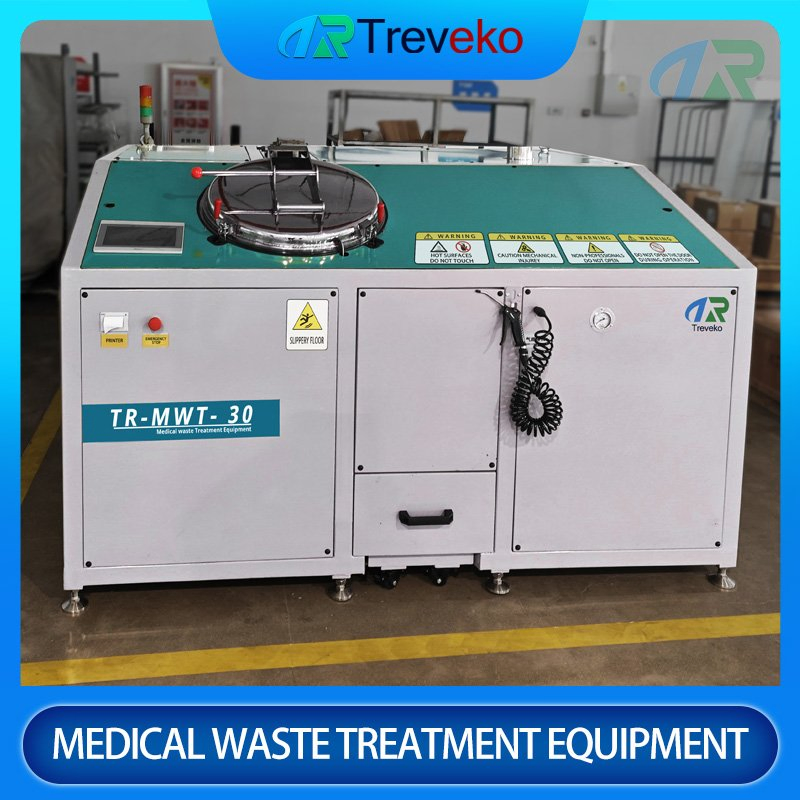

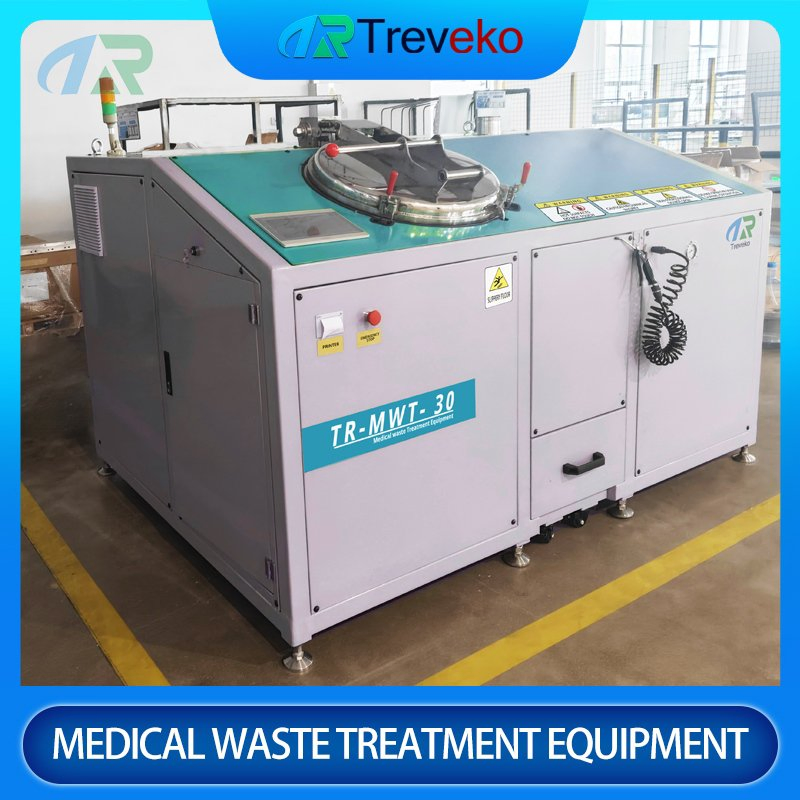

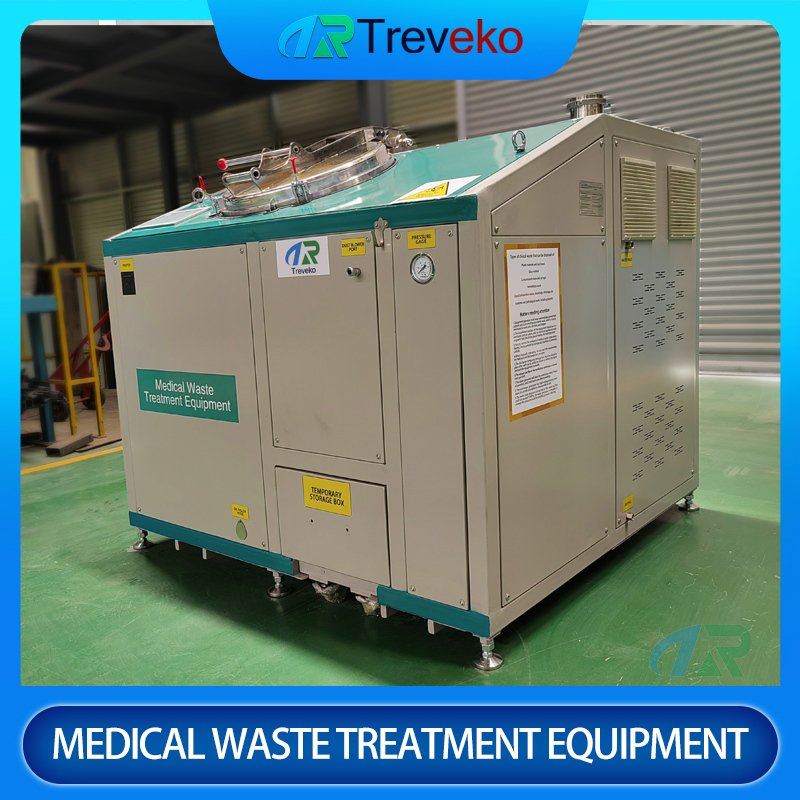

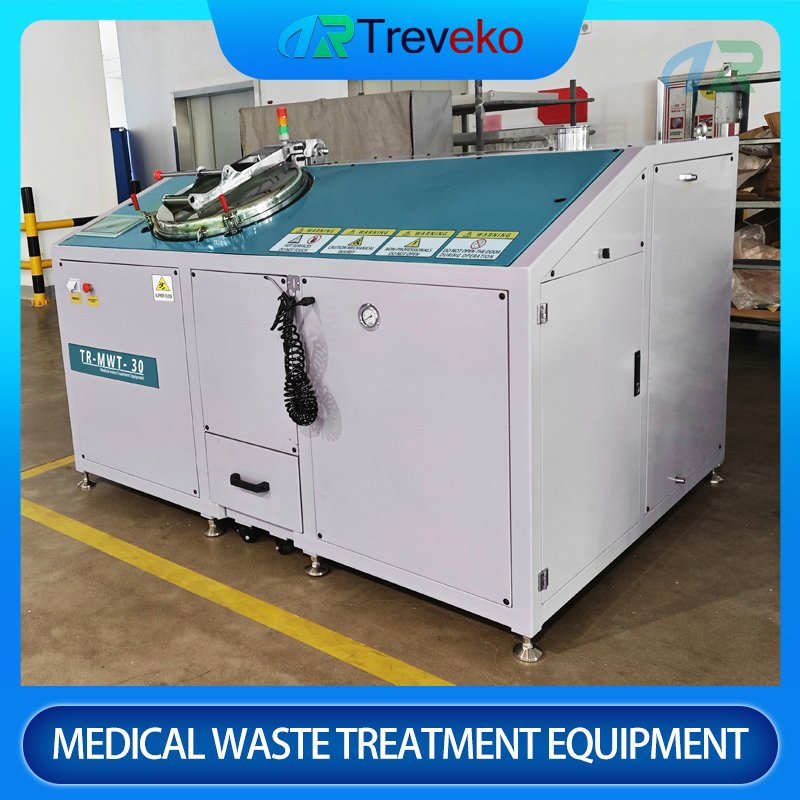

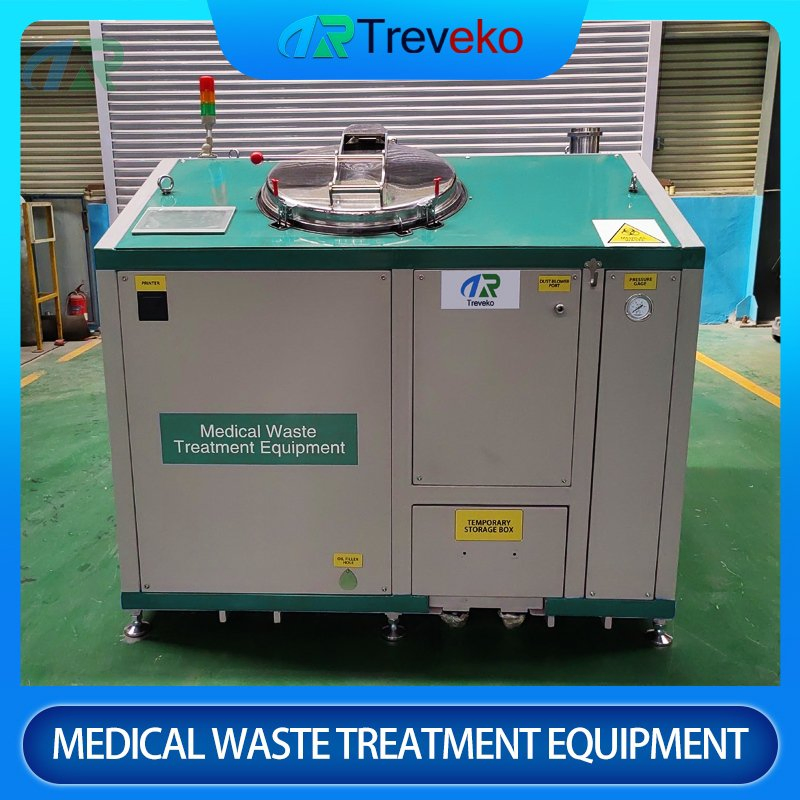

The TR-MWT Series Microwave Sterilization Integrated System is an advanced solution for the safe treatment of infectious, sharp, and specific pathological waste. Utilizing a synergistic combination of microwave irradiation and saturated steam, it achieves rapid, uniform, and thorough sterilization through both thermal and non-thermal effects.
The entire process (feeding, shredding, disinfection, discharging) is fully enclosed, operates under negative pressure, and is automatically controlled by a PLC, ensuring zero operator contact and preventing secondary pollution.
1. Loading & Shredding: Waste is loaded into a sealed chamber and reduced to fine particles (approx. 20mm).
2. Sterilization: Saturated steam and microwave core temperature reaches ≥95°C for the set duration.
3. Purification: Exhaust gas is purified via HEPA filters and UV photolysis before compliant emission.
4. Discharge: Treated residue is safely removed as general municipal waste after cooling and drying.
| Item | Model: TR-MWT-20 | Model: TR-MWT-30 | Unit |
|---|---|---|---|
| Processing Capacity | 20 kg/B | 30 kg/B | Per batch |
| Chamber Volume | 100 L | 180 L | - |
| Total Power | 22.5 kW | 27.8 kW | - |
| Shredder Power | 15 kW | 18.5 kW | - |
| Blade Material | D550 Alloy Steel | D550 Alloy Steel | ≥62HRC |
| Microwave Freq. | 2.450±0.05 GHz | 2.450±0.05 GHz | - |
| Sterilization Rate | >99.99% | >99.99% | Bacillus spores |
| Dimensions | 2000*1500*1800 | 2000*1500*1800 | mm |
As a Sino-foreign joint venture specializing in environmental technology, we focus on manufacturing protection equipment and solid waste treatment solutions. We integrate international expertise to deliver innovative products for ecological management.
