Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
1 / 5
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator
Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator

Factory Supply Medical Equipment Anesthesia System of ICU & Emergency Hospital Ventilator

Customization: Available
Type: Anaesthesia Machine
Kind: Surgical
Send Inquiry

Product Description

Medical Equipment Anesthesia System for ICU & Emergency Hospital Ventilator

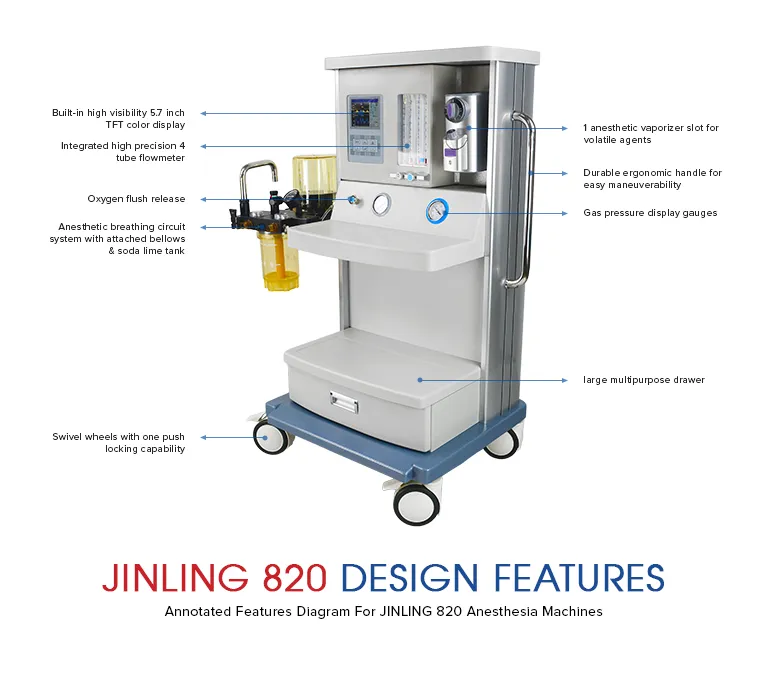

Anesthesia System Ventilator

Basic Information

Model NO.

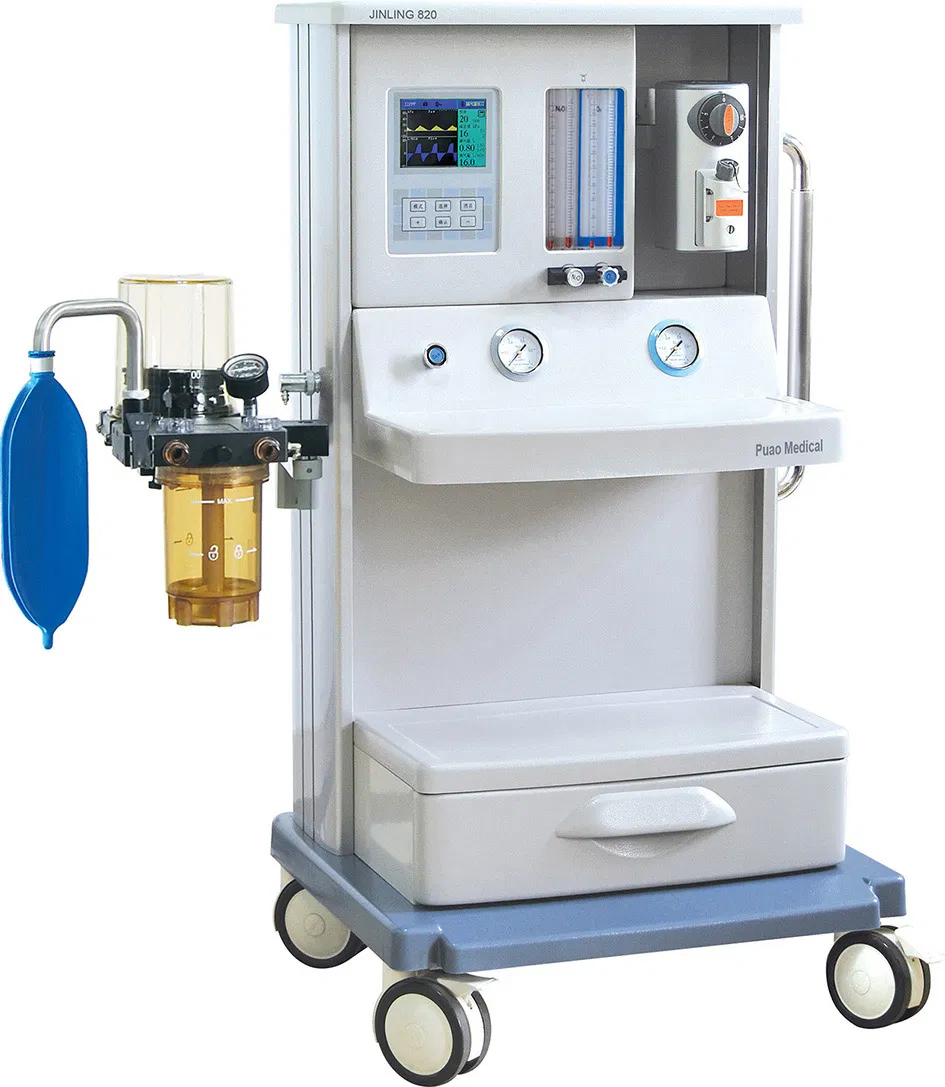

JINLING 820
Certification
CE, ISO13485, ISO9001
Patient Group
Adult and Children
LCD Display
With LCD Display
Ventilation Mode
A/C, IPPV(VCV), SIPPV(VCV), IMV, SIMV, Manual
Tidal Volume
50-1500ml
(I:E) Ratio
8:1-1:10
Respiratory Rate
1-99bpm
Trademark
JINLING
HS Code
9018907010

Key Features

Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open.

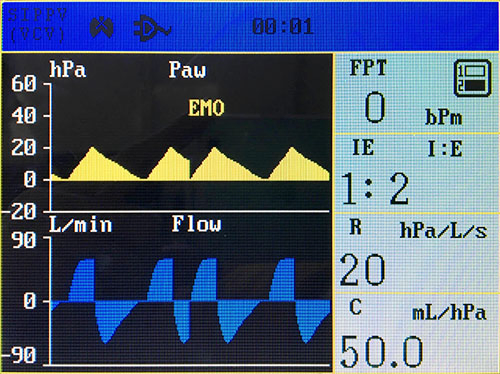

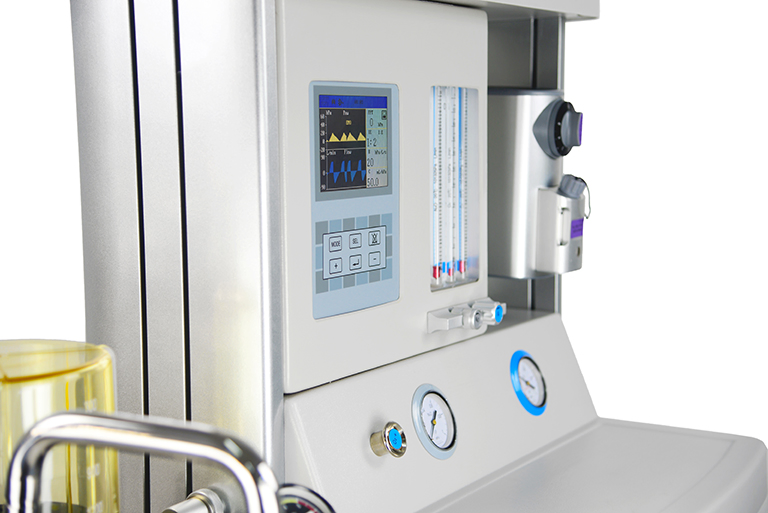

Anesthesia Ventilator: Built-in 5.7 inch TFT display, able-display Pressure-Time and Frequency-Time waveforms.
Standard integrated metallic modular respiratory circuit; high temperature disinfection compatible.
Equipped with electronic pressure differential flow sensor and imported respiratory control valve.
Vaporizer: Imported tank components; Enflurane, Isoflurane and Sevoflurane (Halothane optional) with self-compensating functionality.
High precision four tube flowmeter with oxygen-nitrous oxide interlocking supply (O2 > 21%).
Automated self-checking function during startup and an automatic self-calibrating sensor.
Power Failure Support: Automatically converts to backup power mode during AC power outages.
Comprehensive Alarms: Audible/visual alarms for tidal volume, airway pressure, asphyxia, and oxygen failure.
Advanced rotating Na-lime tank using imported PPSU material, temperature resistant to 134°C.

Technical Specifications

ModelJINLING 820
Display5.7 inch TFT display
Flowmeter RangeO2: 0.1-10L/min; N2O: 0.1-10L/min
Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, MANUAL
Back-up PowerAt least 4 hours
Tidal VolumeAdjustable: 50-1500ml; Display: 0-2000ml
Respiratory Rate1-100bpm
I:E Ratio8:1-1:10 (Inverse ratio ventilation capable)
PEEP Range0-20cmH2O (Electronically controlled)
SIGH1 sigh breath in every 80-120 breaths
Vaporizer Range0-5% (Single PA-I type slot)
Equipment Detail 1
Equipment Detail 2

Frequently Asked Questions

What patient groups is the JINLING 820 suitable for?
The system is designed for both adult and pediatric patients, with an adjustable tidal volume ranging from 50ml to 1500ml.
How long does the backup battery last?
The built-in backup power supply ensures the system continues to operate for at least 4 hours during AC power outages.
Which ventilation modes are available on this model?
It supports various modes including IPPV, SIPPV, VCV, IMV, SIMV, and Manual ventilation to meet different clinical needs.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular circuit that is completely sealed and supports high-temperature disinfection.
Does the system include safety alarms?
Yes, it includes audible and visual alarms for tidal volume, airway pressure, asphyxia, power failure, and oxygen supply failure.
What certifications does the JINLING 820 hold?
The equipment is fully certified with CE, ISO13485, and ISO9001 standards, ensuring international quality compliance.
