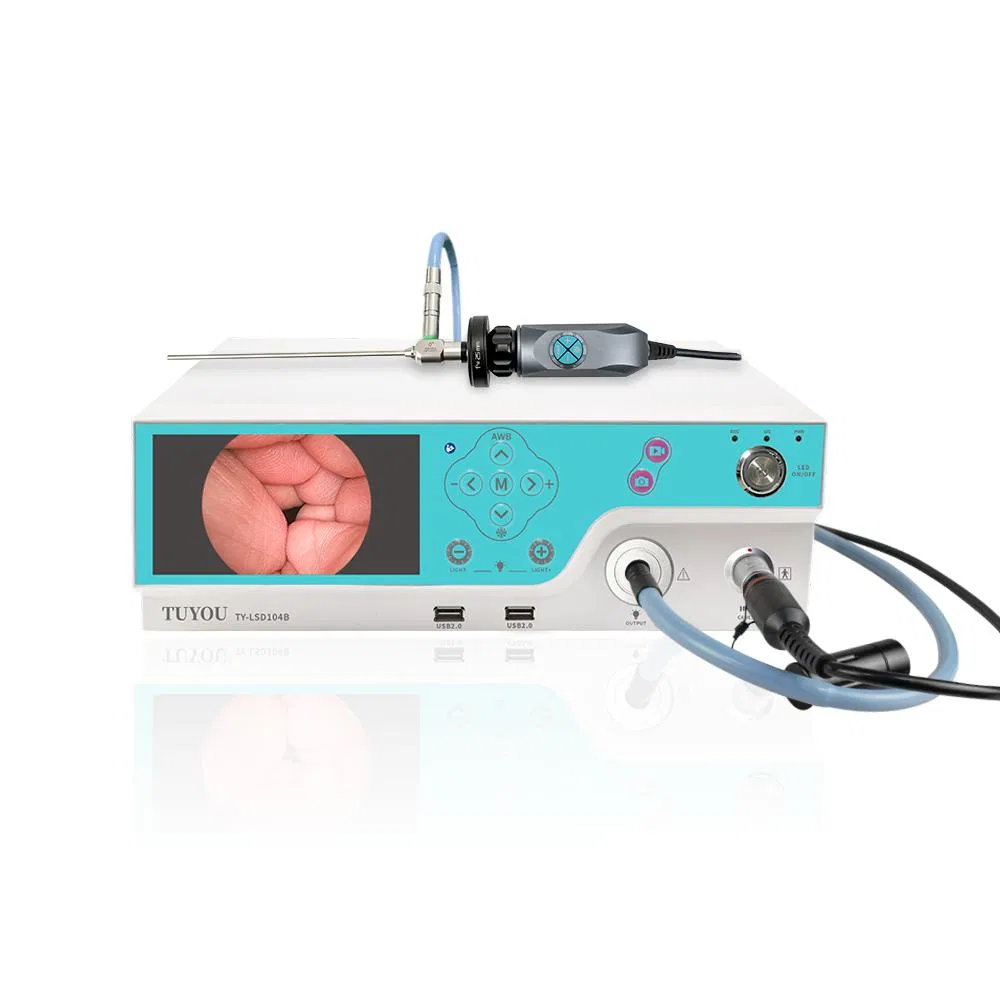

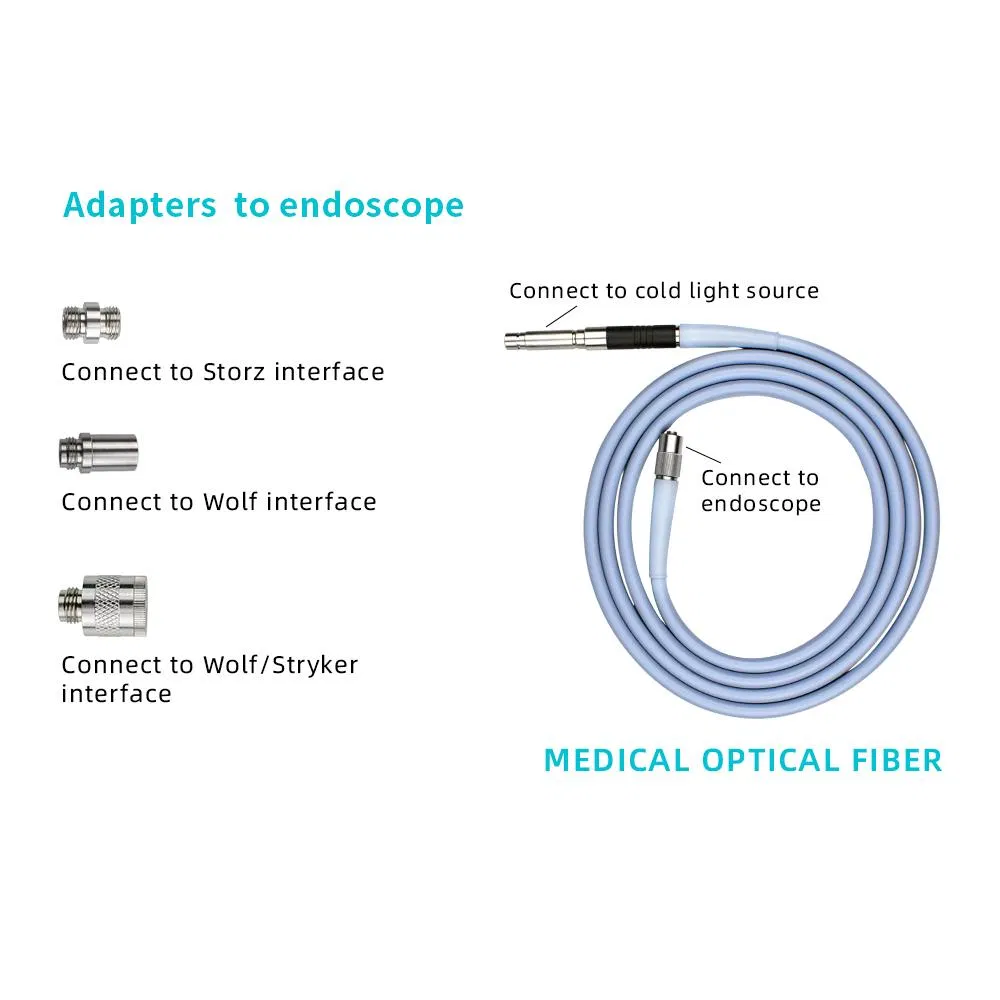

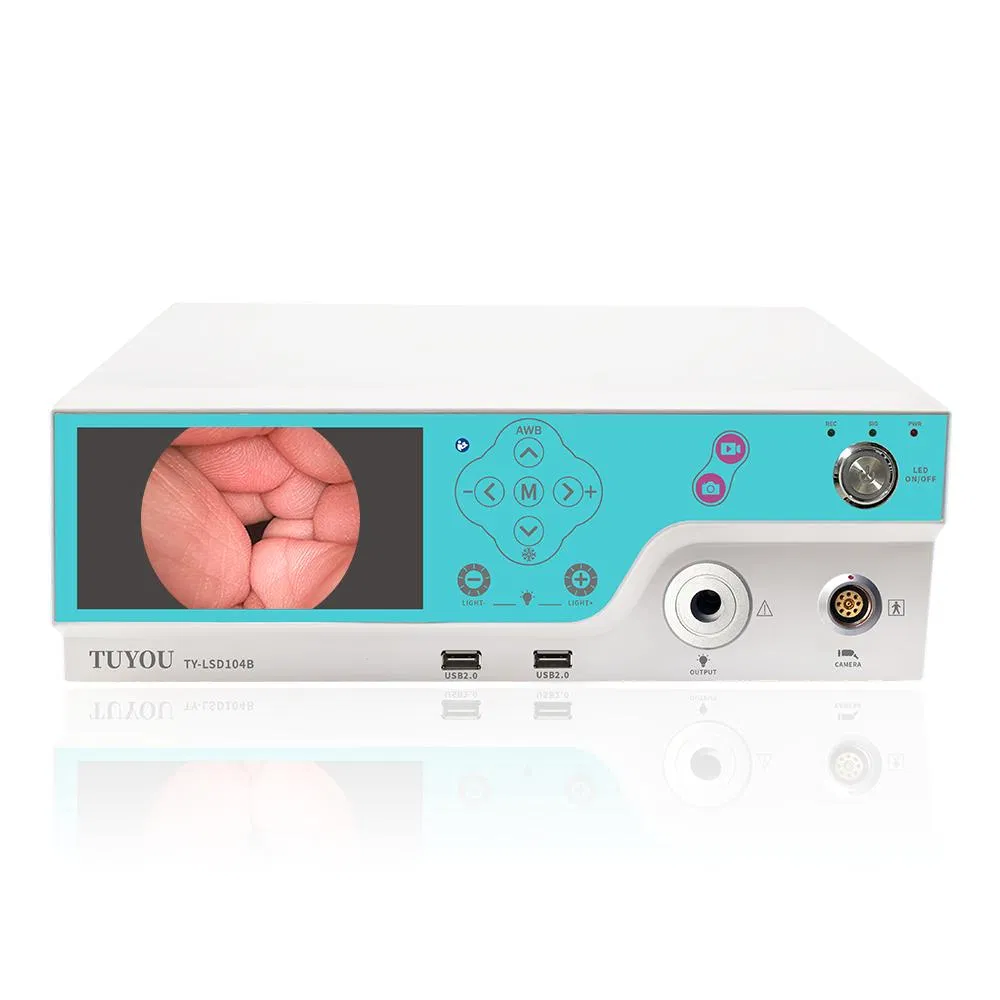

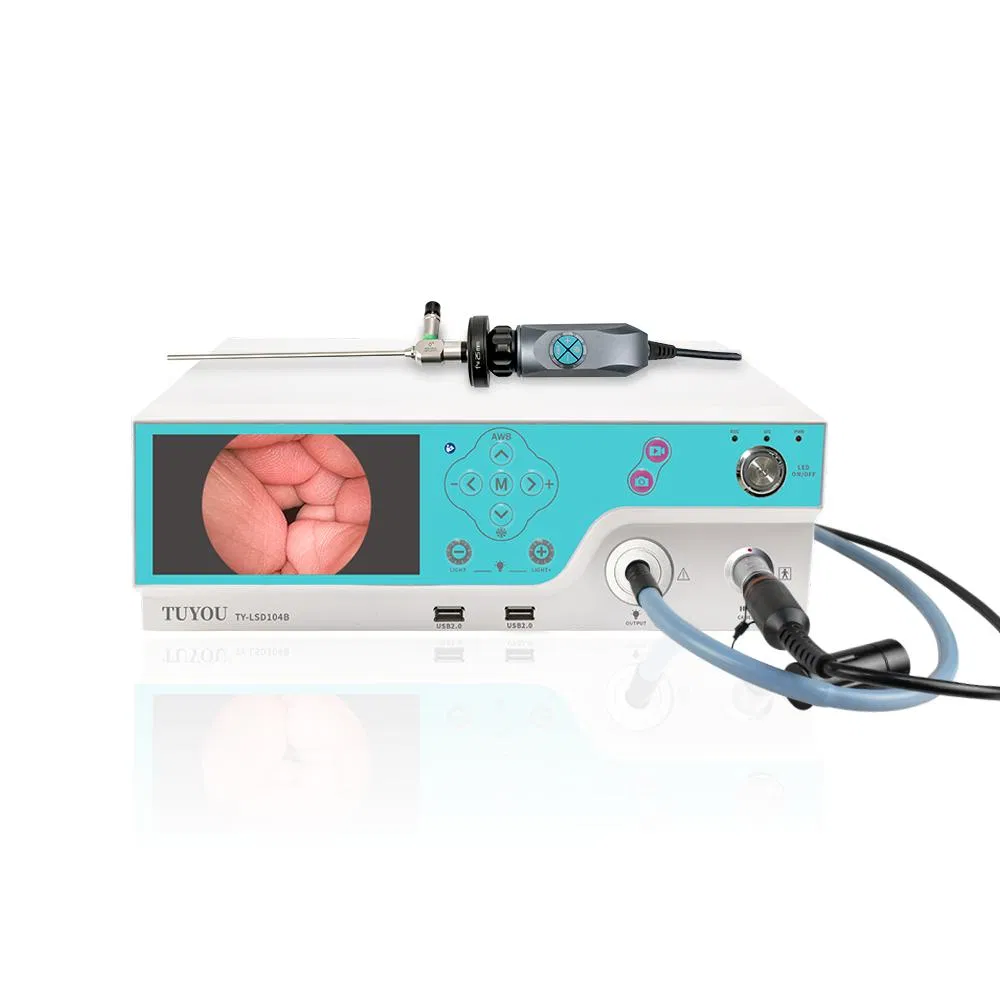

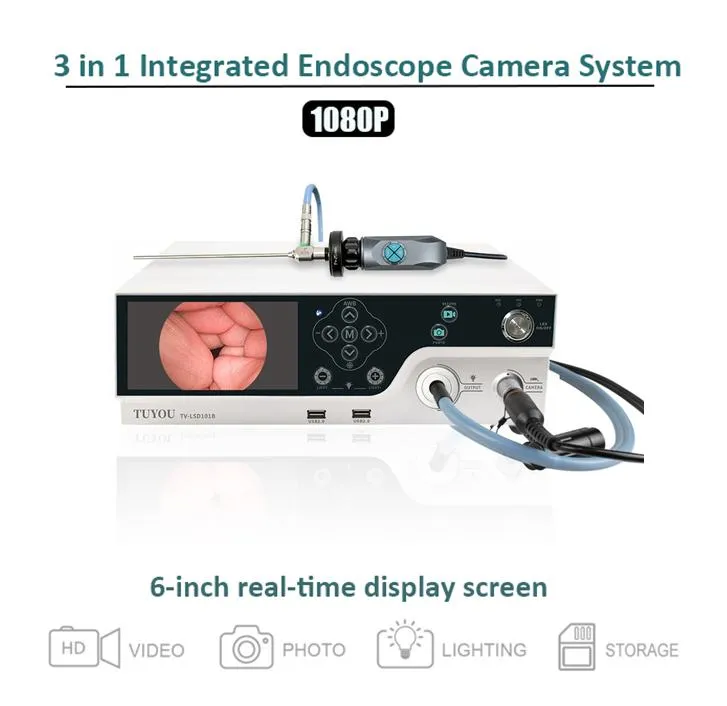

Product Composition: The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
| System Parameters | |
|---|---|
| Input Interface | SDI 1080P 60FPS |

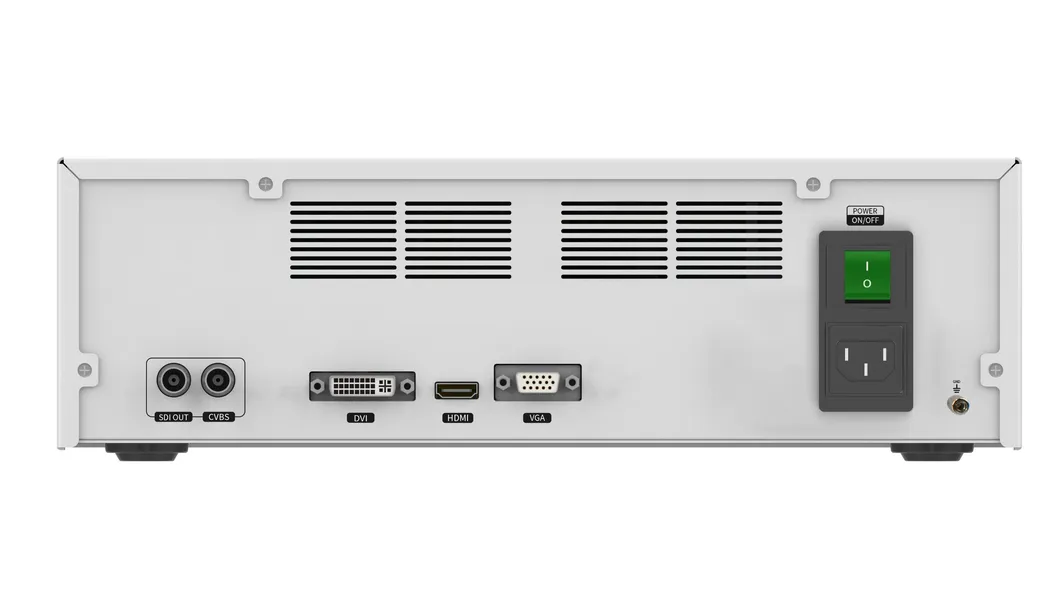

| Output Interface | HDMI/DVI/VGA/LVDS/SDI/CVBS |
| Power | AC110V~240V |
| U Disk Support | 2pcs USB2.0 (up to 32GB) for record/photo |
| Noise | <45db |
| Product Size | L336*W330*H116mm |
| Camera Parameters | |
|---|---|
| Image Sensor | 1/1.8" SONY CMOS |
| Effective Pixels | Approx. 2.13M pixels |
| D-ZOOM | Image zoom 1-8X |
| Lens Mode | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom |
| Language | Chinese, English, Japanese, Korean, etc. |
| Light Source Parameters | |
|---|---|
| Light Type | LED |
| Effective Optical Power | 100W |
| Illuminance | 400W LUX |
| Color Temperature | 5800-6500K |
We are a high-tech manufacturing enterprise integrating R&D, production, sales and service of medical endoscope camera system products. With more than 20 years of experience in independent production and R&D of video products, we have completed SD, HD, 2K, 4K, fluorescence and other endoscope image systems.

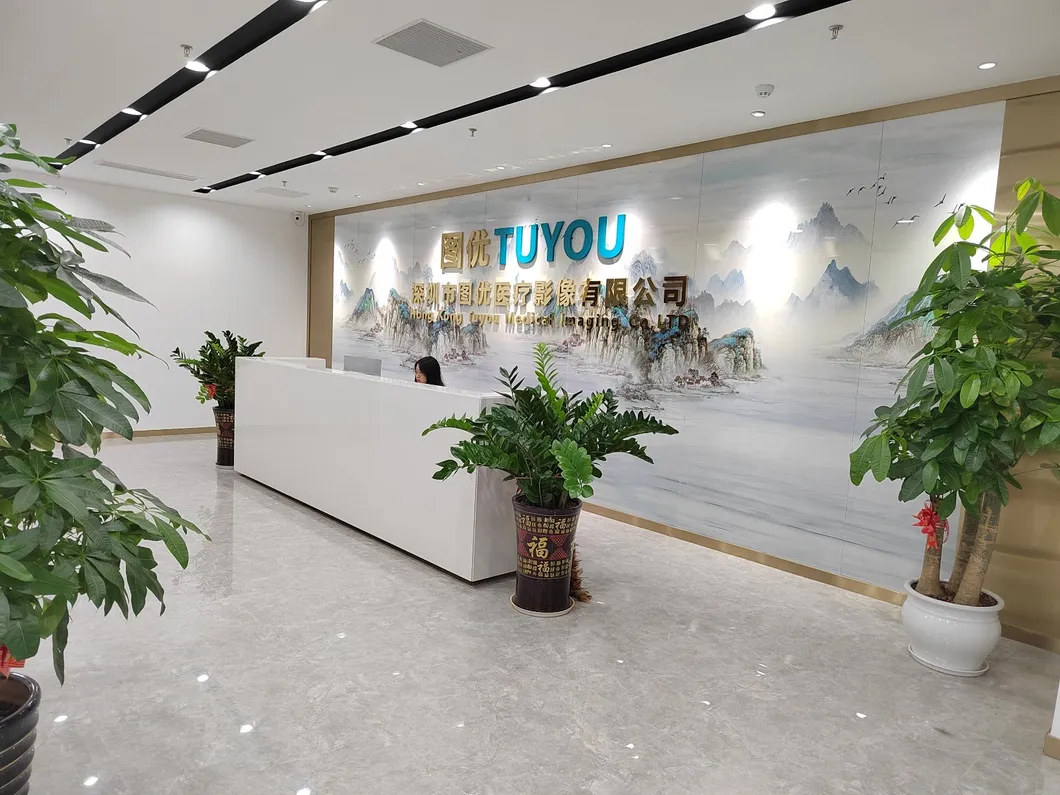

Our medical-grade facility spans more than 2000 square meters. We hold numerous product R&D patents and have passed international quality systems including CE, FCC, and RoHS certifications.
