Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
1 / 5
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment
Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment

Anesthesia System of ICU & Emergency Jinling 01 Factory Supply Hospital Ventilator Medical Equipment

Customization: Available
Type: Anaesthesia Machine
Kind: Surgery
Send Inquiry

Product Description

Basic Specifications
Model NO.
JINLING 01
Certification
CE, ISO13485
Group
Adult
LCD Display
With LCD Display
Ventilation Mode
A/C, IPPV, SIPPV, Manual
Tidal Volume
50-1500ml
(I:E) Ratio
1:1.5~1:3.0
Respiratory Rate
4~40 Bpm
O2 Flush
25-75 L/Min
Pressure Trigger
-10-10CMH2o
Origin
China
Capacity
500 Units
Anesthesia System for ICU & Emergency

High-performance hospital ventilator medical equipment designed for critical care environments.

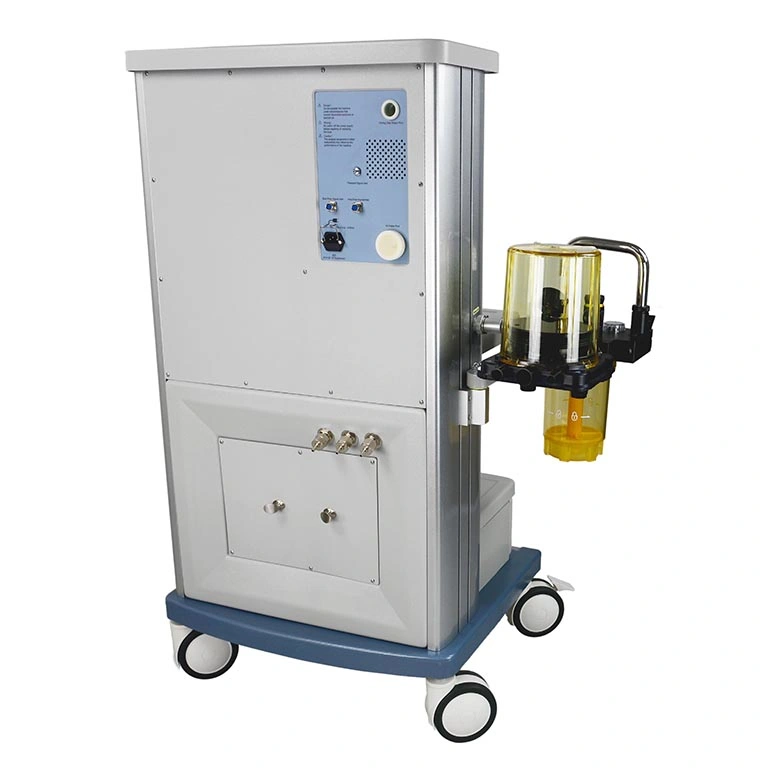

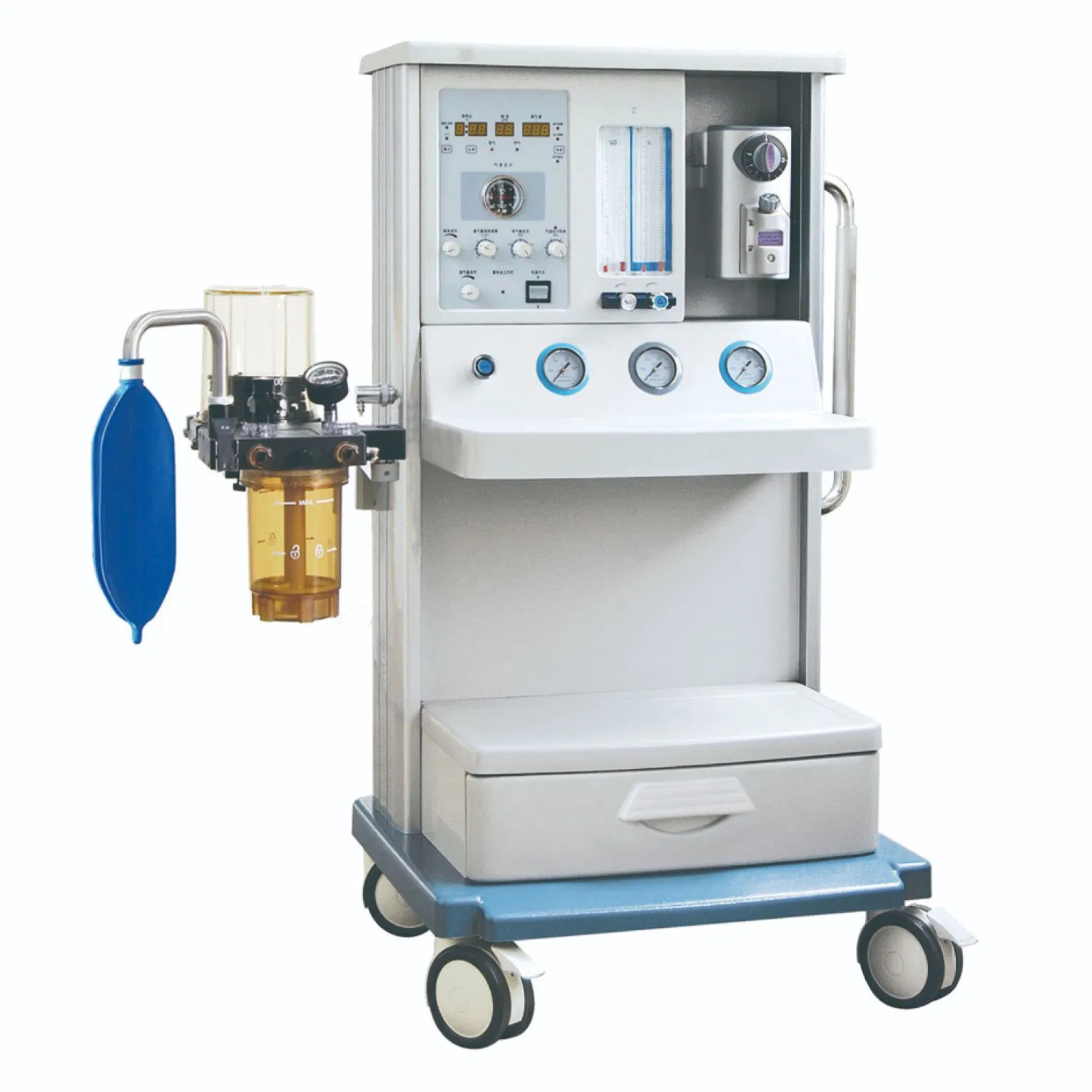

Anesthesia System Main View

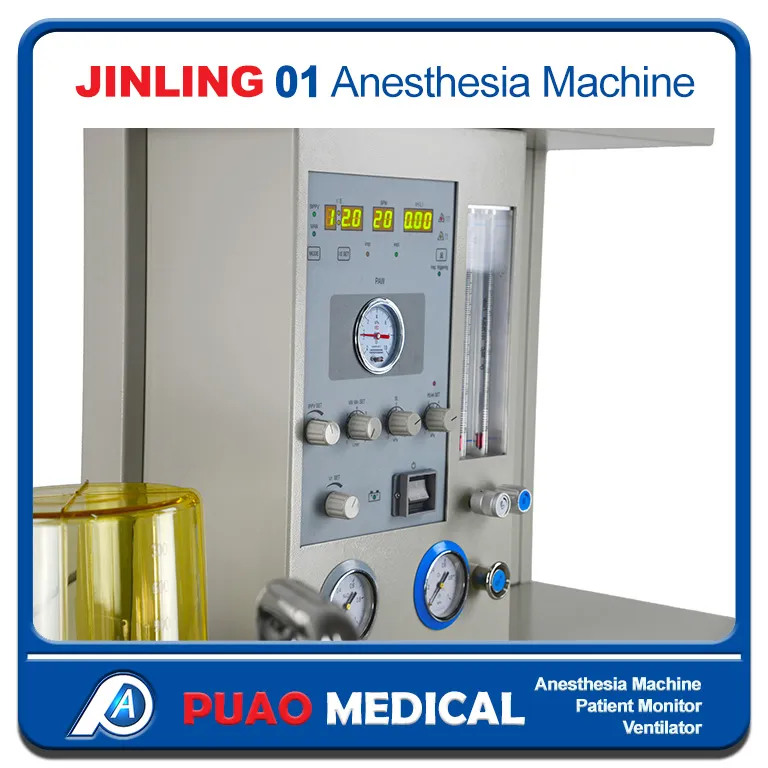

Ventilator Detail View
Key Features & Advantages
✓
Versatile Operating Modes: Pneumatically driven & electronically controlled; supports closed, semi-closed, and semi-open systems.
✓
Advanced Display: Built-in high visibility, wide-angle LED alphanumeric data display for real-time monitoring.
✓
Hygienic Design: Integrated metallic modular respiratory circuit solves gas sealing issues under high-temperature disinfection.
✓
Precision Flowmeter: Two-tube flowmeter with interlocking O2-N2O supply ensures oxygen levels never drop below 21%.
✓
Reliable Backup: Automatic backup power mode activates during AC power failures to ensure patient safety.
✓
Comprehensive Alarms: Visual and audible alerts for tidal volume, airway pressure, power failure, and oxygen supply.
✓

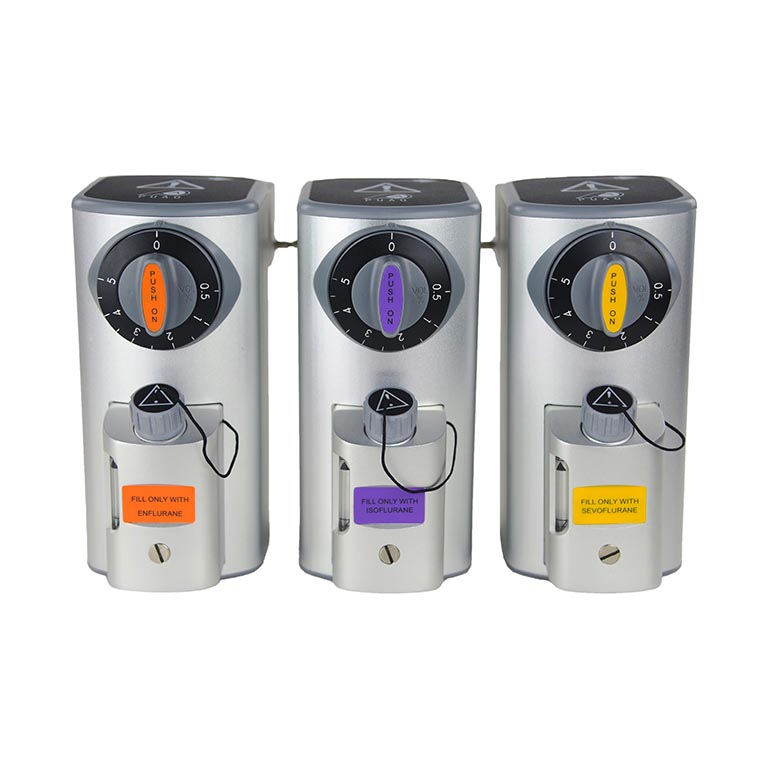

High-End Vaporizer: Compatible with Enflurane, Isoflurane, and Sevoflurane with self-compensating functionality.
✓
Robust Build: Fully metallic frame with automated self-checking and self-calibrating sensors upon startup.
Detailed Specifications Comparison
Technical Parameter JINLING-01 (Standard) JINLING-01 (Advanced)
Display Type High-Visibility LED
Flowmeter Range (O2 / N2O) 0.1 - 10 L/min
Ventilation Modes IPPV, SIPPV, MANUAL
Back-up Power Supply At least 4 hours
Tidal Volume (Adjustable) 50 - 1500 ml
Respiratory Rate 4 - 40 bpm
I:E Ratio 1:1.5 - 1:3.0
Inspiratory Pressure Trigger -10 to 10 cmH2O
Vaporizer Slots Single PA-80 Slot Double PA-80 Slots
Anesthesia System Component
Operating Interface
Frequently Asked Questions
What patient group is the JINLING 01 suitable for?
The JINLING 01 is primarily designed for adult patients in ICU and emergency hospital settings.
How long can the system operate during a power failure?
The built-in backup power supply ensures the system continues to function for at least 4 hours during AC power outages.
Is the respiratory circuit easy to disinfect?
Yes, it features a standard integrated metallic modular circuit that supports high-temperature disinfection and ensures perfect gas sealing.
What safety mechanisms are in place for oxygen supply?
It includes an interlocking oxygen-nitrous oxide supply system that guarantees the oxygen output concentration is never lower than 21%.
What is the tidal volume range of this anesthesia system?
The tidal volume is adjustable from 50ml to 1500ml, with a display range of up to 2000ml for comprehensive monitoring.
Which types of vaporizers can be used with this equipment?
The system supports Enflurane, Isoflurane, and Sevoflurane as standard, with Halothane available as an optional component.
