Customization: Available
Type: Emergency Ventilator
Used for: Adult and Children
Send Inquiry

Product Description

Anesthesia System of ICU & Emergency Hospital Ventilator

High-Performance Medical Equipment for Clinical Resuscitation

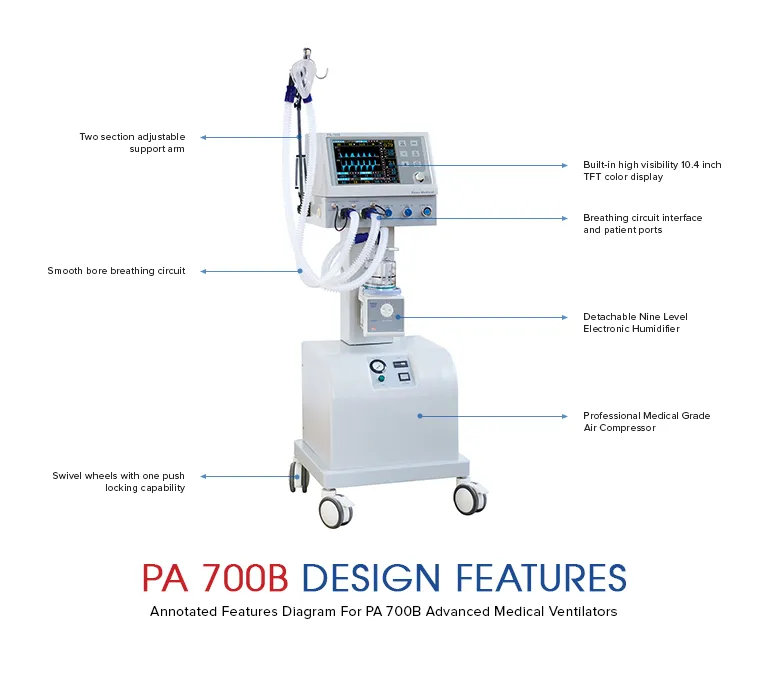

Anesthesia System Ventilator

Basic Specifications

Model NO.
PA-700B
Ventilation Mode
A/C, IPPV, SIPPV, IMV, SIMV, Standby, Manual
Tidal Volume
50-1500ml
Respiratory Rate
1-99bpm
(I:E) Ratio
4:1-1:4
PEEP
0-10CMH2o
Trigger Sensitivity
-10-10CMH2o
HS Code
9019200000

Common Features

⚙️ Advanced Operation

Pneumatically driven & electronically controlled, compatible with closed, semi-closed, and semi-open systems. Features automated self-checking during startup.

📊 High Visibility Display

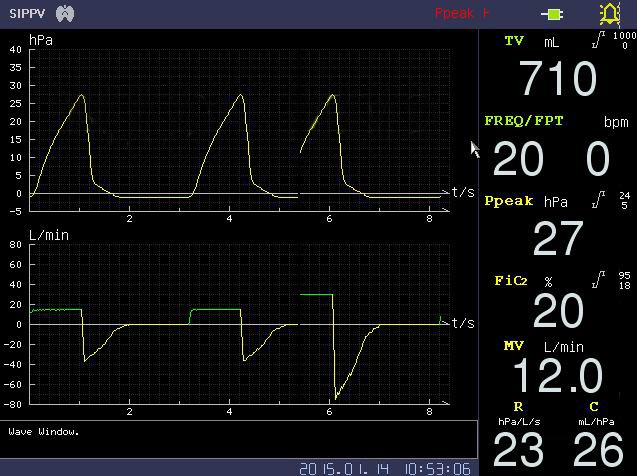

Built-in 10.4 inch color TFT display. Simultaneously displays Pressure-Time and Frequency-Time waveforms in real time.

🚨 Safety & Alarms

Comprehensive audible and visual alarms for tidal volume, oxygen concentration, asphyxia, airway pressure, and power failure.

Technical Parameters

Parameter Standard Model (700B) Advanced Model (700B)
Minute Volume≥ 18L
Back-up PowerAt least 4 hours
Tidal Volume Range50-1500ml (Display: 0-2000ml)
SIMV Rate1-20bpm
Inspiratory PlateauAdjustable 0-50% of inspiratory time
Oxygen Concentration45-100%21-100%
Airway Pressure AlarmUpper: 0.1~6kPa / Lower: 0~5kPa
Air CompressorOptionalIncluded (Low Noise)
Ventilator Detail 1 Ventilator Detail 2

Frequently Asked Questions

What is the main application of the PA-700B system?
It is designed for ICU and emergency clinical resuscitation, providing both respiratory therapy and anesthesia support for patients.
Can it operate during a power outage?
Yes, the system features an automatic standby mode conversion during AC power failure and provides at least 4 hours of battery backup.
Is the tidal volume adjustable for different patient sizes?
The tidal volume is adjustable from 50ml to 1500ml, making it suitable for a wide range of clinical requirements.
What are the benefits of the Advanced Model?
The Advanced Model includes a professional medical-grade air compressor with low noise output and a wider oxygen concentration range (21-100%).
Does the system monitor gas flow accurately?
Yes, it is equipped with an infrared turbine flow sensor that ensures precise, stable, and reliable measurement of gas flows.
What ventilation modes are available?
Supported modes include A/C, IPPV, SIPPV, IMV, SIMV, Standby, and SPONT MANUAL.
