Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Certification: ISO13485
Send Inquiry

Product Description

Basic Information
Model NO.
CCX-P56D
Customized
Available
Scale
Large
Warranty
1 Year
Power Voltage
220V
Package
Standard Export Package
Origin
China
Capacity
1000 Units

Multifunctional Medical Imaging Digital Radiography 5.6KW Portable Xray Machine

Model: CCX-P56D - Mobile X-ray equipment designed for high-precision diagnostic imaging with advanced portable capabilities.

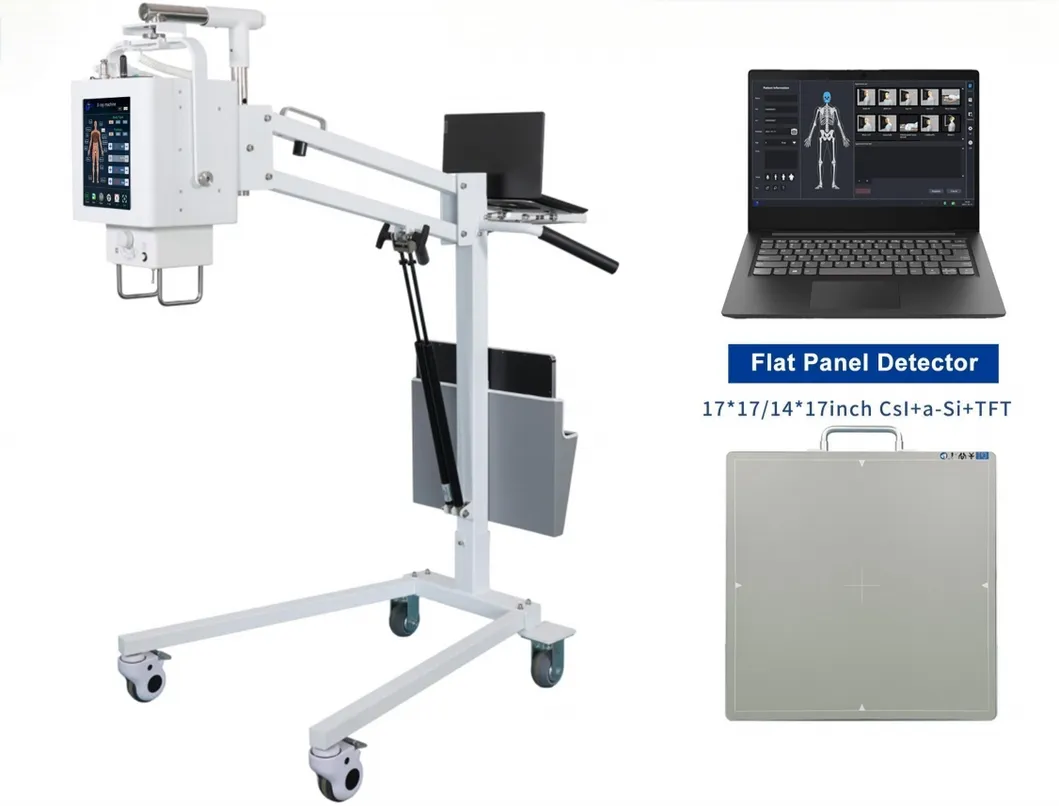

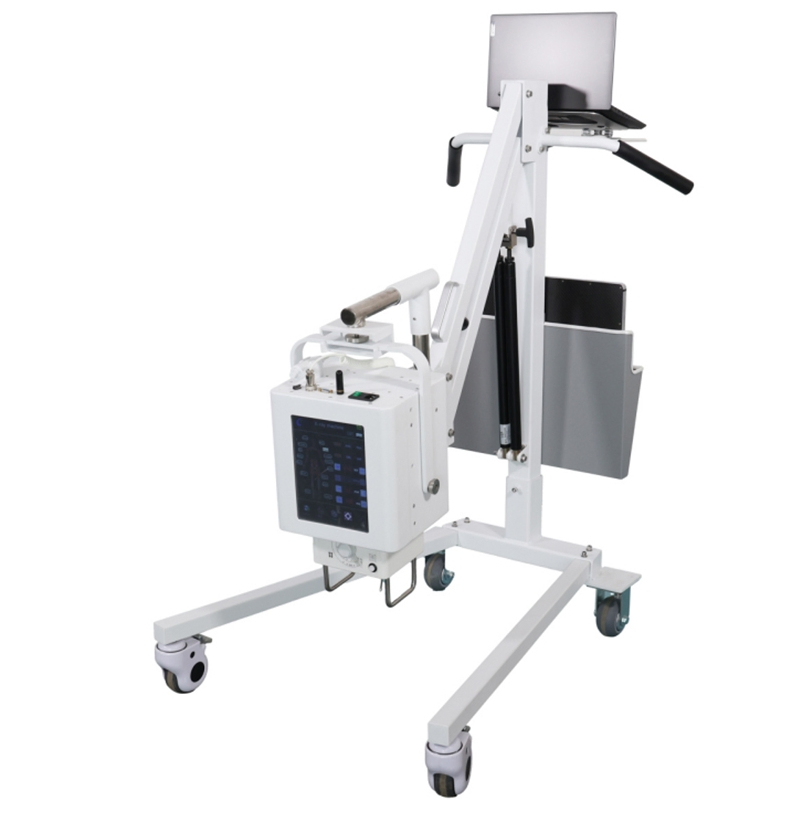

Portable X-ray Machine Main Unit
Technical Specifications
  • Power: 5.6kW with intuitive touch screen control
  • Power Supply: Single phase 220-240VAC
  • Working Frequency: 100kHz high frequency
  • Current Range: 10mA - 100mA
  • Exposure Range: 0.1mAs - 200mAs
  • Voltage Range: 40 - 125kV
  • Exposure Time: 2ms - 6300ms
  • Tube Focus: 0.6*0.6mm / 1.8*1.8mm dual focus
  • Anode Heat Capacity: 42kHU (30kJ)
  • Mobile Stand: MX-MS2 heavy duty support
Flat Panel Detector & Computing
  • Image Size: 17*17 inch (14*17 optional)
  • Pixels Matrix: 139μm high resolution
  • A/D Conversion: 16bit processing
  • Spatial Resolution: 3.6 LP/mm
  • Computer: i3-1215U / 8G / 512G SSD
  • Li-battery: DC 22.2V (100-200 shots per charge)

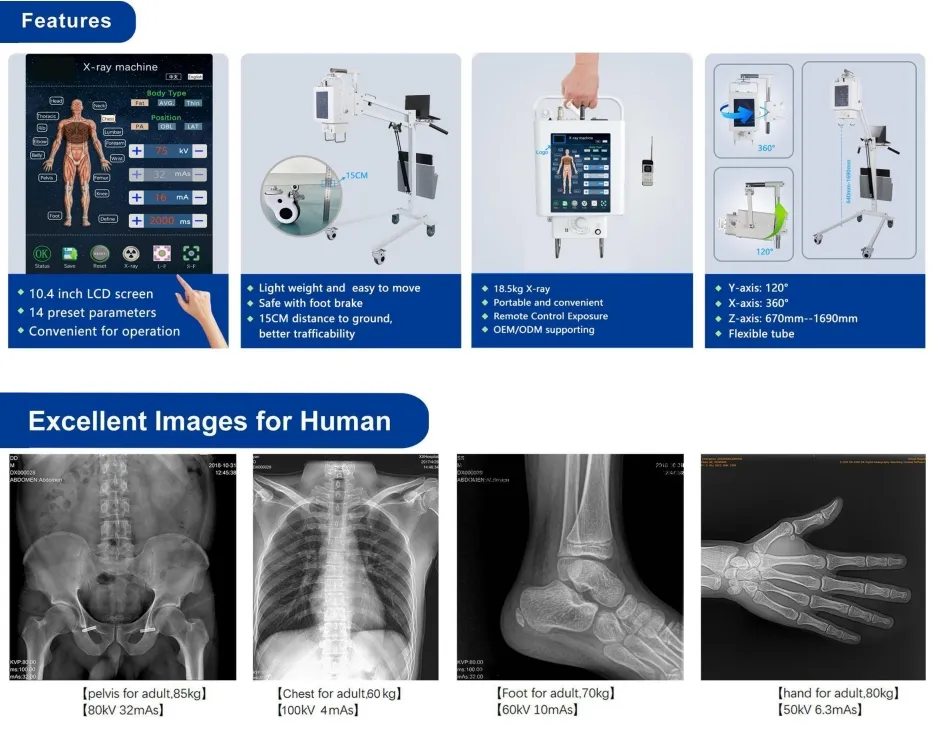

X-ray system details

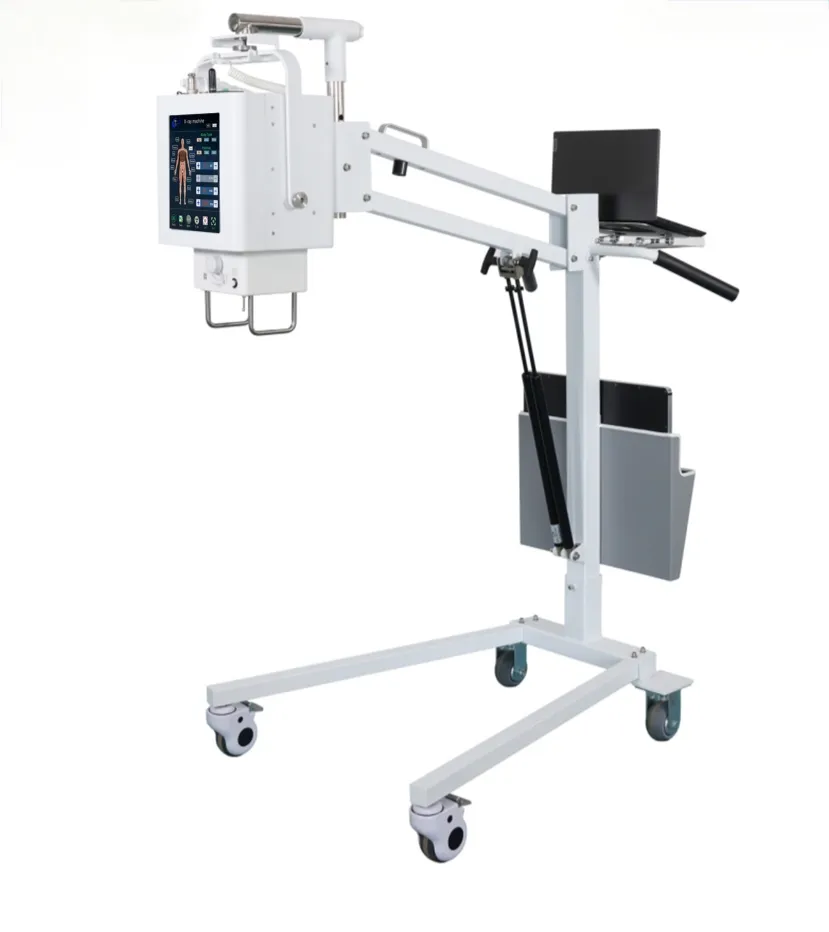

Mobile Stand Detail
Portable Component
Related X-ray Portfolio
Category Equipment Type
X-ray Room EquipmentDigital X-ray Systems
Flat Panel Detectors
Stationary/Mobile/Portable X-ray Units
Mammography & C-arm X-ray
Dental X-ray Machine & Sensors
X-ray Accessories
X-ray Protection Series
Integrated X-ray Solutions
Digital Radiography Imaging
Portable X-ray Full Setup
Control Panel Display
Frequently Asked Questions
What is the power output of this portable X-ray unit?
The CCX-P56D model features a powerful 5.6kW output, suitable for a wide range of medical diagnostic imaging needs.
How many exposures can the battery handle on a single charge?
The high-capacity Li-battery (DC 22.2V) supports between 100 to 200 shots on a single full charge, making it ideal for mobile use.
What are the available sizes for the Flat Panel Detector?
The standard image size is 17*17 inches, with a 14*17 inch detector available as an optional configuration.
Does the system include medical software?
Yes, the package comes with professional medical imaging software and a dedicated computer (i3 processor, 8G RAM, 512G SSD) for immediate operation.
Is this equipment easy to move within a hospital environment?
Absolutely. It includes the MX-MS2 mobile X-ray stand, specifically designed for easy maneuverability and stability in various clinical settings.
