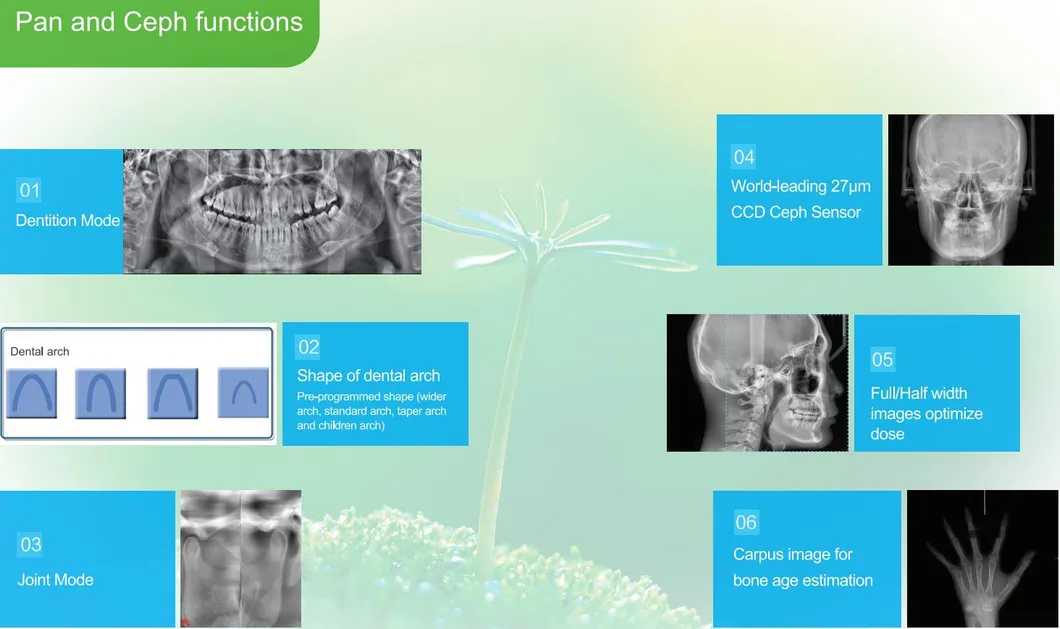

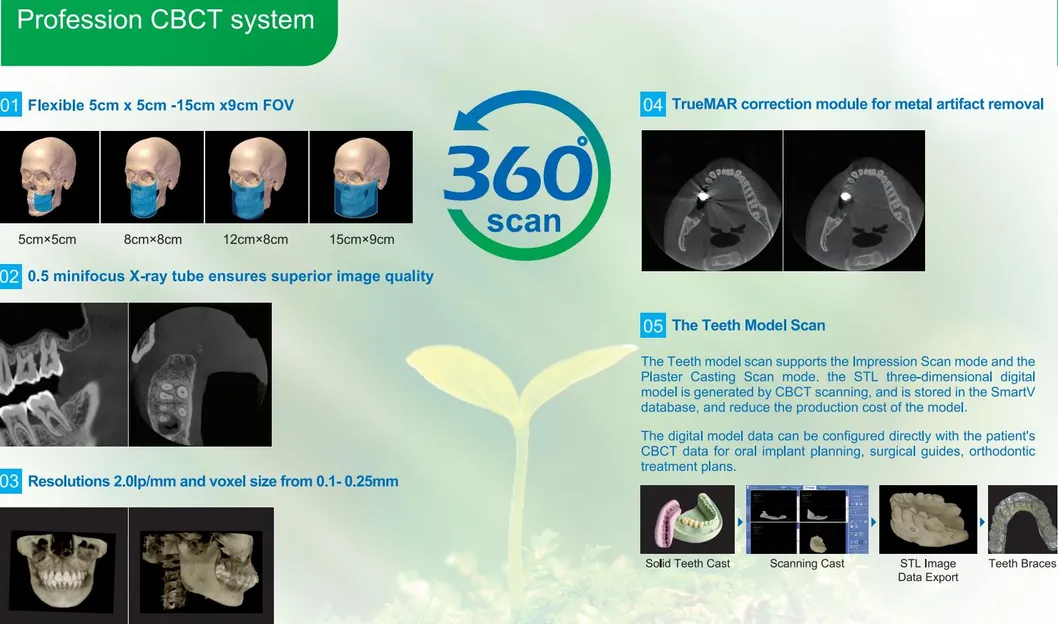

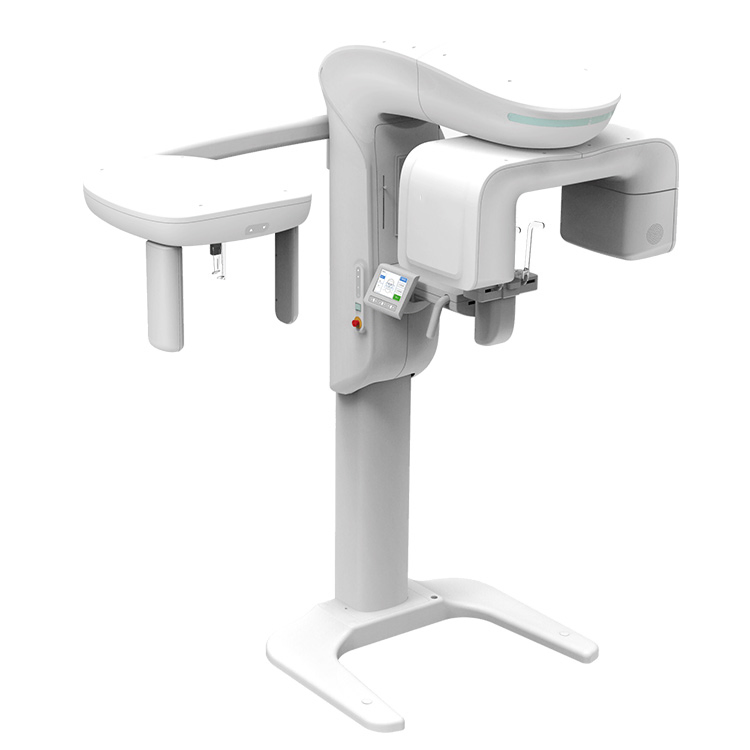

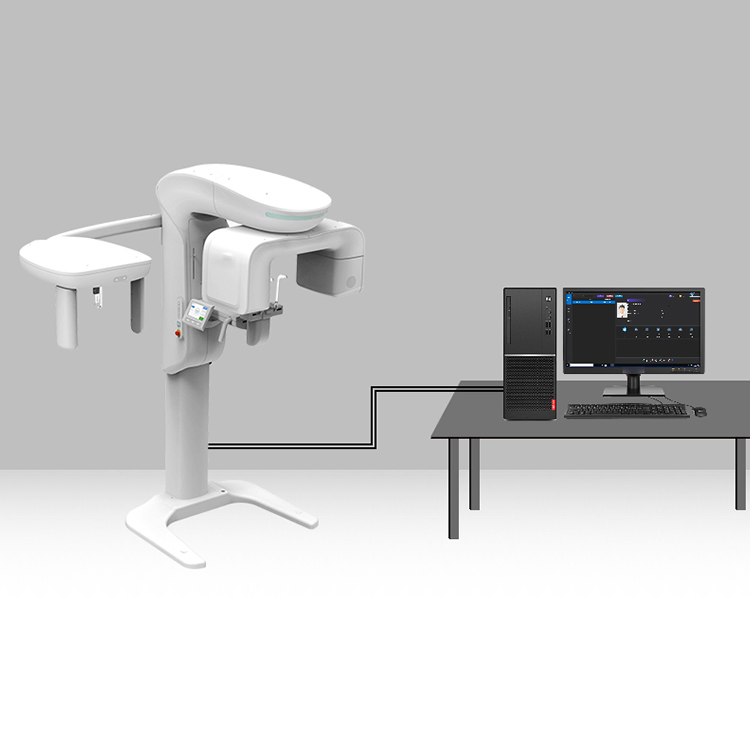

CT 360° full angle accurate scanning. Advanced 0.5 mini focus X-ray tube. World-leading 27um CCD Ceph Sensor.
Patent anti-collision indicating device. Six laser beams for easy positioning. Embedded Panoramic module, no requirement to dismantle.

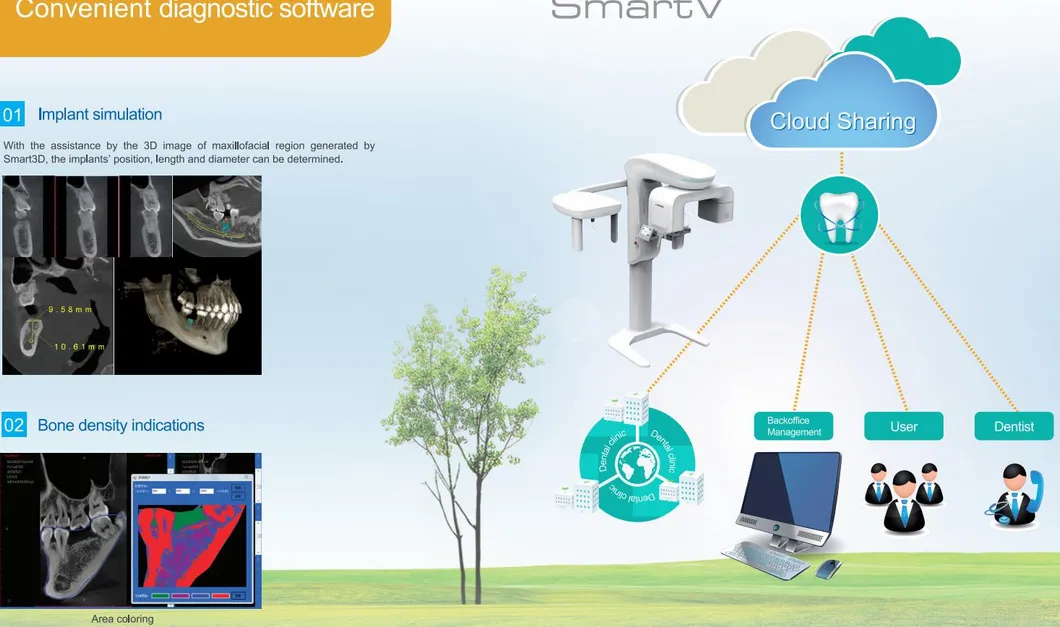

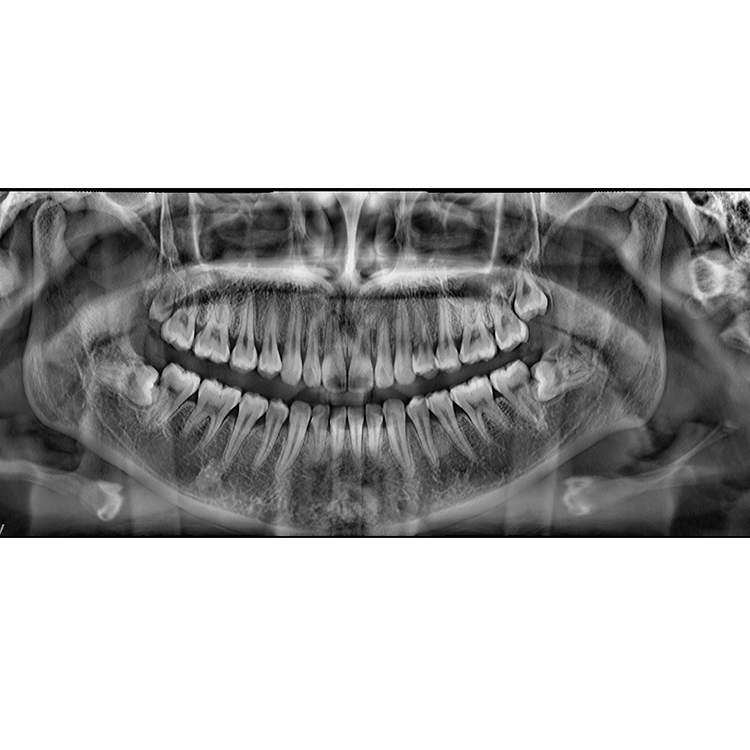

Integrated sensor for both panoramic and 3D images. Friendly touch screen. Pre-programmed scan mode for different clinical needs. Three fields of view with a variety of scan modes cater to all clinical applications.
| Technical Data | Specification Details |
|---|---|
| Tube Current(mA) | min: 2, max: 10 (60kV) |
| Tube Voltage(kV) | min: 60, max: 100 (6mA) |
| Focal Spot Size | 0.5 (IEC336) |
| CT Sensor Type | CMOS Flat Panel Detector |
| Detector Size(cm) | 13x13 |
| CT Field of View | 15x9, 8x8, 5x5 |
| CT Voxel Size(mm) | 0.25, 0.15, 0.1 |
| CT Spatial Resolution | 2 lp/mm |
| CT Scanning Time | 13s |
| CT Reconstruction Time | 15~40s |
| Pan Image Size(mm) | 233x 96 |
| Pan Pixel(mm) | 0.1 |
| Ceph Sensor Type | CCD TDI Detector |
| Ceph Pixel(um) | 27 |
| Weight (With/Without Ceph) | 335kg / 285kg |
| Unit Dimensions(mm) | 1978 (W) x 1526 (D) x 1693 ~ 2393 (H) |
| Power Supply | Single-phase AC220V/230V ±10%, 10A, 50Hz/60Hz |
