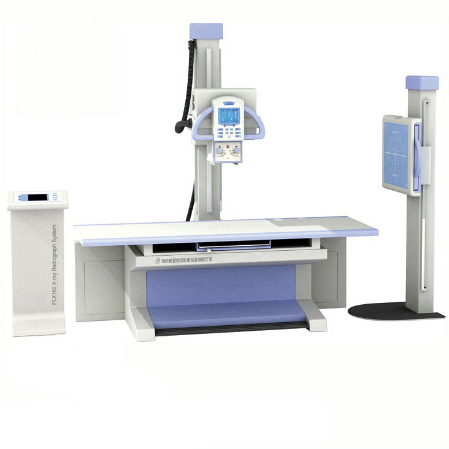

Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment
Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment
Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment
Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment
1 / 4
Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment
Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment
Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment
Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment

Xm160A Medical Multi-Function High Frequency X-ray Radiography System, Medical Imaging Equipment

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: High Frequency X-ray Radiography System
Send Inquiry

Product Description

Basic Information
Model NO.
XM160A
Certification
ISO13485
Power Output
25kw
Inverter Frequency
40kHz
Rotary Anode Speed
3000rpm
Tube Current
200mA
Tube Voltage
40-125kv
Warranty
1 Year
MOQ
1 PC
HS Code
9022210000
Medical Multi-function High Frequency X-ray Radiography System

The XM160A is a medical imaging equipment designed for high-precision radiography with advanced high-frequency technology.

  • Latest compact high-frequency and high-voltage X-ray generator ensures superior image quality.
  • LCD touch screen graphical control console for remote radiographic parameter adjustments.
  • Adaptable parameters for various physical characteristics (Adult, Pediatric, Multi-site).
  • Counterbalanced X-ray generator allows unlimited projection possibilities for patients on stretchers.
  • Integrated Bucky stand for imaging head, chest, belly, pelvic cavity, and extremities.
  • Minimal radiation dosage technology for enhanced patient protection.
  • kV & Max numeric closed-loop control for accurate and repeatable radiation doses.
  • Automatic systematic safeguards and fault detection functions for safe operation.
  • Radiographic table with electromagnetic braking for precise patient placement.
Technical Specifications
Component Detail
Power Output25kW
Inverter Frequency40kHz
X-ray TubeRotary anode, Dual-focus (1.3mm/0.6mm), Thermal capacity: 900kJ
Tube Current / Voltage200mA / 40-125kV
mAs Range0.4-360mAs
Table RadiographyGrid ratio: 8:1; Focusing distance: 120cm; 15"×18"
Bucky Stand RadiographyGrid ratio: 10:1; Focusing distance: 150cm; 18"×18"
Power Supply380V 50Hz, Capacity: ≥30kVA
Table Size2000×760mm
Table TravelTransverse ±110mm; Longitudinal ±325mm (Electromagnetic brake)
Movement RangeFloor Stand Rotation: 360°; SID: 420-1200mm
Product Display

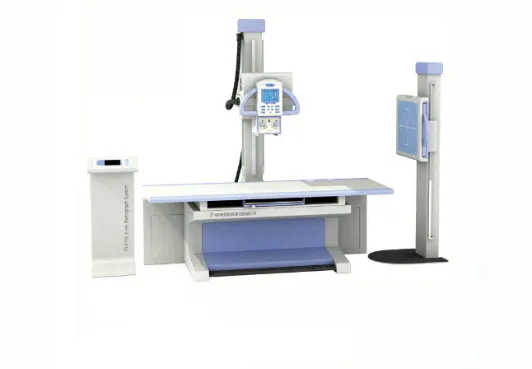

X-ray System
Equipment Detail 1
Equipment Detail 2
Equipment Detail 3
Frequently Asked Questions
What is your Minimum Order Quantity?
Our Minimum Order Quantity (MOQ) is generally 1 unit. For certain consumable items, the MOQ may vary.
Which payment methods do you accept?
We accept most forms of payment including Bank Transfer (T/T), L/C, and Western Union.
Which certifications do your products have?
Most of our medical products are ISO and RoHS certified, ensuring international quality standards.
Can I place my company logo on the product?
Yes, OEM options are available for most products. Please confirm with our team during the ordering process.
What after-sales services do you provide?
We provide comprehensive technical support, customer service, and troubleshooting for our equipment.
How long is the warranty period?
We typically offer a 12-month warranty for all main units. Accessories may have different warranty periods.
