Advanced Ultrasonic Extraction and Cell Disruption Device for Labs

Customization:	Available
After-sales Service:	Solve The Problems Encountered in Customer Use
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

10-300L

Application

Food, Industry, Chemical

Certification

Transport Package

Container

Specification

Stainless steel

Package Size

85.00cm * 50.00cm * 130.00cm

Package Gross Weight

570.000kg

Product Description

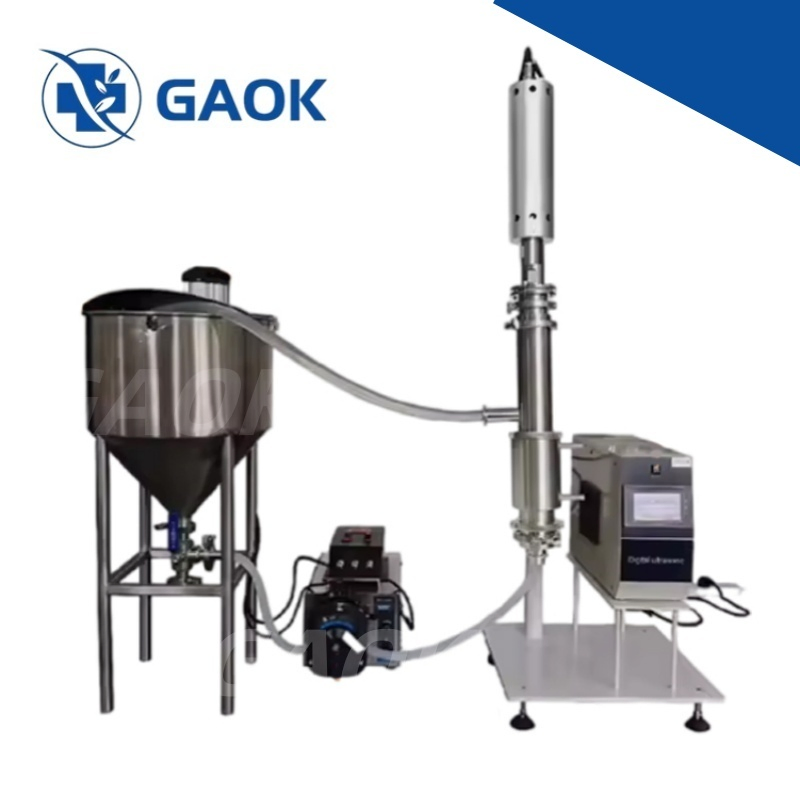

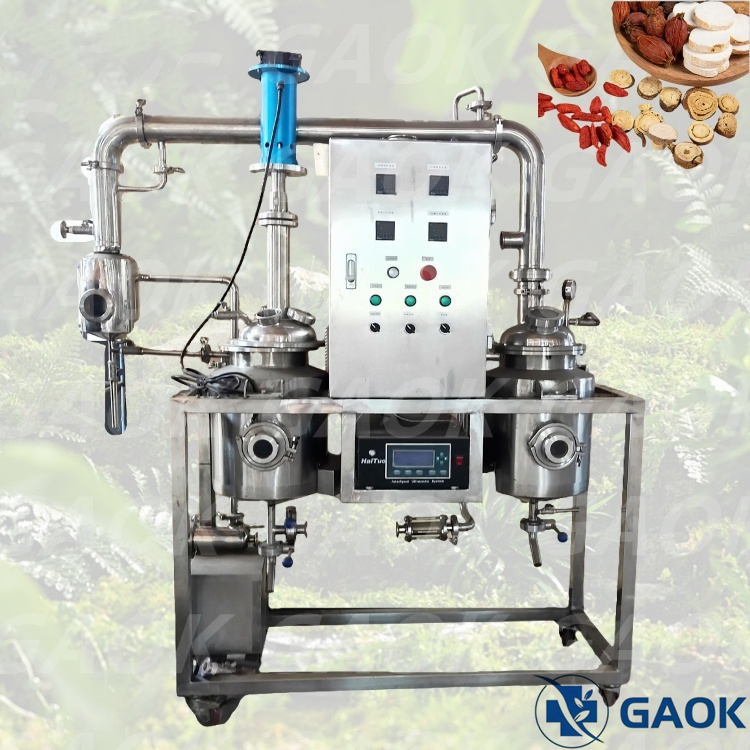

Advanced Ultrasonic Extraction and Cell Disruption Device

This equipment is suitable for normal pressure and temperature ultrasonic extraction, dynamic hot reflux extraction, and extraction by organic solvent recovery in traditional medicine, health products, biological, pharmaceutical, cosmetic, and food industries. It enables dynamically continuous ultrasonic extraction, making it ideal for universities, research institutes, R&D departments, and laboratories for small batch production.

Technology and Parameters

Model	GK-50	GK-100	GK -200	GK -300	GK -500
Volume (L)	50	100	200	300	500
Evaporation capacity (kg/h)	20	50	70	100	200
Motor power(KW)	2.7	2.7	2.7	3.5	3.5
Steam consumption(kg/h)	25	60	90	120	250
System vacuum (MPa)	-0.085	-0.085	-0.085	-0.085	-0.085
Pressure of jacket(MPa)	0.09~0.3	0.09~0.3	0.09~0.3	0.09~0.3	0.09~0.3
Evaporation temperature(°C)	50~90	50~90	50~90	50~90	50~90

* Customization is available according to specific requirements.

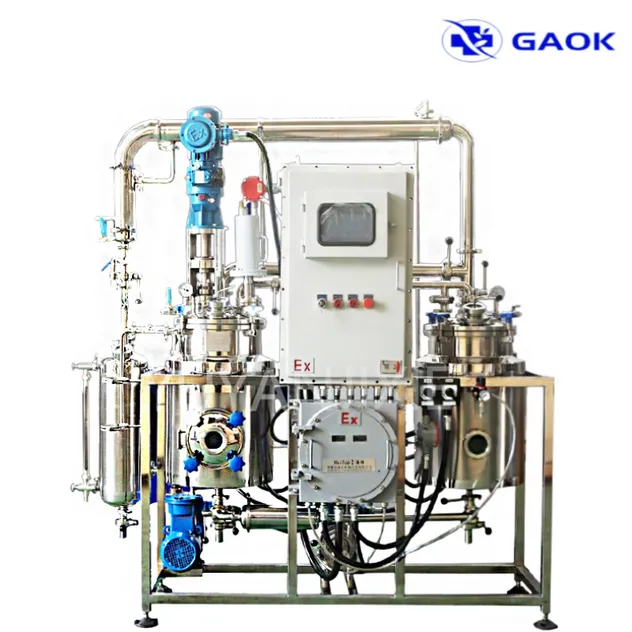

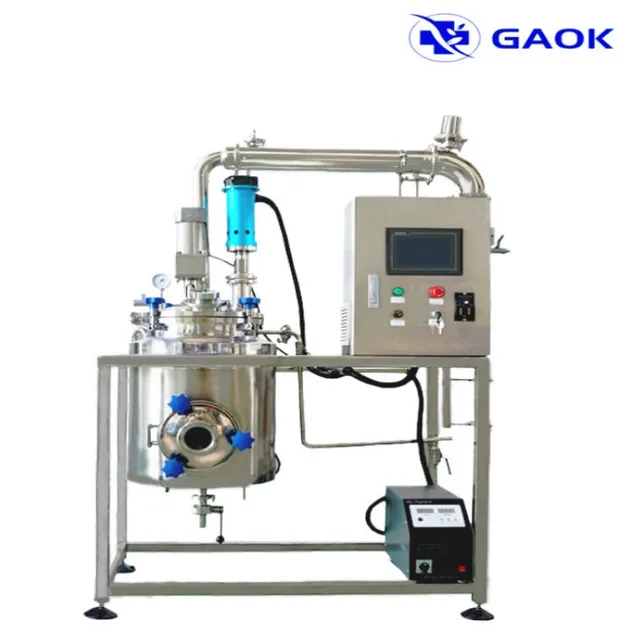

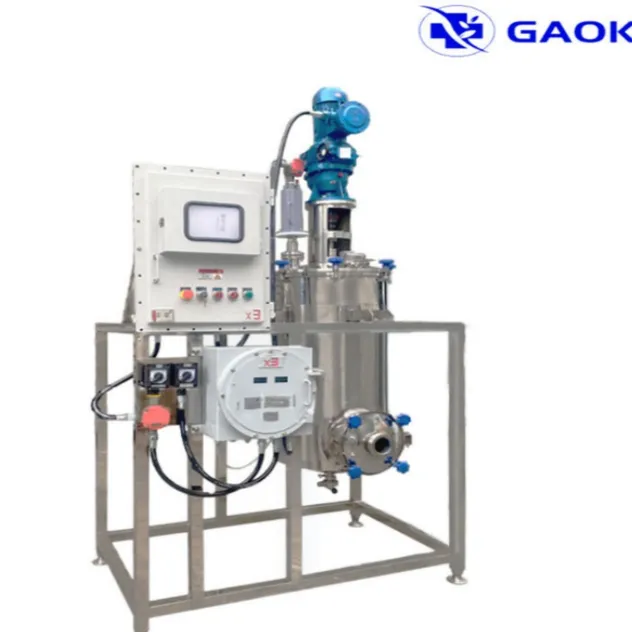

Detailed Specifications

Industrial Essential Oil Extraction Machine Advantages

Core parts constructed with Titanium materials.
Ultrasonic horn available in different sizes and types.
Digital generator with auto-tuning and auto search frequency.
Automatic alarm protection for safe and easy operation.
Adjustable power from 1% to 99%.
High amplitude stability for long working hours; radiation area increased by 2.5 times compared to traditional tools.
Custom sizes available for laboratory and high-volume industrial applications.

We provide comprehensive solutions including preprocess systems (dryer/grinder), coating machines, and packaging machines. Systems are compatible with volatile hydrocarbons (butane), alcohol, or CO2 (supercritical extraction) depending on investment cost and extract quality needs.

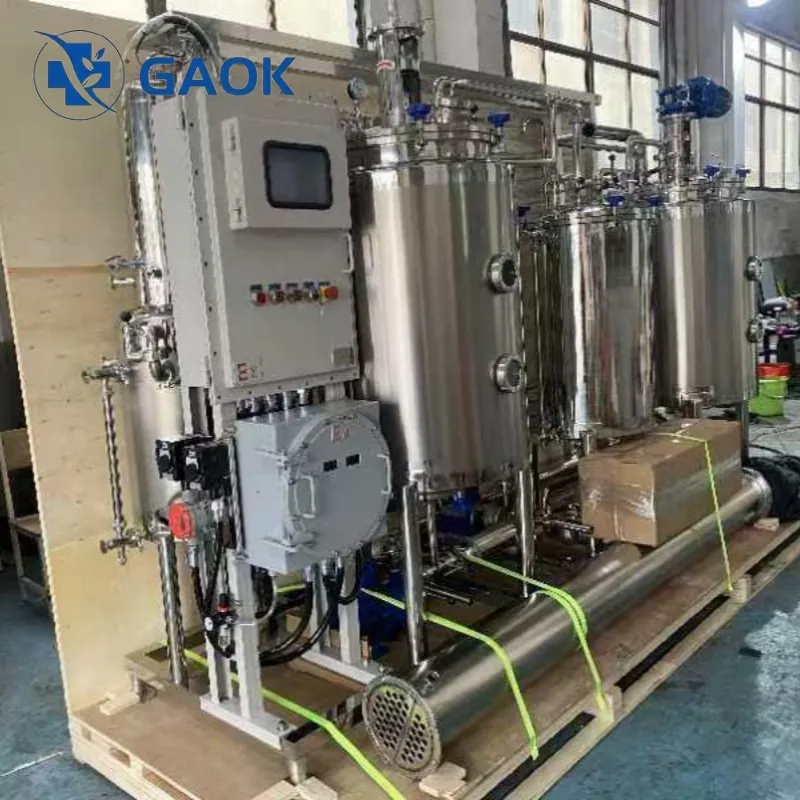

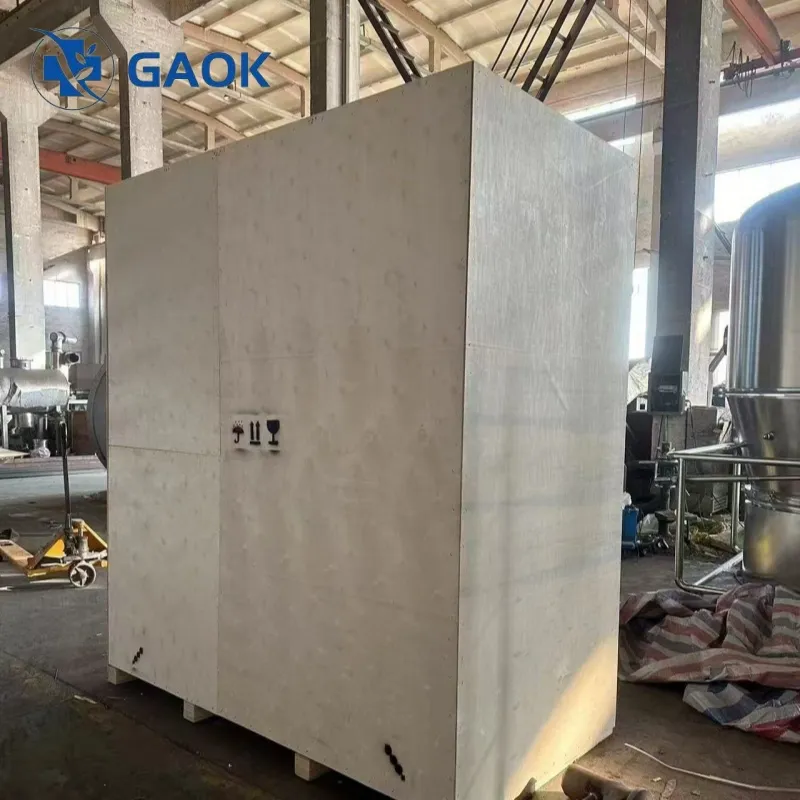

Packing & Delivery

Service Capabilities

Our expertise spans product design, manufacturing, engineering installation, and after-sales service. We strictly adhere to national equipment standards across pharmaceutical engineering, dairy, beverage, biological, chemical, and essential oil refining industries. We provide technical services including process design, plant layout, and turnkey engineering services for new construction or expansion projects.

Certifications

Frequently Asked Questions (FAQ)

1. What materials are used for the core components of the extraction machine?

The core parts are made using high-quality Titanium materials to ensure durability and efficiency during the ultrasonic process.

2. Can the ultrasonic power be adjusted during operation?

Yes, the power is fully adjustable from 1% to 99%, allowing for precise control depending on the specific material being processed.

3. Is this equipment suitable for laboratory use?

Absolutely. We offer custom sizes suitable for both laboratory research (small batches) and high-volume industrial applications.

4. What industries can benefit from this ultrasonic extraction device?

It is ideal for the traditional medicine, pharmaceutical, biological, health products, cosmetic, and food industries.

5. Does the machine include safety features?

Yes, the system is matched with a digital generator that features automatic tuning and frequency searching, along with an automatic alarm protection system.

6. What types of extraction processes can this machine perform?

The device supports normal pressure and temperature ultrasonic extraction, dynamic hot reflux extraction, and organic solvent recovery.
