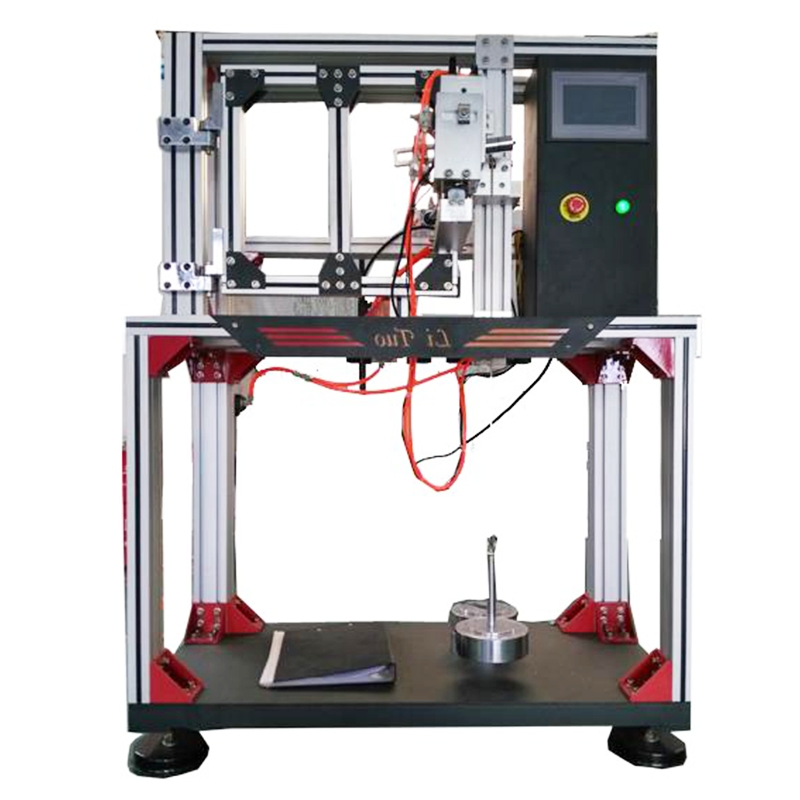

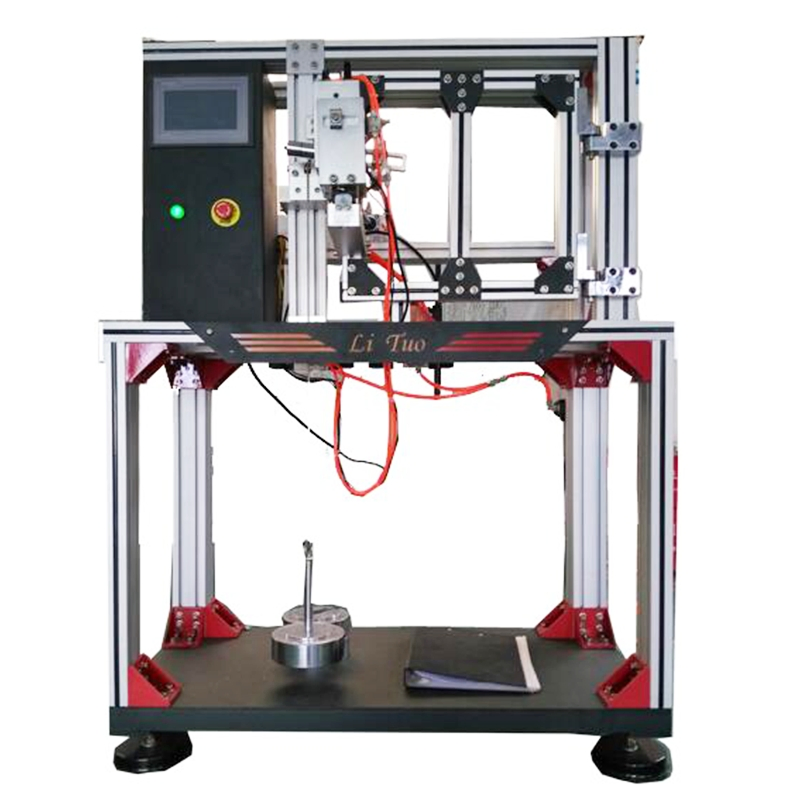

Essential for The Laboratory Spin Pressure Hand Holding Fatigue Testing Device

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

LT-JC06

Type

Universal Testing Machine

Max Capacity

70N

Accuracy Grade

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Power Source

AC220V

Control Mode

PLC + Touch Screen

Product Description

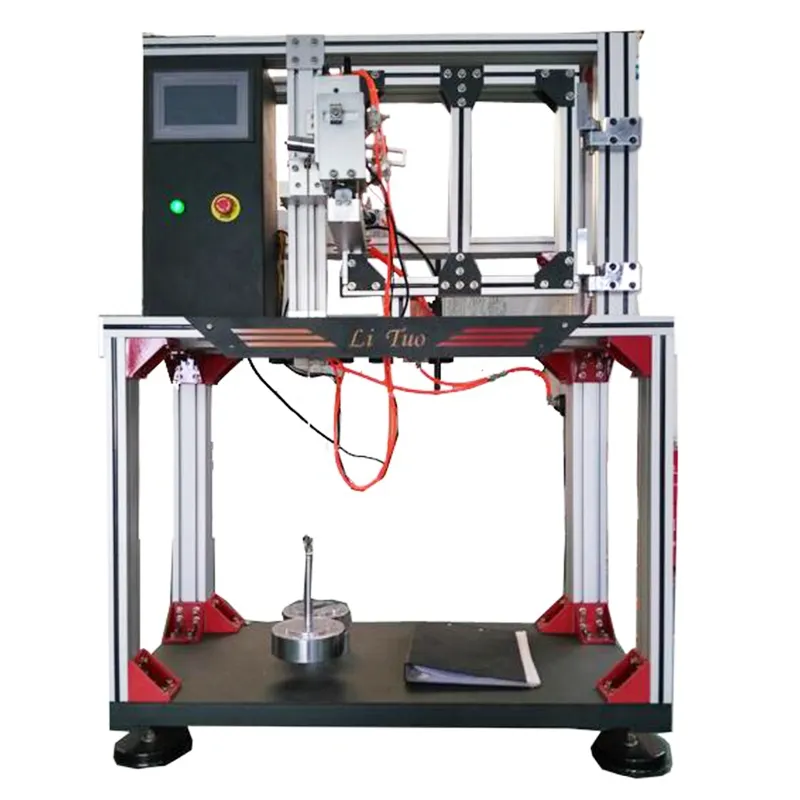

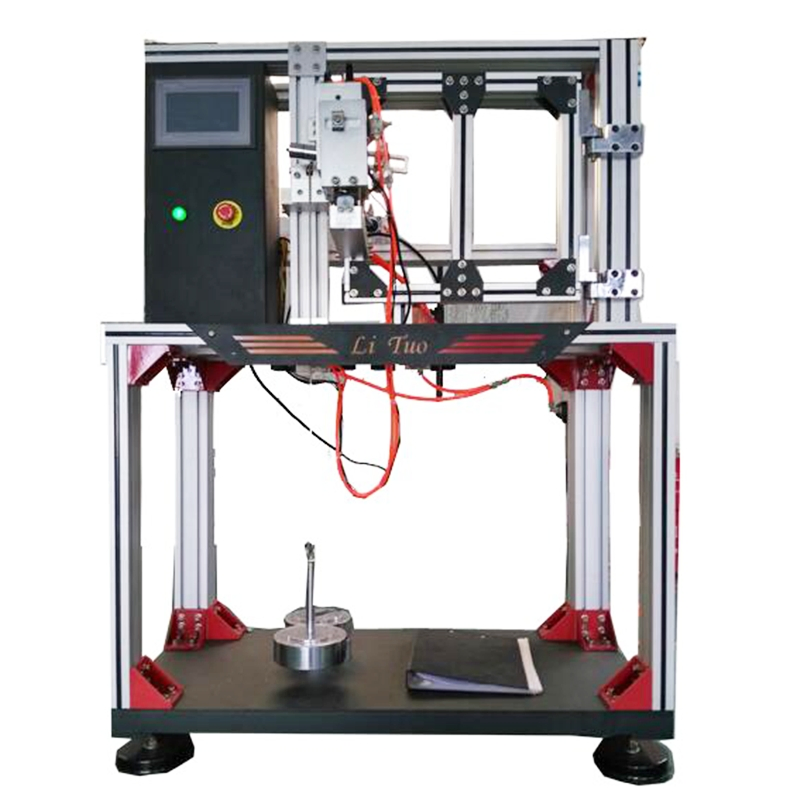

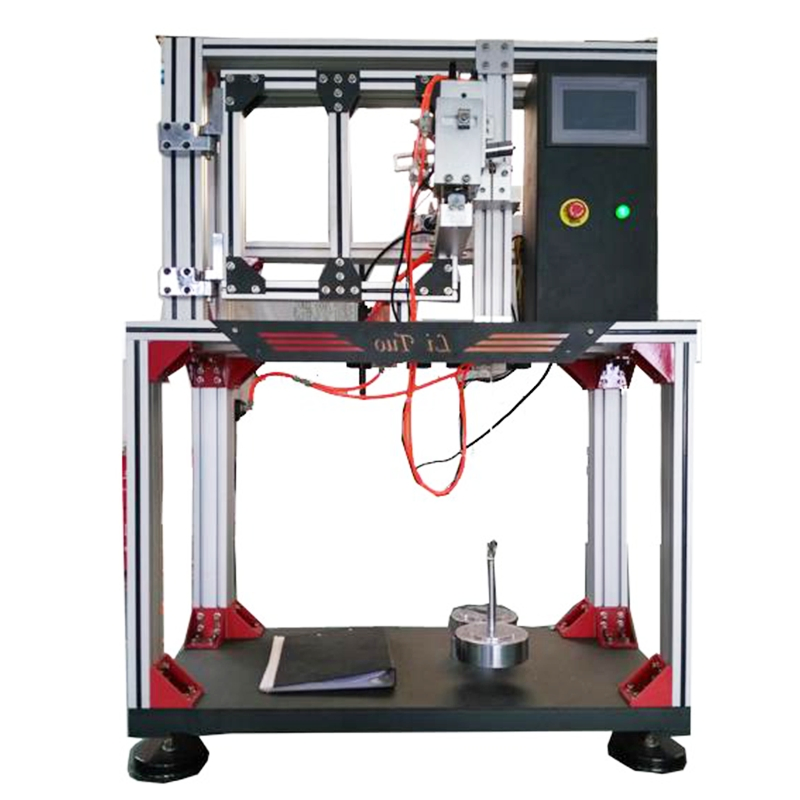

Rotary Pressure Holding Hand Fatigue Testing Machine

Technical Parameters

Structure: High-quality Aluminum Profile
Application: Suitable for Building Windows
Transmission: Rotating Cylinder + Push/Pull Cylinder
Torsion Angle: 0-180 Degrees (Adjustable)
Torsion Speed: 0-20 Times/Minute (Adjustable)
Standard Load: 70N
Control: PLC + Touch Screen Interface
Dimensions: 1.0m (L) * 0.5m (W) * 1.0m (H)
Power: AC220V, 50 HZ

Test Methods

4.4.4 Repeated Opening and Closing: After 15,000 cycles, the rotation position change must not exceed 0.5 mm.

5.5.4 Operating State: Install the rotary handle and mating block on the test simulation window. Apply a force F of 70 + 8N in the opening direction of the handle while the sash is closed.

Compliance Standards

Category	Standard Name	Model Clauses
Window Hardware	JG/T 213-2007	4.4.4 Repeated opening and closing
Window Hardware	JG/T 213-2007	5.5.4 Repeated opening and closing

Product Display

Frequently Asked Questions

What is the primary application for this testing machine?

The LT-JC06 is specifically designed to test the fatigue and durability of rotary pressure holding handles used in building door and window hardware.

What testing standards does the machine follow?

This equipment fully complies with the JG/T 213-2007 standard for building hardware, specifically focusing on repeated opening and closing durability.

Is the torsion angle and speed customizable during tests?

Yes, the torsion angle is adjustable from 0 to 180 degrees, and the testing speed can be set between 0 and 20 cycles per minute via the PLC interface.

What is the maximum cycle limit for fatigue testing?

The system is designed for long-term testing, with standard procedures typically involving 15,000 cycles of repeated opening and closing.

How is the machine controlled and data displayed?

The machine uses a PLC control system paired with a high-definition touch screen for digital display and easy parameter adjustment.

What are the power requirements for installation?

The machine requires a standard power source of AC220V at 50HZ for stable operation in a laboratory environment.
