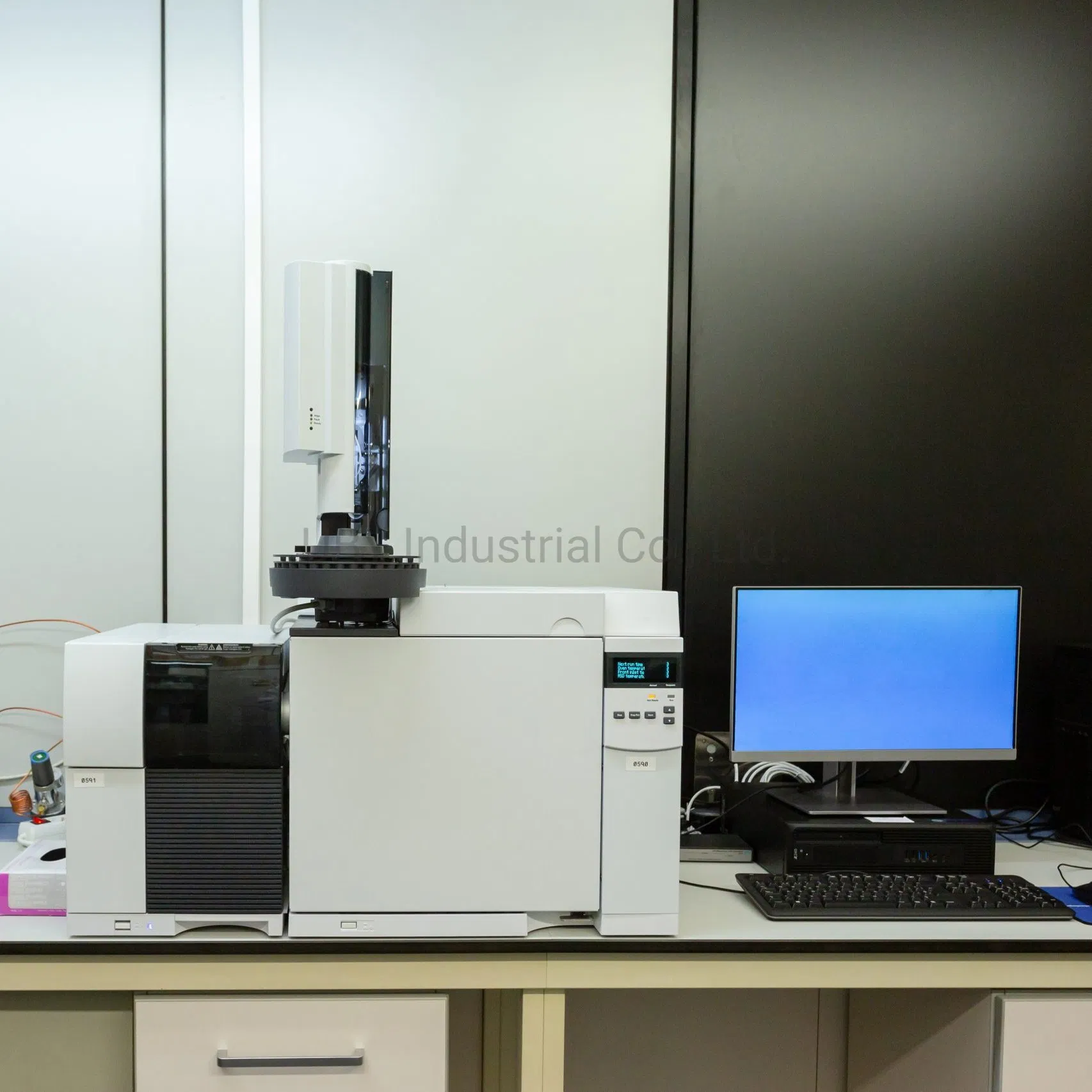

Laboratory Gc Machine Gas Chromatography Instrument Gas Chromatography Device

Customization:	Available
After-sales Service:	One Year Warranty, Lifetime Maintenance
Warranty:	220V

Basic Specifications

Model NO. UP-5023

Transport Package Professional Export Packaging

Origin China

Production Capacity 1000/Year

Product Description

Laboratory GC Machine Gas Chromatography Instrument is designed for the quantitative analysis and peculiar smell testing for residual solvent on food packaging cases after printing. It is an essential device to test the purity and quality of organic solvents.

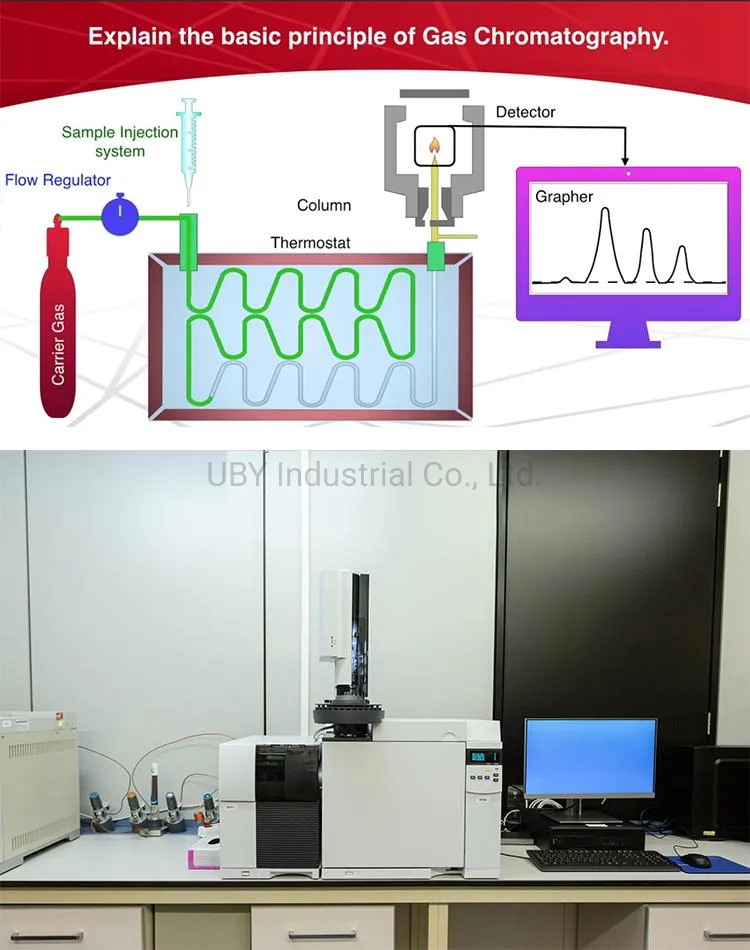

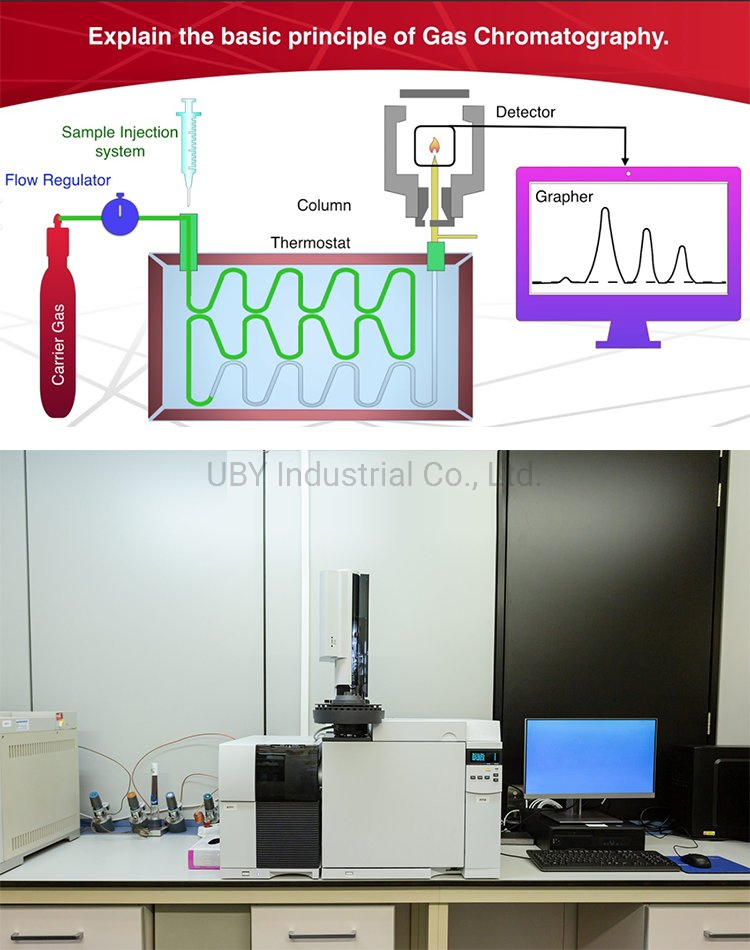

Gas chromatography (GC) is a common type of chromatography used in analytical chemistry for separating and analyzing compounds that can be vaporized without decomposition. It is typically used for testing substance purity or separating mixture components.

Design Standards: GB/T10004-2008, YBB00132002

Key Characteristics

Economic and efficient with high function ratio.

Cellular integral structure for easy installation.

Connects to chromatogram data workstations for efficiency.

Equipped with FID detector and flexible injection ports.

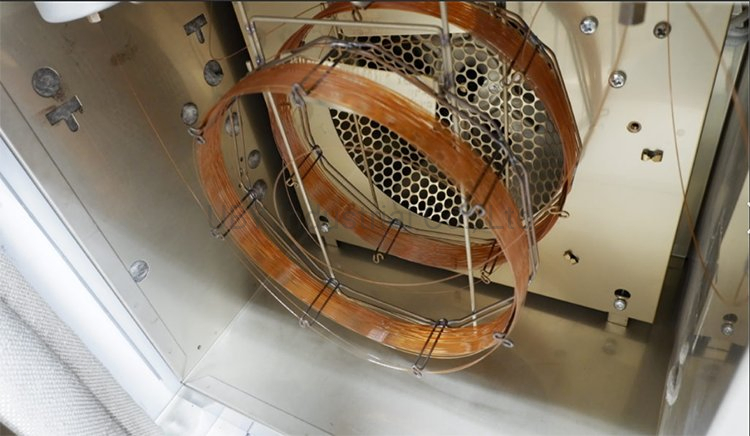

Wide column box (300×300×200mm) for various columns.

Advanced noise suppression for a quiet work environment.

Rapid vaporizing and column sample injection modes.

New type pressure regulation system for high re-productivity.

Optional reforming furnace for CO and CO2 microanalysis.

Microcomputer control with man-machine conversation interface.

Eight-step temperature rise control (room temp +10°C to 400°C).

Temperature control precision reaches 0.1%.

Technical Parameters

Detector / Parameter Type	Technical Specifications
Thermal conductivity detector (TCD)	S≥5000mv.ml/mg (benzene)
Electron capture detector (ECD)	M≤2×10-13g/ml (r-666)
Flame-photometric detector (FPD)	Ms≤5×10-11g/sec (thiophene) / Mp≤1×10-11g/sec (1605)
Nitrogen and phosphorous detector (NPD)	Mn: 1×10-13g/sec / Mp: 1×10-13g/sec
Temperature Range	10 ~ 400°C
Temperature Precision	≤0.1°C
Temperature Rise Speed	0.1 ~ 40°C/min
Hydrogen flame ionization detector	M≤1×10-11 G/S

Product Showcase

Our Professional Service

01 Inquiry & Consultation

Discussing testing requirements and technical details to suggest the most suitable product configuration.

02 Customization & Confirmation

Providing related drawings and reference photos for customized requirements to confirm final solutions.

03 Production & Quality Control

Strict production according to PO requirements with factory or third-party calibration before packing.

04 After-Sales Support

Defining installation procedures and providing continuous technical support and field maintenance.

Frequently Asked Questions

1. What is the primary application of this GC machine?

It is primarily used for quantitative analysis and smell testing of residual solvents in food packaging and testing the purity of organic solvents.

2. Does the equipment come with a warranty?

Yes, every machine includes a 12-month warranty after shipment. We provide free maintenance during this period and can extend it by 2 months for sea transport needs.

3. What is the typical delivery timeframe?

Standard machines in stock ship within 3-7 working days. If out of stock, production typically takes 15-20 working days after payment.

4. Can the machine be customized with specific logos?

Yes, we offer OEM and ODM services, allowing for hardware customization and logo placement based on your requirements.

5. How is installation handled for new users?

Most machines ship fully assembled. We provide English operation manuals and videos via email. On-site installation assistance is also available if required.

6. What detectors are compatible with this system?

The system supports multiple detectors including FID (Flame Ionization), TCD (Thermal Conductivity), ECD (Electron Capture), FPD (Flame-Photometric), and NPD (Nitrogen Phosphorous).
