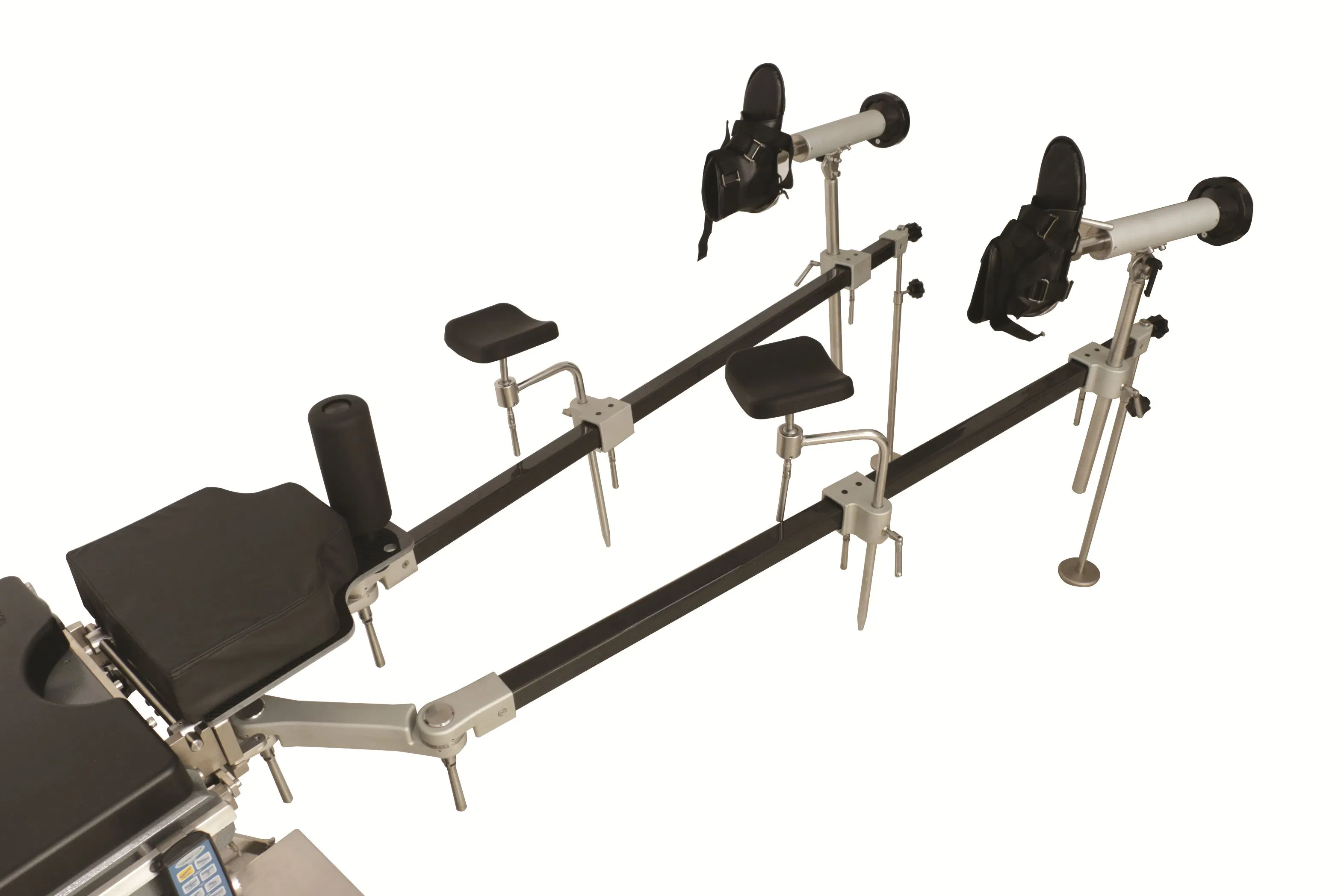

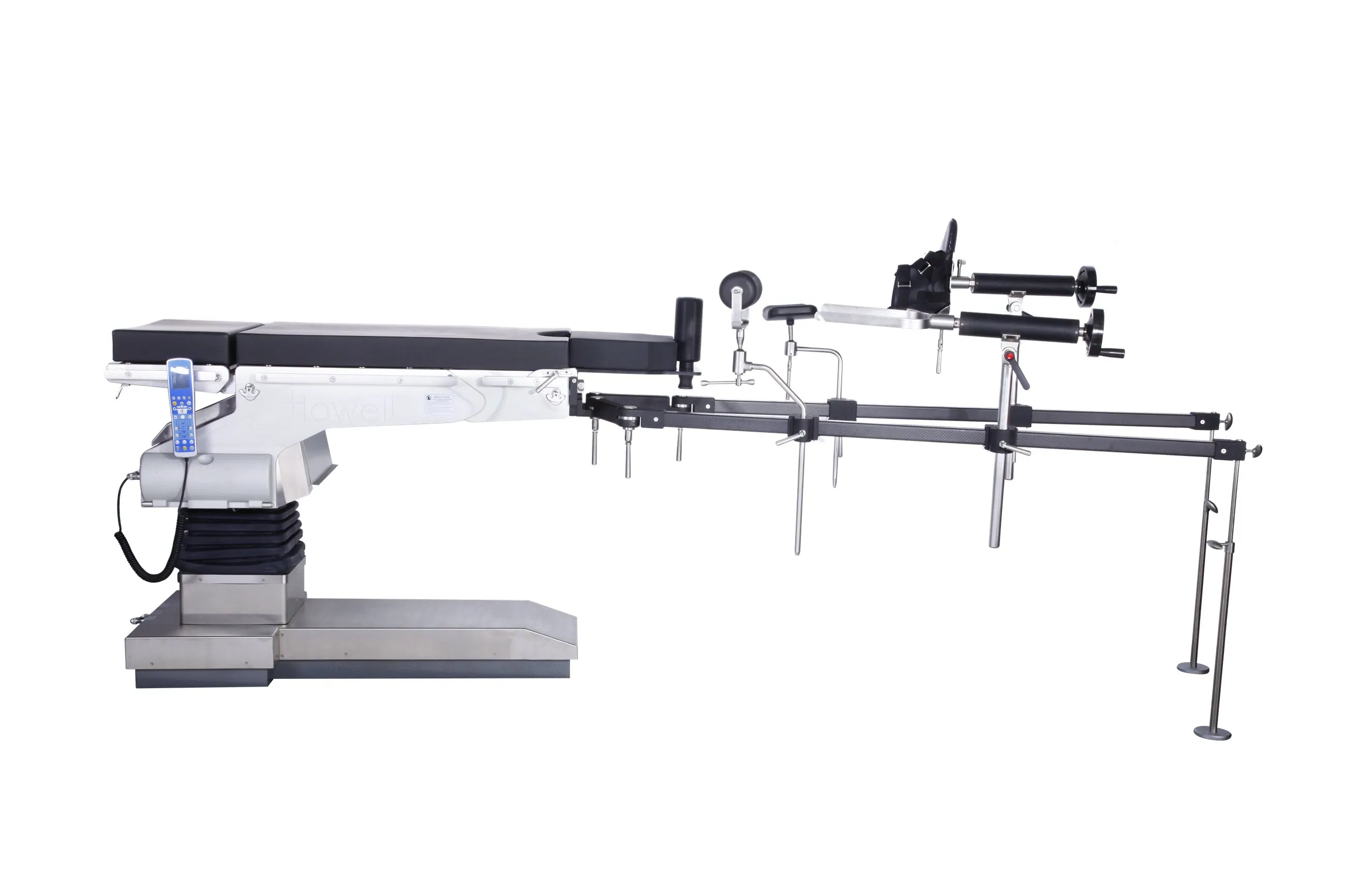

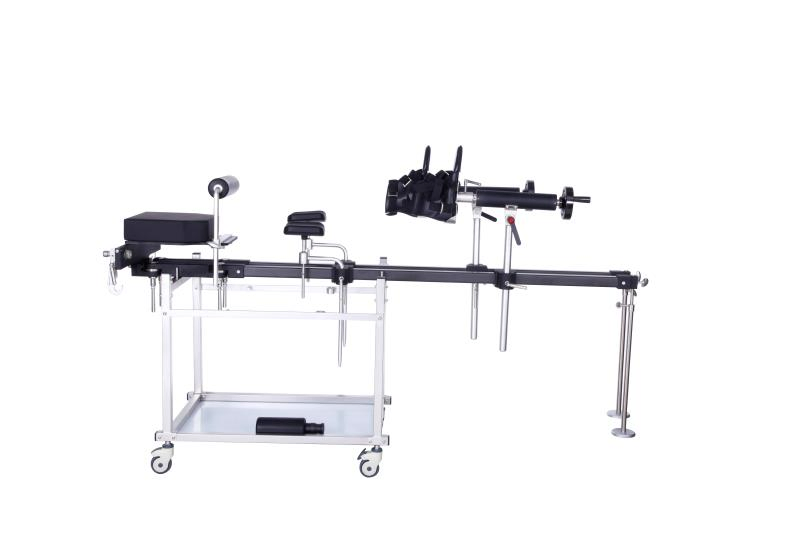

Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
1 / 5
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction
Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction

Medical Apparatus Carbon Fiber Orthopedic Traction Device for Hip Arthroscopy Lower Limb Traction

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📊

Basic Information

Model NO.
HE-F-07
Certification
ISO13485, ISO
Group
Adult
MOQ
1 Set
C Arm Compatible
Yes
Material
Carbon Fiber
Loading Capacity
150kg
Warranty
1 Year
Application
Hospital
HS Code
9402900000
🛠️

Product Description

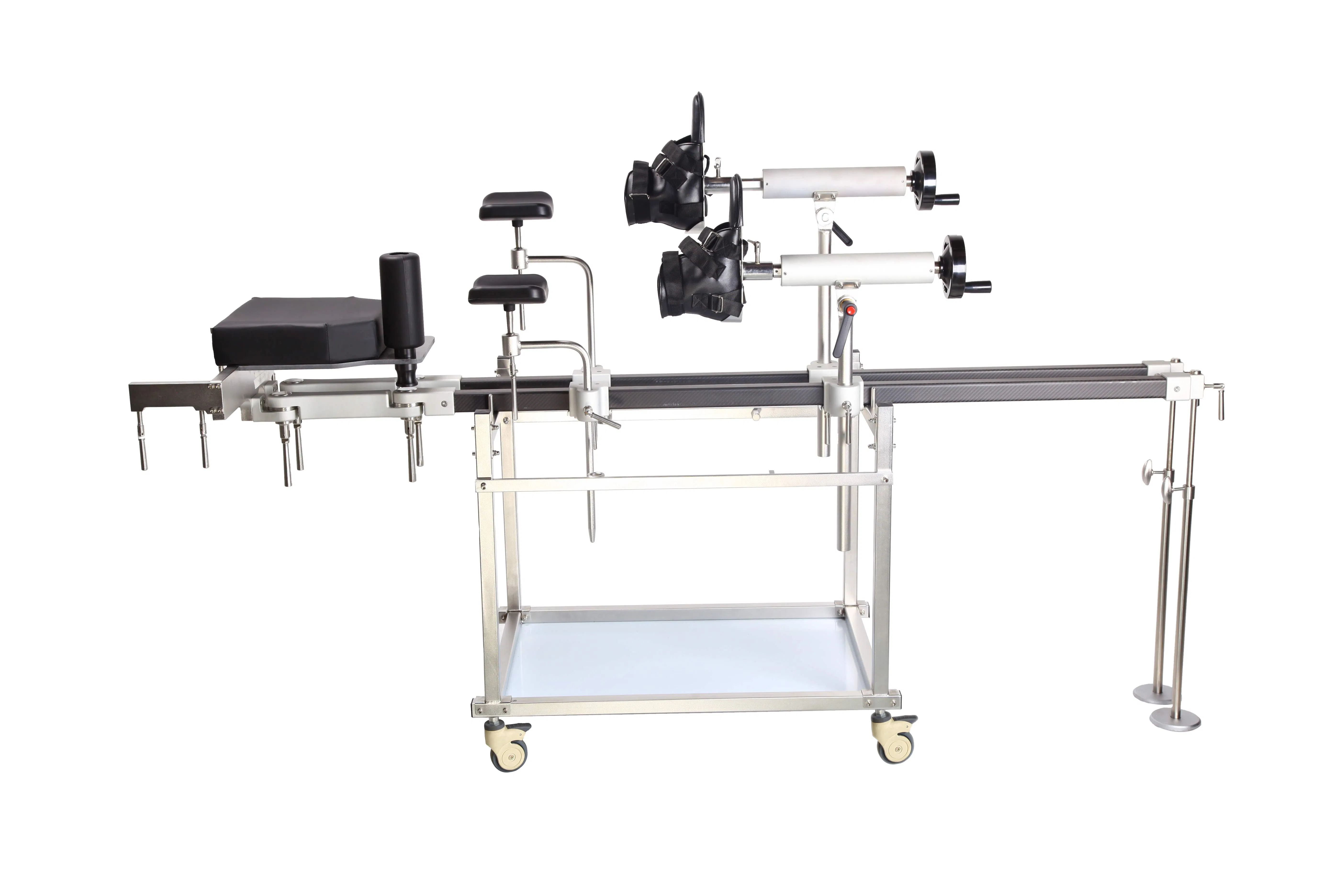

Radiolucent Orthopedic Surgery Traction Frame

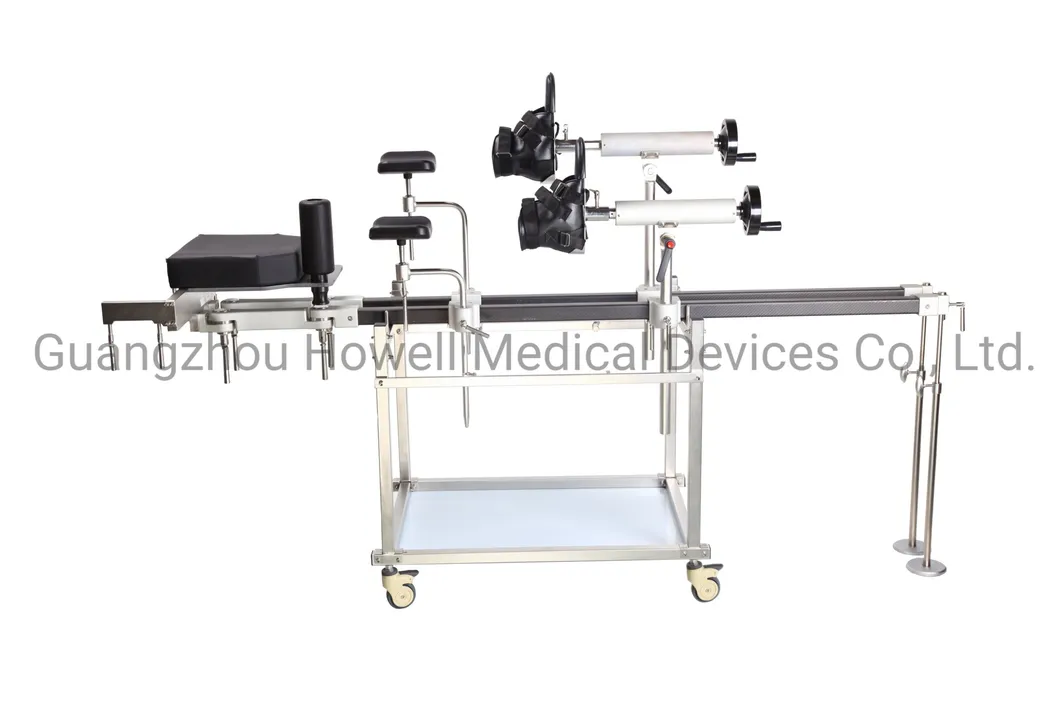

Orthopedic Traction Device

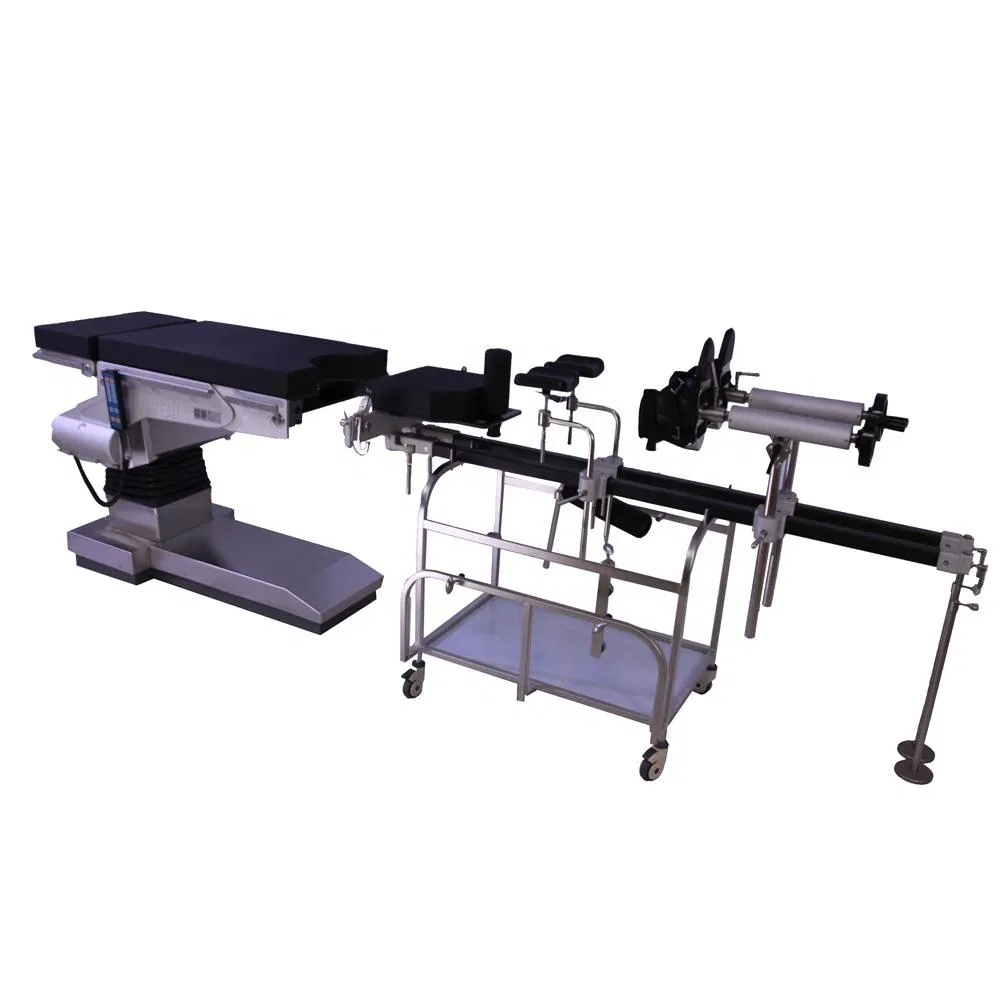

Docking-type Traction Frame

This traction frame is designed for orthopedic and trauma surgery with a quick installation function. It is fully compatible with C-arm and X-ray machines to achieve unobstructed fluoroscopy. The two-joint design allows for outward unfolding and inward folding at any appropriate angle to meet specific surgical positioning requirements.

Advantages and Characteristics

  • Carbon Fiber Material: Both arms feature retractable carbon fiber material for optimal radiolucency.
  • Versatile Pelvic Frame: Features three optional insertion positions (left, middle, right) to avoid obstruction during hip joint fluoroscopy.
  • Adjustable Height: Ascending and descending stroke of 30 cm to adapt to patients of different sizes.
  • Mobility: Equipped with universal brake wheels for easy relocation and stable positioning.
  • Wide Range of Applications: Ideal for Hip X-ray, Femoral Plate Surgery, Intramedullary Nail Surgery, Tibial/Fibular surgery, and Total Hip Replacement.

Technical Parameters

Length
1750±30mm
Outreach Width
120mm-750mm
Max Bearing Capacity
160kg
Max Traction Force
400N
Traction Stroke
200mm
Boot Rotation
360°
📷

Detailed Photos

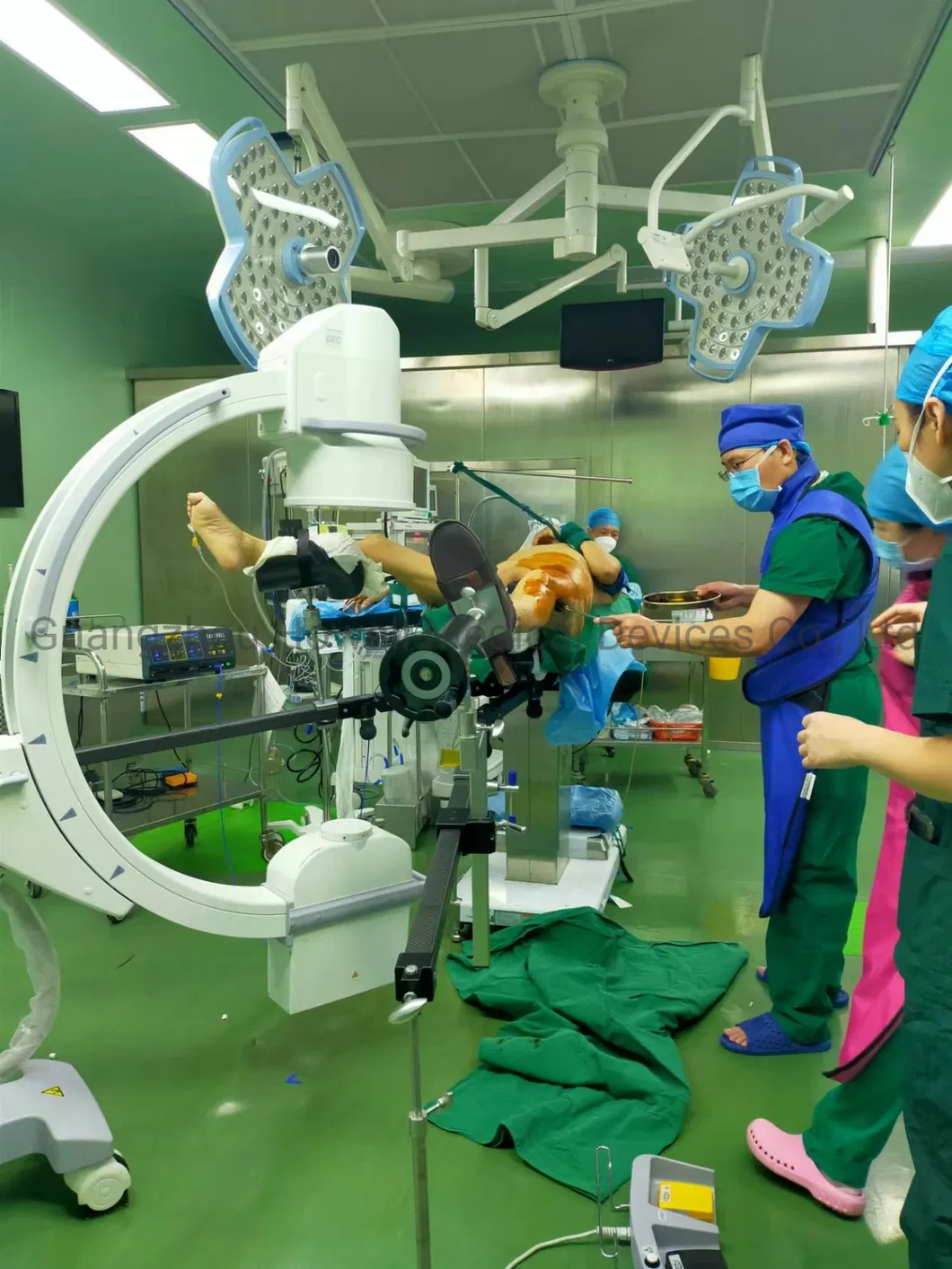

Detail 1
Detail 2
Detail 3
Detail 4
📜

Certifications & Packing

Certifications
Packing
💬

Frequently Asked Questions

What materials are used for the traction arms?
The traction arms are made of high-quality carbon fiber material, which ensures excellent radiolucency for clear imaging during surgery.
Is this equipment compatible with imaging devices?
Yes, the design allows for full compatibility with C-arm and X-ray machines, providing unobstructed fluoroscopy views during orthopedic procedures.
What is the maximum load capacity of the traction frame?
The equipment supports a highest bearing capacity of 160kg, making it suitable for a wide range of adult patients.
Can the traction frame be adjusted for different angles?
Absolutely. The traction frame can be folded outward and inward at any appropriate angle, and the traction boots can rotate 360° to meet specific surgical needs.
How is the quality of the product guaranteed?
We maintain strict quality control through pre-production samples and a final inspection before every shipment to ensure international medical standards are met.
What types of surgery is this frame suitable for?
It is ideal for various orthopedic lower extremity surgeries, including hip replacements, femoral plate surgery, and tibial or fibular traction.
