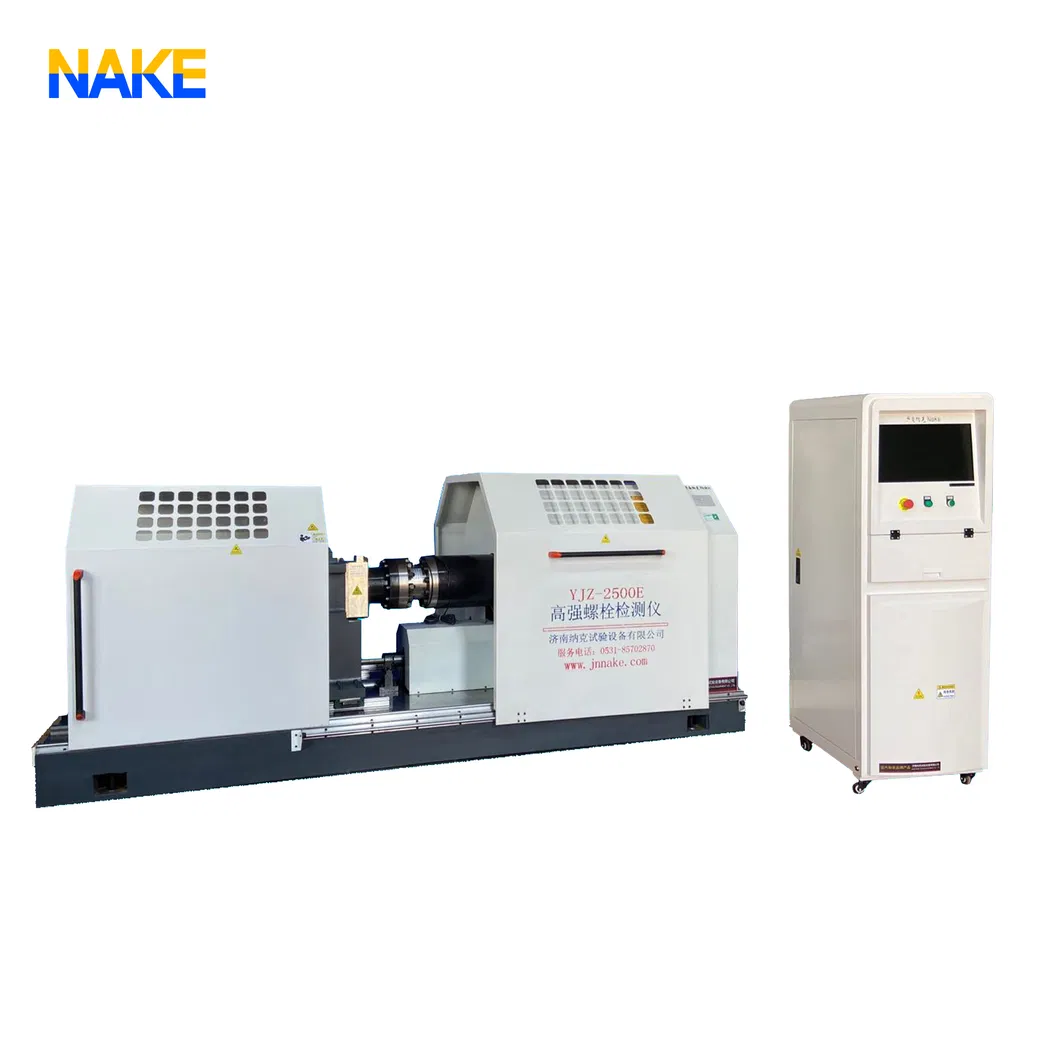

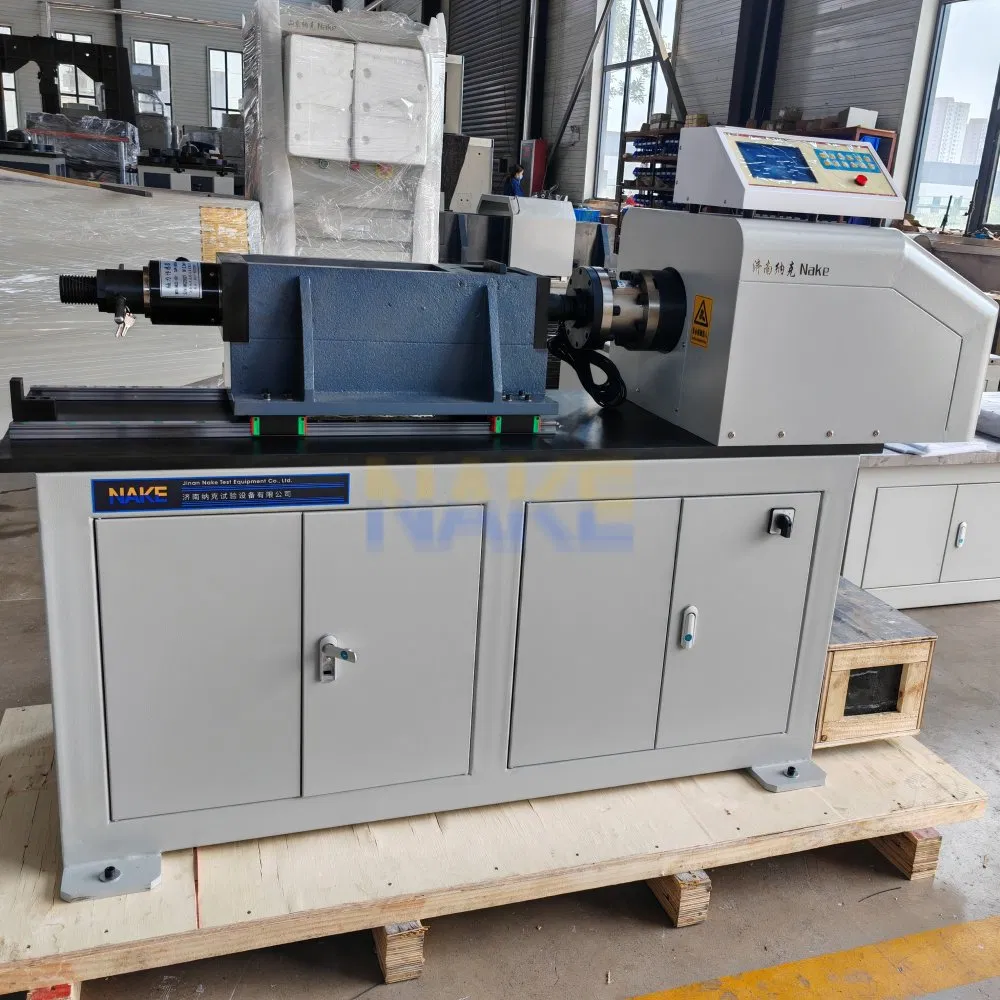

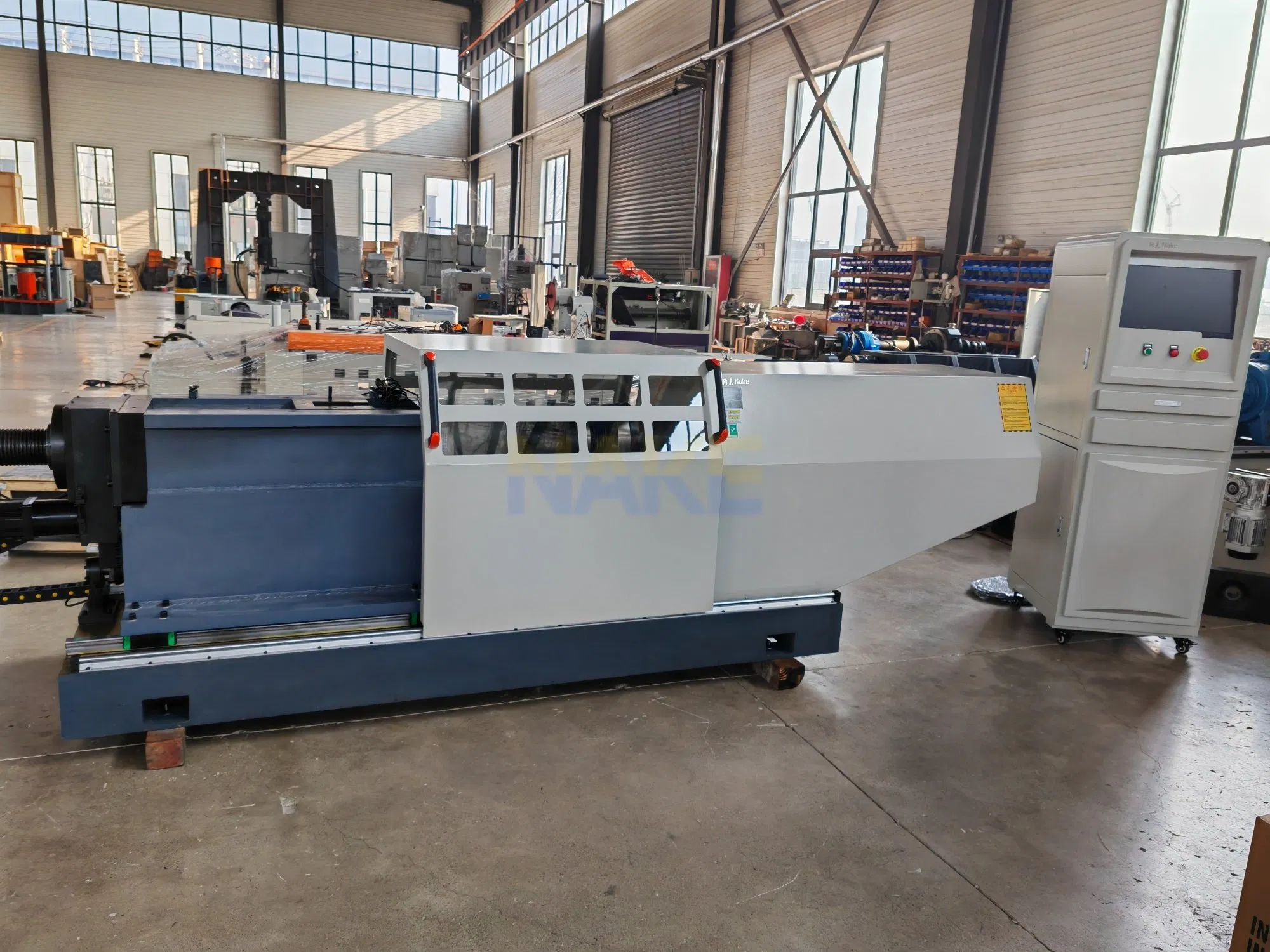

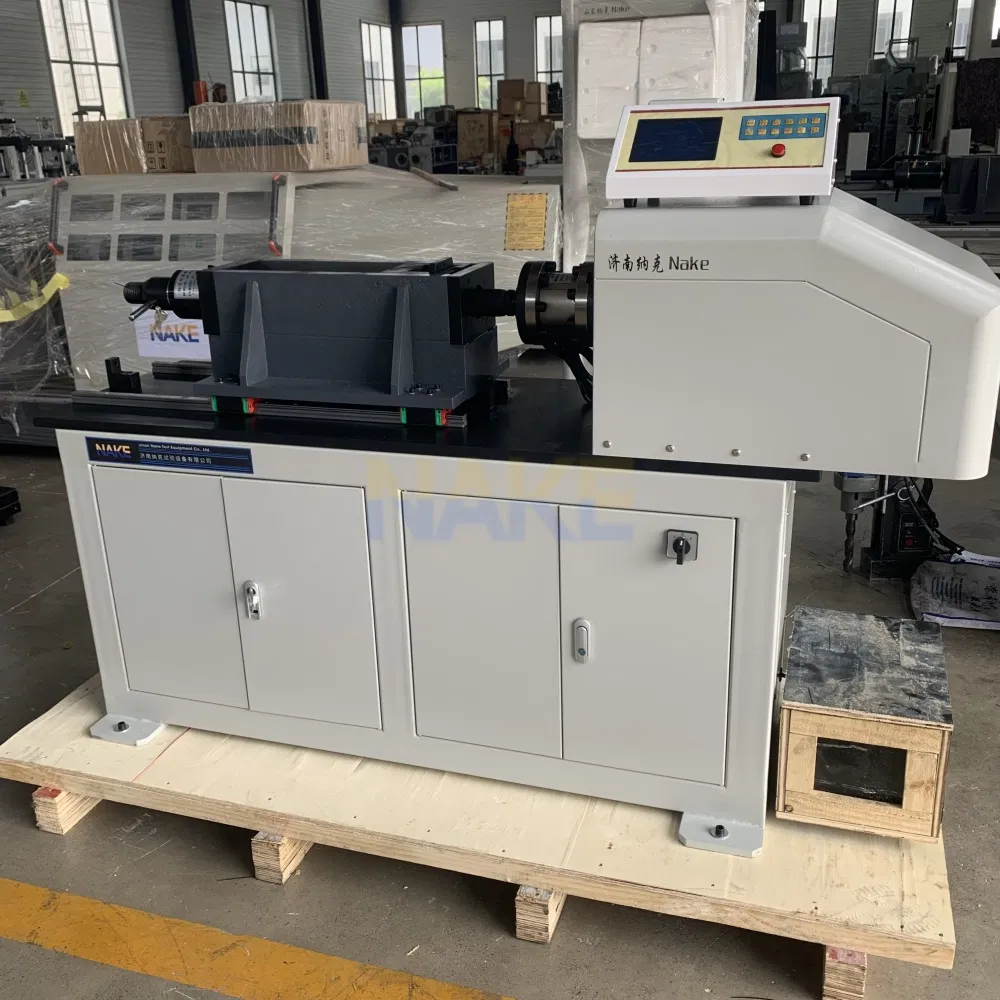

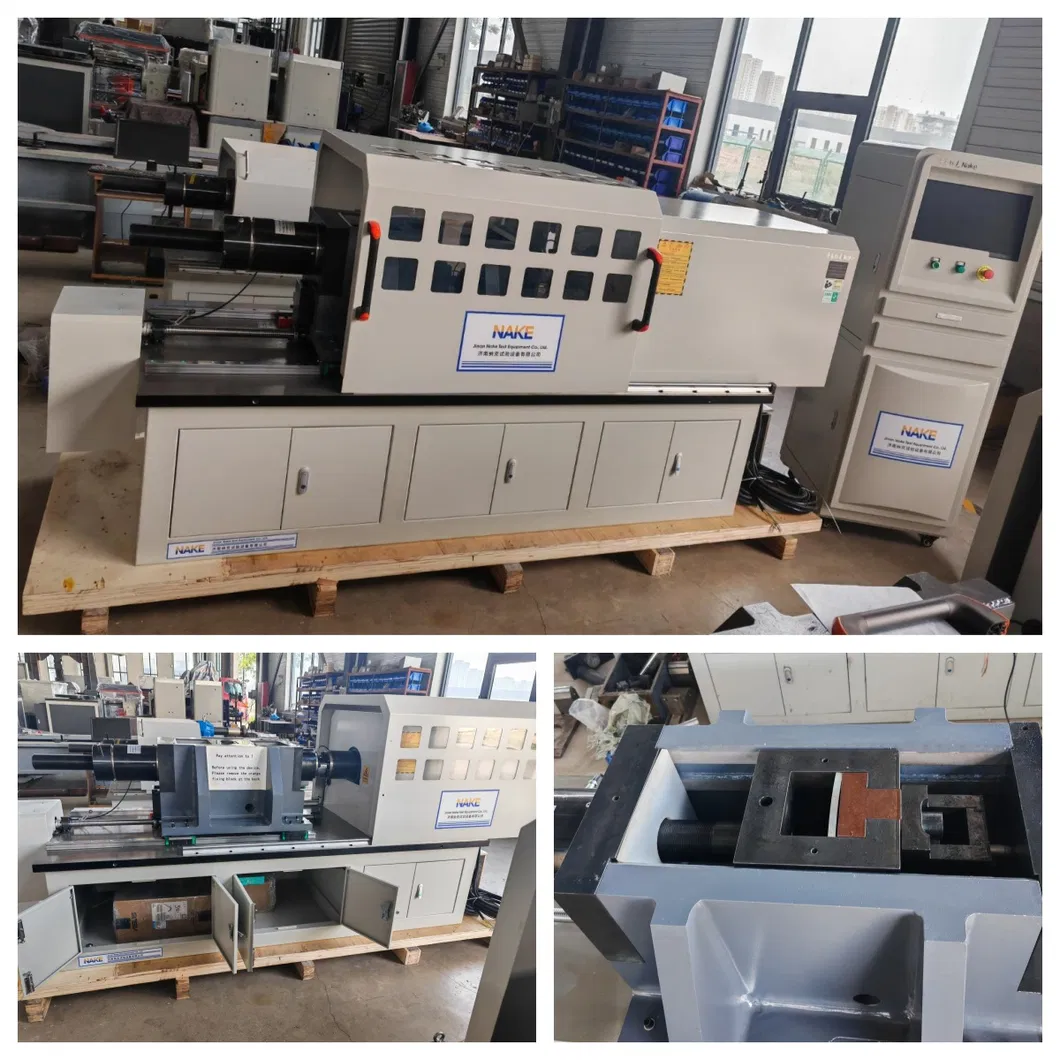

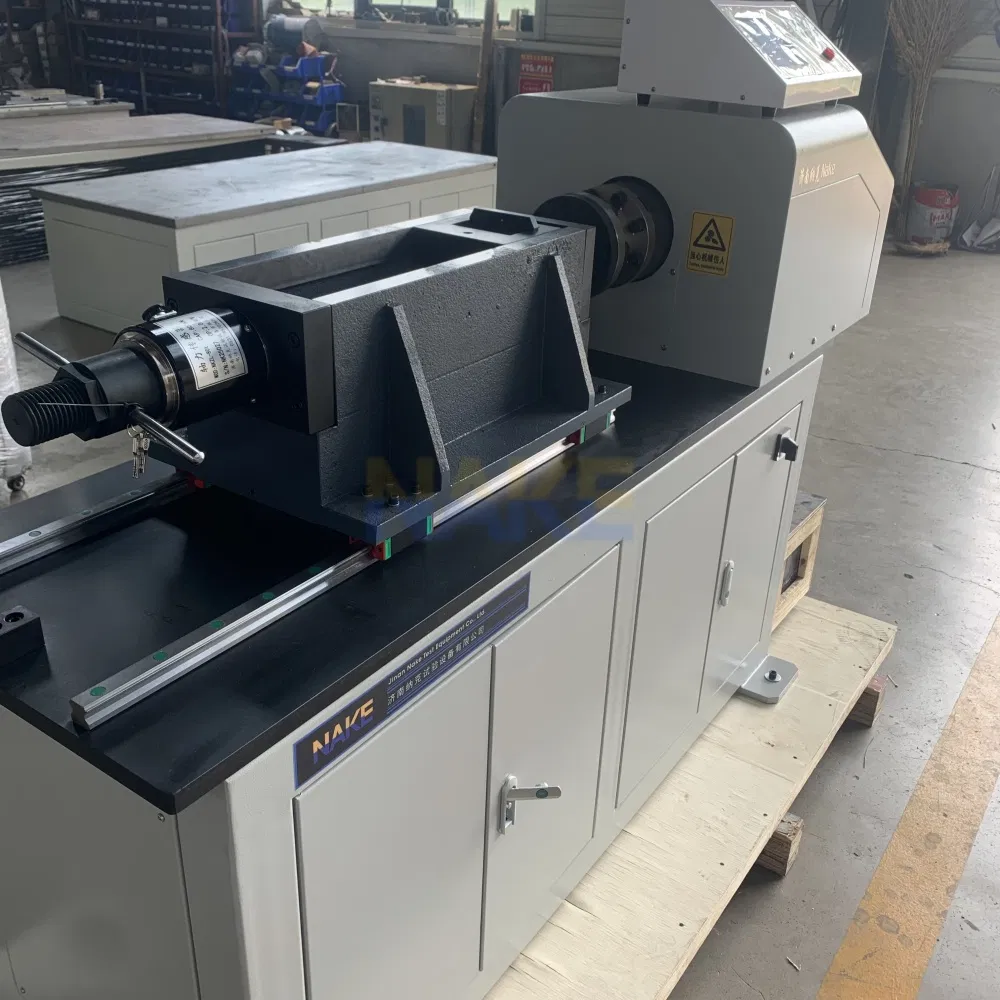

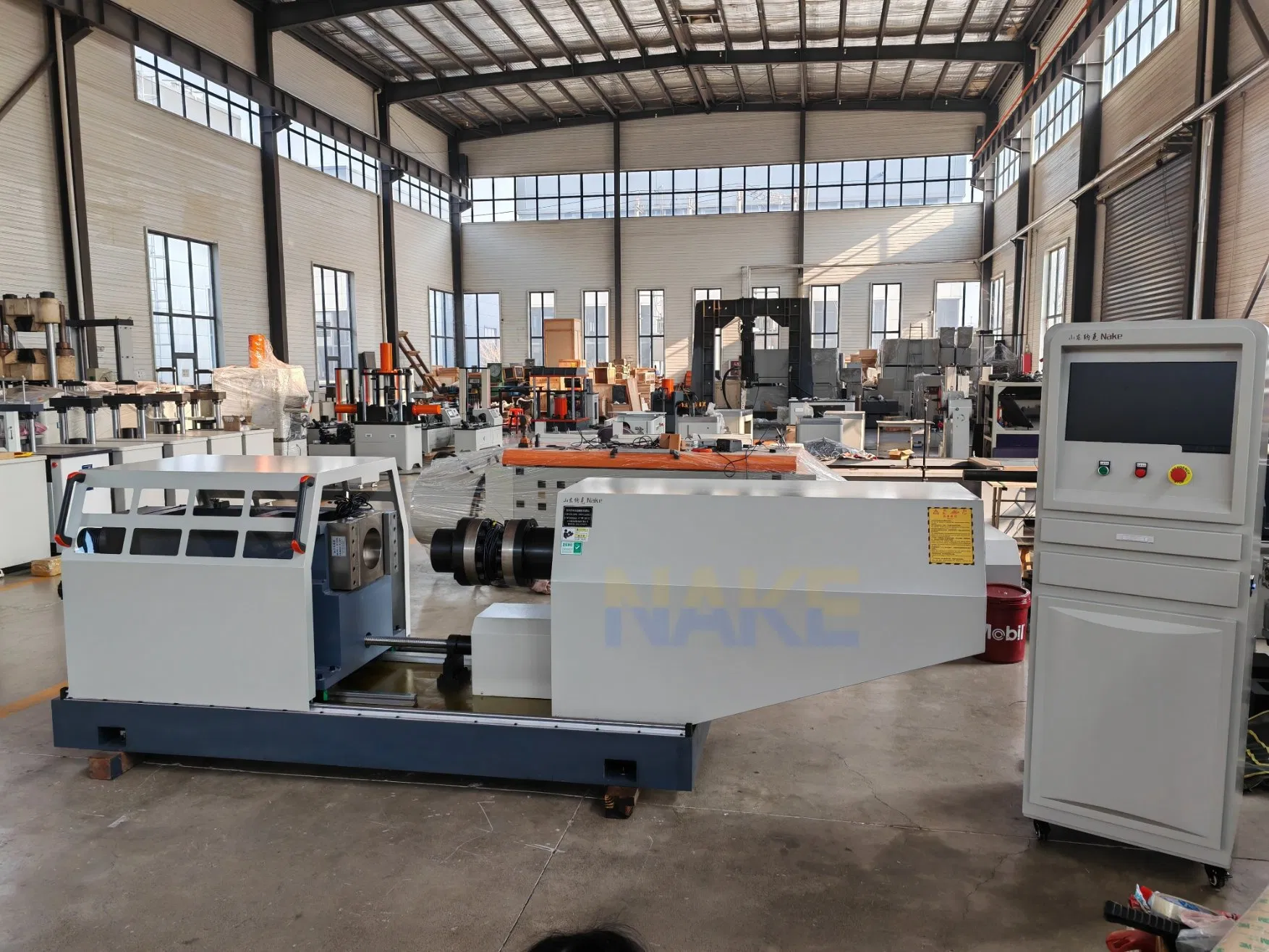

Computer Controlled High Strength Bolt Torque Axial Force Torsion Testing Machine

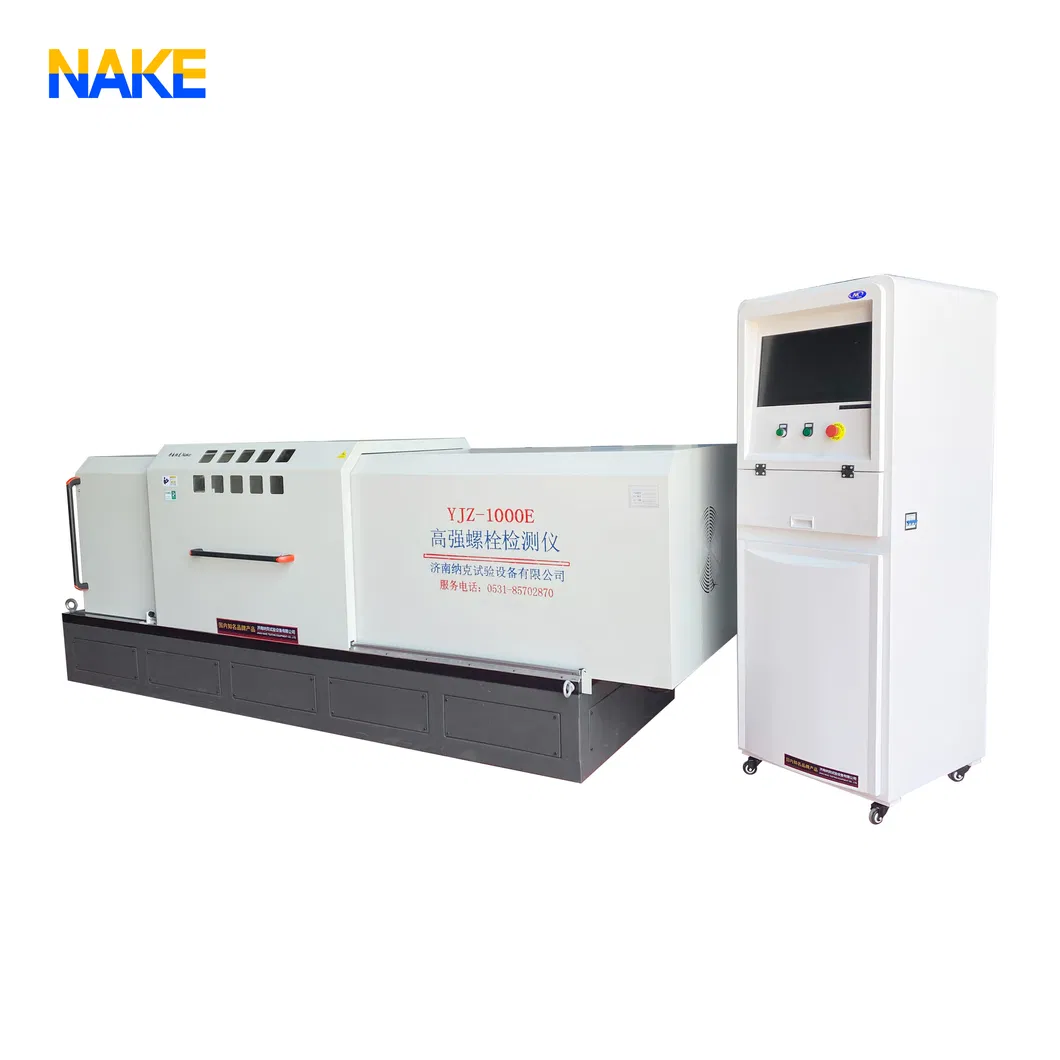

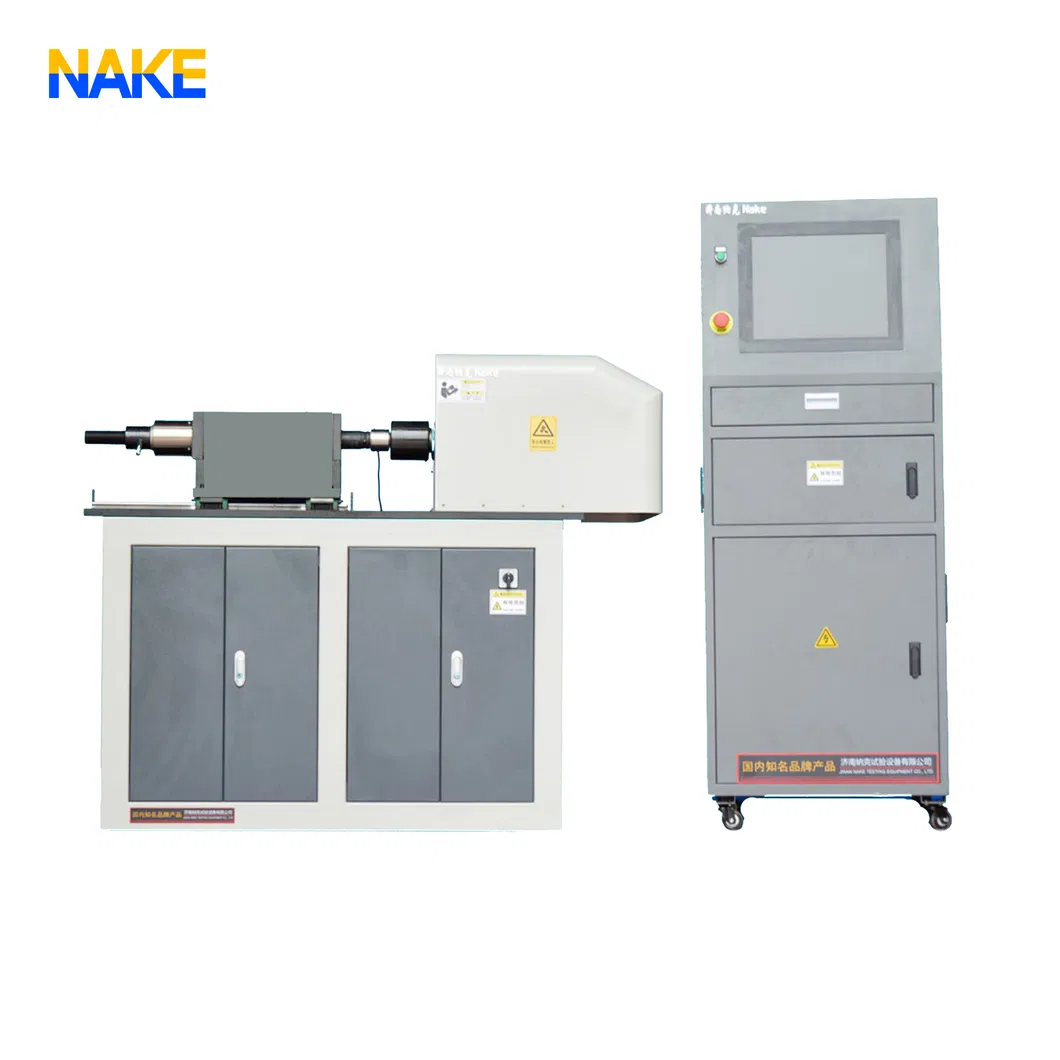

YJZ1000E Bolt Testing Machine
The main purpose is to test the axial force, torque, and torque coefficient of large hexagon head high-strength bolt assemblies (M10-M39). The instrument displays and prints the results. When the axial force reaches the standard value, the instrument will emit a beep and record the peak value. After holding for one second, it will automatically reverse to release the sample. The instrument automatically calculates and displays the torque coefficient based on the detected axial force and torque.
| Item | Specification |
|---|---|
| Power Supply | Three-phase four-wire system, AC 415V |
| Servo Motor Power | 7.5 kW |
| Output Speed | 0-4.0 r/min |
| Axial Force Detection Range | 100-1000 kN |
| Torque Detection Range | 150-7500 Nm |
| Bolt Specifications | M12, M14 to M36 |
| Bolt Length | 30-350 mm (≥2.5d) |
| Test Accuracy | Axial Force: ±1.0%, Torque: ±1.0% |

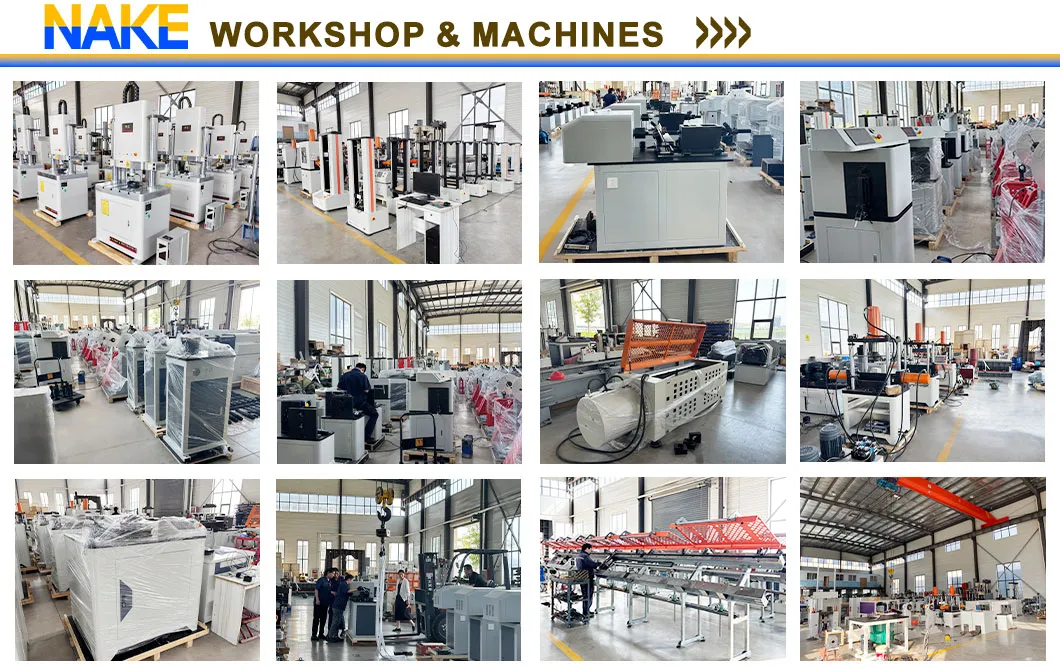

As a leading manufacturer of testing equipment with over 20 years of industry expertise, our group is supported by a dedicated team of more than 20 R&D specialists, over 50 highly skilled production personnel, and a professional after-sales service team. Our state-of-the-art manufacturing and office facilities span over 4,000 square meters, and we are proudly certified as a National High-Tech Enterprise.
With an ISO 9001:2015-certified quality management system, we ensure stringent control over every stage of production. Over the past five years, we have consistently delivered an on-time shipment rate exceeding 98.2%, a product failure rate below 0.3%, and a rework rate under 0.28%.
