Electrica Lab Equipment Electrical Motor Disassembly and Maintenance Skills Training Device

Customization:	Available
Warranty:	1 Year
Condition:	New

Send Inquiry

Product Description

Basic Information

Model NO.

GTET-1011

Customized

Certification

ISO9001, ISO45001, ISO14001

Power Supply

Three Phase, AC380V/50Hz

Dimension

1500*700*1700mm

Weight

About 150kg

Capacity

1000 sets/Month

HS Code

90230000

Product Description

Educational Equipment Electrical Motor Disassembly and Maintenance Skills Training Device
PN: GTET-1011

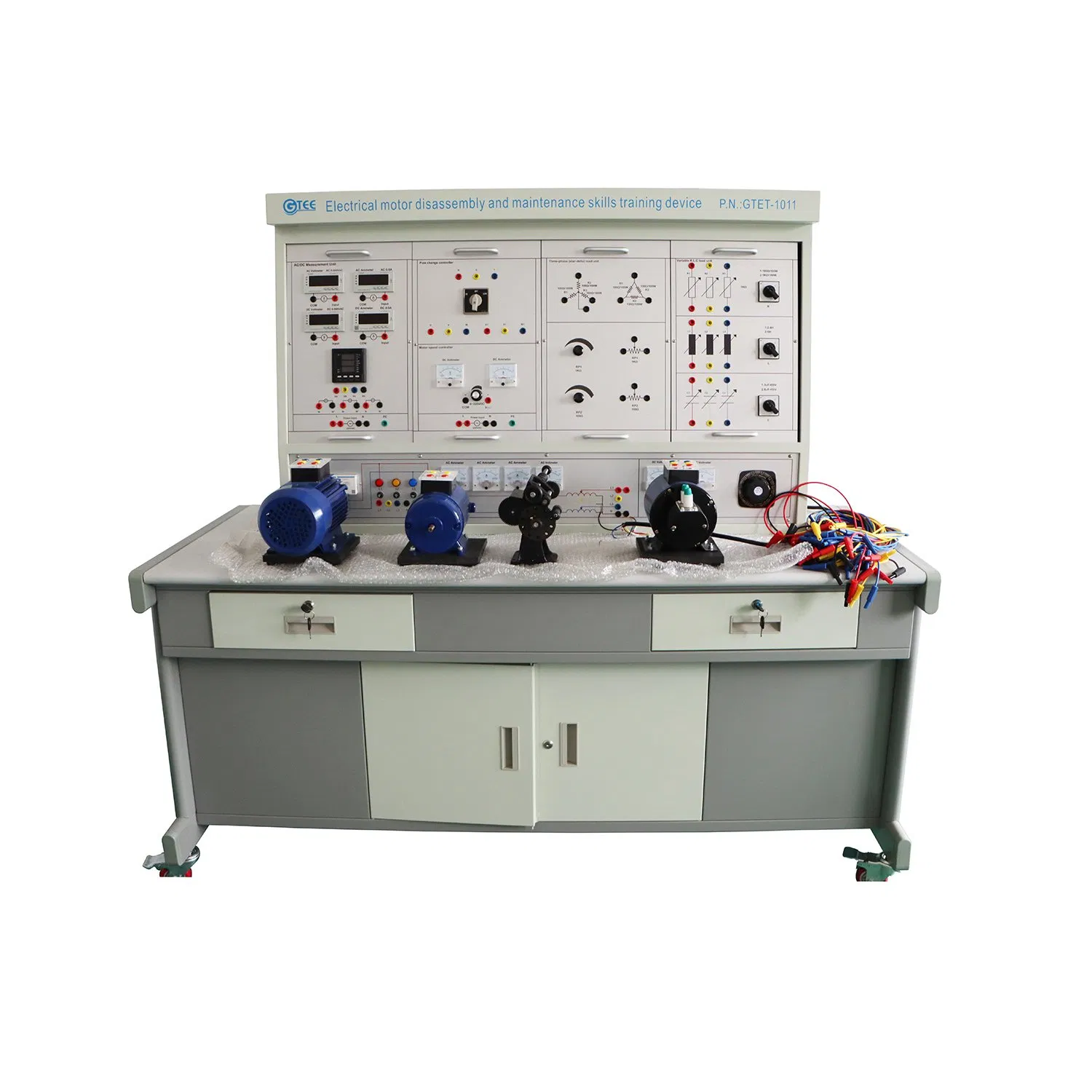

Electrical Motor Disassembly Training Device

Technical Parameters:
• Dimensions: approx. 1500mm x 700mm x 1700mm
• Weight: Approx. 100kg
• Power Supply: Three-phase four-wire system 380V±10% 50Hz

This training device is designed for learning basic knowledge, process preparation, processing, assembly, and inspection of electrical machines. It is highly suitable for vocational colleges, technical schools, and vocational qualification appraisal stations for professional skills training and assessment.

Product Composition

No.	Name	Specifications	Qty
1	Main control panel	Includes 3-phase AC input, leakage protector, emergency stop, Voltmeter, Timer/Alarm recorder, Adjustable AC (0-450V), and DC power (30V/1A).	1 SET
2	DC Digital Voltmeter	Range 0-200V, 4 gears, high impedance 10MΩ, accuracy 0.5 with alarm.	1 PCS
3	DC Digital Ammeter	Range 0-2000mA, 3 gears, accuracy 0.5 with over-range alarm.	1 PCS
4	AC Digital Voltmeter	Range 0-500V, auto-range switching, accuracy 0.5.	1 PCS
5	AC Digital Ammeter	Range 0-5A, auto-range, accuracy 0.5.	3 PCS
6	Manual winding machine	Display turns 0-9999, accurate counting.	1 PCS
7	Training Motors	Includes Unpainted 3-phase squirrel cage motor (1.1kW), Separately excited DC motor (350W), and Synchronous motor (120W).	3 PCS
8	Disassembly Tools	Puller, wrenches, rubber hammer, scribe board, scissors, soldering iron, etc.	1 SET

Training Courses

Asynchronous motor winding embedding (Concentric, Chain, Cross-chain)
Double-layer wave & concentric winding inserts
Insulation dipping paint processes
Stator and Rotor assembly techniques
Motor mechanical & winding inspection
DC resistance and current balance testing
Salient pole synchronous motor stator/rotor assembly
DC motor armature assembly and winding inspection
General assembly and axis adjustment of units
Withstand voltage and geometric dimension testing

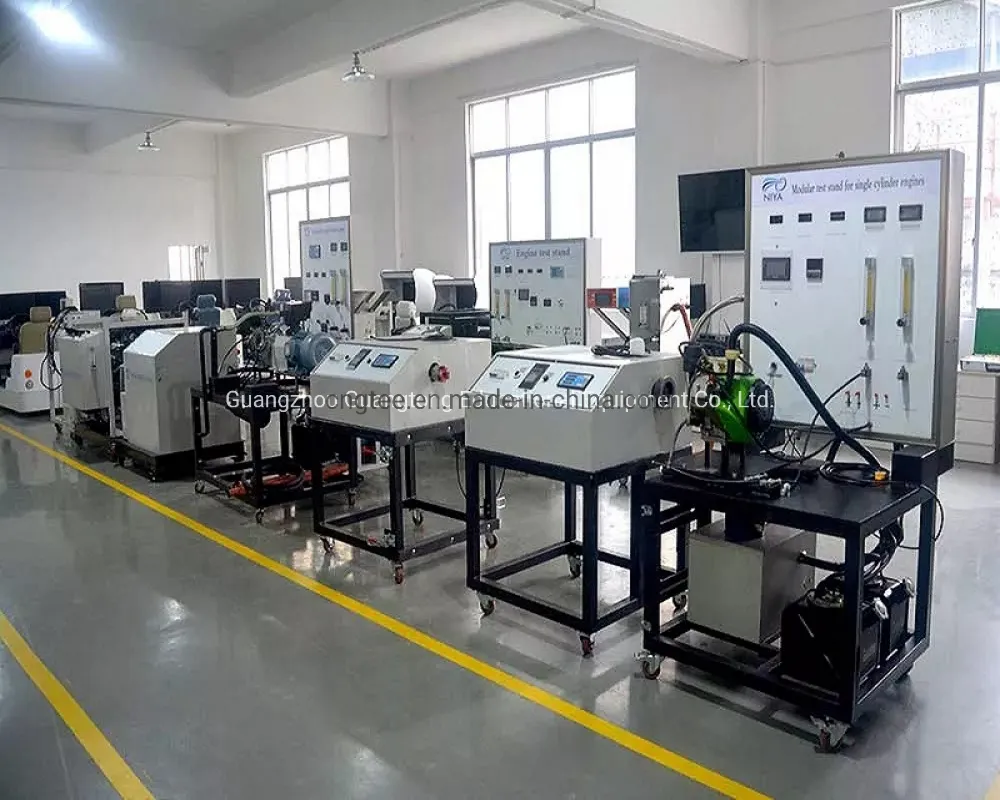

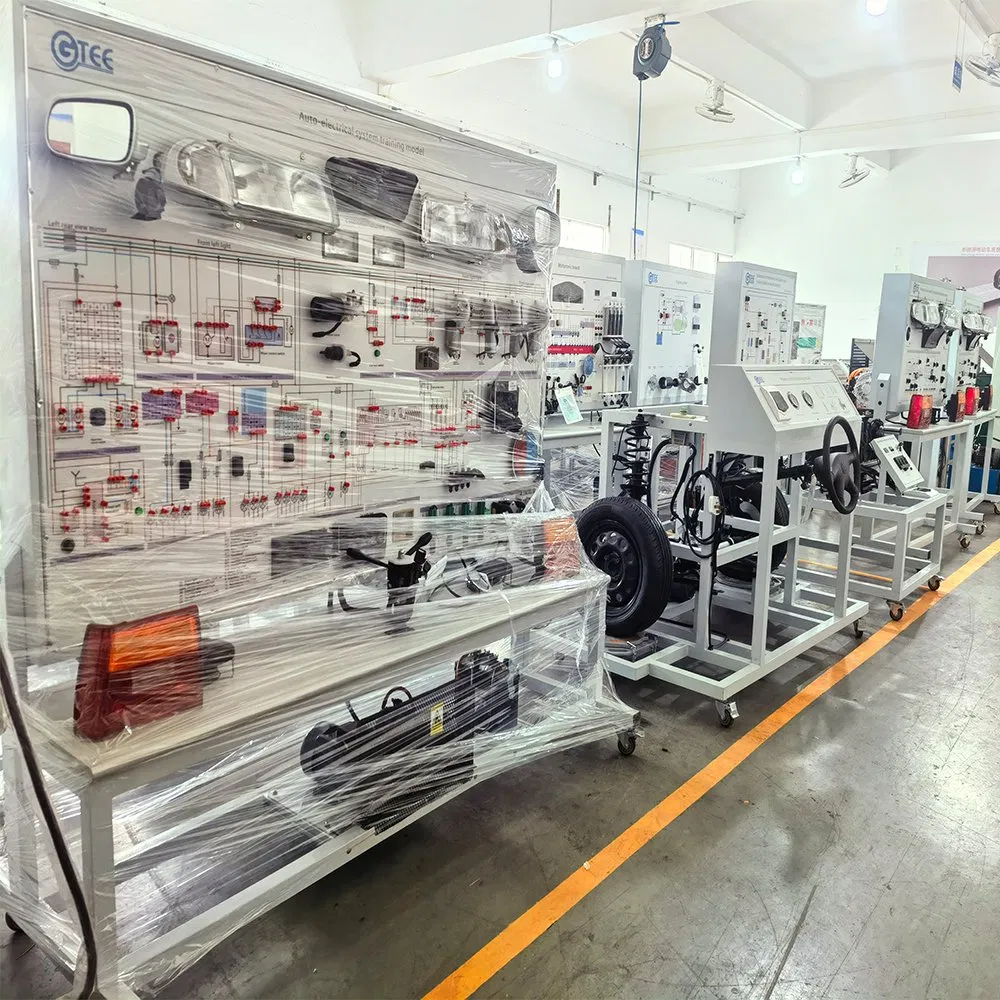

Product Showcase

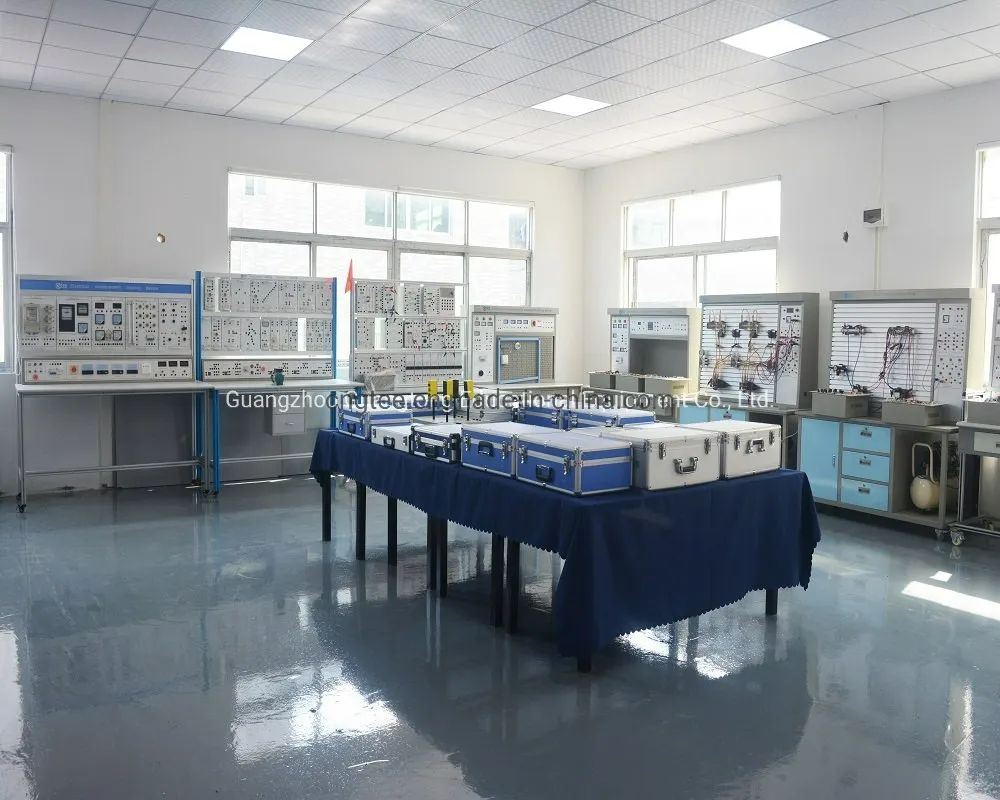

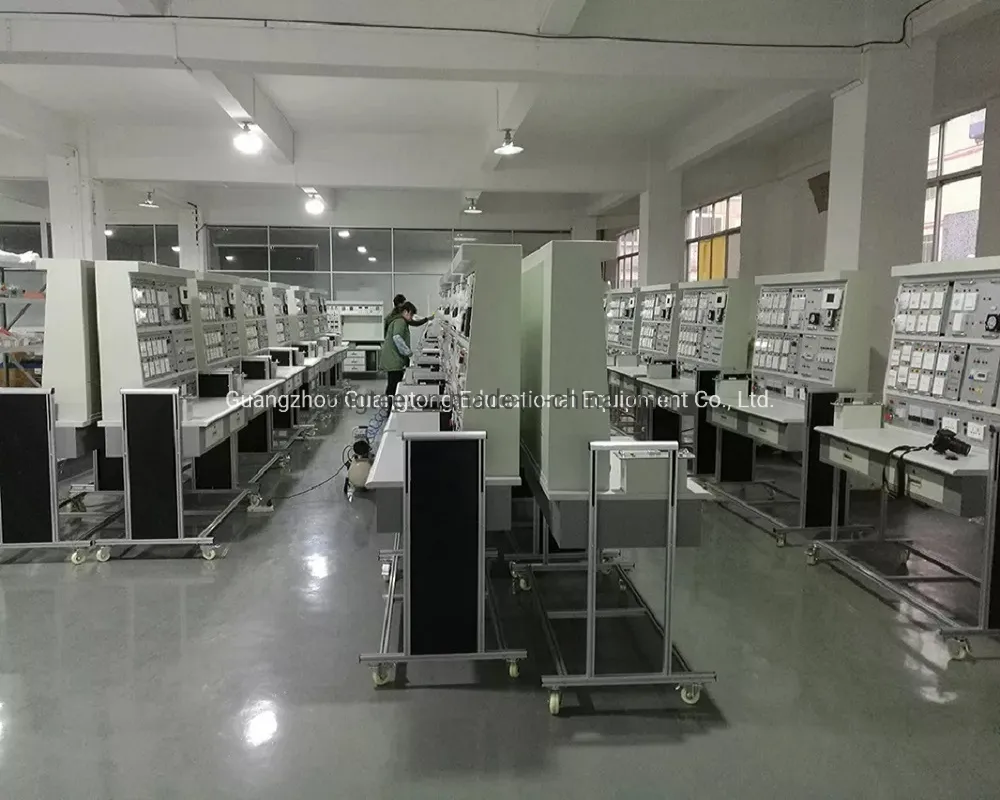

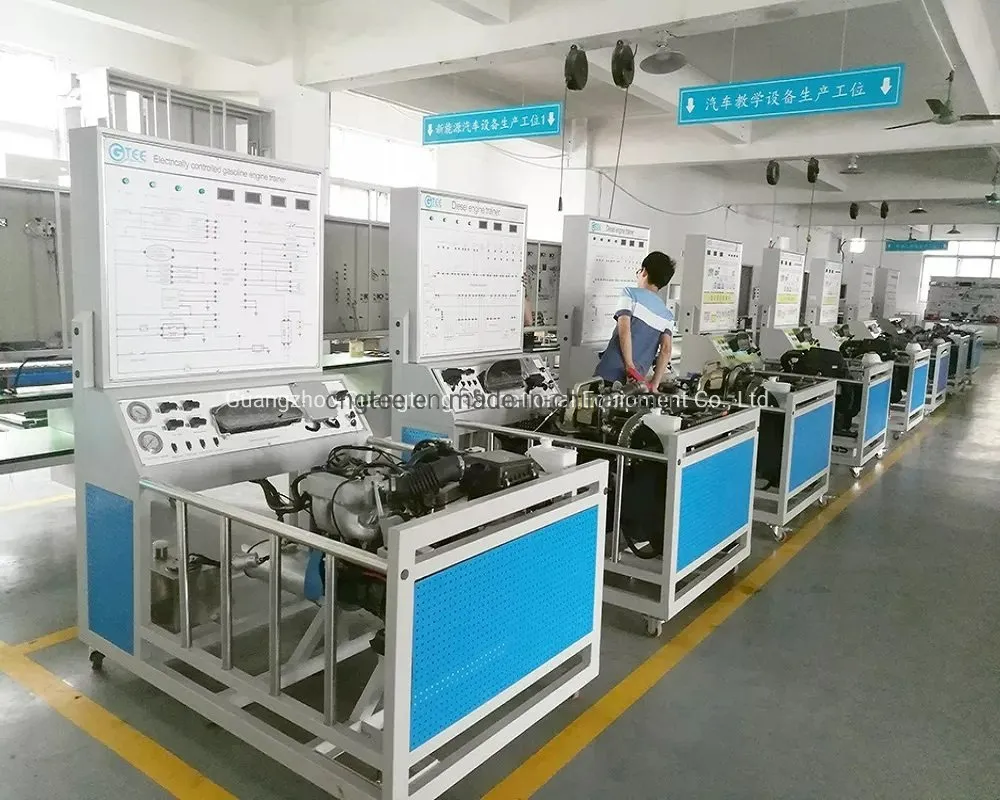

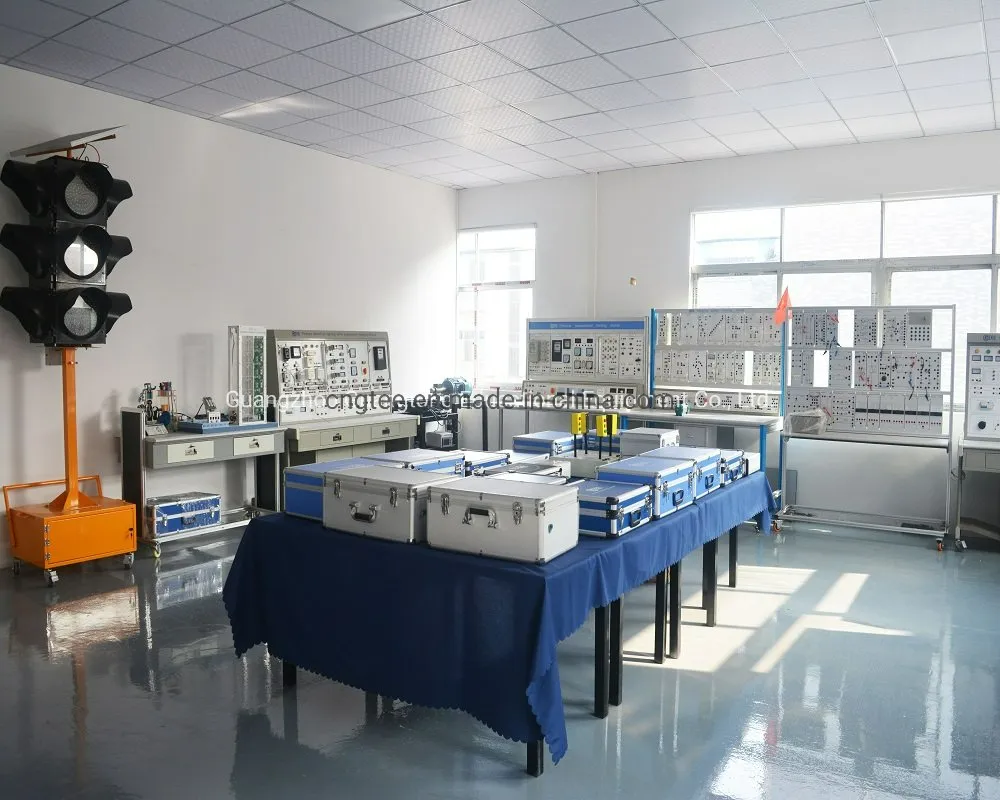

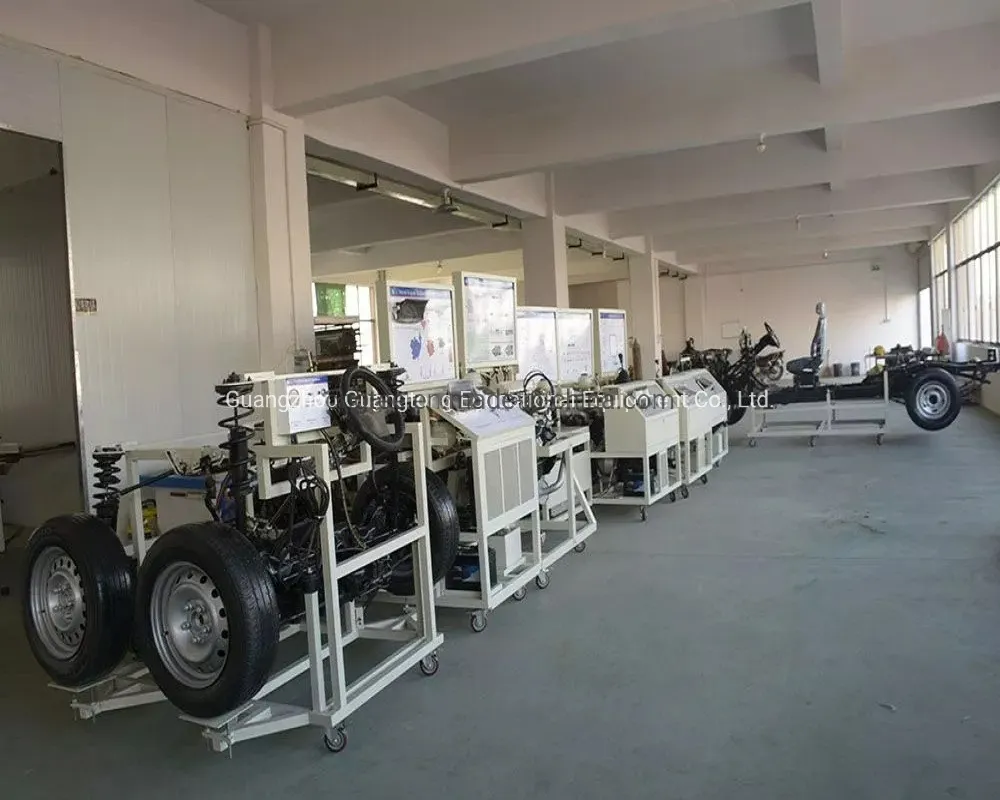

Showroom & Customer Photos

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a professional manufacturer specializing in educational and vocational training equipment.

How long is the delivery time for the equipment?

The delivery time depends on the specific product quantity and current stock levels. Please contact our sales team for a detailed timeline.

What are the standard terms of payment?

For orders under 5000 USD, 100% in advance. For orders over 5000 USD, 50% T/T in advance, and 50% T/T balance before shipment.

Do you provide after-sales and technical support?

Yes, we provide comprehensive training materials with the device. We also offer remote technical support, and on-site training or installation can be arranged upon request.

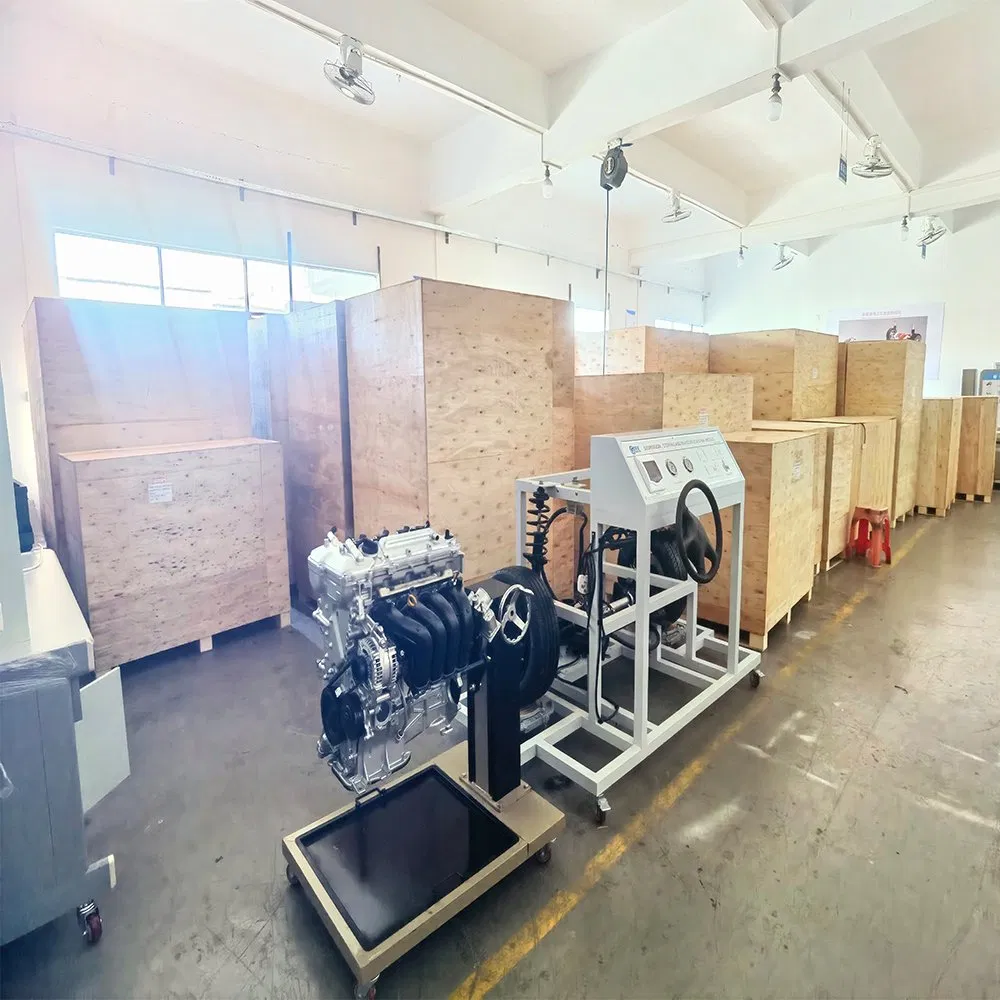

How are the products packaged for international shipping?

Products are typically packed in solid plywood boxes for sea freight. Smaller units can be shipped via air or international express (FedEx, DHL, TNT).

How can we apply for exclusive sales rights?

Exclusive rights are negotiated based on order volume and company evaluation. We usually start with general agency agreements before moving to exclusivity.
