Gloss Measurement Device for Laboratory and Industrial Applications

1 / 5

Gloss Measurement Device for Laboratory and Industrial Applications

Customization:	Available
After-sales Service:	One-Year Warranty
Warranty:	One-Year Warranty

Send Inquiry

Product Description

Basic Specifications

Model	LX195	Measure Angle	60°
Measuring Aperture	9mm*15mm	Min. Material Size	20mm*10mm
Measuring Range	0-200GU	Resolution	0.1GU
Zero Error	0.1GU	Interface	USB (Type-C)
Weight	Approx. 237g	Display	240×128 Dot Matrix

Product Description

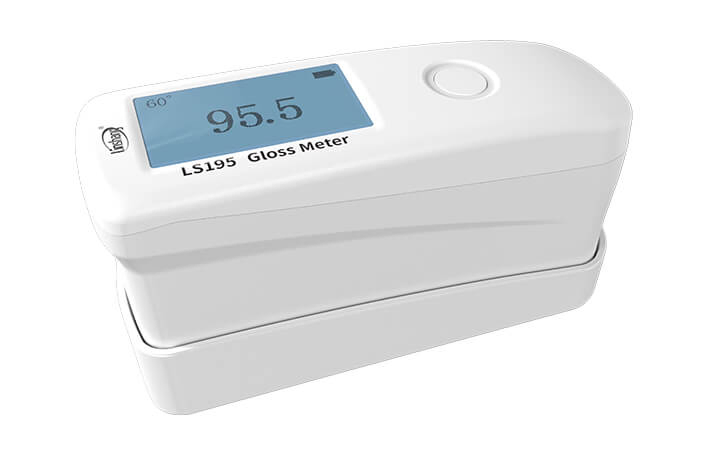

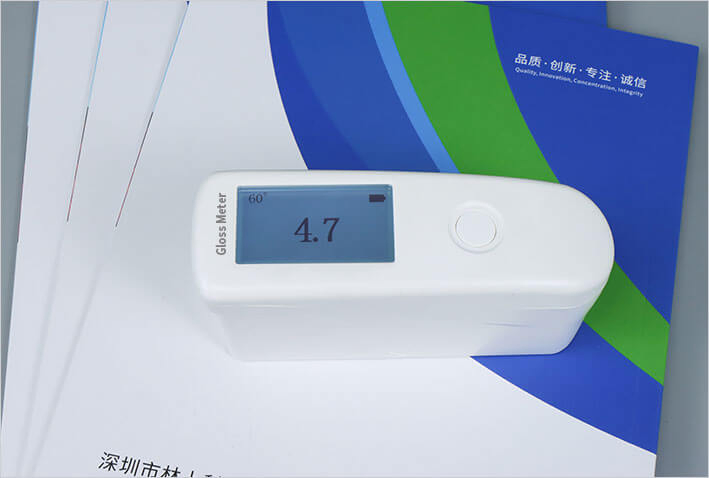

LX195 Gloss Meter is a professional handheld device with a 0-200GU range. It is engineered for precision surface gloss measurement across various materials including paint, coatings, ink, plastic, paper, ceramics, stone, metal, and more.

Designed for efficiency, it features a "put and measure" capability without waiting times, alongside a specialized QC mode for high-speed quality control judgment.

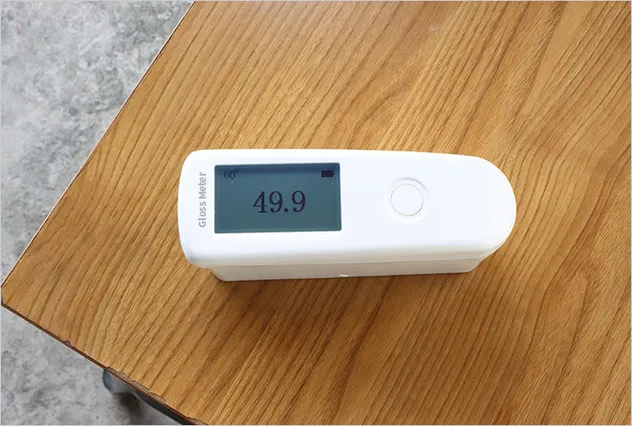

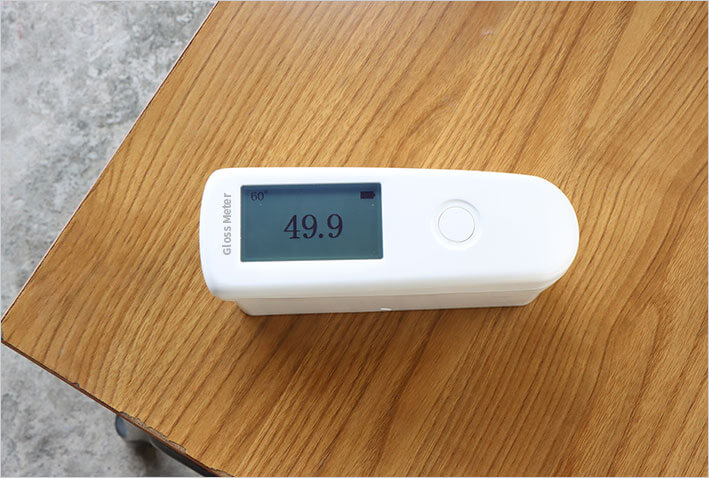

Measurement on Wood

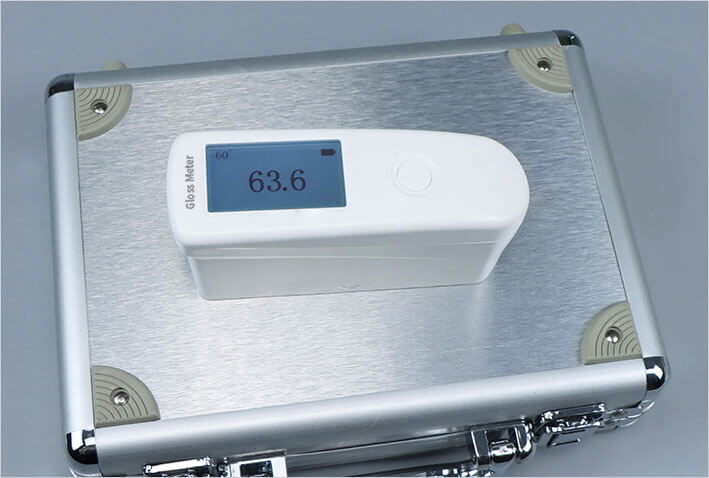

Aluminum Surface Testing

Stone Material Analysis

Key Features

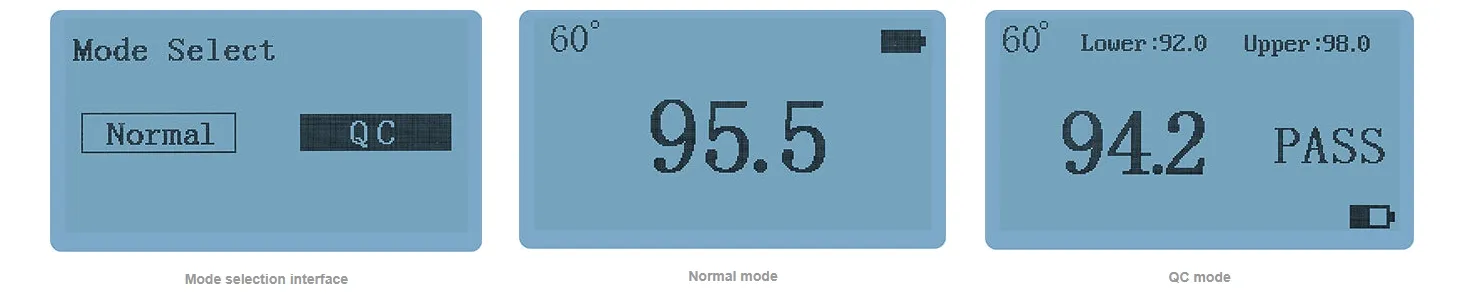

★ QC Mode for Auto Qualification

Customize upper and lower limits for instant qualification judgment. Ideal for high-volume batch testing where speed and accuracy are paramount.

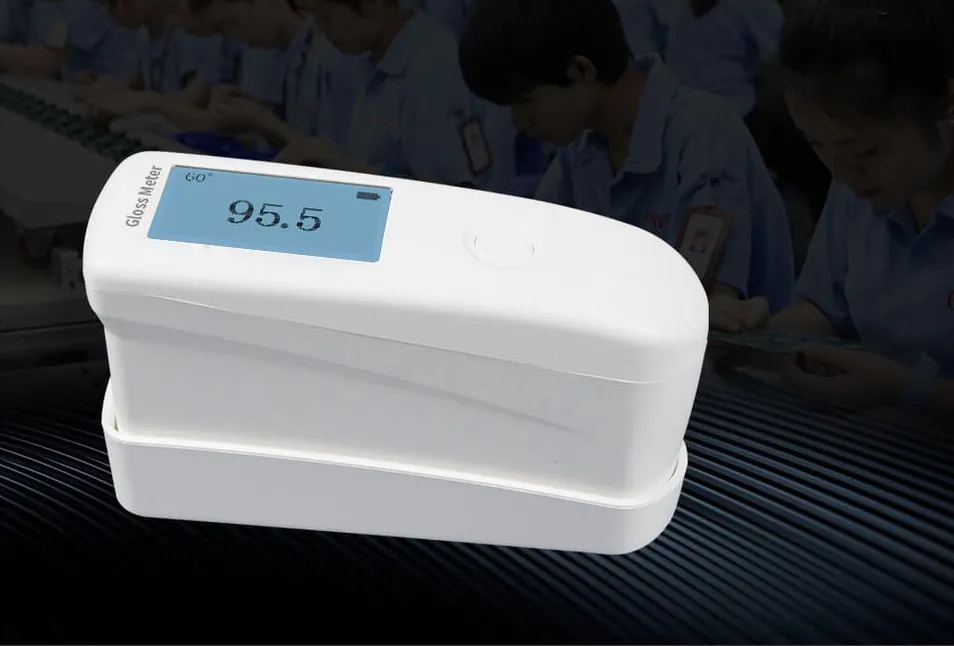

★ High Stability & Durability

Each unit undergoes rigorous testing including 634 calibration tests, 67,300 stability tests, and 260 hours of accelerated aging to ensure long-term reliability.

★ 0.2GU Repeatability

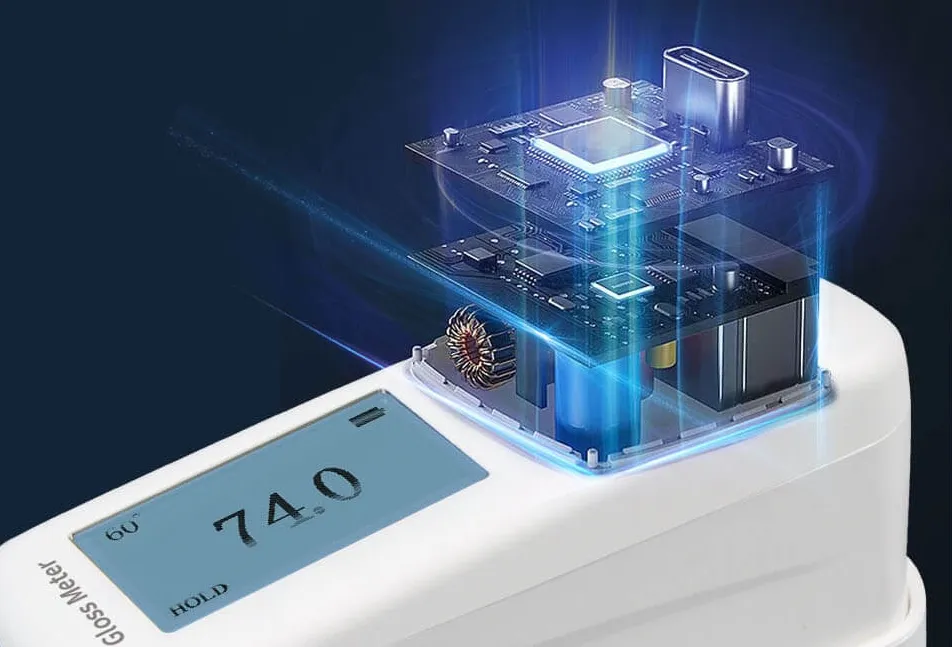

Equipped with advanced chips and a unique 50-point linear fitting algorithm, achieving ±0.2GU repeatability and 0.1GU resolution for professional-grade results.

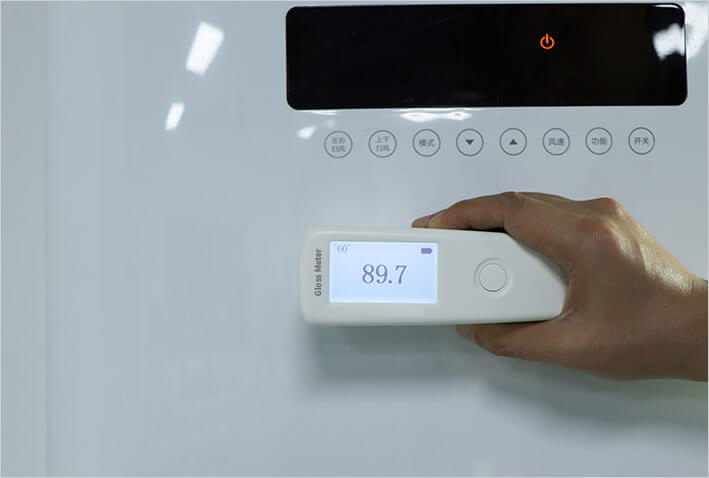

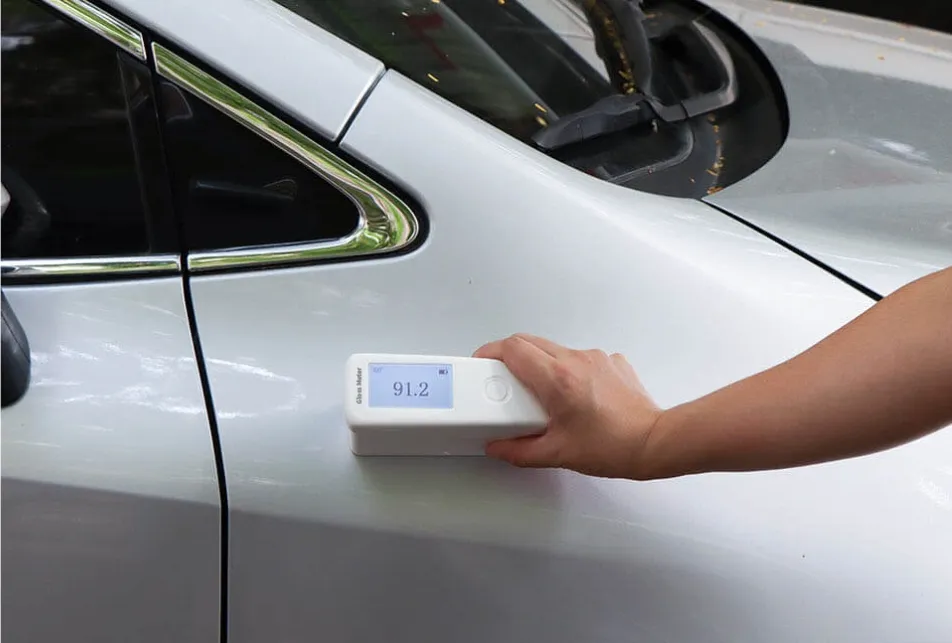

★ Instant Measurement (0.5s)

No button operations required after startup. Simply place the device on the target and get results in just 0.5 seconds.

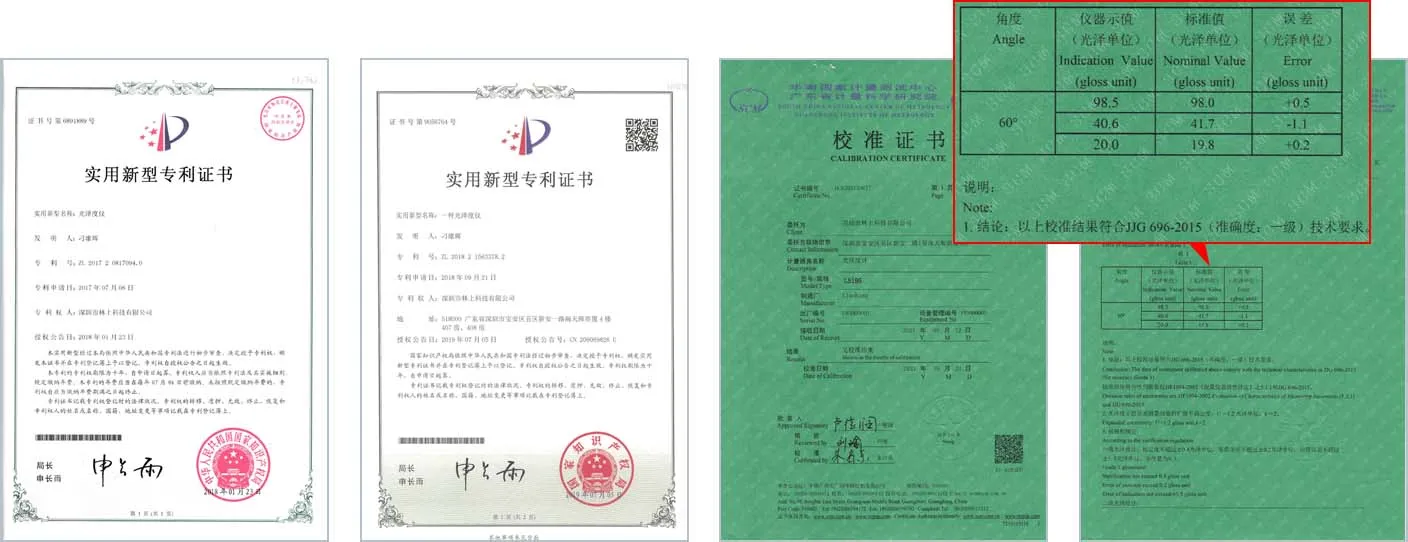

Product Showcase & Certifications

Frequently Asked Questions

What is the typical lead time for an order?

Standard orders are typically processed and ready for dispatch within 5–6 days.

How can I select the most suitable instrument for my needs?

Please provide your specific testing requirements and material specifications. Our technical team will analyze your needs and provide a personalized instrumentation solution.

Is the LX195 suitable for batch quality inspection?

Yes, the device features a specialized QC mode that allows users to set upper and lower limits for automatic pass/fail judgment, significantly improving batch testing efficiency.

Does this gloss meter meet international standards?

The LX195 conforms to Grade 1 gloss meter standards, ensuring high accuracy and the ability to pass inspections by authoritative metrology organizations.

What documents are provided for international shipping?

We provide a full export package, including the Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

Can I generate professional measurement reports?

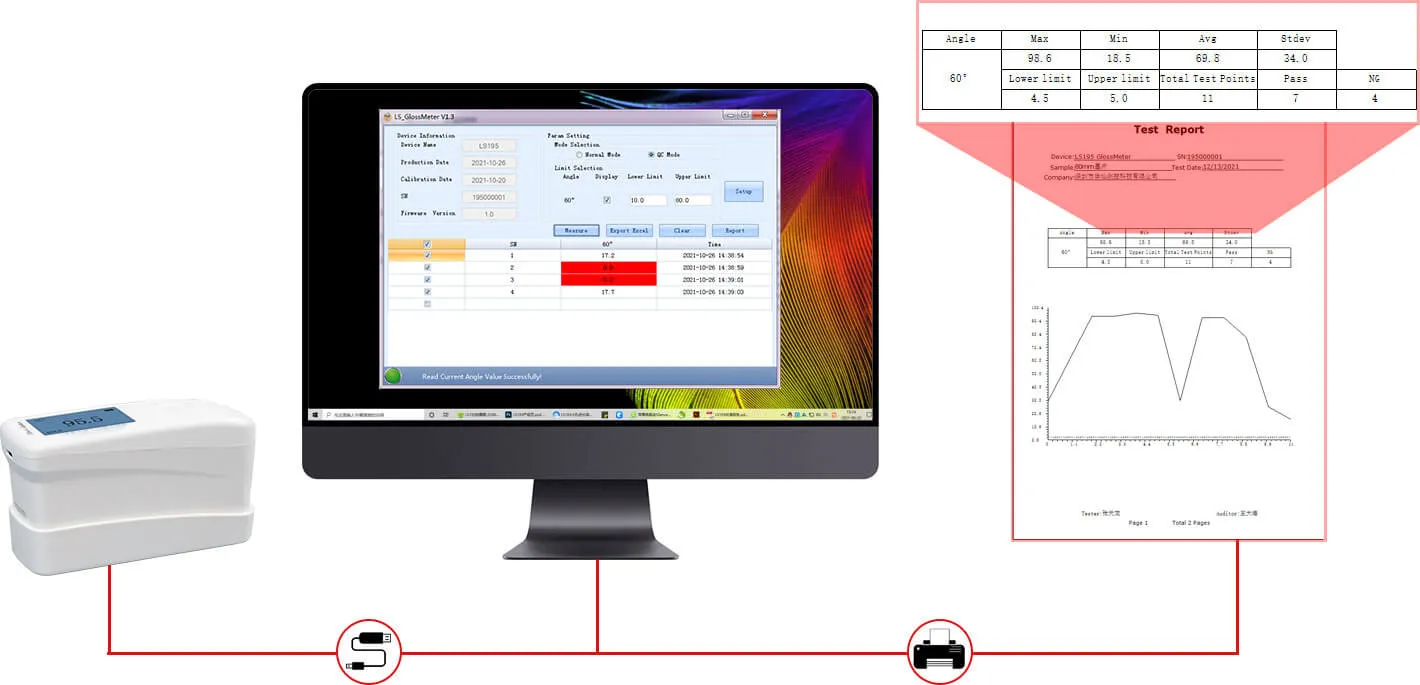

Yes, the device supports PC software for online measurement and data statistics, allowing you to generate professional measurement reports for quality analysis.
