Basic Specifications
Name
Vertical Profile Projector
Metal Table Size
306*152mm
Glass Table Size
175*100mm
Stage Travel Z Axis
90mm for Focus
Measuring Unit
Built-in Linear Scale
Production Capacity
50,000PCS/Year
Product Description

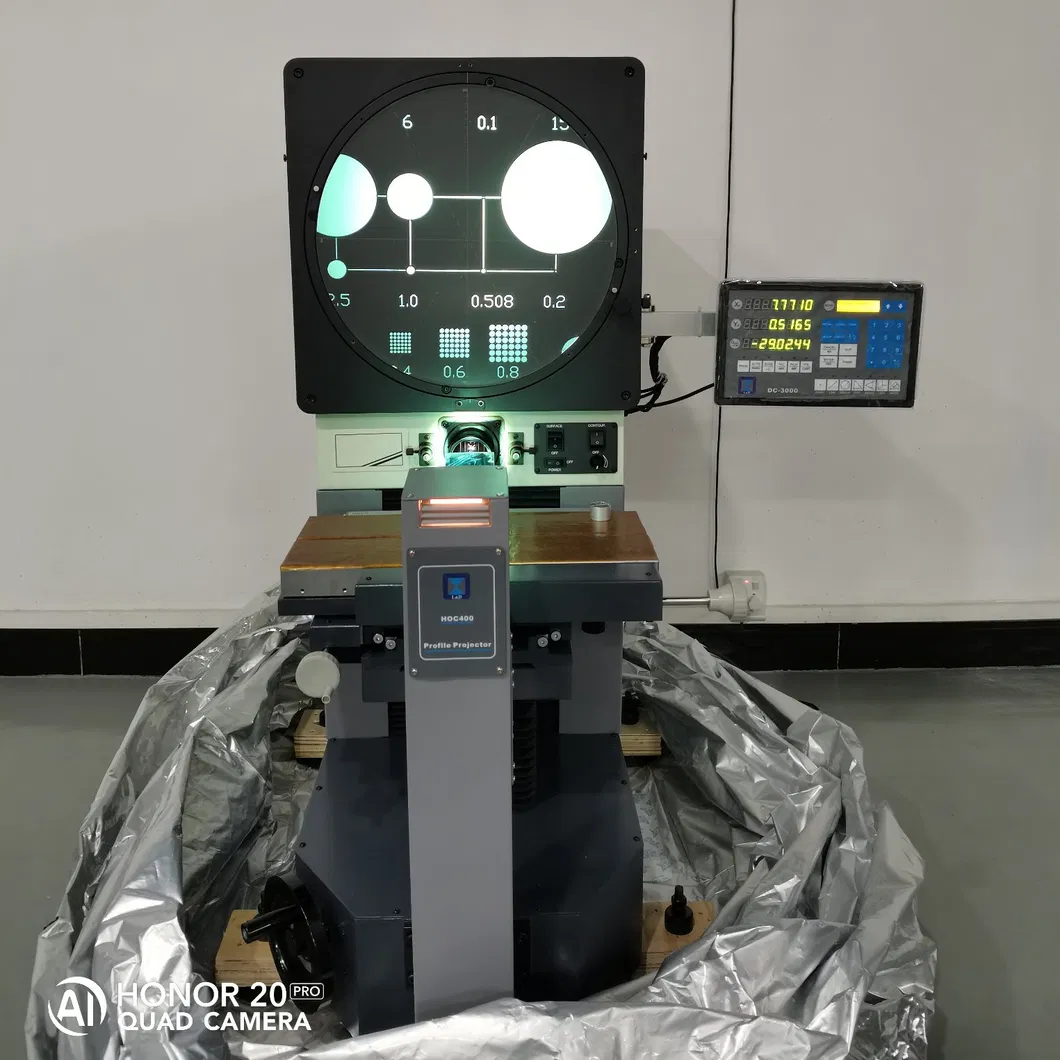

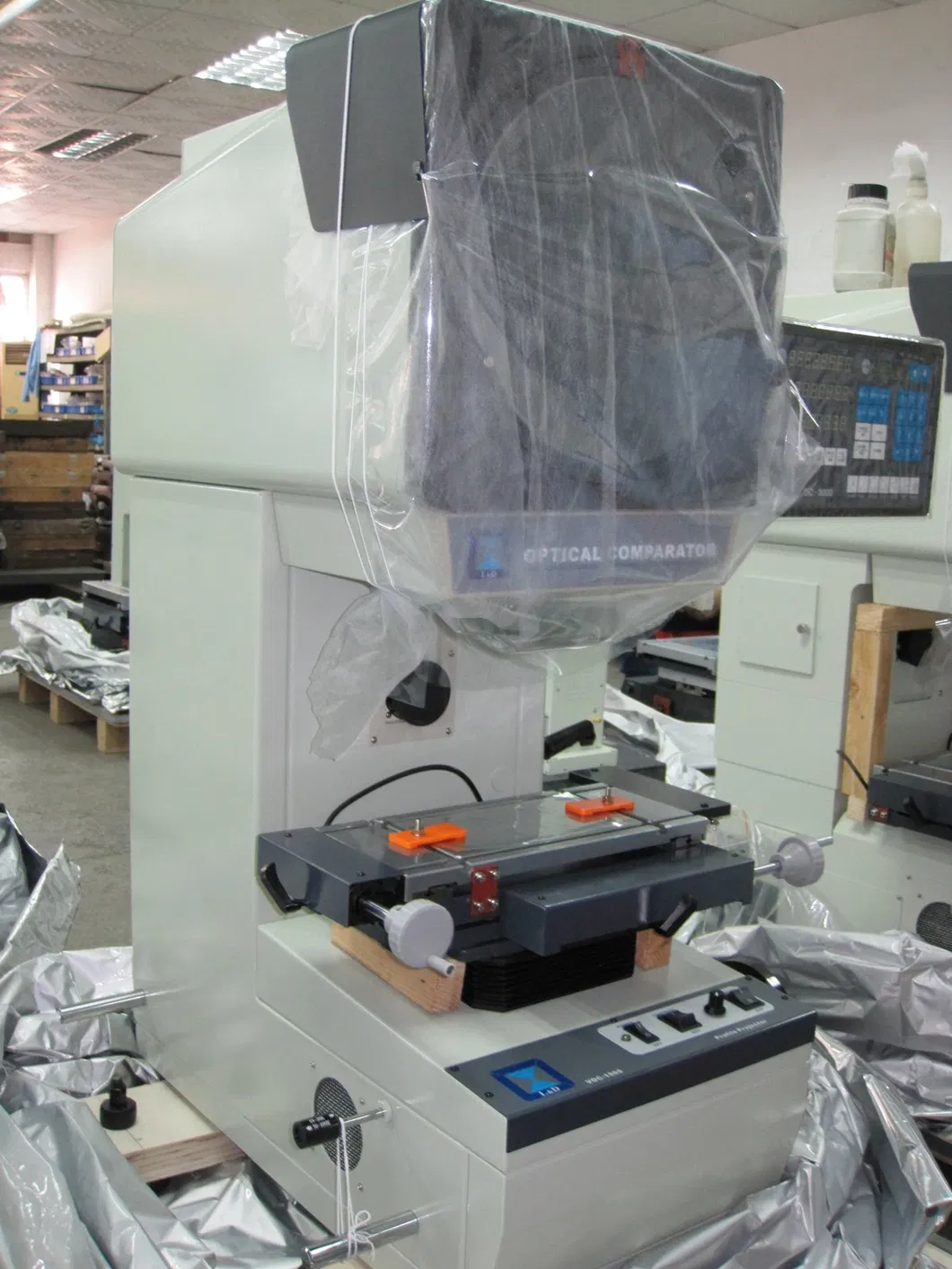

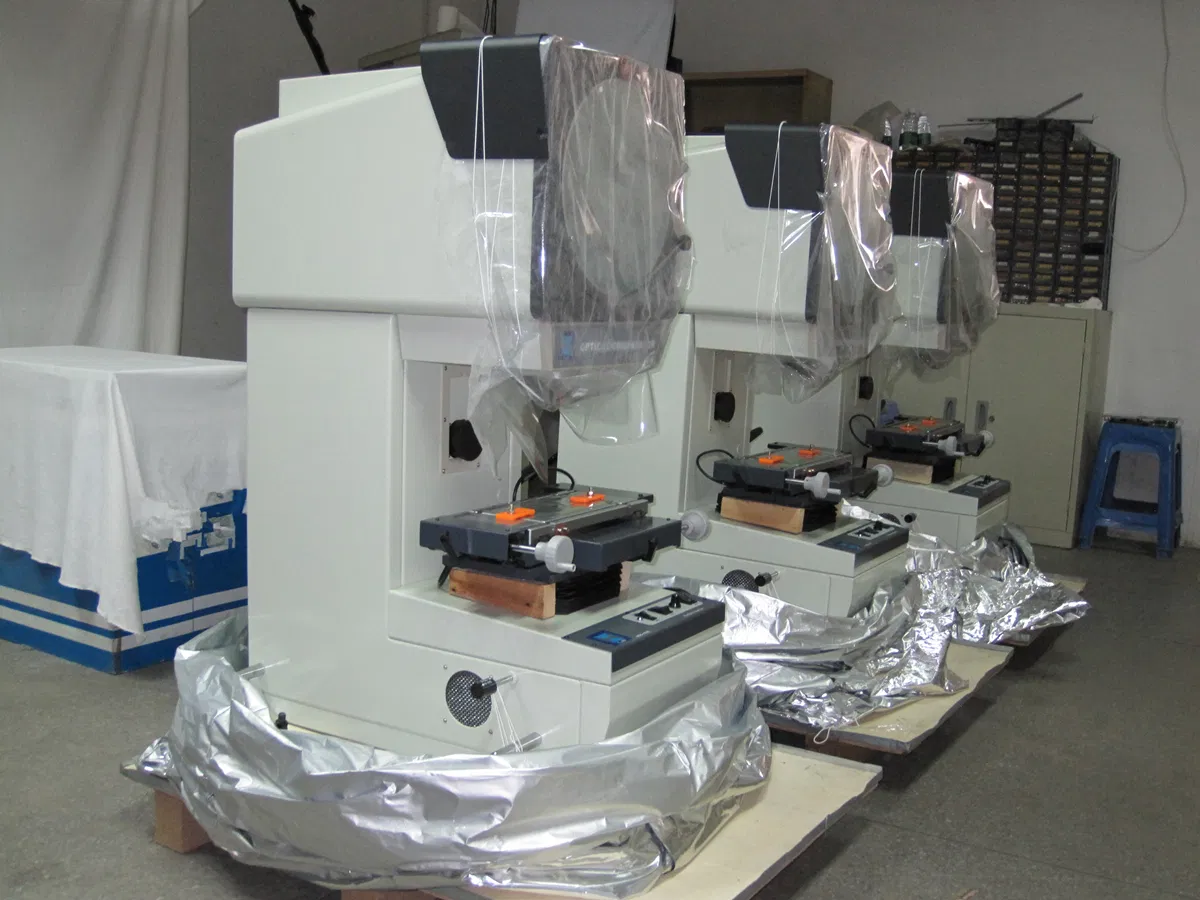

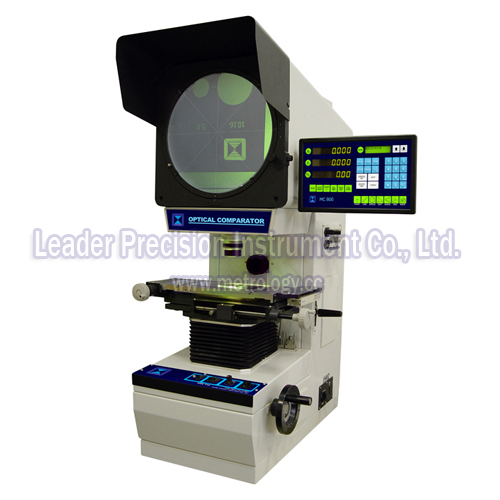

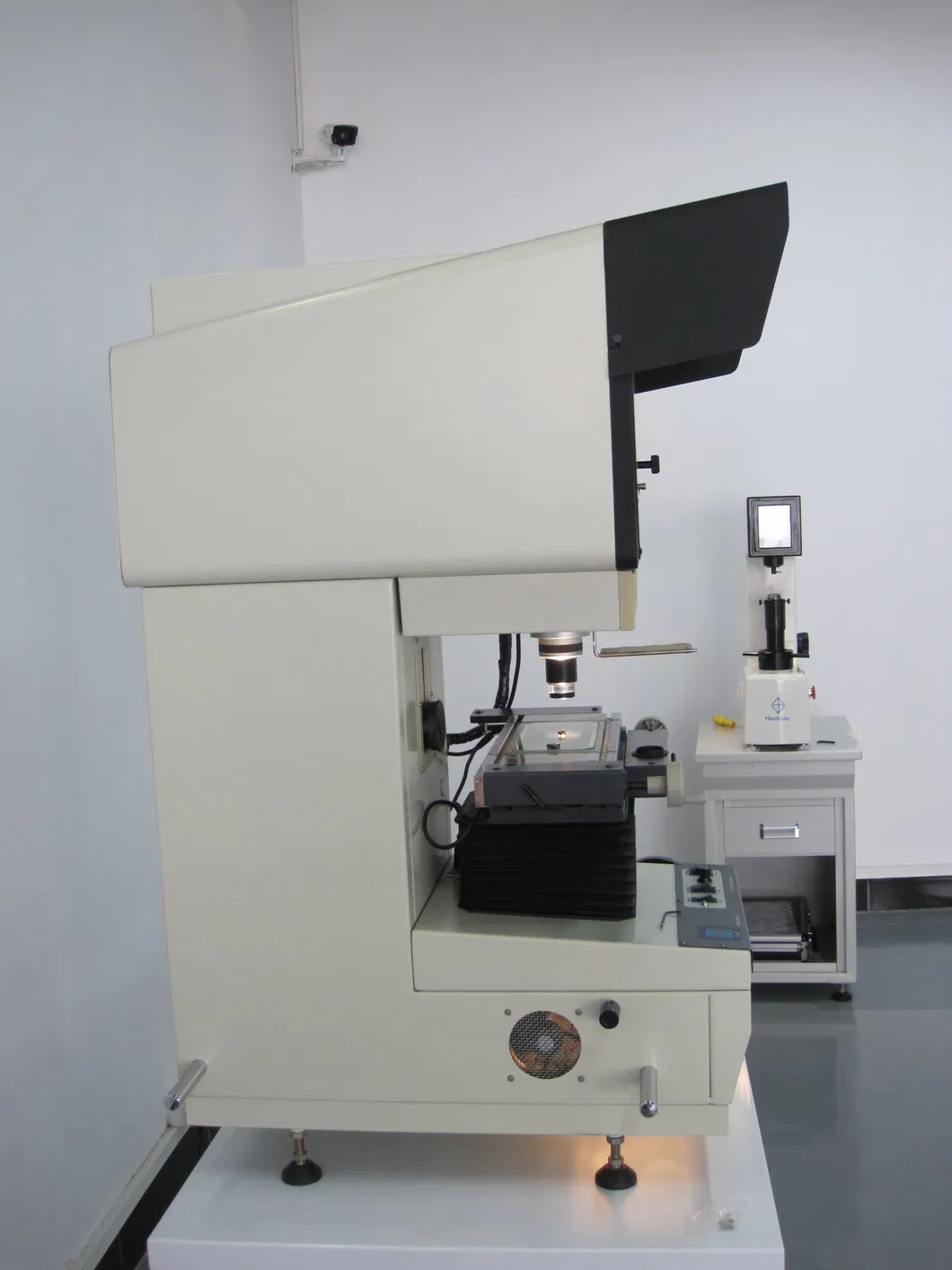

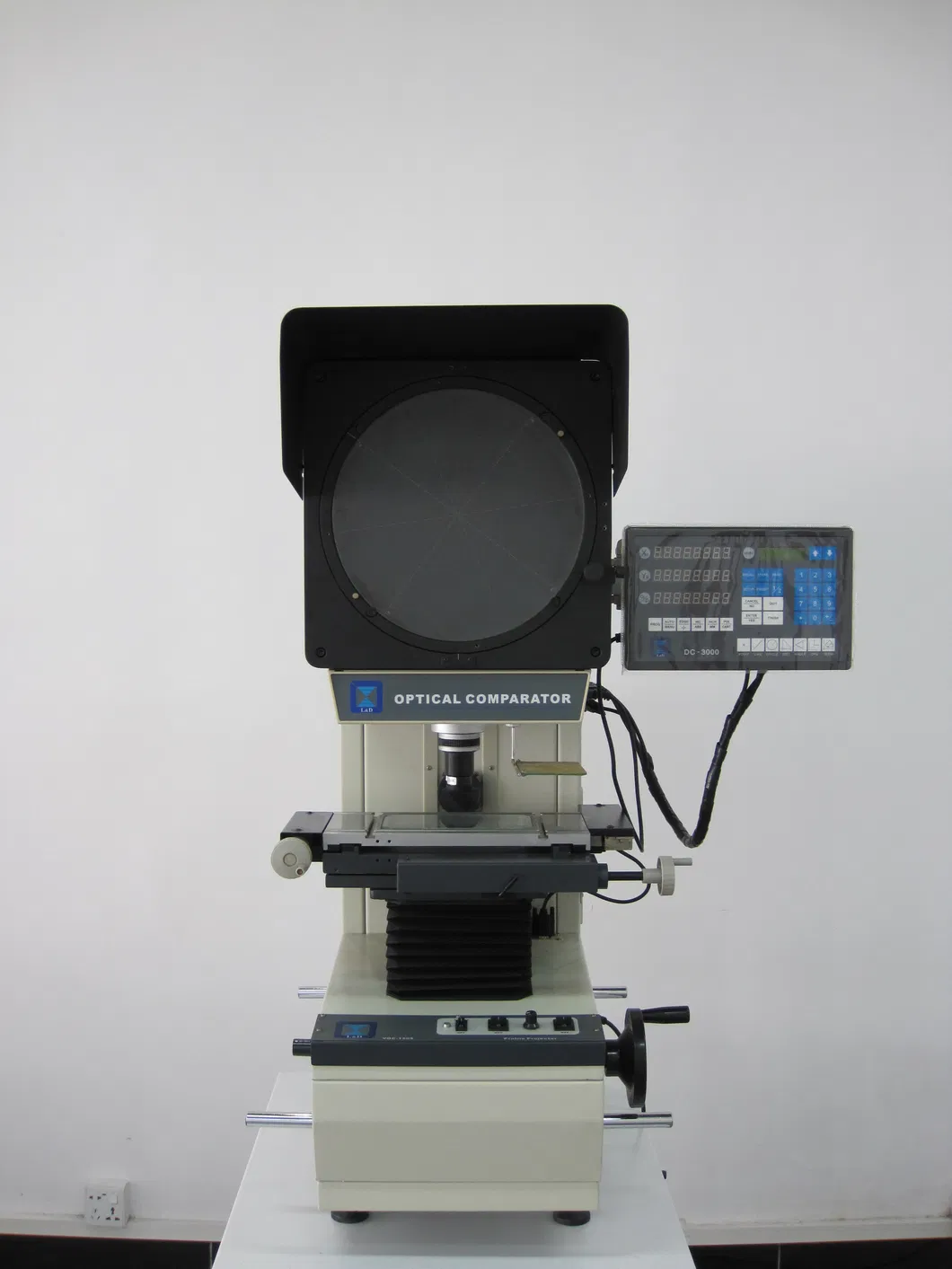

Lab Benchtop Rebar Inspecting Device (VOC-1005)
VOC-1005 is a precise and excellent non-contact optical measuring device integrating optical, mechanical, electrical, and computer technology. This Profile Projector is widely used in mechanism, meter, electronic, rubber industries, and quality control for watch manufacturing. It serves as a perfect metrology solution for contour and surface measurement.
This benchtop optical measurement device can inspect all kinds of surfaces and outlines of complicated work-pieces, such as cams, screw threads, gears, milling cutters, tools, dies, and press components. It is an effective metrical and analytic system for education, research institutes, and laboratories.
Key Features
- Excellent optical measuring system.
- Magnification accuracy: 0.08% (contour); 0.12% (surface).
- Equipped with DC-3000 Metrology Counter.
- Supplied with Foot-switch for quick measuring.
- Erect image measuring for different requirements.

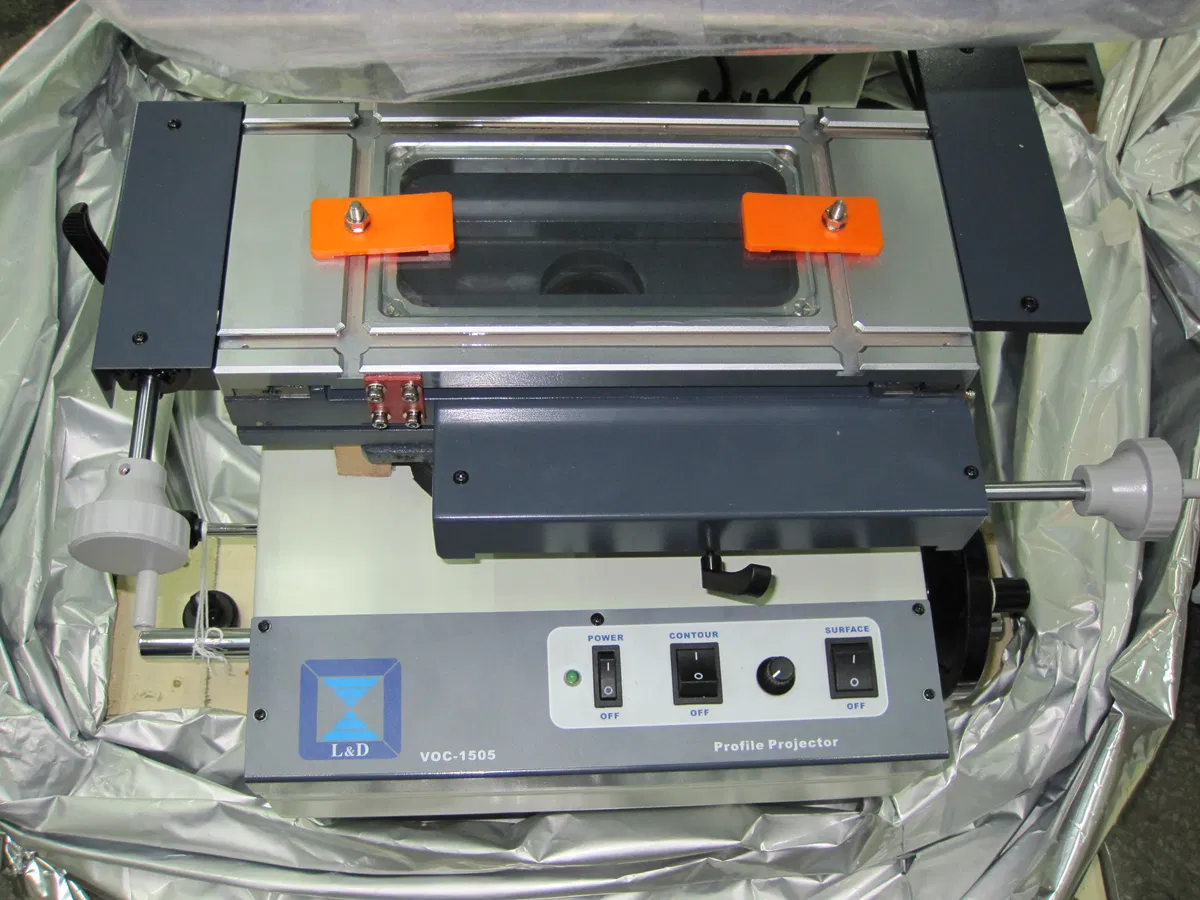

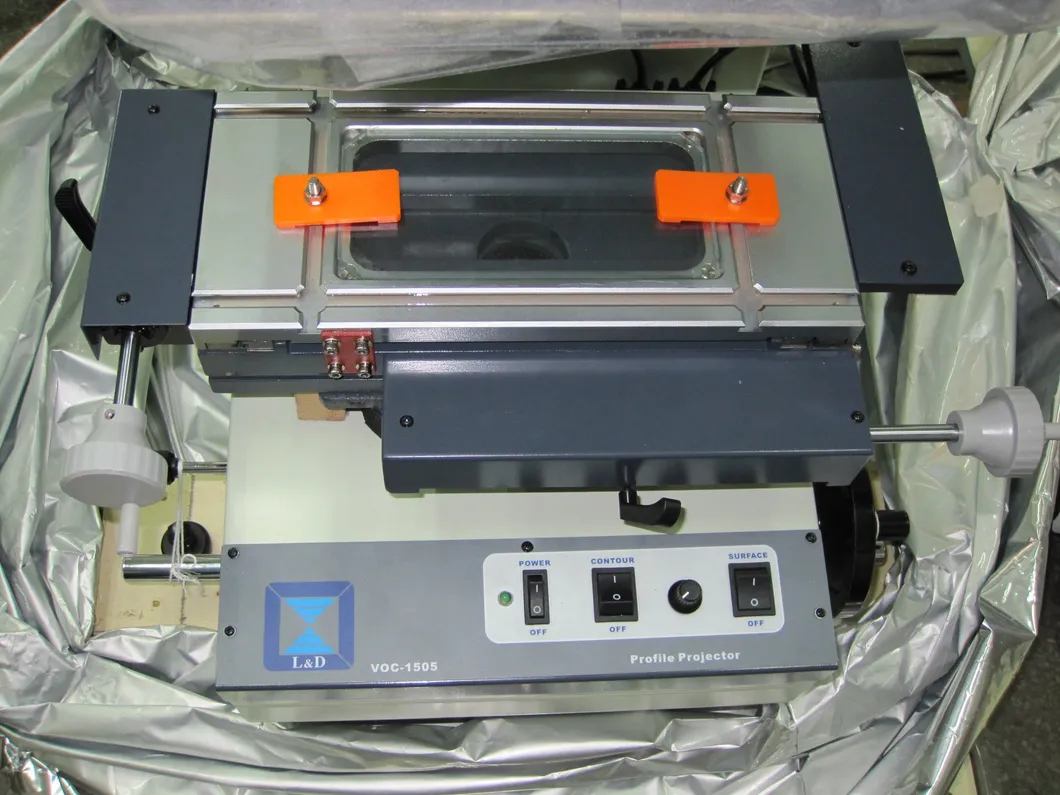

- High Precision measuring table with T-slot for easy fixing.
- High resolution 0.5 micron linear scale.
- Optional optical Edge Detector system for auto measurement.
- Optional Metrology software for data export to MS Office.
Quality Assurance & Service
Quality System:
- Management system based on ISO9001 standards.
- All measuring machines carry CE certification.
- Hardware assembly and adjustment ensure maximum instrument accuracy.
- Proven measurement solutions for large and medium-sized enterprises.
After-sale Service:
- Free professional operation training.
- Extended 18-month warranty.
- Regular free software upgrades.
- Lifetime technical support.
Frequently Asked Questions
What is the measurement accuracy of the VOC-1005?
The accuracy is rated at 2.5+L/150 Micron, providing high-precision results for complex work-pieces.
Does this device support data export?
Yes, by choosing the optional Metrology software, measurement data can be easily exported to MS Office applications.
What components can be inspected using this profile projector?
It is ideal for inspecting cams, screw threads, gears, milling cutters, tools, dies, and press components.
What is included in the warranty?
We provide an industry-leading 18-month warranty, covering the device beyond the standard 12-month period.
Is the image display erect or inverted?
The VOC-1005 features erect image measuring to meet various professional inspection requirements.
What kind of training is provided for new users?
We offer free professional operation training to ensure your team can utilize the device's full potential.
