Laboratory Solvent Vacuum Suction Filter Filtration Device

1 / 5

Laboratory Solvent Vacuum Suction Filter Filtration Device

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Information

Model NO.	Xc-30L	Type	Suction Filter
Mechanical Principle	Vacuum	Performance	Efficient Filtration
Material	G3.3 Borosilicate Glass	Discharge Way	Glass Discharge Valve
Vacuum Degree MPa	0.096	Power	220V
Package	Export Plywood Box	Specification	5005001300mm
Origin	China	HS Code	8421299090

🔍 Product Description

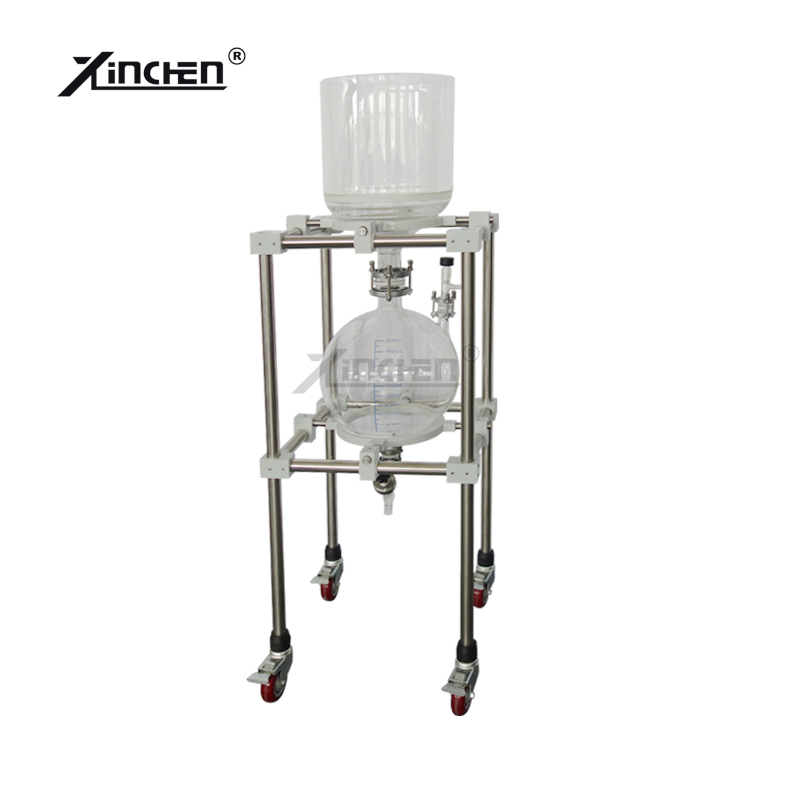

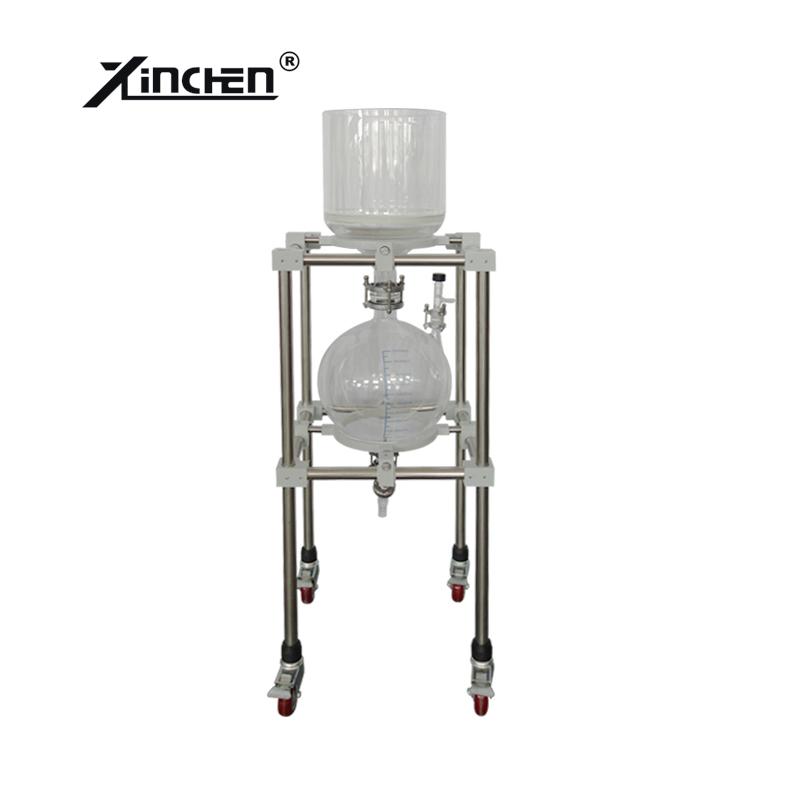

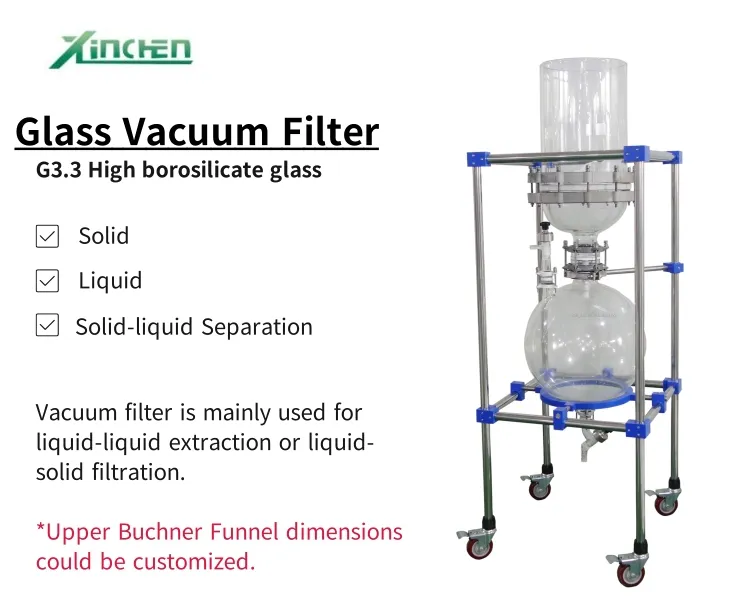

The Vacuum Suction Filter is primarily engineered for liquid-solid filtration under vacuum conditions. While simple gravity filtration is possible, vacuum filtration is frequently employed in laboratory environments due to its significantly higher speed and efficiency.

During operation, liquid is poured into a funnel and passes through a specialized filter medium that retains particulates. The resulting filtrate is collected in a filter flask, either directly or via a vacuum manifold system.

📊 Product Parameters

Model	ZKQ-10L	ZKQ-20L	ZKQ-30L	ZKQ-50L
Glass Material	G3.3 high borosilicate glass
Funnel Size	φ180*280mm	φ240*280mm	DN300x310mm	DN300x450mm

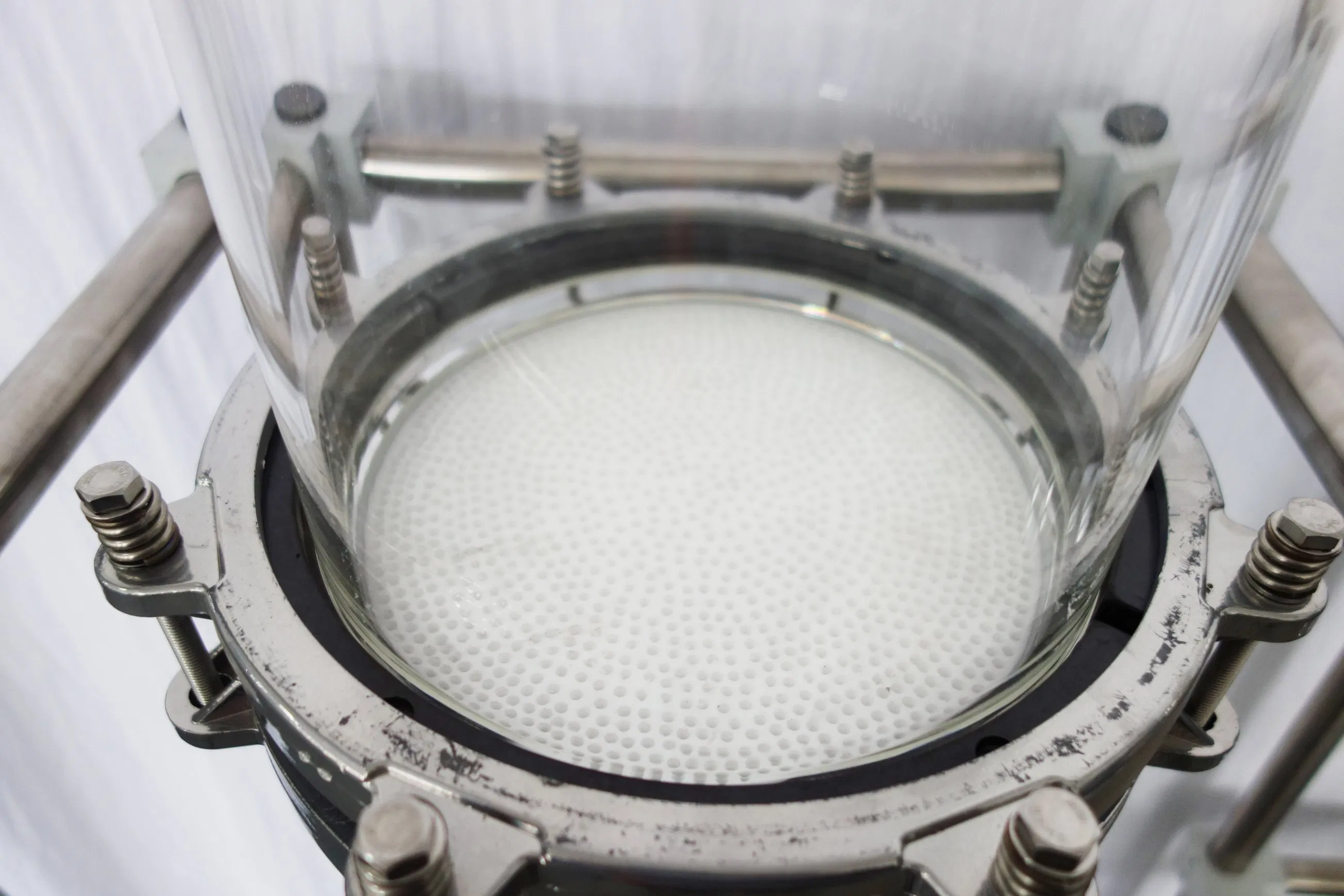

Sieve Plate (PTFE)	φ165	φ230	φ300	φ300
Bottle Capacity	10L	20L	30L	50L
Vacuum Degree	-0.098Mpa
Frame Material	SUS304 movable framework

Filtration speed depends on:

✔ Material characteristics (particle size and fluidity).

✔ Pore size of the filter paper or cloth.

✔ Dimensions of the filter sieve plate.

✔ System vacuum degree.

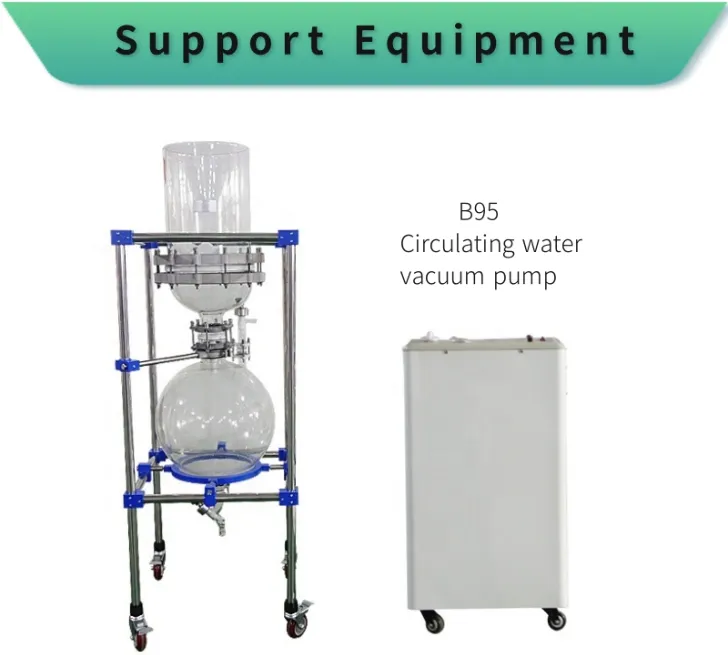

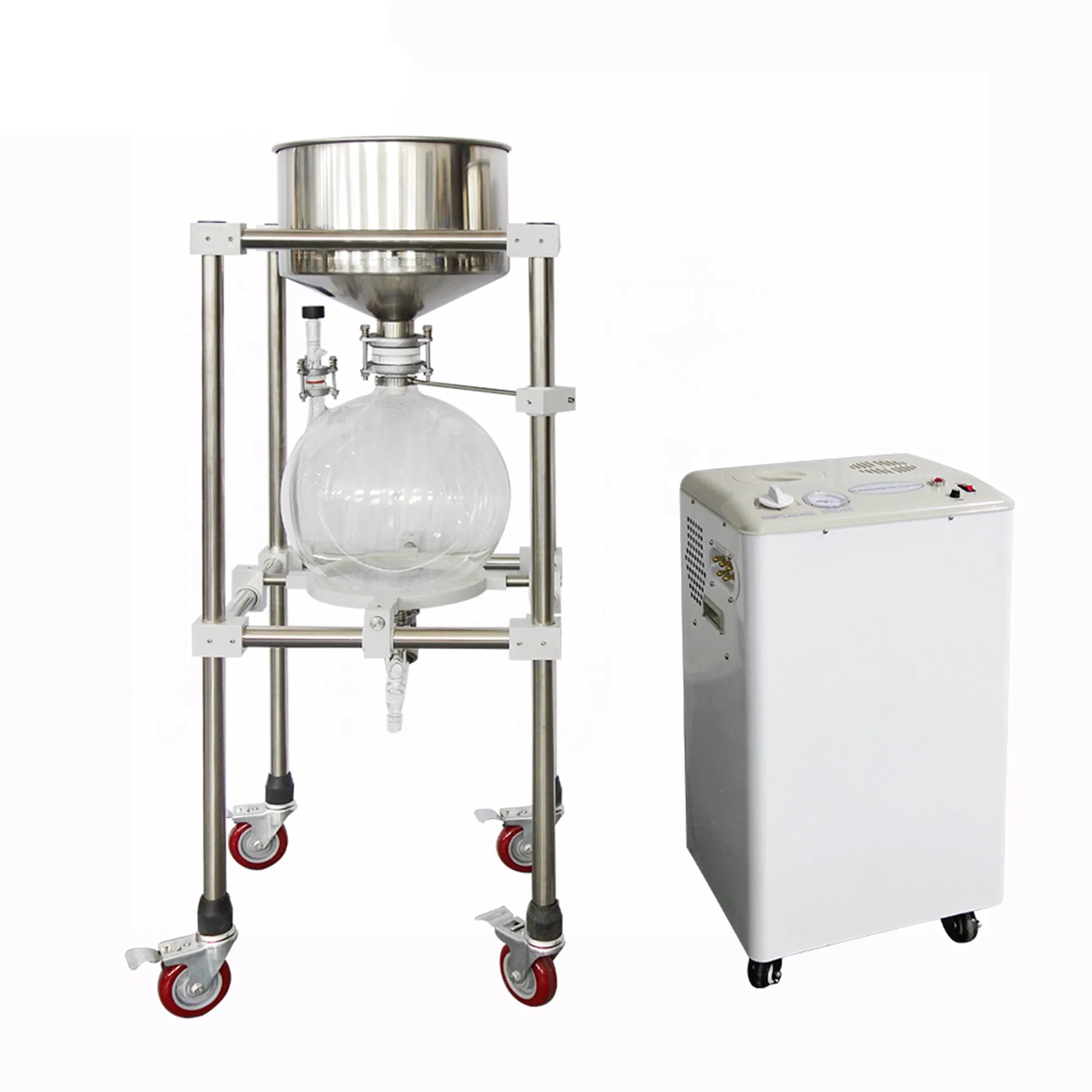

⚙️ B95 Water Circulating Vacuum Pump

A versatile multi-use device designed to generate negative pressure using jet flow and recycled water. It provides essential vacuum conditions for chemical experiments and recirculated cooling water for reaction equipment.

Key Characteristics:

1. Water-saving design for long-term use.

2. Dual roles: vacuum provision and cooling water circulation.

3. Compact, lightweight, and easy to maneuver.

4. Five suction ports with check valves to prevent backflow.

5. Stainless steel pump for superior corrosion resistance.

Mode	B95	Pumping Capacity	100L/min
Tank Capacity	57L	Motor Power	550W
Voltage	110V/60Hz; 220V-240V/50-60Hz
Dimensions	450x350x820mm	Weight	40KG

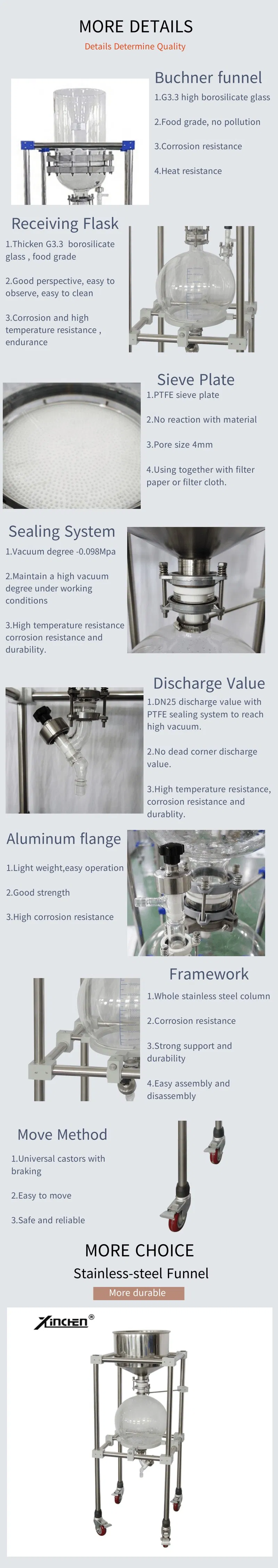

📸 Detailed Photos

📦 Packaging & Shipping

✈️ Packing: Standard export wooden box or customized based on requirements.

🚢 Shipping: Support for Express (5-7 days), Air (5 days), or Sea freight based on destination.

🛡️ Warranty: Coverage provided for broken or damaged glass parts during delivery.

❓ Frequently Asked Questions

Q1: What is the main application of the Vacuum Suction Filter?

It is primarily used for solid-liquid separation and filtration in laboratory and industrial chemical processes, especially when high speed is required.

Q2: Why use vacuum filtration instead of gravity filtration?

Vacuum filtration creates a pressure differential that pulls liquid through the filter medium much faster than gravity alone, saving time and improving particulate recovery.

Q3: Are the glass components resistant to chemicals?

Yes, the system uses G3.3 High Borosilicate glass, which offers excellent chemical resistance and thermal stability for various solvent types.

Q4: Can the filtration speed be adjusted?

The speed is influenced by the vacuum degree of the pump, the pore size of the filter paper/cloth used, and the viscosity of your material.

Q5: What are the maintenance requirements for the vacuum pump?

The B95 pump uses recycled water. It is recommended to change the water periodically to maintain vacuum efficiency and prevent contamination.

Q6: Is the equipment easy to move within a laboratory?

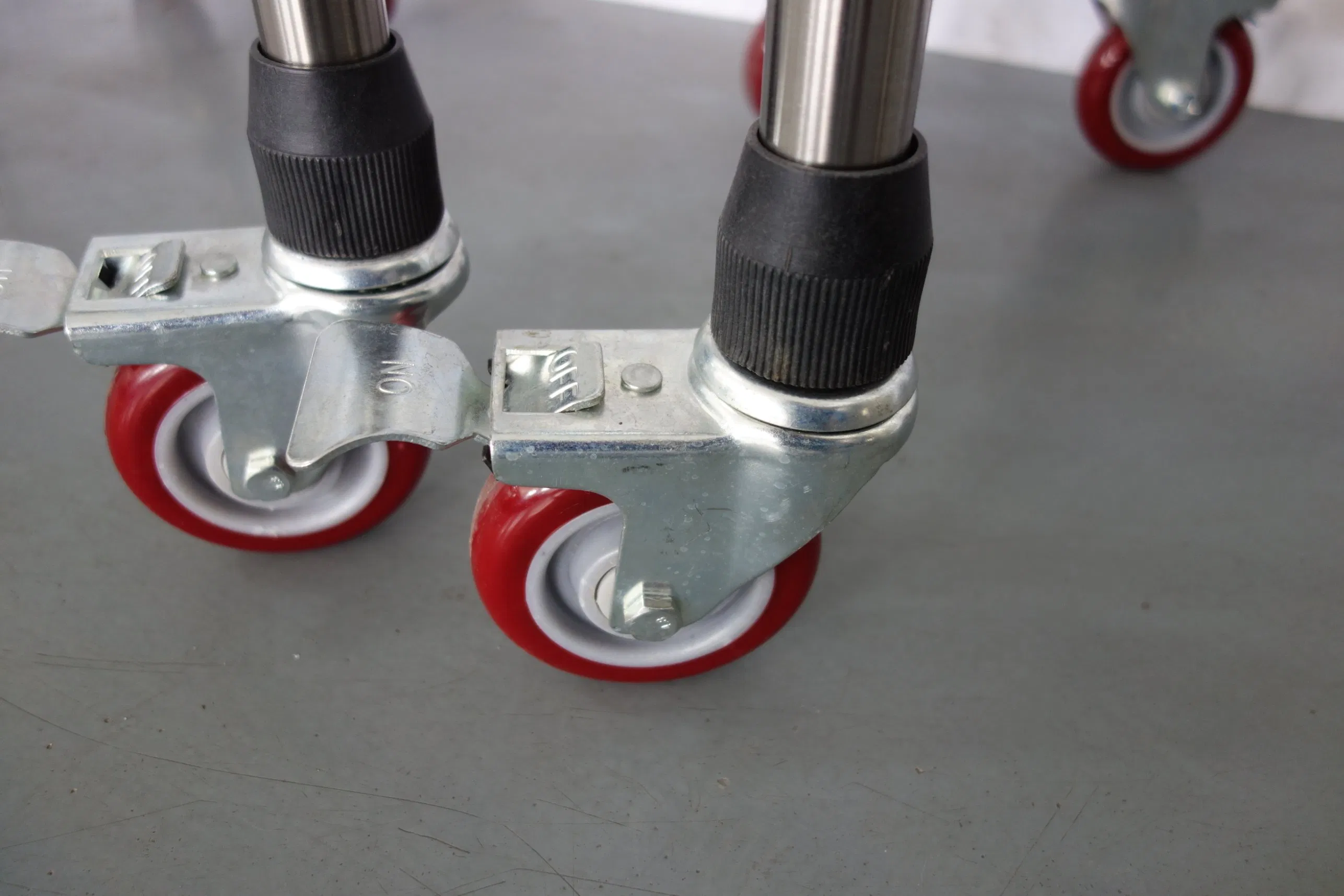

Yes, the system is mounted on a SUS304 stainless steel frame with universal castors, allowing for easy relocation and stability during operation.
