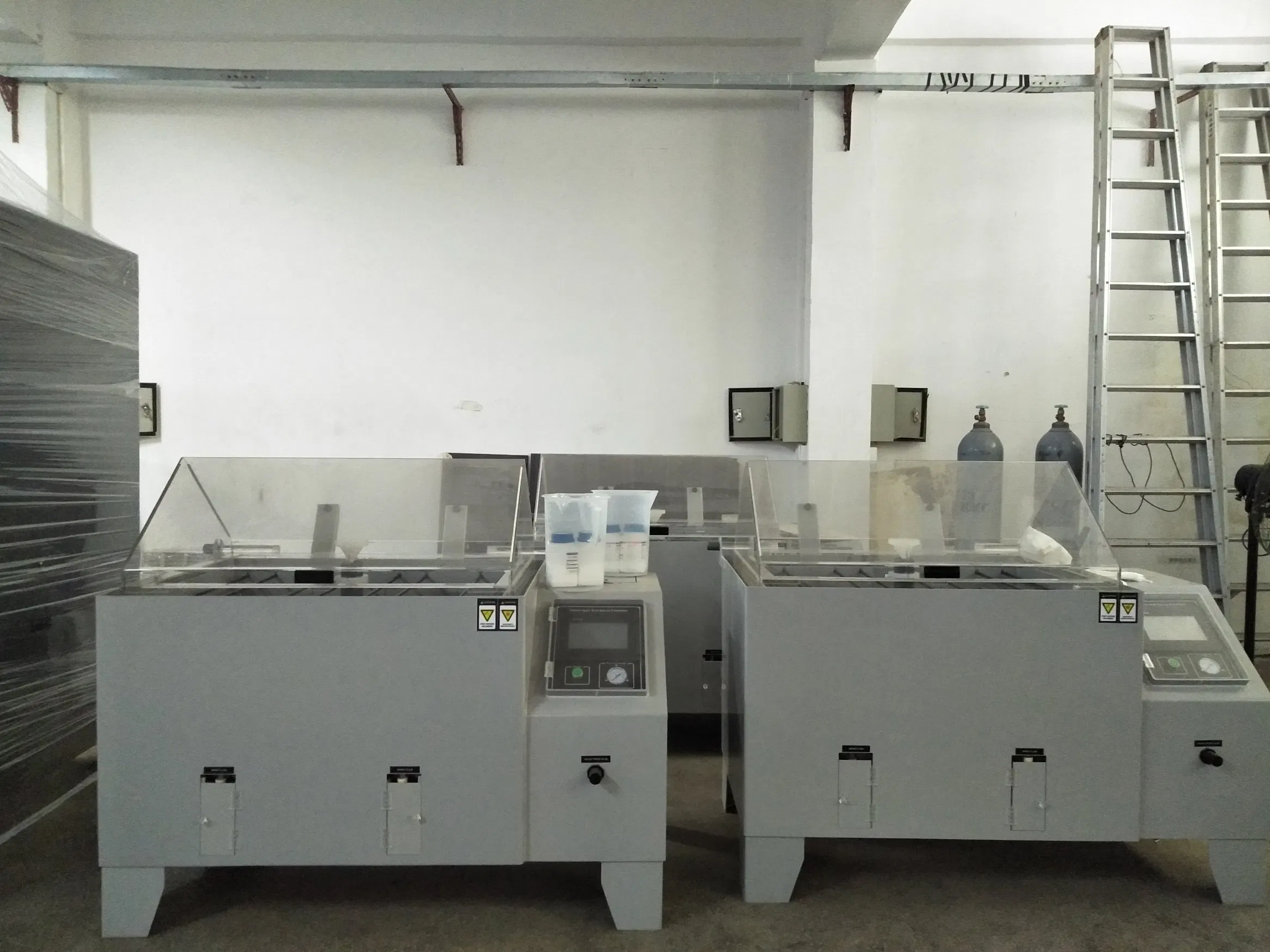

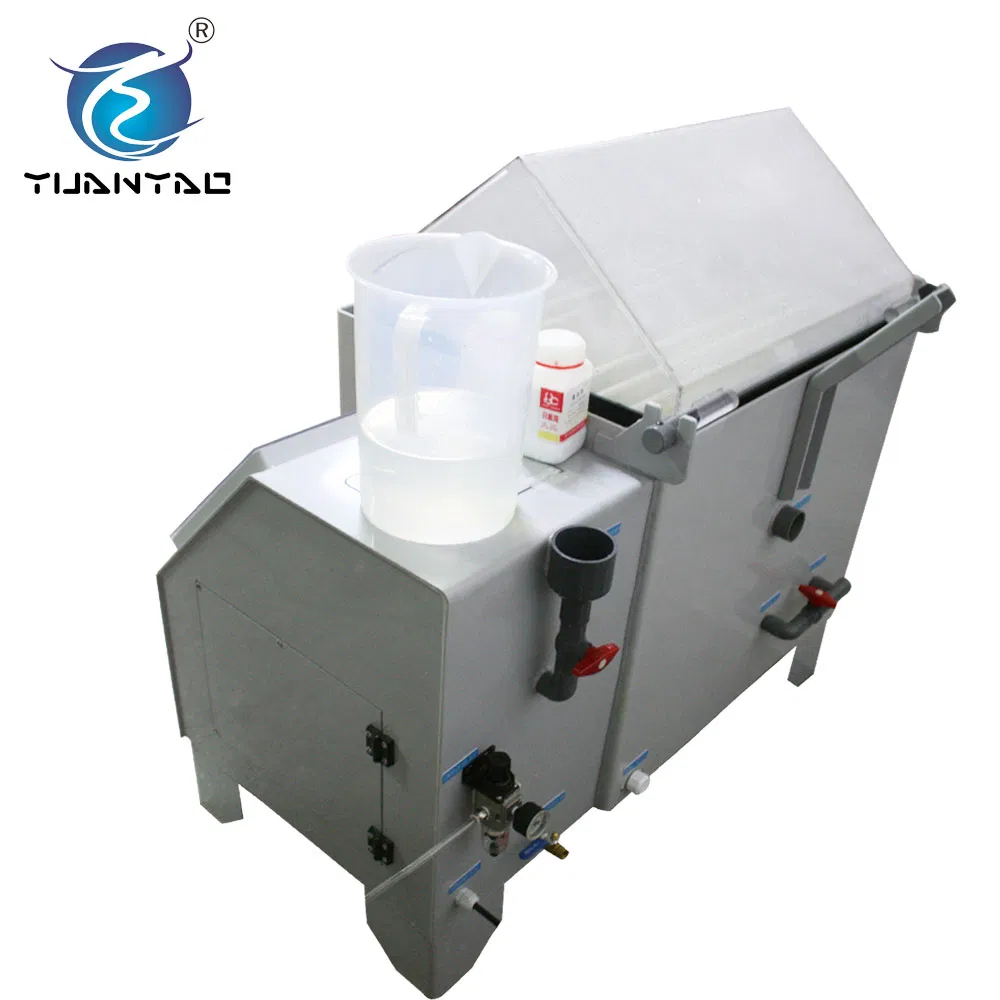

Nss Salt Spray Corrosion Laboratory Test Equipment Device

Customization: Available
Max Diameter of Workpiece: 900mm
Mass Scope of Workpiece: <900kg

Product Description

i

Basic Info.

Model NO.
YSST-108
Type
Salt Spray Testing Machine
Accuracy Grade
0.5
Load Way
Mechanical Load
Display
Digital
Weight
0-100Kg
Internal Size
600*450*400 mm
Material
Imported PVC & PP
Salt pH Value
6.5-7.2
Heating Method
Stainless Steel Heater
Spray Volume
0.5-3.0 (M/80cm/Hr)
Specification
CE, SGS, TUV certified

NSS Salt Spray Laboratory Test Device

NSS salt spray laboratory test device has a standardized test method to check corrosion resistance of coated samples. Salt spray test is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating.
It is made of PP & PVC, which endures acid and high temperature.
The patented nozzle and spray unit make an uniform spray rate.
The defogging equipment can automatically defog, providing a clear view of test samples.

Technical Specifications

Model YSST-108 YSST-270 YSST-600
Internal Dim. W×H×D(mm) 600×400×450 900×500×600 1200×500×1000
External Dim. W×H×D(mm) 1070×580×1030 1380×800×1150 1700×950×1150
Chamber Temp. Room temp. ~50°C, ± 0.5°C
Air Temp. Room temp. ~63°C, ± 0.5°C
Saturated Air Pressure 0.8~2.0 kg/m
Spray Volume 0.5~3.0 ml/80cm/hr
Power Source 1.1 KW 1.5 KW 3.5 KW
📷

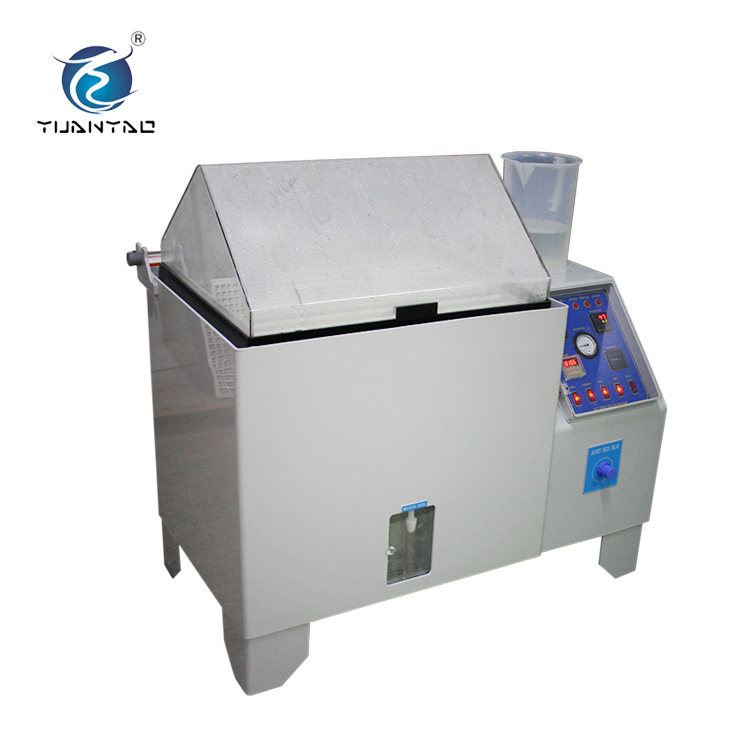

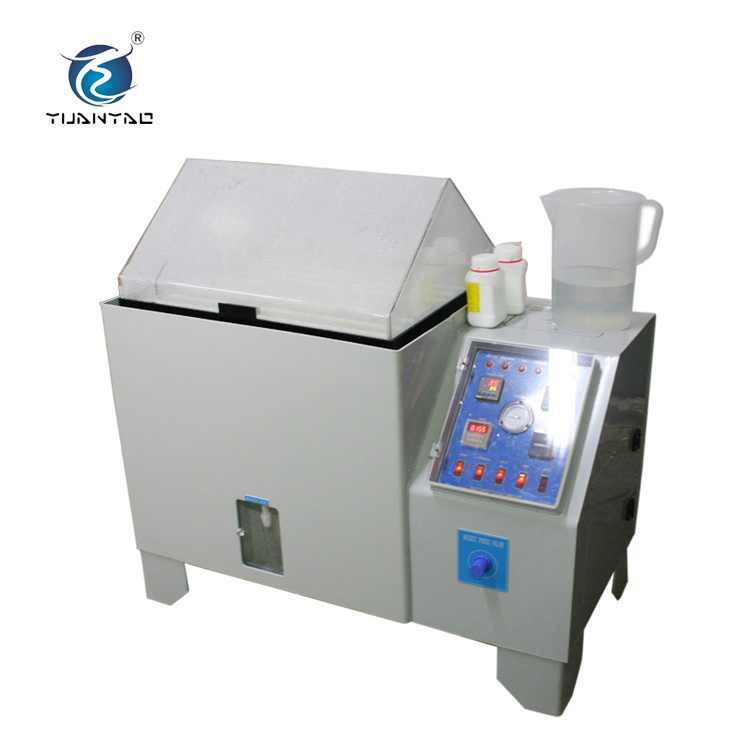

Product Display

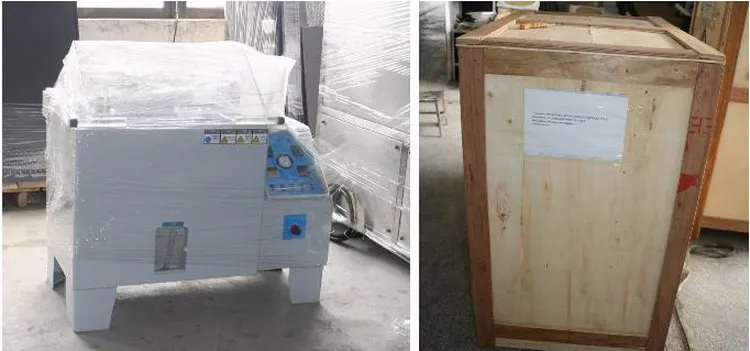

Nss Salt Spray Device
🔍

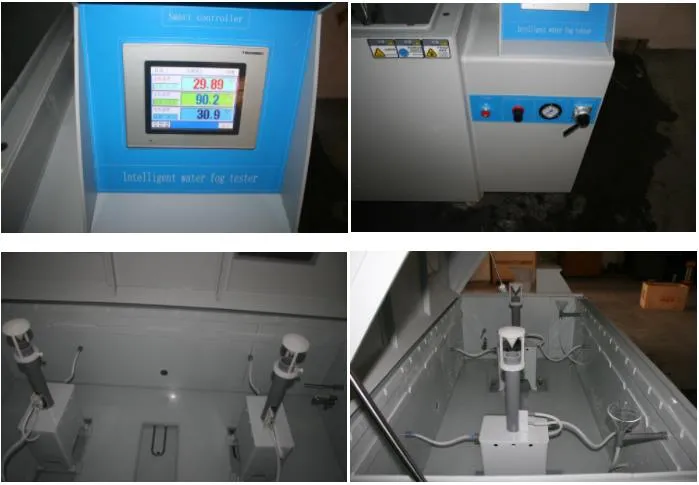

Product Details

Product Details
🏭

Factory & Production

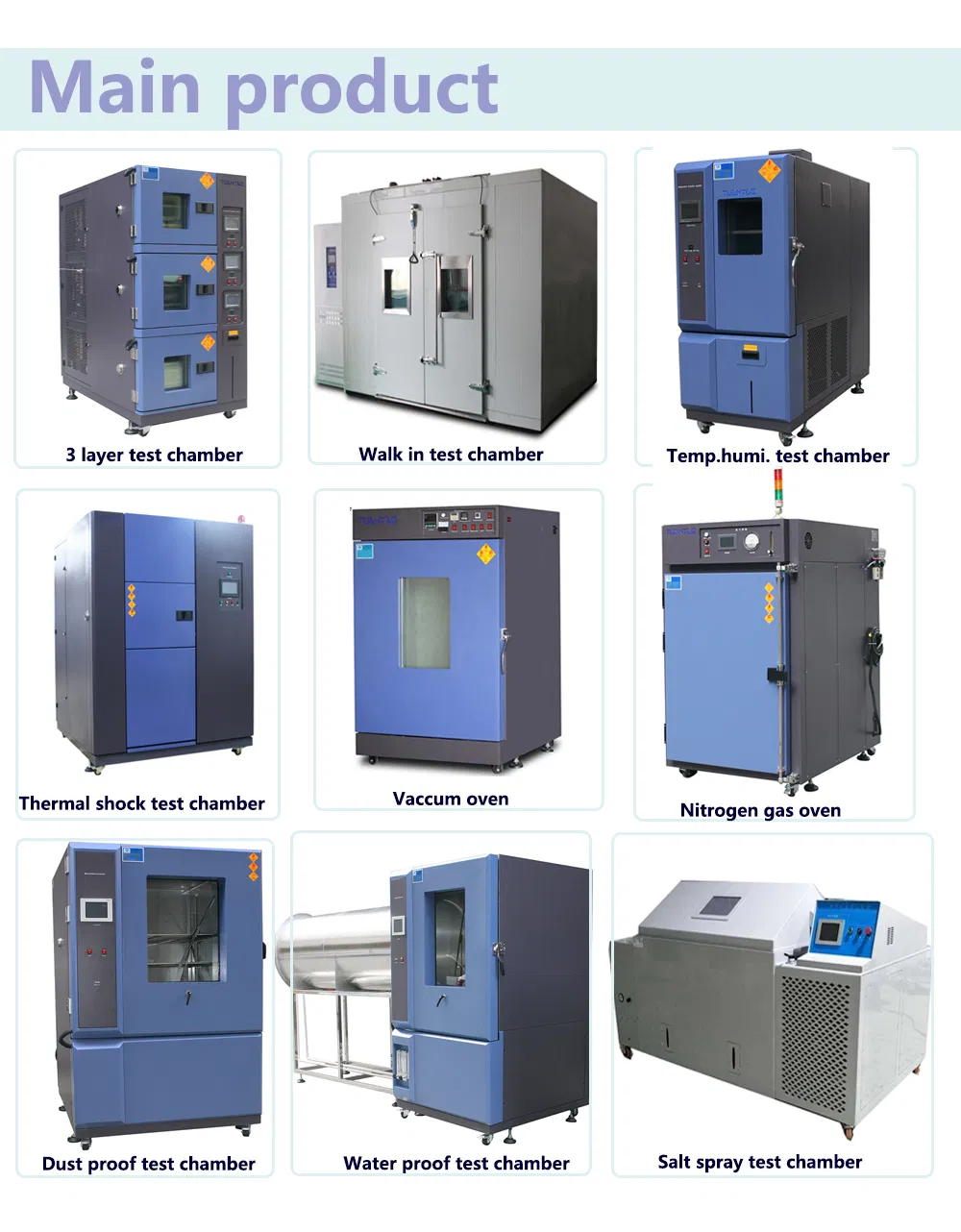

Other Testers About Us Factory Overview

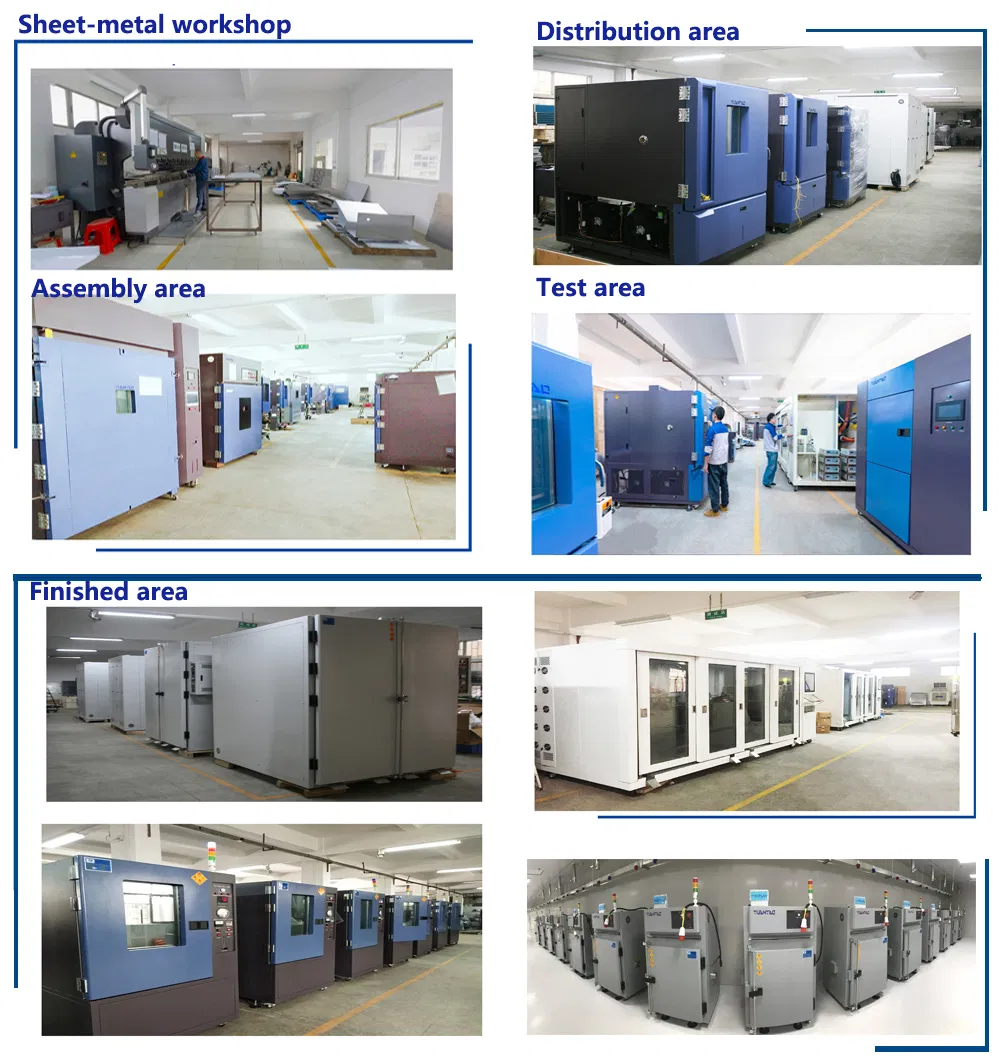

Production Line Customer Visit Exhibition
📜

Certifications

Certification 1 Certification 2 Production Process
?

Frequently Asked Questions

1. What materials are used for the salt spray chamber?
The chamber is constructed from imported PP and PVC materials, which are highly resistant to acids, corrosion, and high temperatures, ensuring a long service life.
2. How does the defogging system work?
The equipment features an automatic defogging system that clears the fog inside the chamber after testing, allowing for a clear and immediate observation of the samples.
3. What types of tests can this machine perform?
It is designed primarily for NSS (Neutral Salt Spray) tests, but it can also be configured for specialized corrosion resistance testing of various protective finishes and coatings.
4. What is the typical delivery time for an order?
Standard models are usually delivered within 15-20 working days after order confirmation, ensuring each unit undergoes rigorous quality checks.
5. Does the machine come with any safety protections?
Yes, it includes multiple safety devices such as overheating prevention circuit breakers, dehydration protection mechanisms, and breakdown indicator lights for safe operation.
6. What is the warranty policy for this equipment?
We provide a free parts warranty for 12 months, ensuring your testing laboratory operates without interruption.
