Laboratory Grade Soil Plastic Limit Analysis Manual Liquid Limit Device

Basic Information

Model NO.

Manual liquid limit device

Evaporating Dish

Diameter 114.3 mm

Mixing Knife

76.2 mm L x 19 mm W

Slotting Machine

With gauge

Balance

Sensitivity of 0.01 g

Transport Package

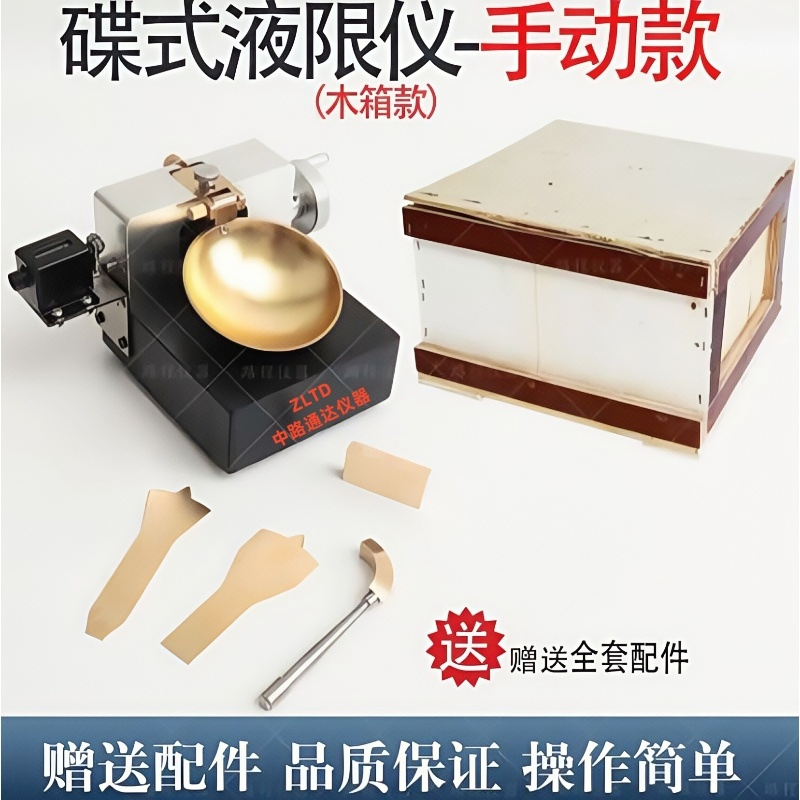

Wooden Box

Origin

China

HS Code

9031809090

Product Description

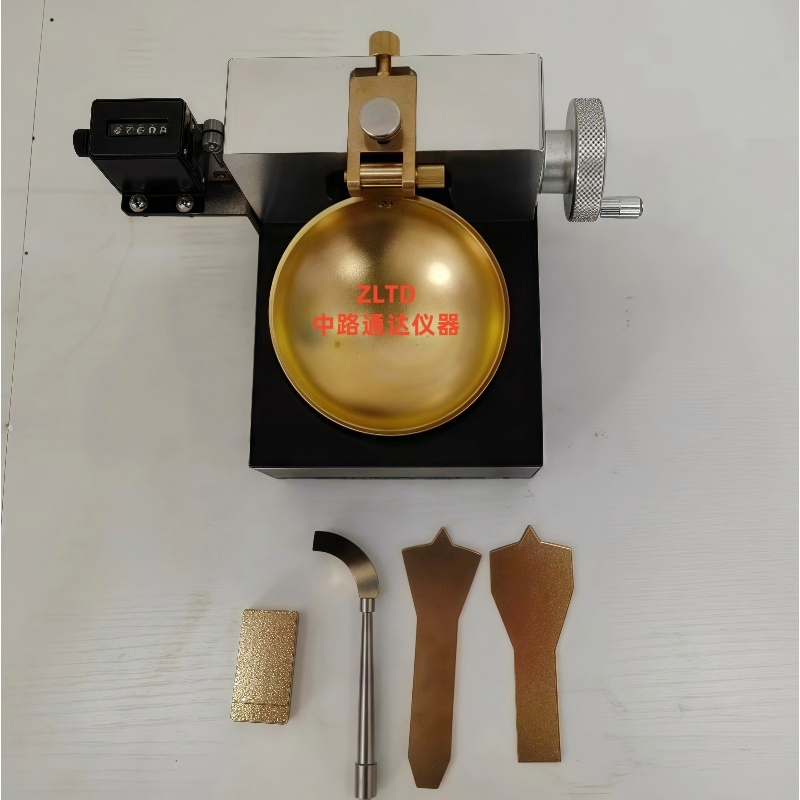

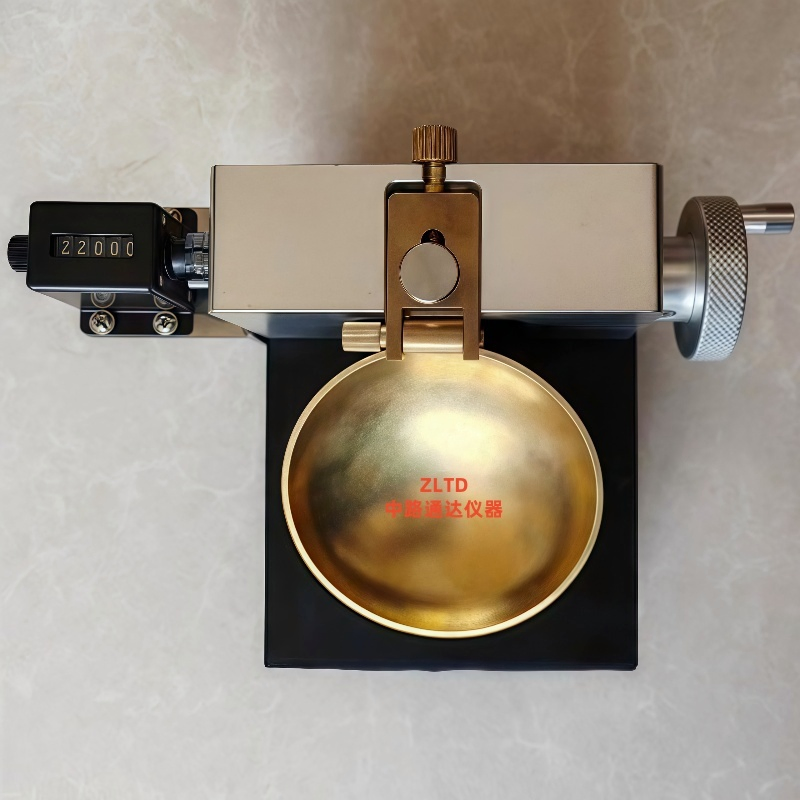

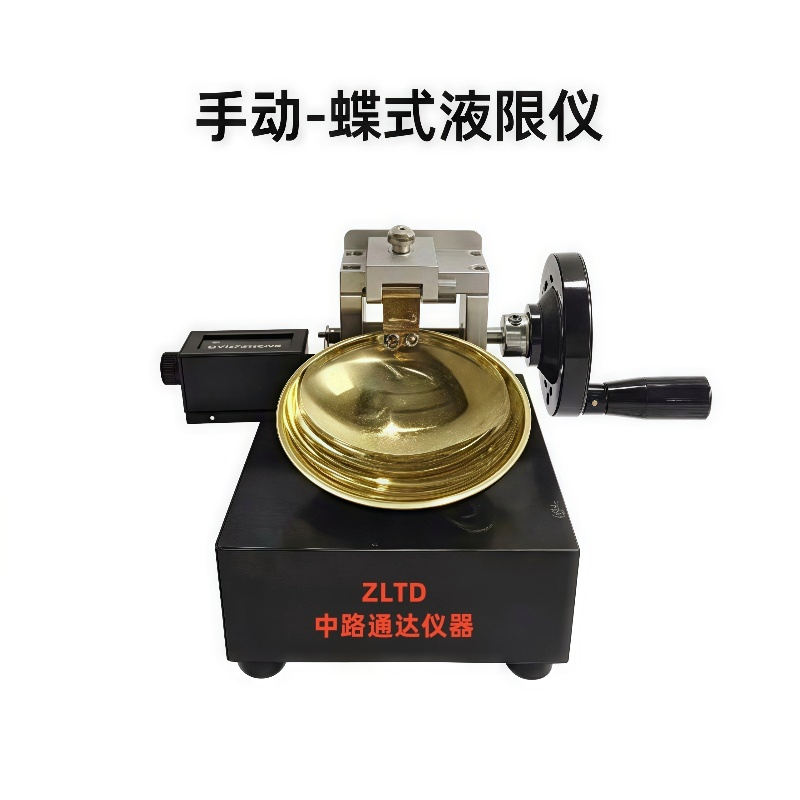

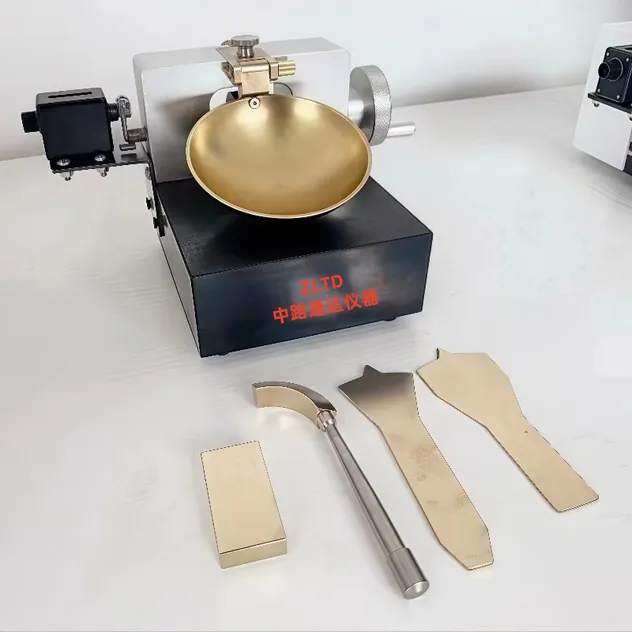

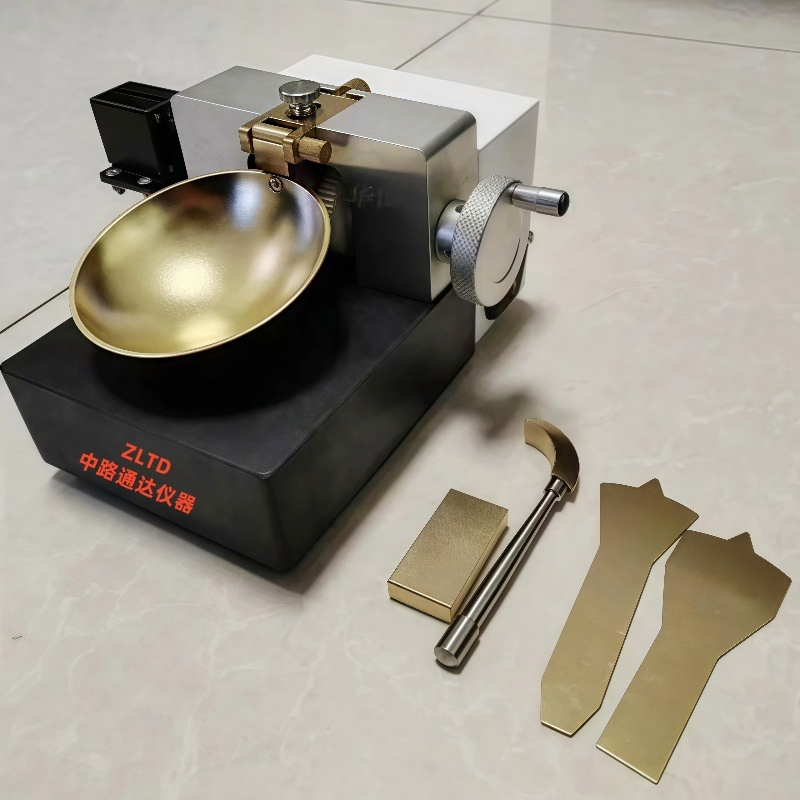

Overview: This manually-operated apparatus, also known as the dish-type liquid limit instrument, is specialized equipment for determining the liquid limit of soils and is widely used in civil engineering applications. The device primarily consists of a brass dish, a hard rubber base, an impact mechanism (with cam and counter), and a grooving tool.

Driven by an electric motor, the dish drops at a rate of 120 blows per minute (tolerance: ±15%), with a built-in blow counter. Its core function is to determine the moisture content at which soil transitions from the liquid to plastic state.

I. Scope of Application:
This standard specifies the test method for determining the liquid limit of soils. The result must be based on at least three separate tests and the preparation of a flow curve. Unless explicitly permitted for the soil being tested, the dish-drop method shall be used.

II. Definitions:
The liquid limit of a soil is the moisture content defining the boundary between the liquid and plastic states. Artificially defined as the moisture content at which two halves of soil paste flow together for a distance of 12.7 mm when the brass dish is dropped 25 times from a height of 1 cm at a rate of 2 seconds per drop.

Included Components:
Liquid Limit Apparatus, Brass Dish and Mounting Base, Grooving Tool with Gauge, Porcelain Evaporating Dish (114.3mm), Spatula (76.2mm x 19mm), Moisture Proof Containers, High Sensitivity Balance.

Industrial Testing Solutions

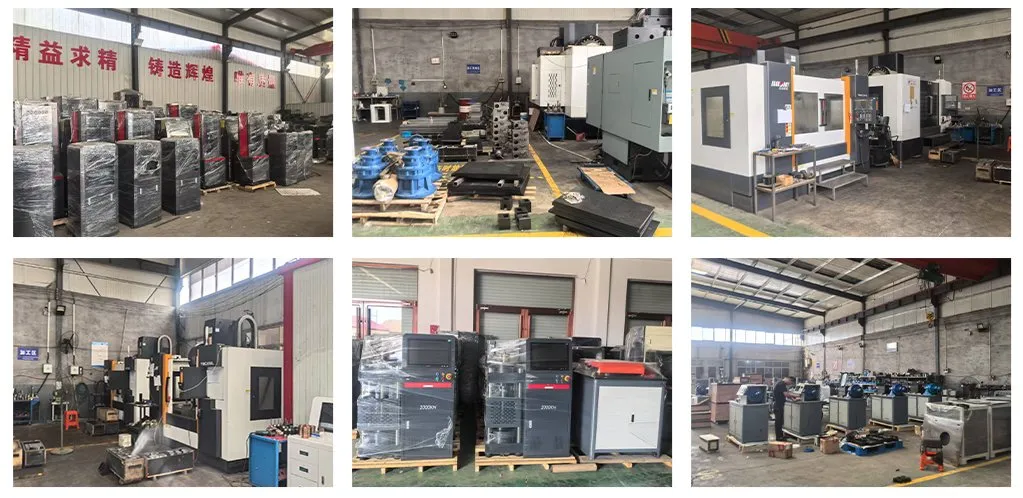

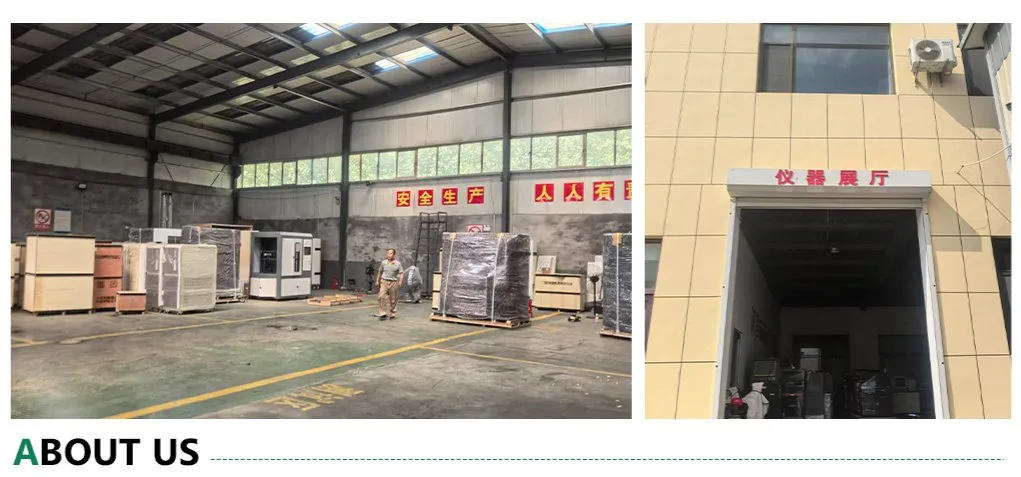

Our facility is a high-tech enterprise engaging in the research, development, and sales of testing and measurement instruments. We rely on extensive manufacturing experience with senior engineers who have been involved in the development of test instrument products for over twenty years.

We provide professional pre-sale and after-sale services to users across various industries including construction, highways, railways, water conservancy, power, and environmental protection. Our business philosophy is based on management as the foundation, technology as the guide, and innovation as the driving force.

Our Advantages

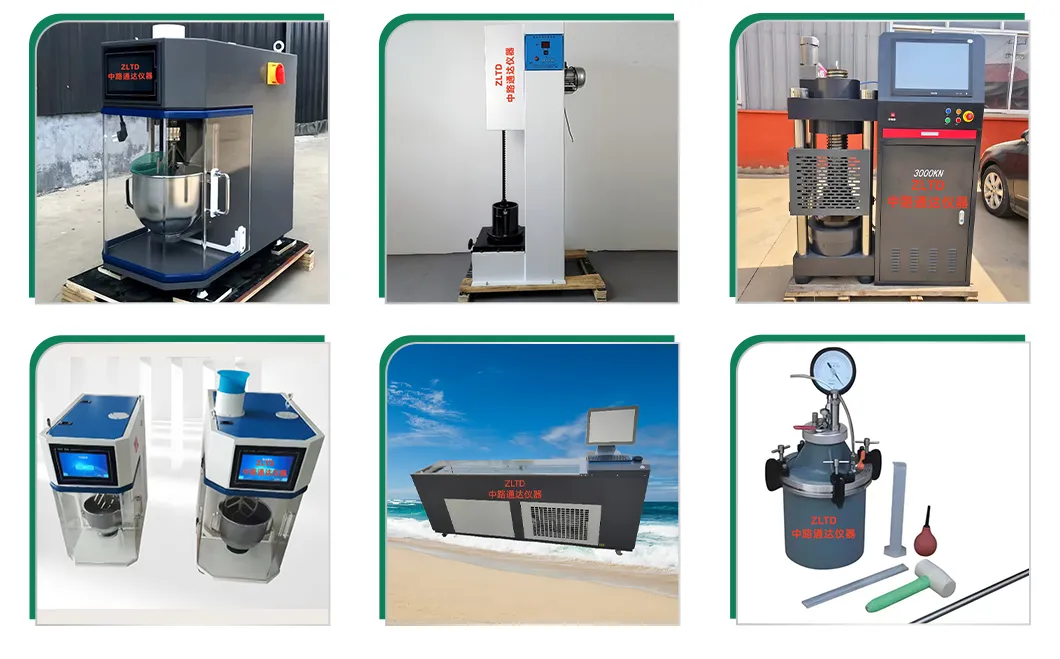

Comprehensive range of testing equipment: Universal machines, geotechnical, concrete, asphalt, and durability testing instruments.
Specialized solutions for high-speed rail, bridge, tunnel, and dam engineering.
Professional after-sales service team providing comprehensive technical support.
Strict 100% quality inspection and testing conducted for each product before shipment.

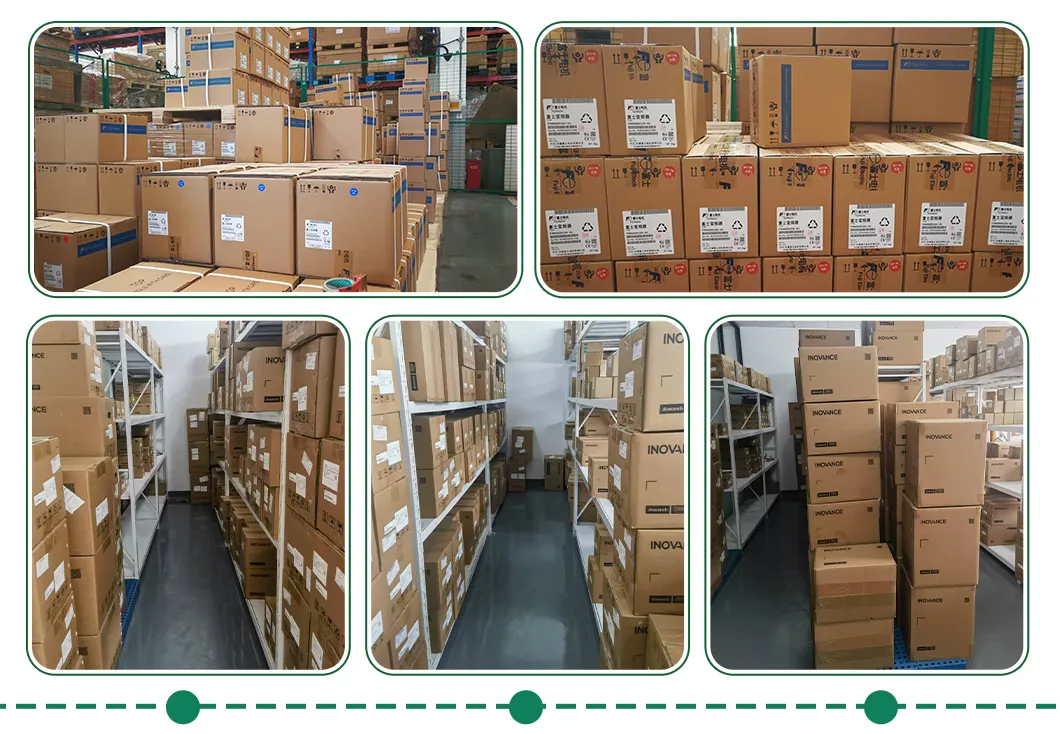

Packaging & Shipping

I. Packaging Protection: To ensure goods remain undamaged, we take adequate measures to prevent dampness, rust, corrosion, and impact damage. We utilize original factory packaging complying with international standards.

II. Documentation: Each box includes a detailed packing list specifying main machines, accessories, components, and consumables.

III. Transportation Plan: Each instrument is packaged separately to ensure integrity. Customized transportation plans are formulated based on the specific equipment requirements.

Frequently Asked Questions

What types of laboratory equipment do you supply?

We offer a wide range of testing equipment including metal, pile foundation, concrete, soil, cement, asphalt, and rock testing instruments.

Are you a manufacturer or a trading company?

We are an integrated factory and trade operation with over 10 years of specialization in the testing instruments field.

What is the typical delivery timeframe after ordering?

During peak season, delivery takes 5-7 days. In the off-season, it typically takes 3-5 days.

What is the warranty period for your testing machines?

All machines come with a 12-month warranty. We provide free assistance for controller issues and comprehensive technical support thereafter.

How do you ensure product quality and provide training?

Each product undergoes 100% quality inspection before shipment. We provide video tutorials for installation and operation, and can arrange on-site engineer training if required.

Do you offer customized supply services?

Yes, we provide both OEM (Original Equipment Manufacturing) and ODM (Original Design Manufacturing) services to meet specific client needs.
