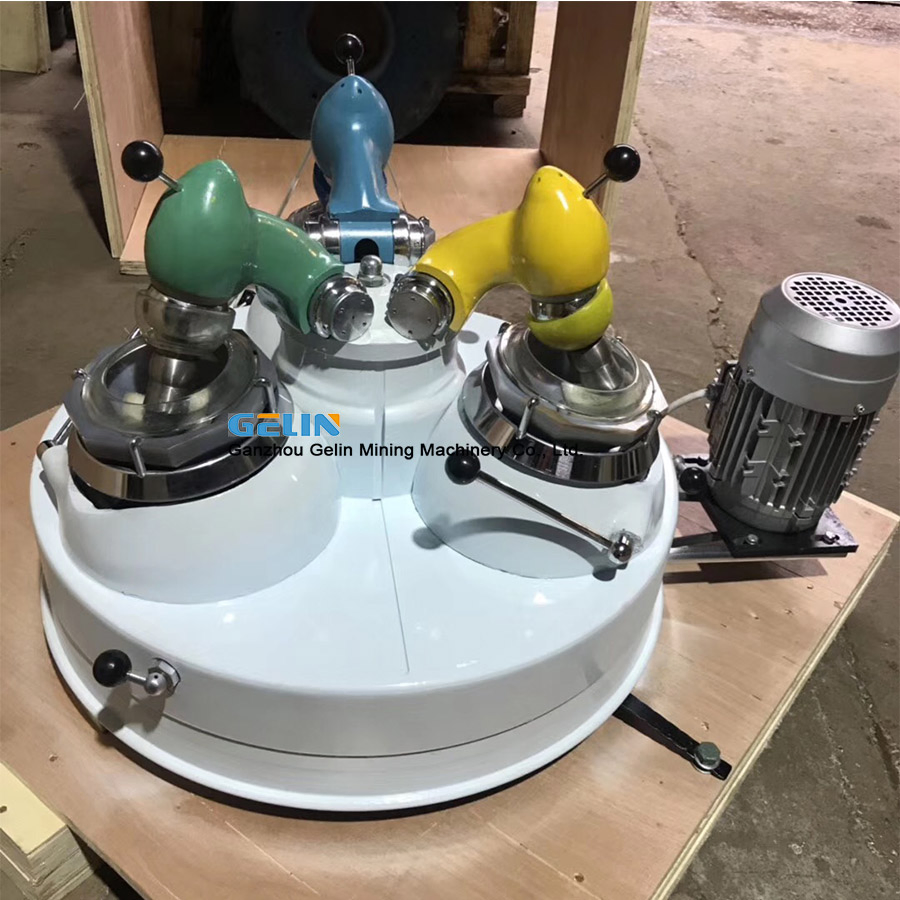

Xpm 120*3 Laboratory Sample Preparation Griding Device

⚙ Basic Info.

Model NO.	XPM
Application	Metallurgy, Building Material, Chemical
Materials	Steel
Condition	New
Warranty	2 Years
After-sales Service	Engineer Guidance/Video Guidance
Usage	Mill and Analyze Samples
Capacity	90g
Max. Feeding Size	1.5mm
Final Output Size	Within 0.074mm
Transport Package	Plywood Carton
Specification	770740470
Origin	China
Production Capacity	1000sets/Month

📖 Product Description

XPM-Φ120×3 triple grinding mill is a specialized type of grinding equipment designed for milling and analyzing samples through dry grinding processes. These mills are primarily utilized by laboratories within industries such as metallurgy, building materials, chemicals, coal, water and electricity, commercial inspection, and geology. They are also highly effective for grinding small quantities of various materials.

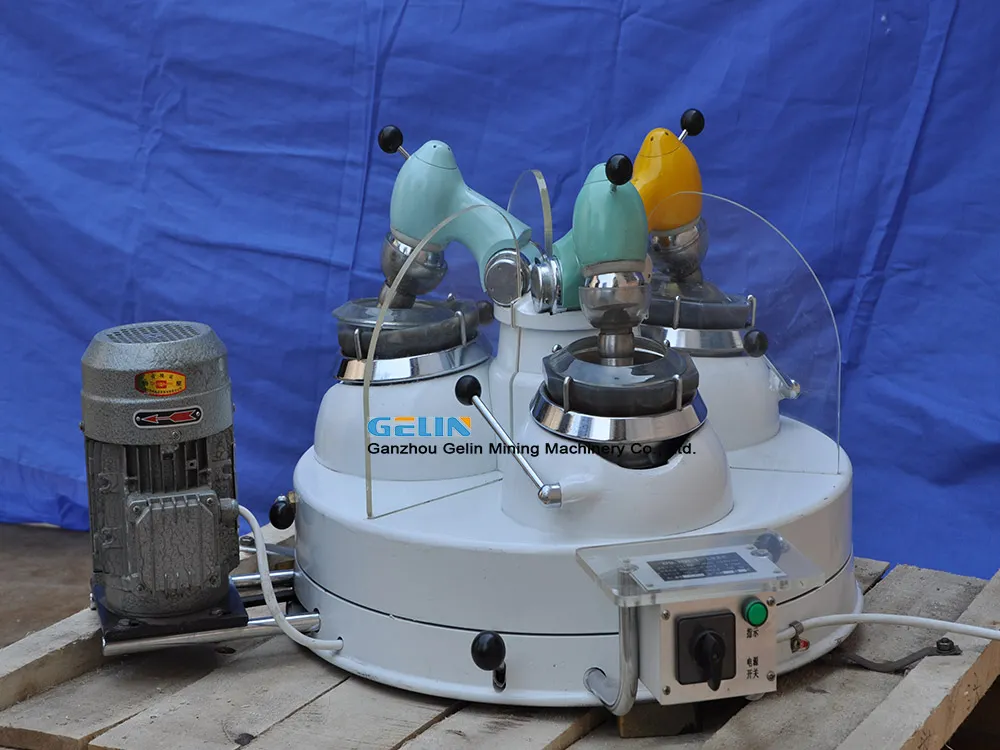

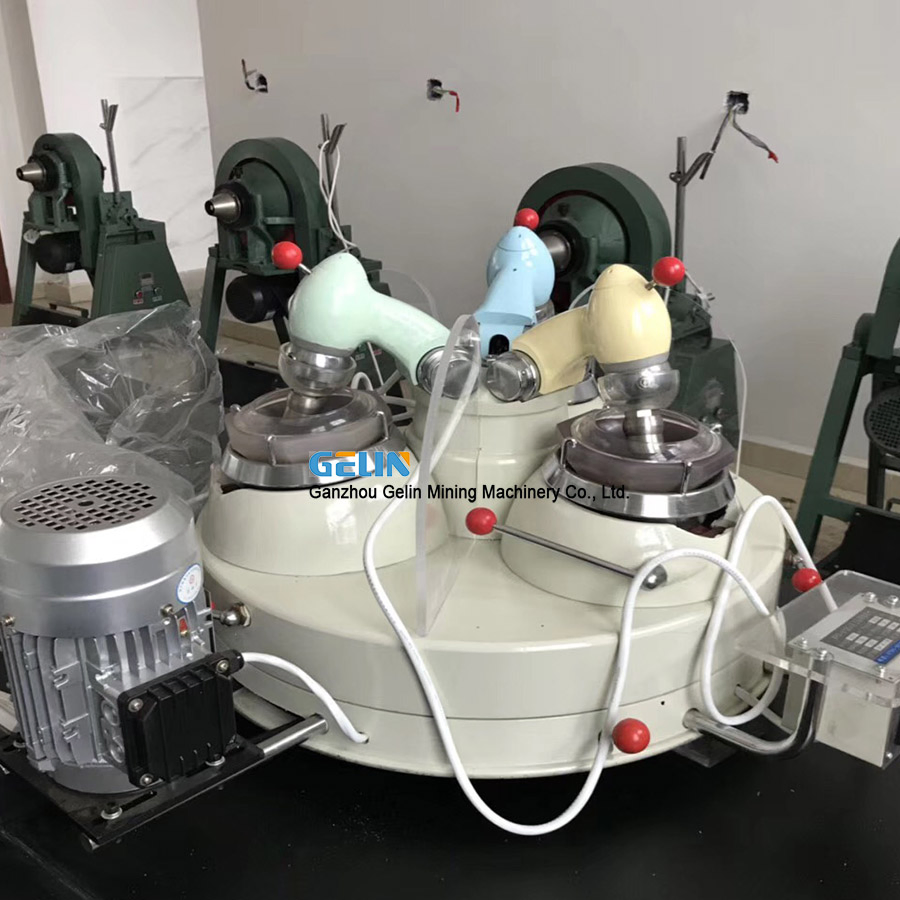

Xpm 120*3 Laboratory Sample Preparation Grinding Device

✨ Key Features

Dry Grinding: Standard materials can achieve a fineness of more than 600 mesh depending on the specific grinding time and material properties.
Wet Grinding: This method effectively increases the fluidity of the material, allowing for a fineness of more than 1000 mesh based on ball milling time and process requirements.
Digital Timing: The timer features a digital display. The setting range is 1-99 hours. It is necessary to unplug the socket and configure the desired time before operation.

📊 Product Parameters

Model	XPM-Φ120*3
Mortar Diameter (mm)	Φ120
Mortar Quantity (pcs)	3
Rotary Speed of Pestle (r/min)	220
Rotary Speed of Mortar (r/min)	9
Feeding Size (mm)	≤1.5
Discharging Size (mm)	≤0.074
Capacity (g/mortar)	30
Motor Power (w)	370
Electricity (V/HZ)	380/50
Dimension (mm)	770740470
Weight (kg)	105

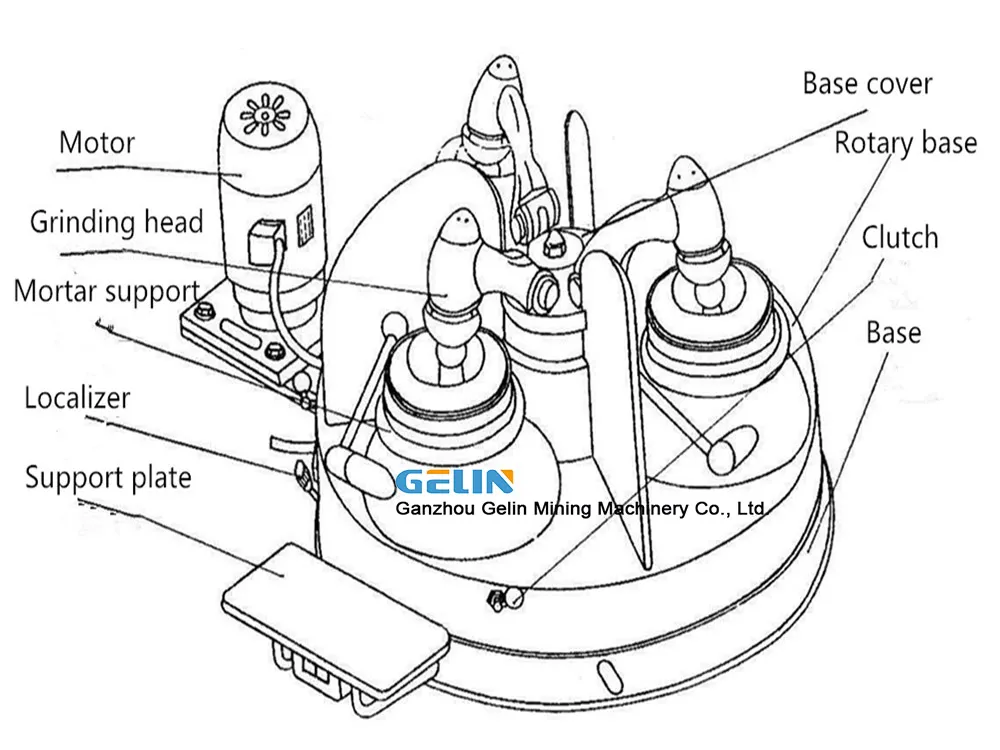

🔍 Structure and Working Principle

Working Principle: The grinding head, mortar support, and clutch are evenly spaced on the rotating seat and bearing at 120° angles to one another. The base front houses the receiving support plate and electrical components, while the motor is mounted on the left. When clutches are engaged, the motor drives the grinding head rotation via a belt pulley, gear shaft, and cardan joint. Clockwise rotation of the grinding bar against the mortar causes relative sliding, allowing materials to be ground effectively under the weight of the grinding head.

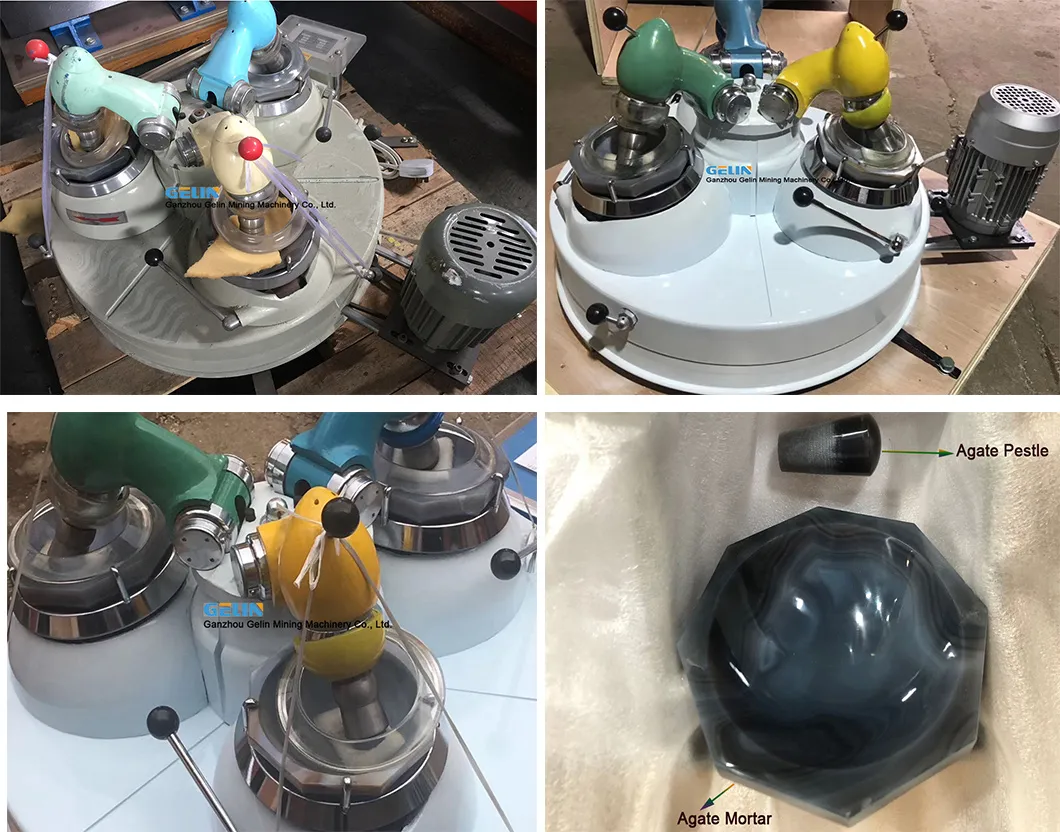

📸 Detailed Photos

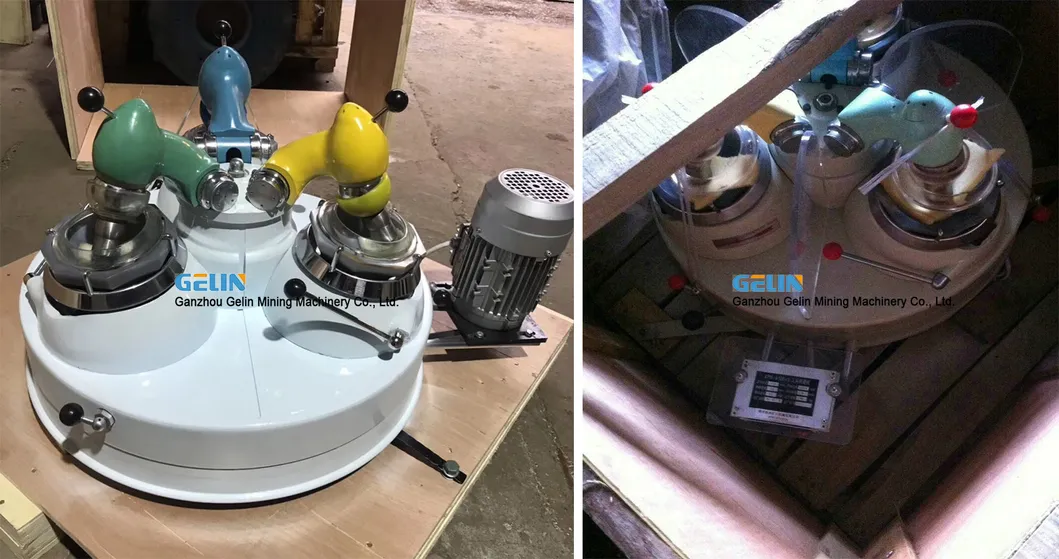

📦 Packaging & Shipping

🛠 Our Services

One Stop Solution for Beneficiation Plants:

Engineering consulting to provide a comprehensive understanding of plant scale, essential equipment, and processing technology.
Mineral beneficiation experiments upon receiving material samples, followed by detailed test reports.
Engineering design including planning, data collection, and project evaluation to create construction working drawings.
Manufacturing of necessary equipment and management of global shipments.
Complete services for installation, commissioning, and technical training.
After-sale Service: Regular visits for technical support, one-year warranty, and long-term supply of spare parts at preferential prices.

❓ Frequently Asked Questions

Q: Are you a trading company or a factory? A: We are a factory with 110 workers, featuring 6 workshops covering 17,000m² and an office area of 2,500m². You are welcome to visit our facility at any time.

Q: What are your payment terms? A: Payment is accepted via TT (Telegraphic Transfer). Terms are usually a 40% deposit before production and the 60% balance paid off before loading from the factory.

Q: How long is the guarantee period for your products? A: The guarantee period is typically 1-2 years. We also provide lifelong technical support and spare parts at the lowest possible cost.

Q: Is it possible to produce customized products? A: Yes, most of our machinery can be produced and customized as per your specific requirements.

Q: Can you provide samples for ore-dressing experiments? A: Yes, we can arrange mineral beneficiation experiments after receiving your sample and provide a comprehensive test report.

Q: What kind of after-sales technical support do you provide? A: We provide regular customer visits, solve operational problems, and offer specific technical training for equipment maintenance.
