Core Advantages: Safety, Compliance, and Efficiency
1. Thorough Sterilization: Reaches 135-200℃, achieving an average log reduction of over 6.00 against pathogens, completely blocking infection transmission.
2. Compliant and Adaptable: Exhaust gas purification rate exceeding 98%, meeting national emission standards for wastewater and noise.
3. Resource Efficiency: Achieves volume reduction up to 81.6% and weight reduction of 20%-40%, lowering transportation and disposal costs.

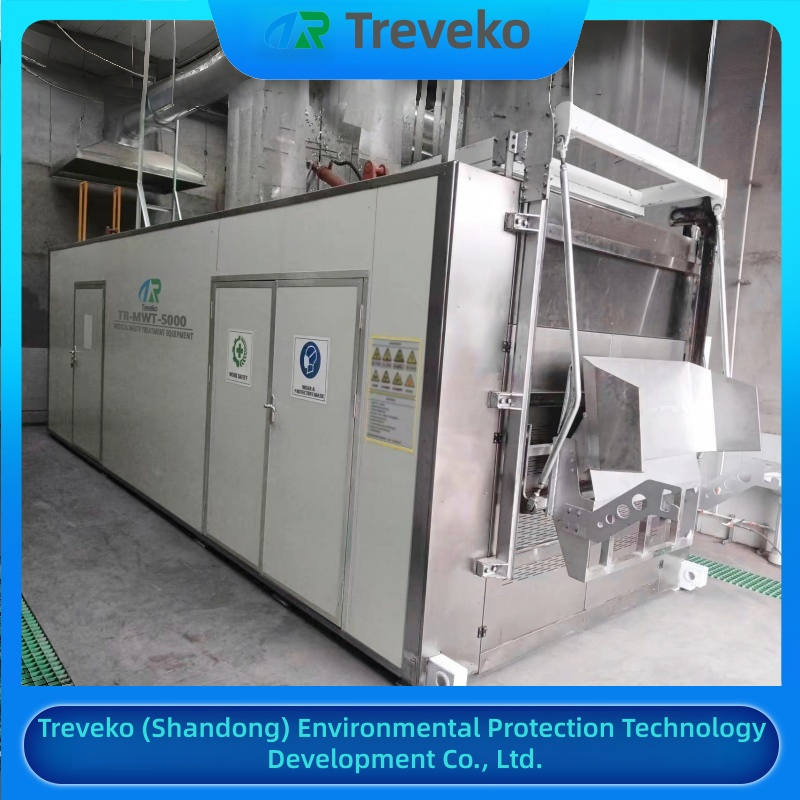

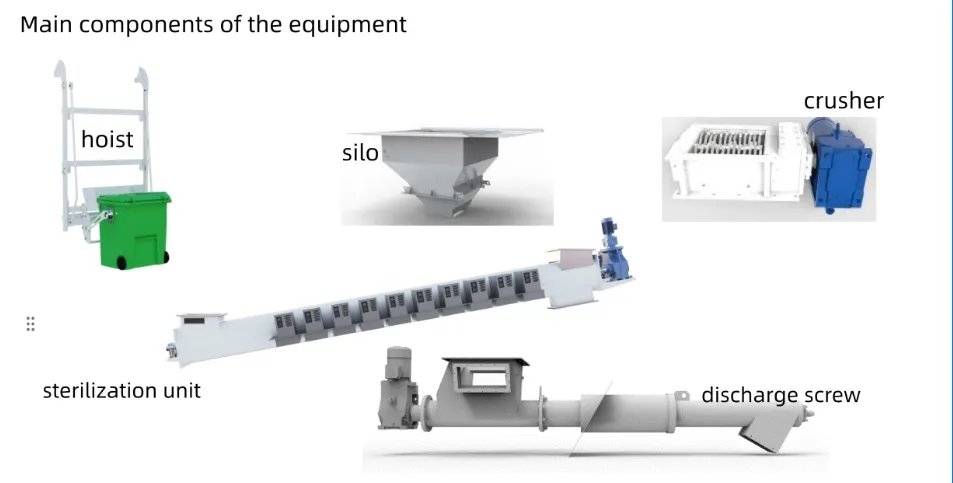

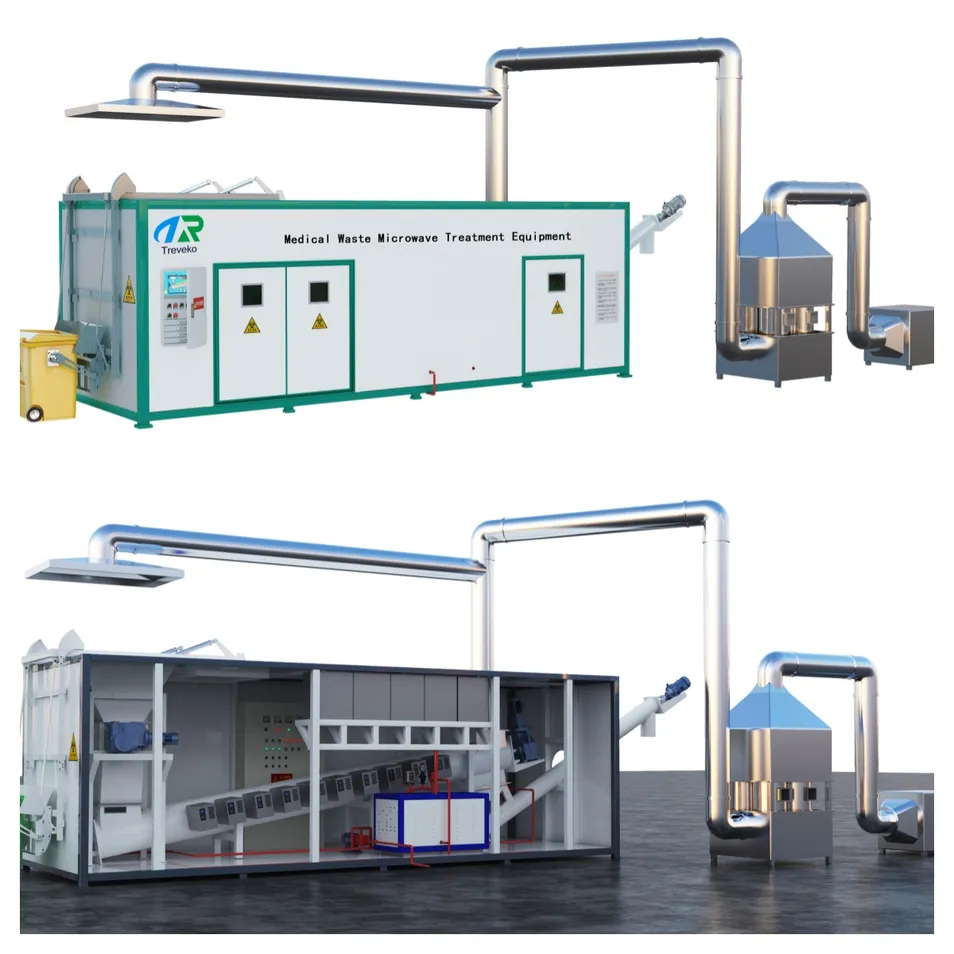

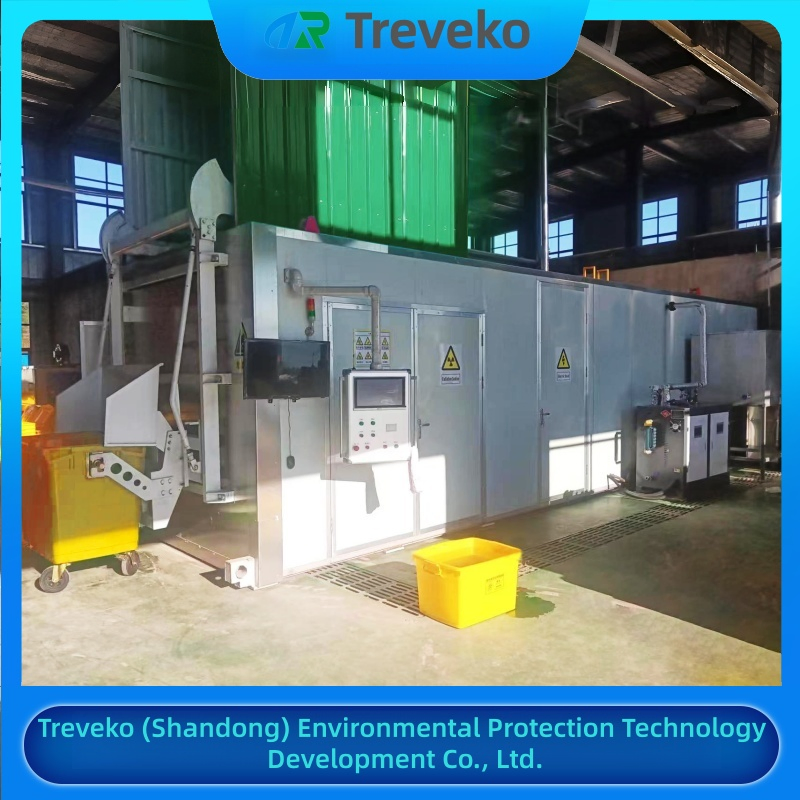

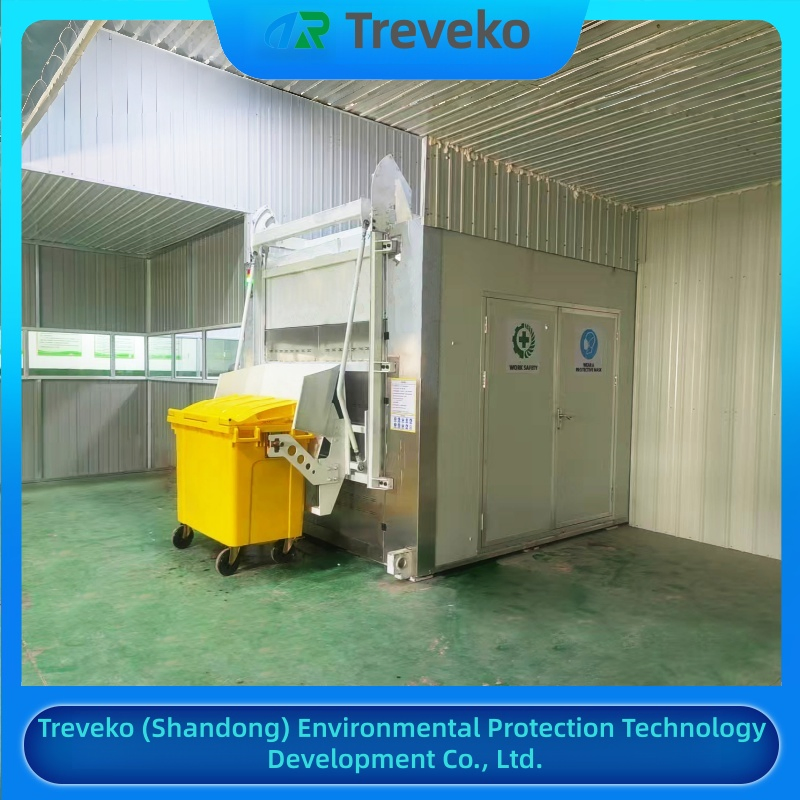

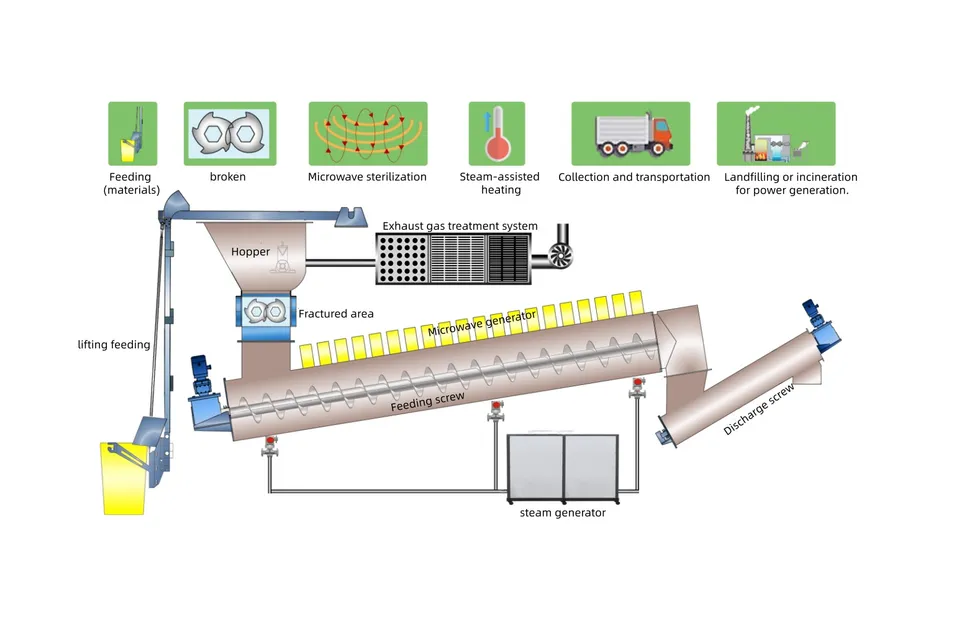

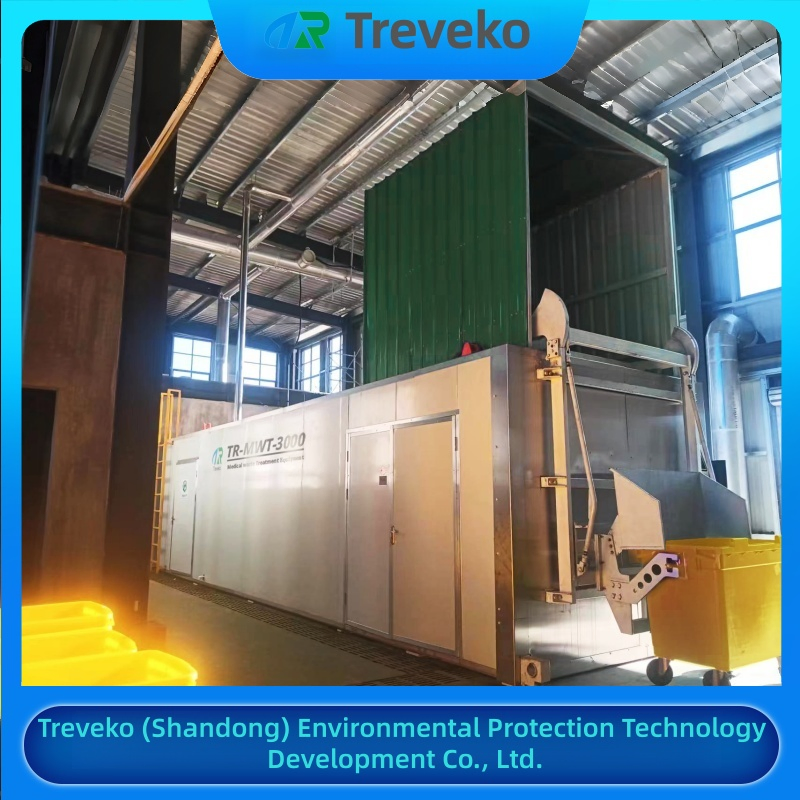

The system is an integrated machine consisting of 10 main components including a multi-functional sealed crushing unit, negative pressure extraction, and microwave generator units, designed for self-contained, safe operation.
| System Unit | Project | TR-MWT-2000 | TR-MWT-3000 | TR-MWT-5000 | TR-MWT-10000 |
|---|---|---|---|---|---|
| Feeding System | Garbage Can | 240L | 660L | 660L | 660L |
| Silo | Volume | 0.6m³ | 1m³ | 1.2m³ | 1.2m³ |
| Crushing System | Power | 18.5kw | 22kw | 30kw | 30kw |
| Crushing Chamber | Size | 447*465mm | 647*665mm | 647*665mm | 647*665mm |
| Sterilization | Spindle Power | 1.5kw | 1.5kw | 1.5kw | 2.2kw |
Horizontal Steam Sterilization

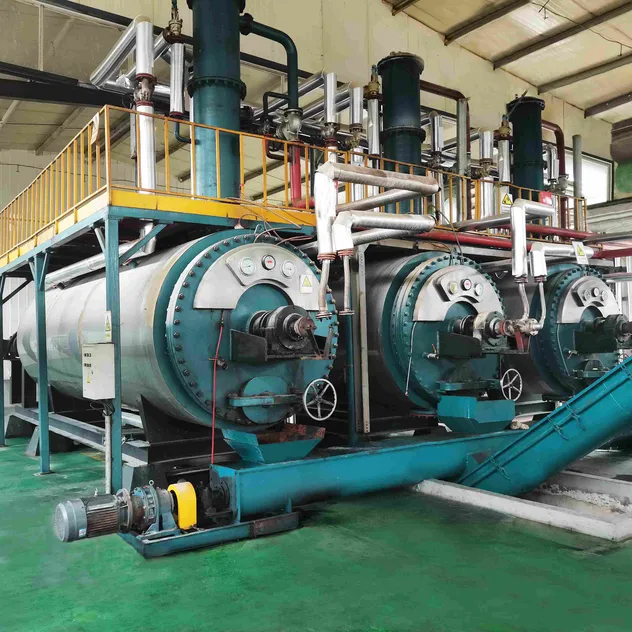

Chemical Treatment Machine

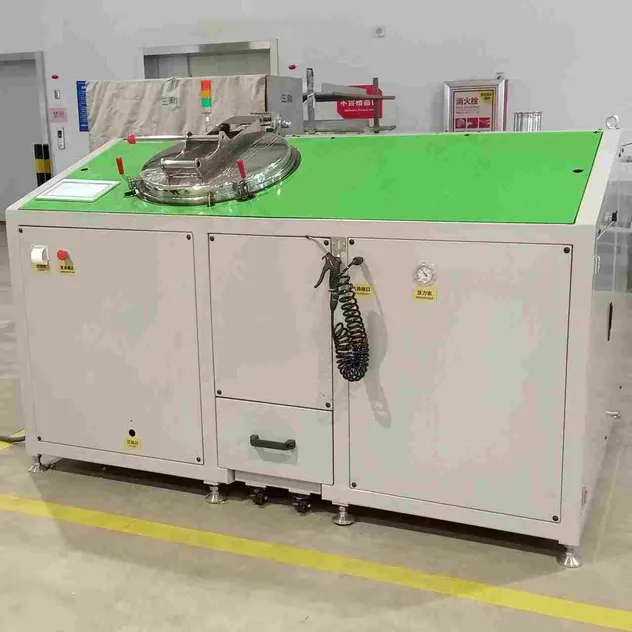

Microwave Disinfection

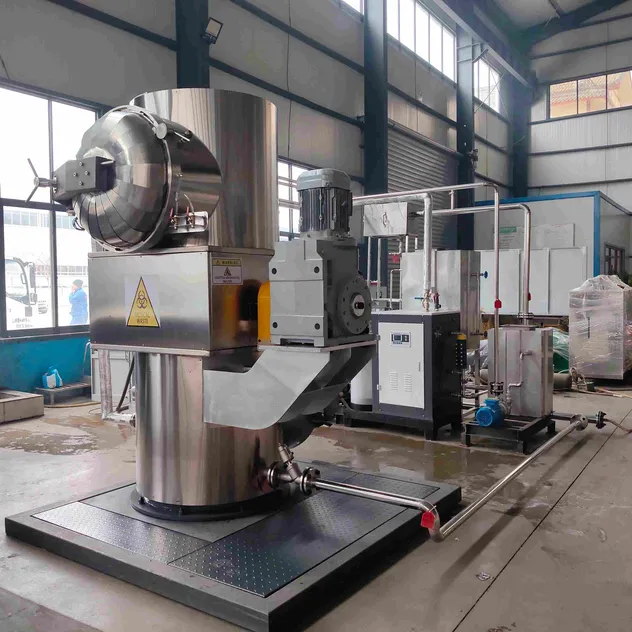

Vertical Steam Treatment

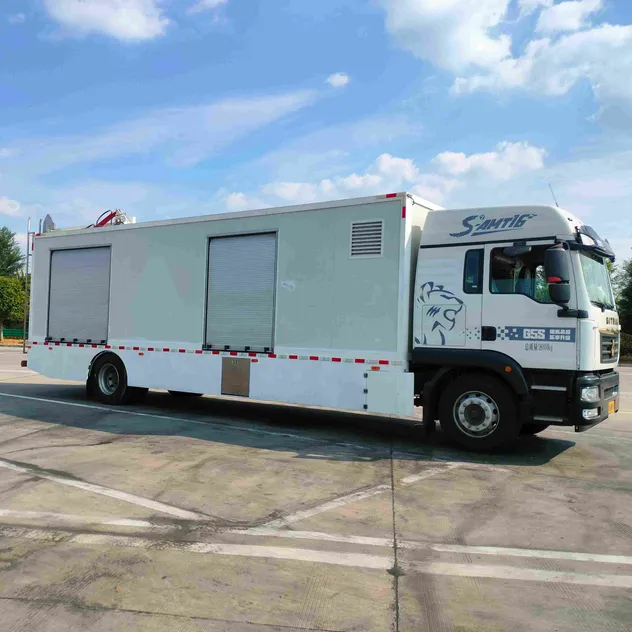

Mobile Microwave Unit

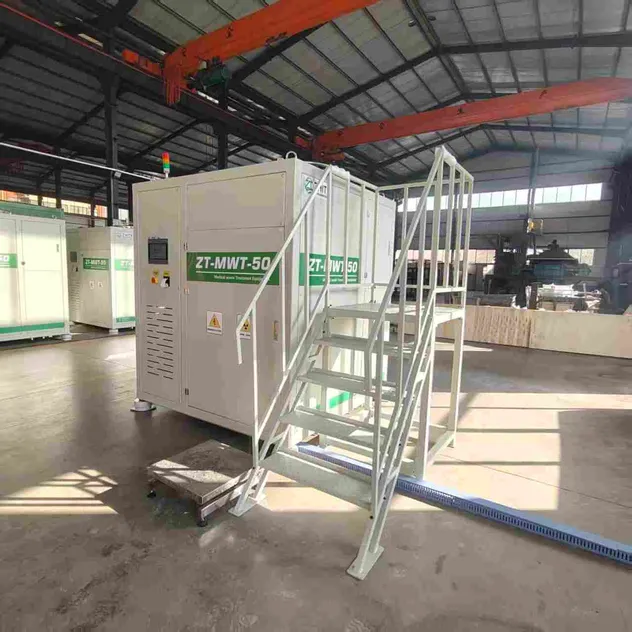

Small Microwave Equipment
