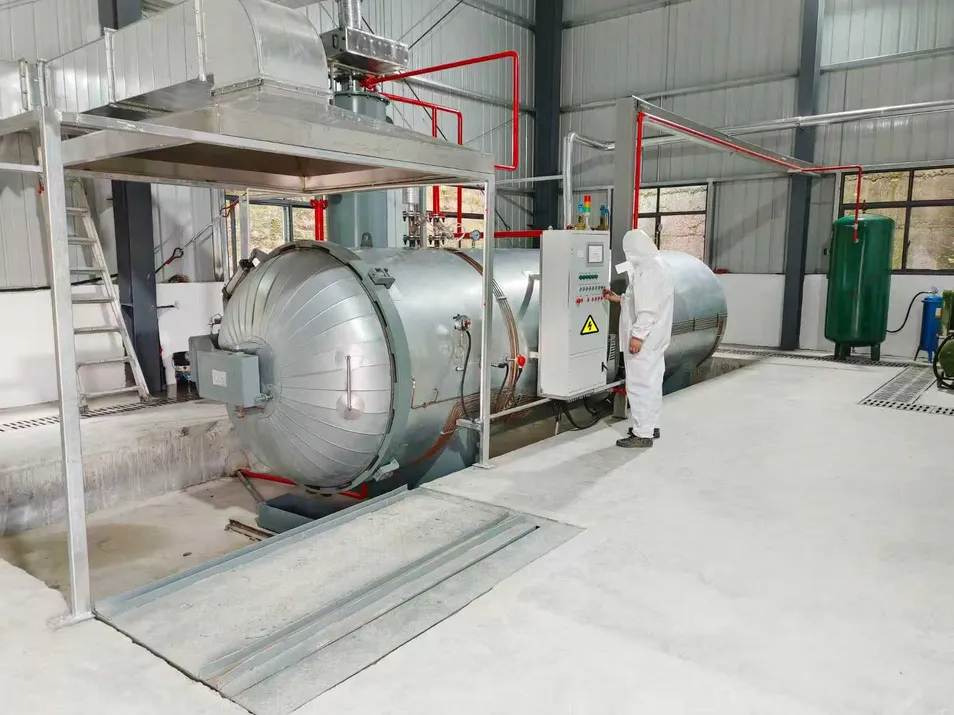

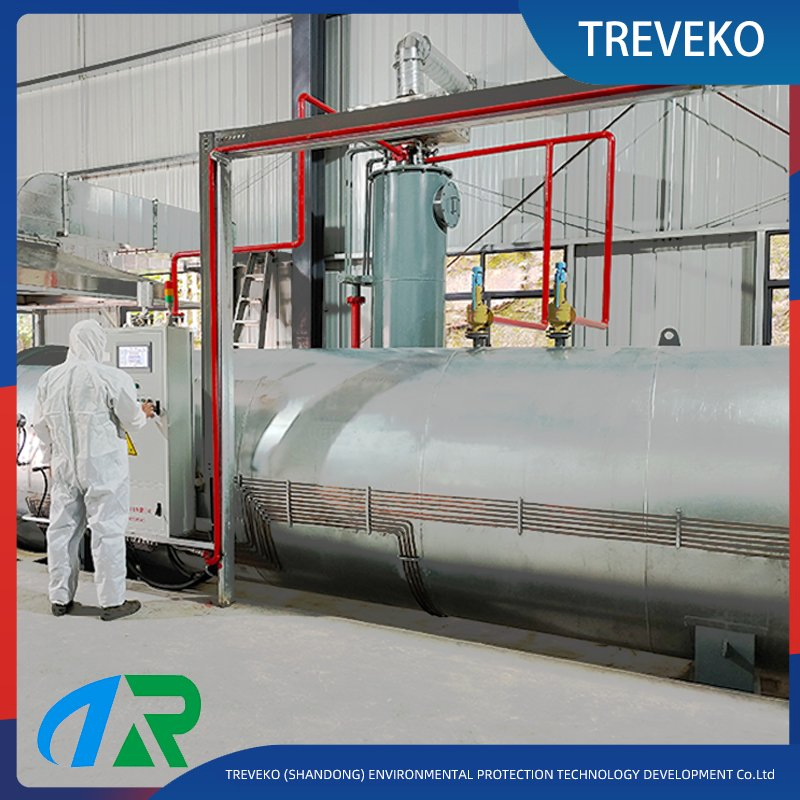

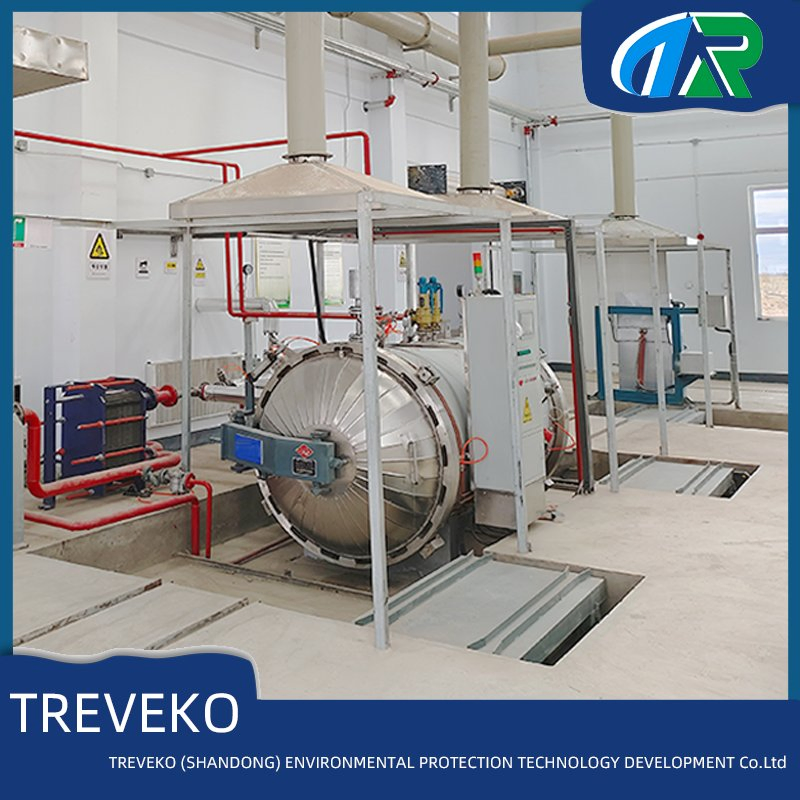

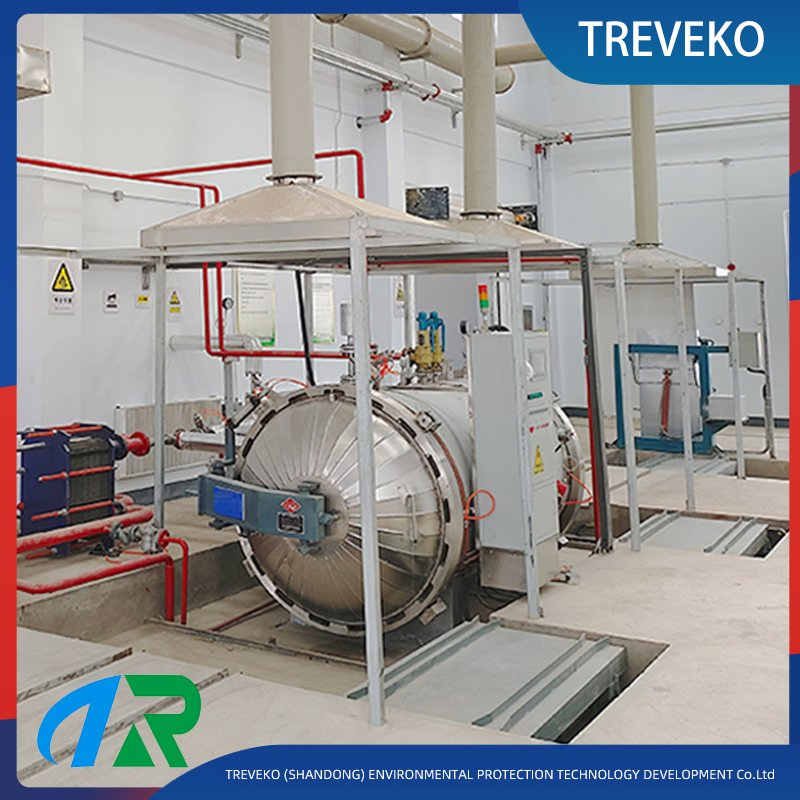

1. The equipment utilizes high-pressure saturated steam sterilization technology, strictly adhering to the technical specifications for high-temperature steam disinfection and treatment of medical waste. Based on a horizontal, sealed tank structure, it ensures that high-pressure saturated steam evenly fills the tank's interior, deeply penetrating the medical waste pile.
2. This forces the rapid denaturation and coagulation of microbial proteins, achieving comprehensive sterilization without dead zones. The horizontal tank offers superior batch processing capacity and sealed stability, achieving a killing rate of over 99.99% for pathogens like E. coli and Staphylococcus aureus.
It has a wide range of applications, capable of processing various types of solid medical waste with a water content of ≤80%, including disposable syringes, dressings, cotton balls, discarded specimens, and laboratory consumables. It is suitable for batch processing needs in medium and large-scale facilities.

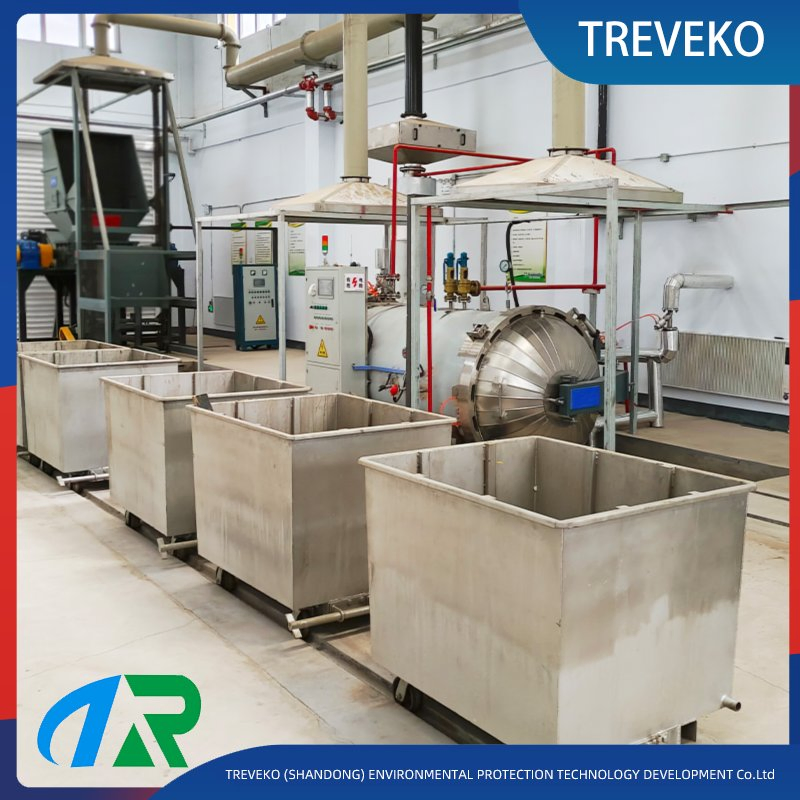

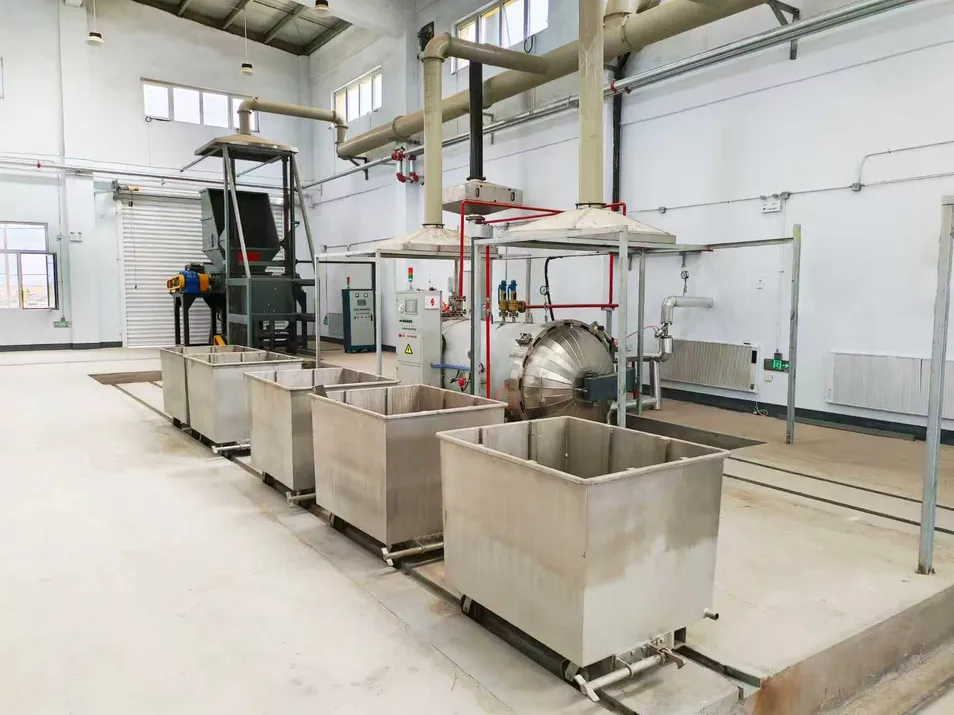

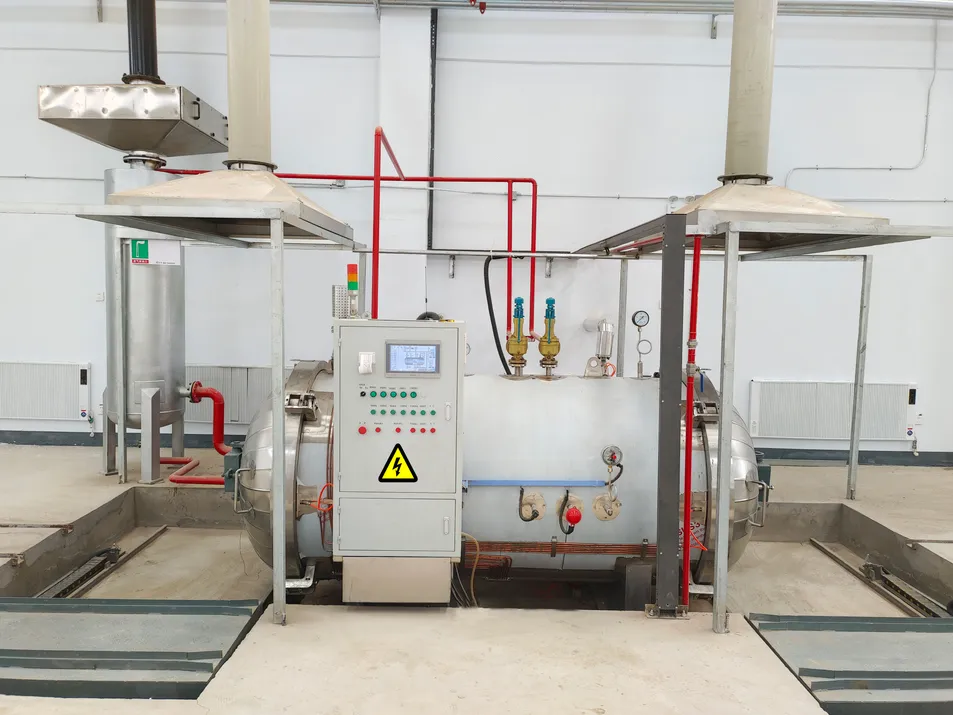

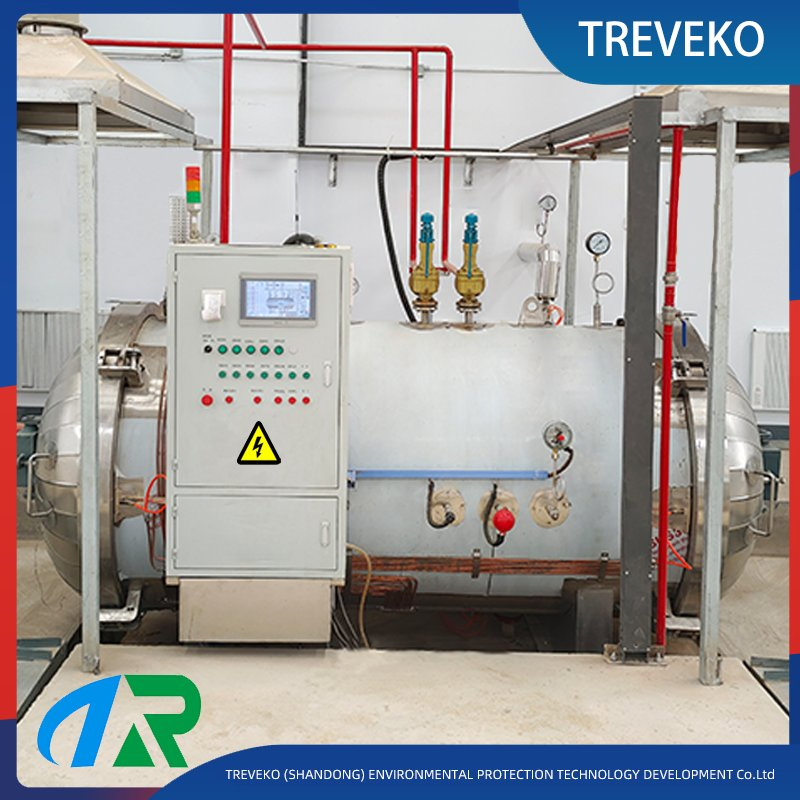

The complete set includes the sterilizer body, 2 transfer carts, air compressor, water purifier/softener, electric steam generator, induced draft fan, photo-oxidation equipment, pipeline circulation pump, and a PLC electrical control cabinet.
| System Unit | Project | 2.5T Type | 5T Type | 8T Type |
|---|---|---|---|---|
| High-pressure Tank | Volume | 2.5m³ | 10m³ | 12m³ |
| Material | Design pressure 0.8 MPa, SUS316 / Q345R | |||
| Water Softener | Power | 0.1KW | 0.2KW | 0.2KW |
| Water Output | ≥200KG/h | ≥500KG/h | ≥500KG/h | |
| Steam Generator | Power | 72KW×2 | 180KW×2 | 180KW×2 |
| Evaporation | 100kg/h | 250kg/h | 250kg/h | |
We use industry-standard moisture-proof and rust-proof packaging with wooden pallets and stretch film. Precision instruments are vacuum-sealed with cushioning foam. For large equipment, we provide on-site hoisting services and full logistics tracking to ensure secure arrival.
