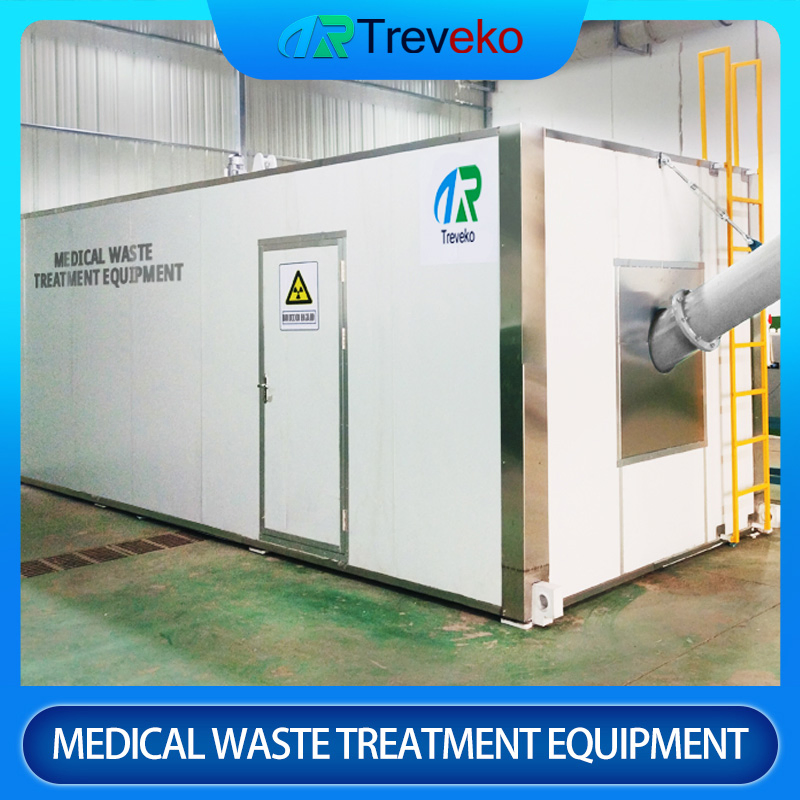

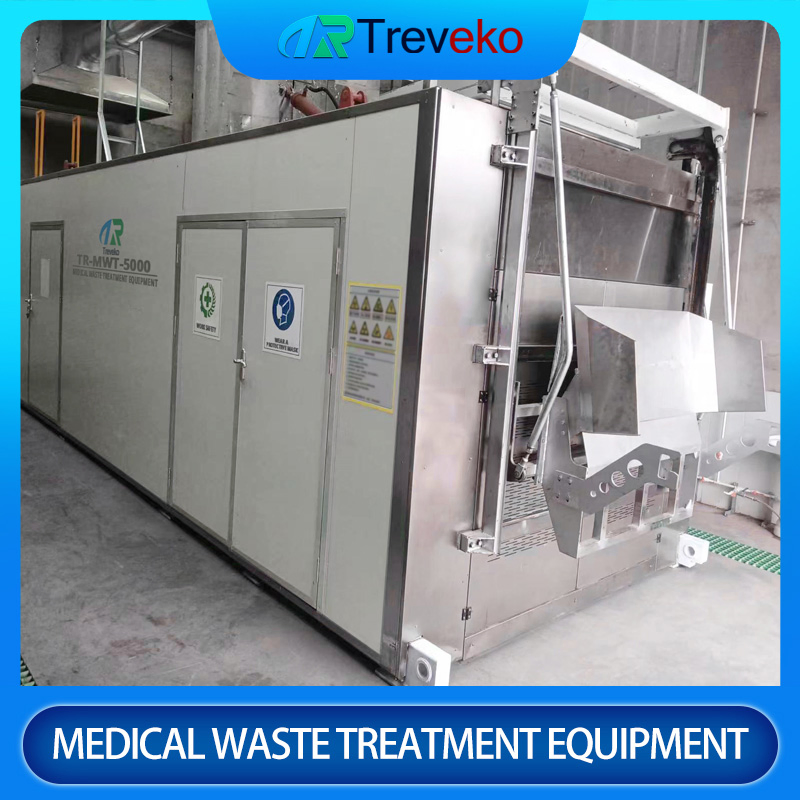

1. Integrated microwave treatment equipment for medical waste utilizes the synergistic sterilization of microwave irradiation and saturated steam. Its basic principle is to kill bacteria using the heat of steam, the thermal effect of microwaves, and the biological action of microwaves. Microwaves affect the electron and ion density around the bacterial cell membrane, thereby altering its permeability and killing bacteria.
2. From a biochemical perspective, microwaves cause nucleic acids (RNA) and deoxyribonucleic acid (DNA) hydrogen bonds to loosen and recombine, inducing genetic aberrations that kill microorganisms through both electromagnetic field and biological effects.
The entire machine adopts a PLC control system. Sterilization temperature and time are automatically managed, eliminating the need for manual intervention.

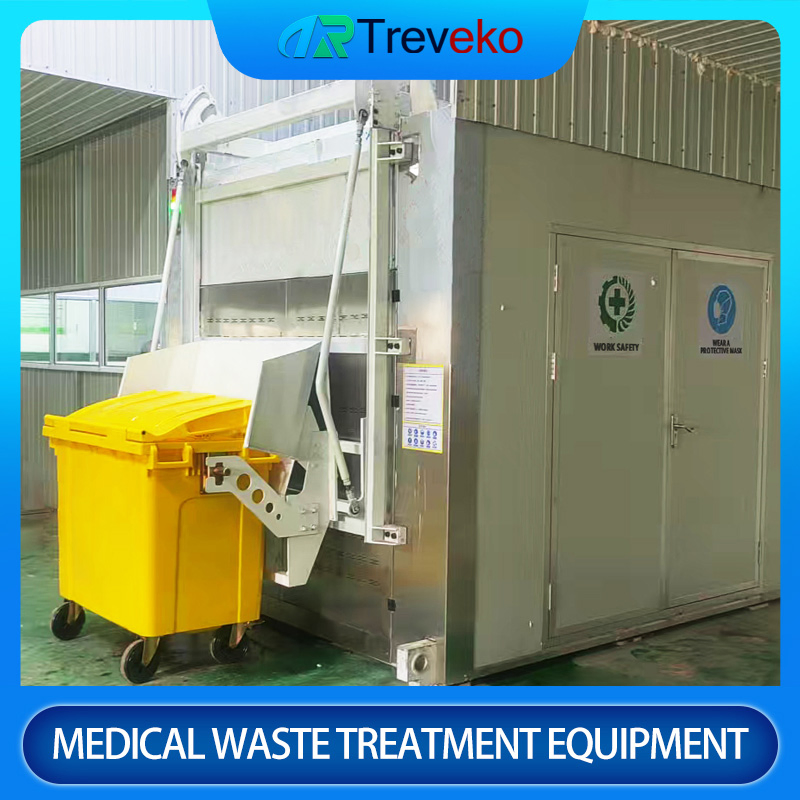

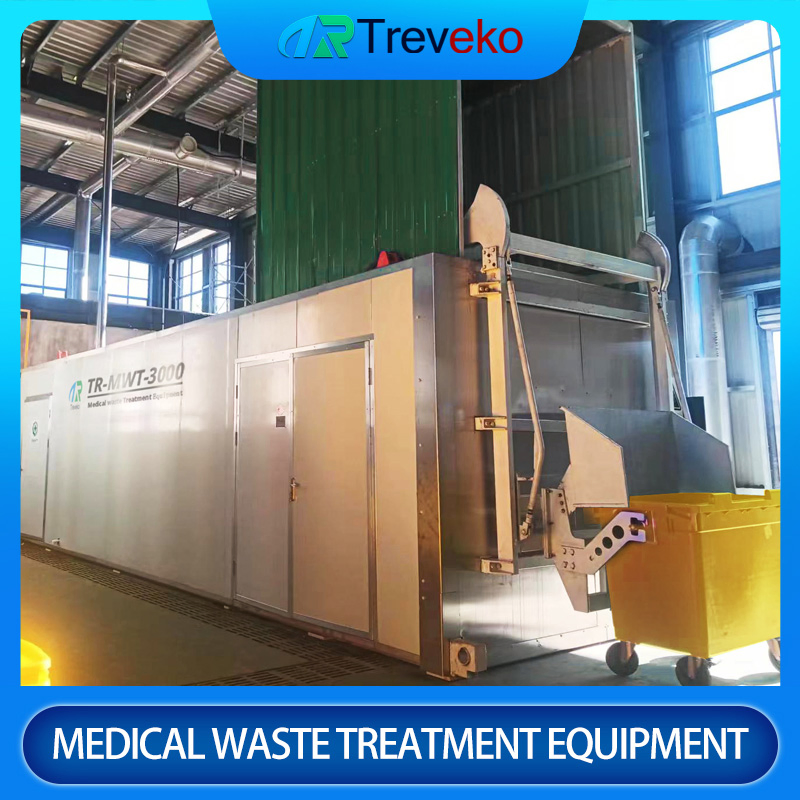

Waste is automatically lifted into a sealed silo under negative pressure. The process is leak-free, preventing exhaust gas or waste leakage.
The sterilization chamber is made of SUS304 stainless steel for superior pressure and corrosion resistance.

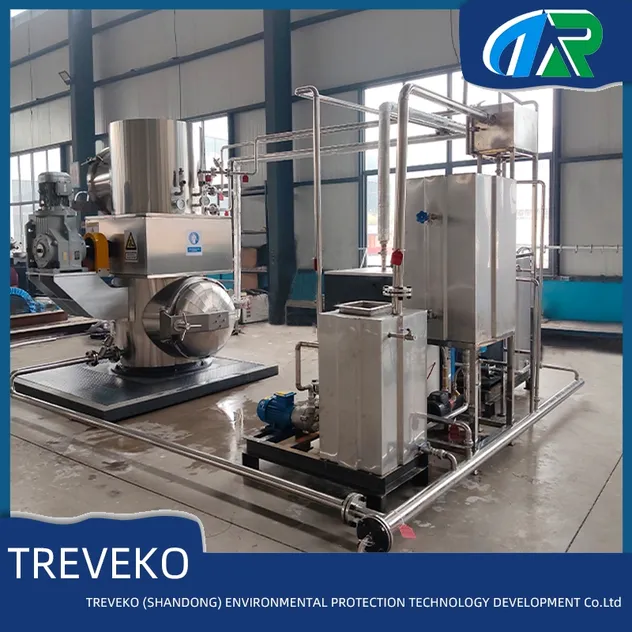

Includes a high-purity steam generator and an induced draft fan system for effective exhaust gas filtration.
| System Unit | Project Model | TR-MWT-3000 | TR-MWT-5000 | TR-MWT-10000 |
|---|---|---|---|---|
| Feeding System | Garbage Can | 660L | 660L | 660L |
| Crushing System | Power | 22kw | 30kw | 30kw |
| Sterilization | Microwave Generator | 1.5kw * 8 | 1.5kw * 10 | 1.5kw * 20 |
| Steam System | Generator Power | 54kw | 72kw | 108kw |
| Main Dimensions | L*W*H (mm) | 7000*2900*2650 | 8000*2900*2650 | 10500*2900*2650 |
| Capacity | Processing (t/h) | 3 | 5 | 10 |

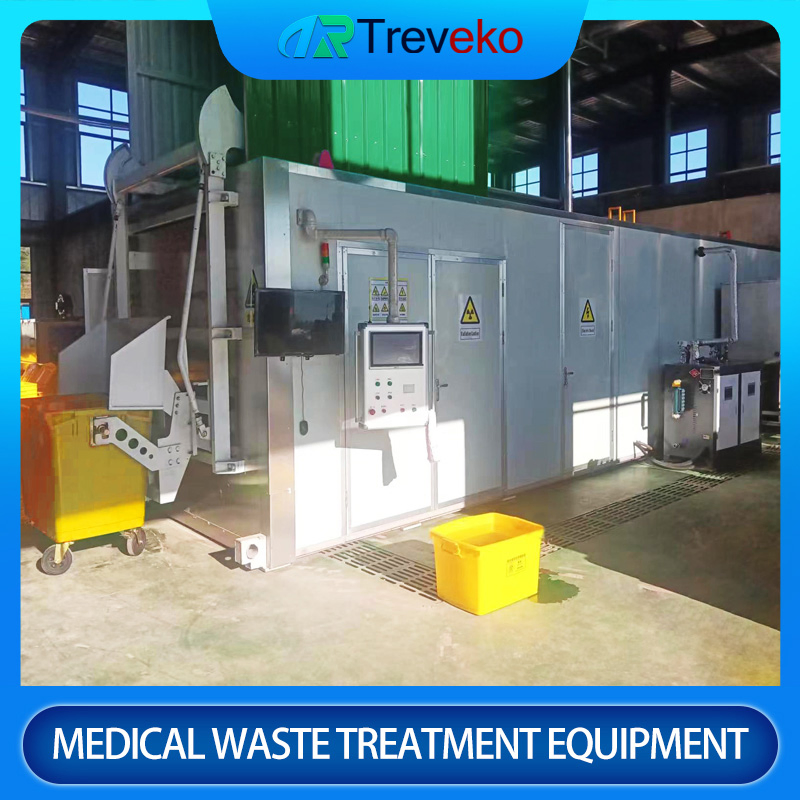

This system adopts a fully automatic PLC electrical control system with energy-saving modes. The touchscreen allows real-time monitoring of every module, including the elevator, crusher, microwave generator, and steam generator. The process meets the strict requirements of the "Technical Specification for Centralized Microwave Sterilization and Treatment of Medical Waste" (HJ/T229-2021).

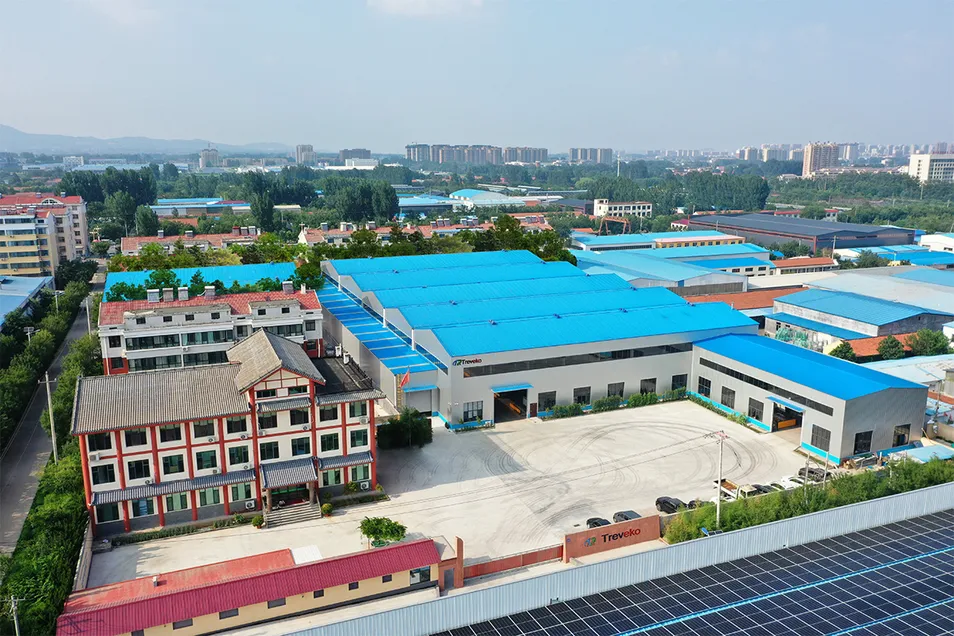

We are an innovative technology enterprise committed to environmental protection and high-end intelligent manufacturing. By focusing on ecological governance and disruptive technological innovation, we drive the industry toward intelligence and resource utilization.
