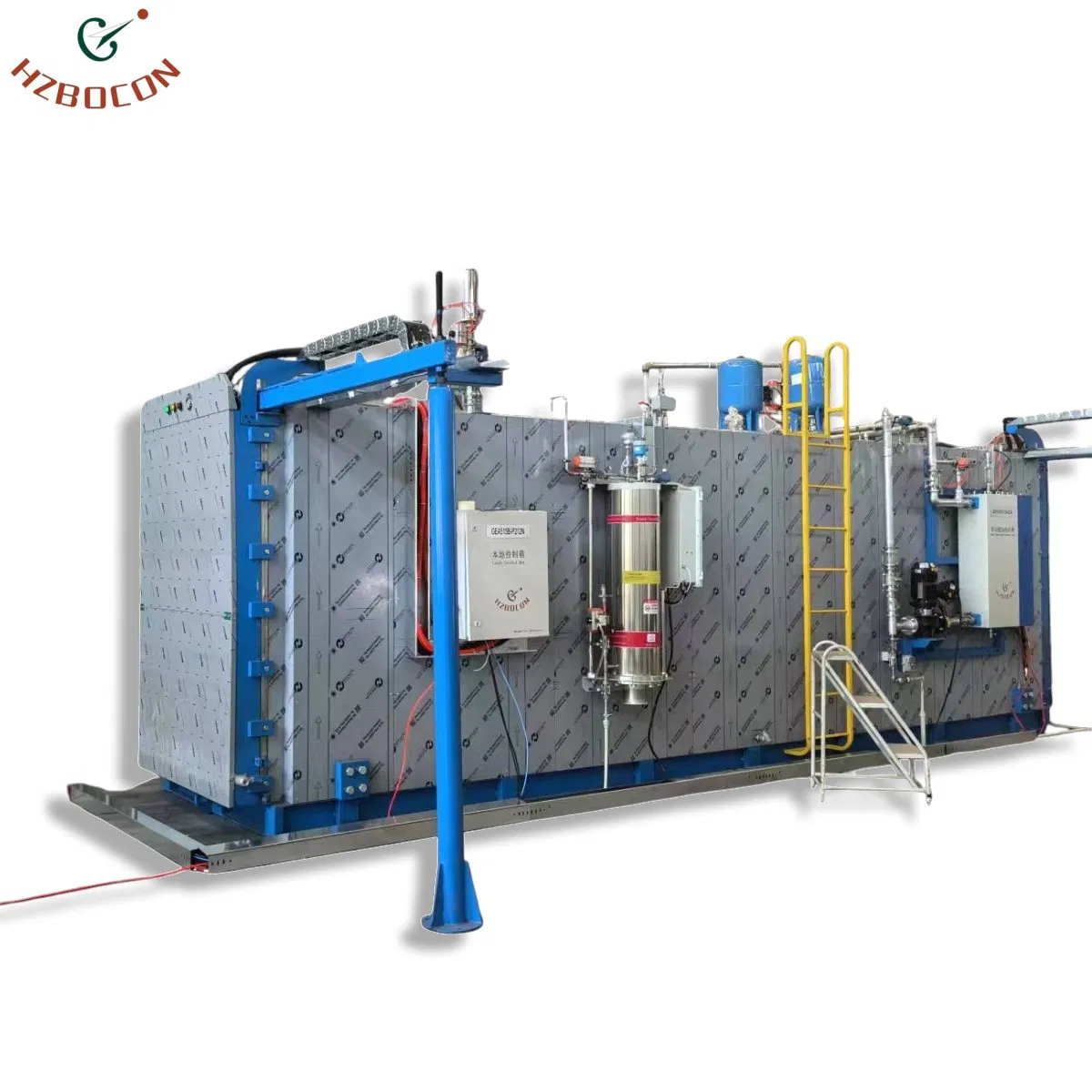

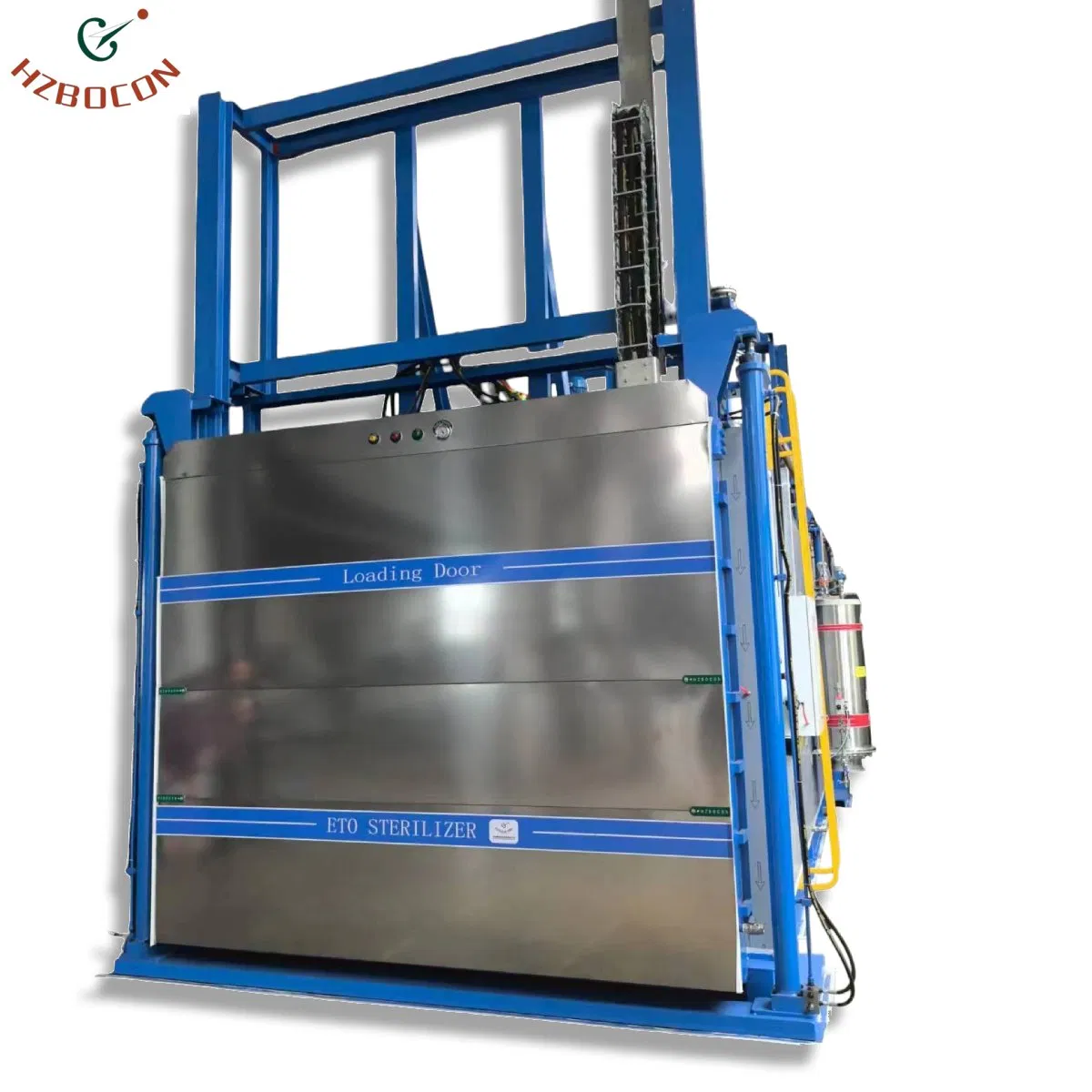

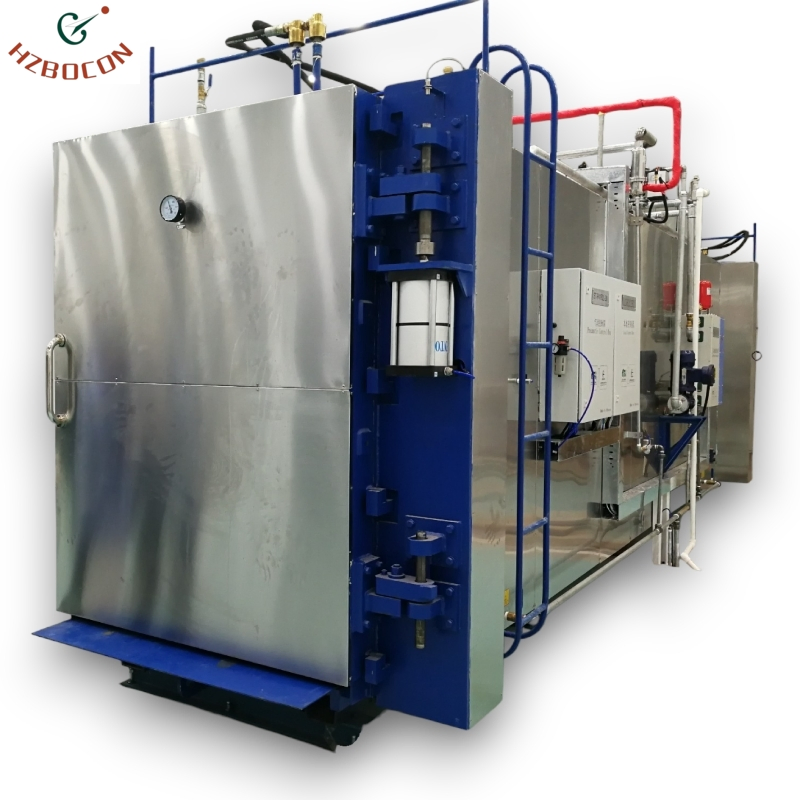

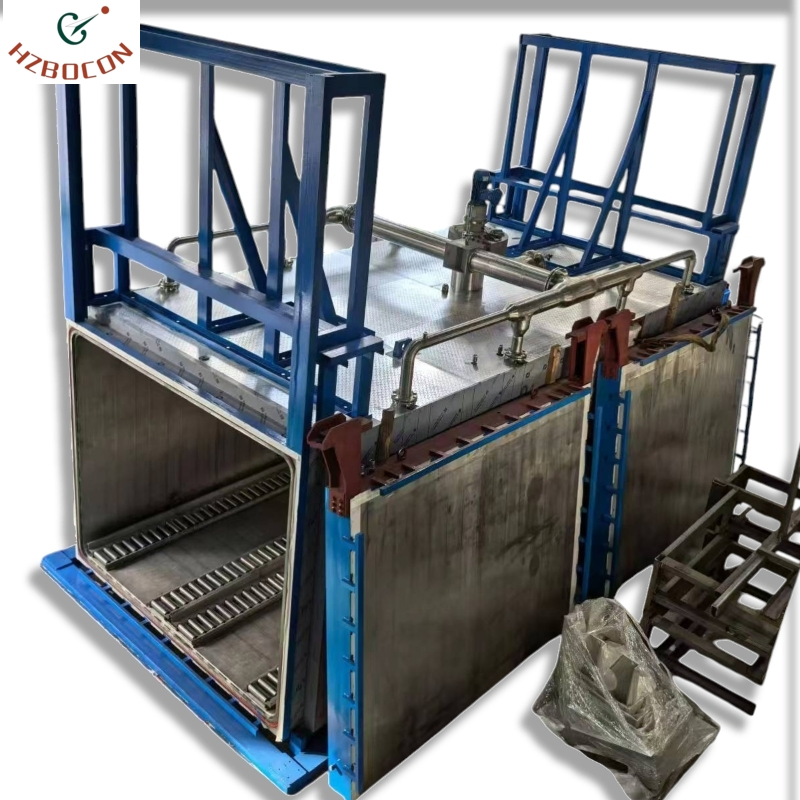

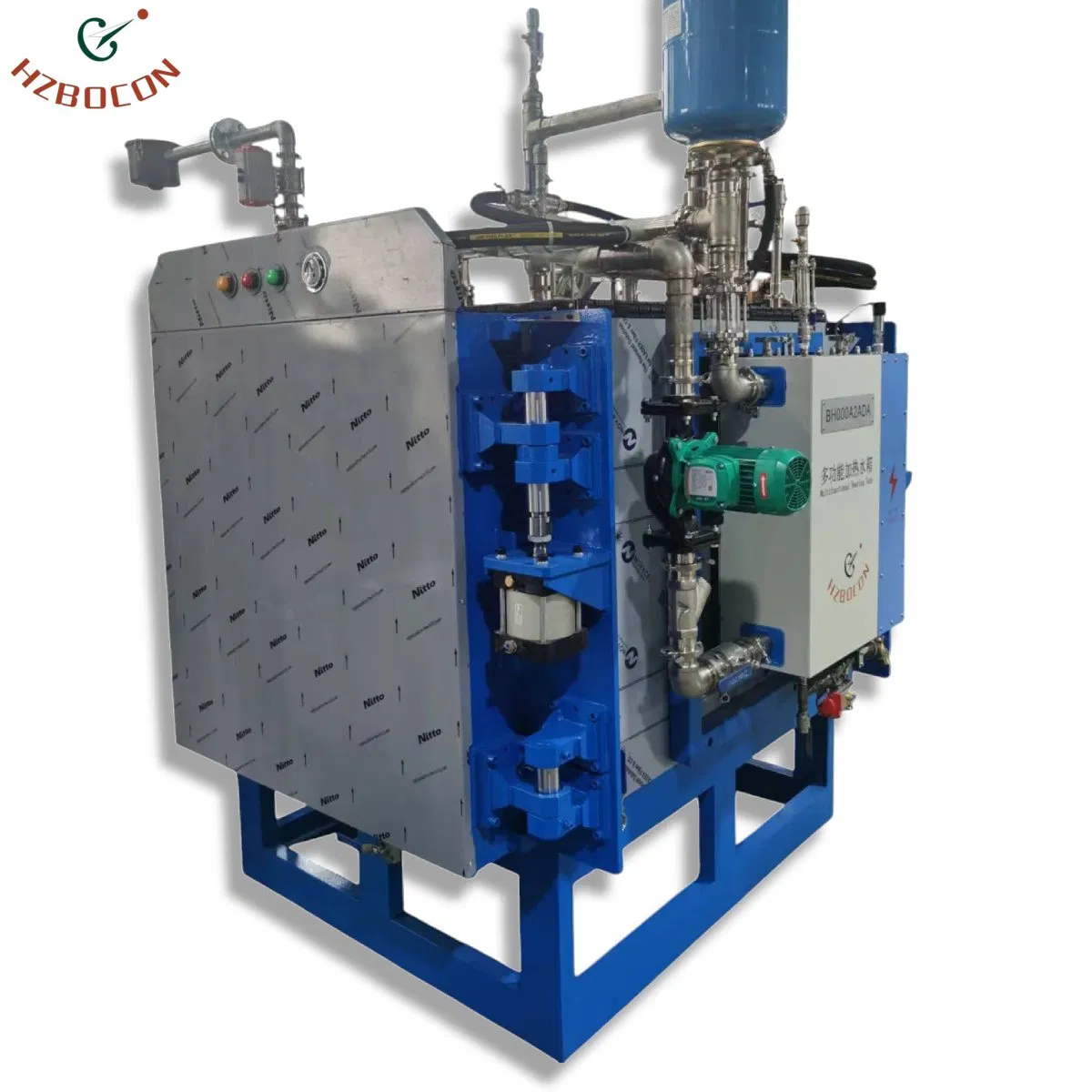

30 M3 50 M3 Eto Sterilization Medical Devices Eto Sterilization Equipment Gas Sterilization of Medical Equipment

Customization: Available
Theory: Gas Sterilization
Type: Gas Sterilization Equipments

Product Description

i

Basic Information

Model NO.
BCS
Certification
CE
Electric Tension
As Your Request
LCD Display
Without LCD Display
Alarm System
Ultra High Temperature Alarm
Recording
Information Recording and Printing
Material
Stainless Steel
Doors Type
Pneumatic Sliding/Revolving Door
Options
Preheating Room, Aeration Room, Scrubber
Specification
1cbm to 100cbm
Capacity
20 Sets / Month
HS Code
8419200000

Product Description

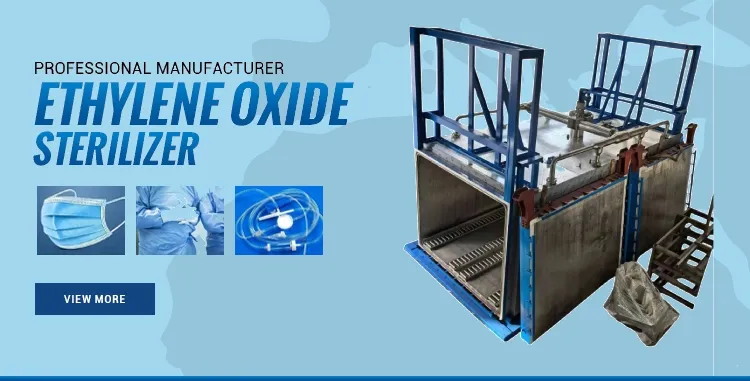

Eto Sterilization Equipment
VolumePalletInner SizeSliding Door SizeRevolving Door SizeLifting Door SizeInnerDoorWeight/T
1m³/1400*700*10001750*1270*1520//6mm6mm1t
2m³/1650*1000*12002070*2520*17202000*1570*1720/6mm6mm2t
5m³2*(1200*1000)2250*1350*17002670*3220*22202600*1920*22202670*1910*39508mm6mm4.5t
10m³4*(1200*1000)4500*1350*17004920*3220*22204850*1920*22204920*1910*39506mm8mm7t
20m³7*(1200*1000)7500*1350*20007920*3220*25207850*1920*25207920*1910*45508mm8mm12t
52m³13*(1200*1000)13900*1400*270014320*3320*322014250*1970*322014320*1960*59508mm10mm28t
101m³32*(1200*1000)17050*2700*220017510*3300*278017510*3300*278017510*3300*50708mm10mm45t
P

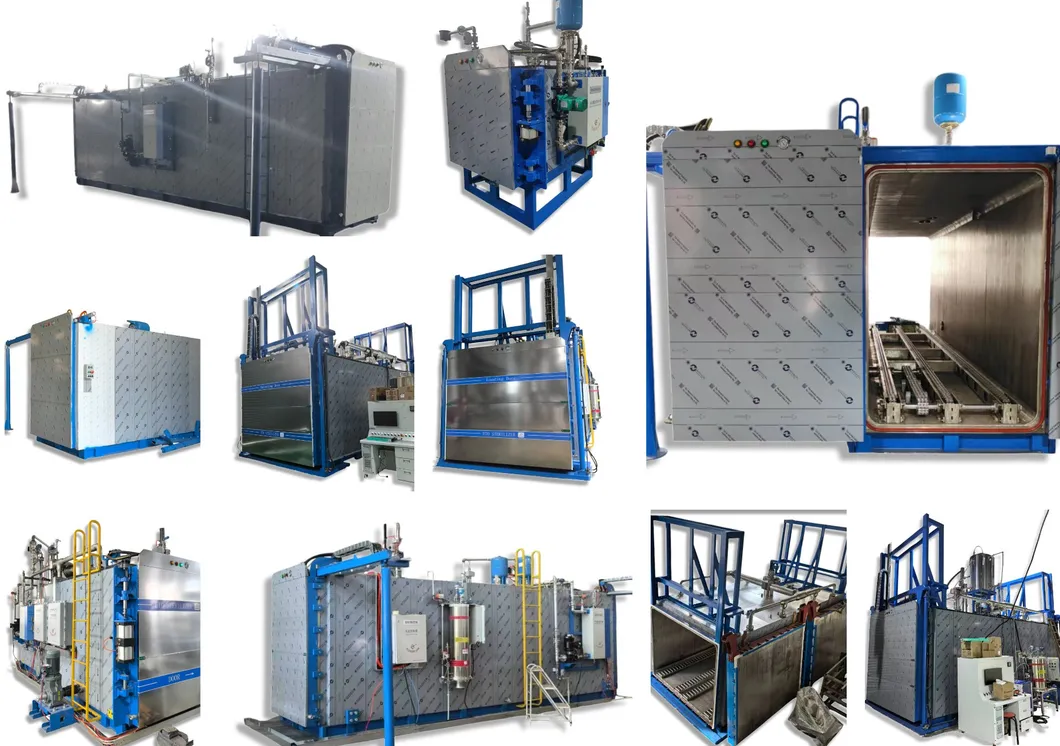

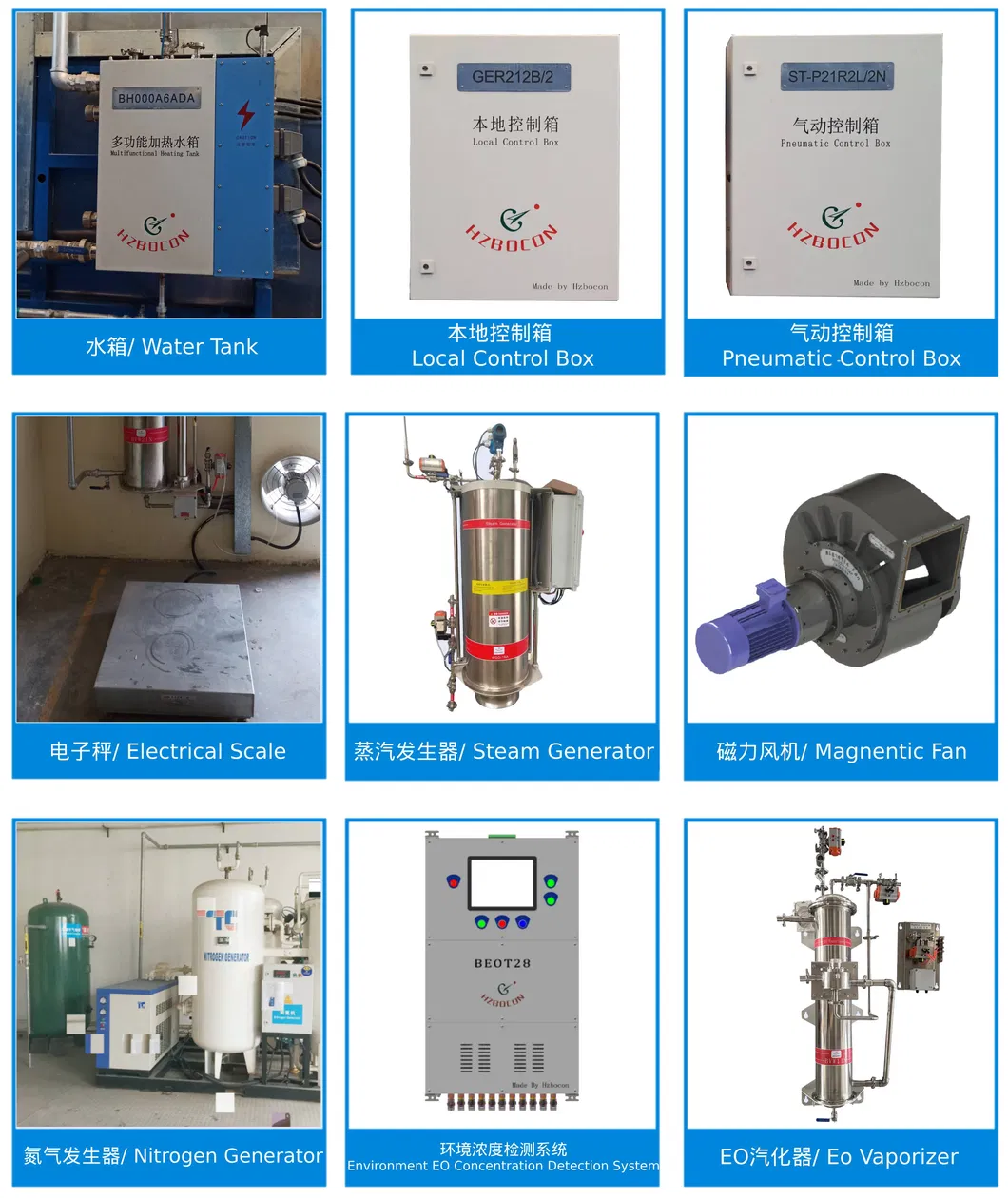

Detailed Photos

Detailed Photo 3
C

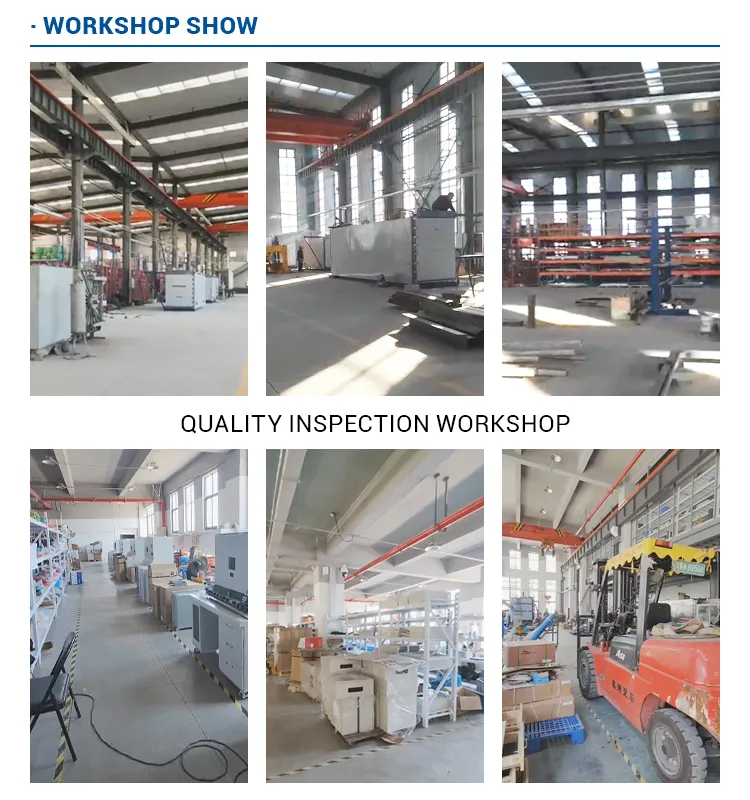

Company Profile

?

Frequently Asked Questions

What is ethylene oxide (EtO) sterilization?
Ethylene oxide is a gas widely used in sterilization; more than 50% of medical devices are sterilized by EtO. It is used either as 100% ETO or in combination with carbon dioxide. It is preferred for large volume sterilization due to its excellent penetration properties.
What are the main advantages of EtO sterilization?
Key benefits include: low temperature processing to maintain product characteristics, ability to sterilize products in final sealed packaging, broad microbicidal activity, compatibility with a wide range of materials (including electronics and batteries), and low maintenance costs.
What types of products can be sterilized using an ETO Sterilizer?
It is suitable for endoscopes, plastic/rubber products (gloves, syringes, catheters), surgical instruments, anesthetic vessels (masks, tubes), and cotton fiber products (surgical gowns, bandages, bedding).
What are the warranty terms for the equipment?
The mainframe of the cabinet is guaranteed for at least 5 years, the control system for 2 years, and other purchased parts are guaranteed for 1 year.
Do you provide installation and validation services?
Yes, we provide overseas service where engineers are arranged to go on-site for installation and operator training. We also provide FAT, IQ, OQ, and support for PQ, including software validation.
What is the typical production and installation timeframe?
Equipment production and delivery takes 60-90 days. The installation and debugging period ranges from 15-60 days depending on chamber size, with IQ and OQ taking approximately 7 days.
