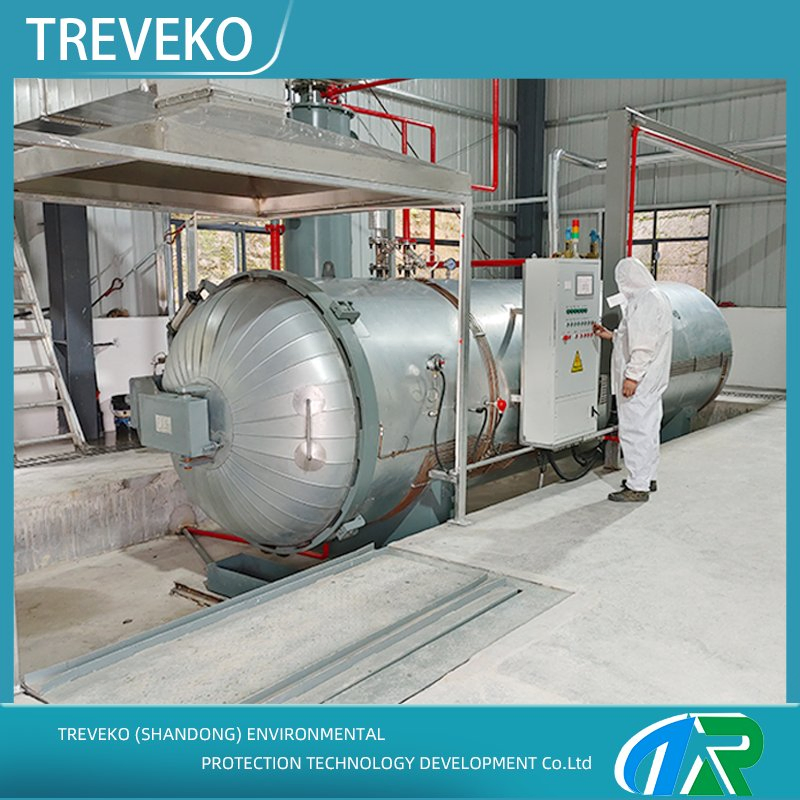

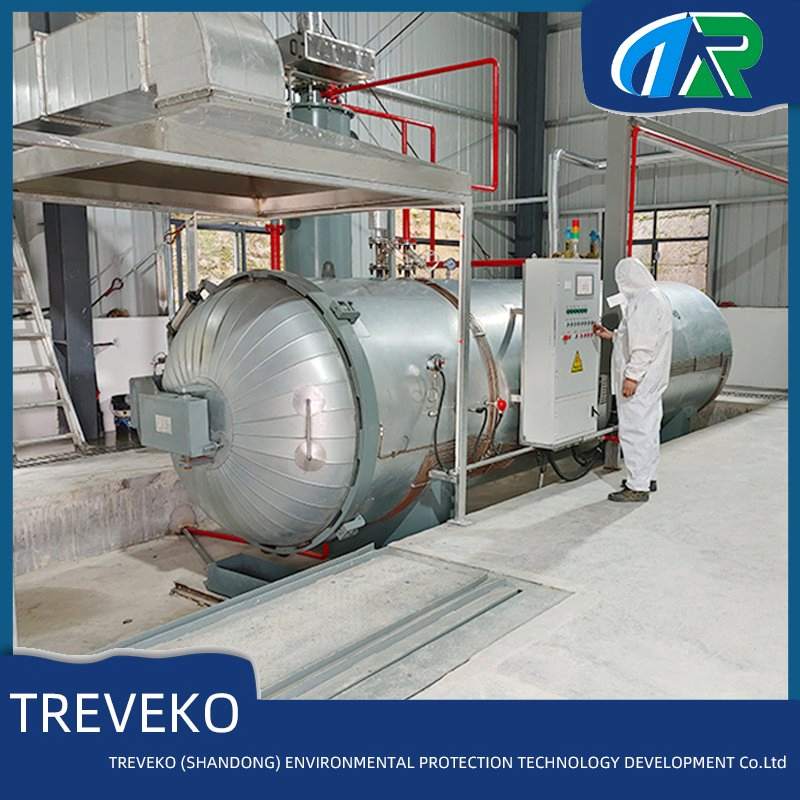

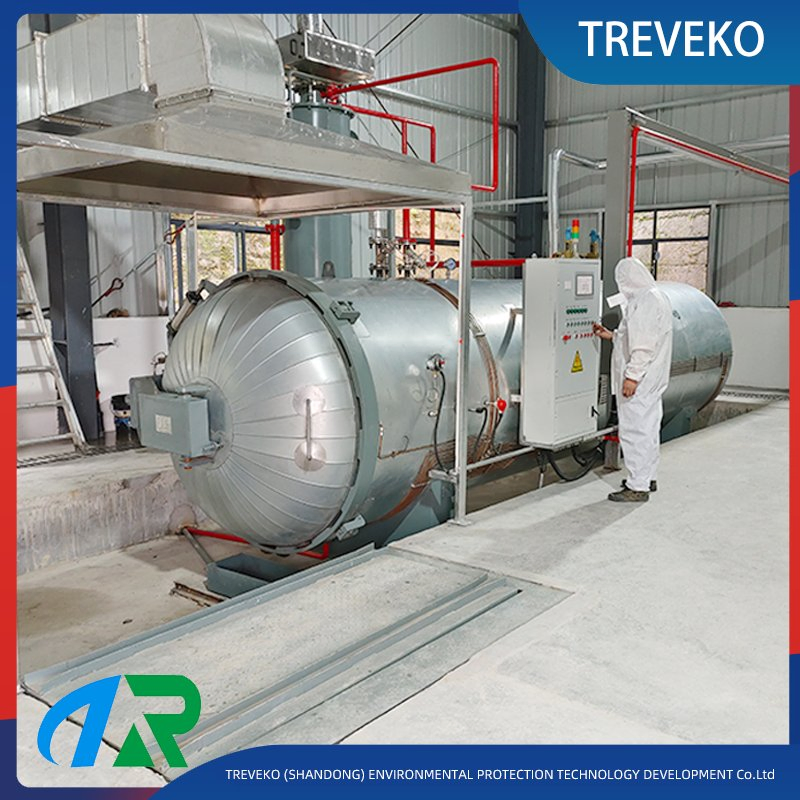

Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
1 / 5
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE
Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE

Medical Waste High Temperature Steam Sterilization Processing Equipment for Contaminated PPE

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model:
TR-HMT-3.2
Condition:
New
Certification:
ISO, CE
Automation:
Automatic
Daily Capacity:
≥ 3.2 T/D
Sterilization Temp:
≥ 135°C
Working Pressure:
≥ 0.22 MPa
Sterilization Time:
≥ 45 Min
Vacuum Method:
Pre-Vacuum / -0.09 MPa
Material:
304 Stainless Steel
Shredder Power:
18.5 Kw X 2
HS Code:
8419200000
★

Product Description

This Medical Waste High-Temperature Steam Sterilization System is a complete emergency disposal solution designed for a capacity of 3.2 tons per day. It provides effective treatment for contaminated PPE and other medical waste.

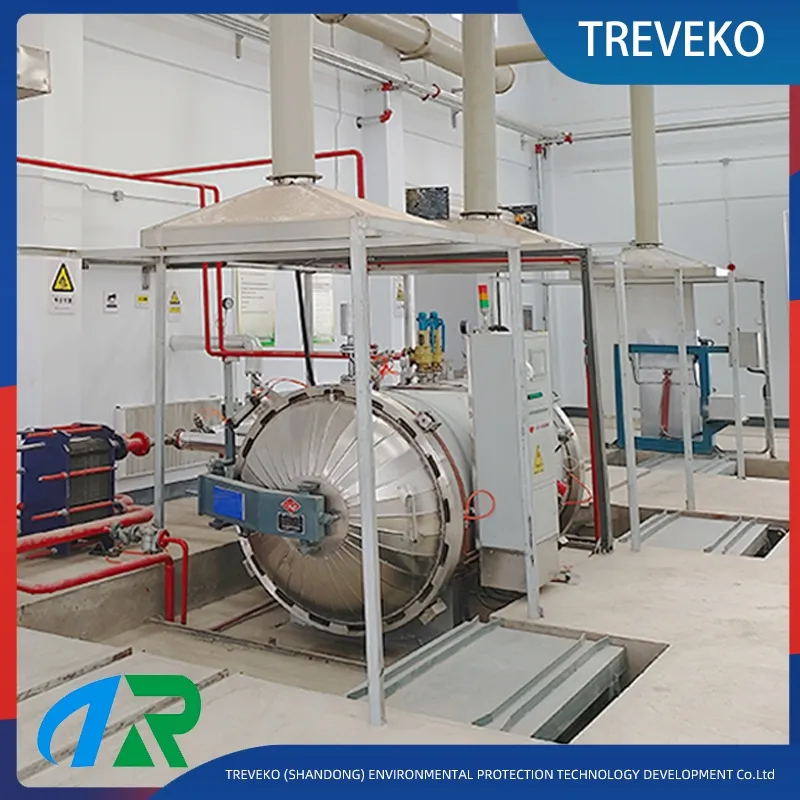

High Temp Sterilization System

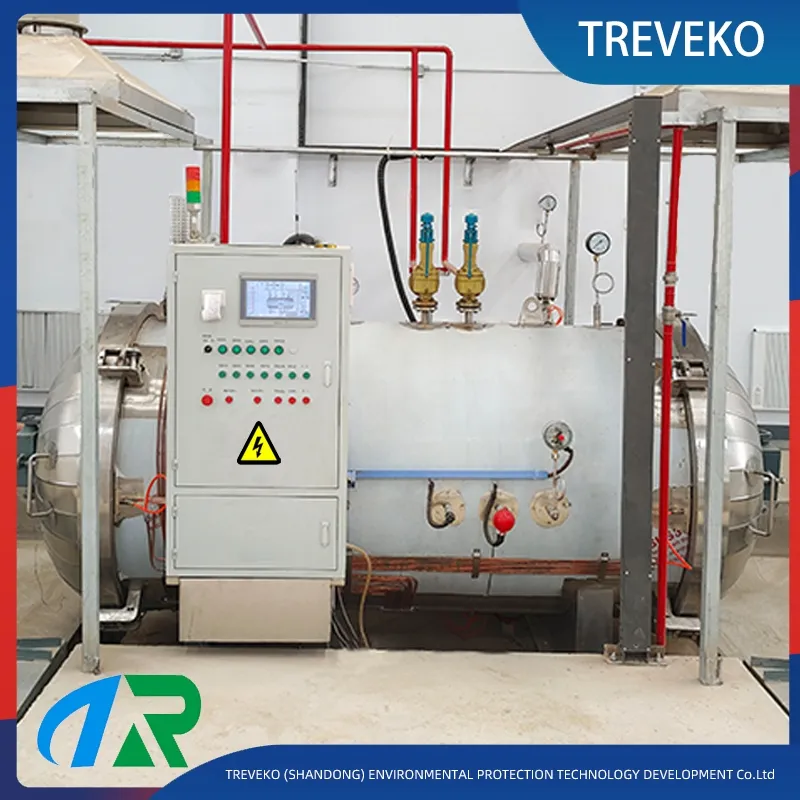

Equipment Detail

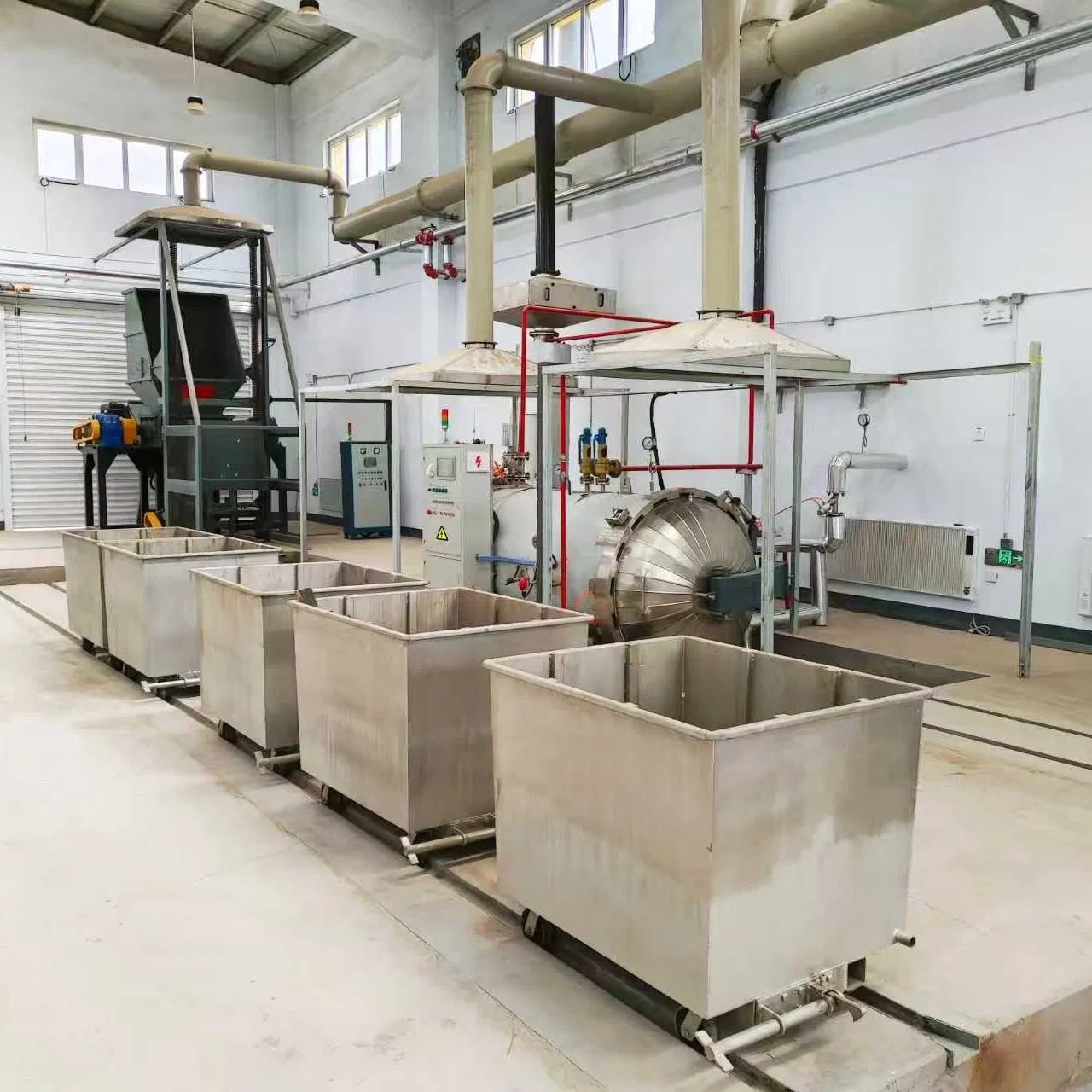

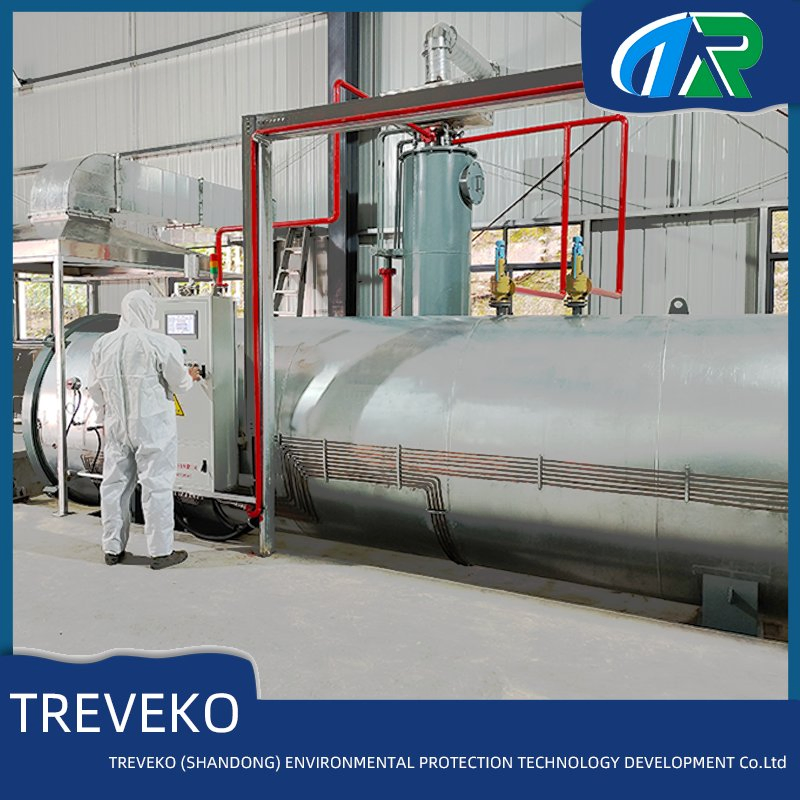

System Overview: Waste is loaded into stainless-steel carts and transferred into a horizontal cylindrical sterilizer. Utilizing high-temperature cycles (≥135°C), the system ensures complete sterilization before moving to the shredding stage.

Irreversible Disposal: The sterilized waste is processed through a dual-shaft shredder, transforming it into ordinary municipal solid waste suitable for final disposal.

⚙

Process Flow

01
Feeding & Loading: Waste is loaded into dedicated sterilization carts.
02
Sterilization Cycle: Pre-vacuum phase air removal, followed by steam injection at ≥135°C and ≥0.22 MPa for ≥45 minutes.
03
Unloading: Automated rail system transfers carts to the discharge point.
04
Shredding: Dual-shaft shredder provides complete destruction and volume reduction.
05
Collection: Shredded residue is conveyed for final disposal as harmless waste.
📋

Technical Parameters

No. Project Item Parameter Specification
1ModelTR-MJG-3.2
2Processing Capacity≥3.2 T/D
3Main MaterialQ345R steel (thickness ≥ 16mm)
4Structure TypeCircular horizontal
5Sterilizer Diameter≥1700mm
6Sterilizer Length≥4500mm
7Control SystemAutomatic PLC with Manual Override
8Door StructureRotary Swing Door (2 doors)
✚

Other Specialized Equipment

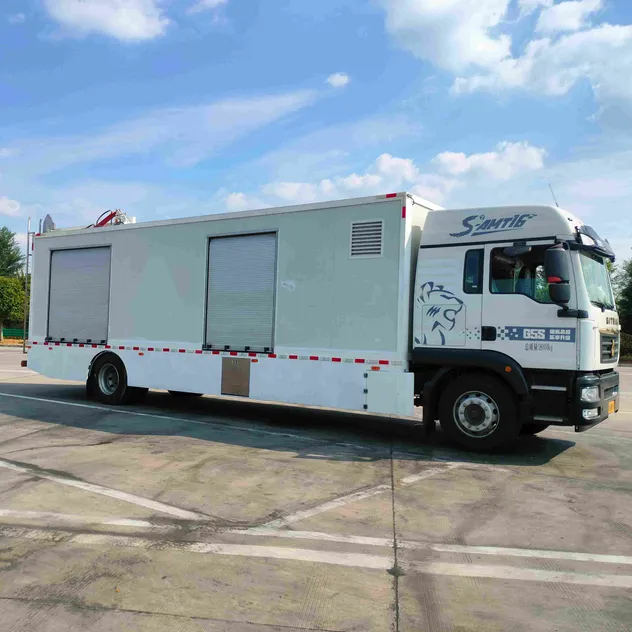

Mobile Equipment

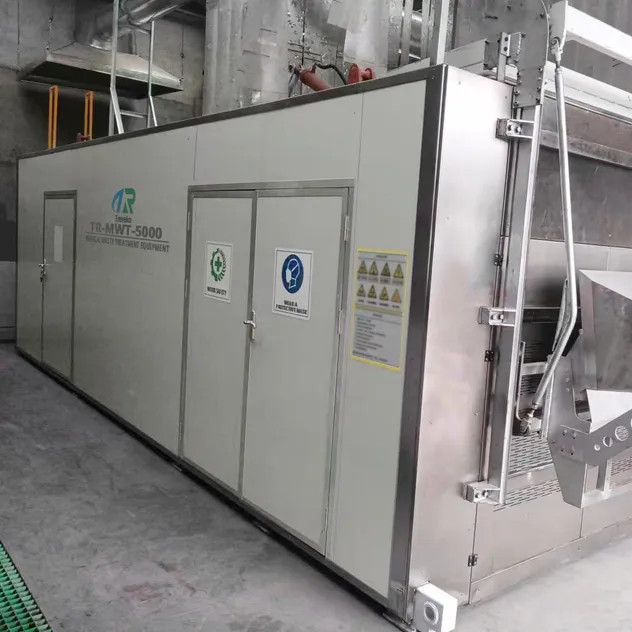

Microwave Treatment
Small Scale System

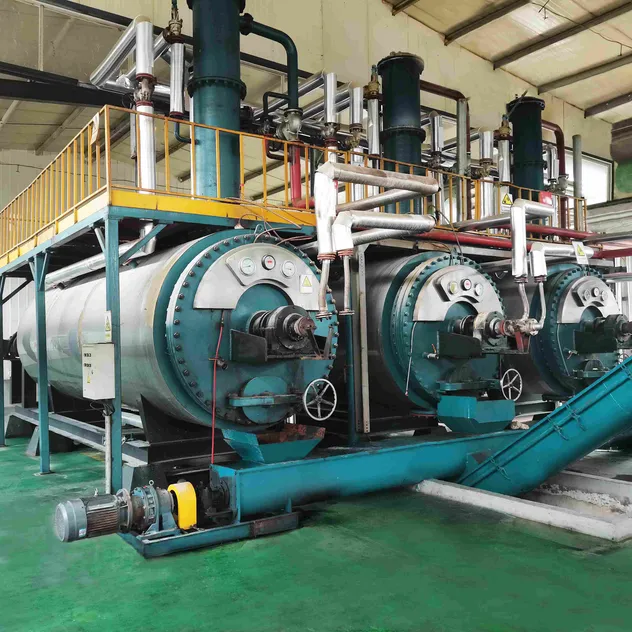

Chemical Treatment

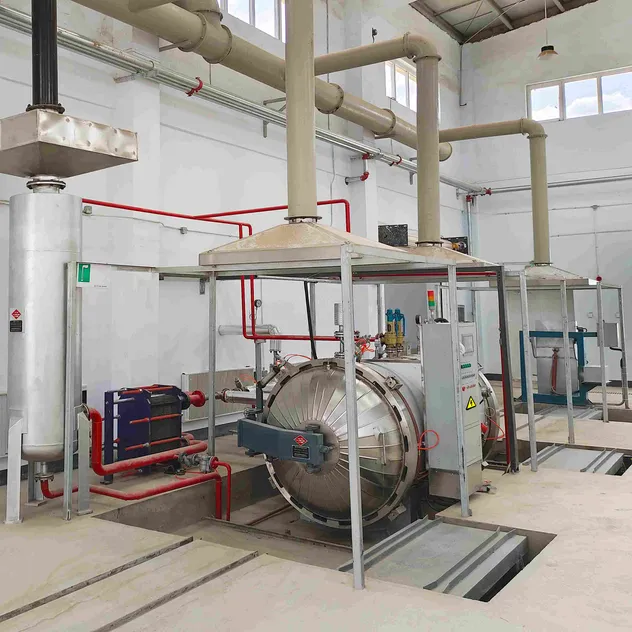

Horizontal Autoclave

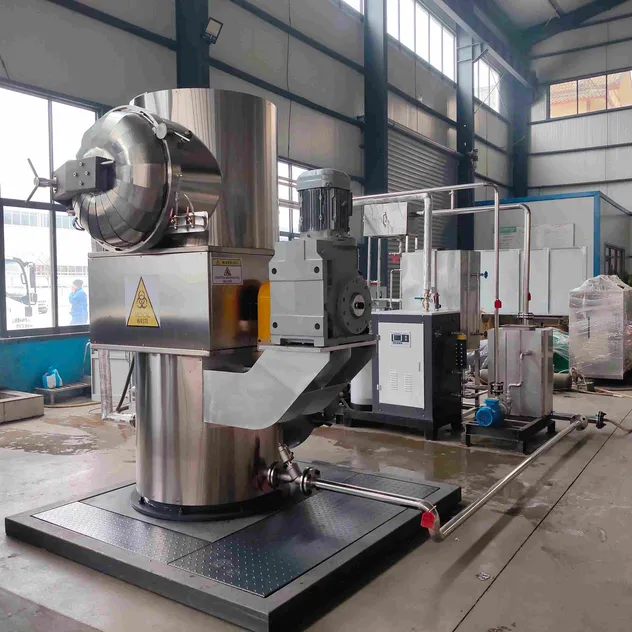

Vertical System
🤝

Global Cooperation

Visit 1
Visit 2
Visit 3
?

Frequently Asked Questions

Q1: What is the daily processing capacity of this system?
The TR-HMT-3.2 system is designed for a daily capacity of ≥3.2 tons per day.
Q2: What are the key sterilization parameters?
The system operates at a temperature of ≥135°C and a pressure of ≥0.22 MPa, with a sterilization holding time of at least 45 minutes.
Q3: Is the operation automated?
Yes, the system features a fully automatic PLC control system with manual override available for safety and operational flexibility.
Q4: What materials are used in the construction?
The sterilizer vessel is made of Q345R steel with anti-corrosion treatment, while sterilization carts and rollers use 304 Stainless Steel.
Q5: How is the final waste handled?
After sterilization, the waste is shredded into small fragments, transforming it into harmless municipal solid waste for landfilling.
Q6: What is the typical lead time for delivery?
Standard models generally have a delivery time ranging from 30 to 60 days, depending on specific configuration requirements.
